Overlay Stitch Meshing 522007 Don Sheehy Overlay Stitch

Overlay Stitch Meshing 5/2/2007 Don Sheehy Overlay Stitch Meshing 1

A competitive algorithm for no-large-angle triangulation Don Sheehy Joint work with Gary Miller and Todd Phillips To appear at ICALP 2007 5/2/2007 Don Sheehy Overlay Stitch Meshing 2

The Problem Input: A Planar Straight Line Graph 5/2/2007 Don Sheehy Overlay Stitch Meshing 3

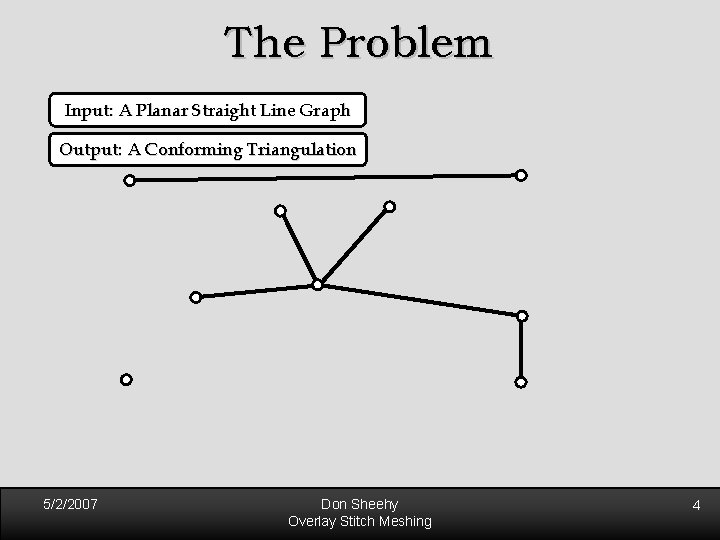

The Problem Input: A Planar Straight Line Graph Output: A Conforming Triangulation 5/2/2007 Don Sheehy Overlay Stitch Meshing 4

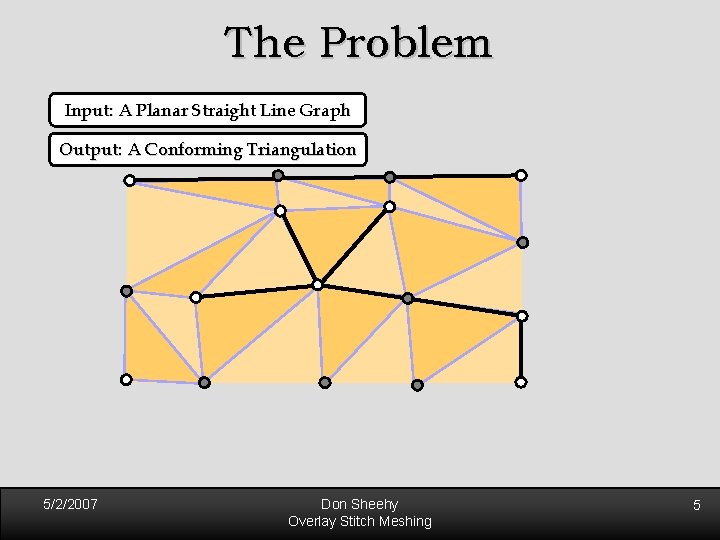

The Problem Input: A Planar Straight Line Graph Output: A Conforming Triangulation 5/2/2007 Don Sheehy Overlay Stitch Meshing 5

Why would you want to do that? 5/2/2007 Don Sheehy Overlay Stitch Meshing 6

5/2/2007 Don Sheehy Overlay Stitch Meshing 7

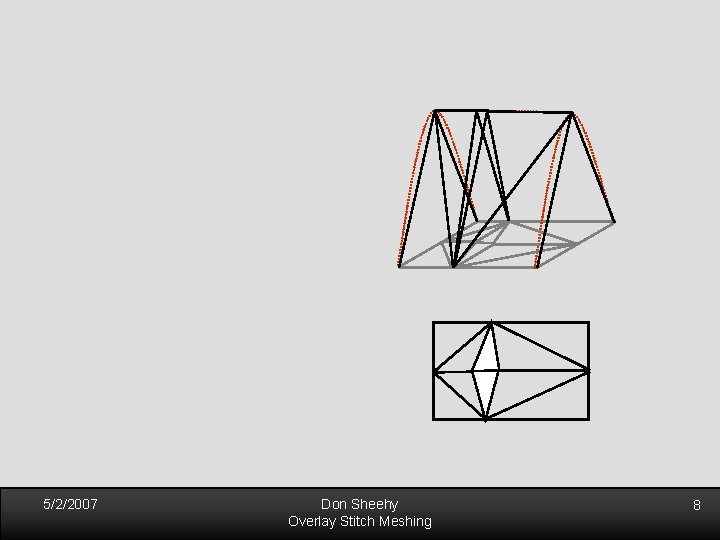

5/2/2007 Don Sheehy Overlay Stitch Meshing 8

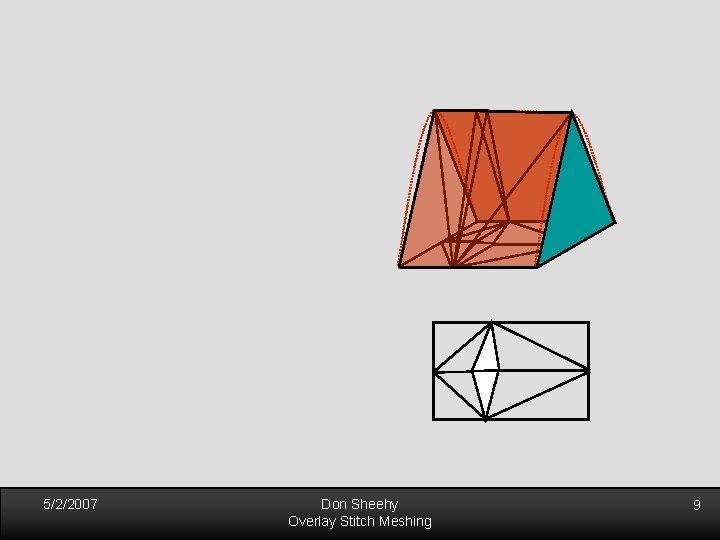

5/2/2007 Don Sheehy Overlay Stitch Meshing 9

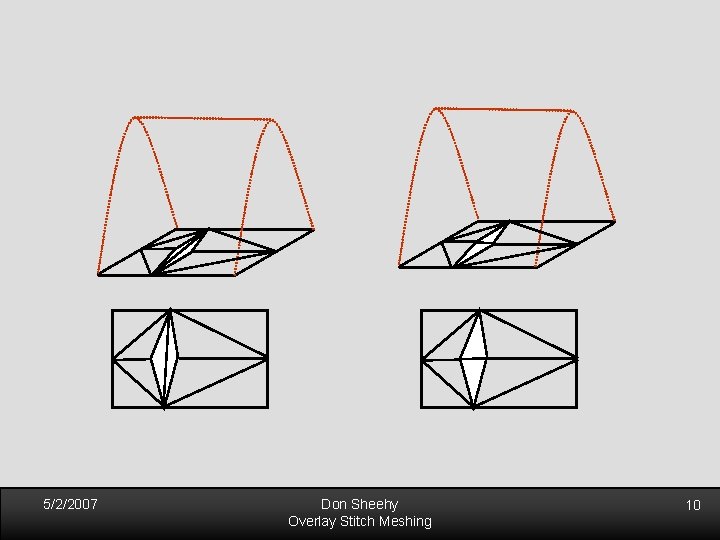

5/2/2007 Don Sheehy Overlay Stitch Meshing 10

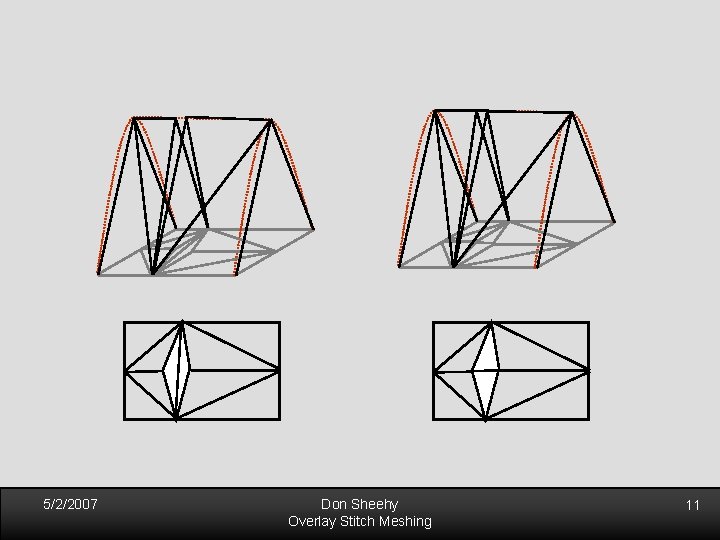

5/2/2007 Don Sheehy Overlay Stitch Meshing 11

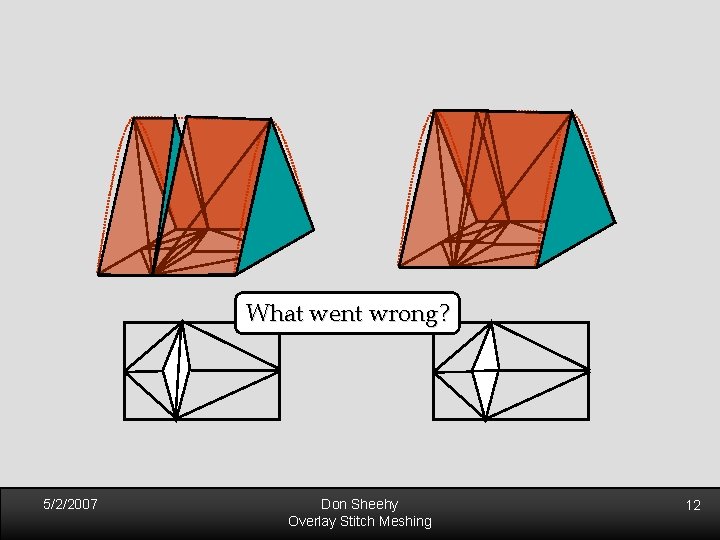

What went wrong? 5/2/2007 Don Sheehy Overlay Stitch Meshing 12

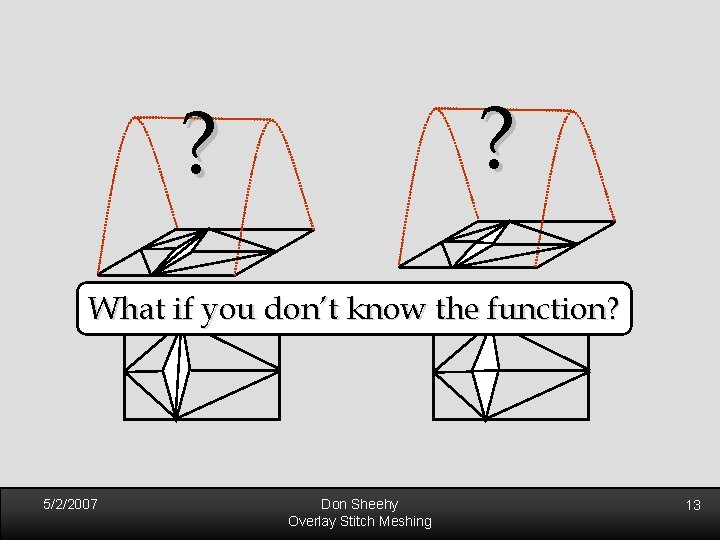

? ? What if you don’t know the function? 5/2/2007 Don Sheehy Overlay Stitch Meshing 13

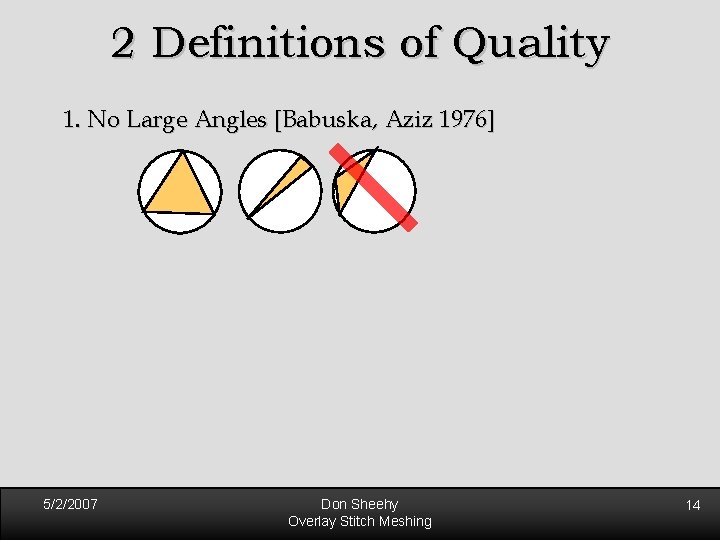

2 Definitions of Quality 1. No Large Angles [Babuska, Aziz 1976] 5/2/2007 Don Sheehy Overlay Stitch Meshing 14

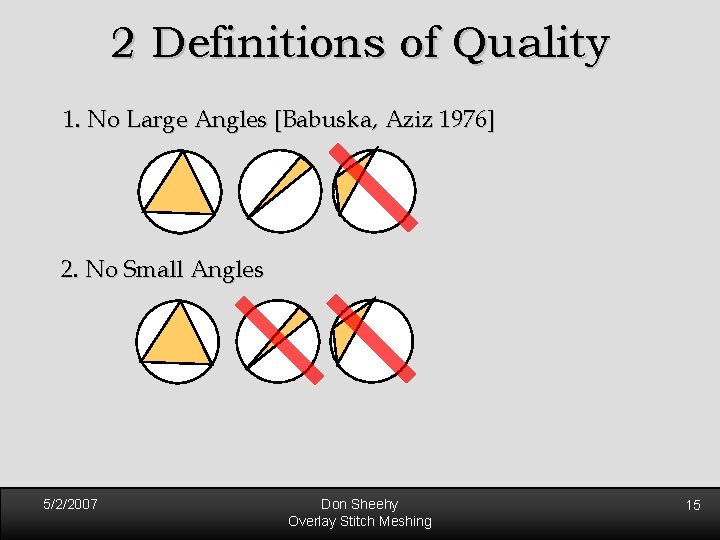

2 Definitions of Quality 1. No Large Angles [Babuska, Aziz 1976] 2. No Small Angles 5/2/2007 Don Sheehy Overlay Stitch Meshing 15

No Small Angles 5/2/2007 Don Sheehy Overlay Stitch Meshing 16

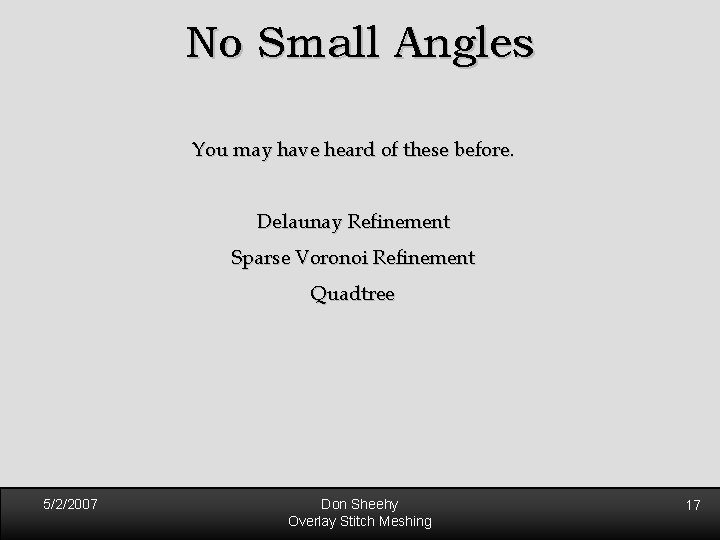

No Small Angles You may have heard of these before. Delaunay Refinement Sparse Voronoi Refinement Quadtree 5/2/2007 Don Sheehy Overlay Stitch Meshing 17

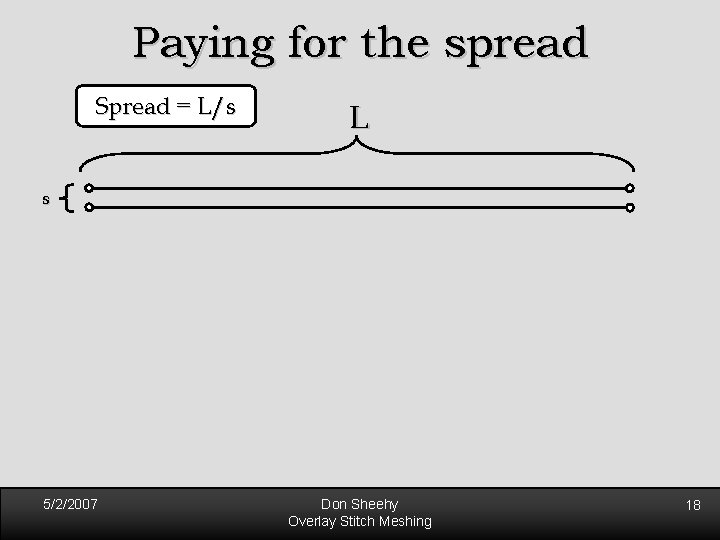

Paying for the spread Spread = L/s L s 5/2/2007 Don Sheehy Overlay Stitch Meshing 18

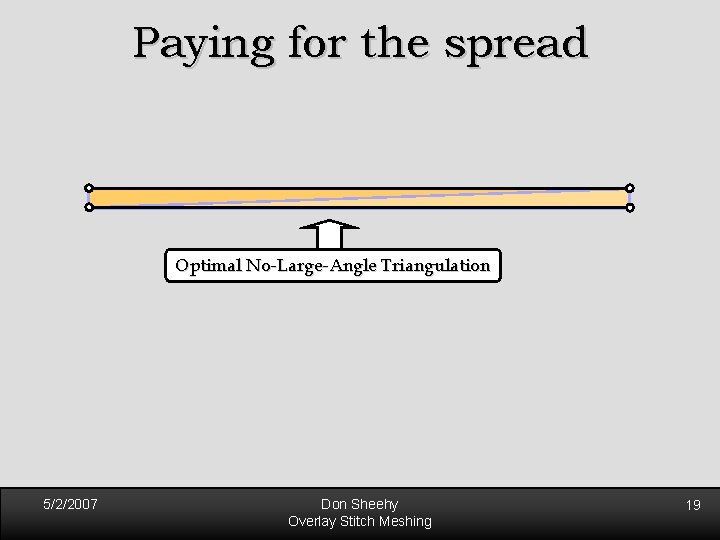

Paying for the spread Optimal No-Large-Angle Triangulation 5/2/2007 Don Sheehy Overlay Stitch Meshing 19

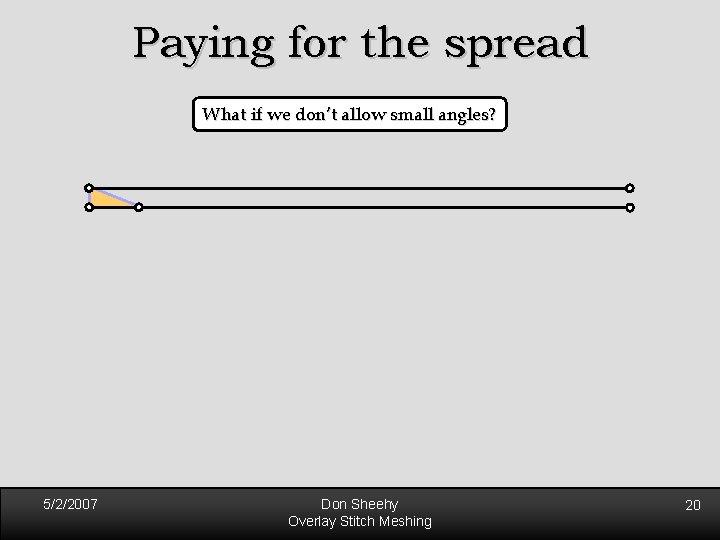

Paying for the spread What if we don’t allow small angles? 5/2/2007 Don Sheehy Overlay Stitch Meshing 20

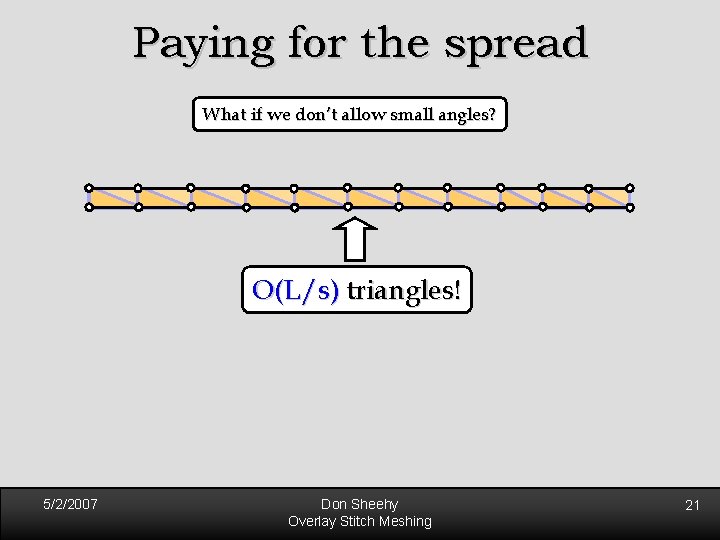

Paying for the spread What if we don’t allow small angles? O(L/s) triangles! 5/2/2007 Don Sheehy Overlay Stitch Meshing 21

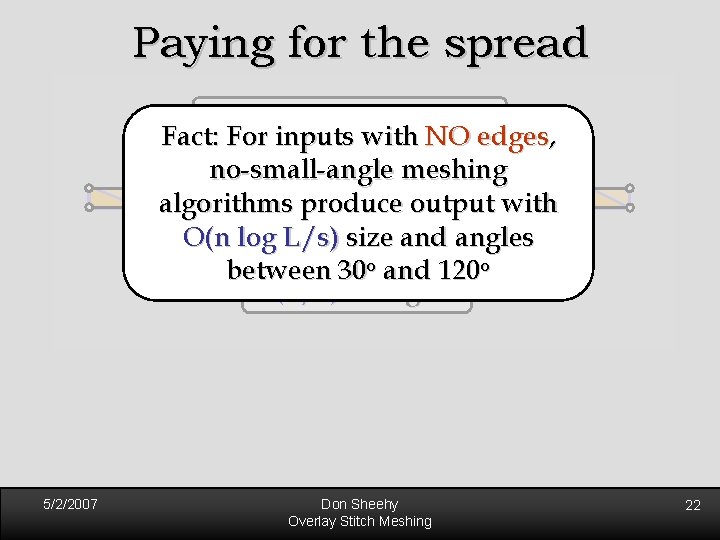

Paying for the spread What if we don’t allow small angles? Fact: For inputs with NO edges, no-small-angle meshing algorithms produce output with O(n log L/s) size and angles between 30 o and 120 o O(L/s) triangles! 5/2/2007 Don Sheehy Overlay Stitch Meshing 22

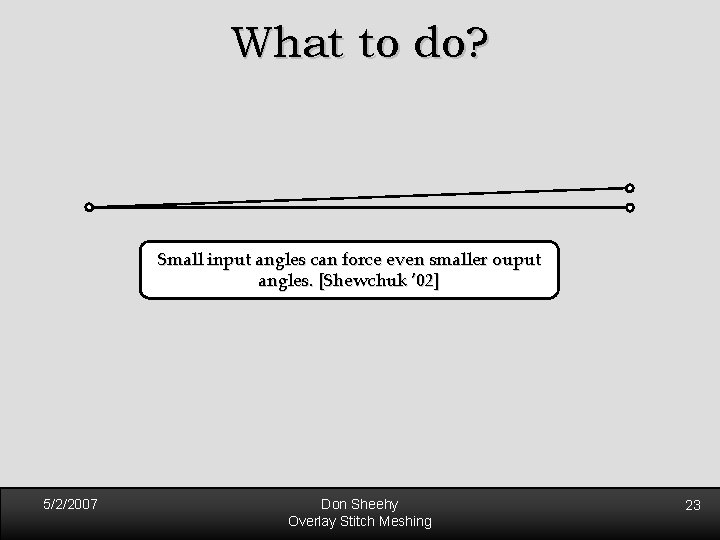

What to do? Small input angles can force even smaller ouput angles. [Shewchuk ’ 02] 5/2/2007 Don Sheehy Overlay Stitch Meshing 23

No Large Angles 5/2/2007 Don Sheehy Overlay Stitch Meshing 24

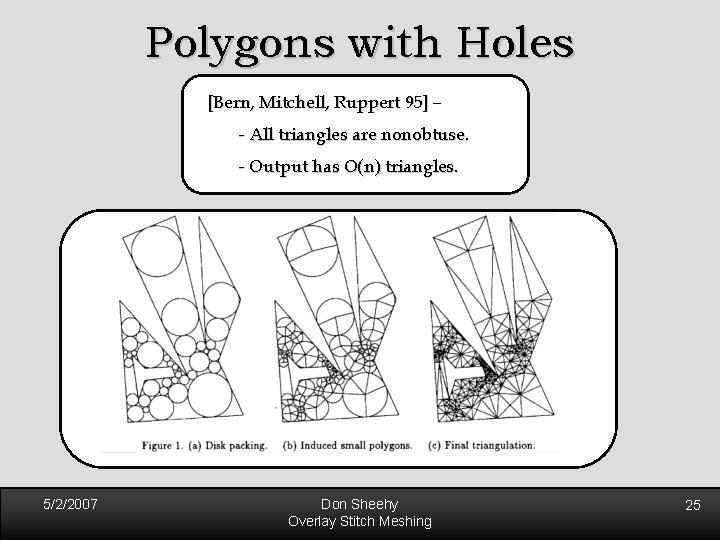

Polygons with Holes [Bern, Mitchell, Ruppert 95] – - All triangles are nonobtuse. - Output has O(n) triangles. 5/2/2007 Don Sheehy Overlay Stitch Meshing 25

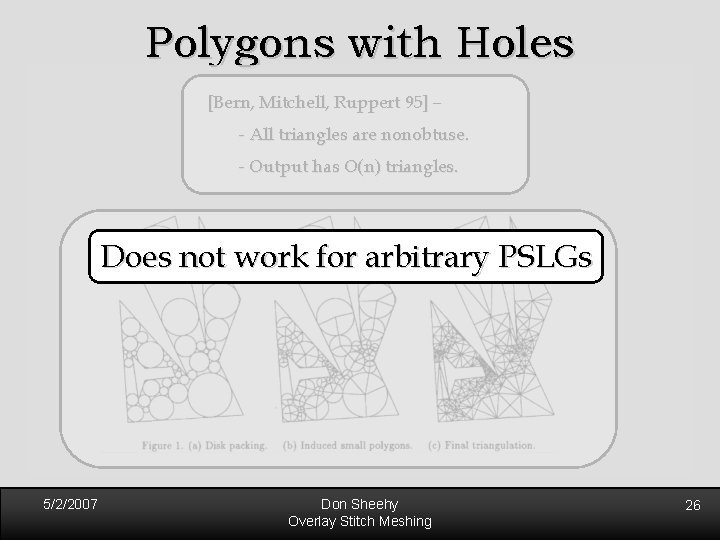

Polygons with Holes [Bern, Mitchell, Ruppert 95] – - All triangles are nonobtuse. - Output has O(n) triangles. Does not work for arbitrary PSLGs 5/2/2007 Don Sheehy Overlay Stitch Meshing 26

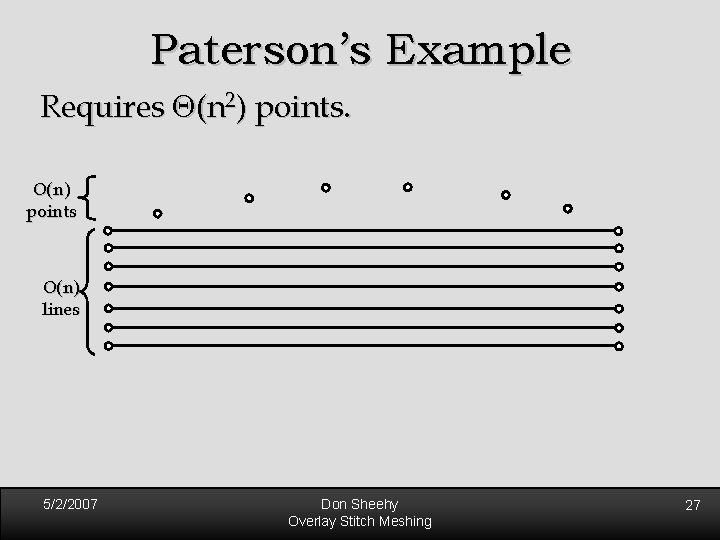

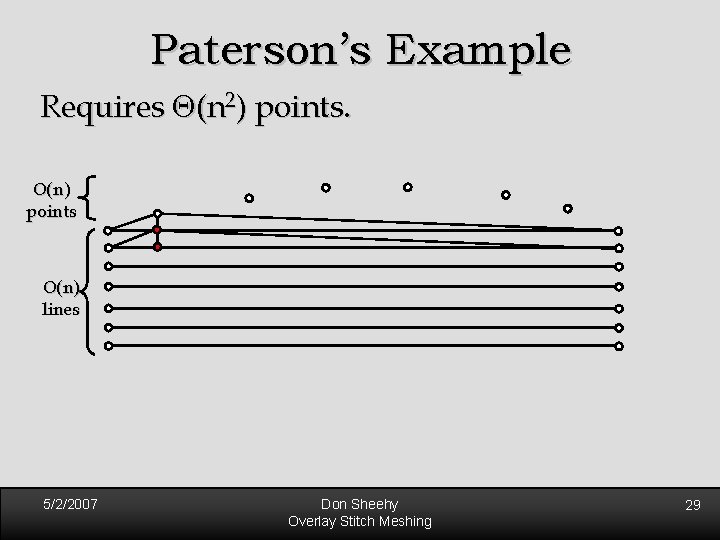

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 27

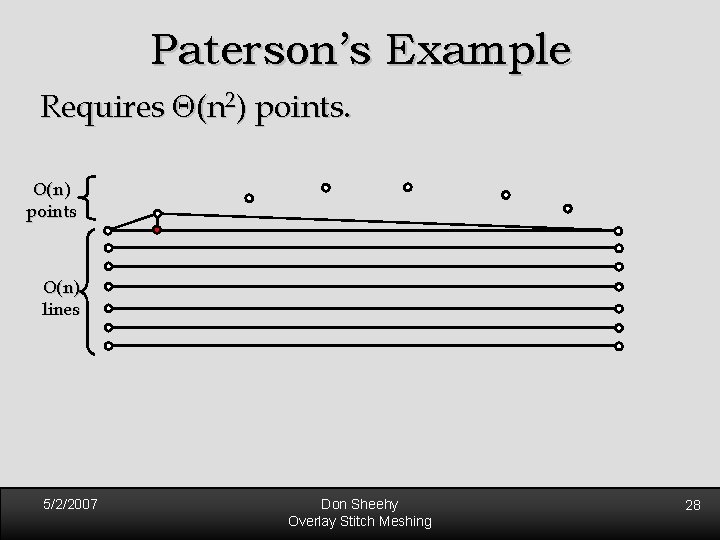

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 28

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 29

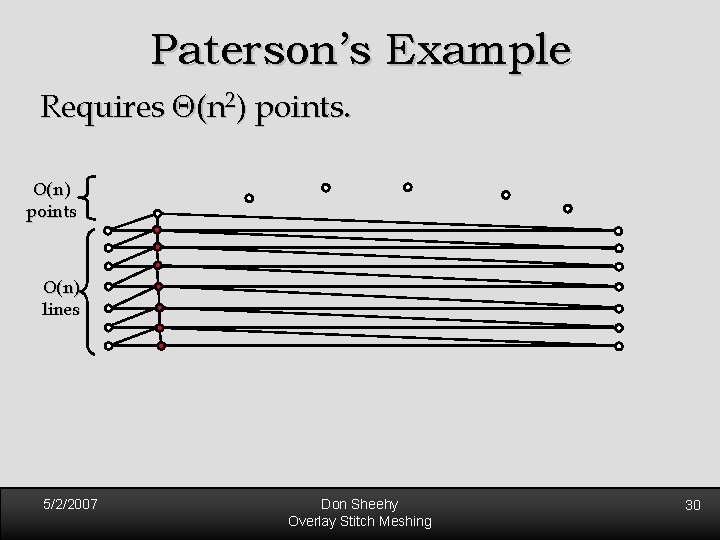

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 30

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 31

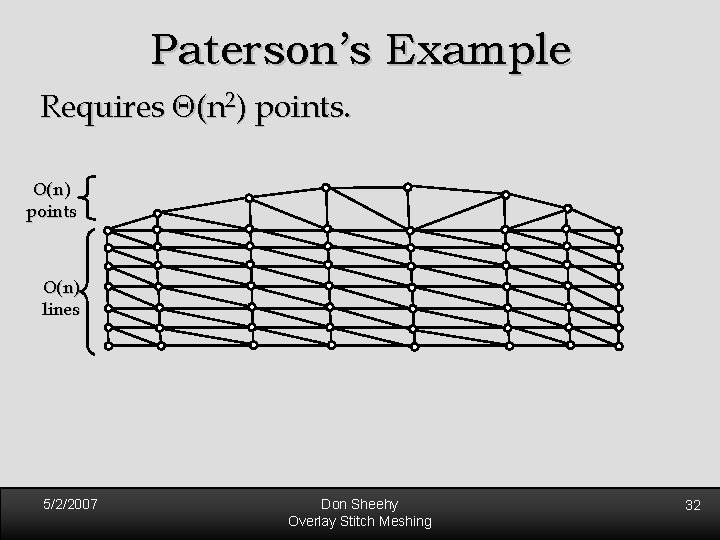

Paterson’s Example Requires (n 2) points. O(n) points O(n) lines 5/2/2007 Don Sheehy Overlay Stitch Meshing 32

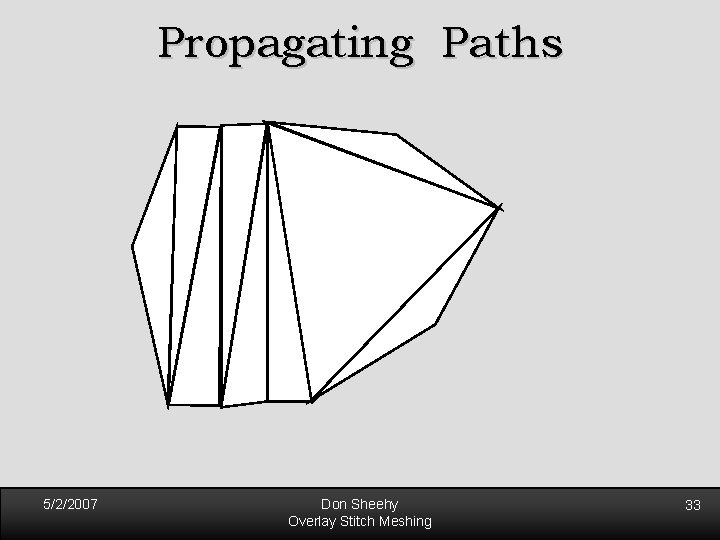

Propagating Paths 5/2/2007 Don Sheehy Overlay Stitch Meshing 33

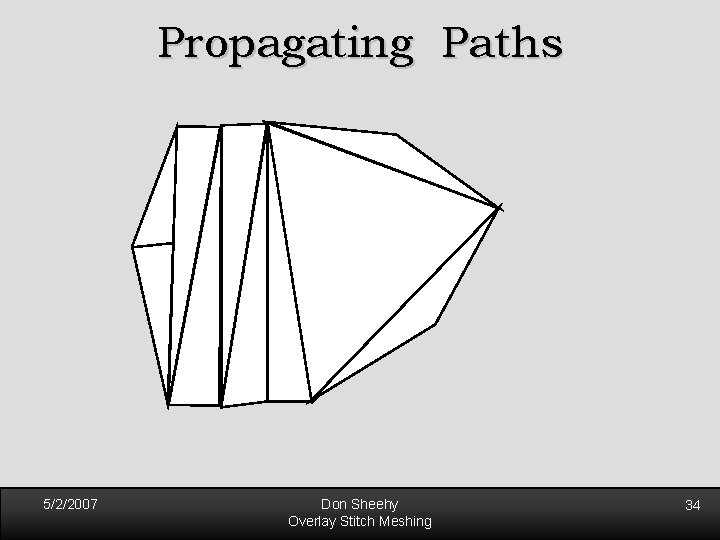

Propagating Paths 5/2/2007 Don Sheehy Overlay Stitch Meshing 34

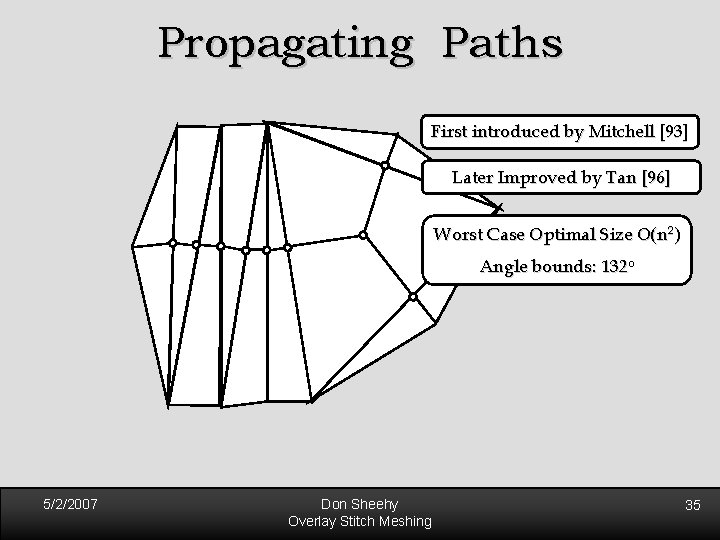

Propagating Paths First introduced by Mitchell [93] Later Improved by Tan [96] Worst Case Optimal Size O(n 2) Angle bounds: 132 o 5/2/2007 Don Sheehy Overlay Stitch Meshing 35

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 36

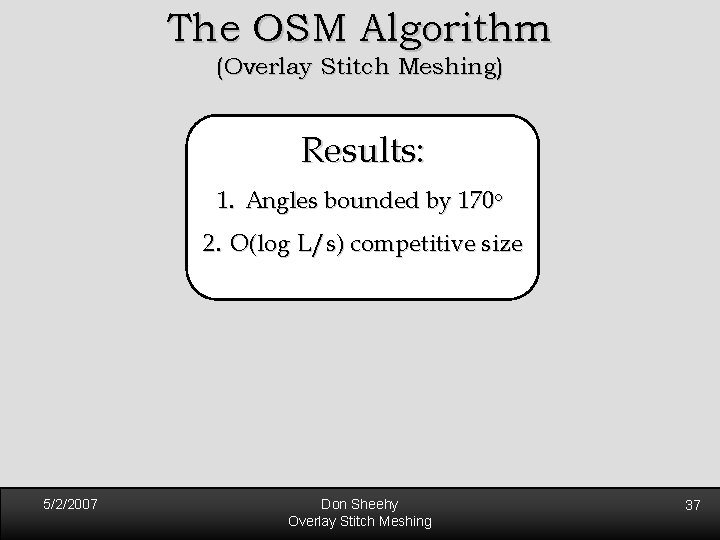

The OSM Algorithm (Overlay Stitch Meshing) Results: 1. Angles bounded by 170 o 2. O(log L/s) competitive size 5/2/2007 Don Sheehy Overlay Stitch Meshing 37

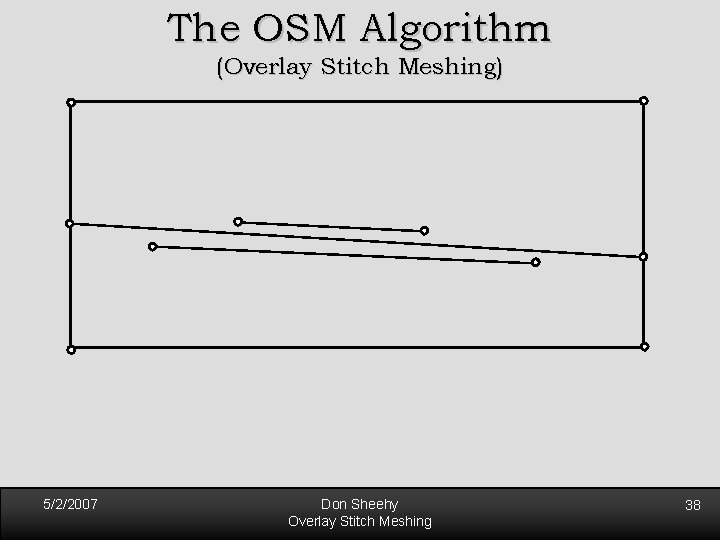

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 38

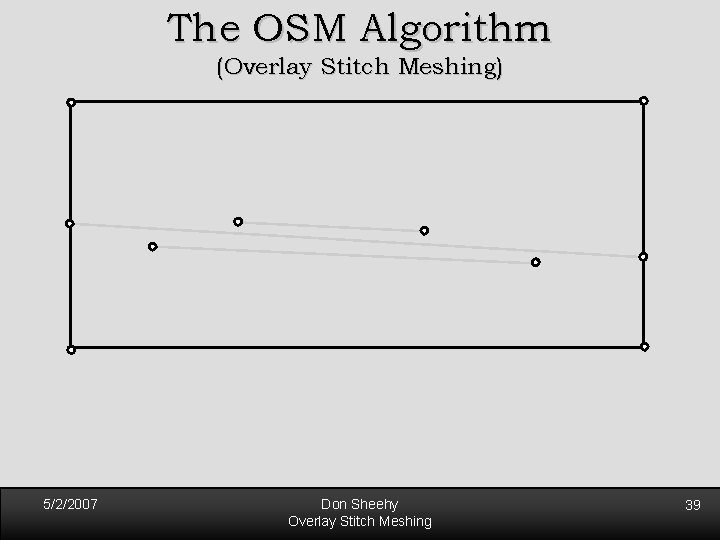

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 39

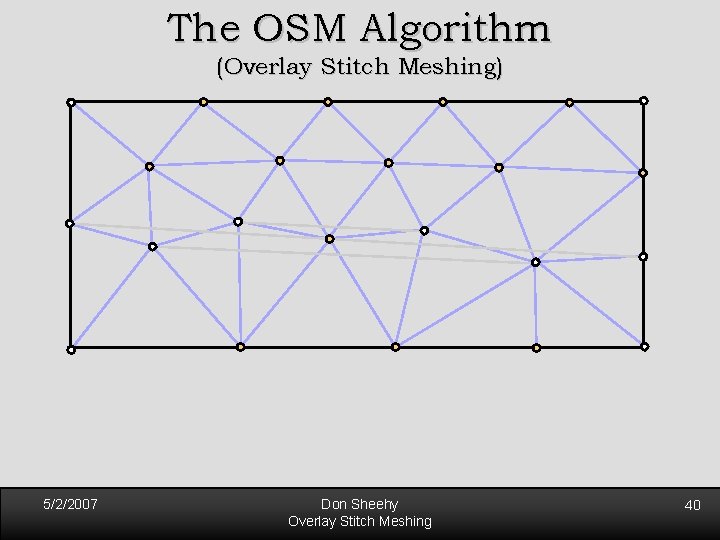

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 40

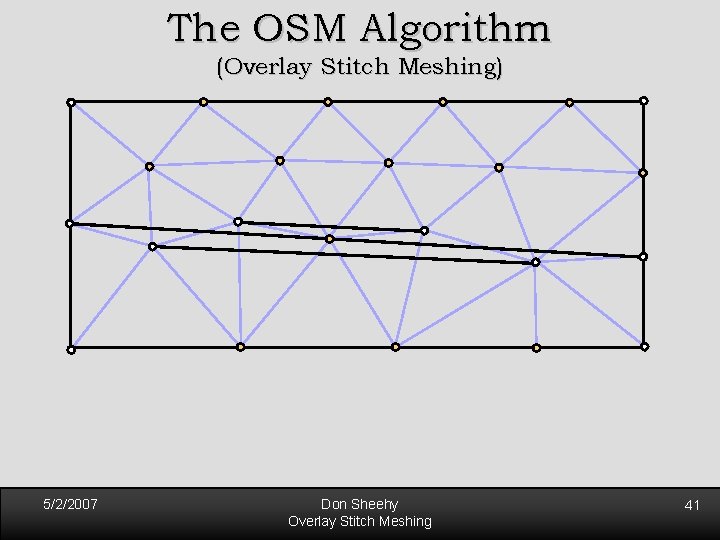

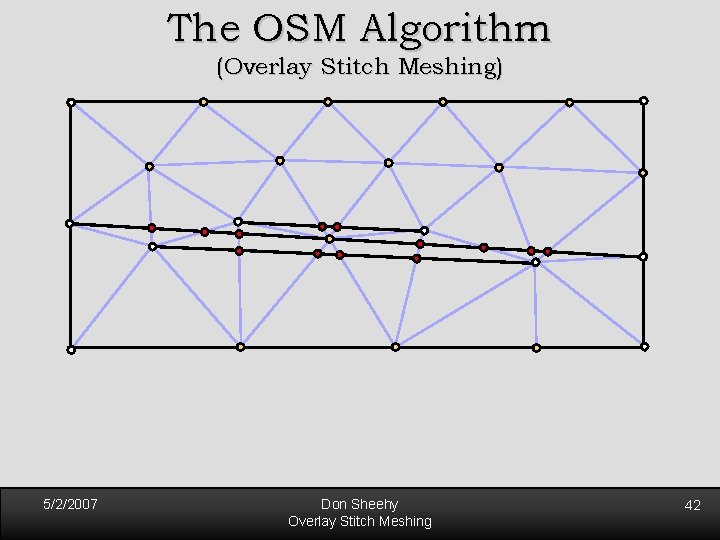

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 41

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 42

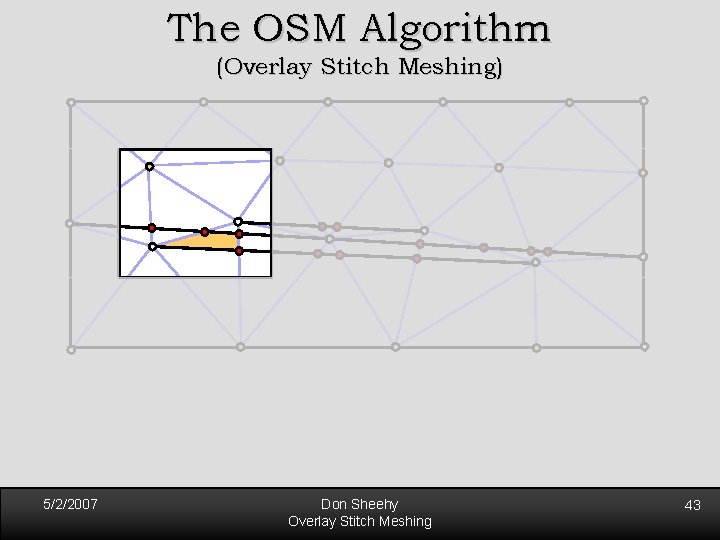

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 43

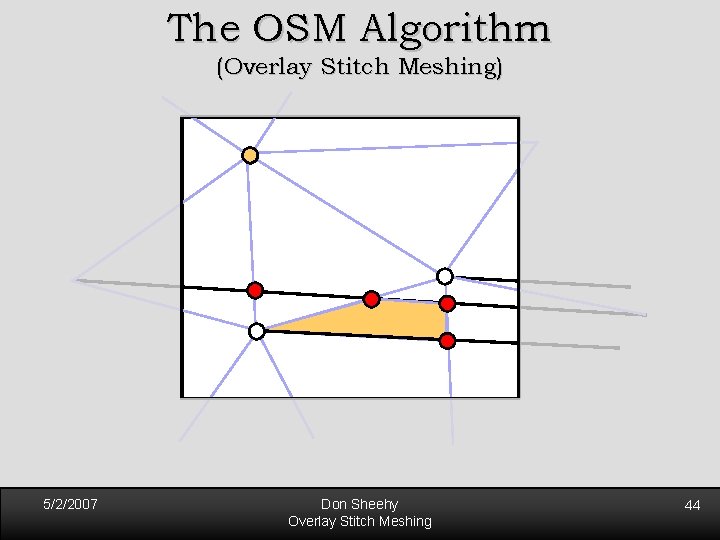

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 44

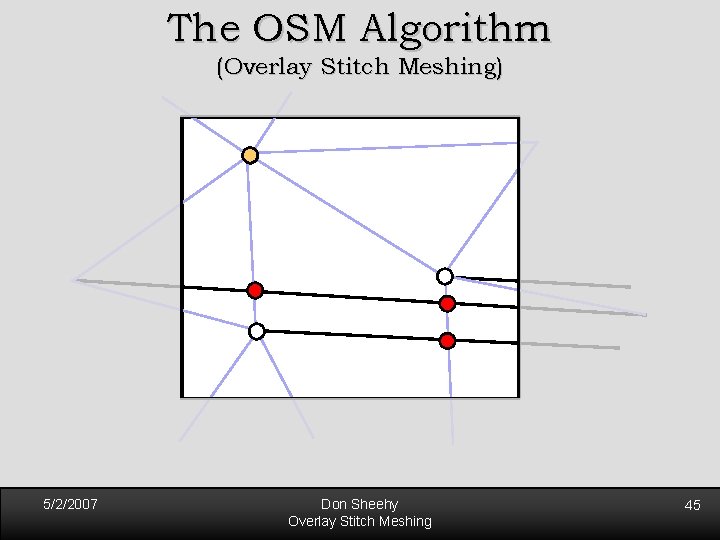

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 45

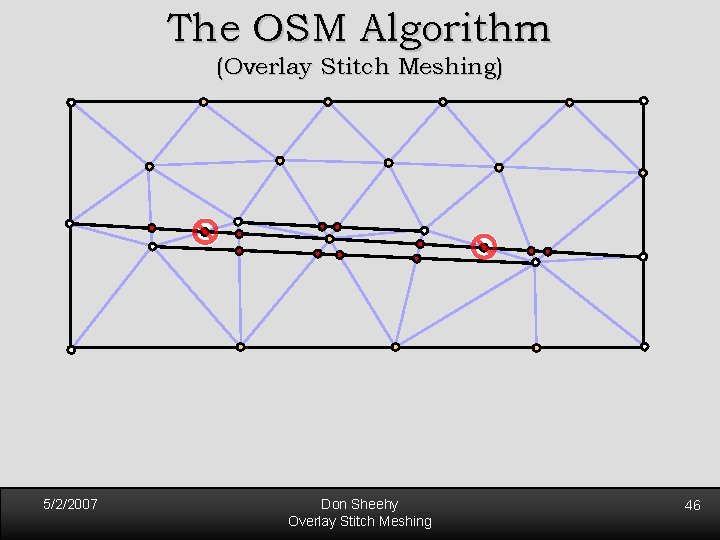

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 46

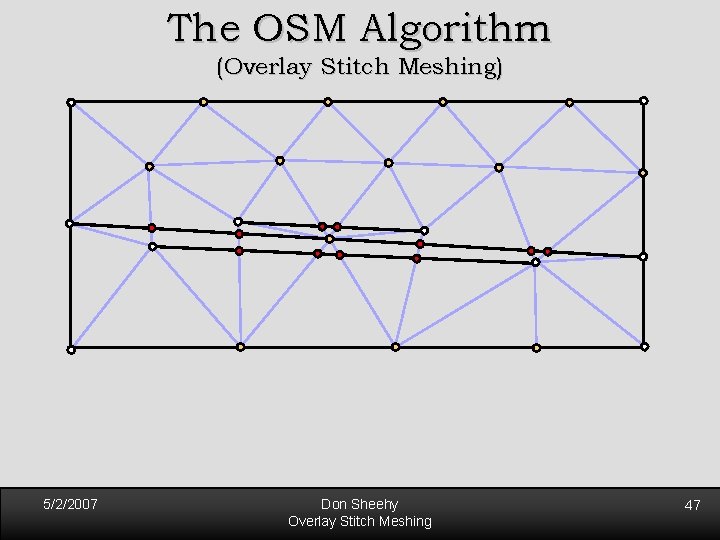

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 47

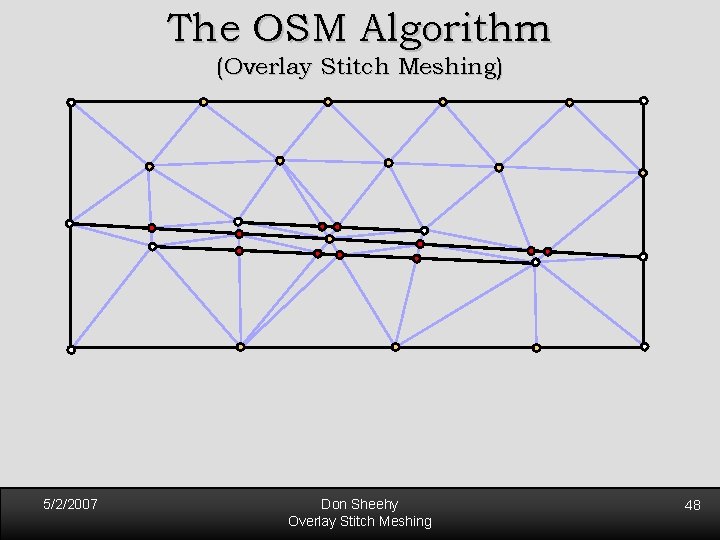

The OSM Algorithm (Overlay Stitch Meshing) 5/2/2007 Don Sheehy Overlay Stitch Meshing 48

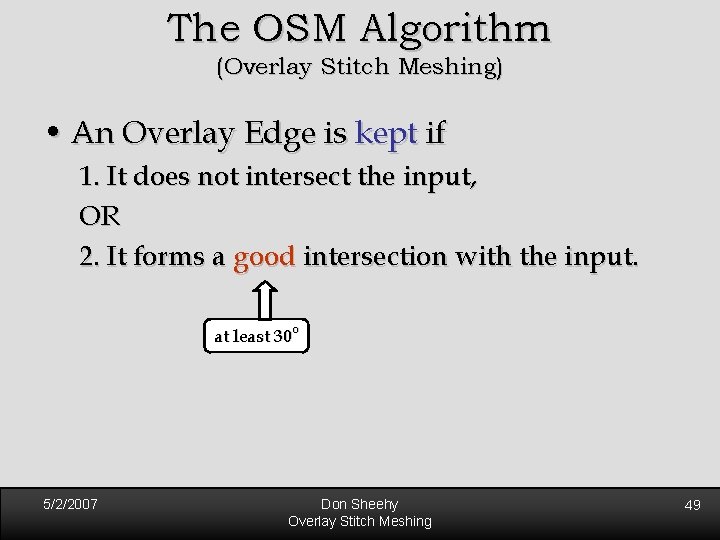

The OSM Algorithm (Overlay Stitch Meshing) • An Overlay Edge is kept if 1. It does not intersect the input, OR 2. It forms a good intersection with the input. at least 30 o 5/2/2007 Don Sheehy Overlay Stitch Meshing 49

Angle Guarantees 5/2/2007 Don Sheehy Overlay Stitch Meshing 50

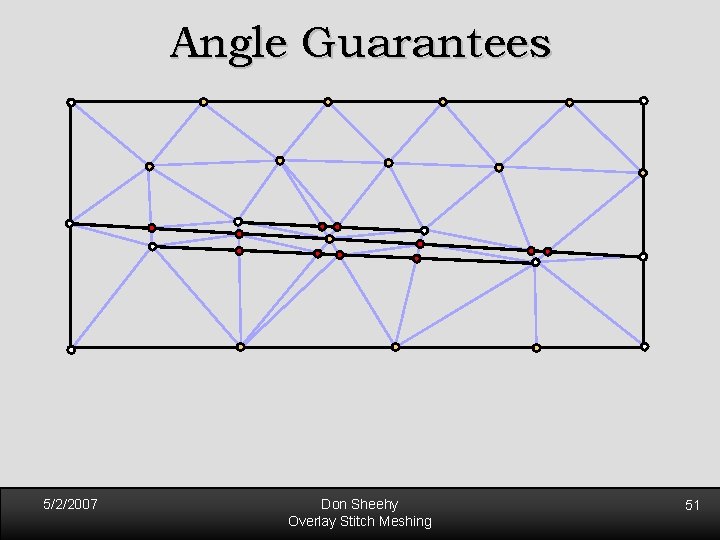

Angle Guarantees 5/2/2007 Don Sheehy Overlay Stitch Meshing 51

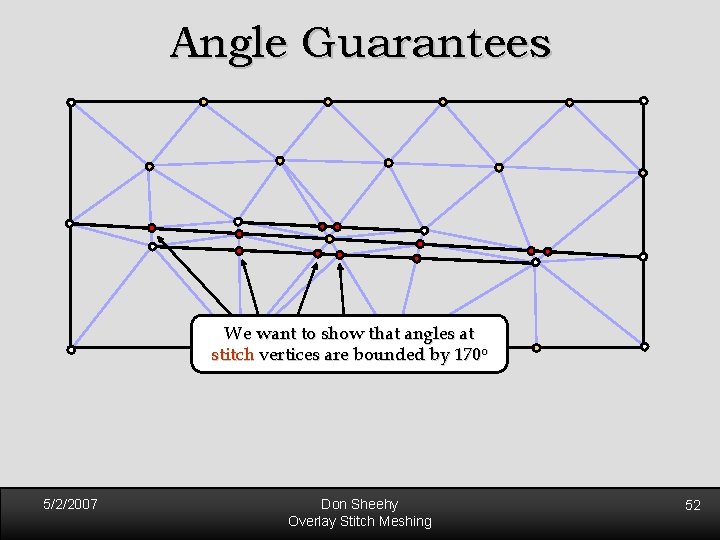

Angle Guarantees We want to show that angles at stitch vertices are bounded by 170 o 5/2/2007 Don Sheehy Overlay Stitch Meshing 52

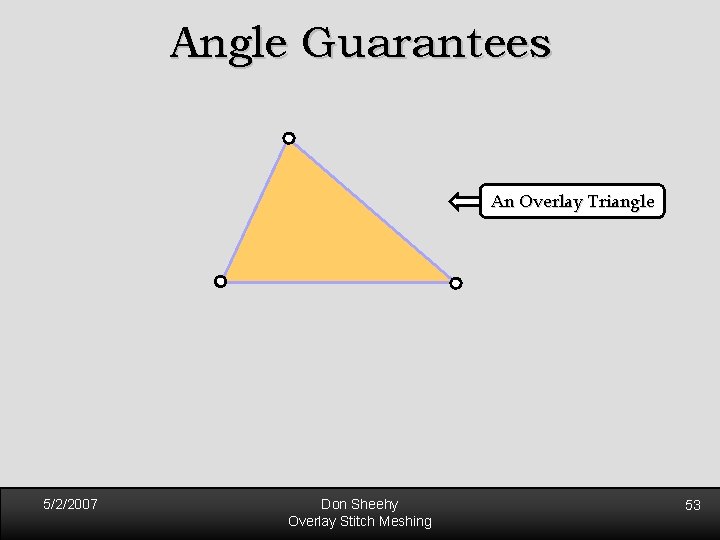

Angle Guarantees An Overlay Triangle 5/2/2007 Don Sheehy Overlay Stitch Meshing 53

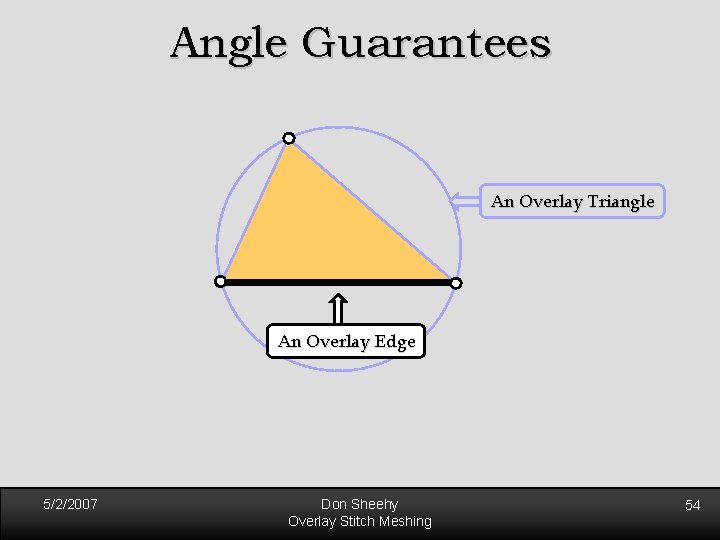

Angle Guarantees An Overlay Triangle An Overlay Edge 5/2/2007 Don Sheehy Overlay Stitch Meshing 54

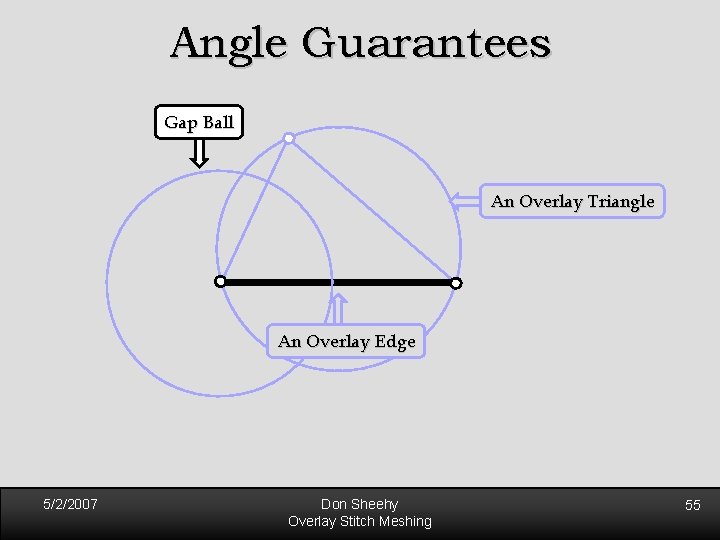

Angle Guarantees Gap Ball An Overlay Triangle An Overlay Edge 5/2/2007 Don Sheehy Overlay Stitch Meshing 55

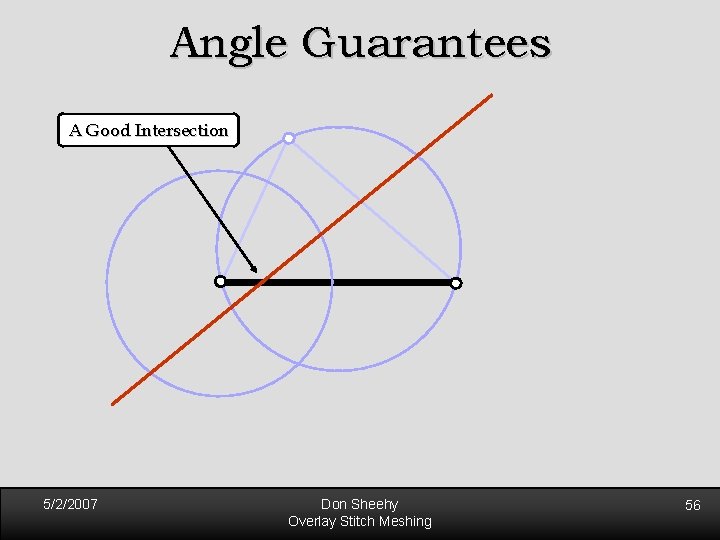

Angle Guarantees A Good Intersection 5/2/2007 Don Sheehy Overlay Stitch Meshing 56

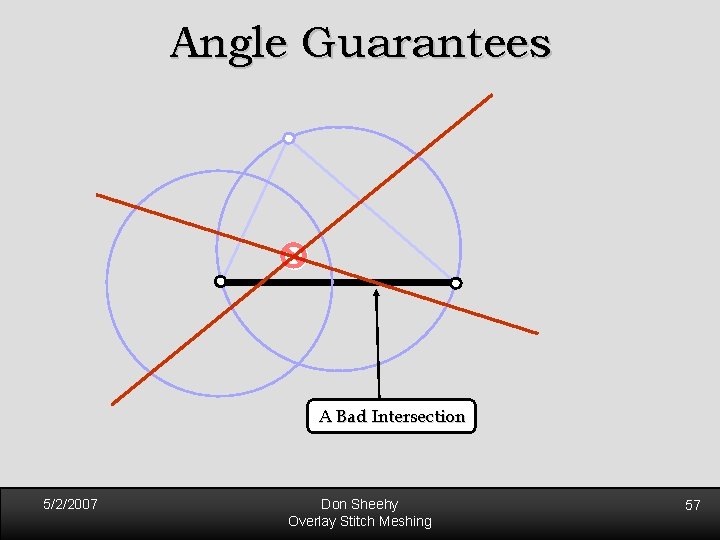

Angle Guarantees A Bad Intersection 5/2/2007 Don Sheehy Overlay Stitch Meshing 57

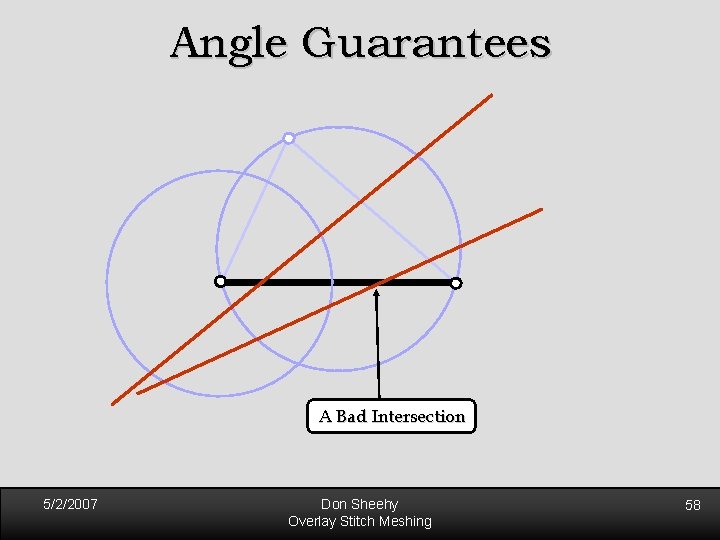

Angle Guarantees A Bad Intersection 5/2/2007 Don Sheehy Overlay Stitch Meshing 58

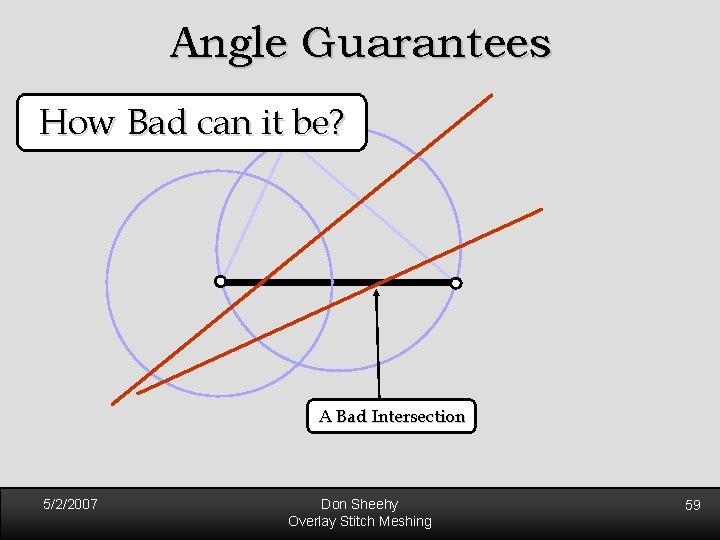

Angle Guarantees How Bad can it be? A Bad Intersection 5/2/2007 Don Sheehy Overlay Stitch Meshing 59

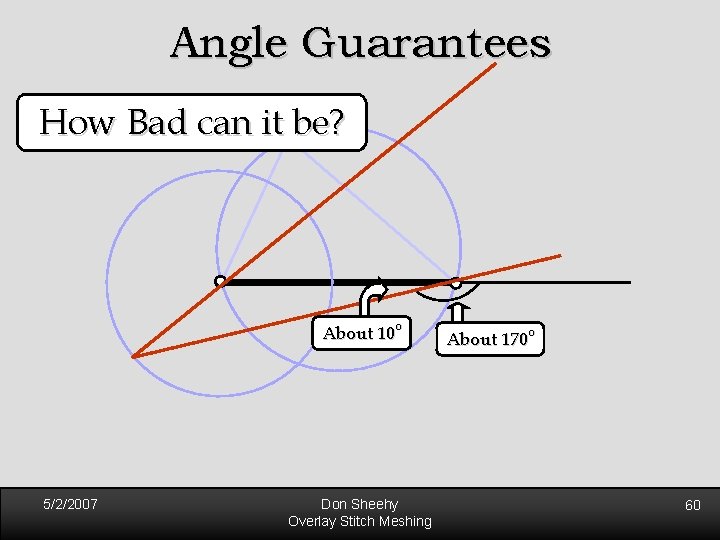

Angle Guarantees How Bad can it be? About 10 o 5/2/2007 Don Sheehy Overlay Stitch Meshing About 170 o 60

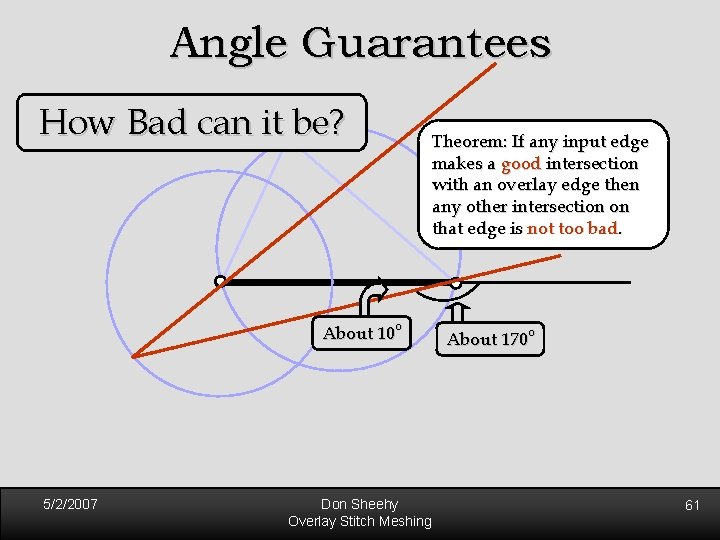

Angle Guarantees How Bad can it be? Theorem: If any input edge makes a good intersection with an overlay edge then any other intersection on that edge is not too bad. About 10 o 5/2/2007 Don Sheehy Overlay Stitch Meshing About 170 o 61

Size Bounds 5/2/2007 Don Sheehy Overlay Stitch Meshing 62

Size Bounds How big is the resulting triangulation? 5/2/2007 Don Sheehy Overlay Stitch Meshing 63

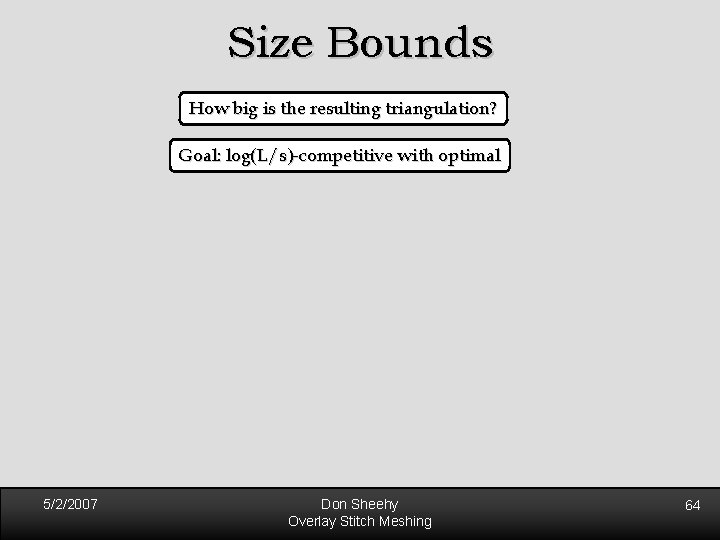

Size Bounds How big is the resulting triangulation? Goal: log(L/s)-competitive with optimal 5/2/2007 Don Sheehy Overlay Stitch Meshing 64

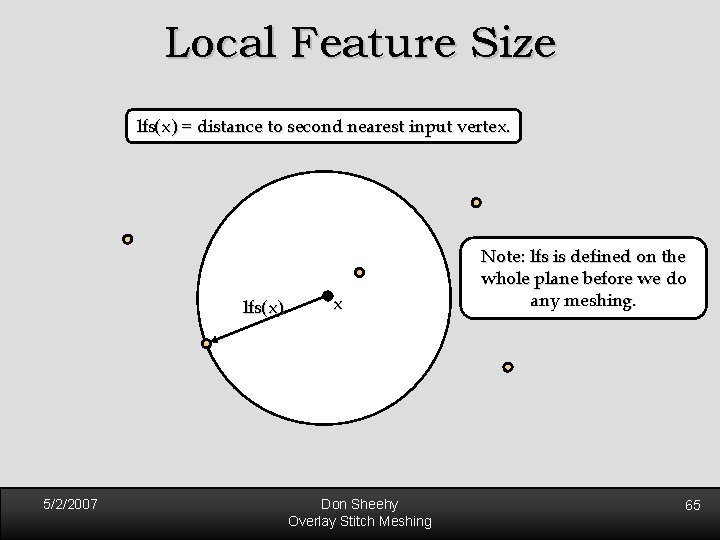

Local Feature Size lfs(x) = distance to second nearest input vertex. lfs(x) 5/2/2007 x Don Sheehy Overlay Stitch Meshing Note: lfs is defined on the whole plane before we do any meshing. 65

Ruppert’s Idea r = (lfs(c)) r c Þ area(D) = (lfs(c)2) Þ # of triangles = (ss 1/lfs(x, y)2 dxdy) 5/2/2007 Don Sheehy Overlay Stitch Meshing 66

Ruppert’s Idea r = (lfs(c)) r Þ area(D) = (lfs(c)2) c Þ # of triangles = (ss 1/lfs(x, y)2 dxdy) dx This represents a (dxdy/lfs(x, y)2) fraction of the triangle. dy 5/2/2007 Don Sheehy Overlay Stitch Meshing 67

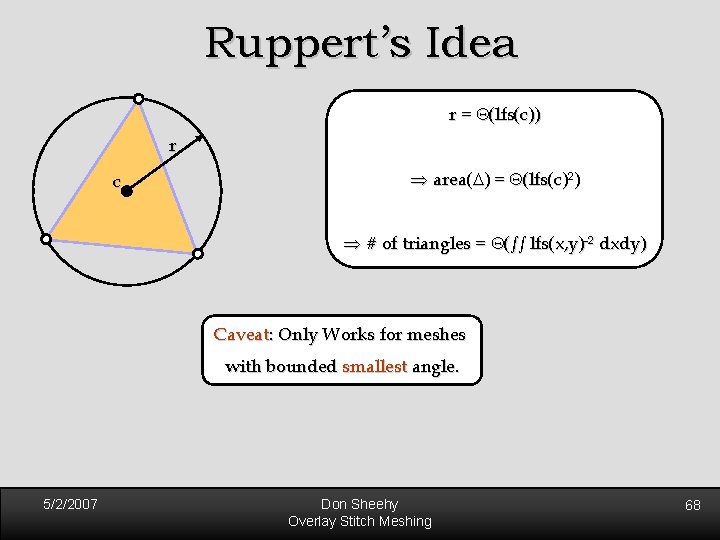

Ruppert’s Idea r = (lfs(c)) r c Þ area(D) = (lfs(c)2) Þ # of triangles = (ss lfs(x, y)-2 dxdy) Caveat: Only Works for meshes with bounded smallest angle. 5/2/2007 Don Sheehy Overlay Stitch Meshing 68

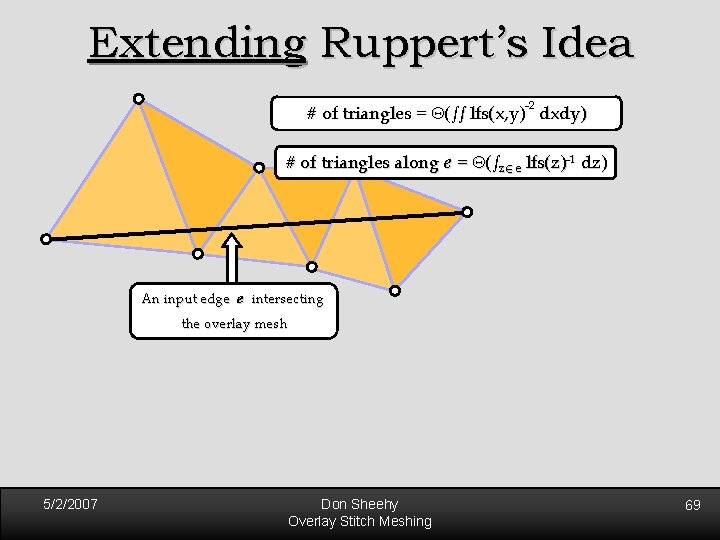

Extending Ruppert’s Idea -2 # of triangles = (ss lfs(x, y) dxdy) # of triangles along e = (sz 2 e lfs(z)-1 dz) An input edge e intersecting the overlay mesh 5/2/2007 Don Sheehy Overlay Stitch Meshing 69

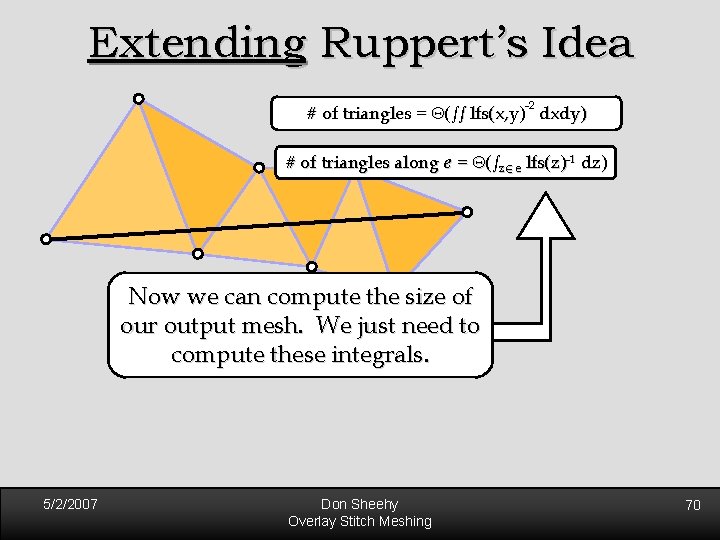

Extending Ruppert’s Idea -2 # of triangles = (ss lfs(x, y) dxdy) # of triangles along e = (sz 2 e lfs(z)-1 dz) Now we can compute the size of our output mesh. We just need to compute these integrals. 5/2/2007 Don Sheehy Overlay Stitch Meshing 70

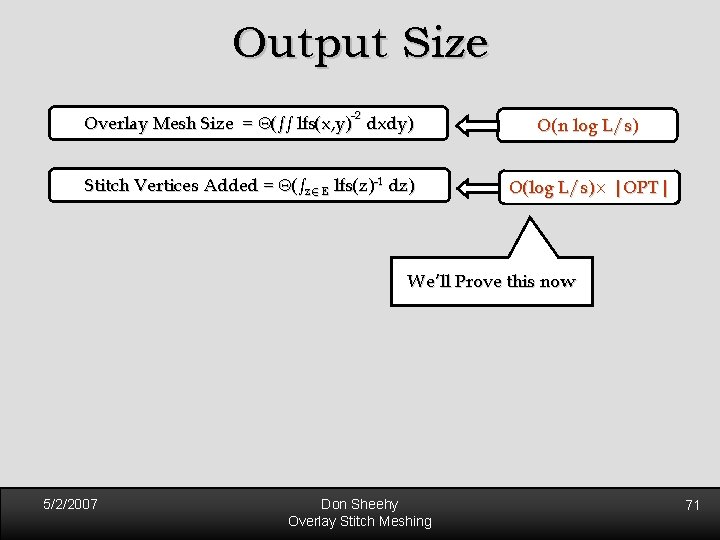

Output Size -2 Overlay Mesh Size = (ss lfs(x, y) dxdy) O(n log L/s) Stitch Vertices Added = (sz 2 E lfs(z)-1 dz) O(log L/s)£ |OPT| We’ll Prove this now 5/2/2007 Don Sheehy Overlay Stitch Meshing 71

What can we say about the optimal no-large-angle triangulation? 5/2/2007 Don Sheehy Overlay Stitch Meshing 72

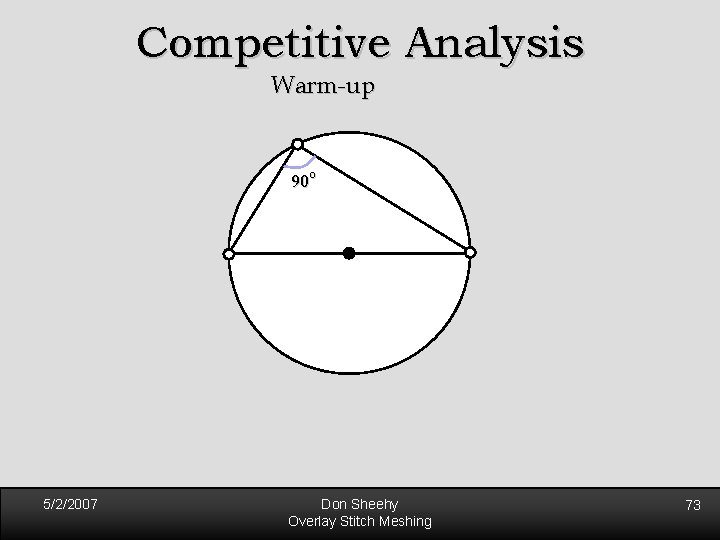

Competitive Analysis Warm-up o 90 o 5/2/2007 Don Sheehy Overlay Stitch Meshing 73

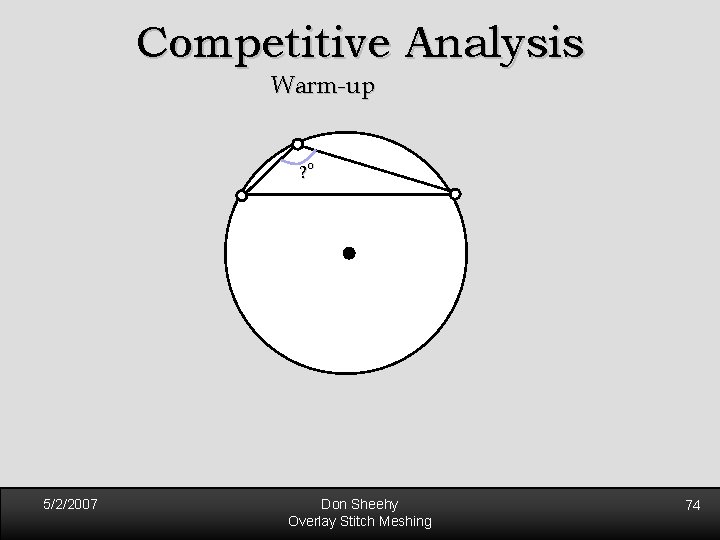

Competitive Analysis Warm-up o ? o 5/2/2007 Don Sheehy Overlay Stitch Meshing 74

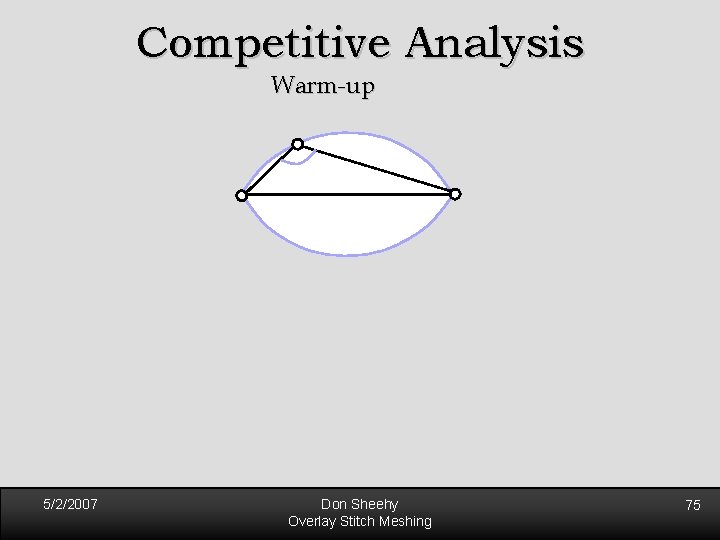

Competitive Analysis Warm-up 5/2/2007 Don Sheehy Overlay Stitch Meshing 75

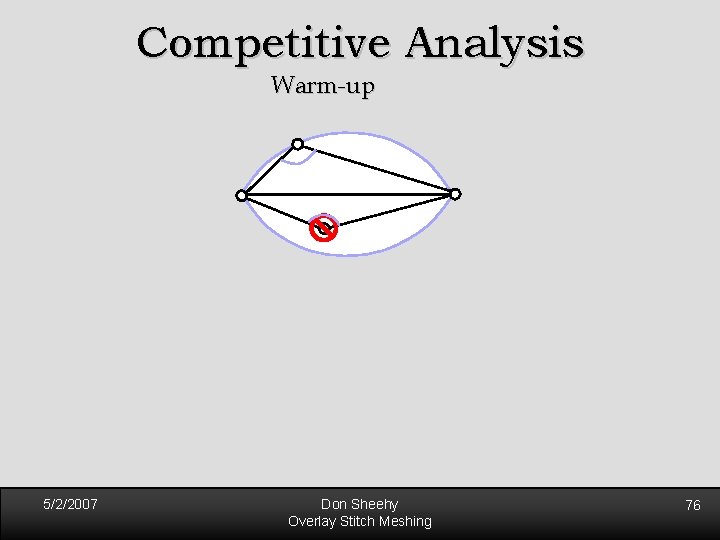

Competitive Analysis Warm-up 5/2/2007 Don Sheehy Overlay Stitch Meshing 76

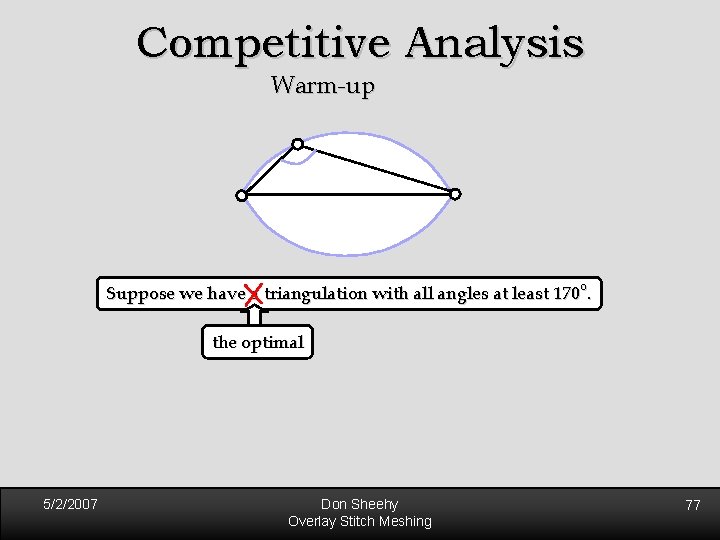

Competitive Analysis Warm-up Suppose we have a triangulation with all angles at least 170 o. the optimal 5/2/2007 Don Sheehy Overlay Stitch Meshing 77

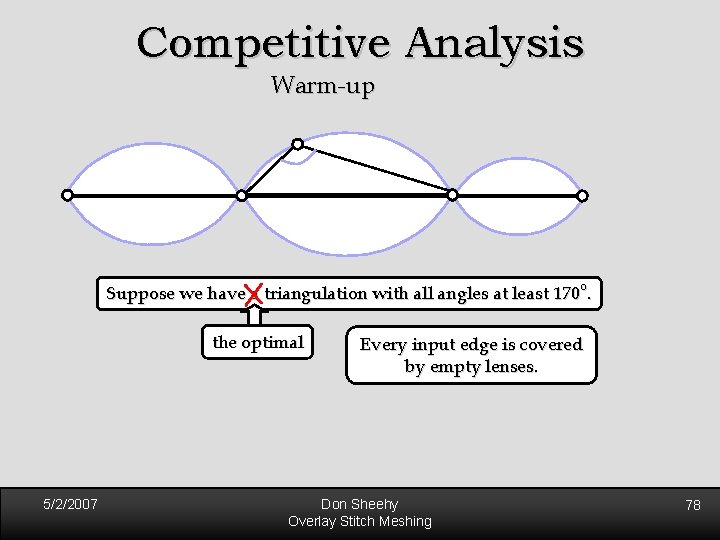

Competitive Analysis Warm-up Suppose we have a triangulation with all angles at least 170 o. the optimal 5/2/2007 Every input edge is covered by empty lenses. Don Sheehy Overlay Stitch Meshing 78

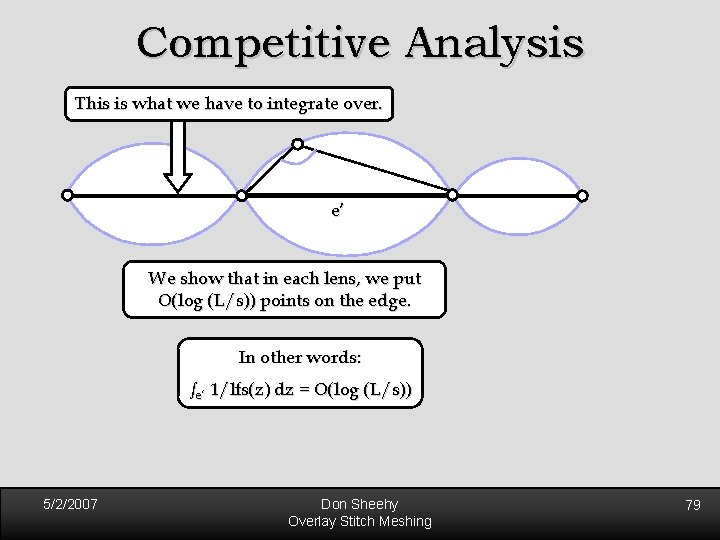

Competitive Analysis This is what we have to integrate over. e’ We show that in each lens, we put O(log (L/s)) points on the edge. In other words: se’ 1/lfs(z) dz = O(log (L/s)) 5/2/2007 Don Sheehy Overlay Stitch Meshing 79

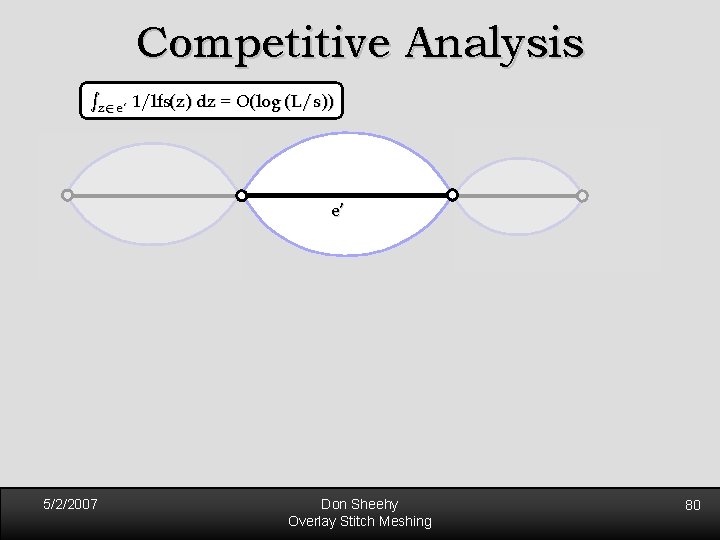

Competitive Analysis sz 2 e’ 1/lfs(z) dz = O(log (L/s)) e’ 5/2/2007 Don Sheehy Overlay Stitch Meshing 80

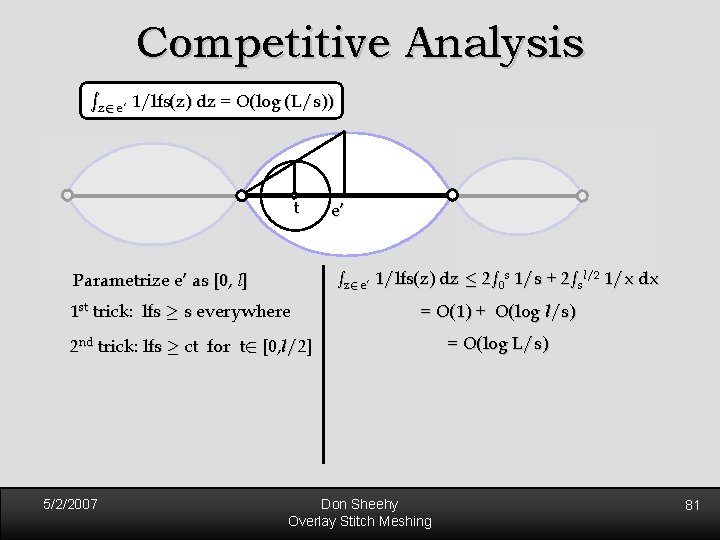

Competitive Analysis sz 2 e’ 1/lfs(z) dz = O(log (L/s)) t e’ sz 2 e’ 1/lfs(z) dz · 2 s 0 s 1/s + 2 ssl/2 1/x dx Parametrize e’ as [0, l] 1 st trick: lfs ¸ s everywhere = O(1) + O(log l/s) 2 nd trick: lfs ¸ ct for t 2 [0, l/2] 5/2/2007 Don Sheehy Overlay Stitch Meshing = O(log L/s) 81

Conclusions 5/2/2007 Don Sheehy Overlay Stitch Meshing 82

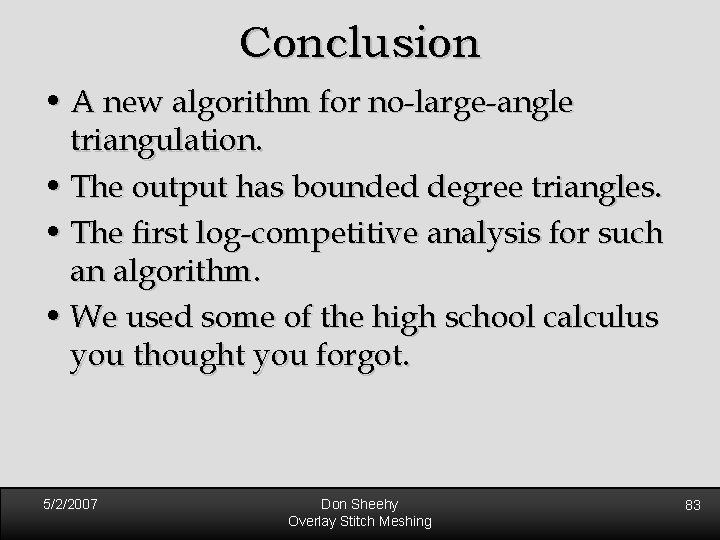

Conclusion • A new algorithm for no-large-angle triangulation. • The output has bounded degree triangles. • The first log-competitive analysis for such an algorithm. • We used some of the high school calculus you thought you forgot. 5/2/2007 Don Sheehy Overlay Stitch Meshing 83

Where to go from here? • 3 D? • Better angle bounds? • Leverage lower bound technology for constant competitive algorithm. 5/2/2007 Don Sheehy Overlay Stitch Meshing 84

Thank you. 5/2/2007 Don Sheehy Overlay Stitch Meshing 85
