IP Surveillance www planet com tw Copyright PLANET

IP Surveillance www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.

Introduction l Advantage of PLANET’s Solution l IP Surveillance System l Applications l Product Overview l Product Features l Roadmap www. planet. com. tw >> OVERVIEW 2/96

PLANET Advantages n Central Management Software • Easy management from entry level to high end models n High extensible solution n Remote control and access n Low-cost maintenance n Flexible integration with existing CCTV www. planet. com. tw >> OVERVIEW 3/96

IP Surveillance System www. planet. com. tw

Overview – Main Console Cam Viewer Plus Pro - Create a Complete Surveillance System Minimize/ Exit Supports up to 64 channels Keypad Information Window: • Date / Time • Login Account • Services On /Off • Free HDD space • Screen Page Navigator PTZ Controller Screen Division www. planet. com. tw Start / Play Back / Schedule / Guard / Log View / Console Setting >> OVERVIEW 5/96

Overview – Playback - To open the recorded video, view the videos, search the events from the current opened video files, backup recorded files, view the logs, take snapshot, and print channel images Views up to 16 channels simultaneously Smart Search / Snapshot / Print www. planet. com. tw Playback speed controls up to 6 x Open / Backup / Logview >> OVERVIEW 6/96

Main Features Intelligent 64 -ch Video Surveillance Intelligent Guard 1/4/6/9/10/13/16/25/36/49/64 divided screen in main console Including General Motion, Focal Loss, Missing Object, Foreign Object, Signal Loss, Camera Tampering, Obstruction Scheduling Record Playback There are four recording modes to schedule or trigger recordings based on camera and sensor input Up to 16 -channel playback simultaneously Logview PTZ Control System and Event logs can be recorded, browsed and export as file Supports Pan/Tilt/Zoom control and speed settings E-Map Remote Server Showing camera’s location and background Provide remote server, support remote live view www. planet. com. tw >> OVERVIEW 7/96

Main Features Smart Search Backup Searches archives by event on specific areas on video Up to 16 -channels recorded data back-up E-mail Alert Sound Alarm Intelligent Guard instant response via E-mail notification Intelligent Guard instant response via digital audio output Window Vibration Recycle Recording Intelligent Guard instant response via window vibration Allows auto-delete the recorded files when disk space exhausted or once expires the data of preserve files User Account Multi-Manufacturer support Password protection and unlimited user accounts for login PLANET, Panasonic, Axis, Vivotek and more brands will support in future www. planet. com. tw >> OVERVIEW 8/96

Management Software Channel View Options – Intelligent 64 CH Video Surveillance Selection of 1~64 divided screen in Main Console Description www. planet. com. tw 1 Single Channel 4 2 x 2 Grid Channels 9 3 x 3 Grid Channels 16 4 x 4 Grid Channels 25 5 x 5 Grid Channels 36 6 x 6 Grid Channels 49 7 x 7 Grid Channels 64 8 x 8 Grid Channels 6 1 Main Channel + 5 Secondary Channels 10 2 Main Channel + 8 Secondary Channels 13 1 Main Channel + 12 Secondary Channels Cycle Sides This will cycle through individual slides Full Screen This will view the console in full screen >> OVERVIEW 9/96

Central Management GUI interface to setup recording Schedule without limitation • Most Friendly user interface • Record continuously or Event by recording • Daily, Weekly, Monthly and Custom can be adjusted at each independent www. planet. com. tw >> OVERVIEW 10/96

Central Management Enhanced Smart Search system enables the files search by event or notification actions • Investigation and evidence collection afterwards • Intelligent search system to quickly find events • Records the time and image of a certain events Intelligent search • General motion Detection • Missing object Detection • Foreign object Detection • Signal lost Detection • Lose focus Detection • Camera occlusion Detection • Camera Tampering www. planet. com. tw >> OVERVIEW 11/96

Central Management Enhanced Log. View capability enables System and Event logs can be recorded, browsed and export as file Intelligent search • All • General motion Detection • Focal Lose Detection • Tampering / Occlusion Detection • Missing / Foreign Object Detection • Reserve Disk space Met • Connection Lost / Recover • Digital Input System log Type • All • System Startup / Shutdown • User Login / Logout www. planet. com. tw >> OVERVIEW 12/96

Advanced Features General Motion Focus Lose Camera Occlusion Signal Lost Intelligent Guard Camera Tampering www. planet. com. tw Missing Object Foreign Object >> OVERVIEW 13/96

Intelligent Guard Functions Intelligent Guard – can be detected immediately in real time live video clips. Including General Motion, Signal Lost, Lose Focus, Camera Occlusion, Missing Object, Foreign Object, Camera Tampering, Disk Space Exhausting. Detection General Motion Signal Lost When a motion was detected at a selected area, an immediate alarm notification will be triggered. When camera lost its signal due to intended or unintended force, an immediate alarm notification will be triggered. Application Description www. planet. com. tw >> OVERVIEW 14/96

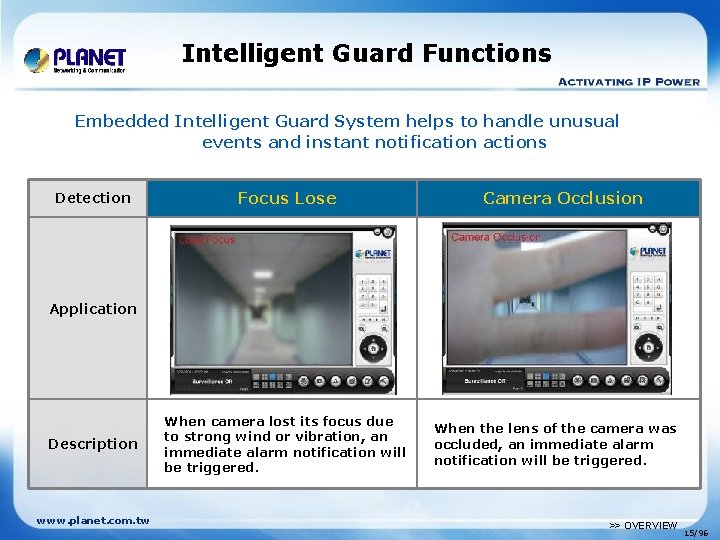

Intelligent Guard Functions Embedded Intelligent Guard System helps to handle unusual events and instant notification actions Detection Focus Lose Camera Occlusion Application Description www. planet. com. tw When camera lost its focus due to strong wind or vibration, an immediate alarm notification will be triggered. When the lens of the camera was occluded, an immediate alarm notification will be triggered. >> OVERVIEW 15/96

Intelligent Guard Functions Embedded Intelligent Guard System helps to handle unusual events and instant notification actions Detection Missing Object Foreign Object Application Description www. planet. com. tw When a selected object was shifted or stolen , an immediate alarm notification will be triggered. When a foreign object was detected at a selected area, an immediate alarm notification will be triggered. >> OVERVIEW 16/96

Intelligent Guard Functions Embedded Intelligent Guard System helps to handle unusual events and instant notification actions Detection Camera Tampering Disk Space Exhausting Application Description www. planet. com. tw This will set the channel to trigger an event when the camera has been changed in camera positioning by this particular channel. This option is a default setting in “System”. This will trigger an event when the “Reserve Disk Space” is met. >> OVERVIEW 17/96

Intelligent Guard Functions Intelligent Guard – 10 different reactions can be triggered Event / Action Type Description On Screen Displays text when the event is triggered Sound Alarm Plays a sound when the event is triggered E-mail Sends out email, based on the Email settings when the event is triggered Window Vibration Window vibrates when the event is triggered Pop-up Message Displays a Popup message when the event is triggered Digital Signal Output / Phone Call / PTZ Preset Go / SMS Message www. planet. com. tw >> OVERVIEW 18/96

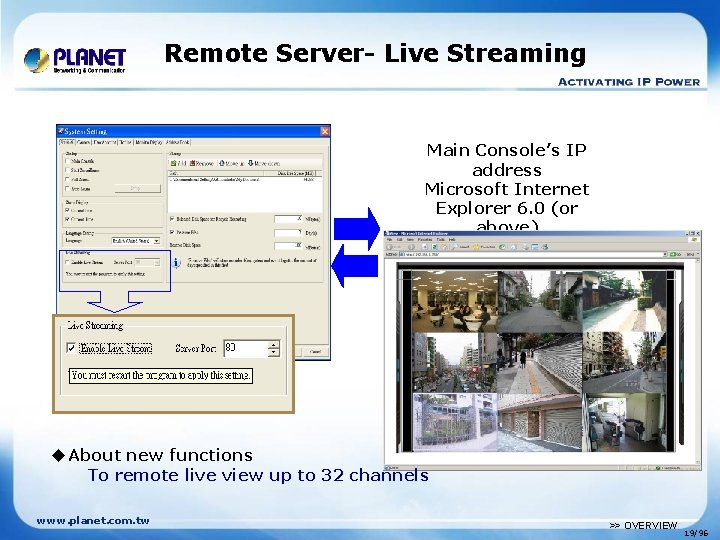

Remote Server- Live Streaming Main Console’s IP address Microsoft Internet Explorer 6. 0 (or above) u. About new functions To remote live view up to 32 channels www. planet. com. tw >> OVERVIEW 19/96

Multi-Monitor Support up to 4 monitors u. About new functions Multi-monitor up to 4 monitors operation simultaneously. www. planet. com. tw >> OVERVIEW 20/96

E-Map Support Google Map Location of Camera u. About new functions E-Map with Google Map integration in different locations www. planet. com. tw >> OVERVIEW 21/96

Multi-Language / Manufacturer Support 10 languages Support Brands – PLANET, Panasonic, Axis, Vivotek and more brands English, German, Spanish, French, Italian, will support in the future. Polish, Portuguese, Russian, Traditional Chinese and Simplified Chinese. www. planet. com. tw >> OVERVIEW 22/96

Management Software Cam Viewer Plus Pro- A professional central management software for handling all the IP cameras at the same time. Part no. Description CVPP-4 4 -Channel Cam Viewer Plus Professional CVPP-9 9 -Channel Cam Viewer Plus Professional CVPP-16 16 -Channel Cam Viewer Plus Professional CVPP-25 25 -Channel Cam Viewer Plus Professional CVPP-36 32 -Channel Cam Viewer Plus Professional CVPP-49 49 -Channel Cam Viewer Plus Professional CVPP-64 64 -Channel Cam Viewer Plus Professional Cam Viewer Plus Lite Free bundle with PLANET IP Camera package Cam Viewer Plus Pro Trial Version 64 -Channel Cam Viewer Plus Professional 30 days trial version, free bundle with PLANET IP Camera package www. planet. com. tw >> OVERVIEW 23/96

Features Cam Viewer Plus Lite (bundle kit) Cam Viewer Plus Professional Up to 64 channels 4 / 9 / 16 / 25 / 36 / 49 / 64 E-Map V (Simplify) V Remote Serer V (Simplify) V N/A V Software Version Live view channel Counting Function H. 264 / MPEG-4 / M-JPEG Compression format Intelligent Guard Opens recorded video files by event General Motion Signal Lost Searches archives by event on specific area(s) on video General Motion Signal Lost Focal Loss Missing Object Foreign Object Camera Obstruction Camera Tampering SMS Alarm N/A V Preset Go N/A V Monitor Output N/A 4 1 channel 32 channel Live Streaming Server www. planet. com. tw >> OVERVIEW 24/96

Software Comparison CVPP V. S CVP Software Version Cam Viewer Plus Professional Cam Viewer Professional Up to 64 channels Live view channel E-Map V V Remote Server V V Counting Function V V H. 264 / MPEG-4 / M-JPEG Remote Playback Server 8 4 Monitor Output 4 2 32 16 Smart Guard General Motion / Obstruction Signal Lost / Focus Lost Missing Object / Foreign Object Camera Tampering General Motion / Obstruction Signal Lost / Focus Lost Missing Object / Foreign Object Alarm On Screen Display / Play Sound Sent E-Mail / Digital Out Phone Call / PTZ Preset Go SMS Message / Central Server Vibrate / Popup Message On Screen Display / Play Sound Sent E-Mail / Digital Out Phone Call / PTZ Preset Go SMS Message / Central Server Compression format Live Streaming Server www. planet. com. tw >> OVERVIEW 25/96

Software Comparison PLANET V. S Axis PLANET Cam Viewer Plus Pro Axis Camera Station 64 25 Compression Format H. 264 / MPEG-4 / M-JPEG MPEG 4 / MJPEG Support 2 way audio V V Dual monitor V - IO control V - Play, Stop, Pause, Fast forward Concurrent Playback Channel 8 4 Each User can apply on different function and different camera V - Remote Playback Viewer Support 16 channels Support 4 channels 10 Languages support 5 Languages support Software Camera Channel Playback Mode Multiple Language www. planet. com. tw >> OVERVIEW 26/96

Software Comparison PLANET V. S Axis PLANET Cam Viewer Plus Pro Software Recording 　 Axis Camera Station 　 Record by Event/Alarm V - Record by Schedule V V Record by Motion V V Analytics Event 　 　 General Motion V V Signal Lost V - Lose Focus V - Camera Occlusion V - Missing Object V - Foreign Object V - Camera Tampering V - Disk Space Exhausting V - www. planet. com. tw >> OVERVIEW 27/96

Full Line Camera Supported 2 Mega-Pixel IP CAM H. 264 IP CAM Cam Viewer Plus Internet Video Server www. planet. com. tw Analog Camera >> OVERVIEW 28/96

Applications www. planet. com. tw

Benefit of 2 -Way Audio • With 2 -Way audio function, IP camera becomes a bridge that helps users to talk to other people. • Via two IP cameras, users can easily communicate to each other no mater for a international meeting or a personal chat. Video Conference www. planet. com. tw >> OVERVIEW 30/96

Benefit of 3 GPP • For mobile user, 3 GPP provides the most convenient way of monitoring their offices and houses. Mobile Surveillance www. planet. com. tw >> OVERVIEW 31/96

Benefit of Multi-Profile • Allows the different users to login with different settings. • Depend on different login environments, users can select the profile that will fit to their bandwidth to login and get the best quality vision. MPEG-4, QQVGA MPEG-4, QVGA www. planet. com. tw >> OVERVIEW 32/96

Benefit of IP Filter l Allow or Deny the Single / Range IP Address Allow Deny www. planet. com. tw >> OVERVIEW 33/96

Enterprise Application l An integrated digital security system forms from several surveillance systems l Compatible with variety of network interface (Gigabit Ethernet, Po. E, Wireless and Power-Line) to full fit each monitor environment l Protect the international company with least loading l Save the most of human resource with a powerful central management software l Solve any situation immediately www. planet. com. tw >> OVERVIEW 34/96

SMB Application Plus www. planet. com. tw l Provide clear image to show what’s happening l Prevent property lost l Avoid the violence or hooliganism event l Help the supervisor efficiently manage the office operation l Give enough time to react or make a correct decision >> OVERVIEW 35/96

Transportation Application l Nationwide transportation status monitoring l Provides the real-time and clear image l Delivery of high quality image without delay www. planet. com. tw >> OVERVIEW 36/96

Product Overview www. planet. com. tw

Product Overview Model IP Camera Description ICA-107 CMOS IP Camera • M-JPEG ICA-107 P CMOS Po. E IP Camera • • M-JPEG 802. 3 af Po. E ICA-107 W Wireless CMOS IP Camera • • M-JPEG 802. 11 g ICA-108 Dual Mode CMOS IR IP Camera • • • 10 meter IR 2 -Way audio Built-in Mic. ICA-108 W Wireless Dual Mode CMOS IR IP Camera • • 802. 11 g 10 meter IR 2 -Way audio Built-in Mic. ICA-120 Dual Mode CMOS Box IP Camera • • • CS mount DI/DO Built-in Mic. ICA-150 W Desktop Wireless IP Camera • • 802. 11 g MPEG-4 / M-JPEG H. 264 IP Camera NVR & HDVR IVS & DVR Analog Camera Accessories www. planet. com. tw Features >> OVERVIEW 38/96

Product Overview Model IP Camera Description ICA-510 Indoor Dome IP Camera ICA-550 W Desktop Pan / Tilt IP Camera H. 264 IP Camera Features • • NVR & HDVR ICA-750 High-Resolution CCD Box IP Camera • • • IVS & DVR • ICA-M 220 P/T IP Camera • • Analog Camera • • • Accessories ICA-M 220 W 11 n Wireless P/T IP Camera • • www. planet. com. tw • 802. 3 af Po. E D 1 resolution 802. 11 g MPEG-4 / M-JPEG Pan / Tilt capability CS mount 520 TVL 802. 3 af Po. E Auto-Iris ICR Anti-Flicker DI/DO 1. 3 Mega-Pixel CMOS Pan 350 degrees Tilt 120 degrees 2 -Way audio Built-in Mic. SD Card socket 1. 3 Mega-Pixel CMOS Pan 350 degrees Tilt 120 degrees 802. 11 n 2 -Way audio Built-in Mic. WPS function SD Card socket >> OVERVIEW 39/96

Product Overview Model Description IP Camera Features • • ICA-HM 125 H. 264 IP Camera 2 Mega-Pixel H. 264 Box IP Camera • • • NVR & HDVR ICA-HM 130 H. 264 Mega-Pixel Dome IP Camera • • • IVS & DVR ICA-HM 135 H. 264 Mega-Pixel 20 M IR Vandal Proof Dome IP Camera • • • Analog Camera • • ICA-HM 230 Accessories H. 264 Mega-Pixel CMOS Pan/Tilt IP Camera • • www. planet. com. tw 2. 0 Mega-Pixel (1600 x 1200) ICR 802. 3 af Po. E CS mount Lens SD card slot Optional outdoor housing 1. 3 Mega-Pixel (1280 x 1024) 802. 3 af Po. E 3 GPP Save-to-NAS 2 -Way audio 1. 3 Mega-Pixel (1280 x 1024) 20 meter IR & ICR 802. 3 af Po. E IP-66 3 GPP 2 -Way audio 1. 3 Mega-Pixel (1280 x 1024) 355 degrees pan 90 degrees tilt 802. 3 af Po. E 2 -Way audio Optional outdoor housing >> OVERVIEW 40/96

Product Overview IP Camera Model Description Features • H. 264 IP Camera ICA-HM 350 H. 264 Mega-Pixel 30 M Outdoor IR IP Camera • • • NVR & HDVR • ICA-H 312 H. 264 25 -meter IR IP Camera • • IVS & DVR • • Analog Camera ICA-H 651 H. 264 Outdoor Speed Dome IP Camera • • • 1. 3 Mega-Pixel (1280 x 1024) 30 meter IR & ICR 802. 3 af Po. E IP-66 3 GPP & 2 -Way audio Fan/Heater 25 meter IR 802. 3 af Po. E IP-66 3 GPP & 2 -Way audio Save-to-NAS Fan/Heater 22 x Optical/10 x Digital zoom 360 degrees continues 3 GPP DI/DO & RS-485 2 -Way audio IP-66 Fan/Heater -40 ~ +60 Degree C Accessories www. planet. com. tw >> OVERVIEW 41/96

Product Overview Model IP Camera Description Features • NVR-400 4 -Ch Network Video Recorder • • H. 264 IP Camera • NVR-810 NVR & HDVR 8 -Ch Network Video Recorder • • • IVS & DVR NVR-1610 16 -Ch Network Video Recorder • • • Analog Camera • HDVR-1600 Accessories • 16 -Ch Hybrid Digital Video Recorder • • www. planet. com. tw 4 -Ch IP camera input Schedule Record Motion Detection NAS function RAID 0/1 and JBOD 8 -Ch IP camera input Schedule Record Motion Detection Placyback function PTZ Control function CMS manage Max 128 -Ch 16 -Ch IP camera input Schedule Record Motion Detection Placyback function PTZ Control function CMS manage Max 256 -Ch Hybrid and NVR mode Central management software 16 analog camera connectors 3 G mobile remote view Multiple alert DI/DO/RS-485 >> OVERVIEW 42/96

Product Overview Model IP Camera Description IVS-H 120 1 -Ch Internet Video Server H. 264 IP Camera NVR & HDVR 4 -Ch Digital Video Recorder H. 264 compression Triplex operation DI/DO & RS-485 Multi-Language OSD 8 -Ch Digital Video Recorder • • • MPEG-4 compression Triplex operation DI/DO & RS-485 CD/DVD-RW backup Multi-Language OSD 4 -Ch Digital Video Recorder • • • H. 264 compression Triplex operation DI/DO & RS-485 CD/DVD-RW backup VGA output Multi-Language OSD 16 -Ch Digital Video Recorder • • • H. 264 compression Triplex operation DI/DO & RS-485 CD/DVD-RW backup VGA output Multi-Language OSD DVR-860 DVR-471 Analog Camera DVR-1671 www. planet. com. tw H. 264 compression DI/DO 3 GPP PLANET Media Converter Chassis Integrated • • DVR-461 IVS & DVR Accessories Features >> OVERVIEW 43/96

Product Overview Model IP Camera H. 264 IP Camera NVR & HDVR IVS & DVR Description CAM-DM 33 Mini Dome Camera CAM-VP 38 Vandal-Proof Camera • • • 380 TVL IP-66 protection 10 pounds resist Infrared Vandal-Proof Camera • • 520 TVL 15 meter IR IP-66 protection 10 pounds resist Infrared Vari-Focal Vandal-Proof Camera • • • 520 TVL 25 meter IR 3. 7~12 mm Lens IP-66 protection 10 pounds resist Indoor Speed Dome Camera • • 480 TVL 23 x optical zoom 10 x digital zoom 360 degree continues Multiple installation IP-66 protection RS-485 Optional outdoor housing CAM-IVP 52 V CAM-ISD 48 www. planet. com. tw 330 TVL Small size Easily hide • • • Analog Camera Accessories Features >> OVERVIEW 44/96

Product Overview Model IP Camera H. 264 IP Camera NVR & HDVR IVS & DVR Analog Camera Accessories www. planet. com. tw CAM-BX 42 CAM-BX 53 CAM-IR 138 CAM-IR 338 CAM-IR 442 V CAM-IR 554 Description Features CCD Box Camera • • • 420 TVL CS mount Auto-Iris Hi-Resolution CCD Box Camera • • 530 TVL CS mount Auto-Iris connector IR-Cut Filter Outdoor Infrared Camera • • • 15 meter IR AES/AWB/BLC IP-66 protection Outdoor Infrared Camera • • • 30 meter IR AES/AWB/BLC IP-66 protection Outdoor Infrared Vari-Focal Camera • • • 40 meter IR 9~22 mm Lens ICR Auto-Iris IP-67 protection Outdoor Long distance Infrared Camera • • 540 TVL 50 meter IR AES/AWB/BLC IP-66 protection >> OVERVIEW 45/96

Product Overview Model Description RS-485 Up to 4000 feet PELCO-D/PELCO-P 32 keyboard cascade-able Control 255 devices CAM-KB 300 3 -Axis Control Keyboard • • • LEN-F 60 6 mm Fix Lens • CS mount LEN-VF 3580 3. 5~8 mm Vari-Focal Lens • CS mount LEN-VF 3580 A 3. 5~8 mm Auto-Iris Vari-Focal Lens • • CS mount DC Drive Auto-Iris CAM-OH Outdoor Housing for CAM-ISD 48 • • • Fan/Heater IP-66 protection -20 ~ +50 Degree C ICA-OH Outdoor Housing for ICA-230/ICA-501/ICA-M 230 • • • Fan/Heater IP-66 protection -20 ~ +50 Degree C ICA-BOX 30 Outdoor Housing for ICA-120/ ICA-700/ ICA-750 CAM-BX 42/CAM-BX 53 • • 30 meter IR Fan/Heater IP-65 protection -20 ~ +50 Degree C IP Camera H. 264 IP Camera Features NVR & HDVR IVS & DVR Analog Camera Accessories www. planet. com. tw >> OVERVIEW 46/96

Product Features IP Camera www. planet. com. tw

IP Camera Model ICA-107 P ICA-107 W ICA-108 W ICA-120 10/100 Mbps 10/100 Mbps Wireless Interface - - IEEE 802. 11 g - Po. E Interface - IEEE 802. 3 af - - 640*480 (30 fps) 640*480 (30 fps) 3. 6 mm / F 2. 0 3. 3 mm / F 2. 8 3. 6 mm / F 2. 0 Image Compression M-JPEG MPEG-4 M-JPEG Sensibility (Lux) 1. 9 Lux 1. 5 Lux 0. 5 Lux IR Distance - - - 　10 meter - Microphone - - - Built-in 2 -Way Audio - - - V V V Digital Zoom - - - Adjustable 3 GPP - - - V V V Multi-Profile - - - V V V Features Networking Interface Max resolution Lens www. planet. com. tw >> OVERVIEW 48/96

Features ICA-107 Serial Internet Camera ICA-107 / ICA-107 P WLAN Internet Camera ICA-107 W Ø Supports M-JPEG video compression Ø High quality 1/4” CMOS image sensor Ø Pre-recording for motion triggered Ø Remote Control via Internet Explorer Ø UPn. P and DDNS Ø Manual Focus Lens Ø Supports Po. E (ICA-107 P) and Wireless (ICA-107 W) www. planet. com. tw ICA-107 / ICA-107 W >> OVERVIEW 49/96

Features ICA-108 / ICA-108 W Internet Camera ICA-108 WLAN Internet Camera ICA-108 W Ø Supports MPEG-4 / M-JPEG dual video compression Ø Provides 6 high-light IR LEDs for 0 Lux operation with 10 meters distance Ø High quality 1/4” CMOS image sensor Ø Supports Multi-Profile Video Ø Compliant with 3 GPP protocol Ø Built-in internal microphone Ø Digital Zoom supported Ø Remote-Control via Internet Explorer Ø 2 -Way Audio supported Ø Wired and Wireless LAN interface www. planet. com. tw ICA-108 / ICA-108 W Panel in the bottom LAN Speaker Out Reset >> OVERVIEW 50/96

Features ICA-120 CMOS Box IP Camera Ø Supports CS mount lens Ø Up to 30 FPS for all resolution Ø External I/O trigger for various surveillance applications Ø 2 -way audio with built-in microphone and external speaker Ø Multi-profile encoder MPEG-4 and M-JPEG dual codec Ø 3 GPP for 3 G mobile remote application Ø Provides 4 motion detection areas Ø Adjustable Digital Zoom Ø Image transmission via FTP/SMTP by motion detection Ø IP Filter for allow/deny IP addresses Ø Cam Viewer – Central Management software supported Ø ICA-120 CS mount Audio Out Lens Microphone DI/DO Audio IN Front Panel Rear Panel Optional outdoor Housing www. planet. com. tw >> OVERVIEW 51/96

CMOS Desktop IP Camera ICA-150 W ICA-550 W 10/100 Mbps IEEE 802. 11 g 1/4” CMOS 300 K 6 mm / F 1. 8 6 mm / F 2. 0 Image Compression MPEG-4 / M-JPEG Max resolution 640*480 (30 fps) 2 Lux 1. 5 Lux Pan / Tilt - Pan : -64~64 degree Tilt : -28~34 degree Audio In - V Built-in Microphone V V Model Features Networking Interface Wireless Interface Sensor Quality Lens Sensibility (Lux) www. planet. com. tw >> OVERVIEW 52/96

Features ICA-150 W Desktop Wireless IP Camera Ø Supports MPEG-4 / M-JPEG dual video compression Ø IEEE 802. 11 g compliant Ø Simultaneous video / audio streaming Ø Supports 4 motion detection areas Ø Supports DDNS function www. planet. com. tw ICA-150 W >> OVERVIEW 53/96

Features ICA-550 W Desktop Wireless IP Camera Ø Supports MPEG-4 / M-JPEG dual video compression Ø IEEE 802. 11 bg compliant Ø Pan (-64°~+64°) and Tilt (+28°~-34°) capability Ø Simultaneous video / audio streaming Ø Supports 4 motion detection areas Ø Supports DDNS function www. planet. com. tw ICA-550 W >> OVERVIEW 54/96

CCD IP Camera ICA-510 ICA-750 1/3" Sharp CCD 1/3" Sony CCD 420 TVL 520 TVL Image Compression MPEG-4 / M-JPEG Max resolution 704*480 (30 fps) 640*480 (30 fps) 6. 0 mm, F 2. 0 6 mm, F 1. 6 0. 1 Lux 0. 5 Lux 2 -Way Audio V V Built-in Microphone - V 3 GPP V V Multi-Profile V V ICR - V Digital Zoom - 4 x Po. E Interface IEEE 802. 3 af RS-485 - V DI/DO - DI x 2 / DO x 2 Model Features Sensor Horizontal Resolution Lens Sensibility (Lux) www. planet. com. tw >> OVERVIEW 55/96

Features ICA-510 CCD Dome Internet Camera Ø 1/4” Sharp CCD sensor Ø Supports Multi-Profile video Ø MPEG-4 & M-JPEG video compress Ø 2 -Way Audio supported Ø Up to D 1 Resolution Ø Compliant with 3 GPP protocol TV Out Ø IEEE 802. 3 af Po. E compliant Audio Out ICA-510 Connectors Audio In Power In LAN Port (Po. E) www. planet. com. tw >> OVERVIEW 56/96

Features ICA-750 Dual Mode CCD Box Internet Camera Ø Day/Night Switch with ICR (IR-cut filter removable) Ø 1/4” Sony CCD sensor Ø Supports MPEG-4 / M-JPEG dual video compression ICA-750 Ø 2 -Way Audio supported Ø Supports motion detection Ø Compliant with 3 GPP protocol Front Panel Rear Panel Ø Supports Internal/External Microphone Built-in Microphone LAN (Po. E) Ø IEEE 802. 3 af Po. E compliant Reset LAN (Po. E) Ø 4 x Digital Zoom Ø External I/O trigger for various surveillance PWR DI / DO Power DI / DO applications Audio In Audio Out Ø RS-485 for external P/T scanner Ø Optional outdoor Housing www. planet. com. tw Audio In Audio Out >> OVERVIEW 57/96

Mega-Pixel IP Camera Model ICA-M 220 W Features CMOS Sensor 1. 3 Mega-Pixel Low-Lux CMOS Pan : 350 degree Tilt : 120 degree Pan / Tilt Wireless Interface Max resolution Lens Image Compression Sensibility (Lux) - IEEE 802. 11 n 1280*1024 (15 fps) 1024 x 768 (15 fps) 640*480 (30 fps) 3. 6 mm / F 2. 0 MPEG-4 / M-JPEG 1 Lux 2 -way Audio Built-in Mic. / External Speaker Digital Zoom Adjustable Outdoor Housing www. planet. com. tw ICA-OH >> OVERVIEW 58/96

Features ICA-M 220 / ICA-M 220 W Wired Mega-Pixel CMOS P/T IP Camera 802. 11 n Mega-Pixel CMOS P/T IP Camera Ø 1. 3 Mega-Pixel Low-lux CMOS image sensor Ø MPEG-4 / M-JPEG dual video compression Ø Pan range: 350 degree Ø Tilt range: 120 degree Ø 2 -Way Audio Ø Built-in internal microphone Ø Audio-out for external speaker Ø Adjustable Digital Zoom Ø IEEE 802. 11 n compliant (ICA-M 220 W) Ø SDHC slot for up to 8 GB SD memory flash ICA-M 220 W ICA-M 220 Rear Panel Front Panel Focus Ring WPS Button (ICA-M 220 W Only) Microphone SMA Antenna WLAN LED Connector (ICA-M 220 W Only) (ICA-M 220 W SMA Antenna Connector (ICA-M 220 W Only) Power LED Audio SD Card Slot Out www. planet. com. tw LAN LED LAN >> OVERVIEW 59/96

Product Features H. 264 IP Camera www. planet. com. tw

H. 264 IP Camera Model ICA-HM 125 ICA-HM 130 ICA-HM 135 ICA-HM 230 ICA-HM 350 Features Sensor 2. 0 Mega-Pixel CMOS 1. 3 Mega-Pixel CMOS Image Compression H. 264 / MPEG-4 / M-JPEG Max resolution 1280*1024(15 fps) / 640*480 (30 fps) 6 mm, F: 1. 2 4. 3 mm, F: 1. 8 2. 7~9 mm, F: 2. 0 6 mm, F: 1. 6 6 mm, F: 1. 8 1. 0 Lux - - - 0~355 / 90 degrees - 3 GPP - V V Multi-Profile - V V Heater/ Fan - - V Lens Sensibility (Lux) Pan/Tilt Po. E Interface IEEE 802. 3 af RS-485 - V V - V DI/DO 2 / 1 1 / 1 - 1 / 1 Zoom Adjustable Digital Zoom Video Out V - - - V Water Proof - - IP-66 www. planet. com. tw >> OVERVIEW 61/96

Features ICA-HM 125 2 Mega-Pixel H. 264 Box IP Camera Ø High Quality 2 -Mega. Pixel Image Sensor Ø Maximum Resolution up to 1600 x 1200 at 15 FPS Ø H. 264 / M-JPEG multi stream video compress simultaneously Ø 2 -Way Audio supported with additional external microphone and speaker Ø IEEE 802. 3 af Po. E compliant Ø Day and Night supported with ICR function Ø Built-in auto enabling Microphone Ø External I/O trigger for various surveillance application Ø SD card socket to save local recording video and image Ø CS-Mount Lens compatible www. planet. com. tw ICA-HM 125 >> OVERVIEW 62/96

Features ICA-HM 130 H. 264 Mage-Pixel Indoor Dome IP Camera Ø 1. 3 Mega-Pixel CMOS Image Sensor resolution up to 1280 x 1024 Ø H. 264 / MPEG-4 / M-JPEG multi-profile video compress simultaneously Ø 2 -Way Audio supported with additional external microphone and speaker Ø Save-to-NAS function for save video files without operating software Ø 3 GPP for 3 G mobile remote applications Ø IEEE 802. 3 af Po. E compliant Ø Provides 10 specific area for Motion Detection www. planet. com. tw ICA-HM 130 >> OVERVIEW 63/96

Features ICA-HM 135 H. 264 Mega-Pixel CMOS Vandal Proof Dome IR IP Camera Ø 1. 3 Mega-Pixel Low-Lux CMOS sensor Ø Multi-Profile video, H. 264 / MPEG-4 & M-JPEG video compress Ø 2 -Way Audio supported Ø 20 meter IR distance Ø High quality Vari-Focal lens with Auto-Iris Ø Compliant with 3 GPP protocol Ø Adjustable Digital Zoom supported DI/ DO/ RS-485 Ø ICR (IR-Cut Filter Removable) supported Video Out Ø DI/DO interface for various alarm trigger Ø RS-485 for external P/T scanner Ø IEEE 802. 3 af Po. E compliant Ø Vandal proof, 10 pounds resist Ø IP-66 protection www. planet. com. tw ICA-HM 135 Connectors Power In Audio Out >> OVERVIEW 64/96

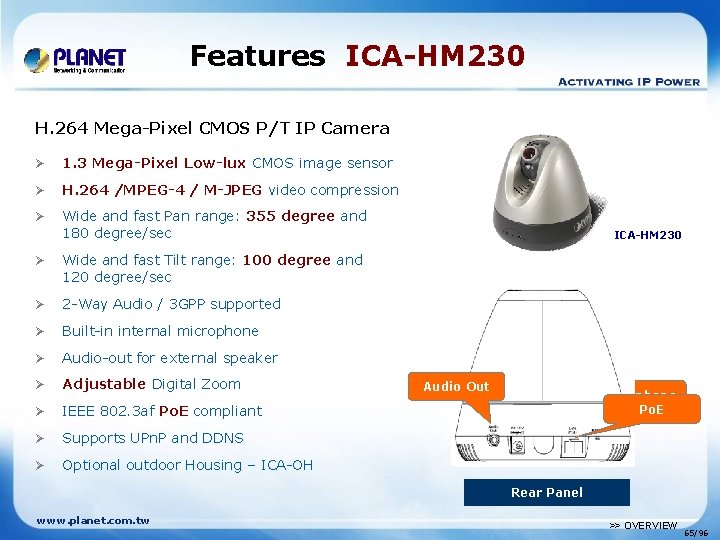

Features ICA-HM 230 H. 264 Mega-Pixel CMOS P/T IP Camera Ø 1. 3 Mega-Pixel Low-lux CMOS image sensor Ø H. 264 /MPEG-4 / M-JPEG video compression Ø Wide and fast Pan range: 355 degree and 180 degree/sec Ø Wide and fast Tilt range: 100 degree and 120 degree/sec Ø 2 -Way Audio / 3 GPP supported Ø Built-in internal microphone Ø Audio-out for external speaker Ø Adjustable Digital Zoom Ø IEEE 802. 3 af Po. E compliant Ø Supports UPn. P and DDNS Ø Optional outdoor Housing – ICA-OH ICA-HM 230 Audio Out Microphone Po. E Front Panel Rear Panel www. planet. com. tw >> OVERVIEW 65/96

Features ICA-HM 350 H. 264 Mage-Pixel 30 M Outdoor IR IP Camera Ø 1. 3 Mega-Pixel CMOS Image Sensor Ø H. 264 / MPEG-4 / M-JPEG multi-profile video compress simultaneously Ø 56 Infrared LED over 30 M long range IR distance Ø 2 -Way Audio supported with additional external microphone and speaker Ø Save-to-NAS function for save video files without operating software Ø 3 GPP for 3 G mobile remote applications Ø IEEE 802. 3 af Po. E compliant Ø Day and Night supported with ICR function Ø Provides 10 specific area for Motion Detection Ø IP-66 Water-Proof protection class Outdoor Housing Ø Built-in auto enabling Heater & Fan www. planet. com. tw ICA-HM 350 >> OVERVIEW 66/96

H. 264 IP Camera Model ICA-H 312 ICA-H 651 1/3" Sony CCD 1/4” Sony Super. HAD CCD 420 TVL 480 TVL Features Sensor Horizontal Resolution Image Compression Max resolution H. 264 / MPEG-4 / M-JPEG 704*480 (30 fps) 6 mm, F: 1. 8 f = 4. 1~73. 8 mm, F 1. 4~3. 0 0. 1 Lux 0. 03 Lux Pan/Tilt - 360 degrees / 90 degrees 3 GPP V V Multi-Profile V V Heater/ Fan - V IEEE 802. 3 af - RS-485 V V DI/DO 1 / 1 Zoom - 22 x Optical/ 10 x Digital Video Out V V IP-66 Lens Sensibility (Lux) Po. E Interface Water Proof www. planet. com. tw >> OVERVIEW 67/96

Features ICA-H 312 H. 264 25 -meter IR IP Camera Ø 1/3 inch color CCD with 3 levels of image compression Ø Color images in daytime, B/W images in total darkness ICA-H 312 Ø Supports H. 264 / MPEG-4 / M-JPEG Multi video compression Ø 30 fps at D 1 Video Resolution Ø 3 GPP supported Ø Supports Multi-Profile Video Ø IP-66 weather-proof protection class Ø Save-to-NAS function supported Power In Ø DDNS, FTP, Http, Samba upload, Pop-up message, Motion Detection support Audio Out Ø 14 pieces high-light IR LEDs Ø 6 mm fixed lens (View Angle: H 39°, V 29°) Ø External Reset Button www. planet. com. tw Connectors Reset Button LAN (802. 3 af Po. E) Audio In TV Out RS 485 & DI/DO >> OVERVIEW 68/96

Features ICA-H 651 H. 264 Outdoor Speed Dome IP Camera Ø 1/4 Sony Super. HAD CCD with 3 levels of image compression Ø Sony Day/Night Zoon Module Ø 22 X optical zoom, 10 X digital zoom Ø Supports H. 264 / MPEG-4 / M-JPEG video compression Ø IP-66 weather-proof protection class Ø Pan coverage 360 degree continuous / tilt coverage 180 degree (electric flip) LAN Port Ø Built-in auto enabling Heater & Fan DI/ DO/ RS-485 Ø 2 -Way Audio / 3 GPP supported Video Out Ø Supports Multi-Profile Video Ø DI/DO interface for various alarm trigger Ø DDNS, FTP upload, Pop-up message, Motion Detection support www. planet. com. tw ICA-H 651 Connectors Power In Audio Out >> OVERVIEW 69/96

Product Features NVR & HDVR www. planet. com. tw

Network Video Recorder NVR-400 NVR-810 NVR-1610 SATA x 2 RAID 0, RAID 1, JBOD Standard Video Channels & Concurrent Recording 4 8 16 Multi-monitor - 5 5 Remote Management - Yes (IE / CMS) Recording Search - Date / Time / Event Playback - Yes Event Handling - Yes Model Features Hard Drive Type HDD configuration Event Trigger Action E-Mail / FTP E-Mail / HTTP / FTP / Buzzer / DIDO / E-Map / CMS / Log PTZ Control - V V E-Map - V V Expansibility (CMS) - Max 128 -Ch Max 256 -Ch Compression Format Resolution Supported Camera www. planet. com. tw M-JPEG H. 264 / MPEG 4 / M-JPEG Depends on Camera (Max. D 1) Depends on Camera (Max. HD) PLANET / AXIS / Panasonic / Sony / ACTi / Canon / D-Link / Vivotek 7000 series >> OVERVIEW 71/96

Features NVR-400 4 -Ch Network Video Recorder Ø Supports 4 -chnnel IP cameras input Ø Smart schedule recording to save HDD space Ø Support RAID 0 / 1 and JBOD Ø 2 USB 2. 0 port for backup and print server Ø IP filter for Ethernet access Ø Setup Wizard for easy installation, even in different IP domain setting Ø Download assistance, make users download files without PC and schedule-able Ø Support UPn. P Media/i. Tunes Server Ø Support Real time clock Ø Web-based administration program NVR-400 Rear Panel Images of IP Cameras www. planet. com. tw >> OVERVIEW 72/96

Features NVR-810 / NVR-1610 8/16 -Ch Network Video Recorder Ø Manual or Schedule Recording of 8 /16 IP Cameras simultaneously Ø M-JPEG / MPEG-4 / H. 264 compression Ø Video resolution up to HD (1920 * 1080) Ø Video recycle function makes the video recording in 7/24 Ø Two-Way Audio function Ø E-Map interface in web and utility configuration Ø Auto discover by management software Ø Up to 8/16 NVR, max. 128/256 channels with the management software Ø Supports mobile phone remote view with Win. CE 6. 1, Android, Symbian S 60, i. Phone, Blackberry 4. 6 www. planet. com. tw NVR-810/ NVR-1610 >> OVERVIEW 73/96

Features HDVR-1600 16 -Ch Hybrid Digital Video Recorder Ø Multi-Codec for H. 264 / MPEG-4 / MJPEG compression Ø Supports 16 Analog Cameras and IP Cameras simultaneously Ø Mega-Pixel recording Ø Multiple video output ports Ø Supports up to 4 SATA devices Ø POS Function: transaction monitoring Ø NTP for time synchronization Ø Easy configuration interface with USB Keyboard / Mouse Ø Multi-Tasking: Recording, Display, Backup, Playback Ø CMS manage up to 512 Channels Ø Mobile phone remote monitor Ø Calendar, Time and Event search Ø Supports multiple languages www. planet. com. tw HDVR-1600 Rear Panel Analog Cameras IP Cameras >> OVERVIEW 74/96

Hybrid Digital Video Recorder HDVR-1600 Product Video System NTSC / PAL Switch Selectable Video Compression H. 264 / MPEG-4 / M-JPEG Video Input 16 x BNC, 1. 0 Vp-p/75 ohm Video Output Main Monitor: HDMI x 1, VGA x 1, S-Video x 1, BNC x 1 (1. 0 Vp-p/75 oh) Call Monitor: BNC x 1 (1. 0 Vp-p/75 ohm) Loop: BNC x 16 (1. 0 Vp-p/75 ohm) Audio Input 16 x Line-In Audio Output 1 x RCA Alarm I/O 16 x Input 3 x Output Ethernet Interface 2 x RJ-45, 10/1000 Mbps USB Interface 4 x USB 2. 0, Support Thumb Drive and DVD+RW Storage Interface 4 x SATA for HDD (Supports up to 1 TB per HDD) and DVD+RW Build-in Storage Device 1 x DVD+RW, 1 x HDD Removable Rack Recording Resolution NTSC: 720 x 480 PAL: 720 x 576 www. planet. com. tw >> OVERVIEW 75/96

Hybrid Digital Video Recorder HDVR-1600 Product HDVR-1600 Recording Frame Rate HDVR-15 (extension module) HDVR-30 (extension module) H. 264 @ D 1 : NTSC 60 fps, PAL 50 fps MPEG-4 / M-JPEG @ D 1 : NTSC 120 fps, PAL 100 fps H. 264 @ D 1 : NTSC 120 fps, PAL 100 fps MPEG-4 / M-JPEG @ D 1 : NTSC 240 fps, PAL 200 fps H. 264 @ D 1 : NTSC 480 fps, PAL 400 fps Recording Quality 8 Levels Presets, Adjustable Recording Mode Schedule, Alarm, Motion Detection Display Division 1, 4, 9, 16 OSD Control Front panel buttons, IR remote controller, USB mouse/keyboard Multi-Language-OSD English / Japanese / German / French / Italian / Spanish / Portuguese / Dutch / Norwegian / Swedish / Dansk / Russian / Slovak / Hungarian / Bulgarian / Turkish / Traditional Chinese/ Simplified Chinese Pre-alarm 1~30 sec Client Interface Client software Camera PTZ Control RS-485 Backup Device DVD-RW, USB Flash Drive and Network www. planet. com. tw >> OVERVIEW 76/96

Product Features IVS & DVR www. planet. com. tw

Internet Video Server Model IVS-110 IVS-H 120 1 -Channel MPEG-4, M-JPEG H. 264, MPEG-4, M-JPEG 2 -Way Audio V V VGA (640*480@30 fps) D 1 (720*480@30 fps) DI x 1, DO x 1 V V IEEE 802. 3 af - DC 12 V, 400 m. A - - V (MC-700/ MC-1500 series) Features Input Channel Image compression Audio Supported 3 GPP Protocol Max. Resolution Digital I/O RS-485 Po. E Interface Power Output Port PLANET Media Converter Chassis Integrated www. planet. com. tw >> OVERVIEW 78/96

Features IVS-110 Internet Video Server Ø High quality MPEG-4/M-JPEG compression Ø Real-time video streaming at VGA quality (30 fps@640 x 480) Ø External camera Pan/Tilt control Ø IEEE 802. 3 af Po. E compliant IVS-110 Ø FTP upload/ trigger mail alerting Ø Screen snapshot Ø Supports Multi-Profile Video Ø 2 -Way Audio / 3 GPP supported Right-hand side Panel Left-hand side Panel Audio In Audio Out Video In DI/ DO/ RS-485 Ø DI/DO interface for various alarm trigger Ø RCA voice input to record audio with live image Ø RS-485 for external P/T scanner www. planet. com. tw Power In LAN Port Reset. Power Out >> OVERVIEW 79/96

Features IVS-H 120 H. 264 Internet Video Server Ø Multi-Profile encoder supports H. 264 / MPEG-4 and M- JPEG video compression simultaneously Ø Real-time video streaming at D 1 quality (30 fps@220 x 480) Ø Save-to-NAS function to save video files without IVS-H 120 operating software Ø Supports Multi-Profile Video Ø 2 -Way Audio / 3 GPP supported Ø DI/DO interface for various alarm trigger Right-hand side Panel Left-hand side Panel DI/DO/ 5 V DC RS-485 Video-in RJ-45 MIC-in Ø RCA voice input to record audio with live image Ø RS-485 for external P/T scanner Ø Optional installation with Media Converter Chassis Audio / Video Out www. planet. com. tw Reset >> OVERVIEW 80/96

Application IVS-H 120 www. planet. com. tw >> OVERVIEW 81/96

Digital Video Recorder Model DVR-461 DVR-860 DVR-471 DVR-1671 Features Triplex Digital Video Recorder Product Type Compression H. 264 MPEG-4 Camera Input 4 8 4 16 PAL： 200 FPS NTSC： 240 FPS PAL： 100 FPS NTSC： 120 FPS PAL： 200 FPS NTSC： 240 FPS Total frame rate PAL： 100 FPS NTSC： 120 FPS H. 264 VGA Output - - V V I/O support 4 in / 1 out 4 in / 2 out 4 in / 1 out 16 in / 1 out Audio 1 in / 1 out 4 in / 2 out 1 in / 1 out 1 x SATA 2 x SATA* 2 x SATA CD-RW/DVD-RW - IDE / USB VGA Output - V (Optional) V V Water Mark - - V V Unlimited 4 area Unlimited 2 x 2 x 13 Languages 7 Languages 10 Languages HDD Support Motion Detection Digital Zoom Multi-Language *Hardware version 2 supports SATA HDD www. planet. com. tw >> OVERVIEW 82/96

Features DVR-461 Triplex Digital Video recorder Ø H. 264 compression for DVR recording and web transmission Ø Resolution up to D 1 Ø Control panel, remote controller and USB Mouse control DVR-461 Ø Remote view and manage through client software and IE browser Ø System auto recovery after power reconnected Ø 3 G phone remote monitor Ø Supports 1 SATA HDDs, Max. 1 TB Ø Pan / Tilt / Zoom camera control via RS-485 Ø DI/DO interface supported Ø e. Map function supported in management software Ø Up to 9 DVR, max. 36 channels with the management software www. planet. com. tw >> OVERVIEW 83/96

Features DVR-860 Triplex Digital Video recorder Ø Compliant with MPEG-4 compression 8 channels video input / Loop Ø Viewing/ Playback/ Network monitoring Audio In / Out DVR-860 Rear Panel simultaneously Ø Video loop through Ø 8 concurrent cameras recording Disk Storage External I/O Ø Real time display Ø USB interface for machine archiving Ø Motion detection/ Schedule/ Event / Manual recording Ø Multi-Language OSD Ø HDD support over 1 TB Ø CD-RW/DVD-RW compatible Ø Supports SATA interface Ø VGA Output (Optional) www. planet. com. tw >> OVERVIEW 84/96

Features DVR-471 / DVR-1671 Triplex Digital Video recorder Ø High-compress H. 264 video compression Ø Viewing/ Playback/ Network monitoring simultaneously Ø 4/16 concurrent cameras recording Ø Real time display Ø Analog monitor and VGA output Ø Motion detection/ Schedule/ Event/ Manual recording Ø 16 alarm input and 4 relay output for various applications Ø 2 HDDs supported, total size up to 2 TB Ø Backup recorded files. Supports USB memory, USB HDD, USB CD-R/W, USB DVD-R/W, IDE CD-R/W and IDE DVD-R/W Ø 4 channels Video input VGA Out DVR-471 Rear Panel DVR-1671 Audio In/Out 16 channels Video input Digital In / Out VGA Out Audio In/Out Digital In / Out DVR-1671 Rear Panel Supports SATA interface www. planet. com. tw >> OVERVIEW 85/96

Product Features Analog Camera www. planet. com. tw

Features Analog Cameras CAM-DM 33 CAM-BX 42 CAM-BX 53 Mini Dome Box Camera Resolution 330 TVL 420 TVL 530 TVL Sensitivity 0. 2 Lux 0. 1 Lux CCD Sensor 1/4” Sharp 1/3” Sony Super HAD 3. 6 mm / F 2. 0 Optional Auto-Iris - V V IR-Cut Filter - - V Model Features Camera Type Lens www. planet. com. tw >> OVERVIEW 87/96

Features Analog Cameras Model CAM-IR 138 CAM-IR 338 CAM-IR 442 V CAM-IR 552 IR Camera Long Distance Vari-Focal IR Camera Long Distance IR Camera Resolution 380 TVL 380 TVL 420 TVL 520 TVL Sensitivity 0. 2 Lux 0. 1 Lux 0. 3 Lux 0. 06 Lux CCD Sensor 1/3” Sharp 1/3” Sony 6. 0 mm / F 2. 0 9~22 mm, F 1. 8 12 (15 meter) 36 (30 meter) 40 (40 meter) 12 (50 meter) Auto-Iris - - V - ICR - - V - IP-66 IP-67 IP-66 Features Camera Type Lens IR LEDs Water Resistance www. planet. com. tw 8. 0 mm / F 2. 0 >> OVERVIEW 88/96

Features Analog Cameras Model CAM-ISD 48 CAM-VP 38 CAM-IVP 52 V 23 x Indoor Speed Dome Vandal-Proof Dome IR Vandal-Proof Vari-Focal Dome Resolution 480 TVL 380 TVL 520 TVL Sensitivity 0. 01 Lux 0. 06 Lux CCD Sensor 1/4” Sony 1/3” Sony F=3. 6~82. 8 mm f : 1. 6~3. 8 3. 6 mm / F 2. 0 4. 3 mm / F 2. 0 3. 8~9. 5 mm / F 2. 0 - - 6 (15 meter) 8 (25 meter) V (optional) - - - Vandal Resistance - 10 Pound Water Resistance IP-66 Features Camera Type Lens IR LEDs Outdoor Housing www. planet. com. tw >> OVERVIEW 89/96

Roadmap www. planet. com. tw

Entry Level CMOS On Going Wired/Wireless/Po. E CMOS IR IP Cam Planning New Phase in ICA-107 / 107 W / 107 P Wired/Wireless CMOS IR IP Cam ICA-108 / 108 W Mpeg-Pixel Wired/Wireless CMOS H. 264 IR IP Cam H. 264 Po. E IP Cam ICA-HM 108 / HM 108 W (Q 4/09) ICA-HM 120 Wired/Wireless PT IP Camera ICA-M 220 / ICA-M 220 W (Q 1/10) Wired Po. E/Wireless H. 264 PT IR IP Camera Wired/Wireless 2 -MP IR IP Cam ICA-HM 220 / ICA-HM 220 W ICA-HM 109 / HM 109 W (Q 1/10) Desktop www. planet. com. tw Box PT Dome >> OVERVIEW 91/96

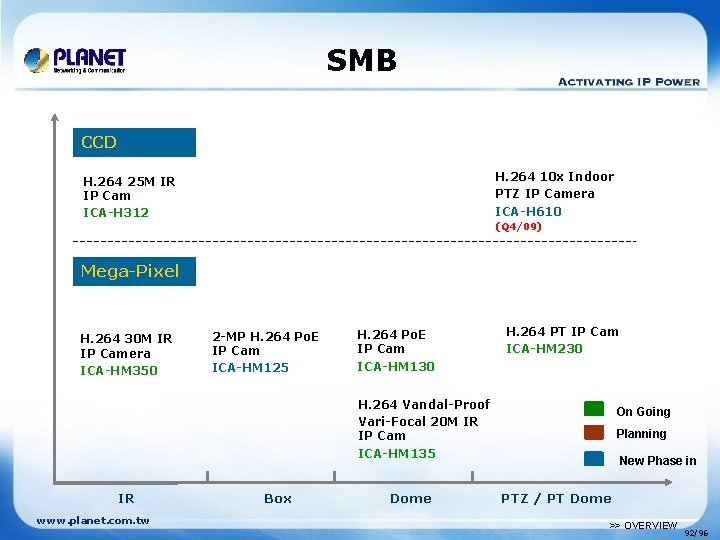

SMB CCD H. 264 10 x Indoor PTZ IP Camera ICA-H 610 H. 264 25 M IR IP Cam ICA-H 312 (Q 4/09) Mega-Pixel H. 264 30 M IR IP Camera ICA-HM 350 2 -MP H. 264 Po. E IP Cam ICA-HM 125 H. 264 Po. E IP Cam ICA-HM 130 H. 264 PT IP Cam ICA-HM 230 H. 264 Vandal-Proof Vari-Focal 20 M IR IP Cam ICA-HM 135 IR www. planet. com. tw Box Dome On Going Planning New Phase in PTZ / PT Dome >> OVERVIEW 92/96

Enterprise / Project CCD On Going Planning H. 264 23 X Outdoor IP Speed Dome ICA-H 651 New Phase in Mpeg-Pixel ICA-HM 3 xx/HM 3 xx 2/3/5 -MP H. 264 IR IP Cam ICA-HM 1 xx (Q 1/10) 2/3/5 -MP H. 264 15/30 M IR IP Cam 5 -MP H. 264 Po. E IP Cam ICA-HM 1 xx (Q 1/10) Speed Dome www. planet. com. tw 2/3/5 -MP H. 264 50/80 M IR IP Cam ICA-HM 3 xx/HM 3 xx (Q 1/10) 2/3/5 -MP H. 264 Vandal-Proof Vari-Focal 15 M IR IP Cam ICA-HM 1 xx (Q 1/10) Box IR Dome >> OVERVIEW 93/96

DVR/NVR/IVS 8/16 -Ch Digital Video Recorder Manage up to 8/16 analog CAM, 1/4/8/16 Screen Live View & Playback, H. 264/MPEG-4 compression. DVR-861/DVR-1661 8/16 -Ch Network Video Recorder Manage up to 8/16 IP CAM, 1/4/8/16 Screen Live View & Playback, H. 264/MPEG-4/M-JPEG compression, Mega -Pixel Recording. Triggers & Events Actions & Recording NVR-810 / NVR-1610 4 -Ch Network Video Recorder Manage up to 4 IP CAM, 1/4 Screen Live View & Playback, H. 264/MPEG-4/M-JPEG compression, Mega. Pixel Recording. Triggers & Events Actions & Recording NVR-410 1 -Ch H. 264 Internet Video Server On Going H. 264, D 1 at 30 FPS, 2 -way audio, DIDO, RS-485, BNC connector & 3 GPP Planning IVS-H 120 (Media Converter size) 2009/Q 4 www. planet. com. tw New Phase in 2010/Q 1 >> OVERVIEW 94/96

CMS/ IVS/ SSC On Going Central Management System Planning Unlimited Device & Group Register Live Alarm on E-Map Multiple Screen, Max 9 Monitors Unlimited Matrix System Information of Each Event New Phase in Intelligent Video System Car Plate Identification Face Identification Object Tracking Advanced Object Counting Electric Hedge Streaming Server Center Camera Streaming for Unlimited Login Users Multi-Stream Multimedia Content Cost-Effective & Scalability to Public Users Efficient Network Bandwidth Usage Better Audio & Video Quality 2010/Q 1 www. planet. com. tw 2010/Q 2 >> OVERVIEW 95/96
