Hydraulic John Deere GOLF TURF Training Department Foundations
- Slides: 41
Hydraulic John Deere GOLF TURF & Training Department Foundations 1

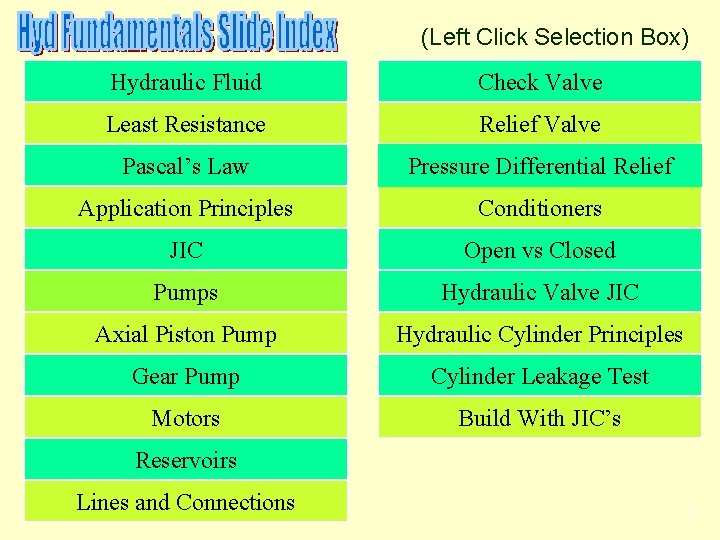

(Left Click Selection Box) Hydraulic Fluid Check Valve Least Resistance Relief Valve Pascal’s Law Pressure Differential Relief Application Principles Conditioners JIC Open vs Closed Pumps Hydraulic Valve JIC Axial Piston Pump Hydraulic Cylinder Principles Gear Pump Cylinder Leakage Test Motors Build With JIC’s Reservoirs Lines and Connections 2
Liquids Have no Shape of their own 3
Liquids are Practically Incompressible 4
Liquids under pressure follow what path? Path of least Resistance 5
Path of Least Resistance 10 lbs 6
Imperial Pascal’s Law n Metric Pressure Exerted on a Confined Fluid is Transmitted Undiminished in All Directions and Acts With Equal Force on Equal Areas and at Right Angles to Them. 7
Application Principles 1 lb (. 45 kg) Force 10 lbs (4. 5 kg) 10 sq in (6. 5 cm 2) Piston Area 1 sq in (. 65 cm 2) Piston Area 1 psi (6. 9 kpa) 11
Pump Types n Positive Displacement -With each revolution a specific amount is pumped somewhere – Low Volume, High Pressure n Non Positive (IE: Water Pump) – High Volume, Low Pressure 13
JIC Symbols n Joint Industry Council n Symbolic Drawings used in Schematics to Represent Components. 14
Pumps (JIC Symbols) n n Constant Displacement Single Direction Arrow Showing Oil Flow OUT Bi-Directional, Variable Displacement Pumps convert mechanical power into hydraulic force 16
Axial Piston Pump n Neutral Position Vertical Swashplate Pressure Oil Each Piston Engine Shaft Piston Pumps Piston Swash Plate Rotating Group Typically 9 Pistons 18 18
Axial Piston Pump n Forward Position Angled Swashplate Charge Oil Pressure Rotating Group Typically 9 Pistons 20
Axial Piston Pump n Reverse Position Angled Swashplate Pressure Charge Rotating Group Typically 9 Pistons 21
Gear Pump or Motor In Out 23
Motors (JIC Symbols) u Single Direction u Bi-Directional Arrow Showing Oil Flow IN Motors converts hydraulic force into mechanical power 25
Reservoirs 1. Vented 3. Return Above Fluid Level 2. Pressurized 4. Return Below Fluid Level 26
Lines and Connections Working Line (Main) or Crossing Lines Pilot Control Line Drain Line Flow Direction Connecting Lines Flexible Line 27
Check Valve Checked Flow Free Flow Spring Assisted Pilot Operated 28
Relief Valves Protects the Pump and Lines from excessive pressure Returns fluid back to the reservoir 29
Relief Valve Supply Return to Reservoir Pilot supply 30
Pressure Differential Valve Supply Senses the DIFFERENCE in Pressure 31
Manual On/Off Valve 32
Fluid Conditioners Filter Oil Cooler 33
Filters Internal Filter Bypass Valve (Optional) Micron n 1 Millionth of a Meter or 1 Thousandth of a Millimeter n 34
Types of Hydraulic Systems Open Center Closed Center The control valve that regulates the flow from the pump determines if system is open or closed. Do not confuse Hydraulics with the “Closed Loop” of the Power Train. (Hydro) 35
Hydraulic Valve JIC Closed Open Center Hydraulics Flow in Neutral Trapped Oil 36
Hydraulic Valve JIC Extend 38
Hydraulic Valve JIC Retract 39
Hydraulic Valve JIC Neutral Again 40

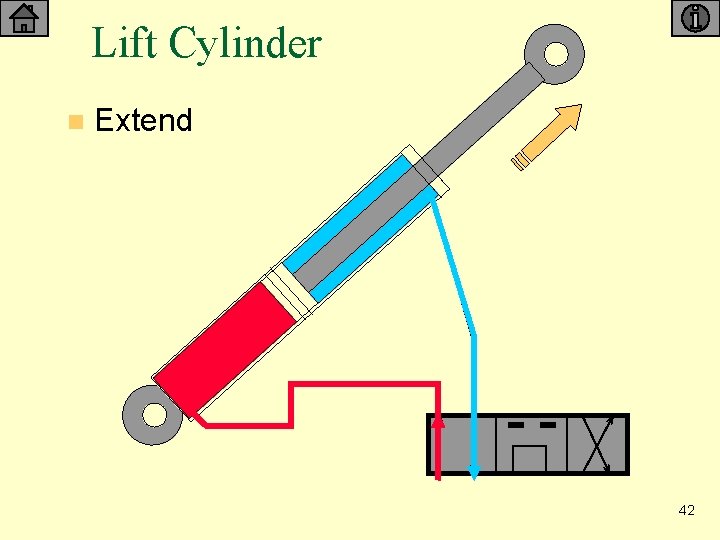

Lift Cylinder n Extend 42
Lift Cylinder Leak Down n Where Does the Oil Go? ? n 44
Lift Cylinder n Is it Possible for This Rod to Retract Even With the Piston Removed? ? 46
Cylinder Hose Failures n Effects On Line Pressure When a Cylinder Piston Packing is Leaking 15000 lbs of Down Force 1. 5” Diameter Rod. 75 x 3. 1416 = 1. 77 sq. in. Results in 8475 PSI 3” Diameter Piston 1. 5 x 3. 1416 = 7. 07 sq. in. Results in 2122 PSI 47
Hydraulic Cylinder Leakage Test Depending on the System, You May Have to Cap This Line To Prevent Return Oil From Leaking Out Retract 49

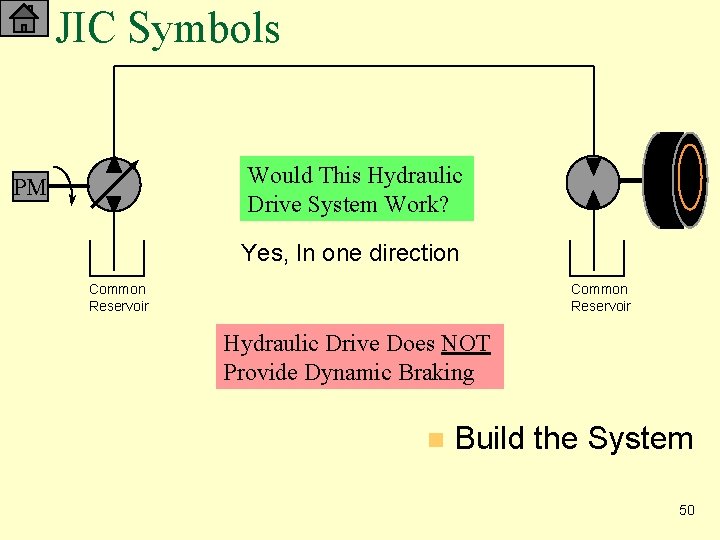

JIC Symbols Would This Hydraulic Drive System Work? PM Yes, In one direction Common Reservoir Hydraulic Drive Does NOT Provide Dynamic Braking n Build the System 50
JIC Symbols PM Hill Simulation n Closed Loop Hydrostatic Transmission 51
JIC Symbols PM Hill Simulation n Closed Loop Hydrostatic Transmission 52

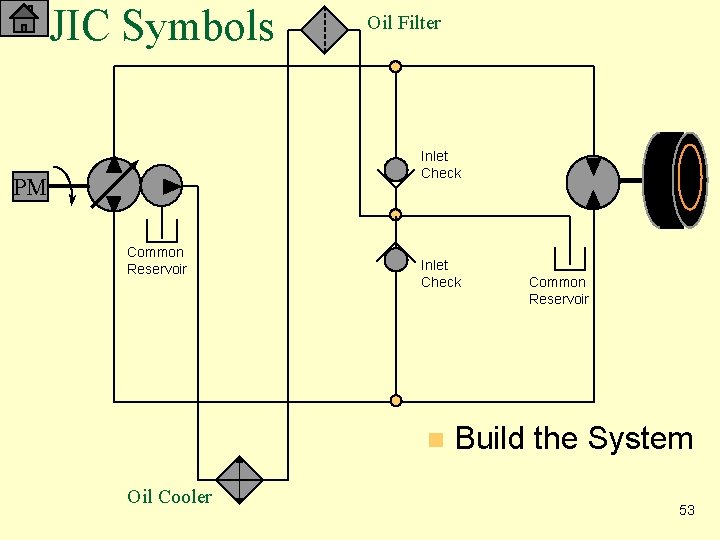

JIC Symbols Oil Filter Inlet Check PM Common Reservoir Inlet Check n Oil Cooler Common Reservoir Build the System 53
JIC Symbols Oil Filter Oil Cooler Bypass Valve PM Charge Relief Valve Filter Bypass Valve n Oil Cooler Build the System 55

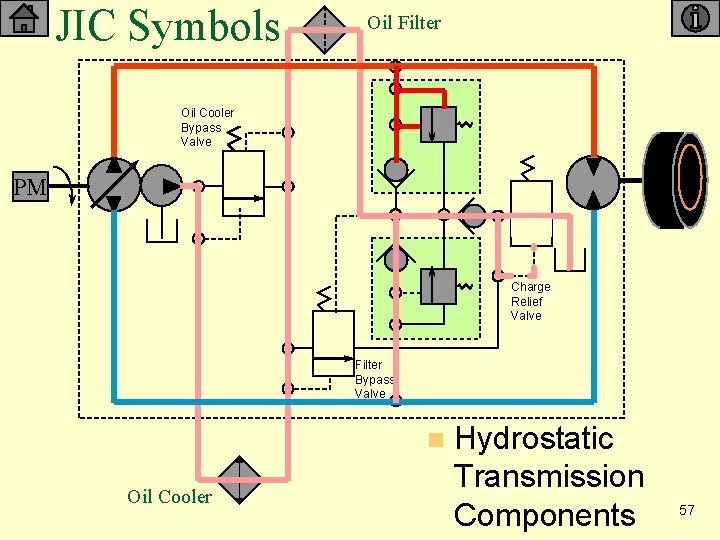

JIC Symbols Oil Filter Oil Cooler Bypass Valve PM Charge Relief Valve Filter Bypass Valve n Oil Cooler Hydrostatic Transmission Components 57
