Getting the Value from Guidance Systems Light Bars

Getting the Value from Guidance Systems, Light Bars, and GPS Marvin Stone Biosystems and Agricultural Engineering

GPS – How it works l Constellation of more than 24 satellites – Known positions (at any time) – Each continuously transmits time and position data • Two frequencies (L 1 -1575. 42 MHz and L 2 -1227. 6 MHz) – Each orbits twice per day l Ground receiver (Your GPS receiver) – Calculates Position and Time • Times signal and calculates distance to each satellite received • Triangulates Latitude and Longitude • Calculates time

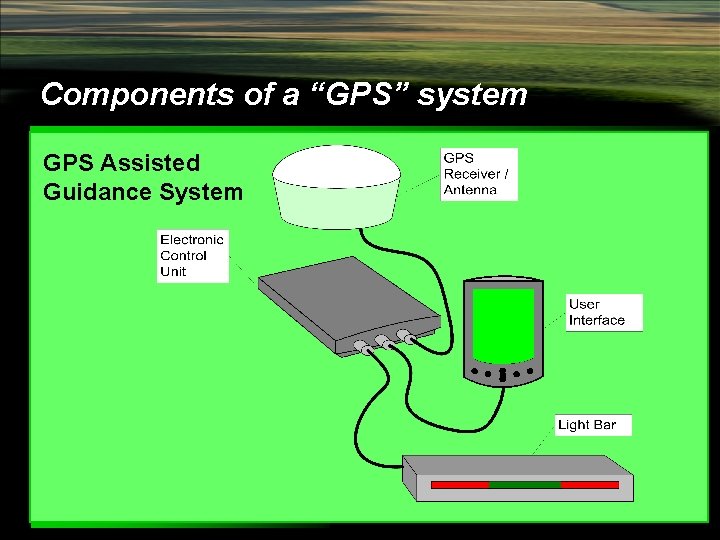

Components of a “GPS” system GPS Assisted Guidance System

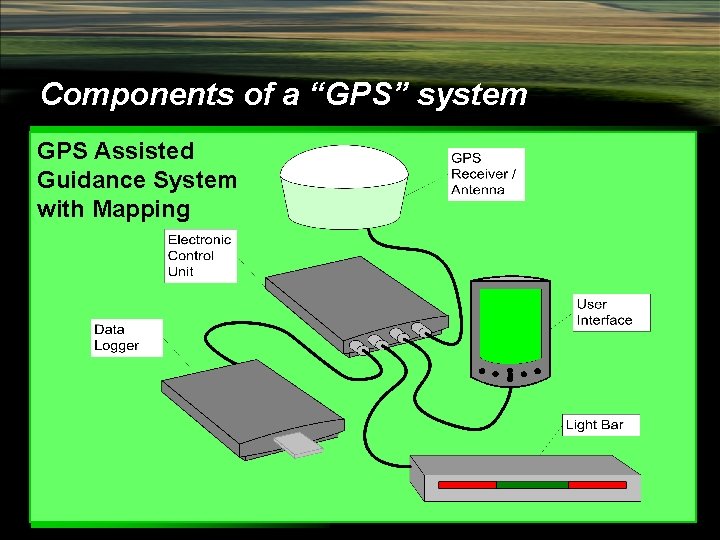

Components of a “GPS” system GPS Assisted Guidance System with Mapping

Components of a “GPS” system GPS Based Yield Monitor with Mapping

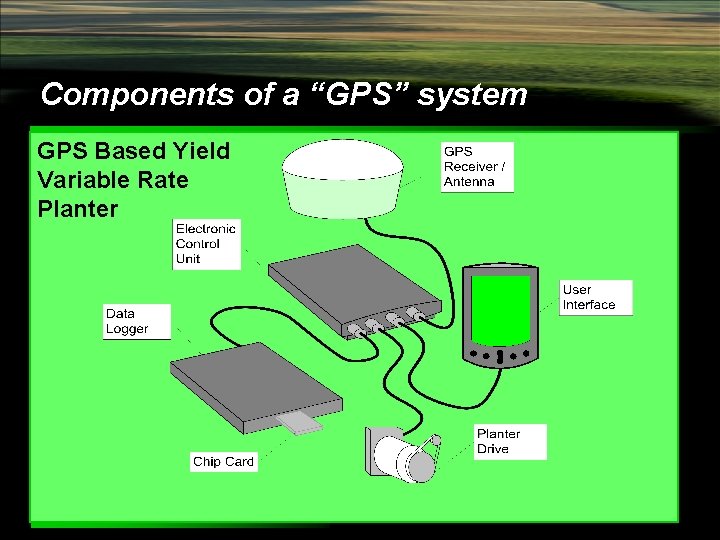

Components of a “GPS” system GPS Based Yield Variable Rate Planter

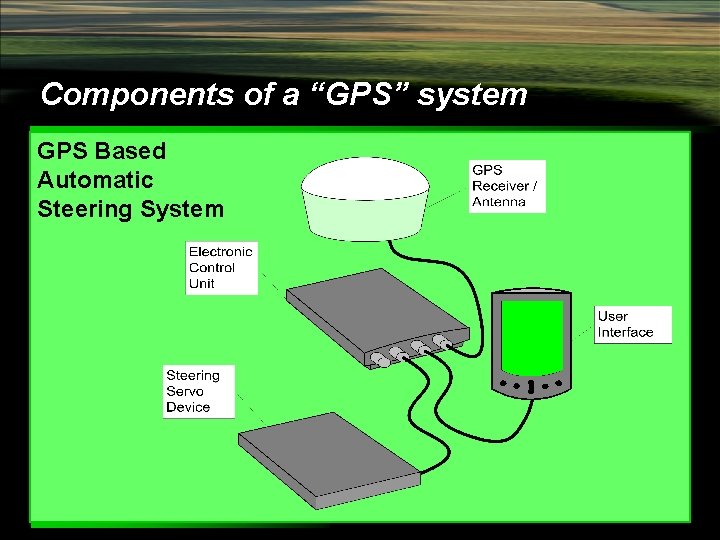

Components of a “GPS” system GPS Based Automatic Steering System

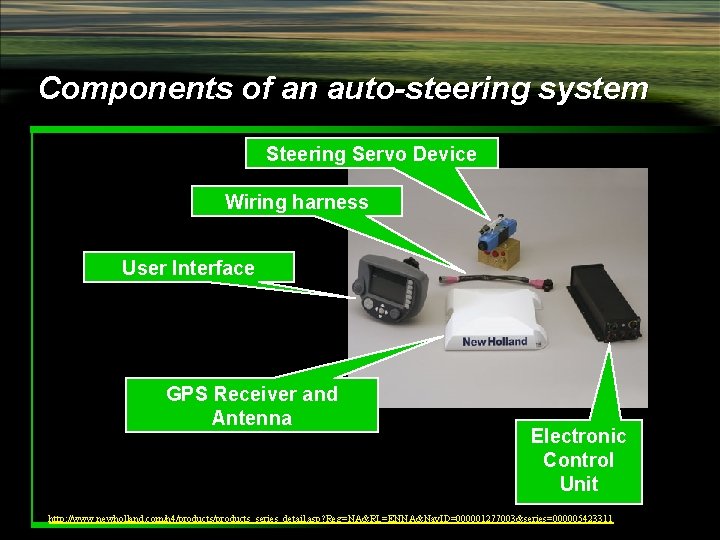

Components of an auto-steering system Steering Servo Device Wiring harness User Interface GPS Receiver and Antenna Electronic Control Unit http: //www. newholland. com/h 4/products_series_detail. asp? Reg=NA&RL=ENNA&Nav. ID=000001277003&series=000005423311

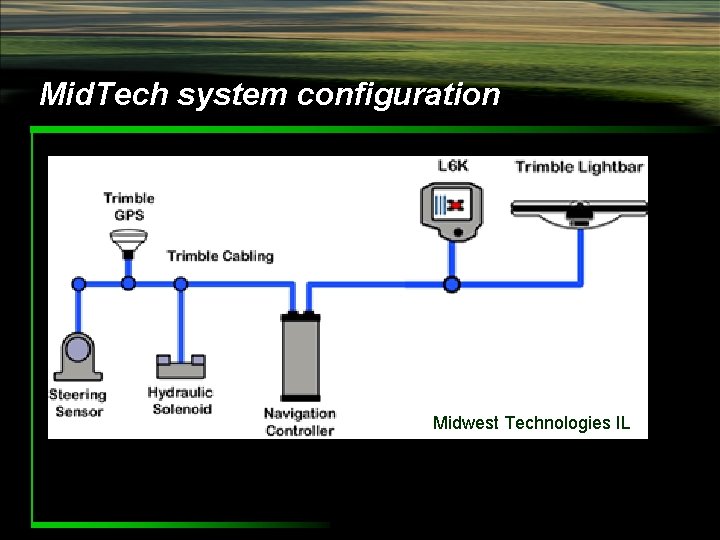

Mid. Tech system configuration Midwest Technologies IL

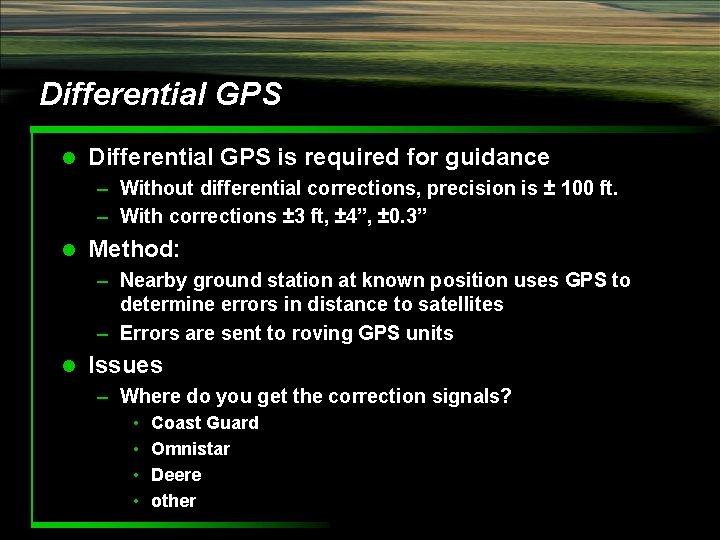

Differential GPS l Differential GPS is required for guidance – Without differential corrections, precision is ± 100 ft. – With corrections ± 3 ft, ± 4”, ± 0. 3” l Method: – Nearby ground station at known position uses GPS to determine errors in distance to satellites – Errors are sent to roving GPS units l Issues – Where do you get the correction signals? • • Coast Guard Omnistar Deere other

Differential GPS communications pathways

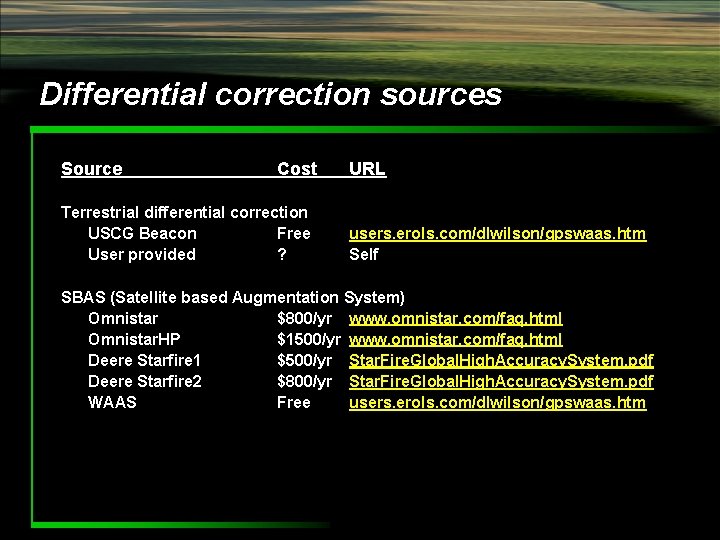

Differential correction sources Source Cost Terrestrial differential correction USCG Beacon Free User provided ? URL users. erols. com/dlwilson/gpswaas. htm Self SBAS (Satellite based Augmentation System) Omnistar $800/yr www. omnistar. com/faq. html Omnistar. HP $1500/yr www. omnistar. com/faq. html Deere Starfire 1 $500/yr Star. Fire. Global. High. Accuracy. System. pdf Deere Starfire 2 $800/yr Star. Fire. Global. High. Accuracy. System. pdf WAAS Free users. erols. com/dlwilson/gpswaas. htm

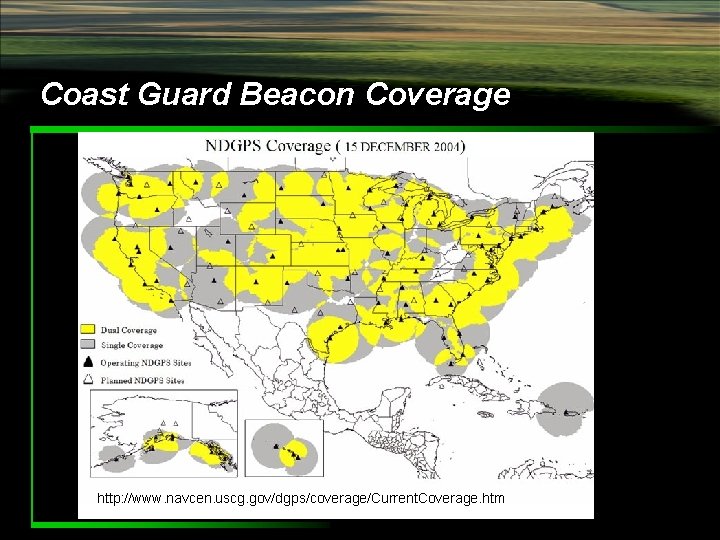

Coast Guard Beacon Coverage http: //www. navcen. uscg. gov/dgps/coverage/Current. Coverage. htm

Deere Starfire™ SBAS John Deere’s Star. Fire System: WADGPS for Precision Agriculture Tenny Sharpe, Ron Hatch, Nav. Com Technology Inc. ; Dr. Fred Nelson, John Deere & Co.

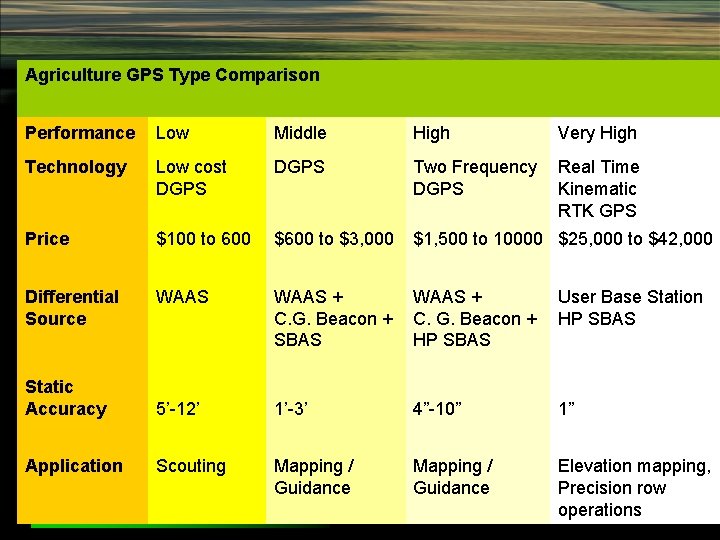

Agriculture GPS Type Comparison Performance Low Middle High Very High Technology Low cost DGPS Two Frequency Real Time DGPS Kinematic RTK GPS Price $100 to 600 $600 to $3, 000 $1, 500 to 10000 $25, 000 to $42, 000 Differential Source WAAS + User Base Station C. G. Beacon + HP SBAS Static Accuracy 5’-12’ 1’-3’ 4”-10” 1” Application Scouting Mapping / Guidance Elevation mapping, Precision row operations

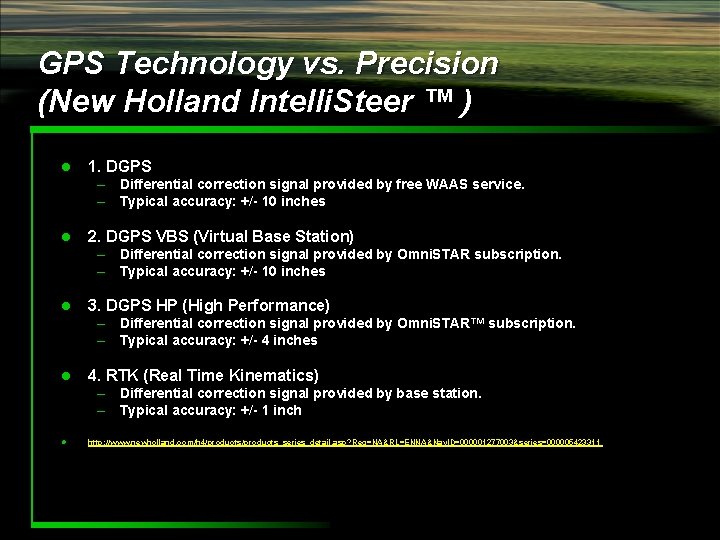

GPS Technology vs. Precision (New Holland Intelli. Steer ™ ) l 1. DGPS – Differential correction signal provided by free WAAS service. – Typical accuracy: +/- 10 inches l 2. DGPS VBS (Virtual Base Station) – Differential correction signal provided by Omni. STAR subscription. – Typical accuracy: +/- 10 inches l 3. DGPS HP (High Performance) – Differential correction signal provided by Omni. STAR™ subscription. – Typical accuracy: +/- 4 inches l 4. RTK (Real Time Kinematics) – Differential correction signal provided by base station. – Typical accuracy: +/- 1 inch l http: //www. newholland. com/h 4/products_series_detail. asp? Reg=NA&RL=ENNA&Nav. ID=000001277003&series=000005423311

Equipment on the market M. Sullivan, Ohio State Univ.

GPS Receiver Types l Low cost GPS – Example: Handheld GPS – – – l Receiver Channels – 12 Position update rate 1 per 5 sec. Likely to provide WAAS differential Precision probably not better than ~ 5’ Data output may or may not have NMEA 0183 output Mapping quality GPS (Simple DGPS) – Example: Trimble Ag. GPS 132 – – – Receiver channels – 12 US GPS/EGNOS capability Position update 10 per second WAAS, C. G. Beacon, Omnistar/Racal SBAS Precision better than 3 ft Data Output, NMEA 0183 + CAN

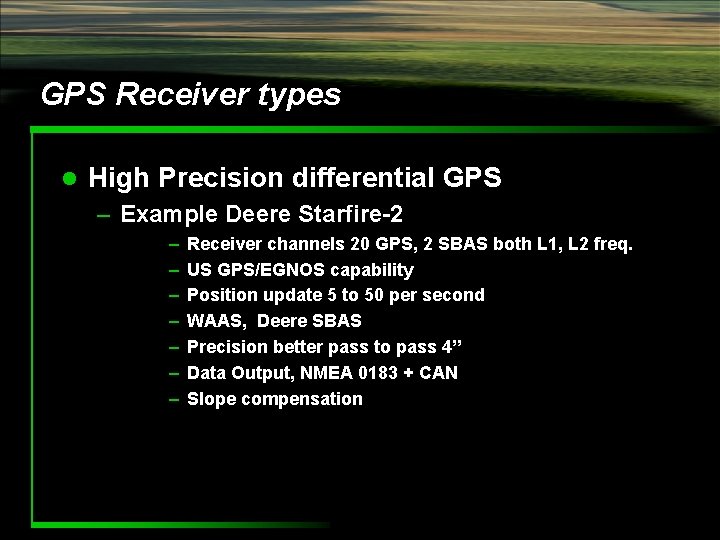

GPS Receiver types l High Precision differential GPS – Example Deere Starfire-2 – – – – Receiver channels 20 GPS, 2 SBAS both L 1, L 2 freq. US GPS/EGNOS capability Position update 5 to 50 per second WAAS, Deere SBAS Precision better pass to pass 4” Data Output, NMEA 0183 + CAN Slope compensation

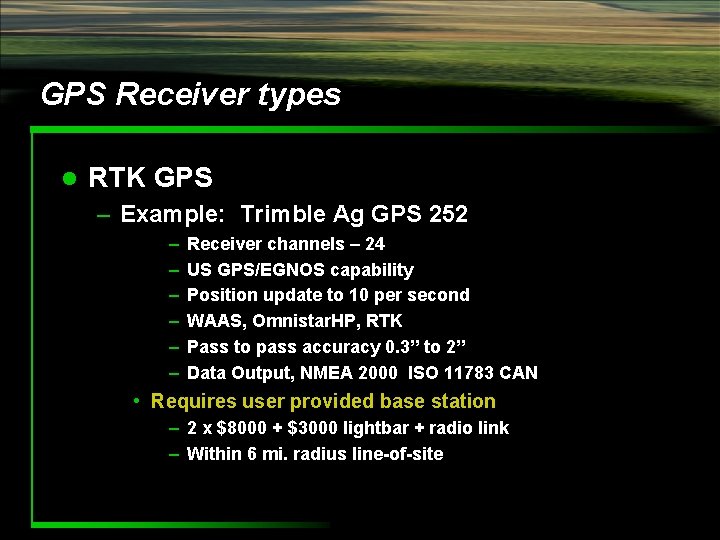

GPS Receiver types l RTK GPS – Example: Trimble Ag GPS 252 – – – Receiver channels – 24 US GPS/EGNOS capability Position update to 10 per second WAAS, Omnistar. HP, RTK Pass to pass accuracy 0. 3” to 2” Data Output, NMEA 2000 ISO 11783 CAN • Requires user provided base station – 2 x $8000 + $3000 lightbar + radio link – Within 6 mi. radius line-of-site

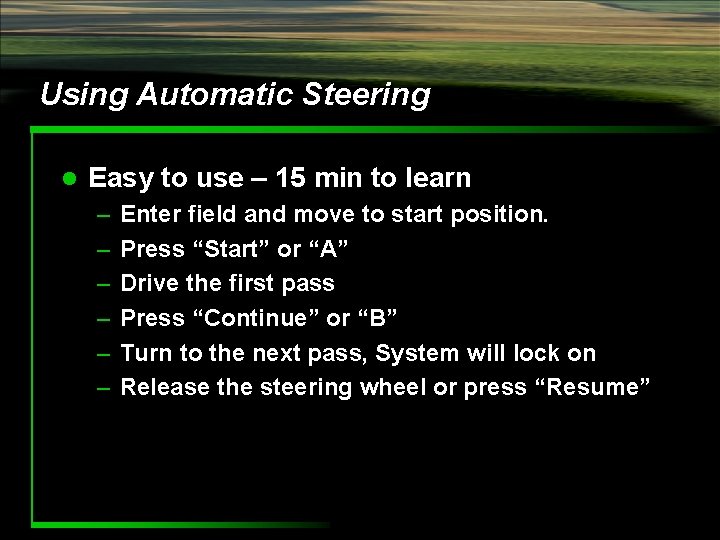

Using Automatic Steering l Easy to use – 15 min to learn – – – Enter field and move to start position. Press “Start” or “A” Drive the first pass Press “Continue” or “B” Turn to the next pass, System will lock on Release the steering wheel or press “Resume”

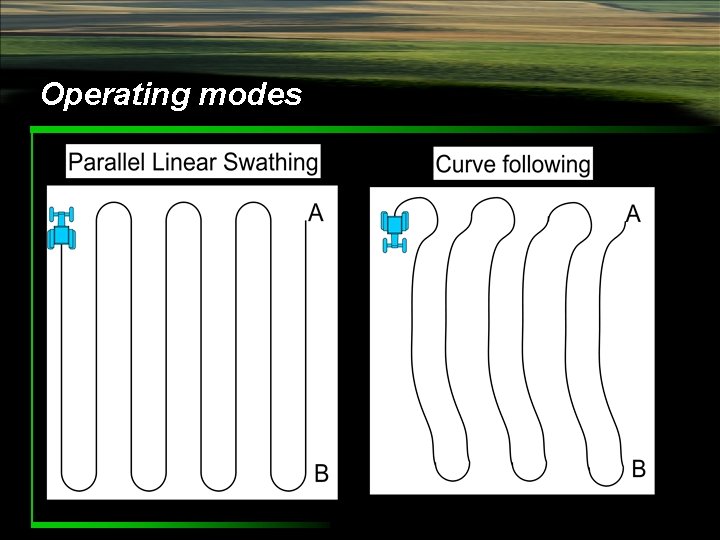

Operating modes

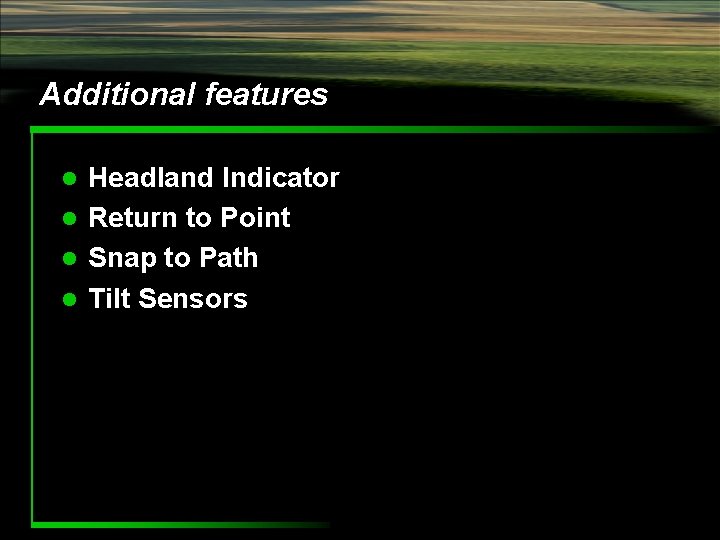

Additional features Headland Indicator l Return to Point l Snap to Path l Tilt Sensors l

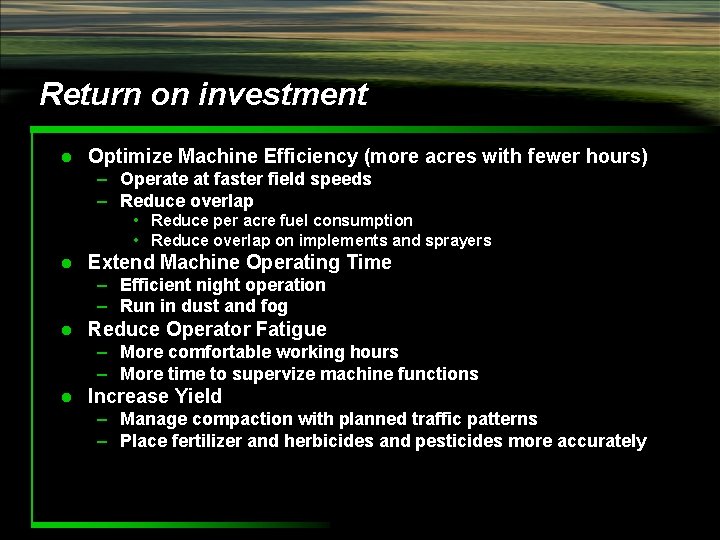

Return on investment l Optimize Machine Efficiency (more acres with fewer hours) – Operate at faster field speeds – Reduce overlap • Reduce per acre fuel consumption • Reduce overlap on implements and sprayers l Extend Machine Operating Time – Efficient night operation – Run in dust and fog l Reduce Operator Fatigue – More comfortable working hours – More time to supervize machine functions l Increase Yield – Manage compaction with planned traffic patterns – Place fertilizer and herbicides and pesticides more accurately

Automatic Steering may result in different farming practices Controlled compaction l Tramlines l Night operations l Higher speeds l Midwest Technologies IL

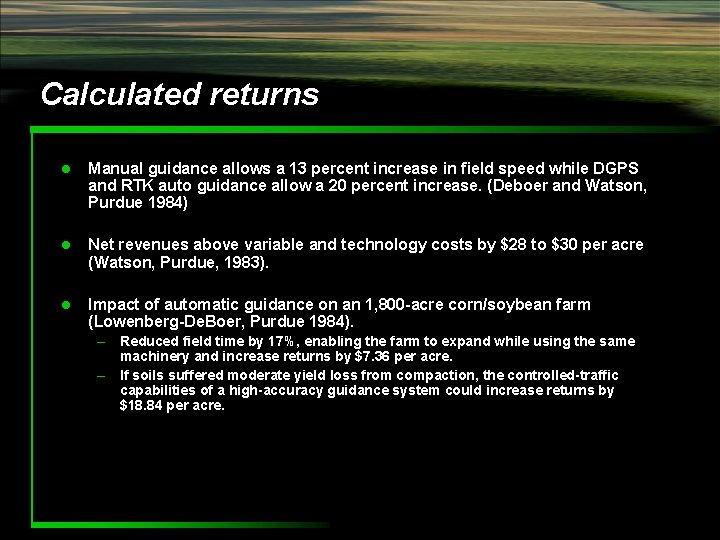

Calculated returns l Manual guidance allows a 13 percent increase in field speed while DGPS and RTK auto guidance allow a 20 percent increase. (Deboer and Watson, Purdue 1984) l Net revenues above variable and technology costs by $28 to $30 per acre (Watson, Purdue, 1983). l Impact of automatic guidance on an 1, 800 -acre corn/soybean farm (Lowenberg-De. Boer, Purdue 1984). – Reduced field time by 17%, enabling the farm to expand while using the same machinery and increase returns by $7. 36 per acre. – If soils suffered moderate yield loss from compaction, the controlled-traffic capabilities of a high-accuracy guidance system could increase returns by $18. 84 per acre.

Issues in selecting a GPS based guidance system l Do’s – – – Assure system fits your vehicle(s) Meets current and near term accuracy requirement Is adequately portable for the need Satisfies you on a test drive Understand the differential correction requirements • Subscription (SBAS) • Hardware (RTK) – Compatible with other PF equipment you plan on using

Resources l Review of auto-steering systems – http: //farmindustrynews. com/mag/farming_straightline_showdown/ l Beelines link – http: //www. beelinenavigator. com/ l Trimble link – http: //www. trimble. com/agriculture. shtml l Successful Farming (Richenburger) – http: //www. findarticles. com/p/articles/mi_m 1204/is_8_102/ai_n 6178077
