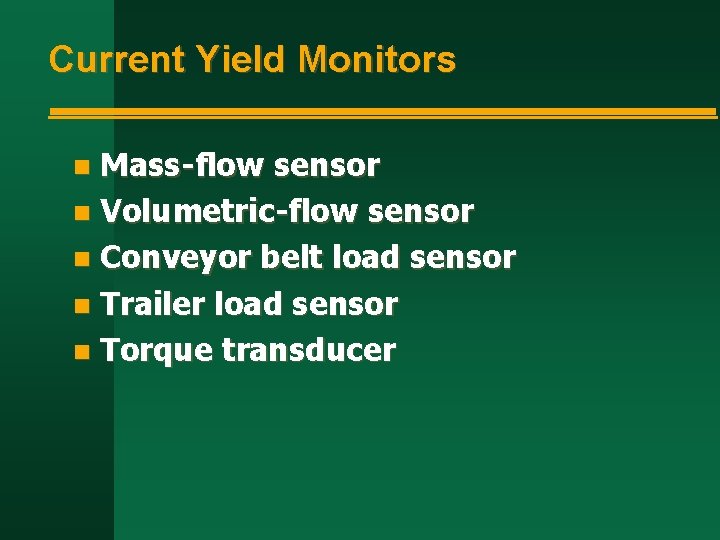

Current Yield Monitors Mass-flow sensor n Volumetric-flow sensor n Conveyor belt load sensor n Trailer load sensor n Torque transducer n
Basics of Yield Monitoring n Possible Crops to Monitor – Wheat and other grains – Cotton – Potato and Sugar Beets – Beans – Rice – Specialty Crops < Grapes, Tomatoes, Carrots, etc.
Impulse Yield Sensors John Deere Case Ag Leader Micro Trak
Impulse Flow Meter Force Vectors
Dynamincs of an Impulse Flow Meter
Non-Impulse Yield Sensors Nuclear Massey Ferguson - Europe High Frequency Radio Waves New Holland - Not marketed
Capacitance Moisture Sensors Micro Track John Deere Ag Leader Case
Yield Mapping Trailer (Sugar Beet Harvest)

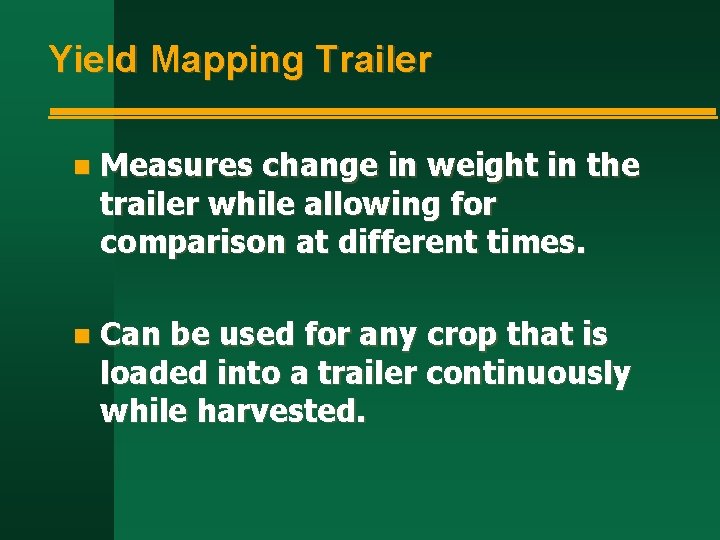

Yield Mapping Trailer n Measures change in weight in the trailer while allowing for comparison at different times. n Can be used for any crop that is loaded into a trailer continuously while harvested.
Conveyor Yield Monitor

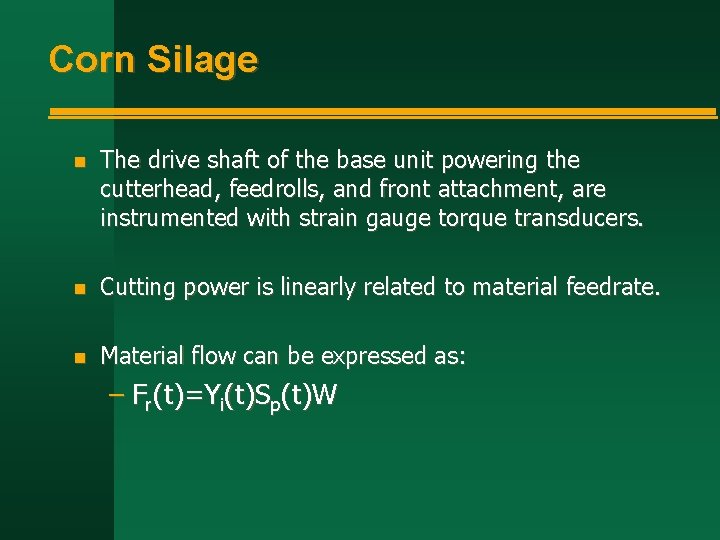

Corn Silage n The drive shaft of the base unit powering the cutterhead, feedrolls, and front attachment, are instrumented with strain gauge torque transducers. n Cutting power is linearly related to material feedrate. n Material flow can be expressed as: – Fr(t)=Yi(t)Sp(t)W

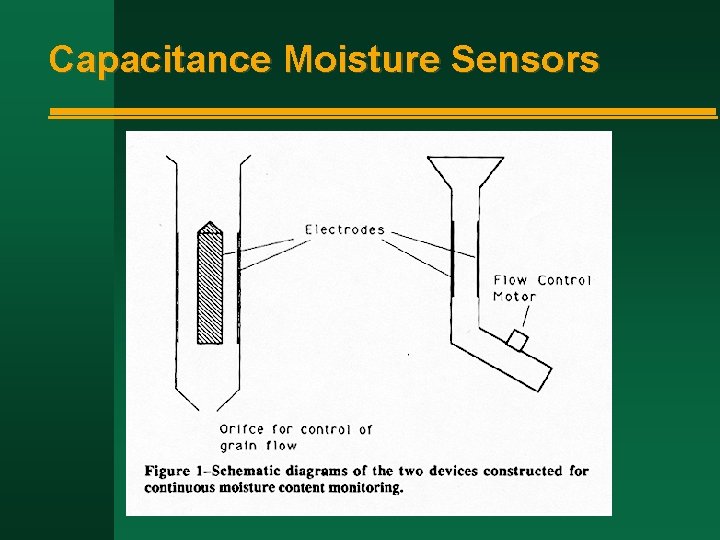

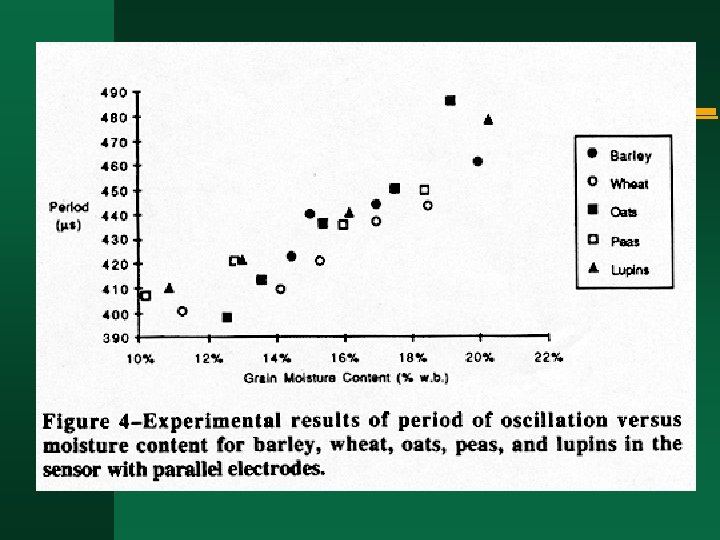

Capacitance Moisture Sensors
Sources of Yield Map Error Unknown swath width n Time lag of grain through combine n GPS error n Multiple paths through combine n Surging of grain through combine n Grain losses n Sensor Calibration n

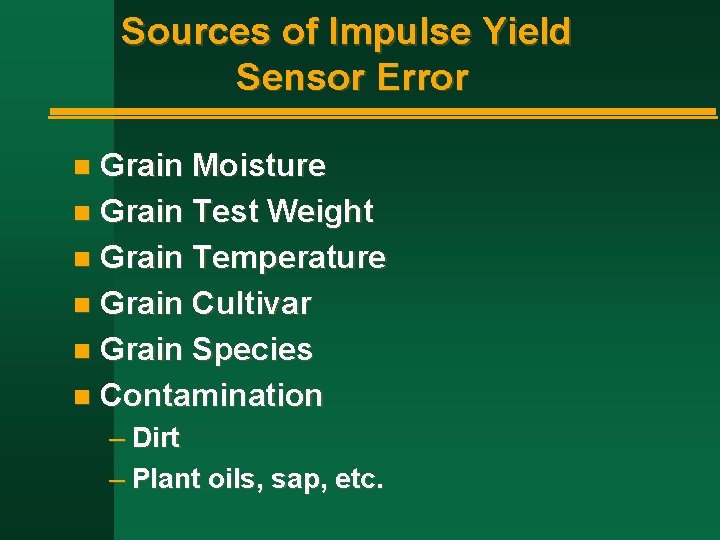

Sources of Impulse Yield Sensor Error Grain Moisture n Grain Test Weight n Grain Temperature n Grain Cultivar n Grain Species n Contamination n – Dirt – Plant oils, sap, etc.
Effect of Lag Time on Combine Yield Measurements Crop Yield Along Swath Yield Actual Grain Yield t P Yield t 0 P Yield Monitor Measured Grain Yield t

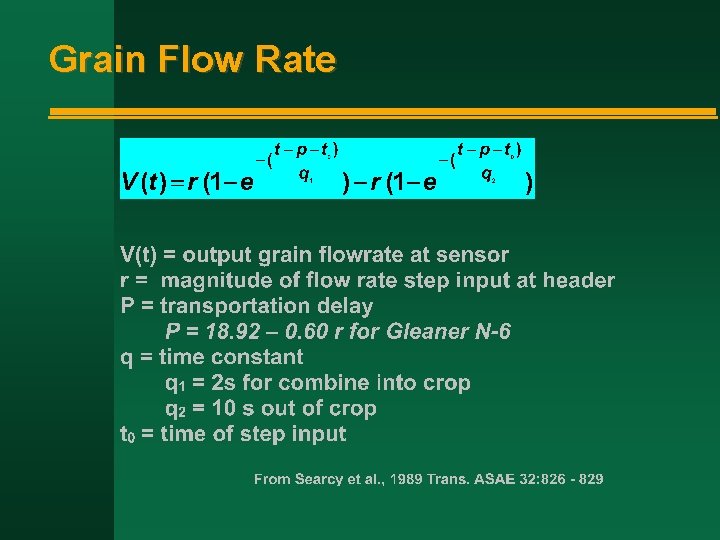

Grain Flow Rate
Comparison on Raw and Filtered Combine Flowrate Data

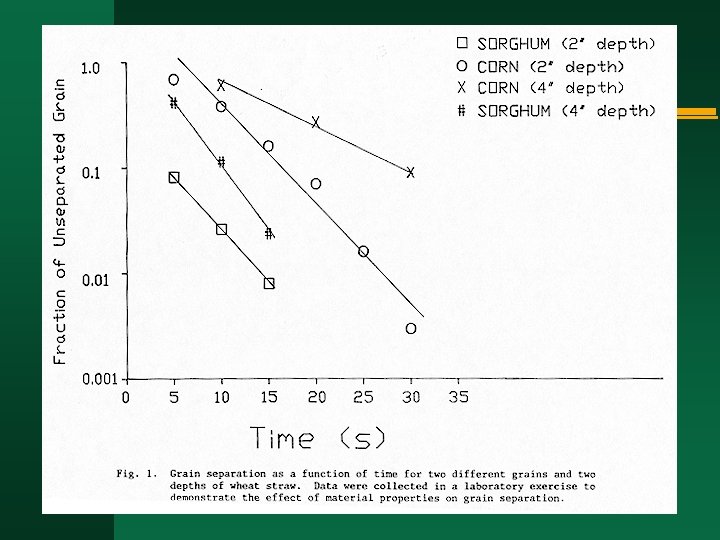

Smoothing Effect of the Straw Walkers
Correlation of Hand Harvested and Combine Yield Monitor Data – Colvin et al.
Combine Yield Monitor and Satellite Estimated Wheat Yield Maps Yield Monitor 26. 4 bu/ac Satellite Estimate 28. 7 bu/ac
GPS Error in Corn – Loss of Differential Correction Signal Oklahoma Panhandle, 1998

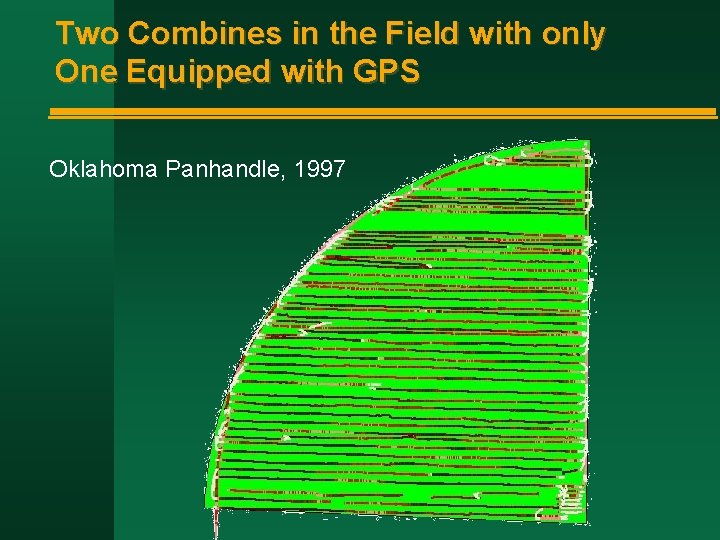

Two Combines in the Field with only One Equipped with GPS Oklahoma Panhandle, 1997
Corn Yield Surface with Krieging Oklahoma Panhandle, 1997

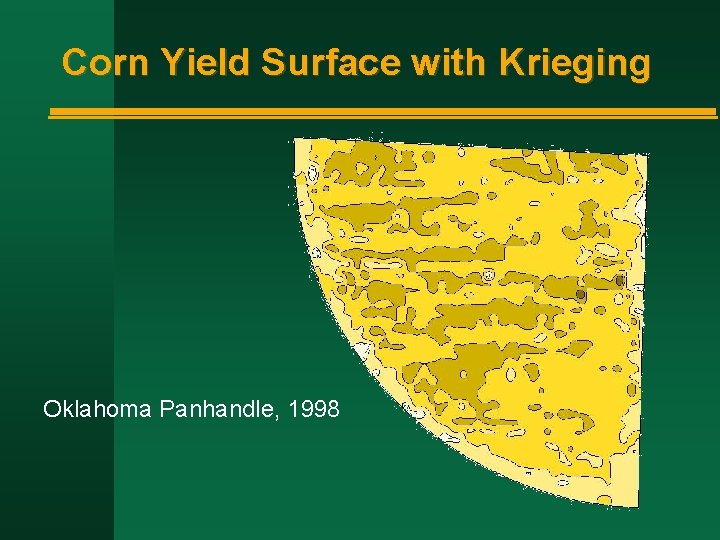

Corn Yield Surface with Krieging Oklahoma Panhandle, 1998

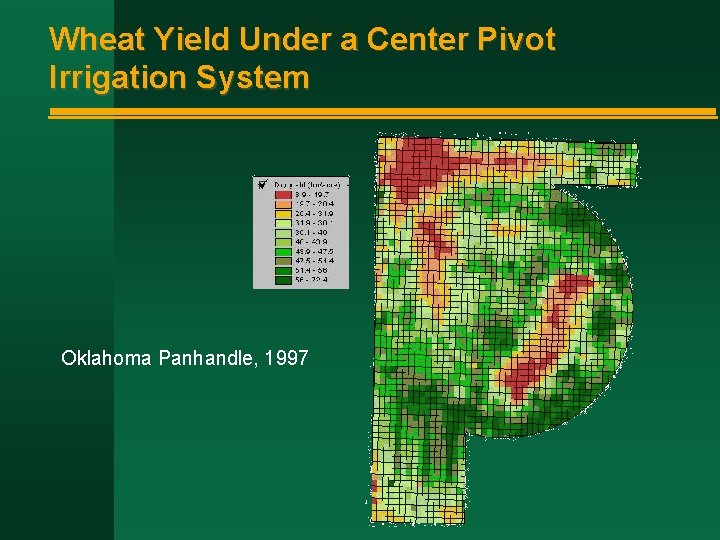

Wheat Yield Under a Center Pivot Irrigation System Oklahoma Panhandle, 1998
Wheat Yield Under a Center Pivot Irrigation System Oklahoma Panhandle, 1997
Wheat Yield Under a Center Pivot Irrigation System Oklahoma Panhandle, 1997
Wheat Yield Under a Center Pivot Irrigation System Oklahoma Panhandle, 1998
Data Misaligned Because of the Lag in the Combine
Error Caused by the Lag in the Combine
Missing Data

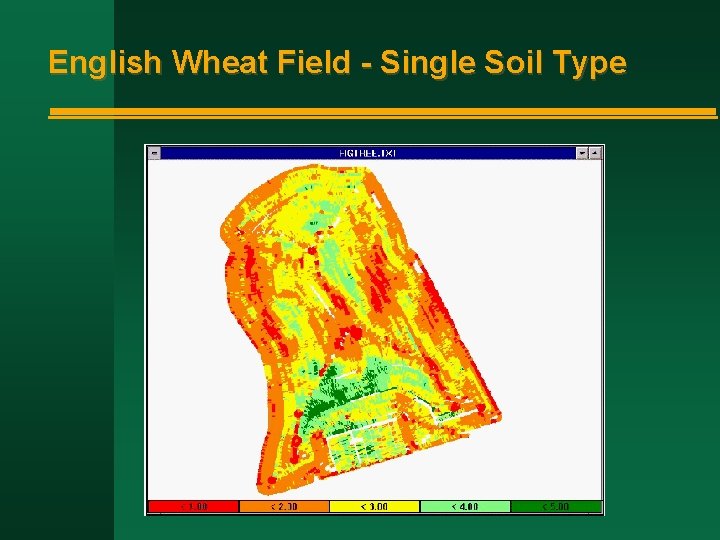

English Wheat Field - Single Soil Type

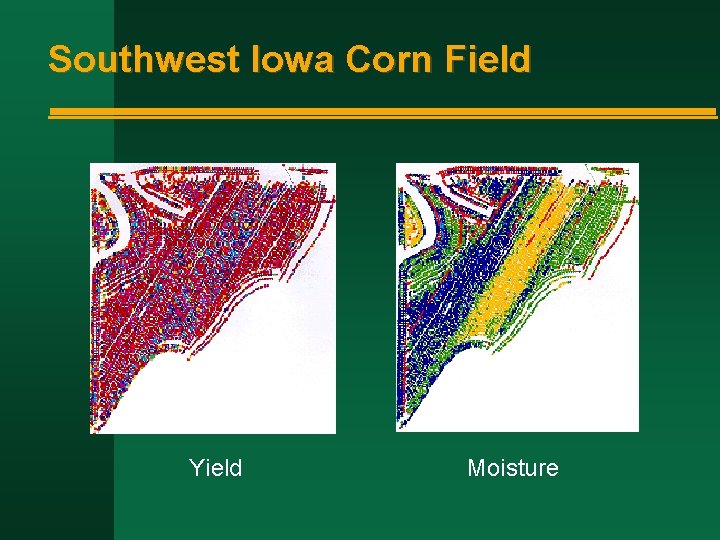

Southwest Iowa Corn Field Yield Moisture
Manning Iowa Corn Field Northwest Corner 2 Fields Merged

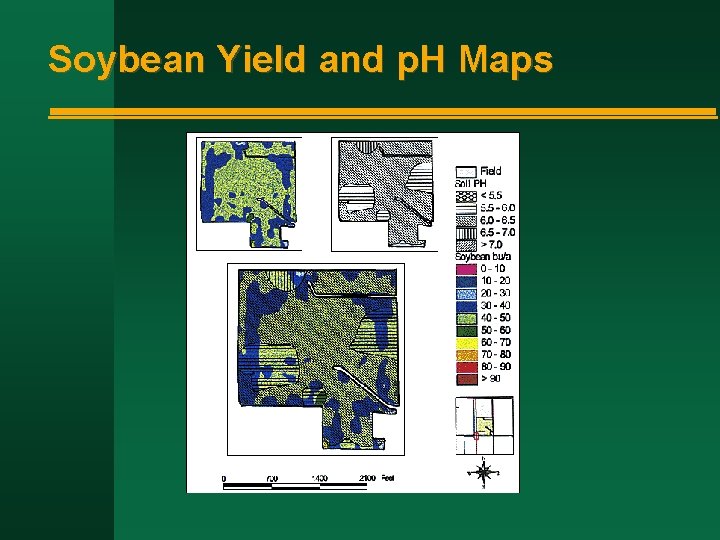

Soybean Yield and p. H Maps
Ag. Leader Cotton Yield Monitor Developed by John Wilkerson – University of Tennessee
Ag. Leader Cotton Yield Monitor Developed by John Wilkerson – University of Tennessee
Peanut Yield Monitor University of Georgia
Web Site for additional information on yield monitors http: //pasture. ecn. purdue. edu/~gem/clas s/asm 322/yield_mon. html
Mapping Sensor Data
5 Class Krieg Lime Streaking Yield Map NDVI Map Lime Streaking not evident Courtesy of Tim Sharp Jackson State C. C.

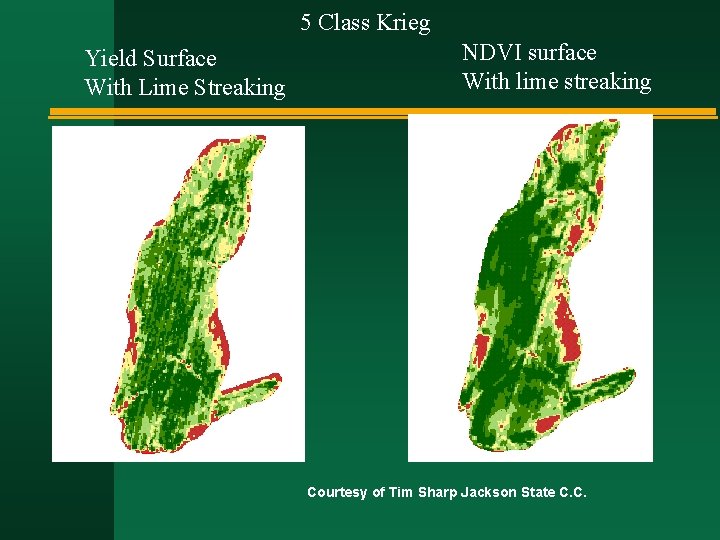

5 Class Krieg Yield Surface With Lime Streaking NDVI surface With lime streaking Courtesy of Tim Sharp Jackson State C. C.
Fertilizer Streaking 5 Class Krieg Spinner Applicator Yield Surface NDVI Surface Courtesy of Tim Sharp Jackson State C. C.
Major Challenge n Correlate NDVI surface data with yield surface data Courtesy of Tim Sharp Jackson State C. C.
Cotman Sample Points Low Medium High Courtesy of Tim Sharp Jackson State C. C.
NDVI 5 Class Surface of Cotton Red is Bad Green is Good Note Image of Surrounding Fields, they were Top-dressed with A spreader buggy By the grower Severe Streaking Courtesy of Tim Sharp Jackson State C. C.

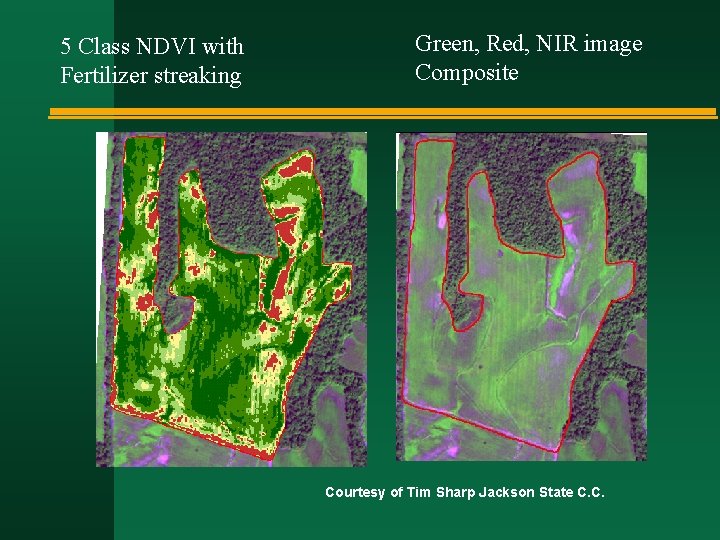

5 Class NDVI with Fertilizer streaking Green, Red, NIR image Composite Courtesy of Tim Sharp Jackson State C. C.
