Manheim FFA Ag Sales John Deere History John

Manheim FFA Ag Sales

John Deere History � John Deere was born in Rutland, Vermont � Raised on a low income � At the age of seventeen, John Deere took up the trade of blacksmithing and started to notice how the new pioneer farmers struggled to turn heavy, sticky soil with cast iron plows designed for the sandy soil of New England � In 1837, John Deere created a highly polished and properly shaped plow using a broken saw blade

John Deere History � Impressed with John Deere’s plows, Leonard Andrus created a partnership with Deere in 1843 and thousands of plows were made by Deere � 1848 - Deere dissolves his partnership and then begins to sell many other farming products and more plows

Baler Prices � 459 E - $22, 800 � 459 Standard - $25, 300 - $27, 100 with Megawide Plus Pickup � 459 Silage Special - $51, 000 � 569 Standard - $52, 200 with Megawide Plus Pickup � 569 Silage Special - $58, 000 � 990 Round Baler - $87, 300 � L 340 Large Square Baler - $161, 500

Accessory Prices � Hay Preservative applicator Automatic: $53, 000. 00 � Hay Preservative applicator Manual: $1, 700. 00 � Portable Moisture Tester: $200. 00 � Bale Mounted Moisture Sensor: $490. 00 � Bale Net Wrap: $300. 00 per roll � John Deere B-wrap: $338. 75 � Twine: $55. 00 per box of two rolls

Round Balers General Info. � Standard Bale Track monitor included with all of them � Display has density sensors which tells you to drive so you evenly distribute the grass � Roughly 14 second stop time to unload baler � Net wrap or twine (except 459 E) � Lower pickup allows less of a transition from ground to the baler and it allows you to bale faster

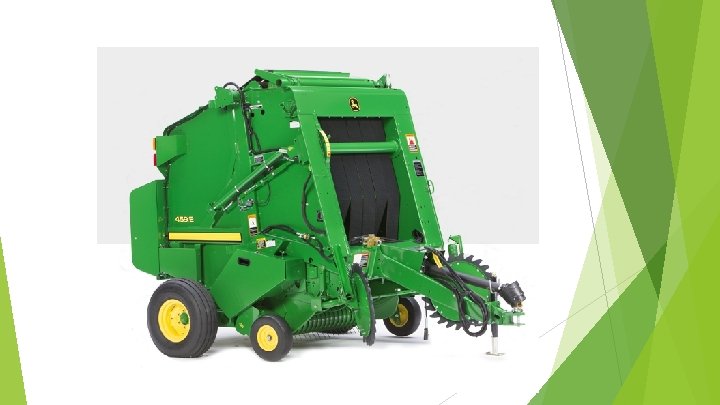

John Deere 459 E Baler � Replaces the standard 459 Round Baler � Two models: Twine or Net Wrap � Makes tight and dense 4’ x 5’ bales � Adjustable hitch to match wide array of tractor drawbar heights � Price: $22, 800 � Bale Trak Monitor Included

John Deere 459 E Baler � Bale size width: 46 Inches (117 cm. ) � Bale size diameter: 35 -60 Inches (89 -152 cm. ) � Min PTO Requirement: 55 h. P � Twine Option only

John Deere 459 E Baler � The six rugged Diamond. Tough™ belts cover 90 percent of the bale chamber, providing up to 20 percent greater belt coverage than New Holland. This reduces leaf loss, captures more crop, and further adds to bale quality. � For niche farmers, roughly 200 bales a year � Minimal Setup time, easy to maintain, and simple design for ease of operation

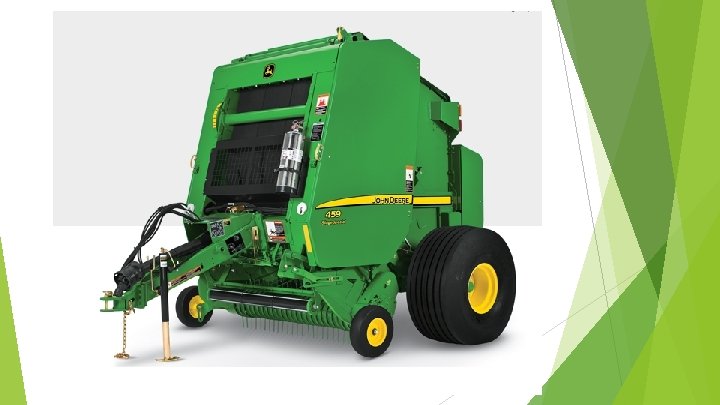

John Deere 459 Round Baler � Bale. Trak™ Pro monitor-controller � Adjustable hitch to match wide array of tractor drawbar heights � Mega. Wide™ Plus pickup with Mega. Tough™ pickup teeth � Exclusive Diamond. Tough™ belts with plate-type splices � Monitor Included � Price: $25, 300 � $27, 100 with Mega Wide Pickup

John Deere 459 Round Baler � Mega. Wide Plus pickup makes it easier to produce better-shaped bales and improves crop pickup in wide, windblown, or scattered windrows � Mega teeth, located at the ends of the pickup, pull crop around the flares when baling wide or windblown windrows � Mega. Tough pickup teeth provide greater strength and durability

Parts and Benefits: 459 Standard Converger wheels help you k up hay much more consistently The Bale Ramp gives you true roll-away clearance

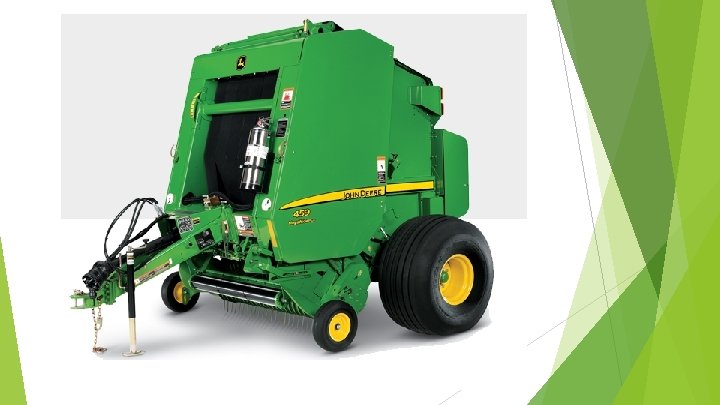

John Deere 459 Silage Special Baler � Price: $51, 000. 00 � Bale. Trak™ Pro monitor-controller � Mega. Wide™ Plus pickup with Mega. Tough™ pickup teeth � Exclusive Diamond. Tough™ belts � Monitor Included

John Deere 459 Silage Special Baler � Made to bale high moisture hay � Heavier built baler � Silage balers are built heavier so they can pick up heavier (or wetter) crops

John Deere 459 Silage Special Baler � The 459 Silage Special Round Baler produces bales 4 -ft wide and up to 5 -ft tall with a maximum wet weight of 1750 lb. � The bale diameter can be adjusted to meet feeding and handling � � requirements. Bale size width: 46 in. (117 cm) Bale size diameter: 35 - 60 in. (89 - 152 cm) Min PTO requirement: 55 hp (42 k. W) Weight of full size bale: 1, 750 lb. (794 kg)

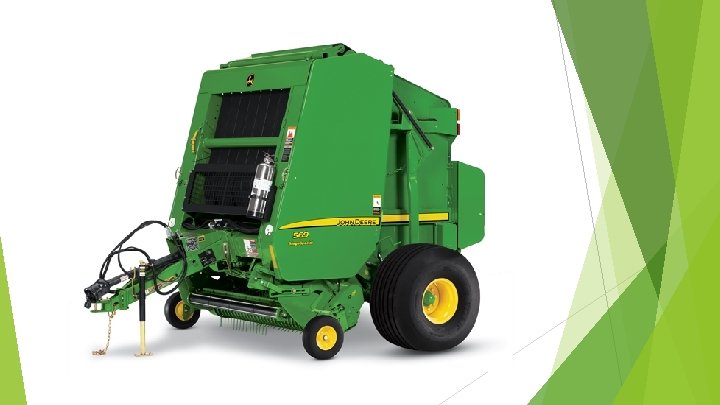

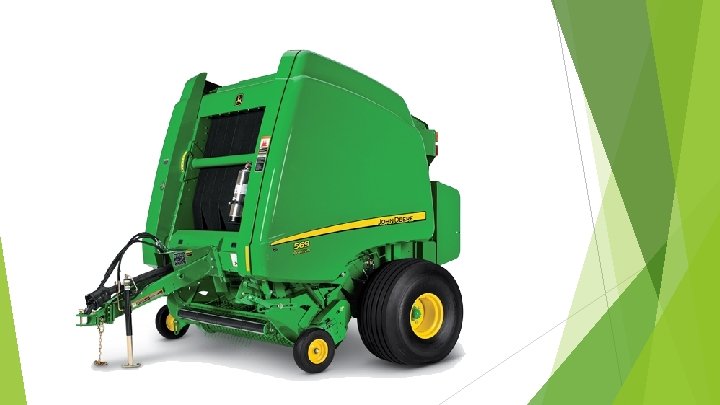

John Deere 569 Round Baler � $52, 200 w/Megawide Plus pickup � Bale Size Width: 62 in. (157 cm) � Bale size diameter: 32 - 72 in. (81 - 183 cm) � MIN PTO requirement: 75 hp (56 k. W) � Weight of full size bale: 2, 400 lb. (1, 089 kg) � Monitor Included

John Deere 569 Round Baler � The 569 Round Baler produces bales 1. 5 m (5 -ft) wide and up to 1. 8 m (6 -ft) tall with a maximum dry weight of 2200 lb. The bale diameter and density can be adjusted to meet feeding and handling requirements. � Bale. Trak™ Pro monitor-controller � Adjustable hitch to match wide array of tractor drawbar heights � Mega. Tooth™ pickup offers extra toughness in a regular pickup width � Exclusive Diamond. Tough™ belts with plate-type splices

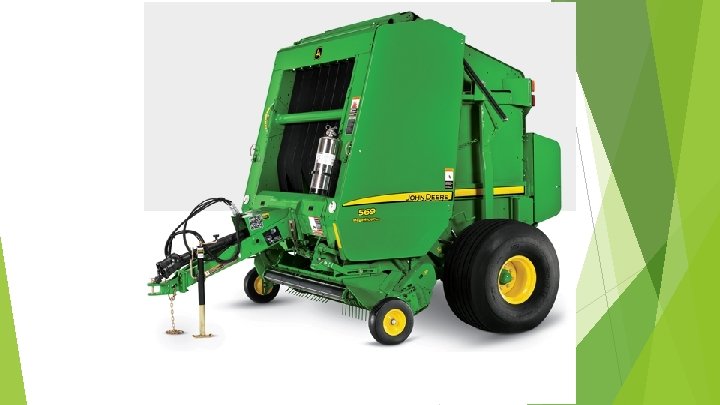

John Deere 569 Silage Special � $58, 000. 00 � The 569 Round Baler produces bales 1. 5 m (5 -ft) wide and up to 1. 8 m (6 -ft) tall with a maximum weight of 2200 lb. The bale diameter and density can be adjusted to meet feeding and handling requirements. � Monitor Included

John Deere 569 Silage Special � Bale. Trak™ Pro monitor-controller � Adjustable hitch to match wide array of tractor drawbar heights � Exclusive Diamond. Tough™ belts with plate-type splices � XL high-flotation tires � � Bale Size Width: 62 in. (157 cm) Bale size diameter: 32 - 72 in. (81 - 183 cm) MIN PTO requirement: 75 hp (56 k. W) Weight of full size bale: 2, 400 lb. (1, 089 kg

Silage Facts � Silage is preserved pasture. Making silage is an important way for farmers to feed cows and sheep during times when pasture isn't good, such as the dry season. � The grasses are cut and then fermented to keep as much of the nutrients (such as sugars and proteins) as possible. � Removing and keeping out oxygen is a key part of making silage. This is because fermentation has to happen under anaerobic (oxygen-free) conditions, or the correct type of microorganisms won’t grow.

How Silage is Produced � First, the pasture must be cut when the grasses contain their highest nutrient levels. This is usually just before they are fully mature. This is important because all forms of preserved grass, such as hay and silage, will have lower amounts of nutrients than fresh pasture, so everything must be done to make the end product be as nutritious as possible. � The cut grass is chopped into even finer pieces and then baled

Premium VS. Standard � Premium are built for a high output, high use, commercial operation � Bigger cams and bearings give added durability and increase life � Comes with Cam Clutch driveline - if driveline slips, the Cam Clutch mechanically disengages and has B -wrap capability � Premiums are ISOBUS compatible with extra bale shape monitor � Premiums have composite gull-wing doors (seven feet clearance) � Factory installed grease banks (four on each side) allow user to easily grease the machine

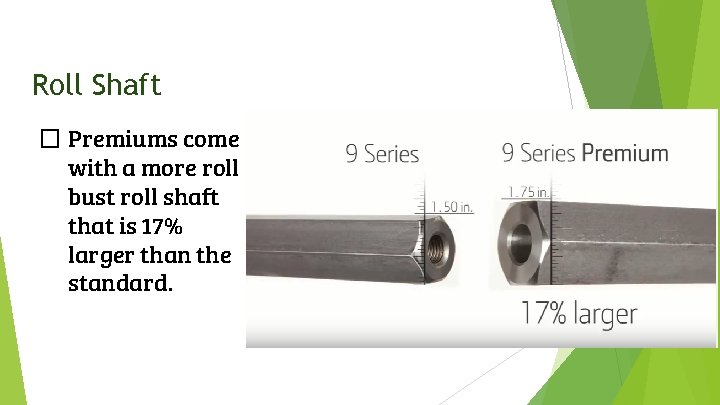

Roll Shaft � Premiums come with a more roll bust roll shaft that is 17% larger than the standard.

John Deere 569 Premium � $63, 500. 00 � Bale size width: 62 in. (157 cm) � Bale size diameter: 32 - 72 in. (81 - 183 cm) � Min PTO requirement: 75 hp (56 k. W) � Weight of full size bale: 2, 400 lb. (1, 089 kg) � ISOBUS Certified � Heavier built � B-Wrap Compatible

John Deere 569 Premium Mega. Wide™ Plus pickups Exclusive Diamond. Tough™ belts with plate-type splices Driven by Diamond® Chain for superior performance The 569 Premium Round Baler produces bales 1. 5 m (5 -ft) wide and up to 1. 8 m (6 -ft) tall with a maximum dry weight of 2200 lb. The bale diameter and density can be adjusted to meet feeding and handling requirements. � 5, 000 bales per year or more � �

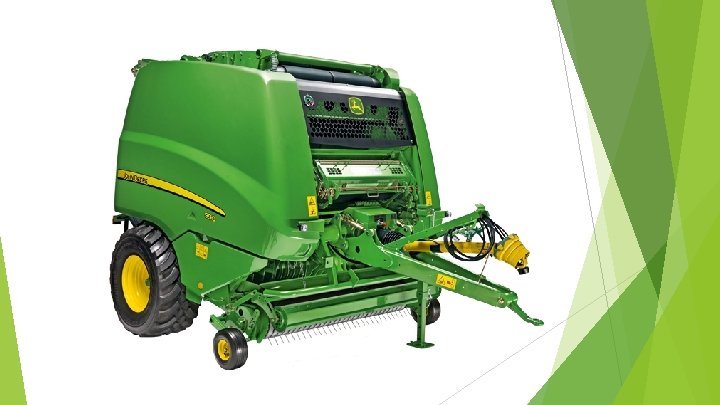

John Deere 990 Round Baler � $87, 300. 00 � With its innovative unloading concept and design, the 990 Baler produces more bales per hour than any other variable chamber baler. All with the consistent high quality and density you and your customers demand. � Takes less than 5 seconds to unload baler � Our full frame design gives incredible durability � Full frame absorbs the shock so that the baler doesn’t have to

John Deere 990 Baler � Bale Diameter: 0. 8 - 1. 85 m (6 foot) � Bale Width: 1. 21 (4 foot) � Full Frame design � Unloads 3 times faster � ISOBUS certified

Big Square Balers General Info. � Need large tractor to pull them around � ISOBUS included in all Premium tractors and can hook up to baler � ISOBUS stops tractor when baler is full and is a universal monitor � ISOBUS can hook up to most brand name tractors � Square bales are easier to transport (use skids) and store � Have adjustable length

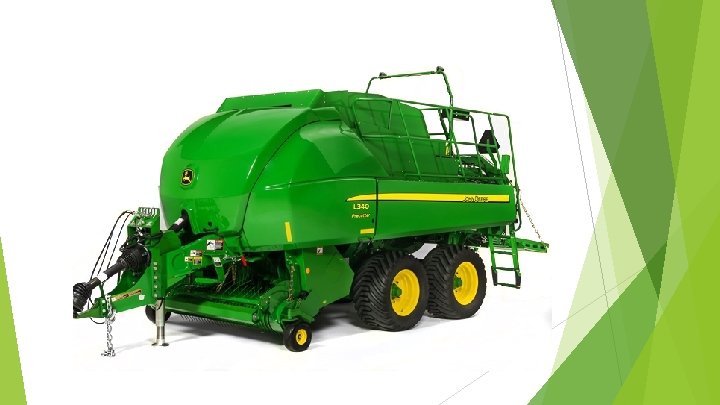

John Deere L 340 Big Square Baler � $159, 661. 00 � Our new L 300 Series Balers are designed to efficiently pick up crop and deliver consistent, well-shaped bales every time. The result is quality feed and tons on the truck — which results in money in your pocket. � Double-tie knotter system provides reliable knotting in high density and the most difficult baling conditions � Baler monitor system is International Standard Organization (ISO) compatible

John Deere L 340 Big Square Baler � Exclusive John Deere-designed double tie knotter system maintains bale integrity with high density bales. � High capacity inline rotor design has fewer parts to maintain and efficiently moves the crop into the precompression chamber. � Optional 23 -knife precutter with hydraulic knife selection and protection. � 90 -inch pickup width for better crop retrieval. � Meant for commercial baling

Build Your Own Feature � This online tool allows you to customize your baler. It’s our way of making the balers just how you want them. � Choose from many accessories and attachments from our online library that can be added to your order!

Go. Bale Mobile App � Our mobile app for Large Square Balers and 9 Series Round Balers gives John Deere baler equipment operators the ability to optimize their machine through proper machine and monitor setup, as well as maintenance and in-field procedures. � Use our app to… � Make key adjustments � Record, store, and analyze observations � All at your fingertips

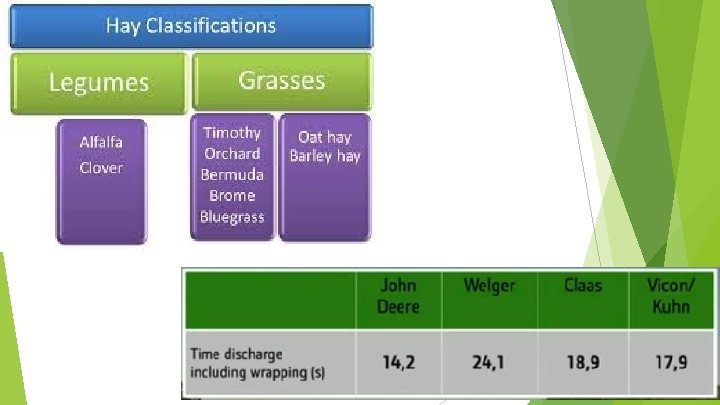

Different Types of Forage Hay Fodder Alfalfa

Twine Vs. Net Wrap � Compared to twine, baling with net wrap is 75% faster and results in 30 to 60% less spoilage, which means you will end up with more, higher quality forage. � Cost per bale is 3 times more for netwrap. Smaller operators are more cost sensitive so the use sisal or poly twine. � � In the colder seasons, net wrap can be hard to get off of the bales Netwrap can be a pain to remove if feeding it to livestock Twine Price: $55. 00 for two rolls Net Wrap: $300. 00 per roll

B-Wrap: The Alt. To Indoor Storage � Made for premium balers only � $338. 00 per roll � One package = 35 Square Foot Bales � Knight Farm Equipment has partnerships with businesses who recycle these B-wraps in order to take part in eco-friendly practices
