DPODSAMSO 70000 Series Tektronix Performance Oscilloscopes Market Trends

DPO/DSA/MSO 70000 Series Tektronix Performance Oscilloscopes

Market Trends Wideband RF Technologies High Speed Communications 2 Serial Data Bandwidth § Carriers seeking more network capacity in transceiver design § Meeting demands for more visibility/information § Increasing complexity driven by multiple faster standards § Small timing margins leading to new jitter separation methods § Deploying wideband chirp technology in advanced radars § Optical modulation analysis is a design requirement § Increase in use of microwave frequencies for communication links § Movement from slower, wide, parallel to narrow, multi-Gb serial buses § Instrument must provide precise low-noise measurements § Instrument must provide wider bandwidth & higher resolution DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 § Faster edges, slew rates are impacting PCB design § Instrument must provide wide bandwidth, fast rise times and tools for EQ/embedding

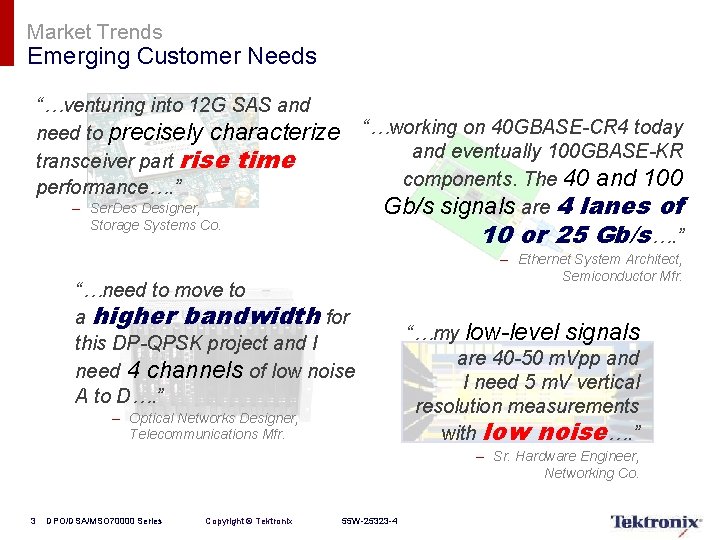

Market Trends Emerging Customer Needs “…venturing into 12 G SAS and need to precisely characterize transceiver part rise time performance…. ” “…working on 40 GBASE-CR 4 today and eventually 100 GBASE-KR components. The 40 and 100 Gb/s signals are 4 lanes of 10 or 25 Gb/s…. ” – Ser. Designer, Storage Systems Co. “…need to move to a higher bandwidth for this DP-QPSK project and I need 4 channels of low noise A to D…. ” – Optical Networks Designer, Telecommunications Mfr. – Ethernet System Architect, Semiconductor Mfr. “…my low-level signals are 40 -50 m. Vpp and I need 5 m. V vertical resolution measurements with low noise…. ” – Sr. Hardware Engineer, Networking Co. 3 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

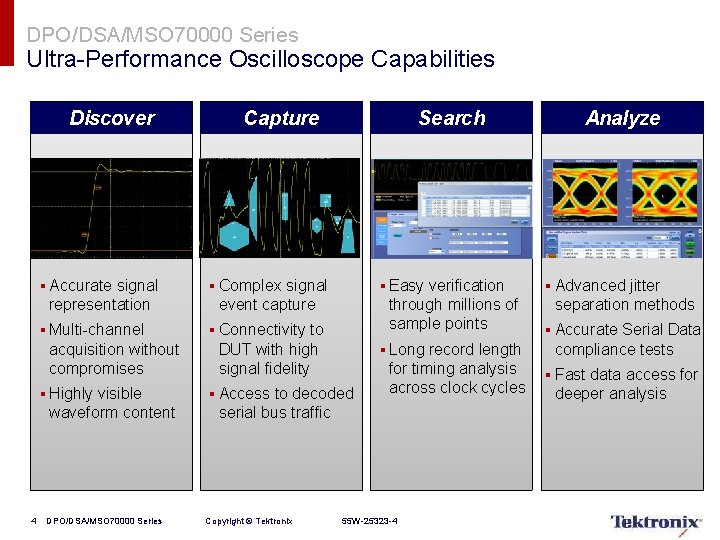

DPO/DSA/MSO 70000 Series Ultra-Performance Oscilloscope Capabilities Discover § Accurate signal § Complex signal representation event capture § Multi-channel acquisition without compromises § Highly visible waveform content 4 Capture DPO/DSA/MSO 70000 Series Search § Easy verification through millions of sample points § Connectivity to DUT with high signal fidelity § Long record length § Access to decoded for timing analysis across clock cycles serial bus traffic Copyright © Tektronix 55 W-25323 -4 Analyze § Advanced jitter separation methods § Accurate Serial Data compliance tests § Fast data access for deeper analysis

DISCOVER 5 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover DPO/DSA/MSO 70000 Series Performance Oscilloscopes The World’s Most Accurate Oscilloscopes § The industry’s highest sample rate with 33 GHz bandwidth on 2 or 4 channels – Supports complete system testing of Differential Data & Clock measurements specified by leading standards organizations § Low noise floor for accurate margin testing – More margin to allow your test to pass – Increase your measurement margin with industry’s lowest jitter noise floor – Highest sensitivity with 6. 25 m. V/div – Enables accurate evaluation of Serial data rates up to 28 Gb/sec § The MSO 70000 is the only performance oscilloscope capable of debug of today’s fastest digital designs – Up to 20 GHz and 50 GS/s on 4 analog channels simultaneously – 16 digital channels with 80 psec time resolution – Ideal for complete system debugging DDR Memory 6 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover Fast. Acq. TM to find elusive, intermittent events See a World that Others Don’t § DPO/DSA/MSO 70000 has the industry’s highest waveform capture rate at up to 300, 000 Waveforms per Second – – 7 Enabling display of intermittent events that cause elusive failures Fast. Acq gets to the root cause of event identification faster than any oscilloscope on the market DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover DPO/DSA 70000 D Series § Industry leading combination of 33 GHz bandwidth and 100 GS/sec sample rate The World’s Most Accurate Oscilloscope 8 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover Technology That Paces The Industry High reliability and signal fidelity from Tektronix Engineering Excellence § DPO/DSA 70000 D Series - The most tightly integrated oscilloscope front-end – – – 9 33 GHz and 100 GS/s performance packed in a single multi-chip module Reduced part count and higher reliability through integration Utilizes the reliable, fast Si. Ge 8 HP Bi. CMOS Process from IBM DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover Uncompromised Acquisition – Bandwidth and Sample Rate Quickly Analyze up to 240 Gb Signaling with 4 Channels of Performance § Supports Accurate Complex Optical Modulation Analysis up to 32 Gbaud – – – 33 GHz real-time bandwidth with 100 GS/s on 2 channels 23 GHz real-time bandwidth with 50 GS/s on 4 channels Low noise for high OSNR capable of 16 -QAM Analysis § Enables a complete system view with 4 – 20 Channels of acquisition – Required for Serial Standards Analysis • Computer Bus Standards with Differential & Independent Clock Signals • Display Standards with multiple data lanes – Memory controller buses requiring logic qualified-triggering – Evaluate Crosstalk/Timing Skew between channels Note: PCI Express & Display. Port logos are trademarked property of PCI-SIG and Display. Port Alliance 10 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Discover Robust Support for Today’s HSS Technologies Achieve compliance on 3 rd and 4 th Generation Serial Standard Designs 8 Gb/s § Industry’s Lowest Vertical Noise – Great signal-to-noise ratio with more margin to allow your test to pass – Maximum signal fidelity allows finding the smallest anomalies that might affect a design’s performance. § Accurate signal capture for debug & timing 10. 3125 Gb/s analysis across all 4 channels – Fibre. Channel, PCIe 3. 0 - 8 Gb/s • 376 fs Random Jitter – 10 G Ethernet – 10. 3125 Gb/s • 386 fs Random Jitter – 40 Gb. E, 100 Gb. E - 12. 5 Gb/s • 290 fs Random Jitter 11 DPO/DSA/MSO 70000 Series Copyright © Tektronix 12. 5 Gb/s 55 W-25323 -4

CAPTURE 12 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

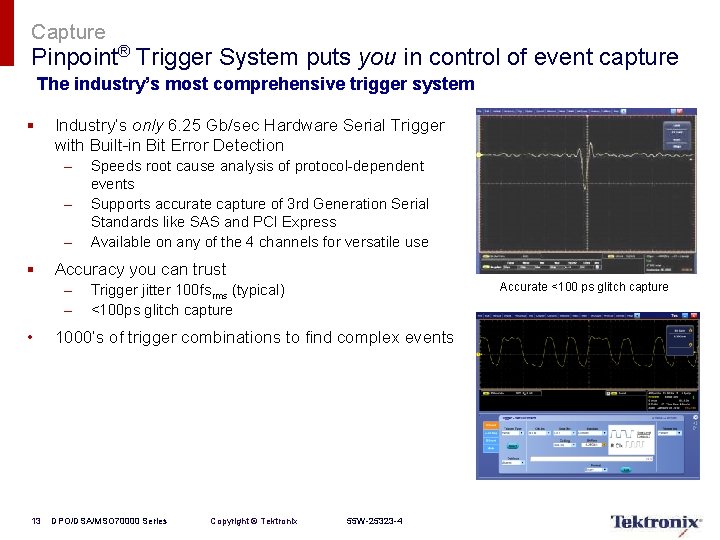

Capture Pinpoint® Trigger System puts you in control of event capture The industry’s most comprehensive trigger system § Industry’s only 6. 25 Gb/sec Hardware Serial Trigger with Built-in Bit Error Detection – – – § Accuracy you can trust – – • 13 Speeds root cause analysis of protocol-dependent events Supports accurate capture of 3 rd Generation Serial Standards like SAS and PCI Express Available on any of the 4 channels for versatile use Accurate <100 ps glitch capture Trigger jitter 100 fsrms (typical) <100 ps glitch capture 1000’s of trigger combinations to find complex events DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

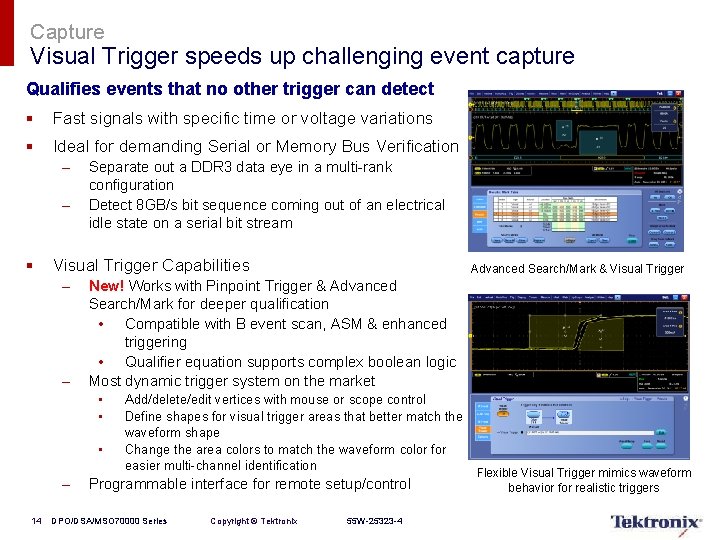

Capture Visual Trigger speeds up challenging event capture Qualifies events that no other trigger can detect § Fast signals with specific time or voltage variations § Ideal for demanding Serial or Memory Bus Verification – – § Separate out a DDR 3 data eye in a multi-rank configuration Detect 8 GB/s bit sequence coming out of an electrical idle state on a serial bit stream Visual Trigger Capabilities – – New! Works with Pinpoint Trigger & Advanced Search/Mark for deeper qualification • Compatible with B event scan, ASM & enhanced triggering • Qualifier equation supports complex boolean logic Most dynamic trigger system on the market • • • – 14 Advanced Search/Mark & Visual Trigger Add/delete/edit vertices with mouse or scope control Define shapes for visual trigger areas that better match the waveform shape Change the area colors to match the waveform color for easier multi-channel identification Programmable interface for remote setup/control DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 Flexible Visual Trigger mimics waveform behavior for realistic triggers

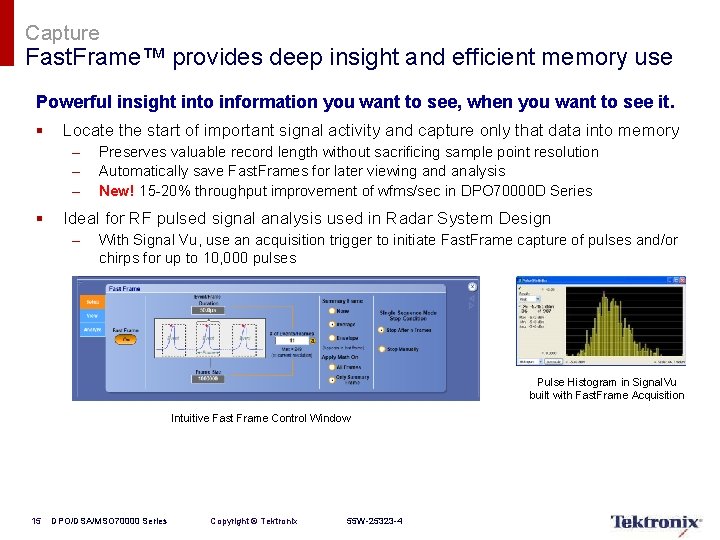

Capture Fast. Frame™ provides deep insight and efficient memory use Powerful insight into information you want to see, when you want to see it. § Locate the start of important signal activity and capture only that data into memory – – – § Preserves valuable record length without sacrificing sample point resolution Automatically save Fast. Frames for later viewing and analysis New! 15 -20% throughput improvement of wfms/sec in DPO 70000 D Series Ideal for RF pulsed signal analysis used in Radar System Design – With Signal Vu, use an acquisition trigger to initiate Fast. Frame capture of pulses and/or chirps for up to 10, 000 pulses Pulse Histogram in Signal. Vu built with Fast. Frame Acquisition Intuitive Fast Frame Control Window 15 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Capture Tri. Mode™ access challenging test points with accuracy Probe connection challenges solved with Tri. Mode™ § Connectivity options with high signal fidelity up to 30 GHz – – § A single probe-DUT connection for Serial Data – § Measurement convenience with probe length of 1. 3 meters Wide variety of connectivity/solder down options Perform differential and common mode voltage limit measurements with a single probe point Tri. Mode™ high-speed circuit access Flexible Signal Access Solutions for DDR Memory – – Component Interposers Analog Probing • – CS CA 1 CA 2 CAn DQ, DQS, Clock Digital Probing • Address, Command, Control DQ 0 DQS 0 CK Analog/Digital DIMM Probing 16 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 Socketed DDR Component Interposer

Capture i. Capture™ - One Connection for Analog and Digital MSO 70000 Series – The industry’s only single-probe connection for analog and digital § Measurement flexibility while preserving signal access § No need to reconfigure probing § Quickly route any digital channel to any analog channel – Simultaneously – – – See both digital and analog views of the same signal Validate signal connection and logic threshold Check signal integrity and improve timing resolution Digital Channels + - C A 0 Analog Channels 17 DPO/DSA/MSO 70000 Series D 0 Digital i. Capture 2. 5 GHz Analog + - Full Bandwidth Analog + - Copyright © Tektronix 55 W-25323 -4

SEARCH 18 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Search Advanced Search and Mark (ASM) Find what you’re looking for. . FAST § ASM Speeds up search through long record length captures – – – § Highlight important events Navigate between events of interest effortlessly Uncover events that are difficult to find in a large data set Search & Mark Serial Buses – – Find data patterns and control characters New! Trigger system enables marking of all like trigger events in an acquisition • § Automatically identify Reads and Writes Make JEDEC conformance measurements with pass/fail results on every Read and Write burst Event tables summarize all found events – – – 19 Speeds up verification of long PRBS pattern Search DDR Read or Write bursts using DDRA – – § Event table with navigation capability Events are time stamped in reference to trigger Results Table provides a listing view of all traffic from multiple buses Table and zoom windows tied together DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 “Mark all events” capability built in

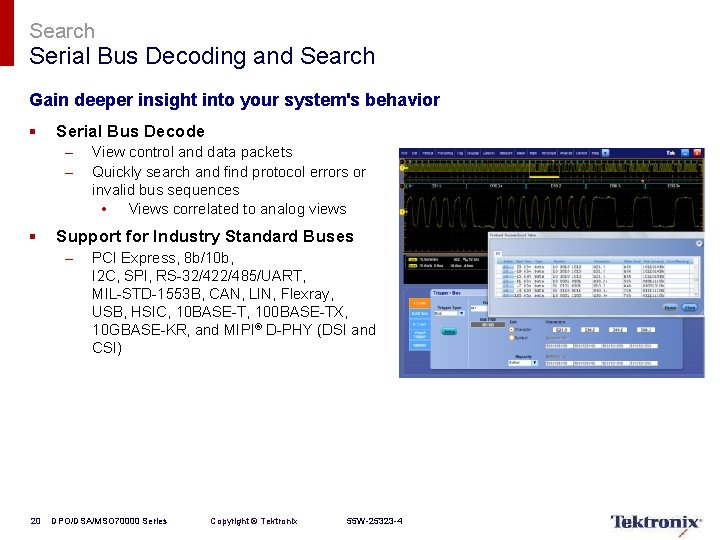

Search Serial Bus Decoding and Search Gain deeper insight into your system's behavior § Serial Bus Decode – – § Support for Industry Standard Buses – 20 View control and data packets Quickly search and find protocol errors or invalid bus sequences • Views correlated to analog views PCI Express, 8 b/10 b, I 2 C, SPI, RS-32/422/485/UART, MIL-STD-1553 B, CAN, LIN, Flexray, USB, HSIC, 10 BASE-T, 100 BASE-TX, 10 GBASE-KR, and MIPI® D-PHY (DSI and CSI) DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

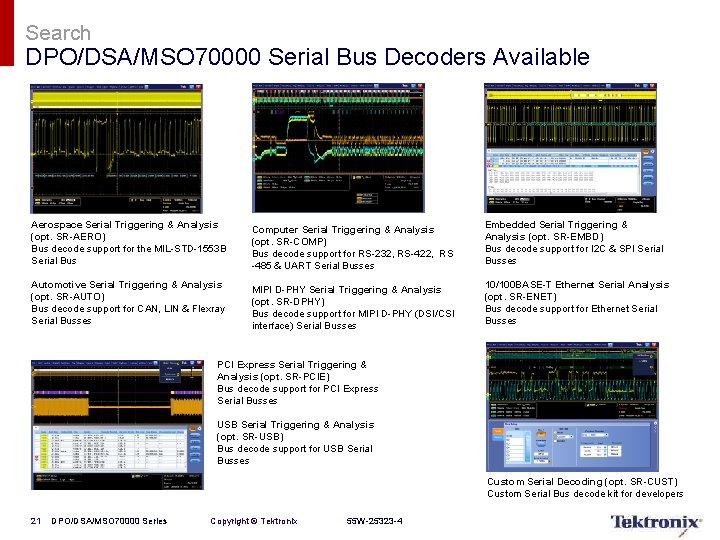

Search DPO/DSA/MSO 70000 Serial Bus Decoders Available Aerospace Serial Triggering & Analysis (opt. SR-AERO) Bus decode support for the MIL-STD-1553 B Serial Bus Computer Serial Triggering & Analysis (opt. SR-COMP) Bus decode support for RS-232, RS-422, RS -485 & UART Serial Busses Embedded Serial Triggering & Analysis (opt. SR-EMBD) Bus decode support for I 2 C & SPI Serial Busses Automotive Serial Triggering & Analysis (opt. SR-AUTO) Bus decode support for CAN, LIN & Flexray Serial Busses MIPI D-PHY Serial Triggering & Analysis (opt. SR-DPHY) Bus decode support for MIPI D-PHY (DSI/CSI interface) Serial Busses 10/100 BASE-T Ethernet Serial Analysis (opt. SR-ENET) Bus decode support for Ethernet Serial Busses PCI Express Serial Triggering & Analysis (opt. SR-PCIE) Bus decode support for PCI Express Serial Busses USB Serial Triggering & Analysis (opt. SR-USB) Bus decode support for USB Serial Busses Custom Serial Decoding (opt. SR-CUST) Custom Serial Bus decode kit for developers 21 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

ANALYZE 22 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze DPOJET - A flexible Jitter & Timing Analysis Toolset The industry standard for serial data testing § Eye Rendering for any serial signal type – – § Advanced Jitter Analysis to find root cause – – § Real-time acquisition of data streams Flexible software clock recovery Serial signal quality analysis Mask and measurement limit testing Separate and measure Bounded, Uncorrelated Jitter (BUJ) for better ID of crosstalk-based jitter Widely-accepted jitter analysis techniques Clock-Data measurements Frequency domain jitter filtering Transmitter Testing Results & Plots Perform up to 99 measurements on a single acquisition – – – Includes rise time, fall time, amplitude, period jitter, histograms, PDF’s, etc Standard-specific measurements speed up analysis • PCI Express, USB, Ethernet, etc. Output to Excel/MATLAB for reporting, analysis BUJ Jitter Separation 23 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze Serial Data Link Analysis Visualizer – Tools that open the eye System Simulation and Analysis for Ser. Des, Early Silicon § SDLA Visualizer combines acquired waveforms with channel models to: • Visualize effects of varying pre-emphasis, equalization, and/or channel characteristics. • View effects of transmitter pre-emphasis on the signal as seen by the receiver • Evaluate Receiver Equalization outcomes – Vary application and configuration of DFE, FFE, and/or CTLE – Process acquired waveforms with IBIS-AMI Receiver Equalization • Analyze effects of channel variations on received signals § SDLA performs measurement Channel De-Embedding – Manages removal or addition of fixture and cable effects from acquired signals 24 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze Application Development Kit (ADK) Build your own analysis toolset faster § § 25 ADK components – Ability to customize measurements in DPOJET – Access to Scope UI widgets & icons – Template Apps for MATLAB, Lab. View – Coding and implementation examples – Access to Tek licensing mechanism Data. Store Public Interface – Direct user access to waveform sample data – Uses callback method in place of (slower) polling method DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze Customize Analysis: Tektronix’ Application Development Kit Solution Elements User Objective Custom analysis inside the instrument GUI e. g. custom filtering Extended processing of data or results Application Developer’s Kit (ADK) Custom Analysis Extension with MATLAB Custom DPOJET Measurements User Defined Math Functions Data Store Public Interface e. g. analysis & plotting Create a complimentary application GUI Toolkit Application Templates e. g. in-house tool Automate a measurement process MATLAB with Instrument Control Toolbox e. g. collect measurements 26 DPO/DSA/MSO 70000 Series Copyright © Tektronix Licensing Interface 55 W-25323 -4 Others

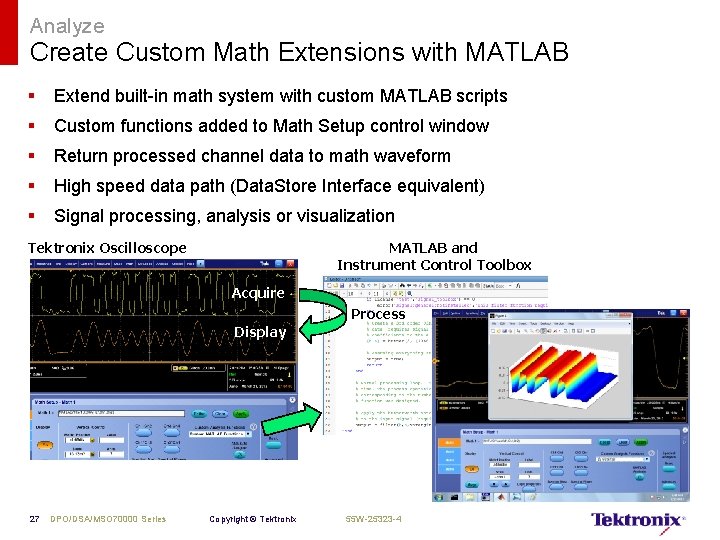

Analyze Create Custom Math Extensions with MATLAB § Extend built-in math system with custom MATLAB scripts § Custom functions added to Math Setup control window § Return processed channel data to math waveform § High speed data path (Data. Store Interface equivalent) § Signal processing, analysis or visualization Tektronix Oscilloscope MATLAB and Instrument Control Toolbox Acquire Process Display 27 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze DPO/DSA/MSO 70000 Analysis Tools Available DPOJET Jitter And Eye Diagram Analysis (opt. DJA) Eye diagram, jitter, and timing analysis for real-time oscilloscopes, including BUJ-based analysis DDR Memory Bus Analysis (opt. DDRA) DDR 1, LP-DDR 1/2, DDR 3 and GDDR 3/4 read/write qualification, debug and compliance of JEDEC measurements Dii. VA Compliance Test Solution (opt. Dii. VA) Fully automated compliance testing for Dii. VA devices Display. Port Compliance Test Solutions (opt. DP 12, DP-SINK) Four lane simultaneous testing , detailed test report, and margin analysis for Display. Port 1. 2 Fully automated compliance testing for Sink devices Ethernet Compliance Test Solutions (opt. ET 3, 10 G-KR, XGb. T, SFP-TX, SFP-WDP) Full PHY layer support for Ethernet variants 10 BASE-T, 100 BASE-TX, 1000 BASE-T, and 10 GBASE-T Fully automated compliance test for 10 G-KR, SFP+ MIPI® D-PHY and M-PHY Compliance Test Solutions (opt. D-PHY, DPHY-TX, M-PHY) Verify D-PHY and M-PHY specifications by rapidly characterizing sources of jitter and signal integrity Fully automated compliance test for D-PHY transmitters HDMI Compliance Test Solutions (opt. HT 3, HT 3 DS, HEAC) Fully automated compliance test support for CTS 1. 2, 1. 3 c, 1. 4, HEAC Source, Cable and/or Sink 28 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

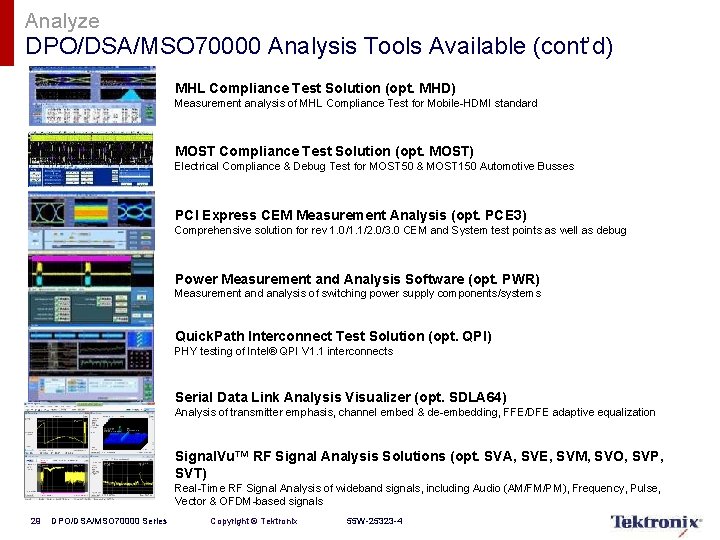

Analyze DPO/DSA/MSO 70000 Analysis Tools Available (cont’d) MHL Compliance Test Solution (opt. MHD) Measurement analysis of MHL Compliance Test for Mobile-HDMI standard MOST Compliance Test Solution (opt. MOST) Electrical Compliance & Debug Test for MOST 50 & MOST 150 Automotive Busses PCI Express CEM Measurement Analysis (opt. PCE 3) Comprehensive solution for rev 1. 0/1. 1/2. 0/3. 0 CEM and System test points as well as debug Power Measurement and Analysis Software (opt. PWR) Measurement and analysis of switching power supply components/systems Quick. Path Interconnect Test Solution (opt. QPI) PHY testing of Intel® QPI V 1. 1 interconnects Serial Data Link Analysis Visualizer (opt. SDLA 64) Analysis of transmitter emphasis, channel embed & de-embedding, FFE/DFE adaptive equalization Signal. Vu™ RF Signal Analysis Solutions (opt. SVA, SVE, SVM, SVO, SVP, SVT) Real-Time RF Signal Analysis of wideband signals, including Audio (AM/FM/PM), Frequency, Pulse, Vector & OFDM-based signals 29 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Analyze DPO/DSA/MSO 70000 Analysis Tools Available (cont’d) SATA/SAS Automated Compliance Test Solutions (opt. SAS 3, SAS-RSG, SAS-TSGW, SATA-TSG, SATARSG) Automated testing for SATA Gen 1 and SATA Gen 2 and SAS 6 G defined test suites Thunderbolt Automated Compliance Test Solutions (opt. TBT-TX) Automated characterization, debug & compliance testing for Thunderbolt-based transmitters UHS II Compliance Test Solution (opt. UHS 2) UHS II Host Tx and Device Tx compliance testing USB 2. 0/USB 3. 0 Compliance and HSIC Test Solution (opt. HSIC, USB 3, USB-RMT, USB-TX) USB compliance testing including automated probe deskew and receiver test setups for USB 2 and Super. Speed USB 3 and HSIC 30 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

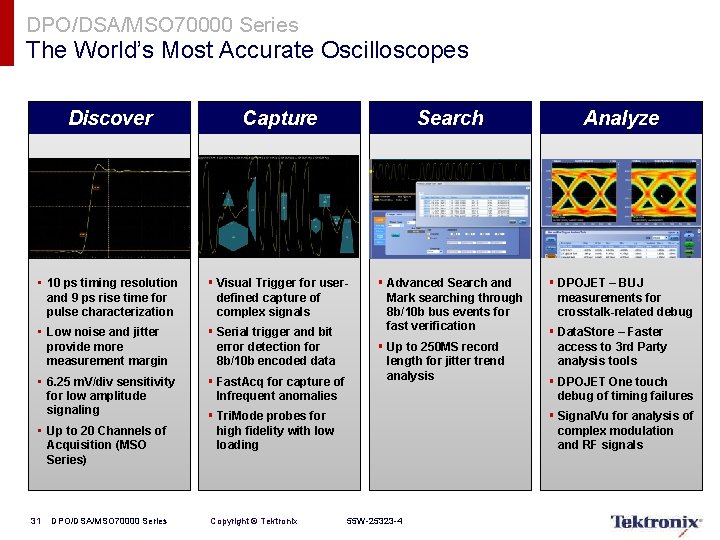

DPO/DSA/MSO 70000 Series The World’s Most Accurate Oscilloscopes Discover Capture Search Analyze • 10 ps timing resolution § Visual Trigger for userdefined capture of complex signals § Advanced Search and Mark searching through 8 b/10 b bus events for fast verification § DPOJET – BUJ measurements for crosstalk-related debug and 9 ps rise time for pulse characterization • Low noise and jitter provide more measurement margin • 6. 25 m. V/div sensitivity for low amplitude signaling • Up to 20 Channels of Acquisition (MSO Series) 31 DPO/DSA/MSO 70000 Series § Serial trigger and bit error detection for 8 b/10 b encoded data § Fast. Acq for capture of Infrequent anomalies § Up to 250 MS record length for jitter trend analysis § Tri. Mode probes for high fidelity with low loading Copyright © Tektronix § Data. Store – Faster access to 3 rd Party analysis tools § DPOJET One touch debug of timing failures § Signal. Vu for analysis of complex modulation and RF signals 55 W-25323 -4

Tektronix DPO/DSA/MSO 70000 Series Oscilloscopes Model Number DPO 70404 C Description 4 GHz Digital Phosphor Oscilloscope DPO 70604 C 6 GHz Digital Phosphor Oscilloscope DPO 70804 C 8 GHz Digital Phosphor Oscilloscope DPO 71254 C 12. 5 GHz Digital Phosphor Oscilloscope DPO 71604 C 16 GHz Digital Phosphor Oscilloscope DPO 72004 C 20 GHz Digital Phosphor Oscilloscope DPO 72504 D 25 GHz Digital Phosphor Oscilloscope DPO 73304 D 33 GHz Digital Phosphor Oscilloscope DSA 70404 C 4 GHz Digital Serial Analyzer DSA 70604 C 6 GHz Digital Serial Analyzer DSA 70804 C 8 GHz Digital Serial Analyzer DSA 71254 C 12. 5 GHz Digital Serial Analyzer DSA 71604 C 16 GHz Digital Serial Analyzer DSA 72004 C 20 GHz Digital Serial Analyzer DSA 72504 D 25 GHz Digital Serial Analyzer DSA 73304 D 33 GHz Digital Serial Analyzer MSO 70404 C 4 GHz Mixed Signal Oscilloscope MSO 70604 C 6 GHz Mixed Signal Oscilloscope MSO 70804 C 8 GHz Mixed Signal Oscilloscope MSO 71254 C 12. 5 GHz Mixed Signal Oscilloscope MSO 71604 C 16 GHz Mixed Signal Oscilloscope MSO 72004 C 20 GHz Mixed Signal Oscilloscope 32 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

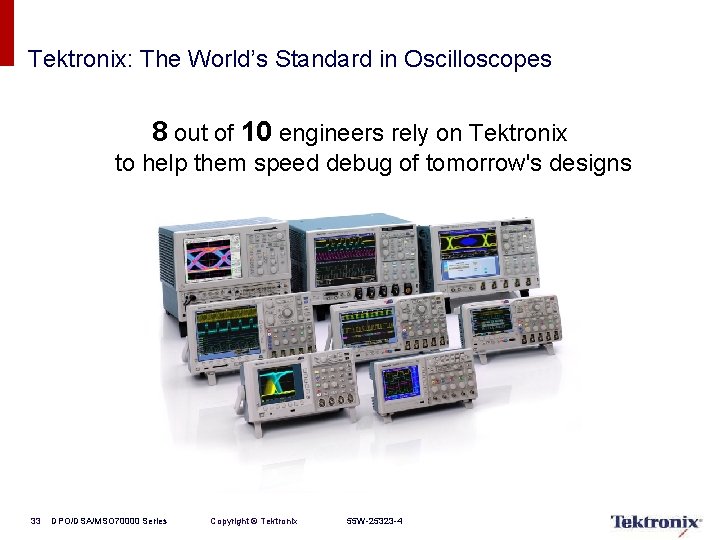

Tektronix: The World’s Standard in Oscilloscopes 8 out of 10 engineers rely on Tektronix to help them speed debug of tomorrow's designs 33 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Backup Slides

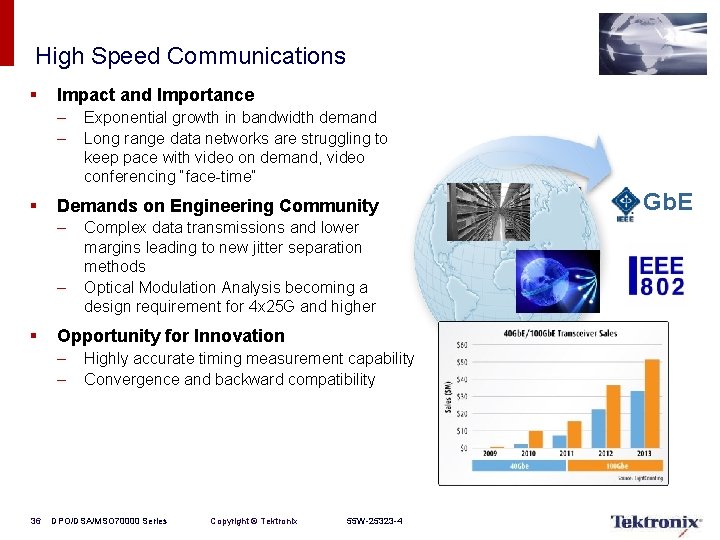

High Speed Communications § Impact and Importance – – § Demands on Engineering Community – – § Complex data transmissions and lower margins leading to new jitter separation methods Optical Modulation Analysis becoming a design requirement for 4 x 25 G and higher Opportunity for Innovation – – 36 Exponential growth in bandwidth demand Long range data networks are struggling to keep pace with video on demand, video conferencing “face-time” Highly accurate timing measurement capability Convergence and backward compatibility DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 Gb. E

Wideband Technologies § Impact and Importance – Increasing use of bandwidth to achieve data throughput – Increasing use of imaging radar technology § Demands on Engineering Community – Use of near-field wideband communications – Use of microwave frequencies and beyond for communication links – Use of wideband chirp technology in advanced radars for better resolution § Opportunity for Innovation – Wider bandwidth and higher resolution instruments – Miniaturization, SW; Analog, Digital, and RF/spectrum coming together with direct analysis at microwave frequencies 37 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

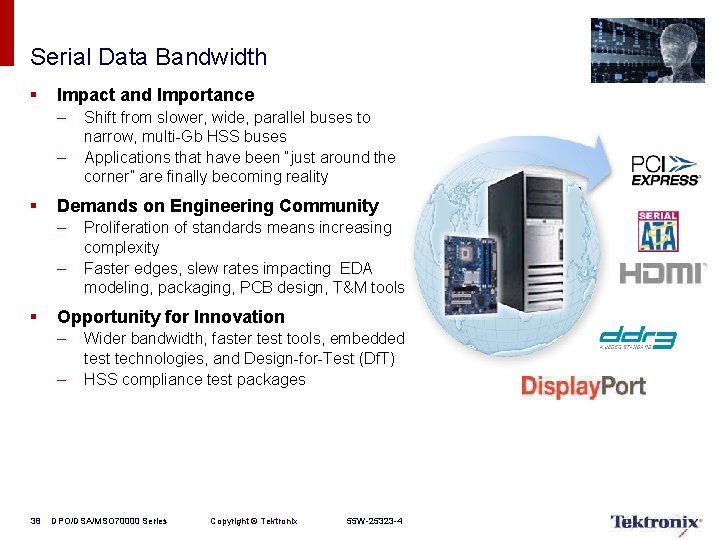

Serial Data Bandwidth § Impact and Importance – – § Demands on Engineering Community – – § Proliferation of standards means increasing complexity Faster edges, slew rates impacting EDA modeling, packaging, PCB design, T&M tools Opportunity for Innovation – – 38 Shift from slower, wide, parallel buses to narrow, multi-Gb HSS buses Applications that have been “just around the corner” are finally becoming reality Wider bandwidth, faster test tools, embedded test technologies, and Design-for-Test (Df. T) HSS compliance test packages DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

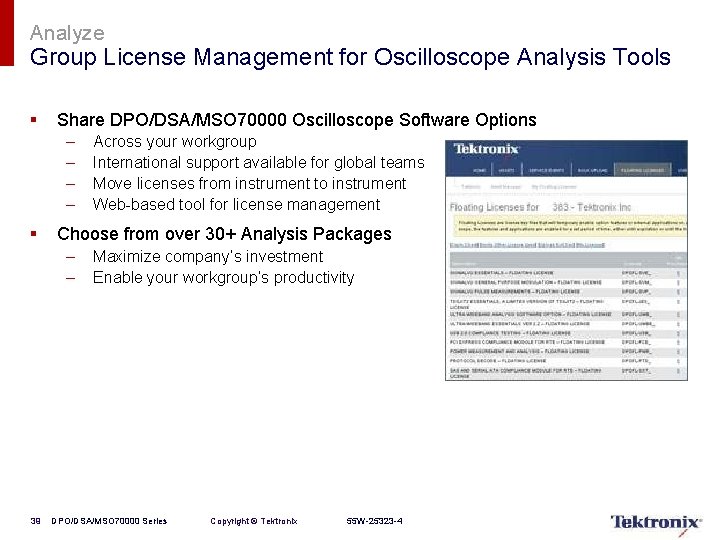

Analyze Group License Management for Oscilloscope Analysis Tools § Share DPO/DSA/MSO 70000 Oscilloscope Software Options – – § Choose from over 30+ Analysis Packages – – 39 Across your workgroup International support available for global teams Move licenses from instrument to instrument Web-based tool for license management Maximize company’s investment Enable your workgroup’s productivity DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

DPO/DSA/MSO 70000 C Series A New Level of Performance Oscilloscope DPO/DSA/MSO 71254 C DPO/DSA/MSO 71604 C DPO/DSA/MSO 72004 C Note Bandwidth 12. 5 GHz 16 GHz 20 GHz On 4 channels Maximum Sample Rate 100 GS/s On 2 channels Record Length 40 DPO/DSA/MSO 70000 Series 250 M Optional Copyright © Tektronix 55 W-25323 -4

DPO/DSA/MSO 70000 C Series A New Level of Performance Oscilloscope 41 DPO/DSA/MSO 71254 C DPO/DSA/MSO 71604 C Improved Time Base New Compute Platform DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 DPO/DSA/MSO 72004 C Note All models

MSO 70000 C - The Industry’s First Performance Mixed Signal Oscilloscope Leveraging Tektronix Technology Leadership Most Accurate Logic Analyzer Featuring 20 psec Timing & i. Capture Fastest Real Time Oscilloscope Featuring 20 GHz on Si. GE MSO 70000 C The World’s First Performance Mixed Signal Oscilloscope 42 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

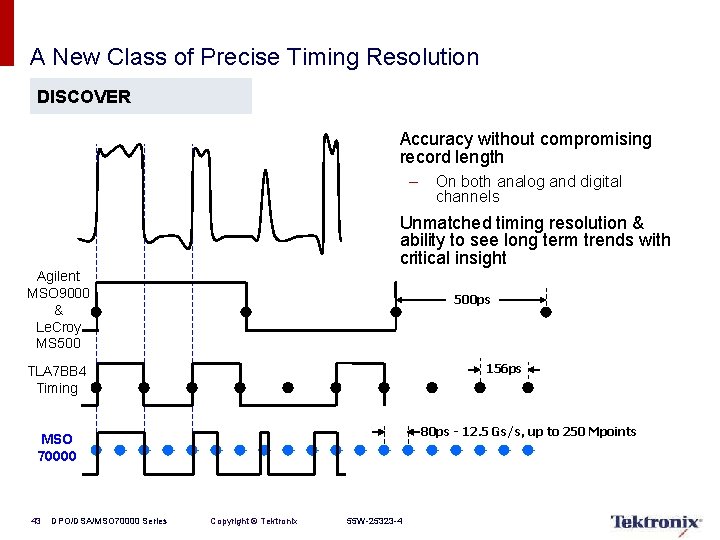

A New Class of Precise Timing Resolution DISCOVER • Accuracy without compromising record length – • Unmatched timing resolution & ability to see long term trends with critical insight Agilent MSO 9000 & Le. Croy MS 500 ps 156 ps TLA 7 BB 4 Timing 80 ps - 12. 5 Gs/s, up to 250 Mpoints MSO 70000 43 DPO/DSA/MSO 70000 Series On both analog and digital channels Copyright © Tektronix 55 W-25323 -4

Precise Timing Correlation and Superior Signal Fidelity DISCOVER Δt § MSO 70000 delivers critical system timing performance – Analog and digital acquisitions on a common clock § The industry’s lowest vertical noise, highest ENOB and flattest frequency response – Great signal-to-noise ratio with more margin – Maximum signal fidelity finds critical signal anomalies affecting designs 44 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Access to Tightly Spaced Test Points CAPTURE § Industry’s only differential active probes for MSOs – § Industry’s best versatility in access points – – – § 45 Excellent signal fidelity Device Leads Solder-in VIA’s and Traces BGA packages Square Pins Reduces fixturing costs and development time DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Logic Triggering and Qualification CAPTURE § 16 channel logic trigger – Enhances exclusive Pinpoint Triggering capability – Enables customers to qualify events of interest more closely D 0 -D 15 Clock Digital Ch 1 -4 Analog Capture and Measure Only What Matters 46 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4 Pattern Match Trigger Analog Trigger System

User-Defined Parallel Bus Decode and Display SEARCH § Unmatched visibility of system state § Display up to 16 separate buses – Using logic, analog and math channels § Formats – Hexadecimal – Binary – User Defined symbols 47 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Popular Serial Bus Decode, Display and Triggering SEARCH § I 2 C, SPI Bus Support – Decoded upon acquisition – Conveniently displayed on Tek Scope – Bus-intelligent Triggering 48 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Symbol File Examples MSO Symbol File TLA Symbol File MSO 70000 Reads the TLA Symbol File § Ignores text and background color directives 49 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

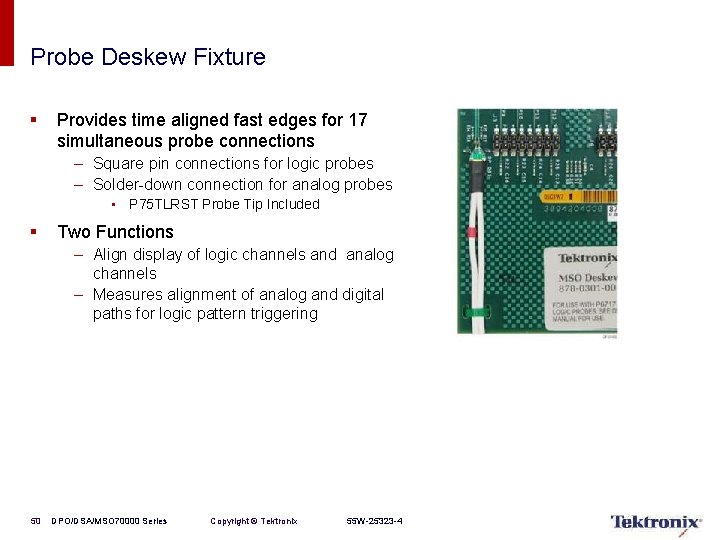

Probe Deskew Fixture § Provides time aligned fast edges for 17 simultaneous probe connections – Square pin connections for logic probes – Solder-down connection for analog probes • P 75 TLRST Probe Tip Included § Two Functions – Align display of logic channels and analog channels – Measures alignment of analog and digital paths for logic pattern triggering 50 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

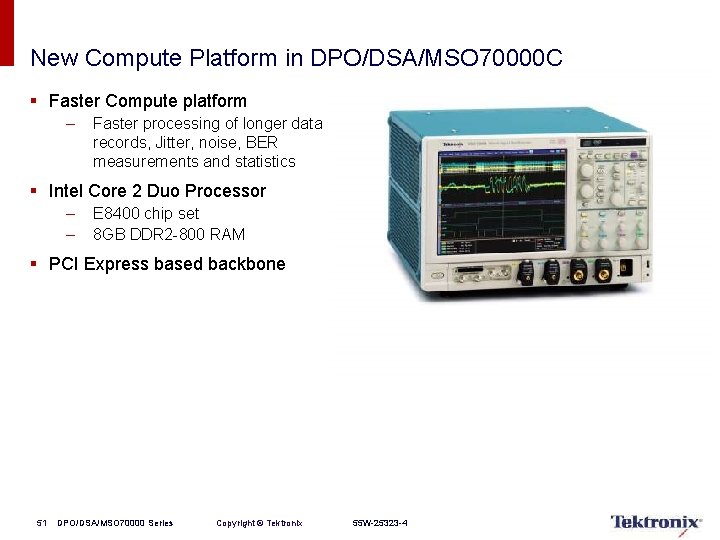

New Compute Platform in DPO/DSA/MSO 70000 C § Faster Compute platform – Faster processing of longer data records, Jitter, noise, BER measurements and statistics § Intel Core 2 Duo Processor – E 8400 chip set – 8 GB DDR 2 -800 RAM § PCI Express based backbone 51 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

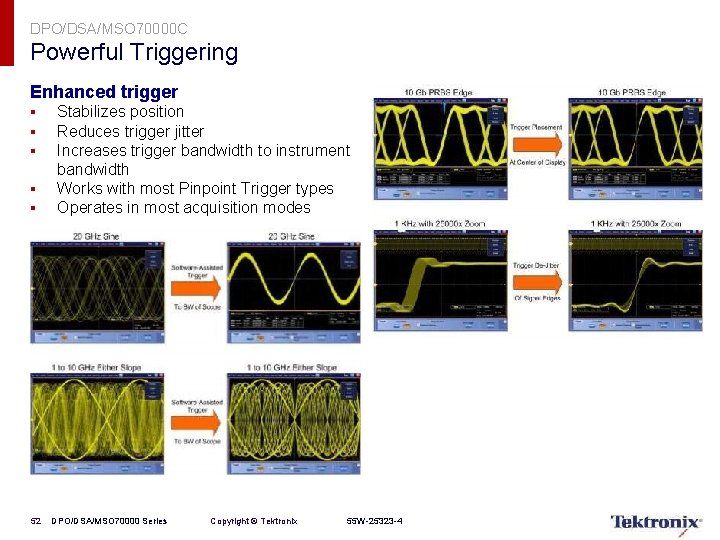

DPO/DSA/MSO 70000 C Powerful Triggering Enhanced trigger § § § 52 Stabilizes position Reduces trigger jitter Increases trigger bandwidth to instrument bandwidth Works with most Pinpoint Trigger types Operates in most acquisition modes DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

Tek. Link Time-aligned Acquisitions between Channels of Multiple Scopes § 4 channels or more associated with a single trigger event § Connect two or more instruments using a Tek. Link hub and cables. § Tek. Link connection status is displayed in the horizontal readout. § Enable a trigger and the other instruments are automatically set to receive the trigger. § Select AND or select OR to combine all triggers before triggering all instruments § To align the Multi. Scope Trigger, press the Align button. § When Multi. Scope triggering is enabled, it displays in the trigger readout. 53 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

DPO/DSA/MSO 70000 C Series Internal Noise Comparison § Noise performance of the MSO 72004 C with a signal applied § The comparison shows the noise reduction seen when the instrument is set to 100 GS/s as compared to 50 GS/s. § For this test, the instrument was set to a full-scale voltage setting of 500 m. VFS (50 m. V/div). § Noise with the 100 GS/s setting is approximately 20% lower than with the 50 GS/s setting 55 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

DPO/DSA/MSO 70000 C Series Internal Noise Comparison with Non-B Series § Noise performance of the MSO 72004 C with a signal applied § The comparison shows the noise reduction seen when the instrument is set to 100 GS/s as compared to 50 GS/s. § For this test, the instrument was set to a full-scale voltage setting of 500 m. VFS (50 m. V/div). § Noise with the 100 GS/s setting is approximately 20% lower than with the 50 GS/s setting 56 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

P 7630 Low Noise Tri. Mode™ Probe Key Features • 30 GHz Bandwidth • Lowest noise high bandwidth differential probe in the industry • Tri. Mode™ Probe functionality – Make single-ended, differential, and common mode measurements with a single setup • Coaxial inputs up to 30 GHz for HSS testing • Termination Voltage Control – – • Automatic Probe Tip ID – 57 Terminate the probe input into voltages other than ground for serial data standards that have high common mode voltage levels like HDMI Independent control of A & B inputs Prevent confusion and mistakes with the oscilloscope automatically identifying the probe tip to ensure the correct DSP filters are used DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

P 7630 Connectivity P 76 CA-292 C 2. 92 mm Coaxial Adapter with Cables P 76 CA-SMP Coaxial Adapter with Cables P 76 CA-292 2. 92 mm Coaxial Adapter P 76 TA P 7500 Tip Adapter 58 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4

DPO/DSA/MSO 70000 C Key Characteristics of the P 7500 P 7520 P 7516 P 7513 A P 7508 P 7506 P 7504 Bandwidth (Typical) >20 GHz, A-B mode >18 GHz, P 75 PDM, Other modes > 16 GHz > 13 GHz > 8 GHz > 6 GHz > 4 GHz Rise Time (10%-90%) (Typical) <27 ps, A-B mode <29 ps, Other modes < 32 ps < 40 ps < 55 ps < 75 ps < 105 ps Rise Time (20%-80%) (Typical) <18 ps, A-B mode <20 ps, Other modes < 24 ps < 28 ps < 35 ps < 50 ps < 70 ps Differential Input Range ± 0. 625 V (5 X) ± 1. 6 V (12. 5 X) ± 0. 75 V (5 X) ± 1. 75 V (12. 5 X) Noise <33 n. V/√Hz(5 X) <48 n. V/√Hz(12. 5 X) CMRR, (Differential Mode) >60 d. B at DC >40 d. B at 50 MHz >30 d. B at 1 GHz >20 d. B at 10 GHz >12 d. B at 20 GHz >60 d. B at DC >40 d. B at 50 MHz >30 d. B to 1 GHz >20 d. B to 8 GHz >15 d. B to 16 GHz >60 d. B at DC >40 d. B at 50 MHz >30 d. B to 1 GHz >20 d. B to 7 GHz >15 d. B to 13 GHz >60 d. B at DC >40 d. B at 50 MHz >30 d. B at 1 GHz >25 d. B at 4 GHz >20 d. B at 8 GHz >60 d. B at DC >40 d. B at 50 MHz >30 d. B at 1 GHz >25 d. B at 3 GHz >20 d. B at 6 GHz >60 d. B at DC >40 d. B at 50 MHz >30 d. B at 1 GHz >28 d. B at 2 GHz >25 d. B at 4 GHz Cable Length 1 meter 1. 3 meter 59 DPO/DSA/MSO 70000 Series Copyright © Tektronix 55 W-25323 -4
