Electrical Series II Breadboarding Oscilloscopes Noise Reduction Techniques
Electrical Series II Bread-boarding, Oscilloscopes & Noise Reduction Techniques TA : Soonam and Varun Slides : Tridib Saha, Modified by Soonam

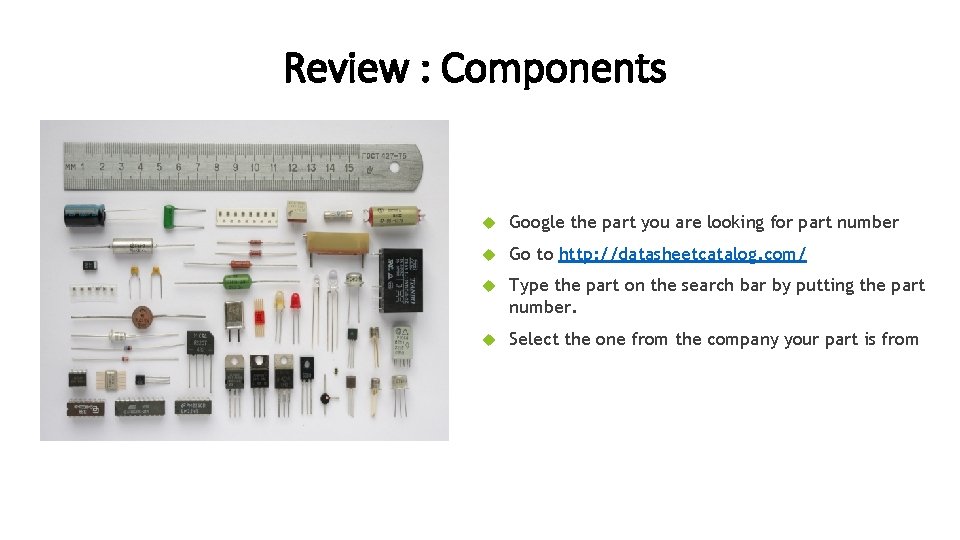

Review : Components Google the part you are looking for part number Go to http: //datasheetcatalog. com/ Type the part on the search bar by putting the part number. Select the one from the company your part is from

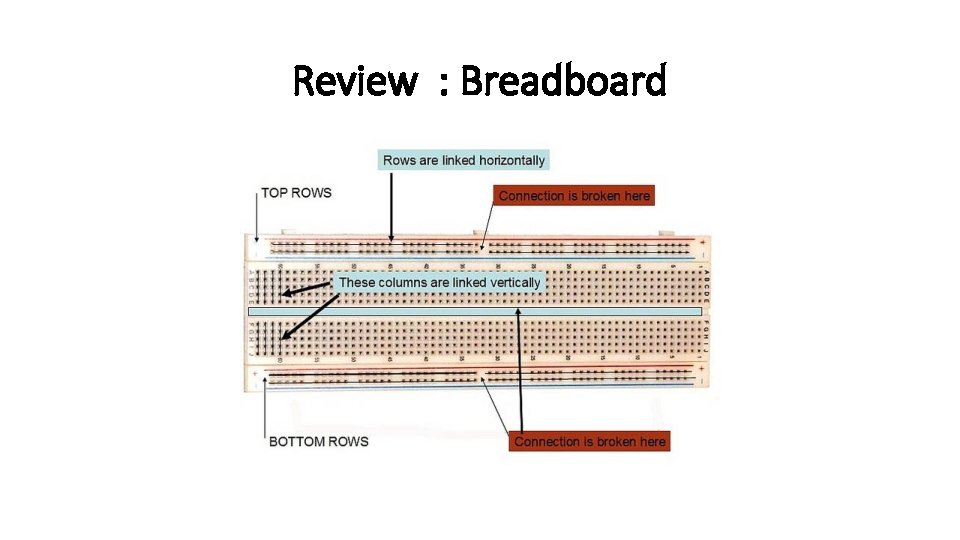

Review : Breadboard
Volt/Res Current
Practice #1 • Multimeter and Power Supply R 1 = 3 KΩ + Power Supply DC : 10 V R 2 = 2 KΩ 1. Measure the resistance 2. Measure the voltage at R 1 3. Measure the voltage at R 2

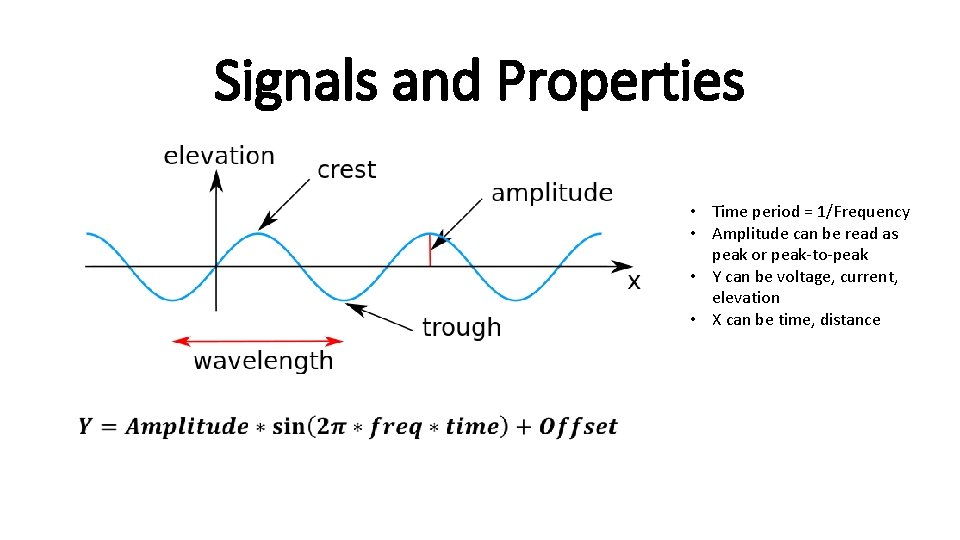

Signals and Properties • Time period = 1/Frequency • Amplitude can be read as peak or peak-to-peak • Y can be voltage, current, elevation • X can be time, distance

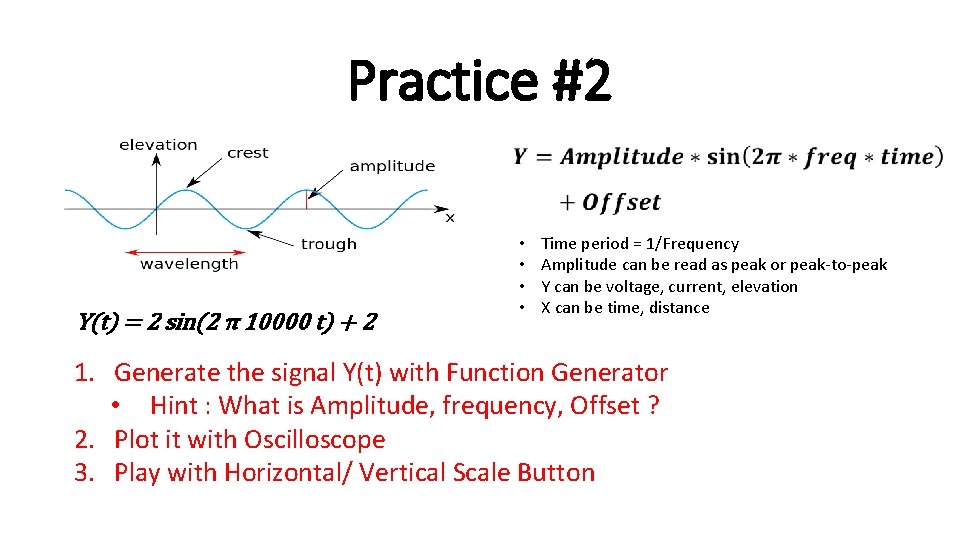

Practice #2 Y(t) = 2 sin(2 π 10000 t) + 2 • • Time period = 1/Frequency Amplitude can be read as peak or peak-to-peak Y can be voltage, current, elevation X can be time, distance 1. Generate the signal Y(t) with Function Generator • Hint : What is Amplitude, frequency, Offset ? 2. Plot it with Oscilloscope 3. Play with Horizontal/ Vertical Scale Button
Skill Session Evaluation • http: //bit. ly/S 19 PDH
Questions?
