Oscilloscopes RIGOL DS 1000 Series Digital Oscilloscope Alex

Oscilloscopes RIGOL DS 1000 Series Digital Oscilloscope Alex Jones COE 0501 University of Pittsburgh

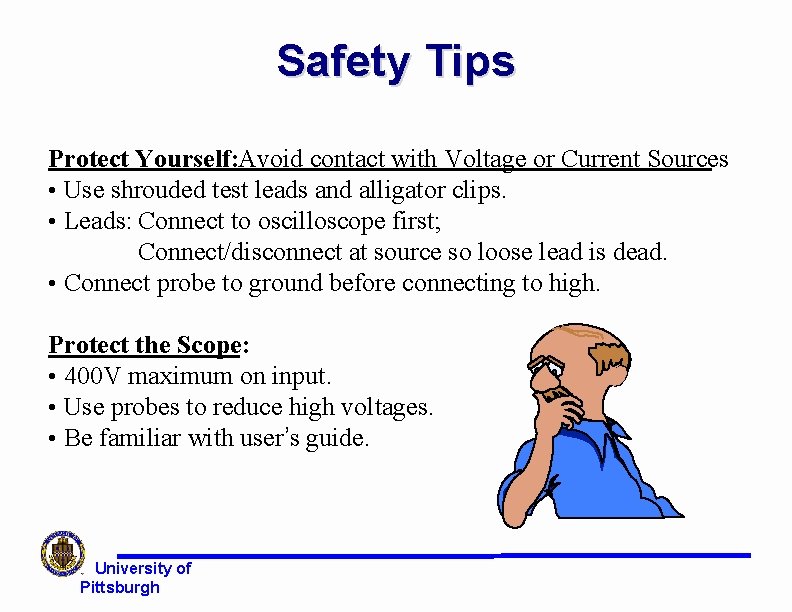

Safety Tips Protect Yourself: Avoid contact with Voltage or Current Sources • Use shrouded test leads and alligator clips. • Leads: Connect to oscilloscope first; Connect/disconnect at source so loose lead is dead. • Connect probe to ground before connecting to high. Protect the Scope: • 400 V maximum on input. • Use probes to reduce high voltages. • Be familiar with user’s guide. University of Pittsburgh

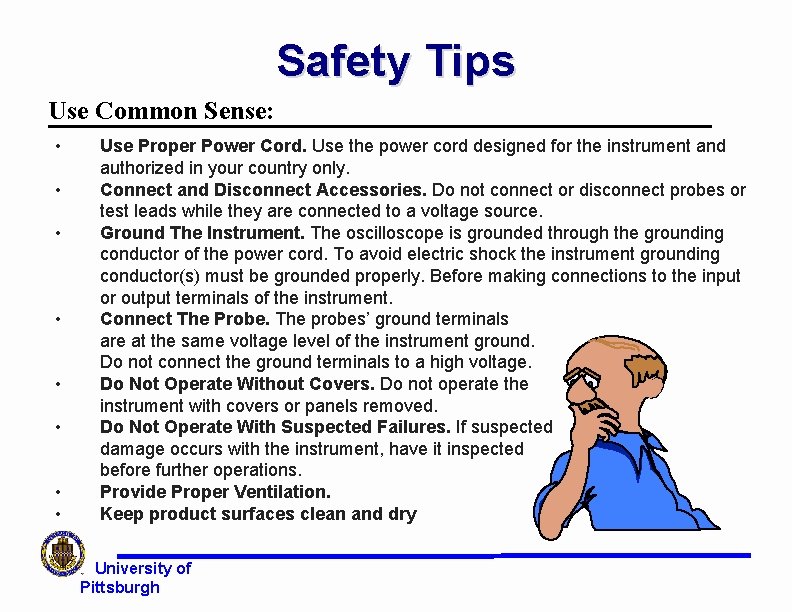

Safety Tips Use Common Sense: • • Use Proper Power Cord. Use the power cord designed for the instrument and authorized in your country only. Connect and Disconnect Accessories. Do not connect or disconnect probes or test leads while they are connected to a voltage source. Ground The Instrument. The oscilloscope is grounded through the grounding conductor of the power cord. To avoid electric shock the instrument grounding conductor(s) must be grounded properly. Before making connections to the input or output terminals of the instrument. Connect The Probe. The probes’ ground terminals are at the same voltage level of the instrument ground. Do not connect the ground terminals to a high voltage. Do Not Operate Without Covers. Do not operate the instrument with covers or panels removed. Do Not Operate With Suspected Failures. If suspected damage occurs with the instrument, have it inspected before further operations. Provide Proper Ventilation. Keep product surfaces clean and dry University of Pittsburgh

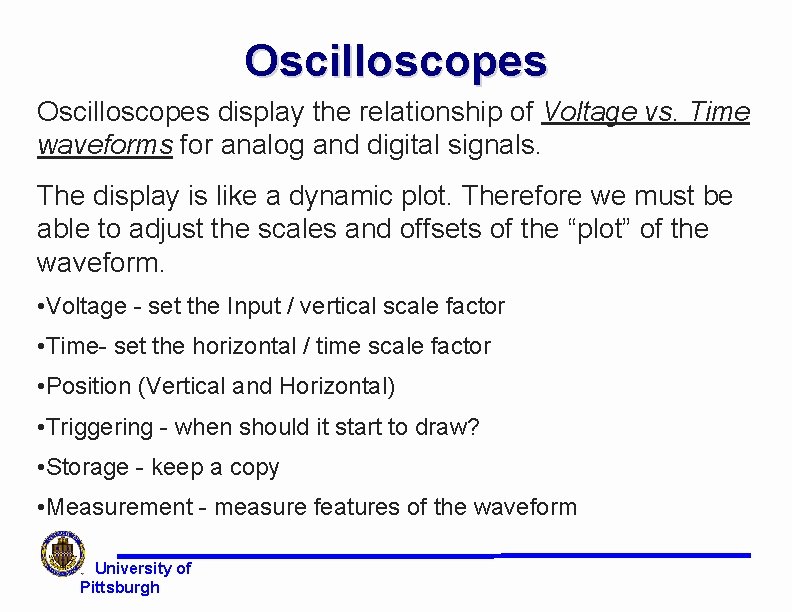

Oscilloscopes display the relationship of Voltage vs. Time waveforms for analog and digital signals. The display is like a dynamic plot. Therefore we must be able to adjust the scales and offsets of the “plot” of the waveform. • Voltage - set the Input / vertical scale factor • Time- set the horizontal / time scale factor • Position (Vertical and Horizontal) • Triggering - when should it start to draw? • Storage - keep a copy • Measurement - measure features of the waveform University of Pittsburgh

Front Panel Features Cursors Horizontal Position Measurement Autoscale/ Triggering Vertical Position Vertical Scale Ground Inputs Calibration University of Pittsburgh Horizontal Scale

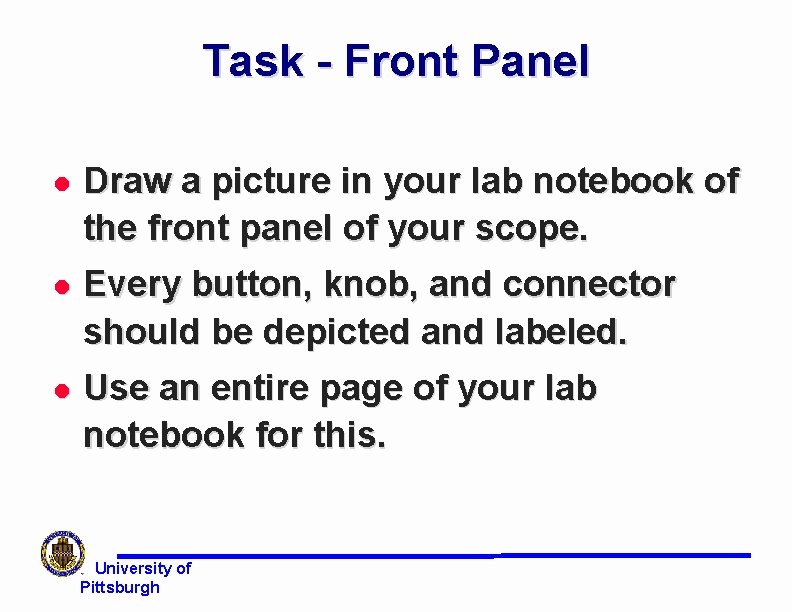

Task - Front Panel l Draw a picture in your lab notebook of the front panel of your scope. l Every button, knob, and connector should be depicted and labeled. l Use an entire page of your lab notebook for this. University of Pittsburgh

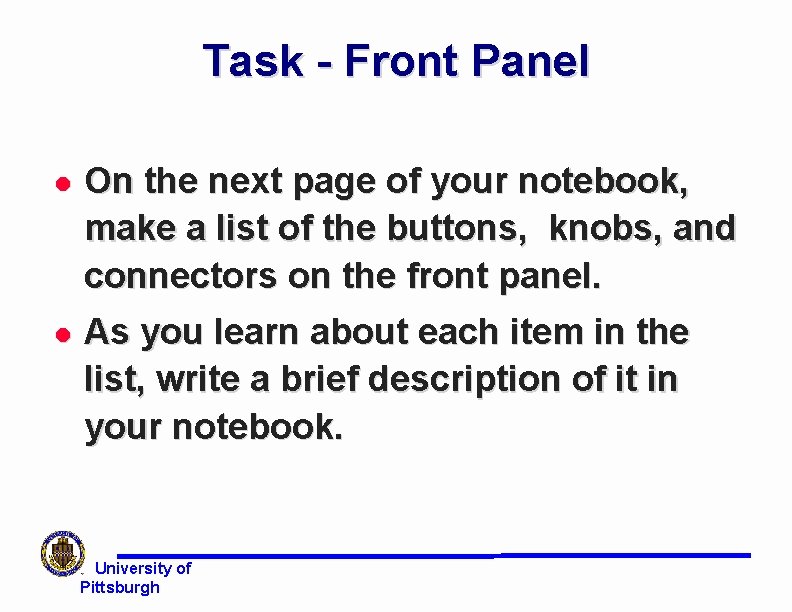

Task - Front Panel l On the next page of your notebook, make a list of the buttons, knobs, and connectors on the front panel. l As you learn about each item in the list, write a brief description of it in your notebook. University of Pittsburgh

Power Switch • This switch turns the oscilloscope on and off. University of Pittsburgh

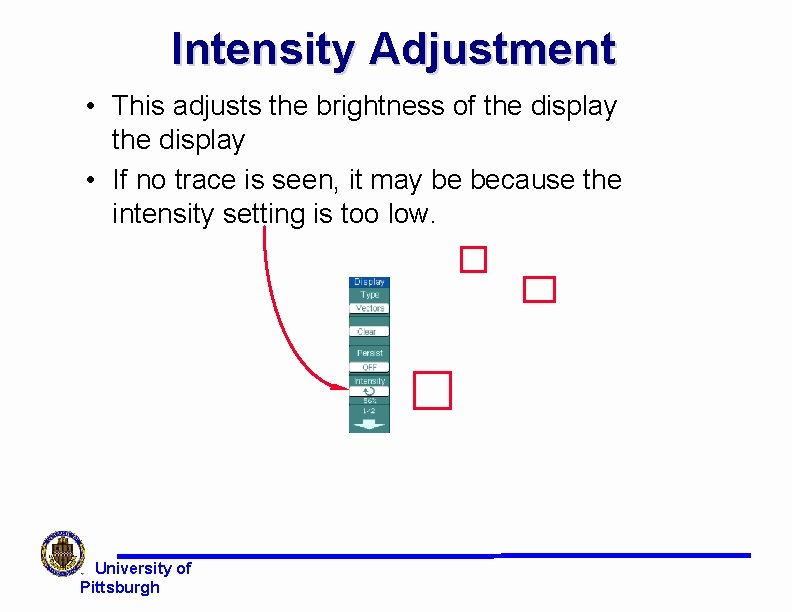

Intensity Adjustment • This adjusts the brightness of the display • If no trace is seen, it may be because the intensity setting is too low. University of Pittsburgh

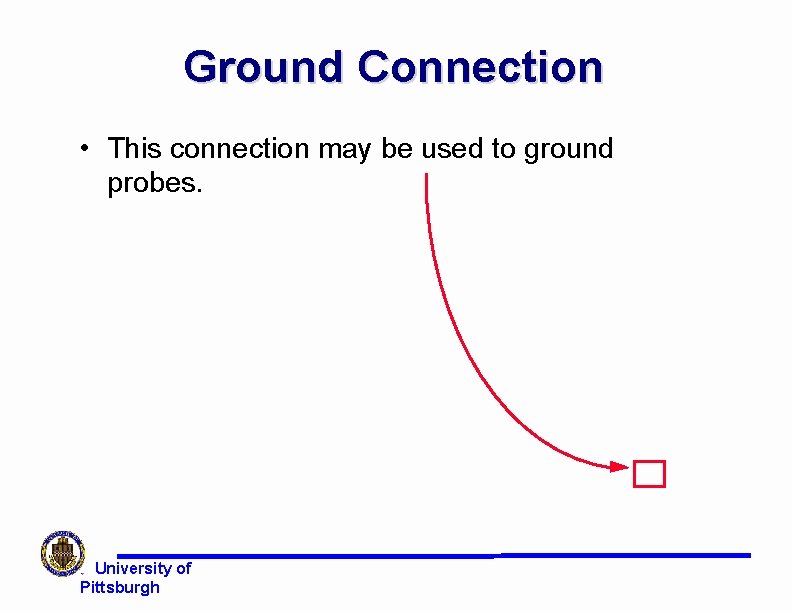

Ground Connection • This connection may be used to ground probes. University of Pittsburgh

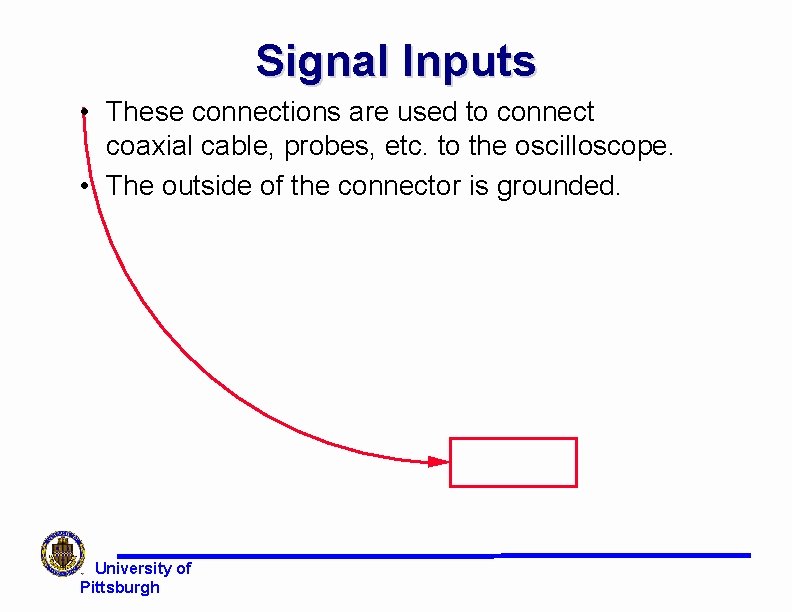

Signal Inputs • These connections are used to connect coaxial cable, probes, etc. to the oscilloscope. • The outside of the connector is grounded. University of Pittsburgh

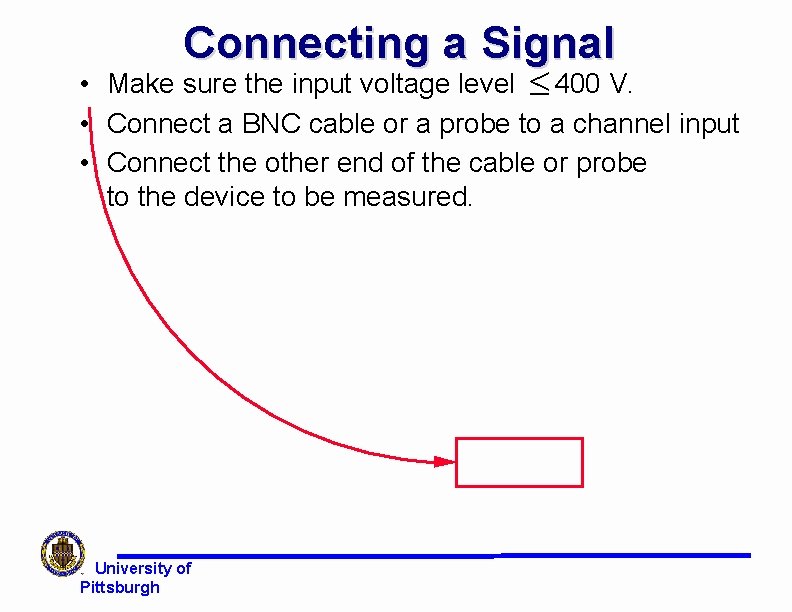

Connecting a Signal • Make sure the input voltage level £ 400 V. • Connect a BNC cable or a probe to a channel input • Connect the other end of the cable or probe to the device to be measured. University of Pittsburgh

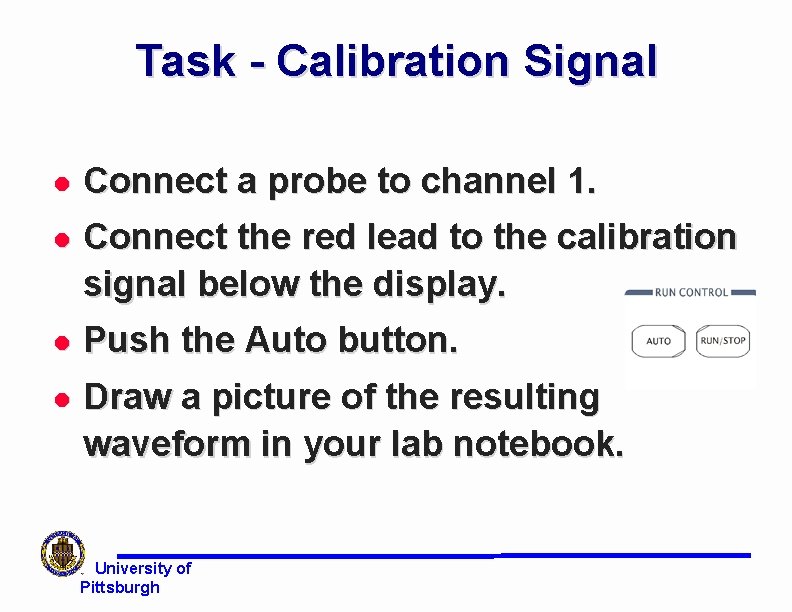

Task - Calibration Signal l Connect a probe to channel 1. l Connect the red lead to the calibration signal below the display. l Push the Auto button. l Draw a picture of the resulting waveform in your lab notebook. University of Pittsburgh

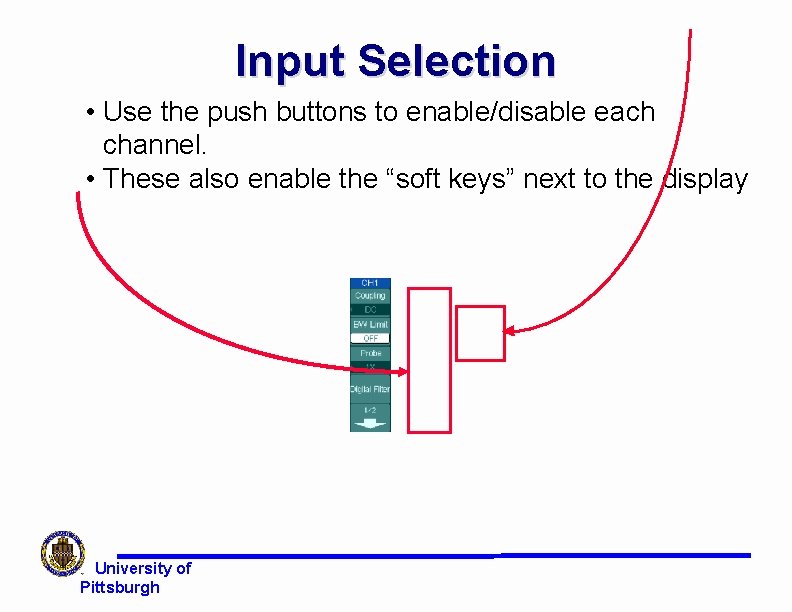

Input Selection • Use the push buttons to enable/disable each channel. • These also enable the “soft keys” next to the display University of Pittsburgh

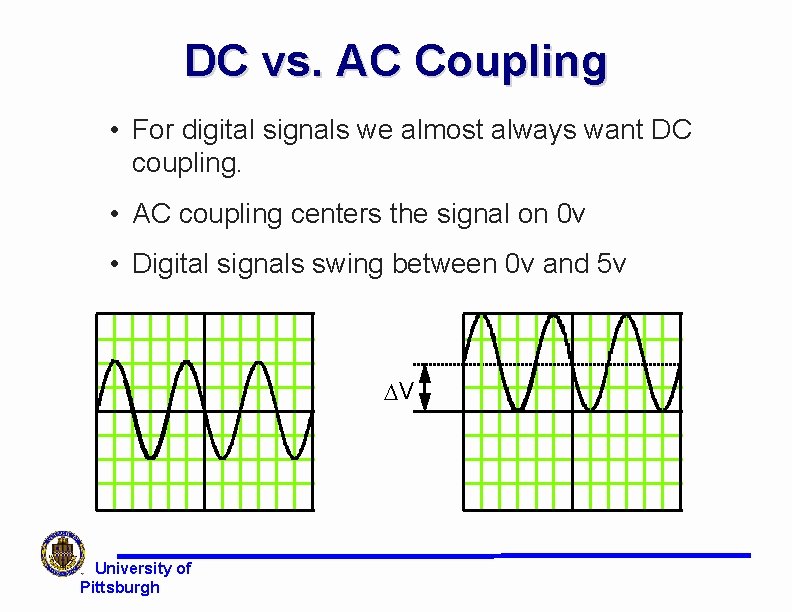

DC vs. AC Coupling • For digital signals we almost always want DC coupling. • AC coupling centers the signal on 0 v • Digital signals swing between 0 v and 5 v DV University of Pittsburgh

Vertical Scale • Use the vertical volts/div knobs (located above the channel input connector) to scale the signal vertically on the screen. University of Pittsburgh

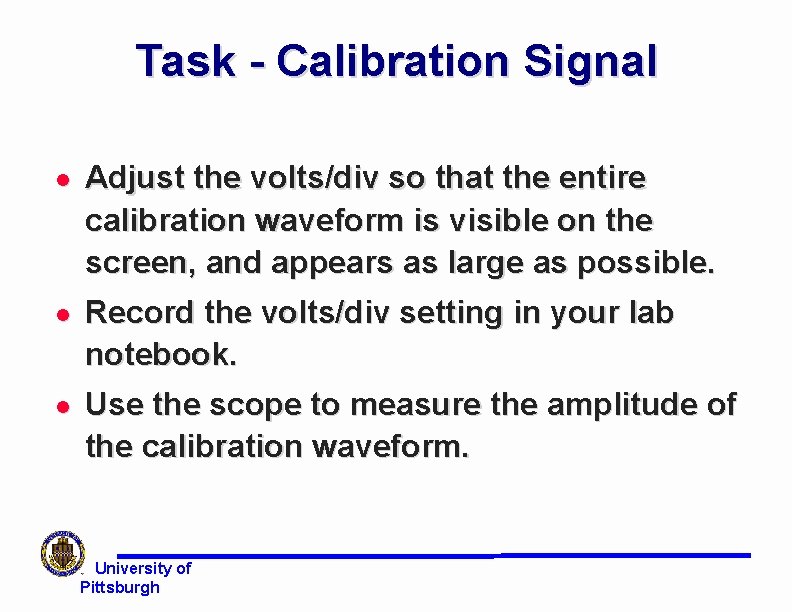

Task - Calibration Signal l Adjust the volts/div so that the entire calibration waveform is visible on the screen, and appears as large as possible. l Record the volts/div setting in your lab notebook. l Use the scope to measure the amplitude of the calibration waveform. University of Pittsburgh

Vertical Positioning • Use the vertical position knob (located above the channel input connector) to position the signal vertically on the screen. University of Pittsburgh

Time Base • Turn the time/div knob to adjust the sweep speed (time base). • The sweep speed has a range from 2 ns to 50 s. University of Pittsburgh

Menu On/Off • Turn the menu on or off next to the soft keys University of Pittsburgh

Horizontal Positioning • Use the “delay knob” to move the signal horizontally. • Note the value displayed on the status line. University of Pittsburgh

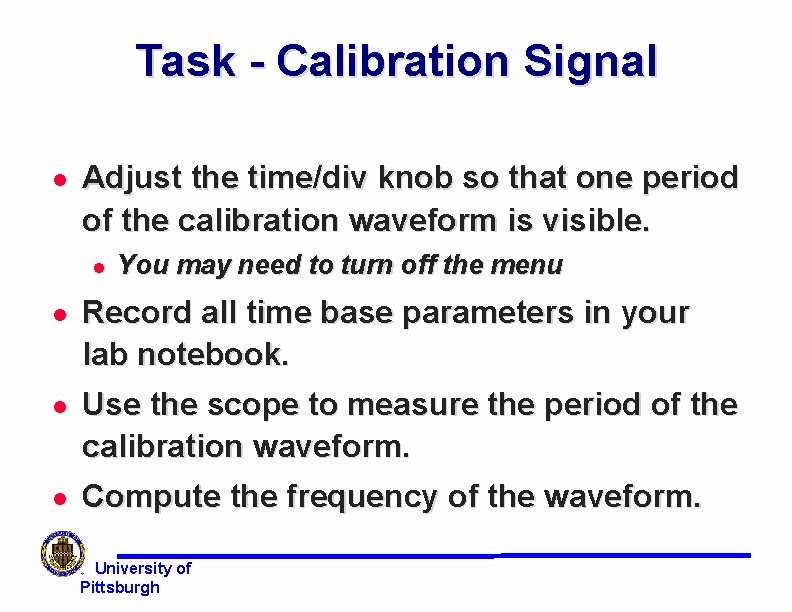

Task - Calibration Signal l Adjust the time/div knob so that one period of the calibration waveform is visible. l You may need to turn off the menu l Record all time base parameters in your lab notebook. l Use the scope to measure the period of the calibration waveform. l Compute the frequency of the waveform. University of Pittsburgh

Triggering Source • Use the trigger menu to assign a trigger source. • The choices are line, CH 1, CH 2 and external. University of Pittsburgh

Triggering Sweep Mode • Use this menu to choose a trigger sweep. • The choices are auto, normal, single University of Pittsburgh

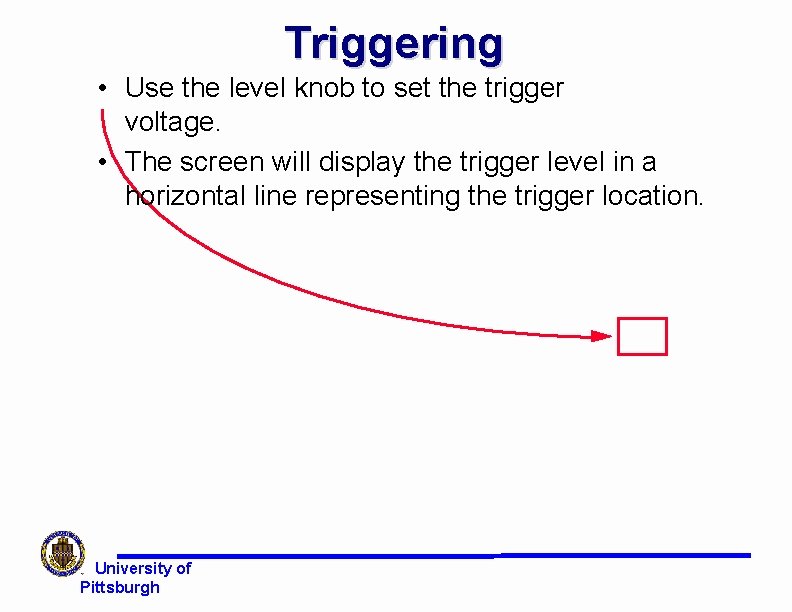

Triggering • Use the level knob to set the trigger voltage. • The screen will display the trigger level in a horizontal line representing the trigger location. University of Pittsburgh

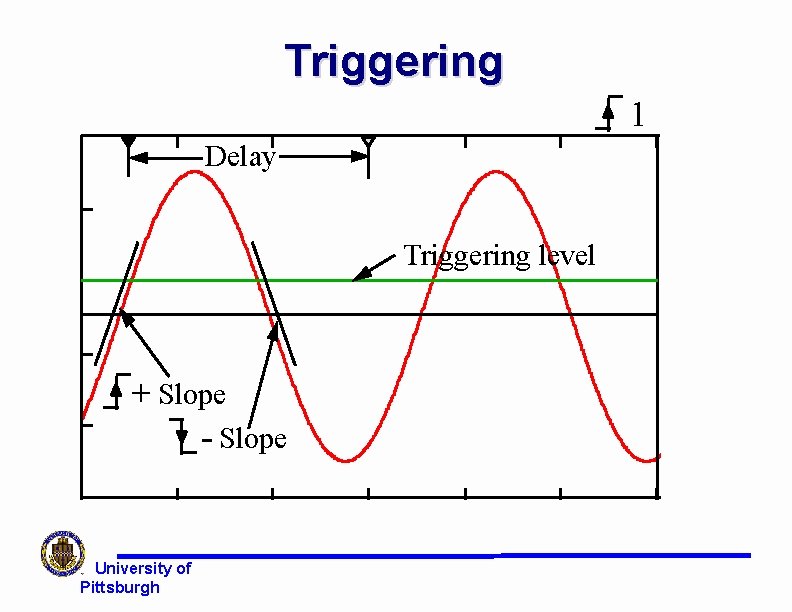

Triggering 1 Delay Triggering level + Slope - Slope University of Pittsburgh

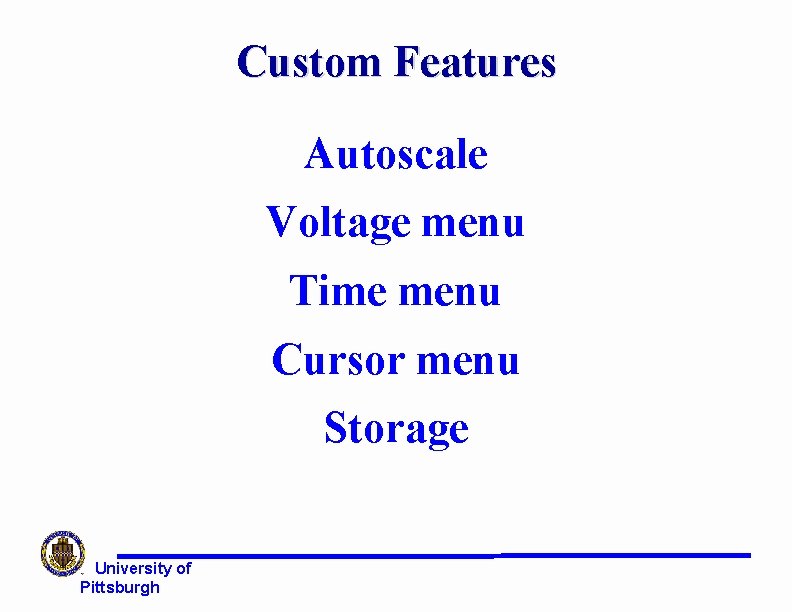

Custom Features Autoscale Voltage menu Time menu Cursor menu Storage University of Pittsburgh

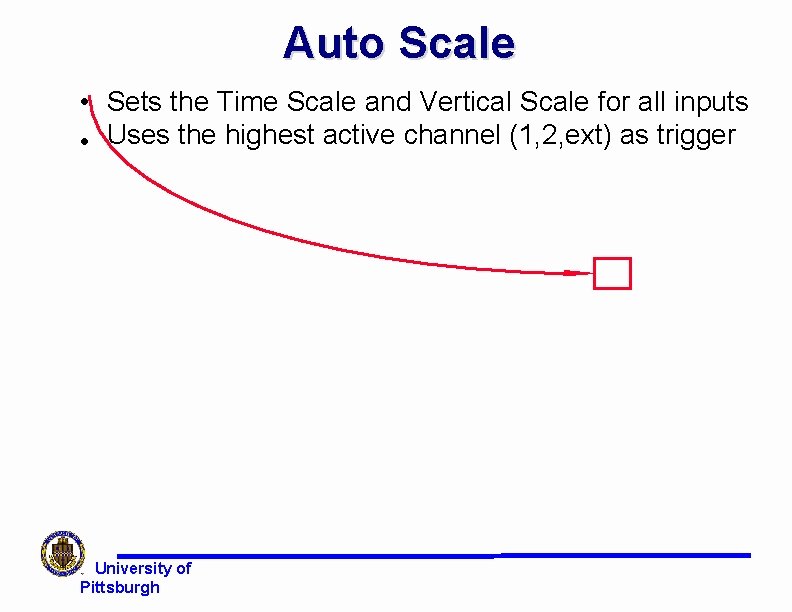

Auto Scale • Sets the Time Scale and Vertical Scale for all inputs • Uses the highest active channel (1, 2, ext) as trigger University of Pittsburgh

Measurements • Use this menu to make automatic measurements. • Voltage measurements include peak to peak Voltage, rms voltage, max voltage, etc. University of Pittsburgh

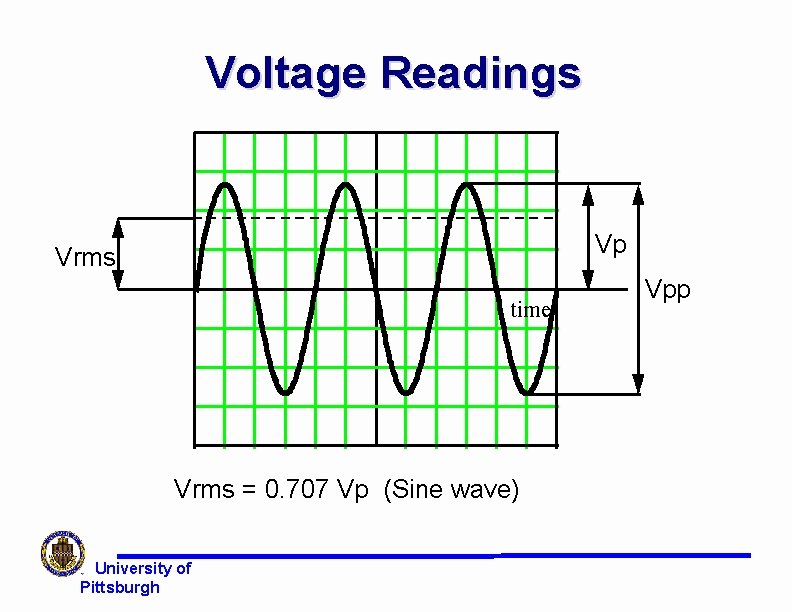

Voltage Readings Vp Vrms time Vrms = 0. 707 Vp (Sine wave) University of Pittsburgh Vpp

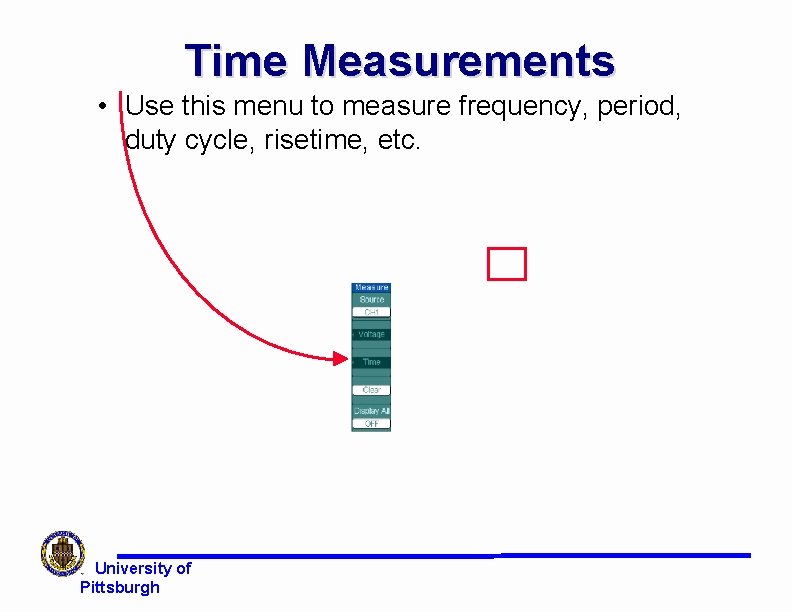

Time Measurements • Use this menu to measure frequency, period, duty cycle, risetime, etc. University of Pittsburgh

Frequency and Period T f= 1 Hz T w = 2 × p × f rad/s (t ) time University of Pittsburgh

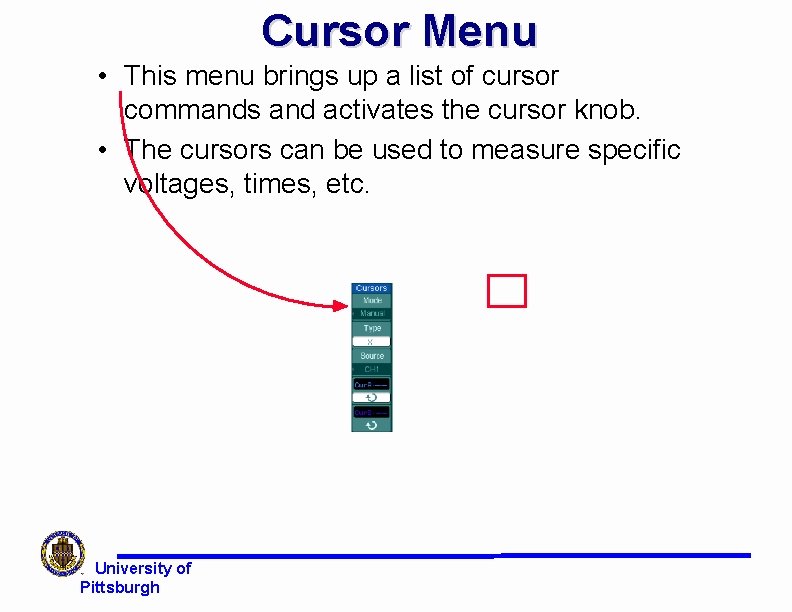

Cursor Menu • This menu brings up a list of cursor commands and activates the cursor knob. • The cursors can be used to measure specific voltages, times, etc. University of Pittsburgh

Storage Menu • This menu controls the storage features of the scope. • Load and store waveforms, overlay over each other University of Pittsburgh

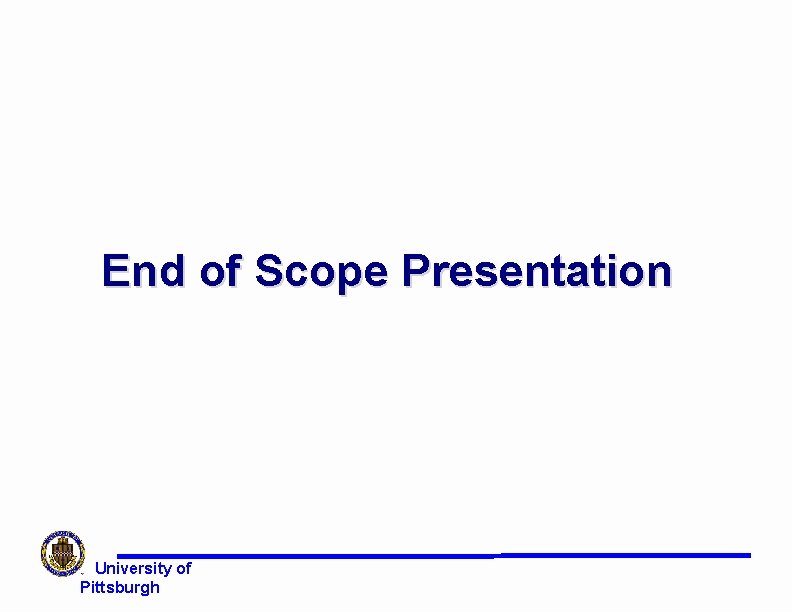

End of Scope Presentation University of Pittsburgh
