Concordia University Department of Computer Science and Software

Learning Objectives ¨ Introduction to Arrays ¨ Declaring and referencing arrays ¨ For-loops and

Introduction to Arrays ¨ Array definition: ¨ A collection of data of same type

Declaring Arrays ¨ Declare the array : allocates memory int score[5]; ¨ Declares array

Accessing Arrays ¨ Access using index/subscript cout << score[3]; ¨ Note two uses of

Array Usage ¨ Powerful storage mechanism ¨ Can issue command like: ¨ "Do this

Program Using an Array (1 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey

Program Using an Array (2 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey

for-loops with Arrays ¨ Natural counting loop ¨ Naturally works well "counting thru" elements

Major Array Pitfall ¨ Array indexes always start with zero! ¨ Zero is "first"

Major Array Pitfall Example ¨ Indexes range from 0 to (array_size – 1) ¨

Defined Constant as Array Size ¨ Always use defined/named constant for array size ¨

Uses of Defined Constant ¨ Use everywhere size of array is needed ¨ In

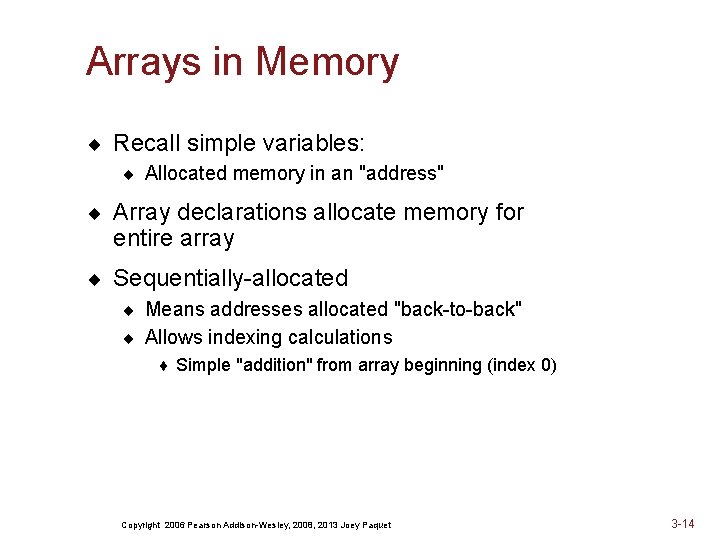

Arrays in Memory ¨ Recall simple variables: ¨ Allocated memory in an "address" ¨

An Array in Memory Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet 3 -15

Initializing Arrays ¨ As simple variables can be initialized at declaration: int price =

Auto-Initializing Arrays ¨ If fewer values than size supplied: ¨ Fills from beginning ¨

Arrays in Functions ¨ As arguments to functions ¨ Indexed variables ¨ An individual

Indexed Variables as Arguments ¨ Indexed variable handled same as simple variable of array

Subtlety of Indexing ¨ Consider: my. Function(a[i]); ¨ Value of i is determined first

Entire Arrays as Arguments ¨ Formal parameter can be entire array ¨ Argument then

Entire Array as Argument Example Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet 3

Entire Array as Argument Example ¨ Given previous example: ¨ In some main() function

Array as Argument: How? ¨ What’s really passed? ¨ Think of array as 3

Array Parameters ¨ May seem strange ¨ No brackets in array argument ¨ Must

The const Parameter Modifier ¨ Recall: array parameter actually passes address of 1 st

Functions that Return an Array ¨ Functions cannot return arrays in the same way

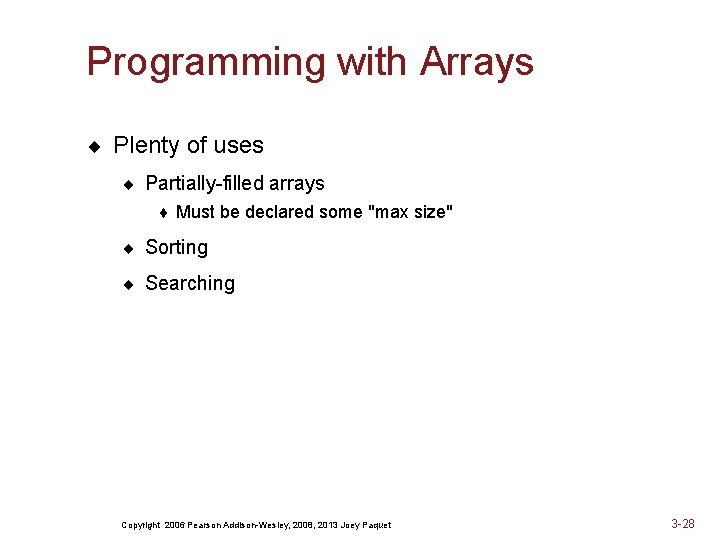

Programming with Arrays ¨ Plenty of uses ¨ Partially-filled arrays ¨ Must be declared

Partially-filled Arrays ¨ Difficult to know exact array size needed ¨ Must declare to

Partially-filled Arrays Example: Partially Filled Array (1 of 5) Copyright 2006 Pearson Addison-Wesley, 2008,

Partially-filled Arrays Example: Partially Filled Array (2 of 5) Copyright 2006 Pearson Addison-Wesley, 2008,

Partially-filled Arrays Example: Partially Filled Array (3 of 5) Copyright 2006 Pearson Addison-Wesley, 2008,

Partially-filled Arrays Example: Partially Filled Array (4 of 5) Copyright 2006 Pearson Addison-Wesley, 2008,

Partially-filled Arrays Example: Partially Filled Array (5 of 5) Copyright 2006 Pearson Addison-Wesley, 2008,

Global Constants vs. Parameters ¨ Constants typically made "global" ¨ Declared above main() ¨

Searching an Array (1 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Searching an Array (2 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Searching an Array (3 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Searching an Array (4 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Sorting an Array: Selection Sort ¨ Selection Sort Algorithm Copyright 2006 Pearson Addison-Wesley, 2008,

Sorting an Array (1 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Sorting an Array (2 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Sorting an Array (3 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Sorting an Array (4 of 4) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Multidimensional Arrays ¨ Arrays with more than one index ¨ char page[30][100]; ¨ Two

Multidimensional Array Parameters ¨ Similar to one-dimensional array ¨ 1 st dimension size not

Summary 1 ¨ Array is collection of "same type" data ¨ Indexed variables of

Summary 2 ¨ Array elements stored sequentially ¨ "Contiguous" portion of memory ¨ Only

Dynamic arrays and pointers Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet 3 -49

Learning Objectives ¨ Pointer variables ¨ Memory management ¨ Dynamic Arrays ¨ Creating and

Pointer Introduction ¨ Pointer definition: ¨ Memory address of a variable ¨ Recall: memory

Pointer Variables ¨ Pointers are "typed" ¨ Can store pointer in variable ¨ Not

Declaring Pointer Variables ¨ Pointers declared like other types ¨ Add "*" before variable

Addresses and Numbers ¨ Pointer is an address ¨ Address is an integer ¨

Pointing ¨ Terminology, view ¨ Talk of "pointing", not "addresses" ¨ Pointer variable "points

Pointing to … int *p 1, *p 2, v 1, v 2; p 1

Pointing to … ¨ Recall: int *p 1, *p 2, v 1, v 2;

"Pointing to" Example ¨ Consider: v 1 = 0; p 1 = &v 1;

& Operator ¨ The "address of" operator ¨ Also used to specify call-by-reference parameter

Pointer Assignments ¨ Pointer variables can be "assigned": int *p 1, *p 2; p

Pointer Assignments Graphic: Uses of the Assignment Operator with Pointer Variables Copyright 2006 Pearson

The new Operator ¨ Since pointers can refer to variables… ¨ No "real" need

Basic Pointer Manipulations (1 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Basic Pointer Manipulations (2 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet

Basic Pointer Manipulations Graphic: Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet 3 -65

More on new Operator ¨ Creates new dynamic variable ¨ Allocated on the heap.

Pointers and Functions ¨ Pointers are full-fledged types ¨ Can be used just like

Memory Management ¨ Heap ¨ Also called "freestore" ¨ Reserved for dynamically-allocated variables ¨

Checking new Success ¨ Older compilers: ¨ Test if null returned by call to

new Success – New Compiler ¨ Newer compilers: ¨ If new operation fails: ¨

Freestore Size ¨ Varies with implementations ¨ Typically large ¨ Most programs won’t use

delete Operator ¨ De-allocate dynamic memory ¨ When no longer needed ¨ Returns memory

Dangling Pointers ¨ delete p; ¨ Destroys dynamic memory ¨ But p still points

Dynamic and Automatic Variables ¨ Dynamic variables ¨ Created with new operator ¨ Created

Define Pointer Types ¨ Can "name" pointer types ¨ To be able to declare

Pitfall: Call-by-value Pointers ¨ Behavior subtle and troublesome ¨ If function changes pointer parameter

A Call-by-Value Pointer Parameter (1 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey

A Call-by-Value Pointer Parameter (2 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey

Call-by-value Pointers Graphic: The Function Call sneaky(p); Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey

Dynamic Arrays ¨ Array variables ¨ Really pointer variables! ¨ Standard array ¨ Fixed

Array Variables ¨ Recall: arrays stored in memory addresses, sequentially ¨ Array variable "refers

Array Variables Pointers ¨ Recall previous example: int a[10]; typedef int* Int. Ptr; Int.

Array Variables Pointers ¨ Array variable int a[10]; ¨ MORE than a pointer variable

Dynamic Arrays ¨ Array limitations ¨ Must specify size first ¨ May not know

Creating Dynamic Arrays ¨ Very simple! ¨ Use new operator ¨ Dynamically allocate with

Deleting Dynamic Arrays ¨ Allocated dynamically at run-time ¨ So should be destroyed at

Function that Returns an Array ¨ Array type NOT allowed as return-type of function

Pointer Arithmetic ¨ Can perform arithmetic on pointers ¨ "Address" arithmetic ¨ Example: typedef

Alternative Array Manipulation ¨ Use pointer arithmetic! ¨ "Step thru" array without indexing: for

Multidimensional Dynamic Arrays ¨ Yes we can! ¨ Recall: "arrays of arrays" ¨ Type

Back to Classes ¨ The -> operator ¨ Shorthand notation ¨ Combines dereference operator,

The this Pointer ¨ Member function definitions might need to refer to calling object

Overloading Assignment Operator ¨ Assignment operator returns reference ¨ So assignment "chains" are possible

Overloading Assignment Operator ¨ Recall: Assignment operator must be member of the class ¨

Overloaded = Operator Definition ¨ Uses string Class example: String. Class& String. Class: :

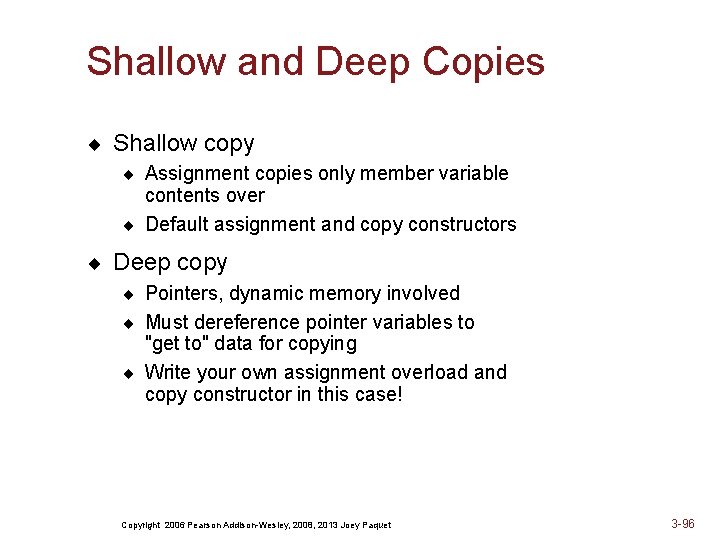

Shallow and Deep Copies ¨ Shallow copy ¨ Assignment copies only member variable contents

Destructor Need ¨ Dynamically-allocated variables ¨ Do not go away until "deleted" ¨ If

Destructors ¨ Opposite of constructor ¨ Automatically called when object is out-of-scope ¨ Default

Copy Constructors ¨ ¨ Automatically called when: 1. Class object declared and initialized to

Summary 1 ¨ Pointer is memory address ¨ Provides indirect reference to variable ¨

Summary 2 ¨ Class destructor ¨ Special member function ¨ Automatically destroys objects ¨

Vectors Copyright 2006 Pearson Addison-Wesley, 2008, 2013 Joey Paquet 3 -102

Vectors ¨ Vector Introduction ¨ Recall: arrays are fixed size ¨ Vectors: "arrays that

Vector Basics ¨ Similar to array: ¨ Has base type ¨ Stores collection of

Vector Use ¨ vector<int> v; ¨ "v is vector of type int" ¨ Calls

Vector Example: Using a Vector (1 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013

Vector Example: Using a Vector (2 of 2) Copyright 2006 Pearson Addison-Wesley, 2008, 2013

Vector Efficiency ¨ Member function capacity() ¨ Returns memory currently allocated ¨ Not same

Summary 1 ¨ Vector classes ¨ Like: "arrays that grow and shrink" Copyright 2006
