Concordia University Mechanical Engineering Drawing MECH 211/M • Lecture #4; Chapters 8 and 19 • Dr. John Cheung

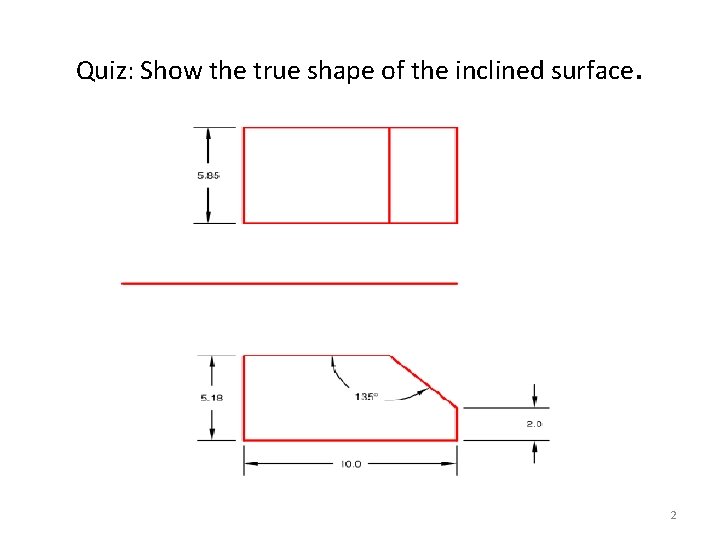

Quiz: Show the true shape of the inclined surface. 2

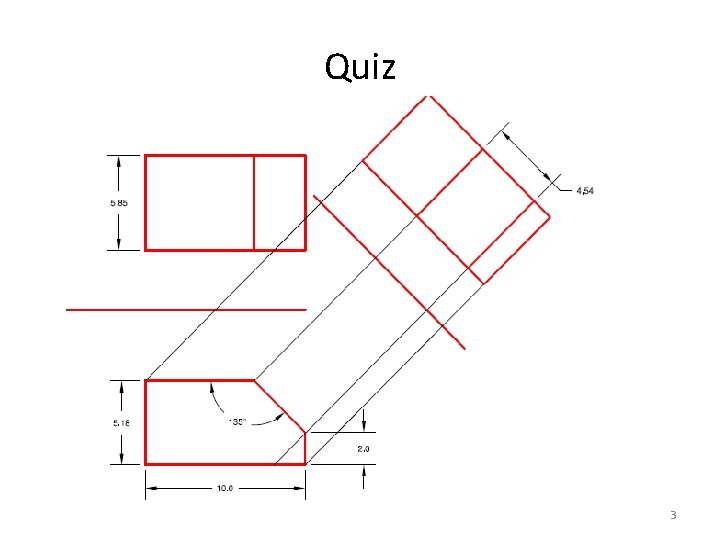

Quiz Question: Show the true shape of the inclined surface. 3

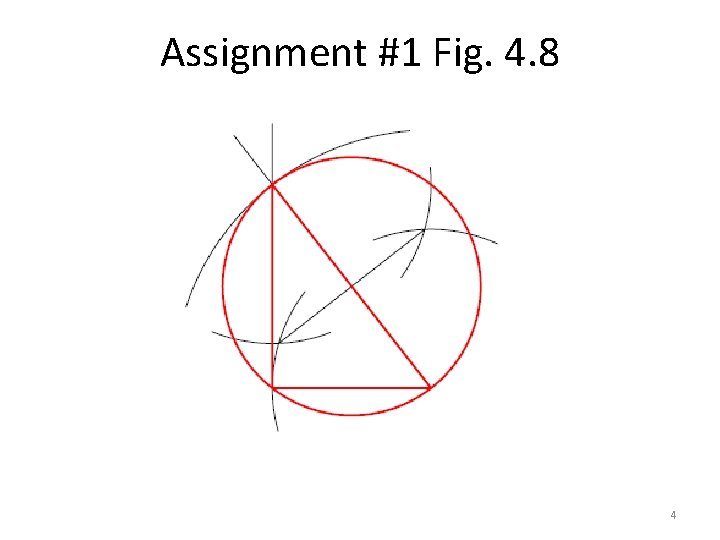

Assignment #1 Fig. 4. 8 4

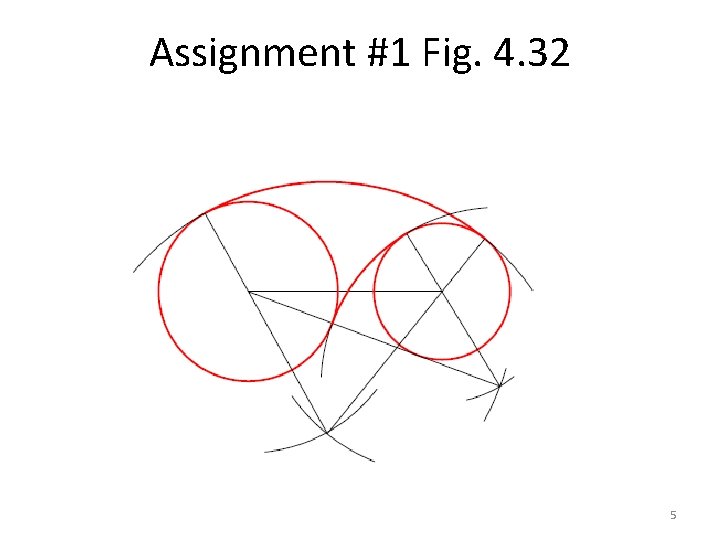

Assignment #1 Fig. 4. 32 5

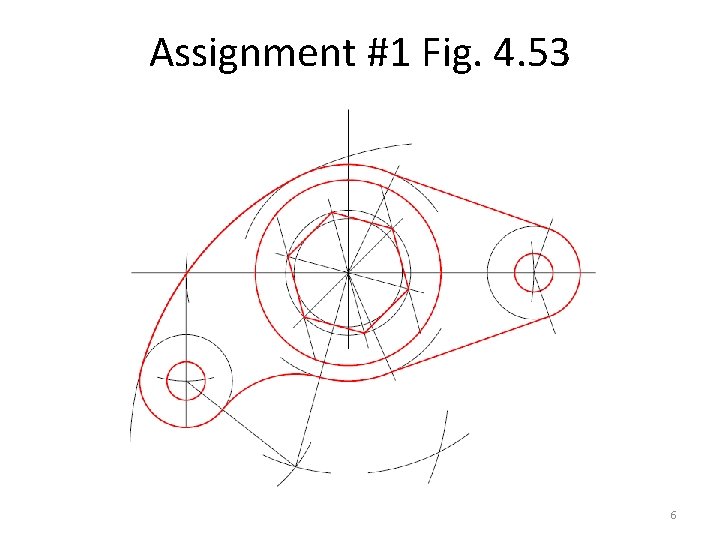

Assignment #1 Fig. 4. 53 6

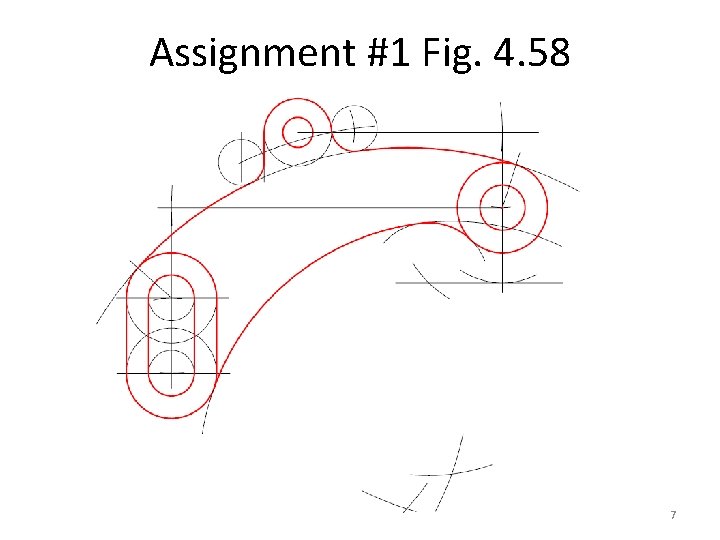

Assignment #1 Fig. 4. 58 7

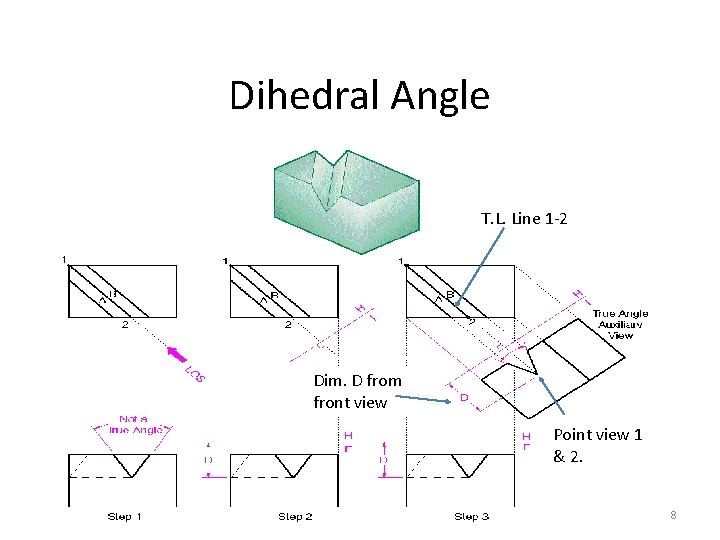

Dihedral Angle T. L. Line 1 -2 Dim. D from front view Point view 1 & 2. 8

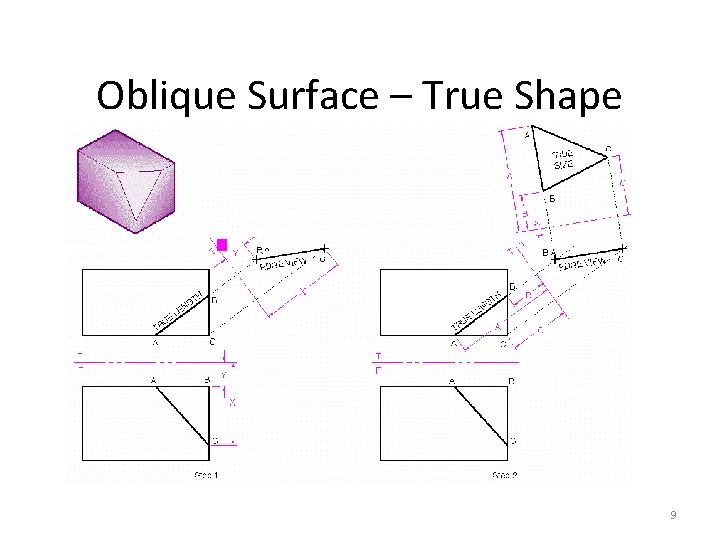

Oblique Surface – True Shape 9

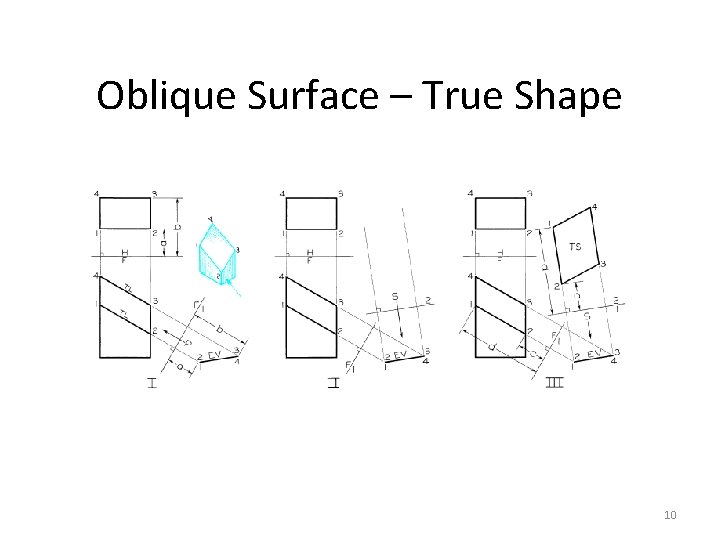

Oblique Surface – True Shape 10

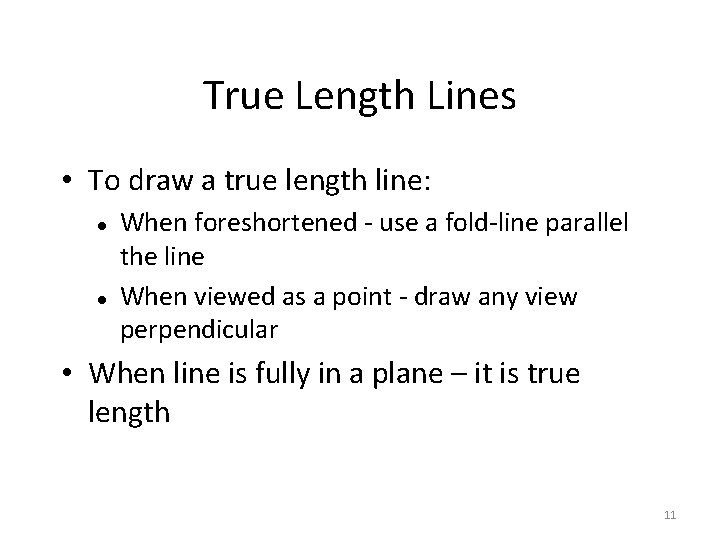

True Length Lines • To draw a true length line: When foreshortened - use a fold-line parallel the line When viewed as a point - draw any view perpendicular • When line is fully in a plane – it is true length 11

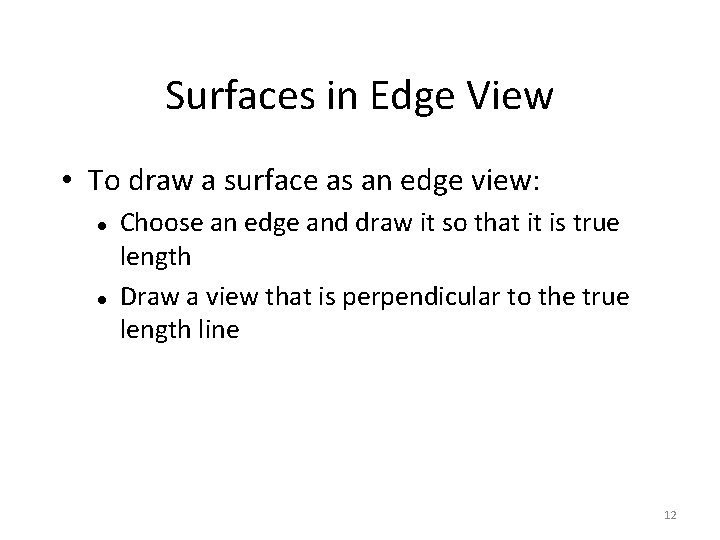

Surfaces in Edge View • To draw a surface as an edge view: Choose an edge and draw it so that it is true length Draw a view that is perpendicular to the true length line 12

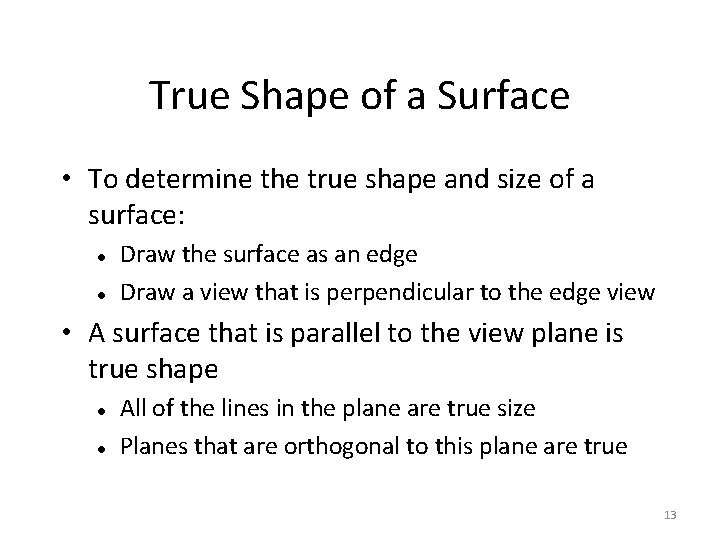

True Shape of a Surface • To determine the true shape and size of a surface: Draw the surface as an edge Draw a view that is perpendicular to the edge view • A surface that is parallel to the view plane is true shape All of the lines in the plane are true size Planes that are orthogonal to this plane are true 13

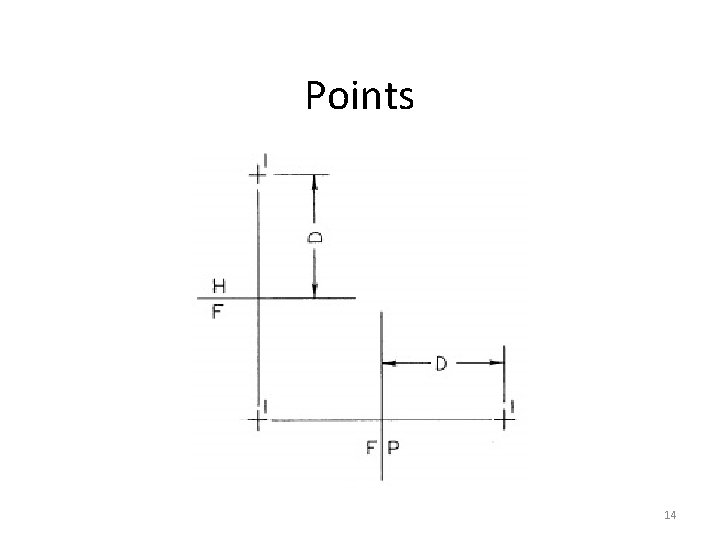

Points 14

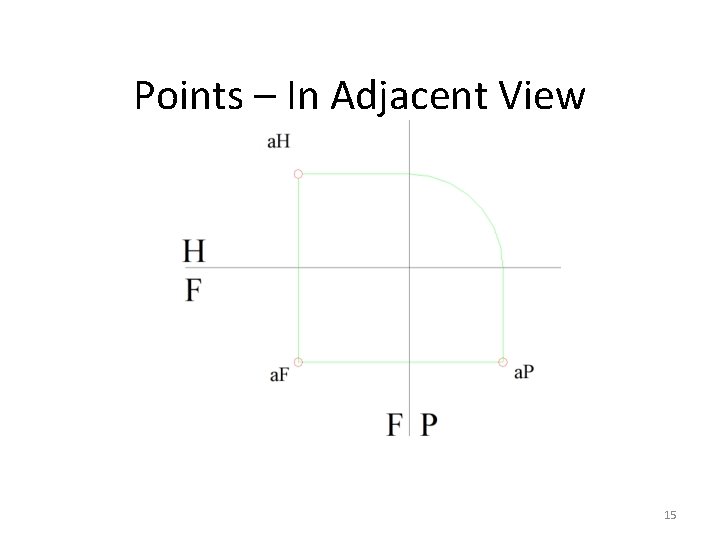

Points – In Adjacent View 15

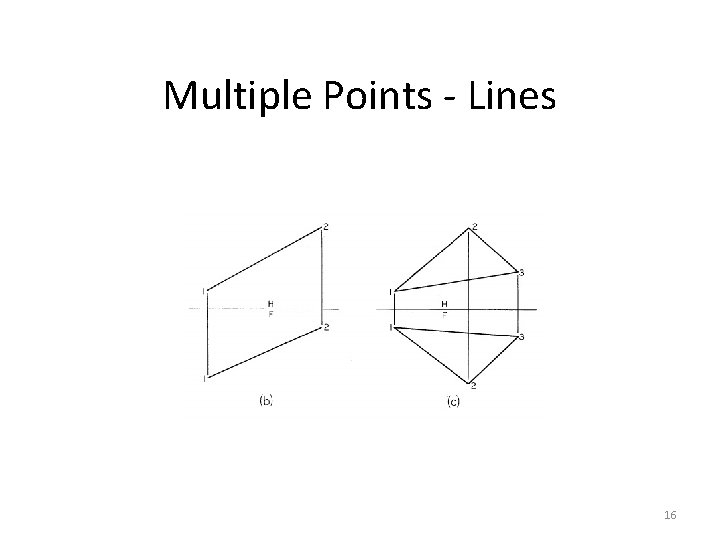

Multiple Points - Lines 16

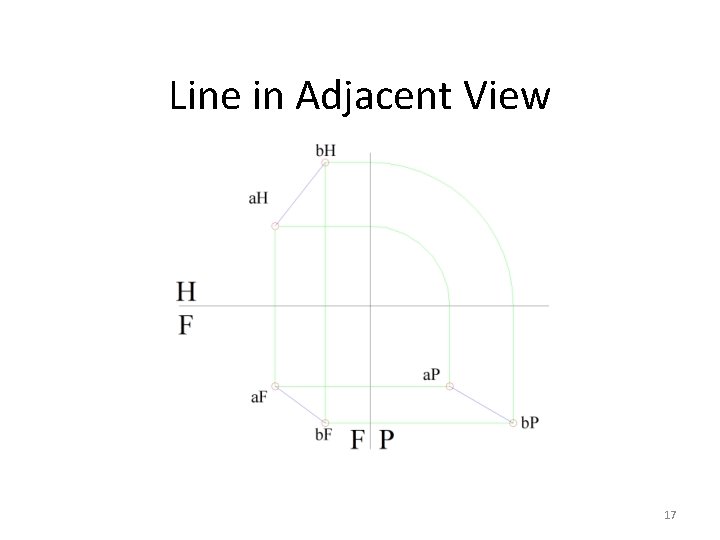

Line in Adjacent View 17

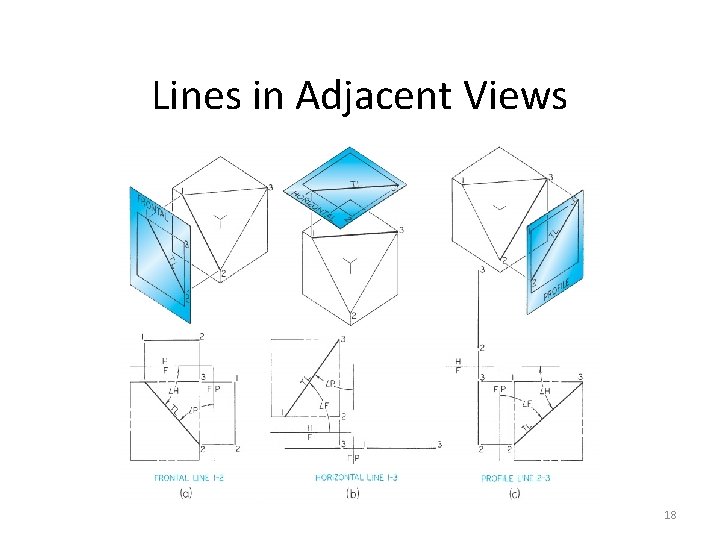

Lines in Adjacent Views 18

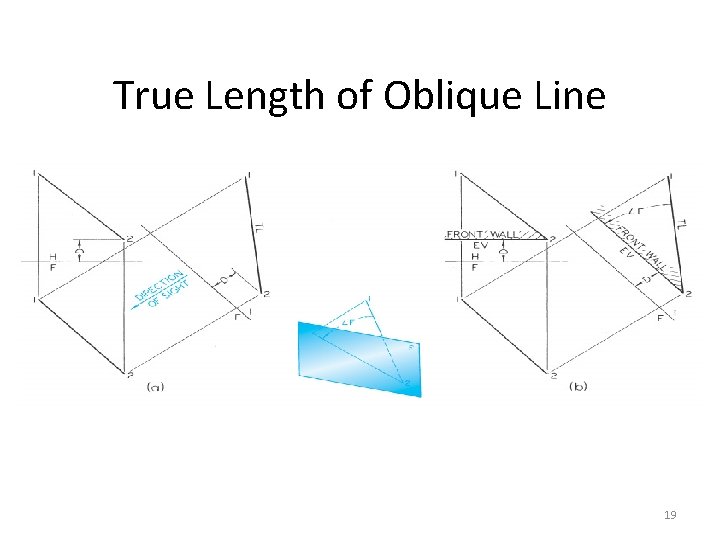

True Length of Oblique Line 19

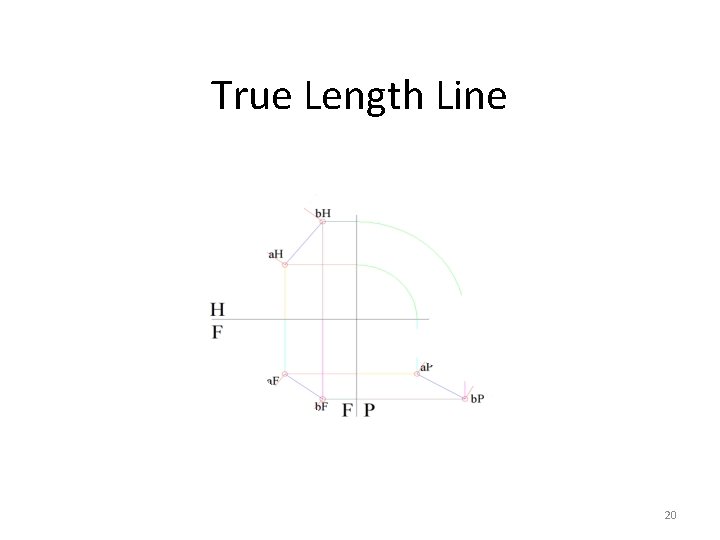

True Length Line 20

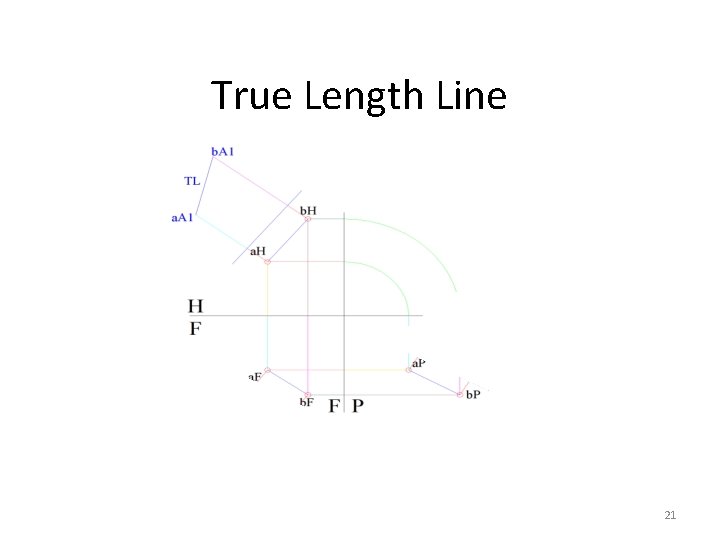

True Length Line 21

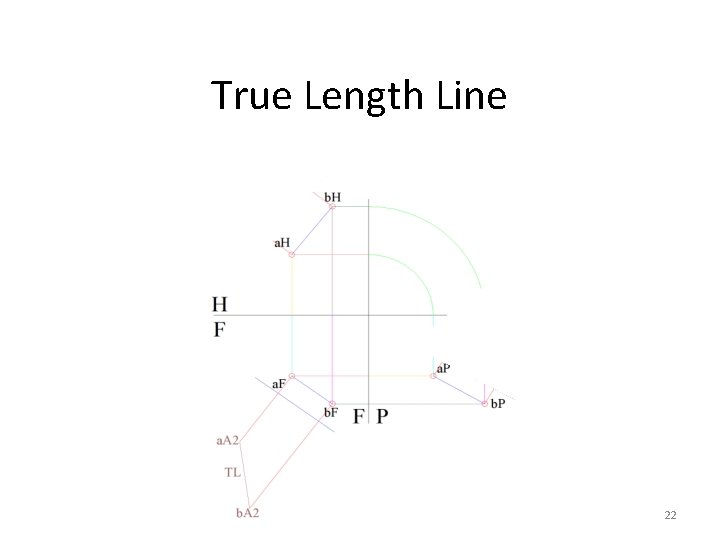

True Length Line 22

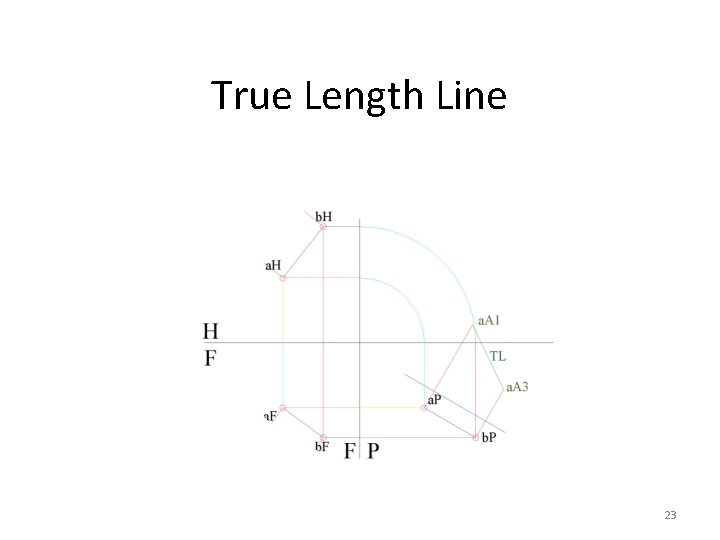

True Length Line 23

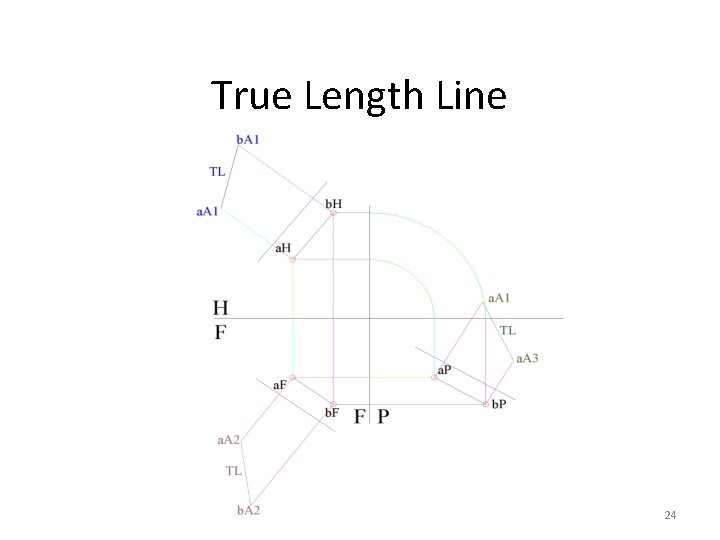

True Length Line 24

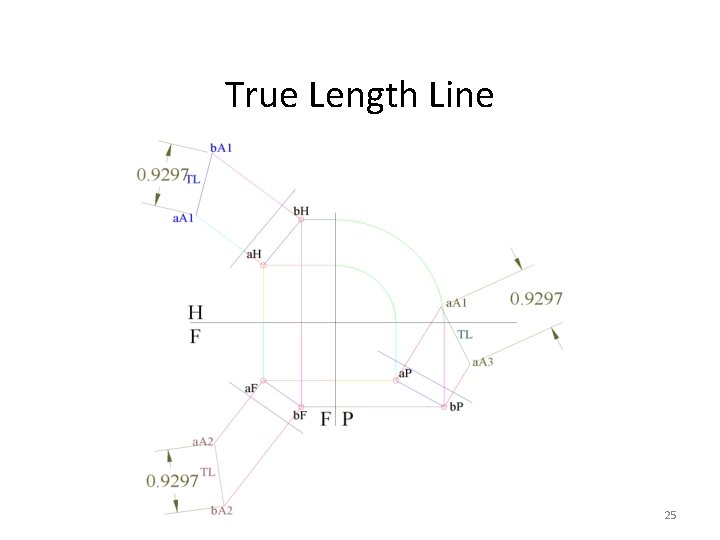

True Length Line 25

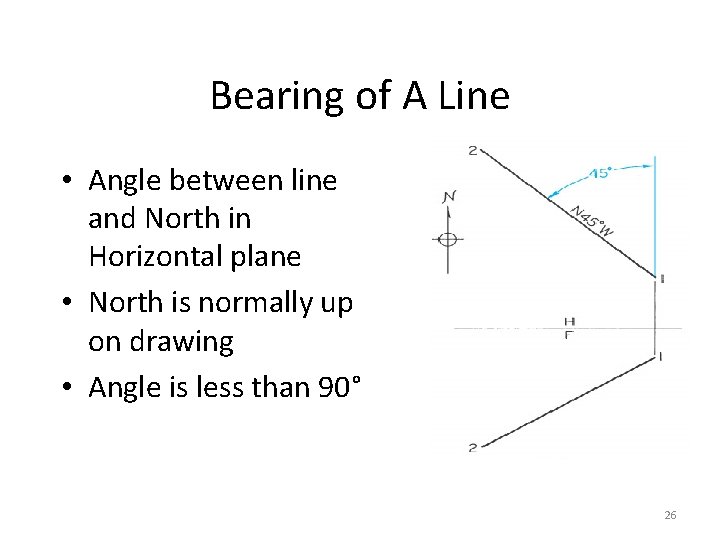

Bearing of A Line • Angle between line and North in Horizontal plane • North is normally up on drawing • Angle is less than 90° 26

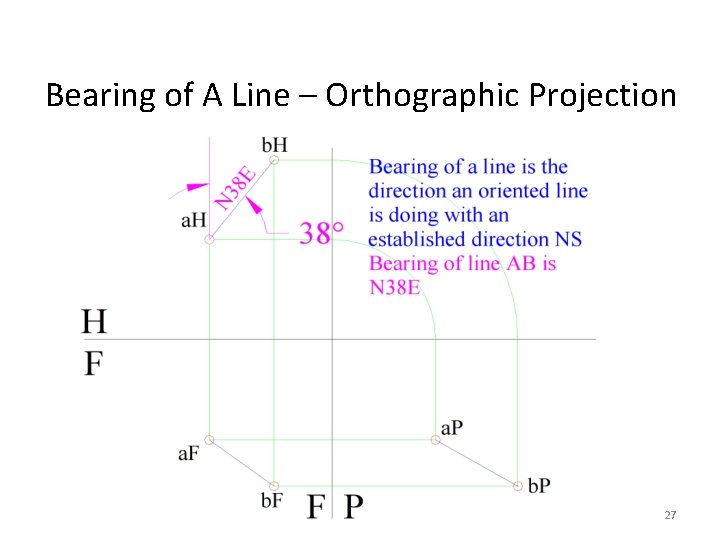

Bearing of A Line – Orthographic Projection 27

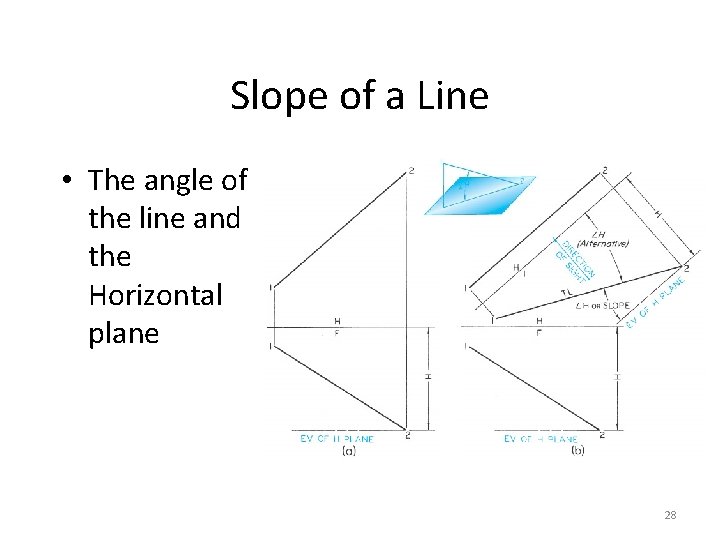

Slope of a Line • The angle of the line and the Horizontal plane 28

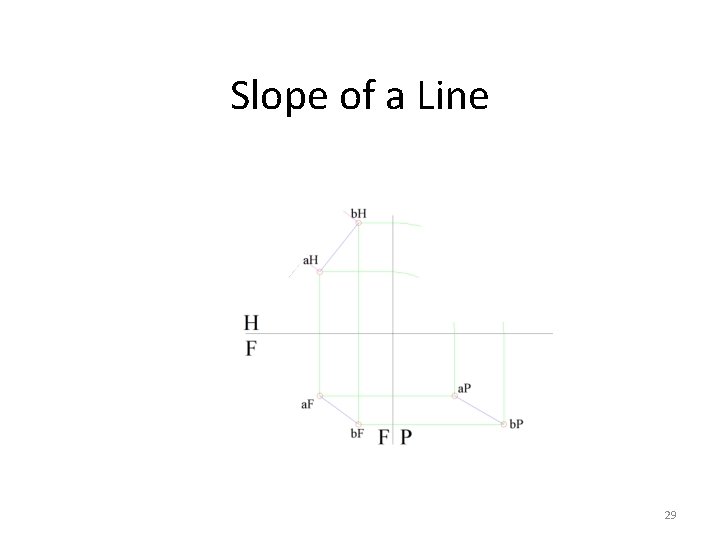

Slope of a Line 29

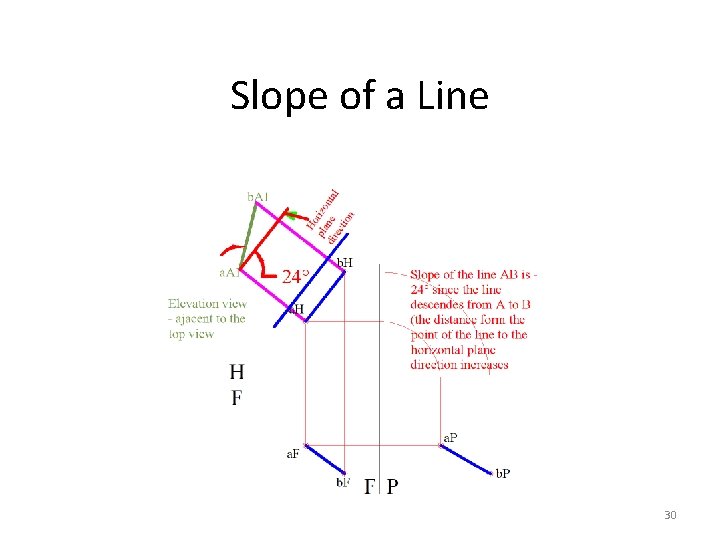

Slope of a Line 30

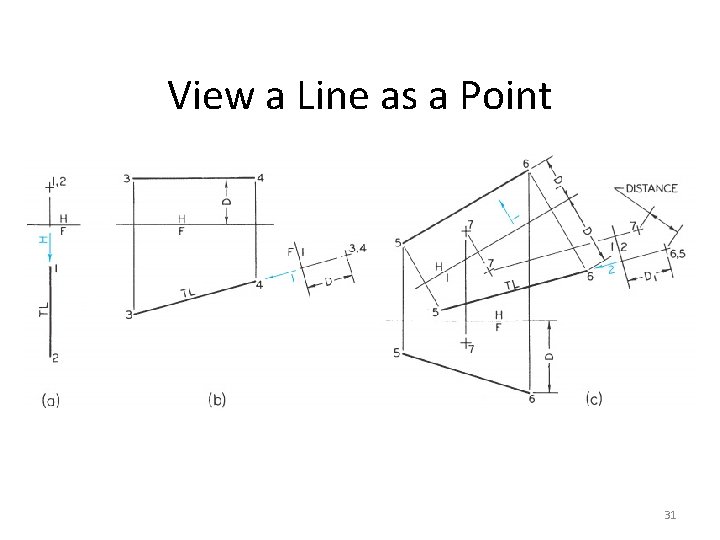

View a Line as a Point 31

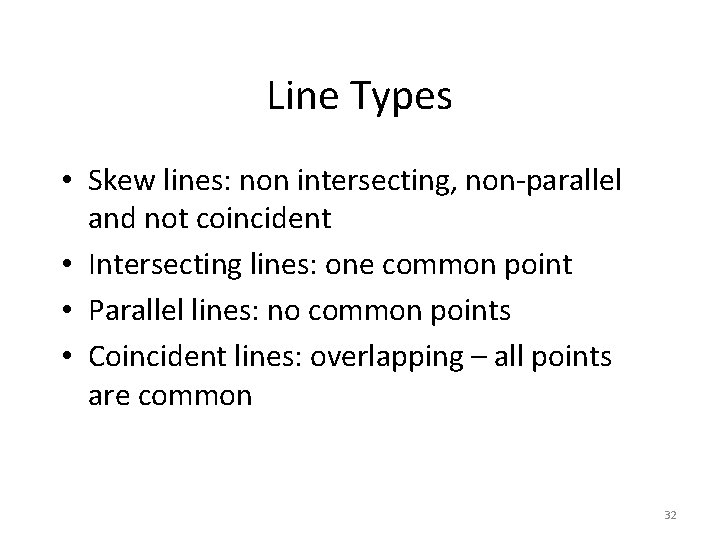

Line Types • Skew lines: non intersecting, non-parallel and not coincident • Intersecting lines: one common point • Parallel lines: no common points • Coincident lines: overlapping – all points are common 32

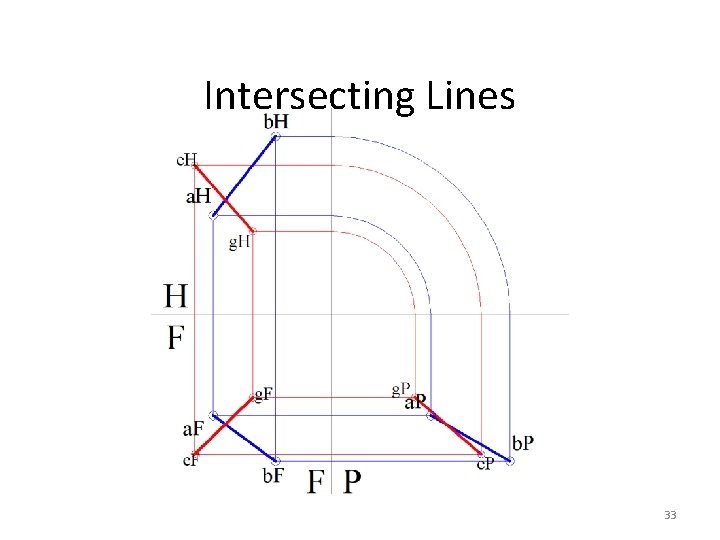

Intersecting Lines 33

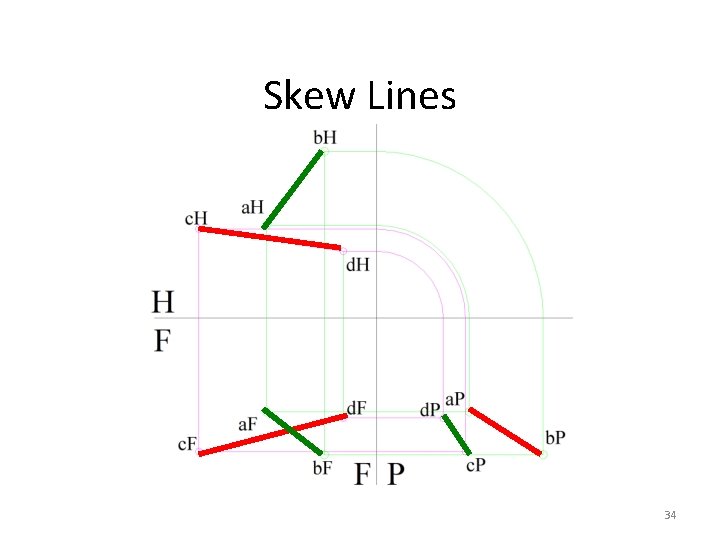

Skew Lines 34

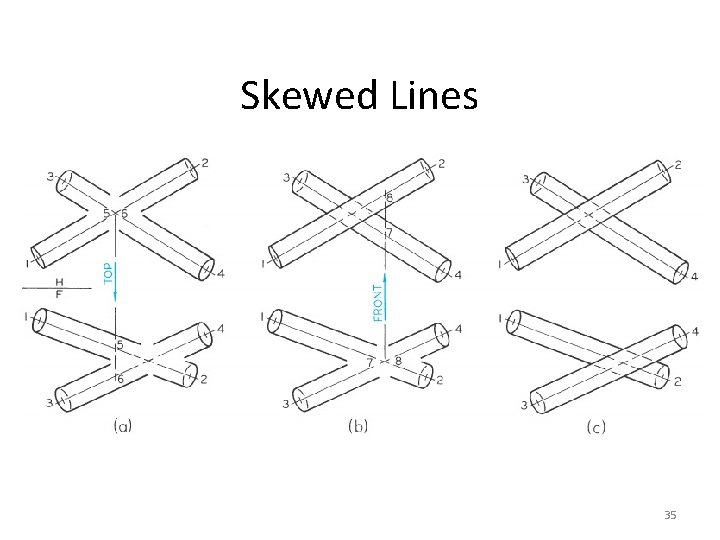

Skewed Lines 35

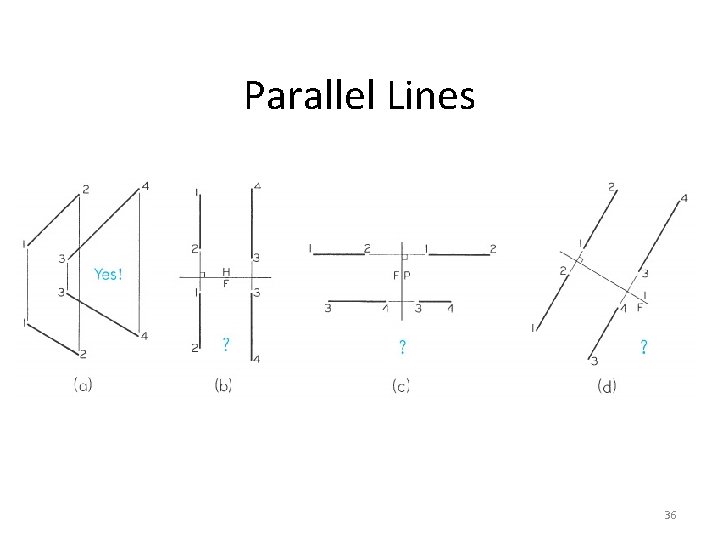

Parallel Lines 36

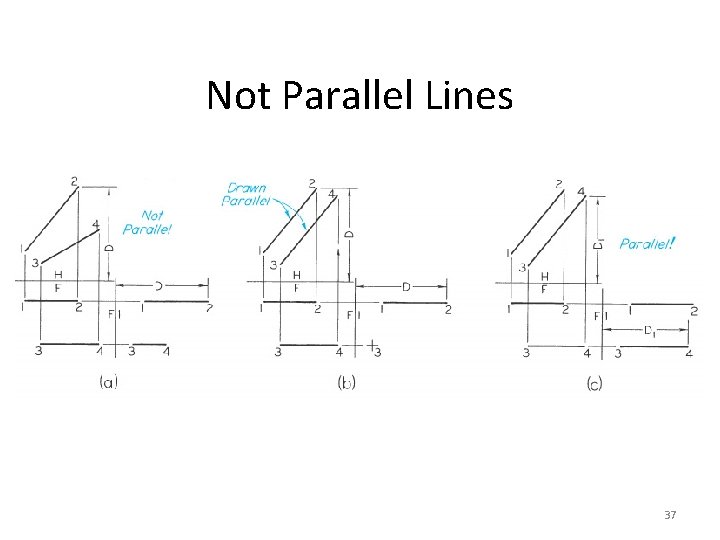

Not Parallel Lines 37

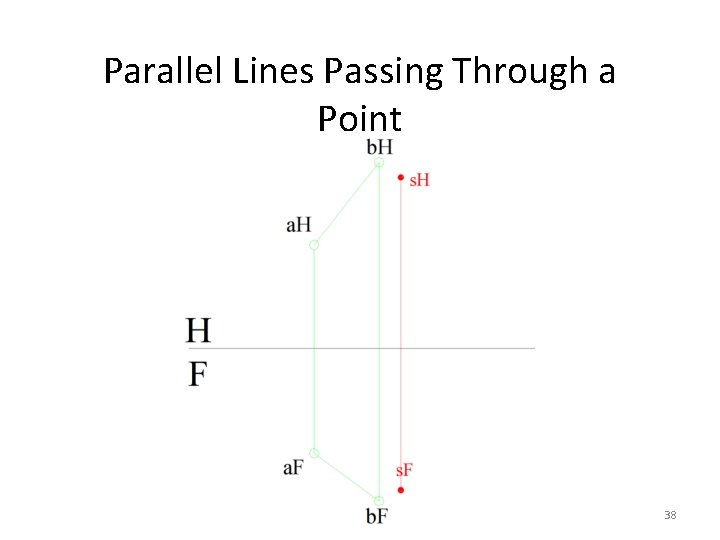

Parallel Lines Passing Through a Point 38

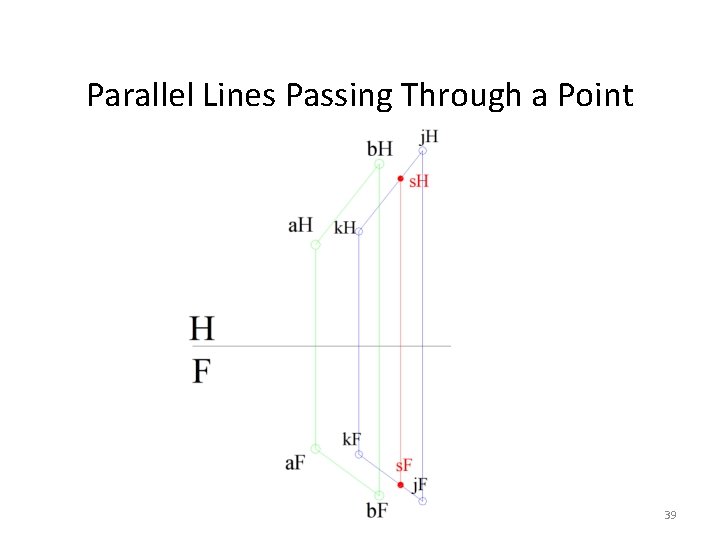

Parallel Lines Passing Through a Point 39

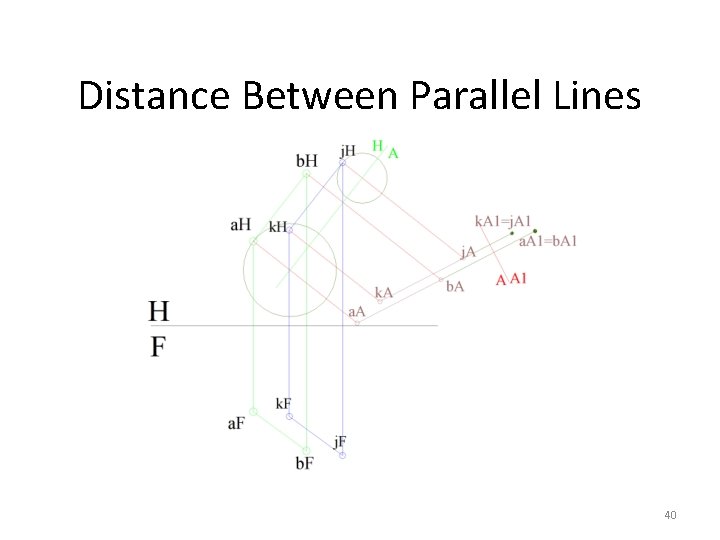

Distance Between Parallel Lines 40

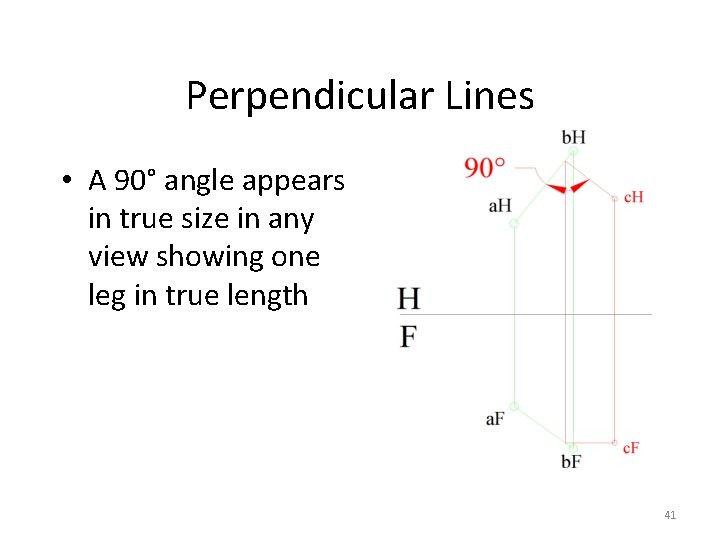

Perpendicular Lines • A 90° angle appears in true size in any view showing one leg in true length 41

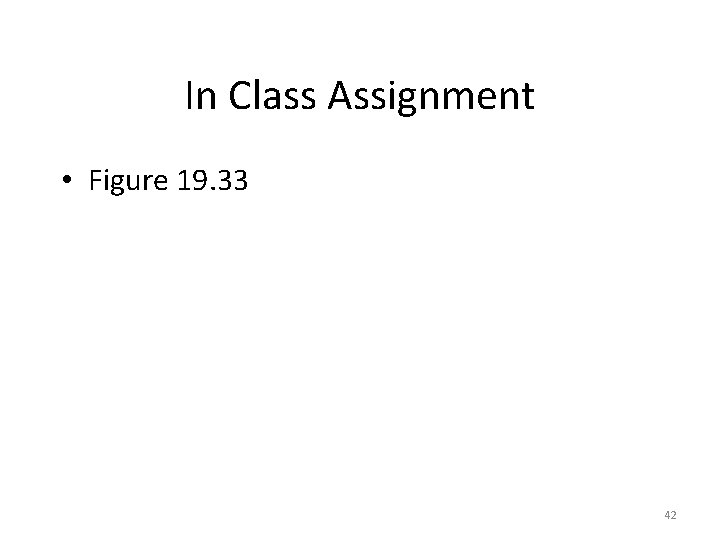

In Class Assignment • Figure 19. 33 42
