Cognitive Task Analysis Dick Clark Center for Cognitive Technology Rossier School of Education Keck School of Medicine University of Southern California clark@usc. edu - www. cogtech. usc. edu PSLC October 15, 2013 Center for Cognitive Technology

Topics 1. Why the interest in Cognitive Task Analysis (CTA)? 2. What evidence supports CTA’s use in education? 3. How is it implemented? Examples? Exceptions? 4. Next steps in research. 2

Why Cognitive Task Analysis? • Methods for identifying the cognitive strategies used by experts and novices to perform complex tasks. • Supports decisions on WHAT to teach - not how. • Important because of evidence that +/- 70% of expert decisions and many actions are implicit – automated and nonconscious -- in order to circumvent limits on WM. • When CTA used to design instruction, 1σ increase in learning and . 5σ decrease in time to learn. • Preliminary evidence of increases in task self-efficacy and persistence (decreased dropout) in higher education courses. 3

Brief History of CTA • Recent developments in long history of Task Analysis • Gilbreth’s 1890 – 1930 QUERTY keyboard, 3 X bricklaying • Crandall & Gretchell-Leiter (1993) identified 30% more indicators of distress in premature babies with Klein’s CTA (Crandall, Klein & Hoffman, 2006). • Chao & Salvendy (1994) examined four different methods of capturing the strategies experts use for three debugging tasks. • Average of 40% procedural steps and 30% explanations • Increased to average of 80% of steps after interviewing 6 experts • Cost-benefit diminishes beyond 4 to 6 experts • Why do experts recall different IF – THEN steps? 4

Chao & Salvende, (1994) 5

Decision step recall increase with more experts Chao & Salvende, (1997) Figure 4 6

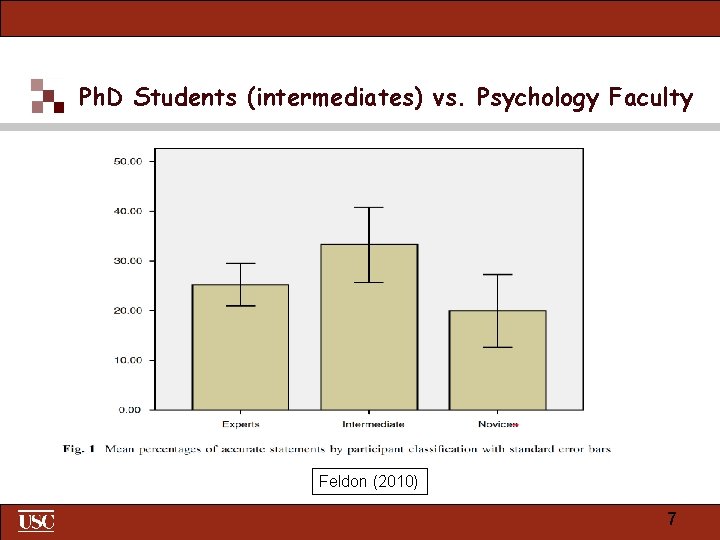

Ph. D Students (intermediates) vs. Psychology Faculty Feldon (2010) 7

70% Decisions Missing and 4 to 6 Experts to Remedy • Other studies, including partial replications of Chao & Salvende • Trauma Surgeons (Campbell, 2010; Crispen 2010; Sullivan et al, 2011; Velmahos et al, 2006) • Psych faculty teaching experimental design (Feldon, 2010) • Expert instructors consistently describe 30% of decisions but about 60% of actions when teaching. • With CTA the decisions identified reached 90 to 100% with four to six experts. • Most of our studies focused on surgical procedures because of disputes about “expertise” and surgeon’s legally required to report mistakes. 8

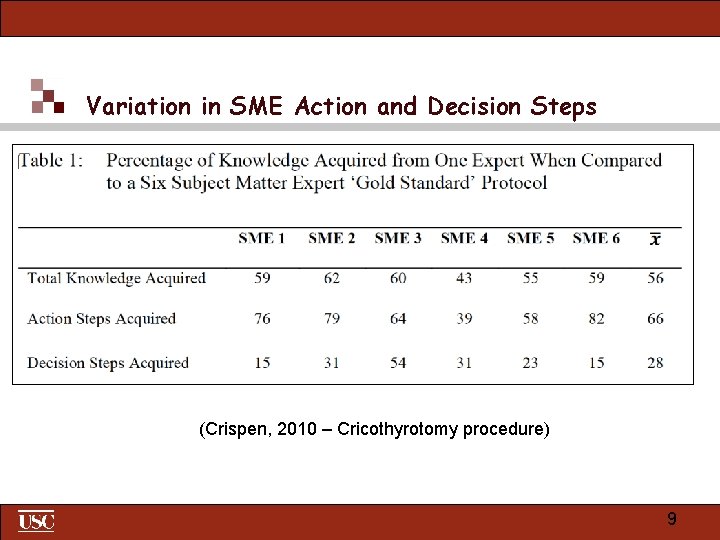

Variation in SME Action and Decision Steps (Crispen, 2010 – Cricothyrotomy procedure) 9

Percent of decisions identified with each new SME Crispen, 2010; Figure 6 10

Expert Knowledge Provided During Teaching Sullivan, Yates, Clark, Green, Tang, Cestero, Plurad, Lam & Inaba (In Press) 11

Unexpected Result: Controversial CVC Procedure Figure 4: Yates, Sullivan & Clark (2011) 12

Exception: Two CTA studies of catheter procedure Clark, 2014) 13

CTA in Instructional Design 14

CTA in Instructional Design Gucev (2012) randomized double blind experiment on CTA in Ultrasound Guided Regional Anesthesia 15

Gucev CTA Study Design and Results • Both experimental and control groups: • Same tasks and conceptual knowledge required by the American and European Societies of Regional Anesthesia. • Same instructional methods (conceptual knowledge first then demonstration and practice). • Participants were second and third year medical students. • Experimental group received CTA content for Societies tasks and the control group received the approved Societies content and tasks. • Results – benefits of CTA on learning and performance over controls: • Declarative knowledge effect size d = 1. 43 (42%) • Procedural knowledge effect size d = 1. 65 (45%) • Effect size for the time for task performance was d = -1. 12 (-37%) 16

Benefit of Cognitive Task Analysis? Instruction based on CTA is consistently more effective than Behavioral Task Analysis or “self report”. • Hoffman (1998) 38% better with CTA – changed textbooks on prenatal infections. • Velmahos et al (2002) 35% better surgical decisions, improved transfer, 25% quicker, no important errors. • Tofel-Grehl & Feldon (2013) meta analysis (57 comparisons). • Hedges g =. 88 (31%) overall but g =1. 56 (44%) for PARI-type CTA methods and g =. 39 (16%) for Klein’s CDM method. • Biology lab course significantly better performance and lower dropout (Feldon et al, 2010; Feldon & Stowe, 2009). 17

CTA vs. Traditional Instruction - Biology Lab Reports Universal Lab Report Rubric Criteria Treatment Mean (SD) Control Mean (SD) F p-value 0. 90 (. 50) 0. 77 (0. 48) 4. 378 . 037* 0. 43 (0. 52) 0. 28 (0. 44) 6. 171 . 014* 0. 70 (0. 63) 0. 54 (0. 57) 4. 703 . 031* 0. 31 (0. 46) 0. 21 (0. 40) 3. 463 . 064 2. 34 (1. 49) 1. 78 (1. 37) 9. 501 . 002** Discussion: Conclusions based on data Conclusion is clearly and logically drawn from data provided. A logical chain of reasoning from hypothesis to data to conclusions is clearly and persuasively explained. Discussion: Alternative explanations are considered and clearly eliminated by data in a persuasive discussion. Discussion: Limitations of design Limitations of the data and/or experimental design and corresponding implications discussed. Discussion: Implications of research Paper gives a clear indication of the implications and direction of the research in the future. Discussion: Total Score Feldon et al. (2010); Feldon & Stowe (2009) 18

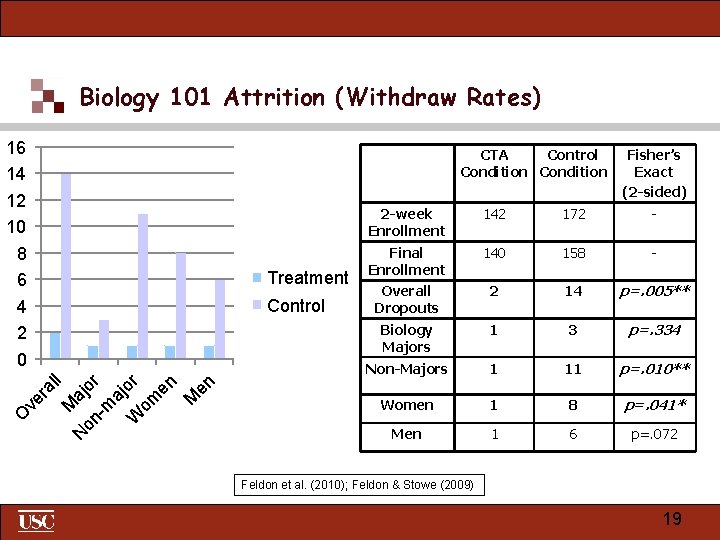

Biology 101 Attrition (Withdraw Rates) O ve ra ll M a N on jor -m aj W or om en M en 16 14 12 10 8 6 4 2 0 CTA Control Condition Treatment Control Fisher’s Exact (2 -sided) 2 -week Enrollment 142 172 - Final Enrollment 140 158 - Overall Dropouts 2 14 p=. 005** Biology Majors 1 3 p=. 334 Non-Majors 1 11 p=. 010** Women 1 8 p=. 041* Men 1 6 p=. 072 Feldon et al. (2010); Feldon & Stowe (2009) 19

CTA with Online Faculty at Kaplan University CTA with four of the most effective online faculty teaching intro courses. Plan: 1. Identify the strategies reported by most of the experts interviewed. 2. Translate them into a Likert-type values survey that would be offered to a large random sample of 280 online instructors in different fields. “How likely are you to advise a new instructor to use ……? ” 3. Correlate the rankings of the items by individual faculty with their student’s learning and retention data. 4. Use the items that predicted the greatest success to help hire new faculty, train existing faculty and evaluate the results. 20

Results of Kaplan U Survey Based on CTA • DROPOUT: With every. 5 increase in survey ranking of items, student dropout decreased 1. 6% (a low score of 1 predicts a dropout rate of 41% whereas a score of 5 predicts a significantly lower rate of 29. 4%) • GPA: With every. 5 increase in survey ranking of items, GPA increased about. 15 points. A score of 3. 0 on the survey would predict a GPA of 2. 1 whereas a score of 5. 0 on the survey would predict a GPA of 2. 5. • RETENTION: Faculty who valued making themselves available by phone, calling students who were not actively participating and who tried to help students recover from problems had an 81% chance of higher retention rates in academic programs 21

Example: Kaplan Career Services Advisors • Content based on a CTA of career service advisors with highest placements • “Kaplan Way” design and delivery • Randomized controlled study (treatment n: 63; control n: 67) • 15% improvement in performance (key metric: job placements) 22

Cost of CTA? Taken from Clark, 2014 23

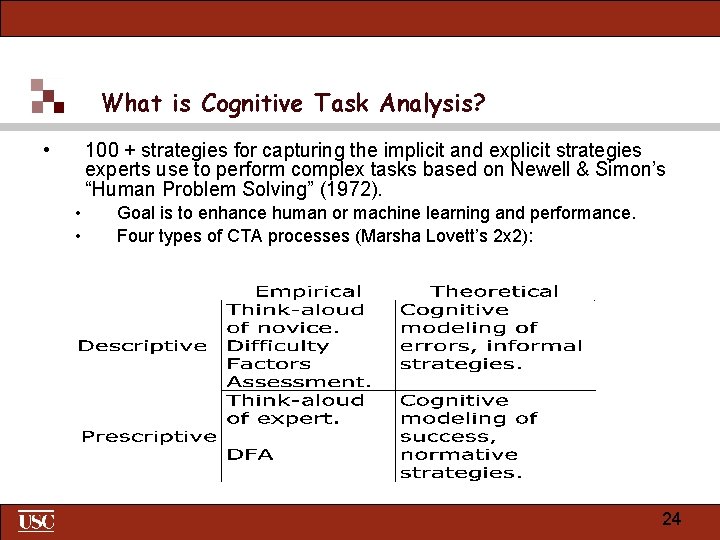

What is Cognitive Task Analysis? • 100 + strategies for capturing the implicit and explicit strategies experts use to perform complex tasks based on Newell & Simon’s “Human Problem Solving” (1972). • • Goal is to enhance human or machine learning and performance. Four types of CTA processes (Marsha Lovett’s 2 x 2): 24

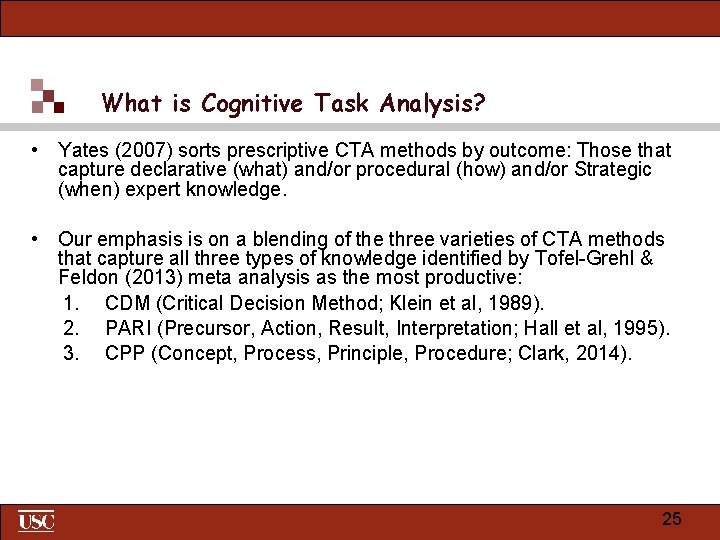

What is Cognitive Task Analysis? • Yates (2007) sorts prescriptive CTA methods by outcome: Those that capture declarative (what) and/or procedural (how) and/or Strategic (when) expert knowledge. • Our emphasis is on a blending of the three varieties of CTA methods that capture all three types of knowledge identified by Tofel-Grehl & Feldon (2013) meta analysis as the most productive: 1. CDM (Critical Decision Method; Klein et al, 1989). 2. PARI (Precursor, Action, Result, Interpretation; Hall et al, 1995). 3. CPP (Concept, Process, Principle, Procedure; Clark, 2014). 25

What is Cognitive Task Analysis? • Three to six experts selected because they are consistently and recently successful (not simply “experienced”) and NOT instructors. • Evidence that each expert has different implicit knowledge about same tasks and that instructors invent “superstitious” steps. • Results of interviews corrected by experts and edited into one “gold standard” approach for novices based on maximum efficiency and accuracy. • Range of problem examples and performance scenarios are also collected from experts for use in instruction. • Goal is to develop a succinct and accurate procedure (when and how) to perform as basis for demonstrations and practice exercises. • Emphasis on IF – THEN decisions. 26

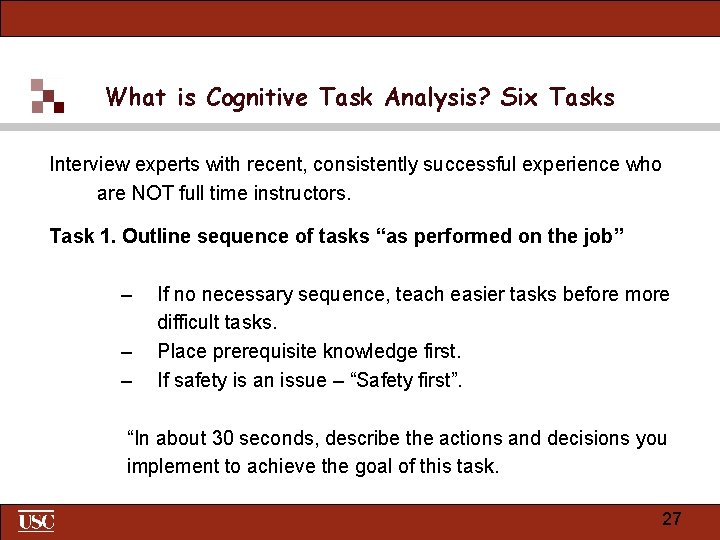

What is Cognitive Task Analysis? Six Tasks Interview experts with recent, consistently successful experience who are NOT full time instructors. Task 1. Outline sequence of tasks “as performed on the job” – – – If no necessary sequence, teach easier tasks before more difficult tasks. Place prerequisite knowledge first. If safety is an issue – “Safety first”. “In about 30 seconds, describe the actions and decisions you implement to achieve the goal of this task. 27

Surgery Task Sequence Task 1 Task 2 Task 3 Task 4 Task 5 Select catheter & choose insertion site Immobilize patient, prepare site and insert catheter needle Introduce guide wire and incise skin around wire insertion Introduce intravenous dilator and catheter Prepare lumens and secure line with non-absorbable sutures 28

Example Course Outline: Examining patent applications Preparing search Performing substantive examinations reports Analyzing applications Performing searches Comparing documents with invention Writing further communication(s) or refusal Evaluating search results Selecting relevant documents Finding lack of unity Determining claimed invention Determining described invention Determining Using search strategies tools Identifying relevant EPC requirements Re-examining applications Discussing with applicant Determining claimed subject novelty & matter inventive steps Issuing communications or votes (including preexamination results) Examining amendments Determining Classifying mean features applications of invention Writing preexamination results 29

What is Cognitive Task Analysis? Six Tasks Interview 2 -3 experts with recent, successful experience Task 2) For each task, describe clearly enough so trainees can read and apply • Context (Where, When) • Condition or Cue (What Starts the task) • Sequence of Actions and Decisions (How) that Finish this step before going on to step 3 – • Tasks or task sequence may change when you see performance steps • Can estimate time required to train at this point 30

Task 2: Actions and Decisions • Explain each action in the sequence you perform them • Things people do (start with action verbs) • Explain each decision • Describe as “IF” and “THEN” sentences MOST IMPORTANT: Write steps clearly enough so that a trainee could read and then do what you are describing. 31

Catheter Placement Steps -Decision Procedure Start by deciding among three sites for catheter placement. 1. IF the neck is accessible and can be moved, and the head and neck are free of excessive equipment, THEN select jugular placement. 1. IF neck is inaccessible or cannot be moved, THEN select subclavian. 1. IF the subclavian veins are thrombosed and there is no injury to the IVC, THEN select femoral vein placement. 32

Catheter Placement Steps Dilator and catheter insertion for Triple Lumen catheters: • Step 13 A: Thread the guide wire into the tip of the dilator. • Direct the dilator down the wire slowly and through subcutaneous tissue (3 – 4 cm). 33 33

Patent Examination Procedure Example 34

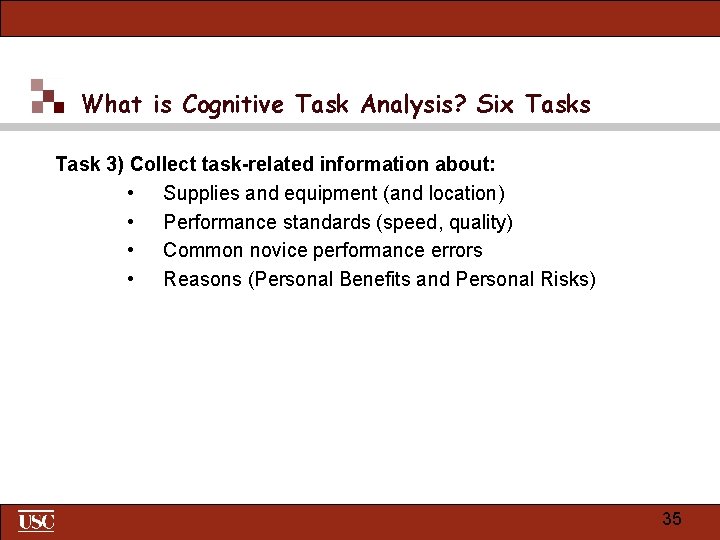

What is Cognitive Task Analysis? Six Tasks Task 3) Collect task-related information about: • Supplies and equipment (and location) • Performance standards (speed, quality) • Common novice performance errors • Reasons (Personal Benefits and Personal Risks) 35

What is Cognitive Task Analysis? Six Tasks Task 4) Identify conceptual knowledge related to procedure: • • Facts (required statements about anything) Concepts (define new terms – get examples) Processes (how things work) Principles (what causes things to happen) Conceptual knowledge is important IF people must remember something to tell someone else about it – or IF they must apply it to adjust a procedure to solve an unexpected or novel problem 36

Supportive Conceptual Knowledge Types Presentation During Instruction Type of Information Example Practice and Assessment During Instruction Objective is to Remember Fact Statement of fact Statement of fact Recall fact Recognize fact when presented with distractors List of defining attributes Examples and Non— examples of concept List defining attributes verbally or in writing Recognize defining attributes when presented with distractors Identify or generate examples and nonexamples Critique someone else’s identification or generation of examples List of phases, events and causes at each phase Examples; simulations of phases, events, and causes Recall phases, events, and causes Recognize phases, events, and causes; Recall missing phases, events, and causes Identify causes of faults in a process; Predict events in a process Critique someone else’s description of causes or prediction of events in a process Statement of cause and effect relationship Examples, demonstration, simulation of cause and effect relationship Decide if principle applies; Predict an effect; Apply the principle to solve a problem, explain a phenomenon or make a decision Critique someone else’s application of the principle to solve a problem, explain a phenomenon or make a decision Process (How something works) Principle (Cause and effect relationship) Knowledge Integration Knowledge Transfer Explain the interconnections among conceptual knowledge components, or the conceptual foundation of procedures, or the procedural implementation of conceptual knowledge components Multiple and varied contexts for examples Recall the principle Reorder steps; Recall next or missing steps Recognize the principle; Recall missing elements of the principle Decide when to use; Perform the steps (actions and decisions) Proxy for Use if application is impossible ** Procedure (Terms with definitions and example) Recall when to use; Recall action and decision steps Objective is to Use or Apply** When to use; List of action and decision steps Concepts Demonstration of when and how to perform Proxy for Remember Critique performance or output of actions and decisions Recall fact in task context Opportunities (including instructions, templates, rubrics) to self-explain, discuss, present, describe or select their reasoning about interconnections among knowledge components, for example the principle(s) that justify the application of a procedure. Multiple and varied contexts for practice and assessment. Opportunities for students to explain how they would use the knowledge in other contexts © 2011 Atlantic Training Inc. 37

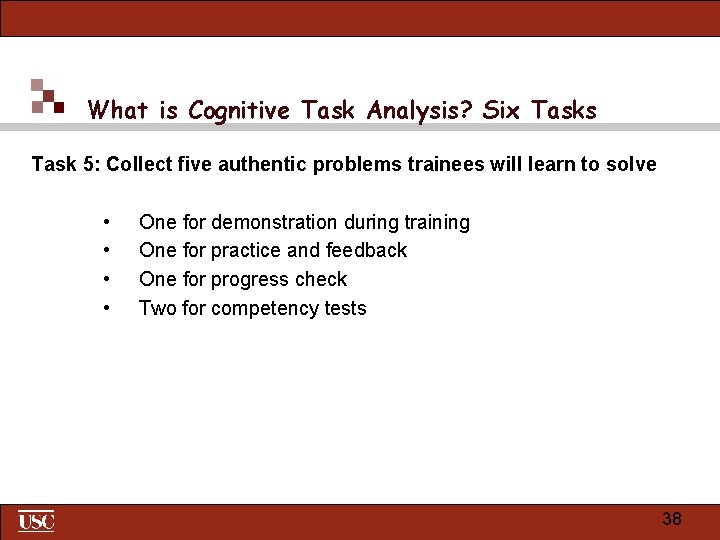

What is Cognitive Task Analysis? Six Tasks Task 5: Collect five authentic problems trainees will learn to solve • • One for demonstration during training One for practice and feedback One for progress check Two for competency tests 38

What is Cognitive Task Analysis? Six Tasks Task 6) Give CTA document from SME A to SME B, C, D, E, etc. ) to “correct”. • Flynn (2013) found reviews of one CTA interview by 3 SMEs more efficient and effective than 4 complete interviews. • Develop a “gold standard” CTA for training and/or job aid development – use language novices will understand. • Pull CTA into training design that includes: • Performance objectives and reasons • References to prior knowledge (analogies, examples) • Conceptual knowledge underlying procedure • Demonstration of procedure (worked example) • Part and whole task practice with feedback 39

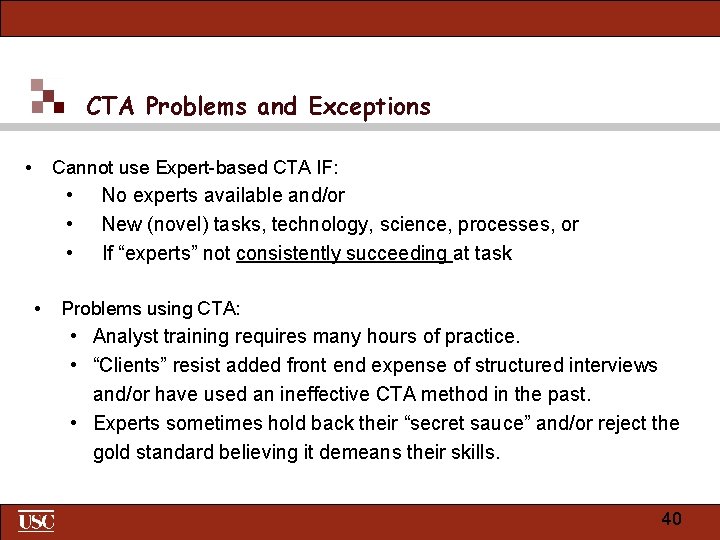

CTA Problems and Exceptions • Cannot use Expert-based CTA IF: • • No experts available and/or New (novel) tasks, technology, science, processes, or If “experts” not consistently succeeding at task Problems using CTA: • Analyst training requires many hours of practice. • “Clients” resist added front end expense of structured interviews and/or have used an ineffective CTA method in the past. • Experts sometimes hold back their “secret sauce” and/or reject the gold standard believing it demeans their skills. 40

Next Steps in CTA Research • • • Need to focus research on most effective of the 100+ CTA methods. Clear operational definition of CTA methods. Data mining to extend and/or replace structured interviews. Why are different experts aware of different tasks and steps? Better understanding of how declarative and procedural knowledge interact during task performance (as task elements change). • Cost-effectiveness of different types of CTA for instruction. • Analysis of why CTA: • • Decreases time to learn, Increases self-efficacy, Increases persistence and Increases transfer. 41

42

References Evidence for most claims and references in this presentation and a review of the research on CTA can be found at: www. cogtech. usc. edu Access the “Publications” tab 43
