Relative Dating Notes Relative Dating Relative dating is

Relative Dating Notes

Relative Dating Relative dating is used to arrange geological events, and the rocks they leave behind, in a sequence. The method of reading the order is called stratigraphy (layers of rock are called strata). Relative dating does not provide actual numerical dates/ages for the rocks.

Relative Age is the “age” of a rock or strata compared to the ages of other rocks or strata.

Relative Age

Principle of Superposition as sedimentary rocks form, they are deposited on older rock layers.

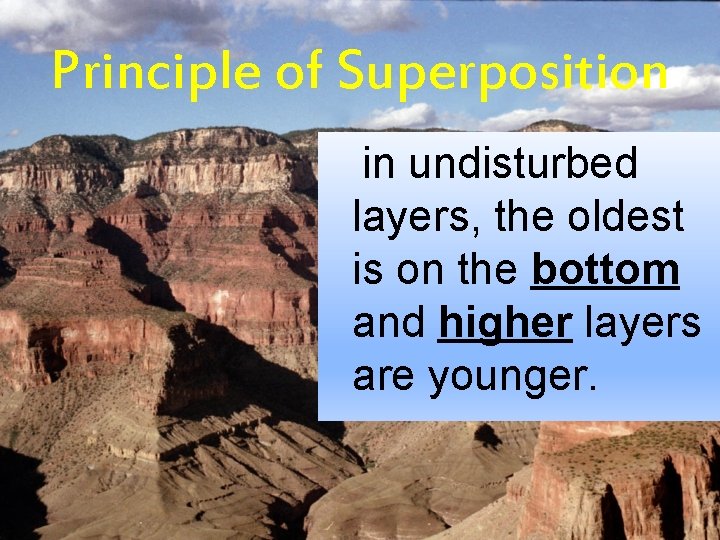

Principle of Superposition in undisturbed layers, the oldest is on the bottom and higher layers are younger.

Principle of Superposition Oldest layer is on bottom (1)

Principle of Superposition The Grand Canyon

Principle of Superposition The Grand Canyon

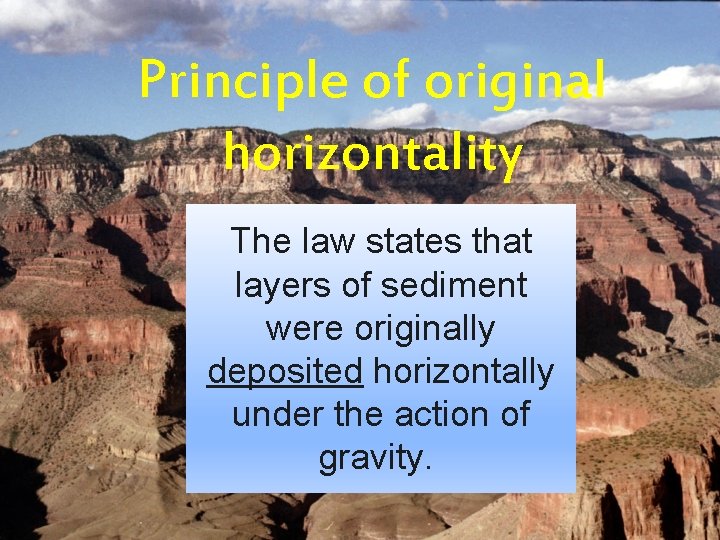

Principle of original horizontality The law states that layers of sediment were originally deposited horizontally under the action of gravity.

Principle of Fossil Succession. Also known as the principle of faunal succession, is based on the observation that sedimentary rock strata contain fossilized flora (plants) and fauna (animals), and that these fossils succeed each other vertically in a specific, reliable order that can be identified over wide horizontal distances.

Principle of Cross. Cutting Relationships An igneous/metamorphic rock, fault, or other geologic feature must be younger than any rock across which it cuts. .

Crosscutting Relationships • • Faults Folds Intrusions Extrusions Unconformities Nonconformities Disconformities

Video https: //www. youtub e. com/watch? v=D wwk 1 Kd. Wn 9 c

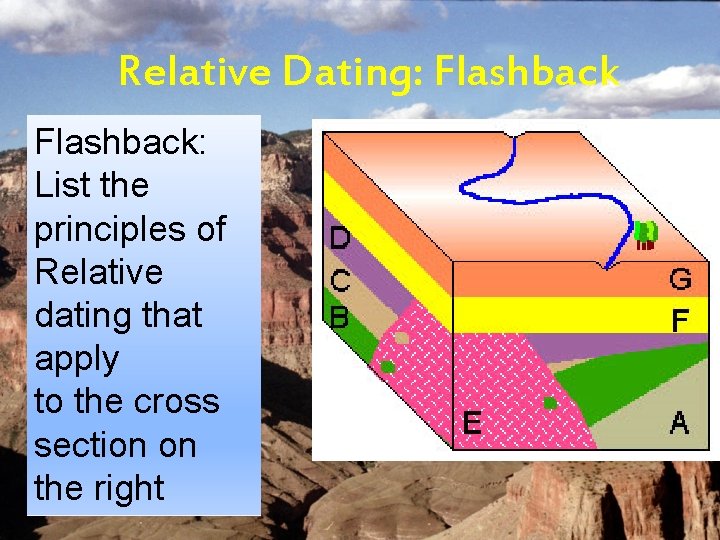

Relative Dating: Flashback: List the principles of Relative dating that apply to the cross section on the right

Uniformitarianism is the idea that the processes occurring on earth today are similar to those that occurred in the past.

Uniformitarianism basically says “The present is the key to the past. ”

Uniformitarianism is the idea that geological features formed slowly over long periods of time.

Uniformitarianism claims the Earth is 4. 6 billion years old.

What does the Principle of Superposition say? 1. 2. 3. 4. Sedimentary rocks form in rivers Igneous rocks form faster than sedimentary New rock layers form on top of older ones There are billions of fossils on Earth

Which layer of rock is the oldest? 1. 2. 3. 4. 5. 1 2 3 4 They are all the same age

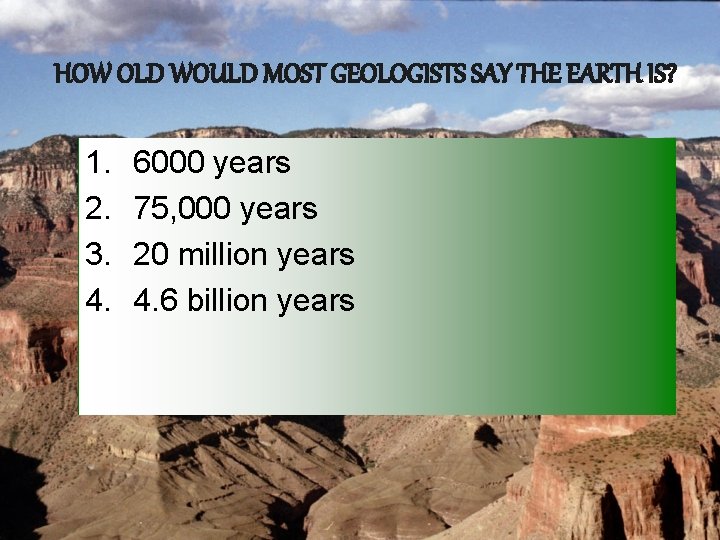

HOW OLD WOULD MOST GEOLOGISTS SAY THE EARTH IS? 1. 2. 3. 4. 6000 years 75, 000 years 20 million years 4. 6 billion years

According to what theory, is the earth 4. 6 billion years old? 1. 2. 3. 4. Catastrophism Uniformitarianism Geologism Agism

Relative Dating Notes

Extrusions are igneous rock layers that form on the surface when lava hardens.

Extrusions are always younger than the layers over which they form.

Extrusion Kubu Rock – Botswana, Africa

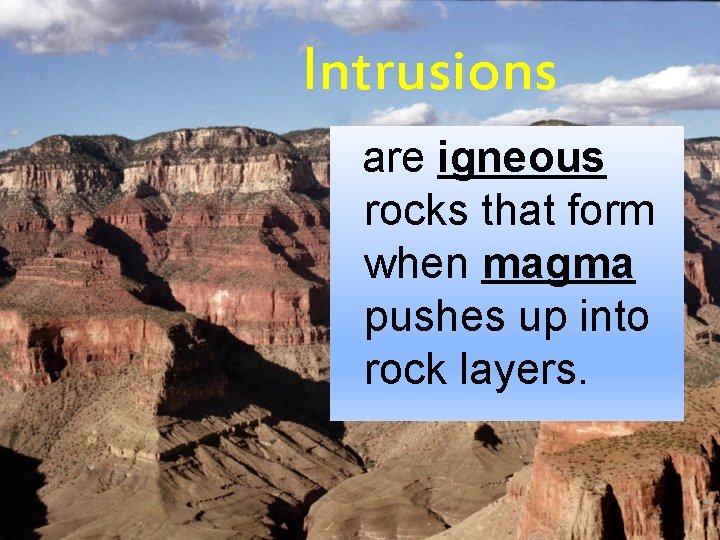

Intrusions are igneous rocks that form when magma pushes up into rock layers.

Intrusions are always younger than the rock layers they invade.

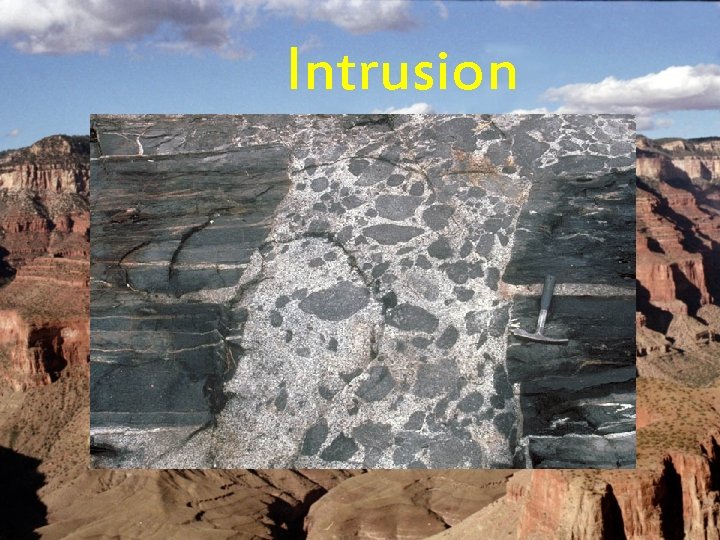

Intrusion

Intrusion

Intrusion Devil’s Tower, WY

Intrusion Devil’s Tower, WY

Stop and Summarize Stand-up, Hand-up, Pair-up: Create a Venn Diagram with your partner.

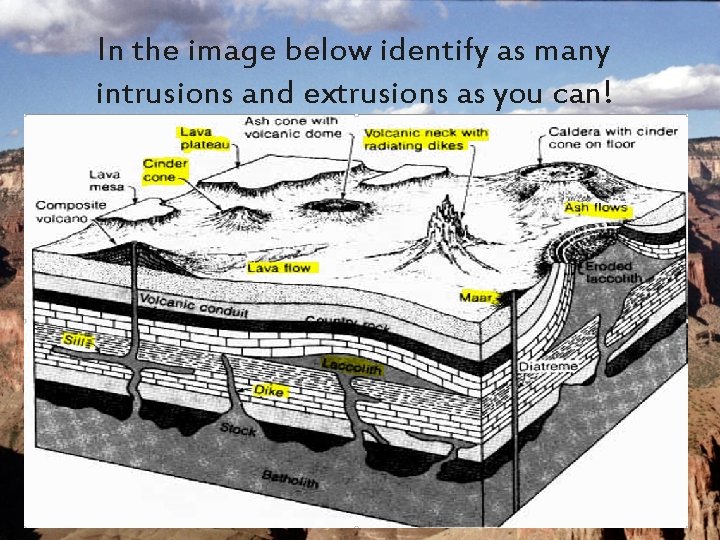

In the image below identify as many intrusions and extrusions as you can!

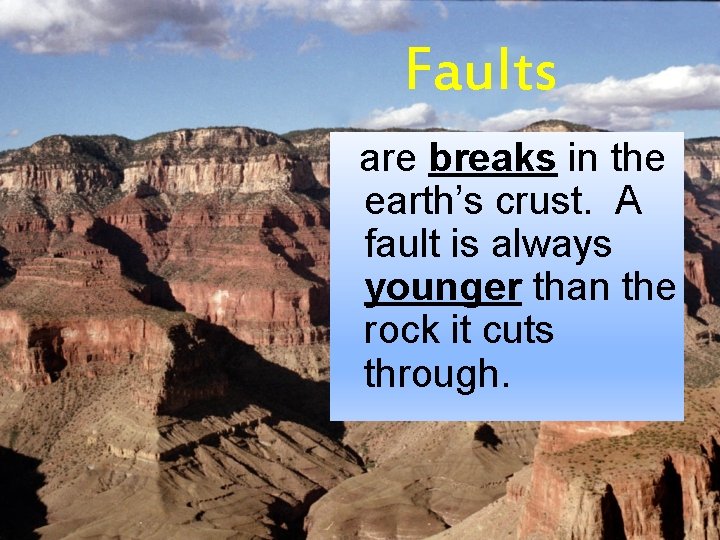

Faults are breaks in the earth’s crust. A fault is always younger than the rock it cuts through.

Faults

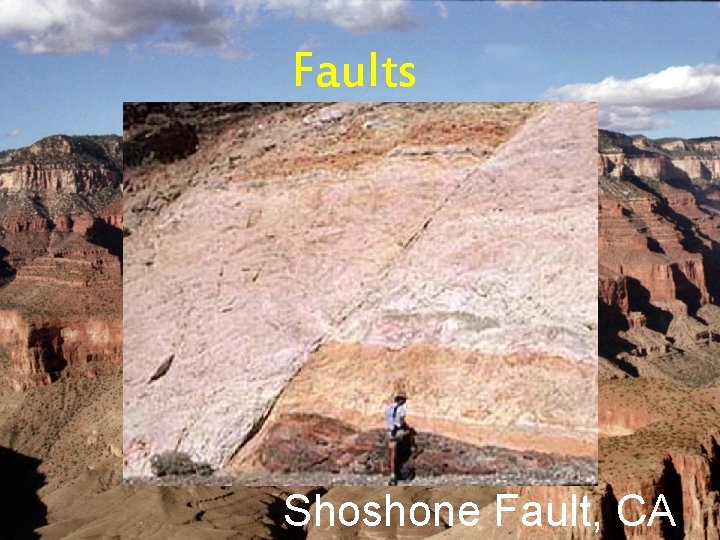

Faults Shoshone Fault, CA

Folds occur when rock layers are compressed together and bend or curve.

Folds Guadalajara, Spain

Folds Mojave Desert, CA

Stop and Summarize Write-Pair-Share: Create a Venn-Diagram comparing Faults and Folds.

1 Identify the Cross-Cutting Relationships 2 3

Flashback

SOME Relative Dating Practice Write the correct order of events by numbering their occurrences. Identify the cross-cut relationships in each cross section.

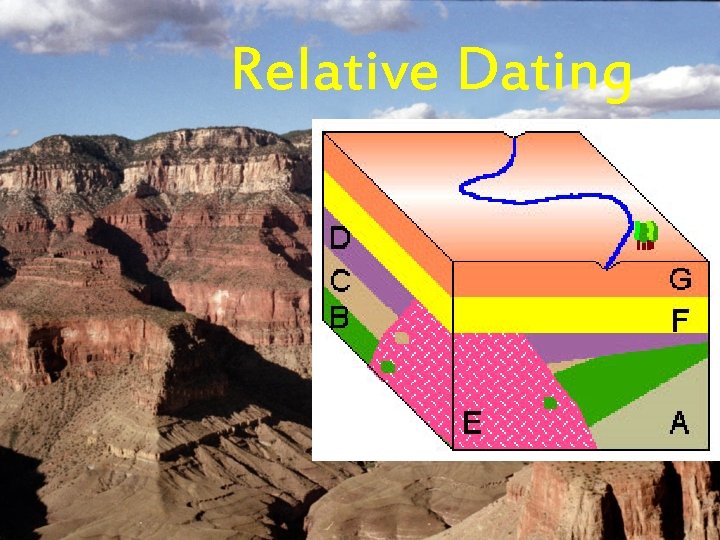

Relative Dating

Relative Dating

Relative Dating

Relative Dating Example

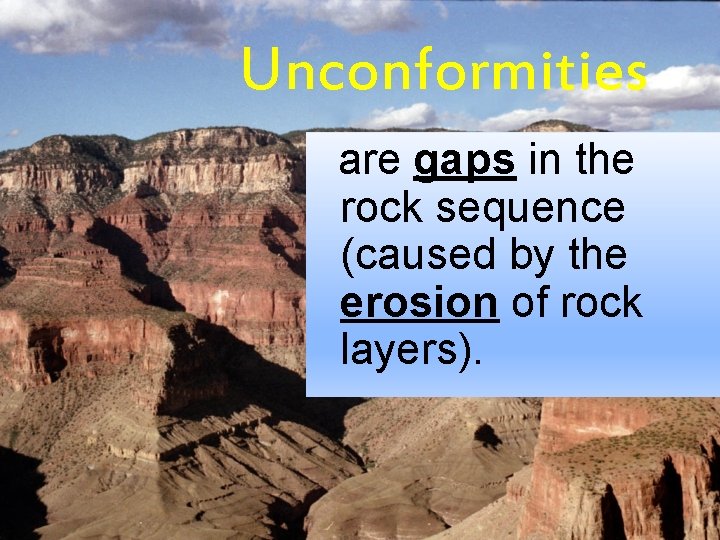

Unconformities are gaps in the rock sequence (caused by the erosion of rock layers).

Angular Unconformity occur when rock layers are tilted or uplifted, and then worn down by erosion and weathering. Sediments are then deposited on top of these eroded layers.

Angular Unconformity

Angular Unconformity

Disconformities are gaps created when erosion occurs on an overlying rock layer.

Disconformity

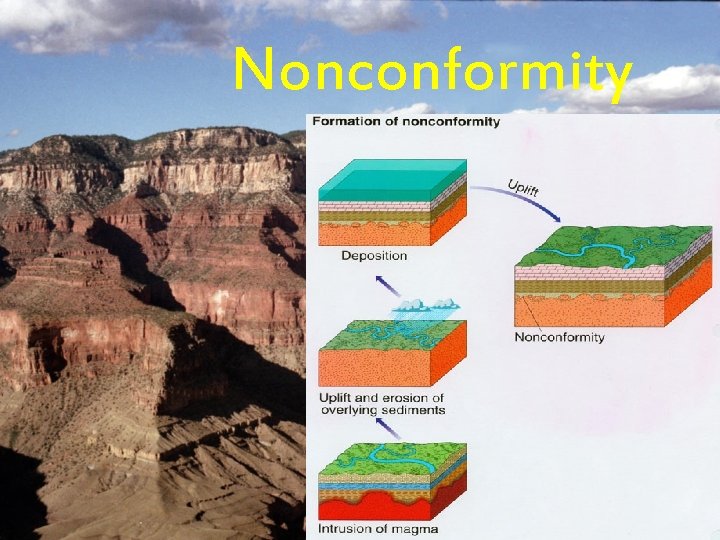

Nonconformity are formed when sedimentary rock overlays igneous or metamorphic rocks.

Nonconformity

Flashback What type of unconformity is E in the image to the right? List any cross-cutting relationships and order the events from oldest to youngest. E

Write a Sequence of event for the following geologic cross-section:

Draw the following geologic cross-section: 1. ) 2 layers of sedimentary rock form. 2. ) An extrusion forms on top of the two layers. 3. ) A 3 rd layer of sedimentary rock forms. 4. ) An intrusion cuts through all of the rock layers, but not to the surface. 5. ) A 4 th layer of sedimentary rock forms.

Draw the following geologic cross-section: 1. ) 2 layers of sedimentary rock form 2) Layers 1 -2 are folded 3. ) A 3 rd sedimentary layer forms. 4. ) A normal fault cuts through all the layers 5. ) A 4 th sedimentary layer forms. 6. ) An intrusion cuts all the way to the surface forming an extrusion.

Top half of paper = Geologic History Must Include: At least… • 5 sedimentary rock layers • 3 different cross-cutting relationships • 1 disconformity Bottom half of paper = Geologic Cross Section • You will draw a geologic cross section numbering the sedimentary layers and lettering cross-cutting relationships. Also identify the type of unconformity.

Correlation is using rock and fossil evidence to match up dating at different locations.

Correlation

Index Fossils are used for dating the rock layers in which they are found.

Index Fossils are species that were abundant all over the earth, but existed for shorter periods of time.

Index Fossil trilobite

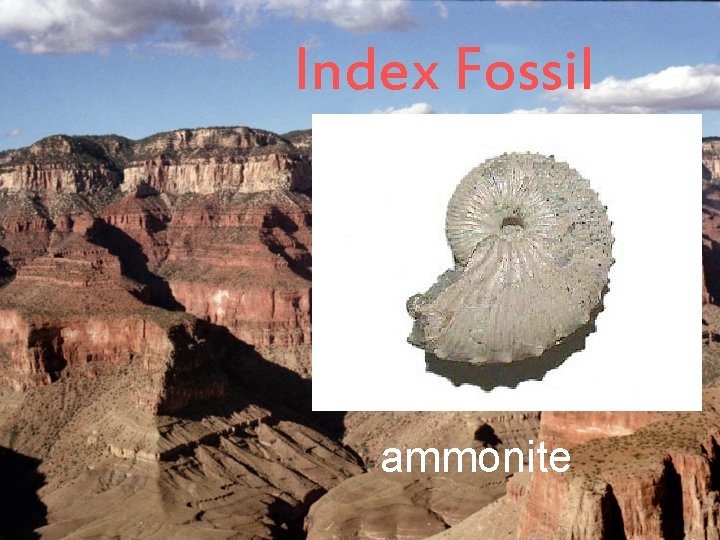

Index Fossil ammonite

Index Fossil Correlation using index fossils

Index Fossil Correlation using index fossils

Exit Slip If humans went extinct in the near future, would we make good index fossils? Explain your answer! Hints: use your timescale, and the definition of index fossils.

What kind of cross-cut is shown to the right? 1. 2. 3. 4. Intrusion Extrusion Folds Unconformity

What kind of cross-cut is shown to the right? 1. 2. 3. 4. Intrusion Fault Fold Angular Unconformity

What kind of cross-cut is shown to the right? 1. 2. 3. 4. Intrusion Fault Fold Angular Unconformity

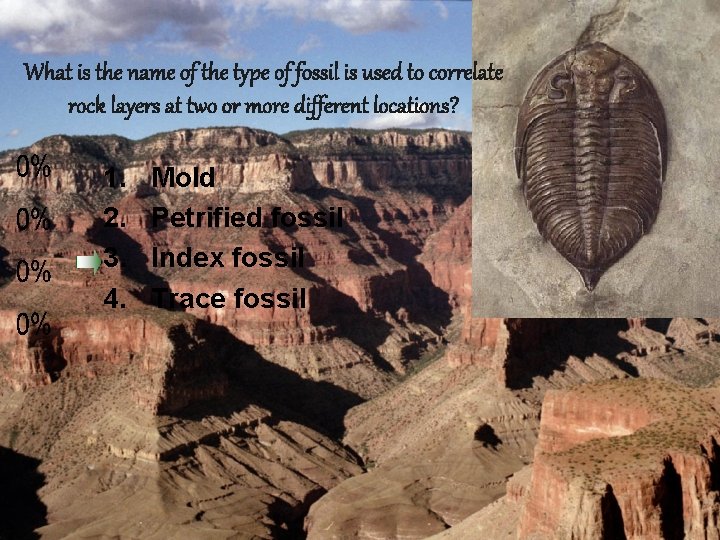

What is the name of the type of fossil is used to correlate rock layers at two or more different locations? 1. 2. 3. 4. Mold Petrified fossil Index fossil Trace fossil

Using correlation, Which two layers would you determine to be of the same age? 1. 2. 3. 4. A&D A&B B&D B&E

Paleontology Notes READY YOUR REMOTE FOR A QUICK REVIEW

What type of cross-cut appears at location e? 1. 2. 3. 4. Fault Fold Nonconformity Angular Unconformity E

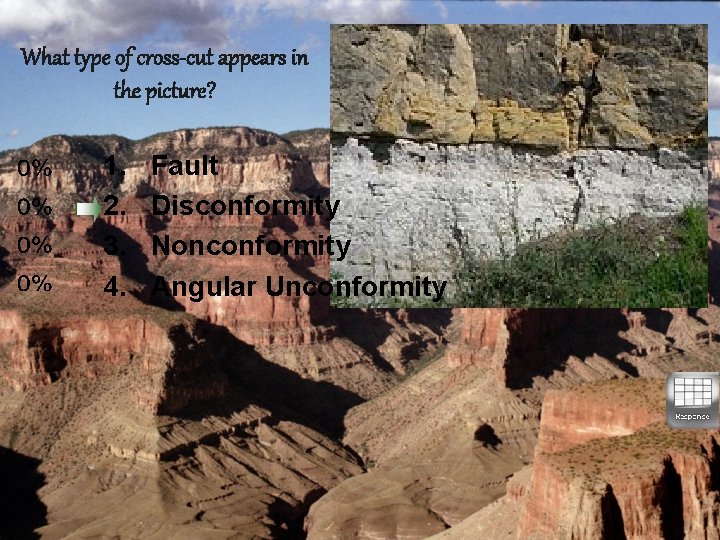

What type of cross-cut appears in the picture? 1. 2. 3. 4. Fault Disconformity Nonconformity Angular Unconformity

Absolute Age is the age in years of a rock or other object (as determined by radiometric dating.

Radiometric Dating entails finding the amount of certain radioactive elements left in a rock or object.

Journal TURN TO YOUR JOURNAL PAGE

Write a geologic history that explains the order of occurrence of each event. Draw a geologic cross-section with the following: 1. ) At least 3 sedimentary rock layers 2. ) At least 3 cross-cuts (faults, folds, intrusions, extrusions, or unconformities, angular unconformities, nonconformity, disconformity) Journal #5

Paleontology Notes READY YOUR REMOTE FOR A QUICK REVIEW

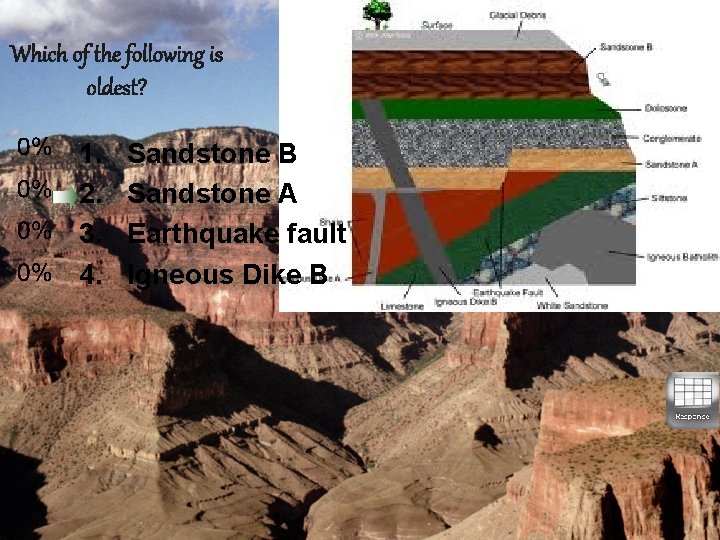

Which of the following is oldest? 1. 2. 3. 4. Sandstone B Sandstone A Earthquake fault Igneous Dike B

What type of cross-cut appears at location e? 1. 2. 3. 4. Fault Fold Nonconformity Angular Unconformity E

What type of cross-cut appears in the picture? 1. 2. 3. 4. Fault Disconformity Nonconformity Angular Unconformity

“The important thing is to never stop questioning. ” - Albert Einstein

How much do you know about Paleontology? Pre-Unit Questions (Post-Unit) Answer the following True/False Questions

How much do you know about Paleontology? Pre-Unit Questions (Post-Unit) Answer the following True/False Questions

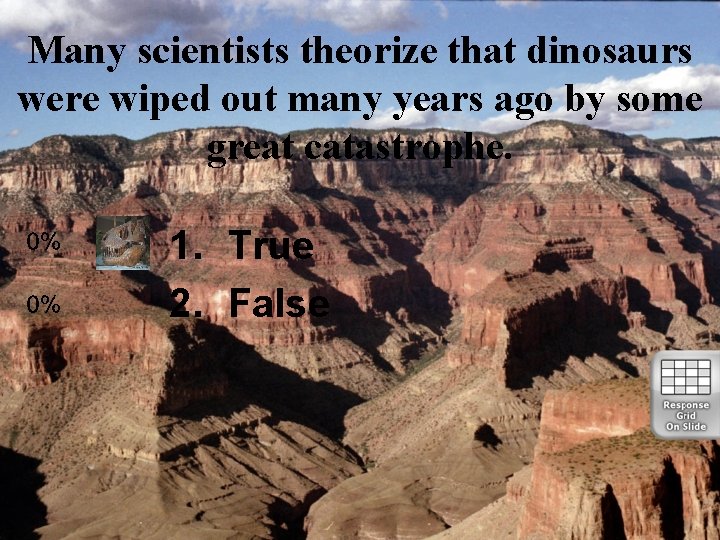

Many scientists theorize that dinosaurs were wiped out many years ago by some great catastrophe. 1. True 2. False

How much do you know about Paleontology? h. TRUE. Obviously dinosaurs don’t exist today and they seem to disappear suddenly from the fossil record.

Fossils take millions of years to form. 1. True 2. False

How much do you know about Paleontology? TRUE or FALSE? h. FALSE. Fossils can form in less than a year depending on the conditions.

There are billions of fossils found all over the earth. 1. True 2. False

How much do you know about Paleontology? h. TRUE. There are many fossils buried in the rock all over the planet. Over 99% of them are small marine plants and animals.

Dinosaurs are “giant lizards. ” 1. True 2. False

How much do you know about Paleontology? h. FALSE. Some were large, but many were not. The term dinosaur, coined in the 1800’s, does mean “terrible lizard, ” but the average size of a dinosaur was that of a large dog.

JOURNAL # 6 Describe & discuss at least three new facts that you learned about paleontology while studying this unit.

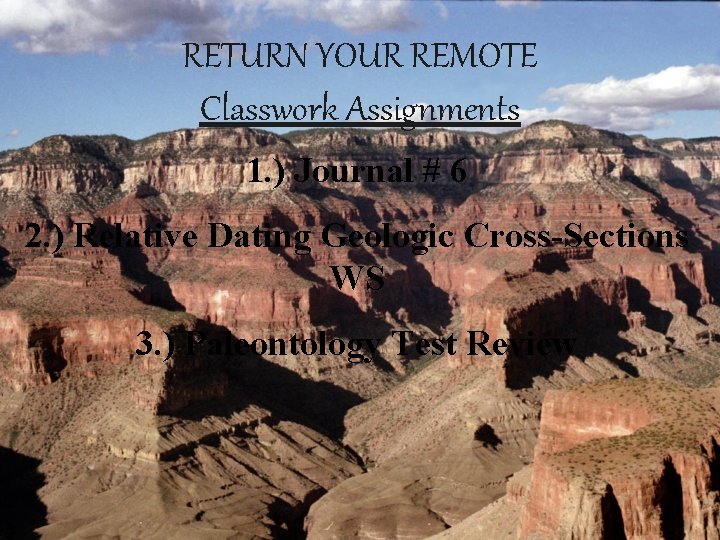

RETURN YOUR REMOTE Classwork Assignments 1. ) Journal # 6 2. ) Relative Dating Geologic Cross-Sections WS 3. ) Paleontology Test Review

Partner Assignment 1. ) Draw a geologic Cross-Section on a blank piece of paper 2. ) Include at least 5 sedimentary layers & 3 cross-cuts (intrusions, extrusions, faults, folds, or unconformities) 3. ) Swap with a friend & have him/her number the events
