Relative Dating Techniques 1 Stratigraphic Record i principle

• Relative Dating Techniques 1. Stratigraphic Record i. principle of original horizontality ii. principle of superposition

• Relative Dating Techniques 1. Stratigraphic Record iii. Law of Lateral Continuity iv. Law of Inclusions v. Cross-cutting relations

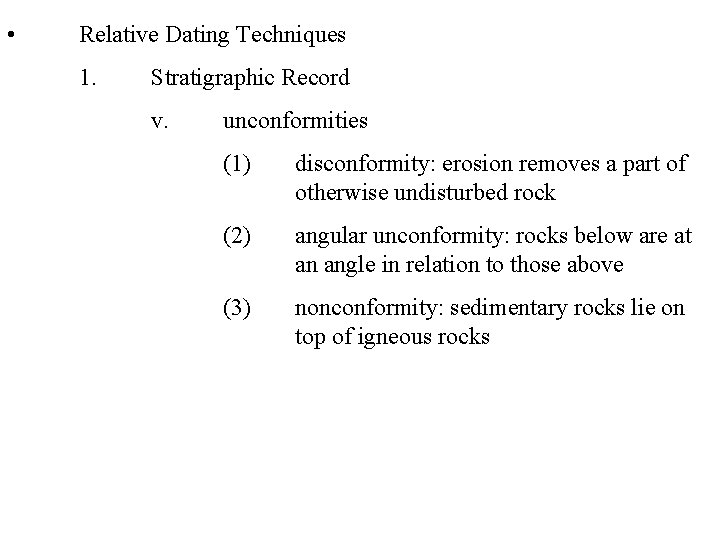

• Relative Dating Techniques 1. Stratigraphic Record v. unconformities (1) disconformity: erosion removes a part of otherwise undisturbed rock (2) angular unconformity: rocks below are at an angle in relation to those above (3) nonconformity: sedimentary rocks lie on top of igneous rocks

2. Determining absolute time i. radiometric dating (2) half-life

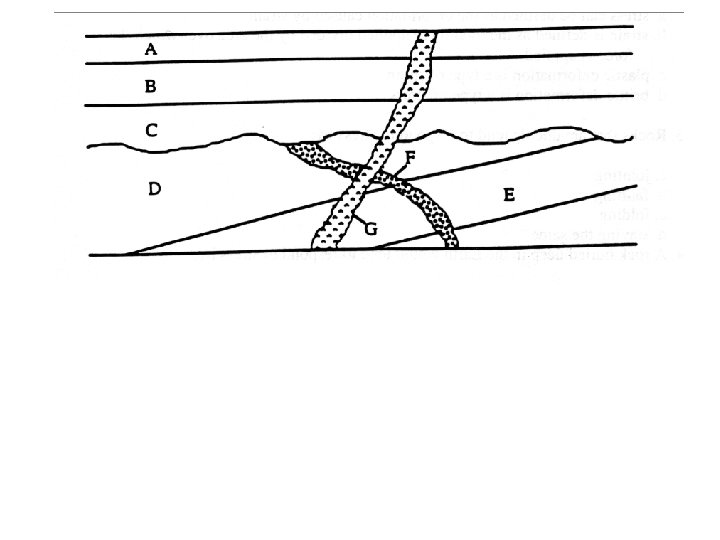

• Deposition of ? , E, D • Superposition

• Deposition of ? , E, D • Intrusion F • Superposition • Cross Cutting Relations

• Deposition of ? , E, D • Intrusion F • Tilting • Superposition • Cross Cutting Relations • Original Horizontality

• Deposition of ? , E, D • Intrusion F • Tilting • Erosion • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity

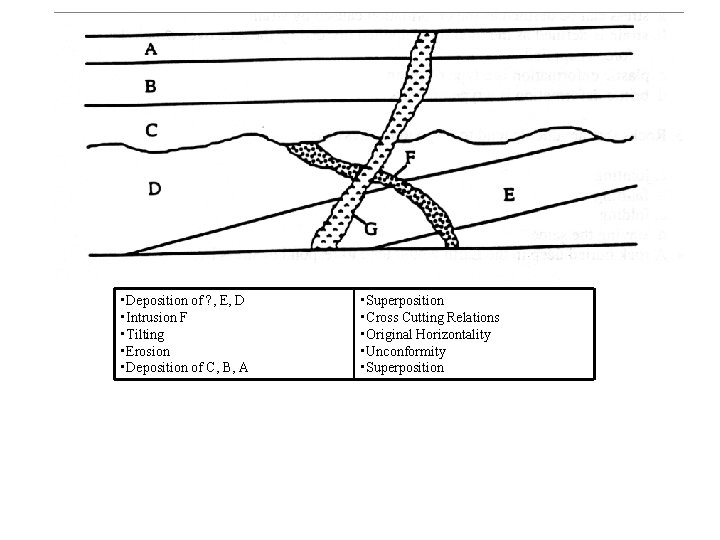

• Deposition of ? , E, D • Intrusion F • Tilting • Erosion • Deposition of C, B, A • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition

• Deposition of ? , E, D • Intrusion F • Tilting • Erosion • Deposition of C, B, A • Intrusion of G • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations

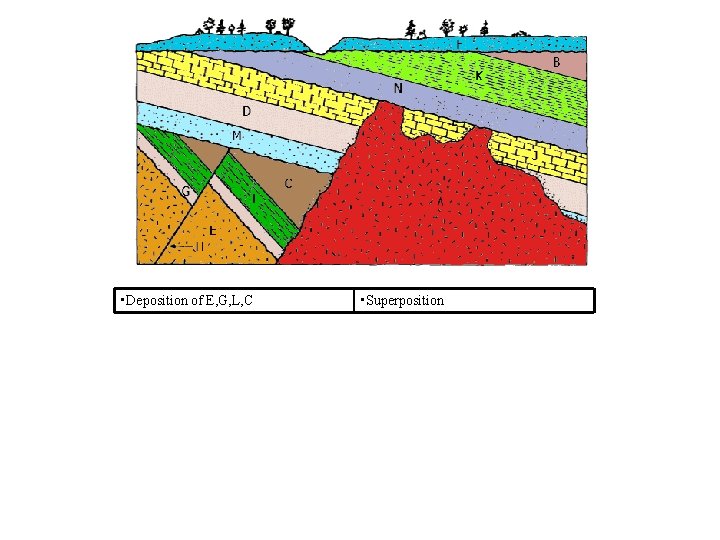

• Deposition of E, G, L, C • Superposition

• Deposition of E, G, L, C • Fault H • Superposition • Cross Cutting Relations

• Deposition of E, G, L, C • Fault H • Tilting • Superposition • Cross Cutting Relations • Original Horizontality

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity

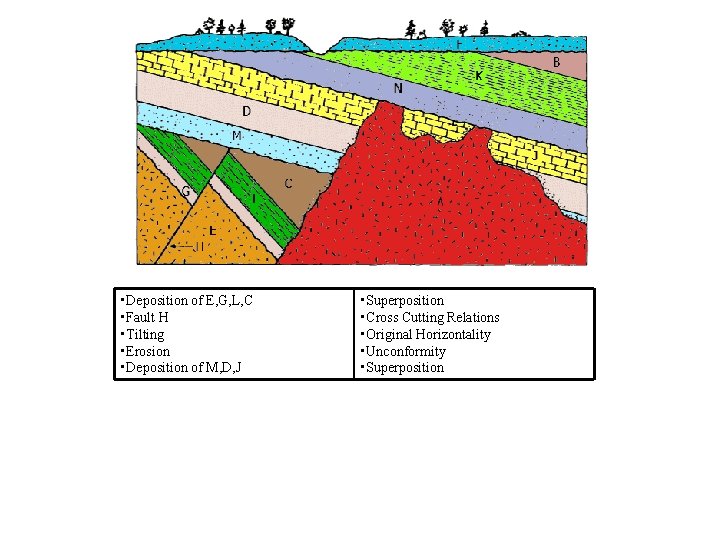

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations

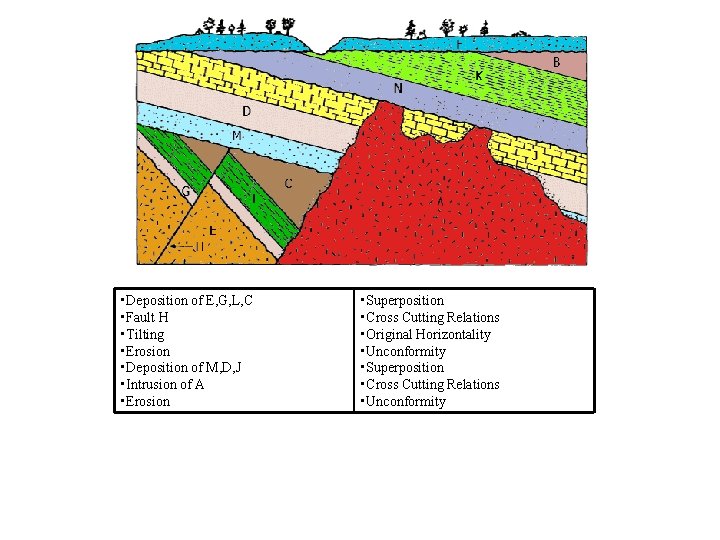

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Deposition of N, K, B • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Deposition of N, K, B • Tilting • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition • Original Horizontality

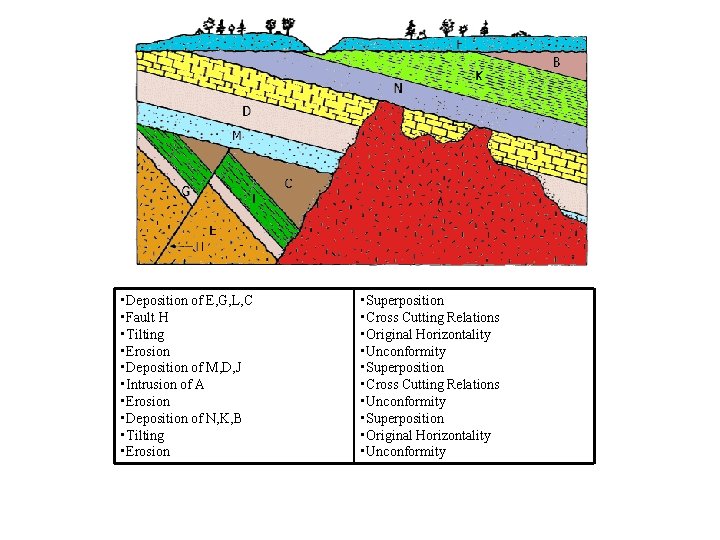

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Deposition of N, K, B • Tilting • Erosion • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition • Original Horizontality • Unconformity

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Deposition of N, K, B • Tilting • Erosion • Deposition of F • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition • Original Horizontality • Unconformity • Superposition

• Deposition of E, G, L, C • Fault H • Tilting • Erosion • Deposition of M, D, J • Intrusion of A • Erosion • Deposition of N, K, B • Tilting • Erosion • Deposition of F • Erosion • Superposition • Cross Cutting Relations • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition • Original Horizontality • Unconformity • Superposition • Unconformity

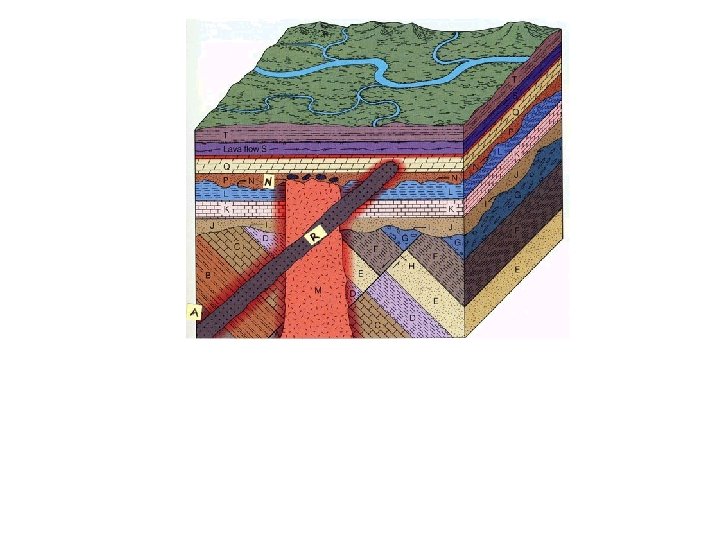

• Deposition of A, B, C, D, E, F, G • Superposition

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Superposition • Original Horizontality

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Superposition • Original Horizontality • Unconformity

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • Superposition • Original Horizontality • Unconformity • Superposition

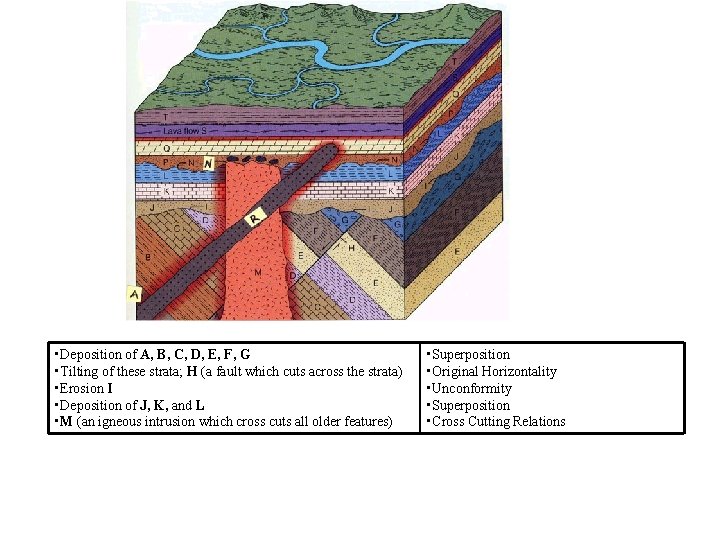

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • M (an igneous intrusion which cross cuts all older features) • Superposition • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • M (an igneous intrusion which cross cuts all older features) • Erosion N • Superposition • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • M (an igneous intrusion which cross cuts all older features) • Erosion N • Deposition of P and Q • Superposition • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Unconformity • Superposition

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • M (an igneous intrusion which cross cuts all older features) • Erosion N • Deposition of P and Q • Both R (an igneous intrusion) and S (a lava flow) must come after Q but it is impossible to say whether R came before or after S since they do not cross cut • Superposition • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations

• Deposition of A, B, C, D, E, F, G • Tilting of these strata; H (a fault which cuts across the strata) • Erosion I • Deposition of J, K, and L • M (an igneous intrusion which cross cuts all older features) • Erosion N • Deposition of P and Q • Both R (an igneous intrusion) and S (a lava flow) must come after Q but it is impossible to say whether R came before or after S since they do not cross cut • Deposition of T • Superposition • Original Horizontality • Unconformity • Superposition • Cross Cutting Relations • Superposition

Do A, B, C in lab manual. Skip Parts D and E Do Fossil age dating exercise at front of class as graded assignment.
