Planning for Connected and Automated Vehicles Jeremy Raw
- Slides: 47
Planning for Connected and Automated Vehicles Jeremy Raw, PE Federal Highway Administration Office of Planning, Systems Planning and Analysis Team September 15, 2015 WVDOT/MPO/FHWA Transportation Planning Conference 1

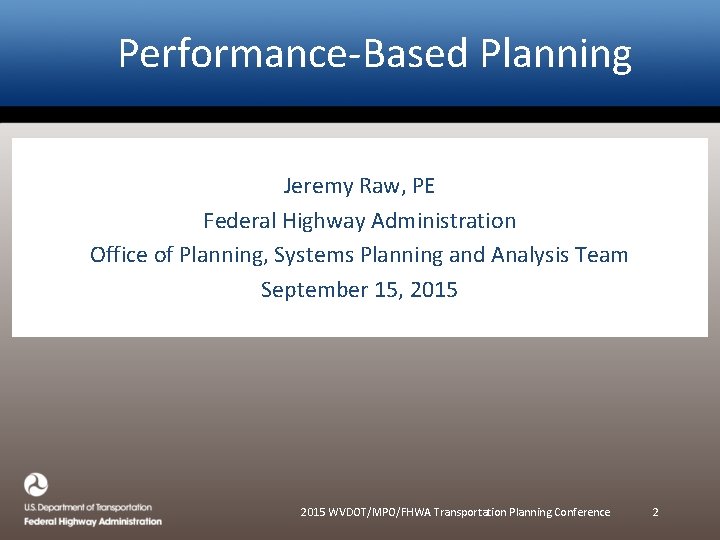

Performance-Based Planning Jeremy Raw, PE Federal Highway Administration Office of Planning, Systems Planning and Analysis Team September 15, 2015 WVDOT/MPO/FHWA Transportation Planning Conference 2
Overview • • Definitions Making Plans What Comes Next Retooling 2015 WVDOT/MPO/FHWA Transportation Planning Conference 3
Definitions “The beginning of wisdom is the definition of terms. ” ― Socrates 2015 WVDOT/MPO/FHWA Transportation Planning Conference 4
Definitions: Connected <> Automated • Connected Vehicles – Communicate directly (car knows first) – See over hills and around corners (“invisible” data) – Optimized information • Automated Vehicles – Car knows what to do – Car just does it 2015 WVDOT/MPO/FHWA Transportation Planning Conference 5

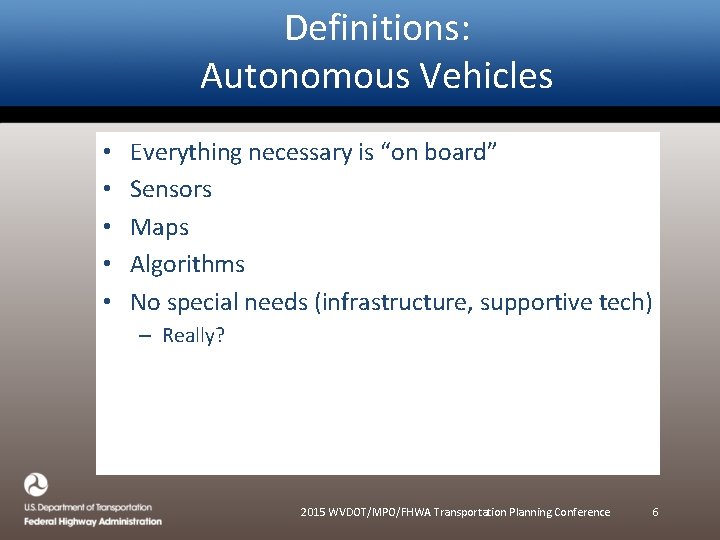

Definitions: Autonomous Vehicles • • • Everything necessary is “on board” Sensors Maps Algorithms No special needs (infrastructure, supportive tech) – Really? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 6
Definitions: Connected Automation • Not necessarily autonomous – Cooperative Adaptive Cruise Control (CACC) • • Car uses specialized data to situate itself Car responds automatically Reliance on “Enabling Technologies” Reduced driver involvement 2015 WVDOT/MPO/FHWA Transportation Planning Conference 7
Benefits of CV (and AV? ) • Safety – Crash avoidance • Mobility – Improve quality of driving experience – Allow non-drivers to participate • Environment / Sustainability – Reduce resource consumption – Reduce pollution 2015 WVDOT/MPO/FHWA Transportation Planning Conference 8
NHTSA Automation Levels • • • Level 0 – Notify the driver Level 1 – One dimensional control Level 2 – Multifunction coordination Level 3 – Limited driver disengagement Level 4 – “No steering wheel” 2015 WVDOT/MPO/FHWA Transportation Planning Conference 9
Levels of Automation (NHTSA) • Oriented toward "human factors“ – What does each level mean for the driver? • Not a straight line of development – Level 3 is not a prerequisite for Level 4 • Each level poses unique challenges – For engineers, and also for planners 2015 WVDOT/MPO/FHWA Transportation Planning Conference 10
CV/AV Champions: Public / USDOT • USDOT – ITS Joint Program Office (ITS JPO) – FHWA • R&D, Safety, Operations, Planning Offices – NHTSA • Hardware mandates • Safety ramifications – FTA • Transit automation 2015 WVDOT/MPO/FHWA Transportation Planning Conference 11
CV/AV Champions: Private • OEMs ("Car Companies") – Cool technology sells cars – CAMP - Collision Avoidance Metrics Partnership (FHWA Participates) • Non-traditional partners – Google, Tesla, Apple, Uber… 2015 WVDOT/MPO/FHWA Transportation Planning Conference 12

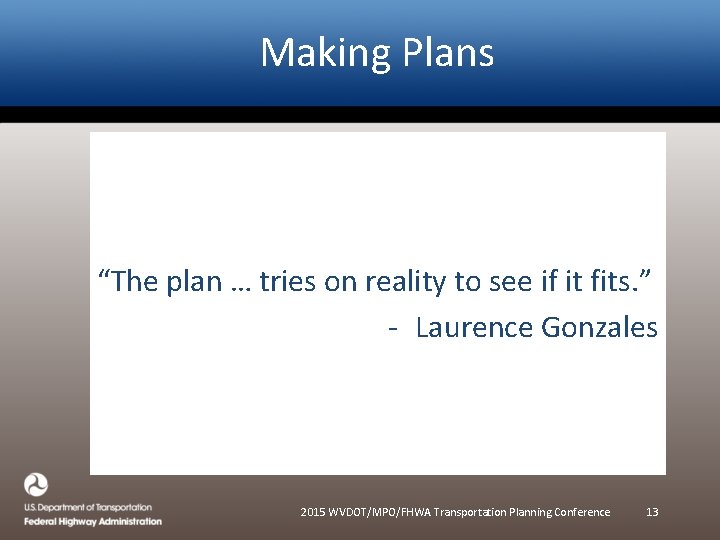

Making Plans “The plan … tries on reality to see if it fits. ” - Laurence Gonzales 2015 WVDOT/MPO/FHWA Transportation Planning Conference 13

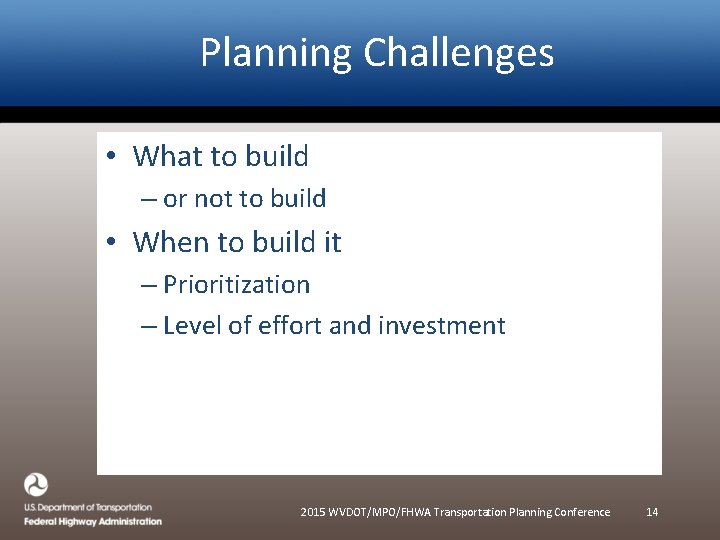

Planning Challenges • What to build – or not to build • When to build it – Prioritization – Level of effort and investment 2015 WVDOT/MPO/FHWA Transportation Planning Conference 14

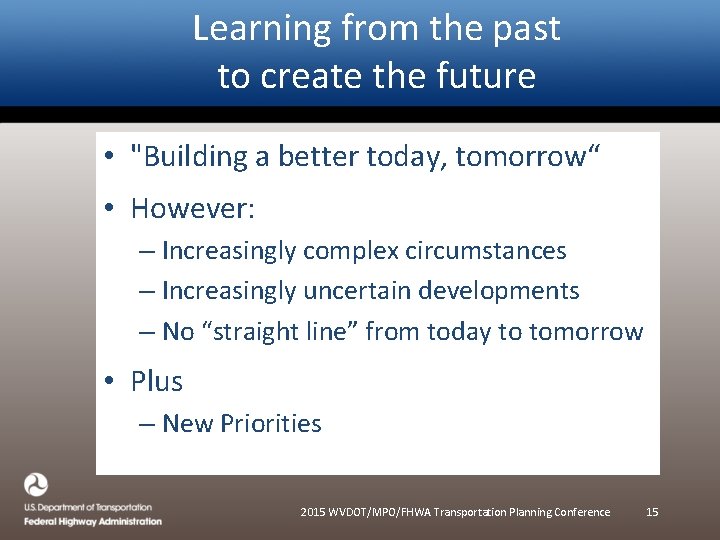

Learning from the past to create the future • "Building a better today, tomorrow“ • However: – Increasingly complex circumstances – Increasingly uncertain developments – No “straight line” from today to tomorrow • Plus – New Priorities 2015 WVDOT/MPO/FHWA Transportation Planning Conference 15

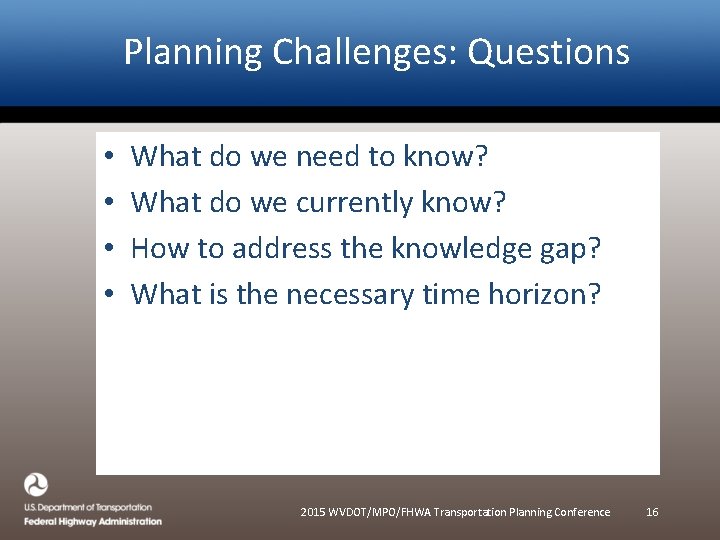

Planning Challenges: Questions • • What do we need to know? What do we currently know? How to address the knowledge gap? What is the necessary time horizon? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 16
The case for doing nothing • Initial applications (especially automation) – Championed by OEMs – Market will determine what happens • Do we know enough to intervene effectively? – Enlisting cooperation? – Mandatory enforcement? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 17
The problem with doing nothing • System does not operate effectively • Wasted opportunities for improvement • Spending on obsolete/irrelevant facilities 2015 WVDOT/MPO/FHWA Transportation Planning Conference 18

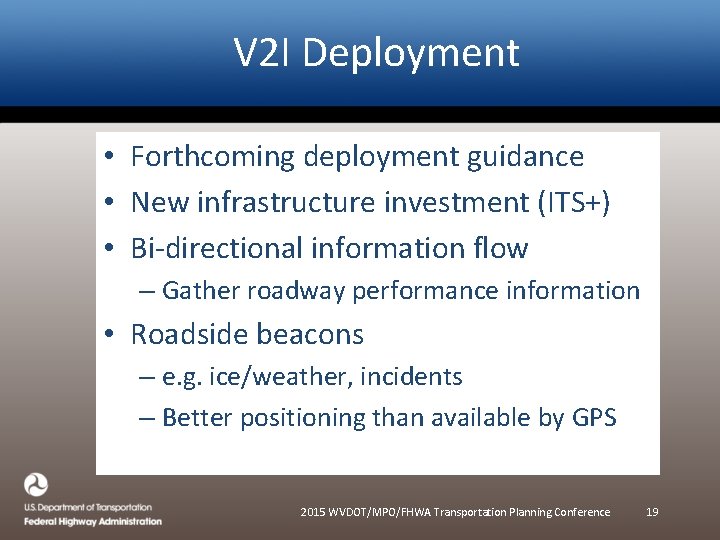

V 2 I Deployment • Forthcoming deployment guidance • New infrastructure investment (ITS+) • Bi-directional information flow – Gather roadway performance information • Roadside beacons – e. g. ice/weather, incidents – Better positioning than available by GPS 2015 WVDOT/MPO/FHWA Transportation Planning Conference 19
What Comes Next If we wait until we've satisfied all the uncertainties, it may be too late. - Lee Iacocca 2015 WVDOT/MPO/FHWA Transportation Planning Conference 20
Disruptive Technology • A new “value proposition” • People learn new ways of behaving, living, and moving • Food for thought: – Young people getting driver license later – Reduced VMT per capita (“peak travel”) – Rise of “shared transportation” 2015 WVDOT/MPO/FHWA Transportation Planning Conference 21
Future Scenarios • • Operating in Mixed Traffic Dedicated Facilities Digital Infrastructure Automated Transit 2015 WVDOT/MPO/FHWA Transportation Planning Conference 22
Scenario: Mixed Traffic The. Oatmeal. Com 2015 WVDOT/MPO/FHWA Transportation Planning Conference 23
Scenario: Mixed Traffic 2015 WVDOT/MPO/FHWA Transportation Planning Conference 24
Scenario: Mixed Traffic • Moving in traffic is a “conversation” • Automated vehicles vs. “entrepreneurs” • Connected Vehicles as traffic probes 2015 WVDOT/MPO/FHWA Transportation Planning Conference 25
Scenario: Dedicated Facilities • Connected Vehicle Managed Lanes – Increases effective fleet penetration – Relatively little new infrastructure – Increases incentive for adoption • However – Equitable resource allocation (lane access) – Discharge capacity 2015 WVDOT/MPO/FHWA Transportation Planning Conference 26
Scenario: Digital Infrastructure 2015 WVDOT/MPO/FHWA Transportation Planning Conference 27
Scenario: Digital Infrastructure • Who manages the “electronic map”? – Public or private • “Autonomy” is probably an illusion – Connectivity is still implied – Real battle: connected with who or what? – Automated vehicle “help line” vs TMC 2015 WVDOT/MPO/FHWA Transportation Planning Conference 28
Scenario: Digital Infrastructure 2015 WVDOT/MPO/FHWA Transportation Planning Conference 29
Scenario: Automated Transit • Automated Neighborhood Transit • Demand responsive – Look up schedule vs. book a ride • Transit provision and taxi-like services • Mass transit versus personal transit 2015 WVDOT/MPO/FHWA Transportation Planning Conference 30
Shadows on the Horizon • Waze and Local Road Use – Repurposing existing facilities • New physical requirements – AV “safe havens” • Liability and Responsibility – Mandating driver/vehicle conformity 2015 WVDOT/MPO/FHWA Transportation Planning Conference 31

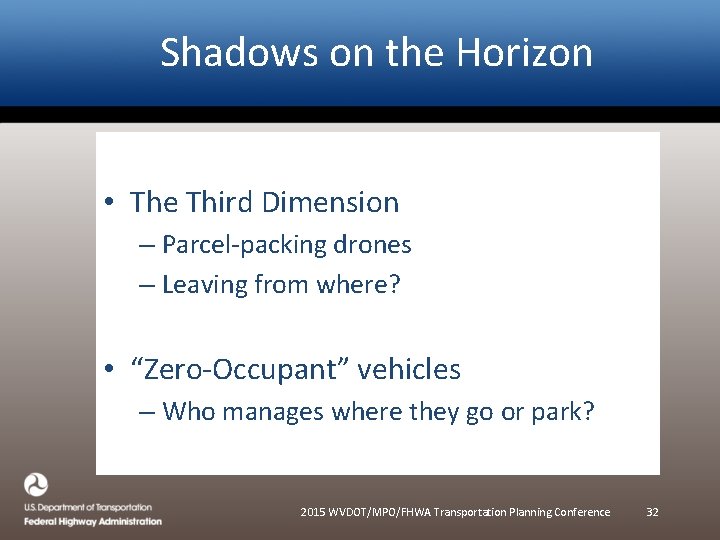

Shadows on the Horizon • The Third Dimension – Parcel-packing drones – Leaving from where? • “Zero-Occupant” vehicles – Who manages where they go or park? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 32
Retooling “You can't predict the future, but you can plan for it. ” - Saji Ijiyemi 2015 WVDOT/MPO/FHWA Transportation Planning Conference 33
The Way Things Used to Be • Planning is part of “site preparation” • “Railroading” • Robert Moses 2015 WVDOT/MPO/FHWA Transportation Planning Conference 34
Revisiting the Battlefields • Private railroads and public sector • The future of urban interstates • “Championship” versus public process 2015 WVDOT/MPO/FHWA Transportation Planning Conference 35
What do Planners Do? • The old paradigm: – Planning, Environment, Realty – We already know what we need to do – “Clearing the Way” • The new paradigm – We have evolving ideas of what we want – Not at all clear how to get there – Desire outpaces reality 2015 WVDOT/MPO/FHWA Transportation Planning Conference 36
Performance-Based Planning Jeremy Raw, PE Federal Highway Administration Office of Planning, Systems Planning and Analysis Team September 15, 2015 WVDOT/MPO/FHWA Transportation Planning Conference 37
Performance-Based Planning 2015 WVDOT/MPO/FHWA Transportation Planning Conference 38
Performance-Based Planning • • What do we want? How do we measure it? Where are we now? How do we move toward our targets? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 39
Performance-Based Planning • An “agile” process • Redefine and redevelop as we learn • Relevant to Connectivity & Automation – New data sources (V 2 I) – Feedback to goals and objectives – “How are we doing? ” 2015 WVDOT/MPO/FHWA Transportation Planning Conference 40
Planning for Disruption • Planning tools rely on lots of assumptions – What goes in – What comes out (and what it means) – What happens inside • Our favorite assumptions are easily broken – Or at least rendered irrelevant – For example: HCM signal methodology • Behavioral parameters are shifting 2015 WVDOT/MPO/FHWA Transportation Planning Conference 41
New Questions for New Data • What is out there? • How is it performing? • How do we account for what we see? – “Statistical Noise”? – “Market Correction”? – “Structural Shift”? 2015 WVDOT/MPO/FHWA Transportation Planning Conference 42
“Defensive” Modeling • Models are tools for thinking – Test assumptions and interpretations – Evaluate rather than predict • Focus more on what goes in – Including the assumptions! • Focus less on what comes out – Comparisons are worth more than Forecasts 2015 WVDOT/MPO/FHWA Transportation Planning Conference 43
Modeling Connected and Automated Vehicles • Scenario planning: – “What if we aimed for Future X? ” • Feasibility: – “Is it possible? ” – “What would it take to get there? ” • Costs and Benefits: – “Can we afford it? ” • Reality check: – “What’s really happening now? ” 2015 WVDOT/MPO/FHWA Transportation Planning Conference 44
Final Words • Expect to plan for an uncertain future • Aim high and adjust as necessary • Invest in “enabling technologies” – Forthcoming V 2 I deployment guidance • Think carefully about your assumptions • Use models “defensively” 2015 WVDOT/MPO/FHWA Transportation Planning Conference 45

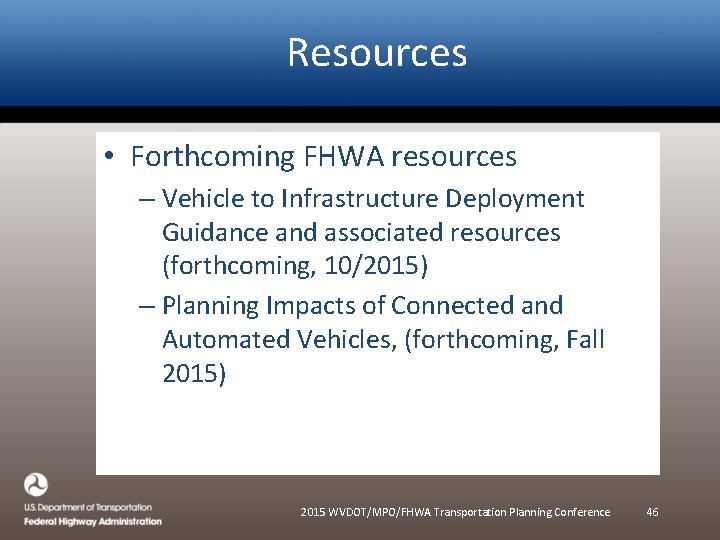

Resources • Forthcoming FHWA resources – Vehicle to Infrastructure Deployment Guidance and associated resources (forthcoming, 10/2015) – Planning Impacts of Connected and Automated Vehicles, (forthcoming, Fall 2015) 2015 WVDOT/MPO/FHWA Transportation Planning Conference 46
Planning for Connected and Automated Vehicles Jeremy Raw, PE Federal Highway Administration Office of Planning, Systems Planning and Analysis Team September 15, 2015 WVDOT/MPO/FHWA Transportation Planning Conference 47
