Vehicle “Off-Line” GPS and Fuel Monitoring System (post trip vehicle monitoring system) Riga ; Latvia www. guardmagic. com

About “Off-Line” monitoring ü“Off-Line” vehicle and fuel monitoring system is the most inexpensive and the most cost effective solution for vehicle and special machinery monitoring; ü"Off-Line" GPS* monitoring system does not have any visible or hidden operating payments. ü"Off-Line" GPS and fuel monitoring system provides fuel-monitoring function (determinates fuel consumption and facts of fuelling and fuel drains). * – "Off-Line" GPS monitoring system is based on satellite system of geographical coordinates definition (GPS System). Riga ; Latvia www. guardmagic. com

About Fuel Monitoring In general Fuel Monitoring System consist of three main components: • fuel level sensor (special analog or digital fuel level sensor); • data logger (Guard. Magic m. TF series) for storing data from fuel level sensors; • Personal Computer and software with “fuel monitoring” function. Storing loaded fuel information, analyzing information and generation series of reports and diagrams. Guard. Magic fuel monitoring and analyzing system in a full automatically mode, "day & night" collects and stores detailed information about fuel tank contents and fuel usage. Riga ; Latvia www. guardmagic. com

System Allows Guard. Magic “Off-Line” vehicle and fuel monitoring system allows: • company owners, directors, transport managers always have a real information of vehicles, vehicles fleet and its utilization; • increase vehicle or special machinery effectiveness; • minimize non-productive expenses; • supervise vehicle trip and parameters of movement; • supervise fuel usage; • prevent (or minimize) fuel theft; • supervise vehicle operation time; • prevent not authorized use of transport; • supervise drivers working hours and/or operators working hours effectiveness. Riga ; Latvia www. guardmagic. com

Target Groups ü Commercial, cargo vehicle, refrigerator trucks (transportation companies); ü Passengers transports; ü Building, construction and road industries ü Mining industry; ü Agricultural; ü Municipal; ü Towboats ü Railroad Riga ; Latvia www. guardmagic. com

Guard. Magic System Advantages ü Monitoring after vehicle is driven; ü Has not any operation fees; ü Not needed any wireless communication network; ü Monitor: fuel, vehicle, driver; ü Multi tank supports; ü Data removing to PC by standard USB Flash Drive; ü Download data in any convenient place; ü Intelligent data logging; ü Easy installation and easy operation; ü High functionality and wide range of application. Riga ; Latvia www. guardmagic. com

System Structure in General ü Space Fragment: GPS satellite sends the special signals that received by Guard. Magic m. TF module. Based on this signal module calculate vehicle location. ü Vehicle Module: Guard. Magic m. TF module store in internal memory information about vehicle trip with parameters of movement, data from fuel level sensors (fuel history) and information from other additional sensors. Later this information removed to PC by standard USB flash drive. ü Monitoring Station: PC based computer with monitoring software. Store in data base removed information and generate necessary reports and diagrams about vehicle activity and fuel utilization. Riga ; Latvia www. guardmagic. com

Guard. Magic System Advantages in General ü monitoring after vehicle is driven; ü ü ü ü has not any operation fees (visible or hidden); not needed any wireless communication network; monitoring: vehicles, fuel, drivers; multi tanks monitoring; intelligent logging (transportation, special machinery); download data to standard USB Flash Drive; download data in any convenient place; not needed to remove module from vehicle; not needed parking vehicle while data loading to PC; can support from 50 and up to 1000 vehicles; can support from 50 and up to 1000 drivers; different types m. TF modules in one system; comfortable system building and system growing. Riga ; Latvia www. guardmagic. com

m. TF Modules Advantages in General ü installation on any type of transport (truck, lorry, car, combine, tractor etc. ); ü not needed remove module from vehicle or vehicle parking while data moving to PC; ü easy download data to USB flash drive in any convenient place; ü protection against data losing; ü multi tank fuel monitoring (fuel history); ü "fuel resolution" 1024 levels; ü supports fuel sensors with analog or digital interface; ü GPS monitoring (location, speed); ü connection to additional sensors and circuits; ü driver identification function; ü vehicle protection function; ü easy fuel tank calibration procedure; ü temperature monitoring (depend of module type); ü 240 000 records; Riga ; Latvia www. guardmagic. com

Software Advantages in General ü support from 50 and up to 1000 vehicles; ü support from 50 and up to 1000 drivers; ü user friendly interface; ü display vehicle trip on electronic maps with details of moving; ü display on electronic maps points of refueling and points of fuel draining; ü display on electronic maps points of events; ü generation reports about vehicle activity (in general and in details); ü generation reports about fuel consumption; ü generation reports about fueling and fuel draining; ü generation reports about driver activity; ü generation reports about events and nonstandard situation; ü diagrams generation; ü possibility functionality growing; Riga ; Latvia www. guardmagic. com

Guard. Magic m. TF Series Key Features ü series of advanced "GPS & Fuel" Data Logger with additional inputs and USB output interface; ü GPS monitoring; ü fuel monitoring (fuel history); ü multi tanks supports; ü driver identification function; ü vehicle immobilization function; ü storing data up to 240 000 points; ü data removing to PC by standard USB flash drive; ü two main operation mode; ü easy fuel tank calibration; ü flexible user setting. Riga ; Latvia www. guardmagic. com

Guard. Magic m. TF Connection in General Guard. Magic m. TF module is established on a vehicle (can be done hidden installation) and in full automatic mode collect and store in the internal memory information about vehicle trip, movement parameters, fuel history, temperature history, data from additional sensors and electrical circuits. Riga ; Latvia www. guardmagic. com

About Guard. Magic m. TF 1 ü Guard. Magic m. TF 1 is an universal "GPS & Fuel Data Logger" with additional inputs, driver identification function and USB output interface; ü Guard. Magic m. TF 1 is intended for vehicles and special machinery (road, building, construction, maintenance, earth moving, agricultural machines etc. ) monitoring; ü Guard. Magic m. TF 1 supports up to TWO fuel tank (TWO fuel level sensor with analog output: Guard. Magic FLPa or vehicle regular fuel level sensor); ü In additional Guard. Magic m. TF 1 has an immobilization function. ü Data moving from Guard. Magic m. TF 1 to Personal Computer is carried out by standard "USB Flash Drive“; ü Guard. Magic m. TF 1 allows to create non expensive universal vehicle "GPS and fuel monitoring" system. Riga ; Latvia www. guardmagic. com

Guard. Magic m. TF 1 Functionality During the operation Guard. Magic m. TF 1 module in full automatic mode collect and store in internal memory: ü GPS information (vehicle trip); ü vehicle movement parameters (speed, time); ü fuel history in up to TWO tanks; ü active driver information (driver ID code); ü engine status (On / Off); ü information about engine overheat; ü status of customer logical sensors (up to THREE logical sensors); ü "Event" button pressing. Riga ; Latvia www. guardmagic. com

About Guard. Magic m. TF 2 ü Guard. Magic m. TF 2 is an universal "GPS & Fuel Data Logger" with additional inputs, driver identification function and USB output interface; ü Guard. Magic m. TF 2 is intended for vehicles and special machinery (road, building, construction, maintenance, earth moving, agricultural machines etc. ) monitoring; ü Guard. Magic m. TF 2 supports up to TWO vehicle regular fuel tanks (TWO fuel level sensor with analog output (Guard. Magic FLPa or vehicle regular fuel level sensor); ü In additional Guard. Magic m. TF 2 has an immobilization function. ü Data moving from Guard. Magic m. TF 2 to Personal Computer is carried out by standard "USB Flash Drive“; ü In additional Guard. Magic m. TF 2 allow to store data about engine RPM, engine overheat and data from vehicle odometer circuit; ü Guard. Magic m. TF 2 allows to create non expensive universal vehicle "GPS and fuel monitoring" system. Riga ; Latvia www. guardmagic. com

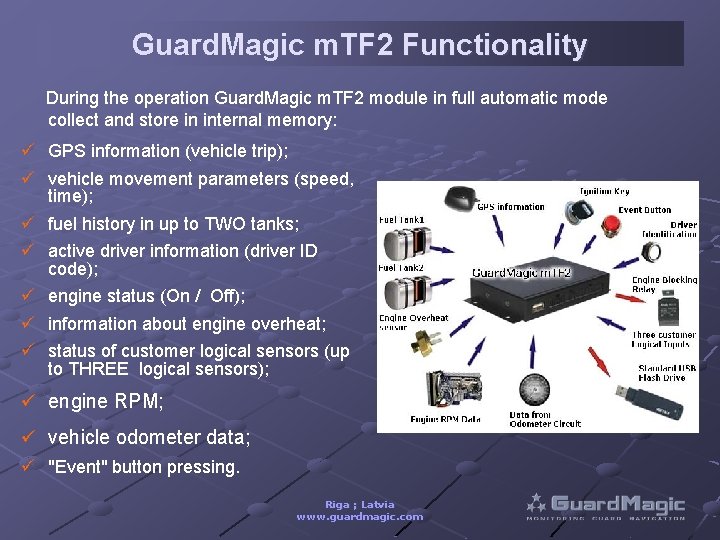

Guard. Magic m. TF 2 Functionality During the operation Guard. Magic m. TF 2 module in full automatic mode collect and store in internal memory: ü GPS information (vehicle trip); ü vehicle movement parameters (speed, time); ü fuel history in up to TWO tanks; ü active driver information (driver ID code); ü engine status (On / Off); ü information about engine overheat; ü status of customer logical sensors (up to THREE logical sensors); ü engine RPM; ü vehicle odometer data; ü "Event" button pressing. Riga ; Latvia www. guardmagic. com

About Guard. Magic m. TF 3 ü Guard. Magic m. TF 3 is an universal "GPS & Fuel Data Logger" with additional inputs, driver identification function and USB output interface; ü Guard. Magic m. TF 3 is intended for vehicles and special machinery (road, building, construction, maintenance, earth moving, agricultural machines etc. ) monitoring; ü Guard. Magic m. TF 3 supports up to SIX vehicle fuel tanks: THREE regular and THREE service (SIX fuel level sensor with EIA-485 communication interface: Guard. Magic DFLS series or the same); ü Guard. Magic m. TF 3 supports up to SEVEN digital temperature sensors (1 wire communication interface); ü In additional Guard. Magic m. TF 3 has an immobilization function. ü Data moving from Guard. Magic m. TF 3 to Personal Computer is carried out by standard "USB Flash Drive“; ü In additional Guard. Magic m. TF 3 allow to store data about engine RPM, engine overheat and data from vehicle odometer circuit. ü Guard. Magic m. TF 3 allows to create advanced vehicle "GPS and fuel monitoring" system. Riga ; Latvia www. guardmagic. com

Guard. Magic m. TF 3 Functionality During the operation Guard. Magic m. TF 3 module in full automatic mode collect and store in internal memory: ü GPS information (vehicle trip); ü vehicle movement parameters (speed, time); ü fuel history in up to SIX tanks; ü temperature from up to SEVEN digital temperature sensors; ü active driver information (driver ID code); ü engine status (On / Off); ü information about engine overheat; ü status of customer logical sensors (up to THREE logical sensors); ü engine RPM; ü vehicle odometer data; ü "Event" button pressing. Riga ; Latvia www. guardmagic. com

Visualisation Trip On Electronics Maps Riga ; Latvia www. guardmagic. com

Visualisation Trip On Electronics Maps Riga ; Latvia www. guardmagic. com

“Stamps” Visualisation On Electronics Maps Parameters of movement Date and time Fueling Fuel draining Riga ; Latvia www. guardmagic. com

Graphs Fuel Graph Speed graph Riga ; Latvia www. guardmagic. com

Graphs General activity (Quick View) Daily Driving Daily Activity Daily Fuel Consumption Riga ; Latvia www. guardmagic. com

Reports General Utilization Consolidated Fuel Consumption Riga ; Latvia www. guardmagic. com

Guard. Magic Contacts "Guard. Magic" SIA Riga, Latvia www. guardmagic. com www. guardmagic. lv avl@guardmagic. lv , avl 1@guardmagic. lv , info 1@guardmagic. com , support@guardmagic. com (technical support) phone: + 371 2914 2887 phone: + 371 2915 4768 Riga ; Latvia www. guardmagic. com
