Introduction to Biostatistics and Bioinformatics Regression and Correlation
Introduction to Biostatistics and Bioinformatics Regression and Correlation

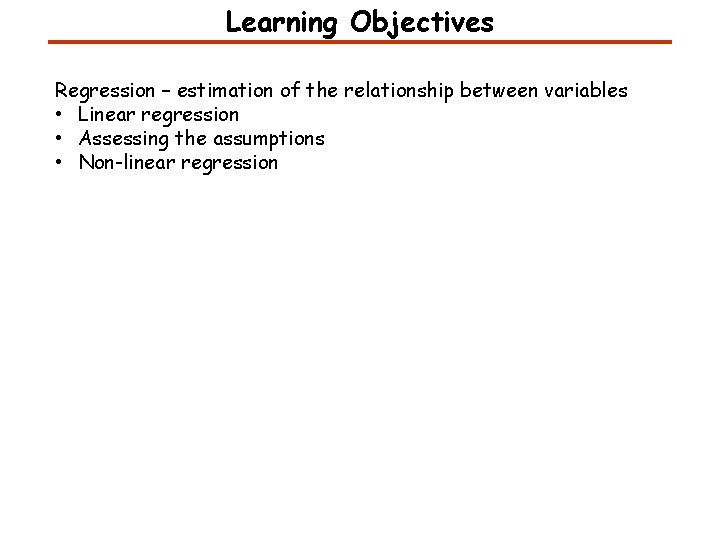

Learning Objectives Regression – estimation of the relationship between variables • Linear regression • Assessing the assumptions • Non-linear regression
Learning Objectives Regression – estimation of the relationship between variables • Linear regression • Assessing the assumptions • Non-linear regression Correlation • Correlation coefficient quantifies the association strength • Sensitivity to the distribution

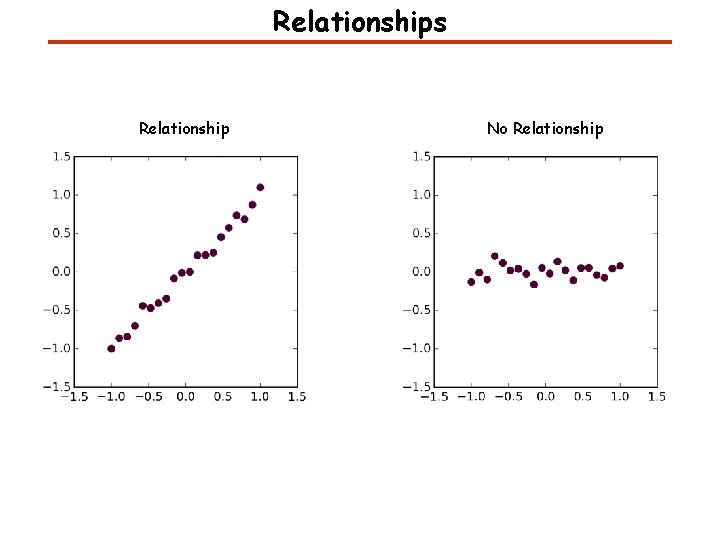

Relationships Relationship No Relationship

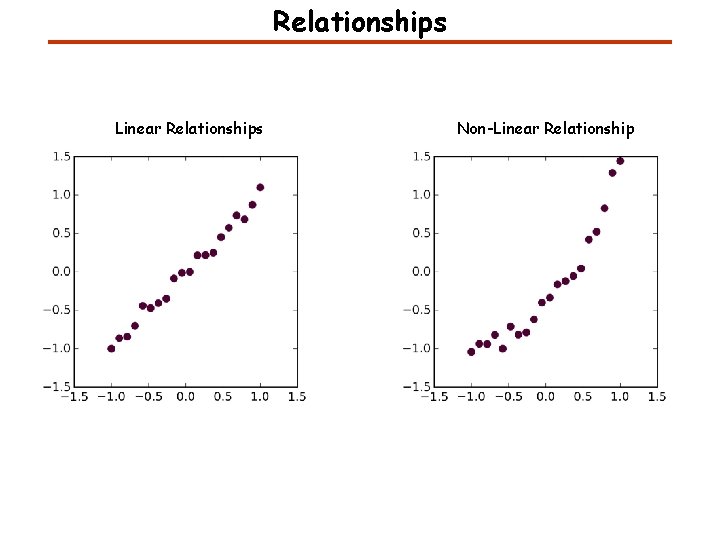

Relationships Linear Relationships Non-Linear Relationship

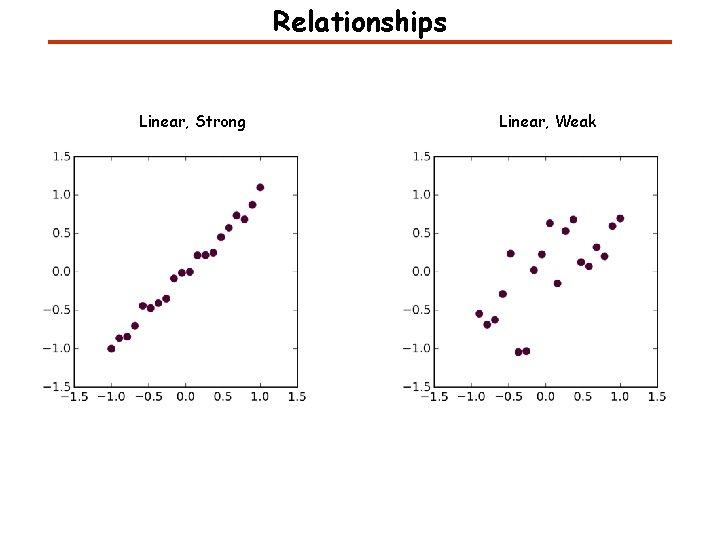

Relationships Linear, Strong Linear, Weak

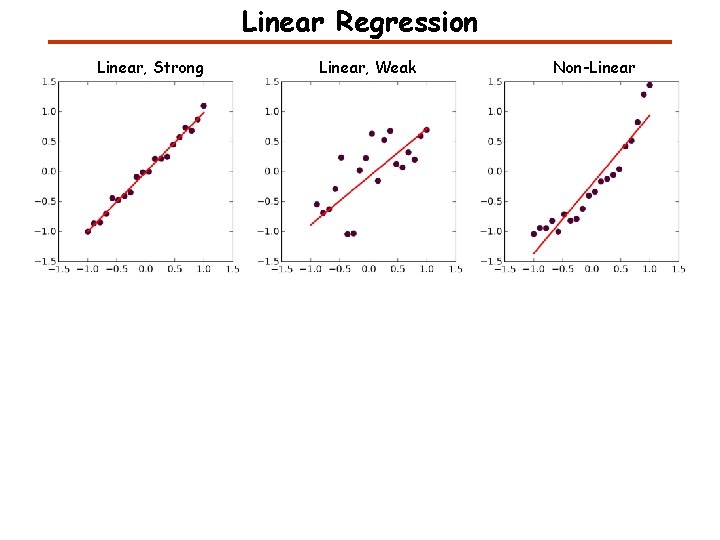

Linear Regression Linear, Strong Linear, Weak Non-Linear
Linear Regression - Residuals Non-Linear Residuals Linear, Weak Residuals Linear, Strong

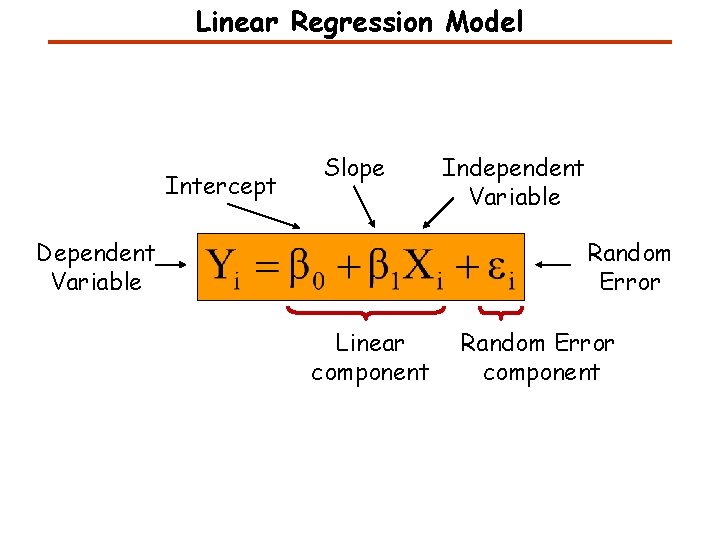

Linear Regression Model Intercept Slope Dependent Variable Independent Variable Random Error Linear component Random Error component

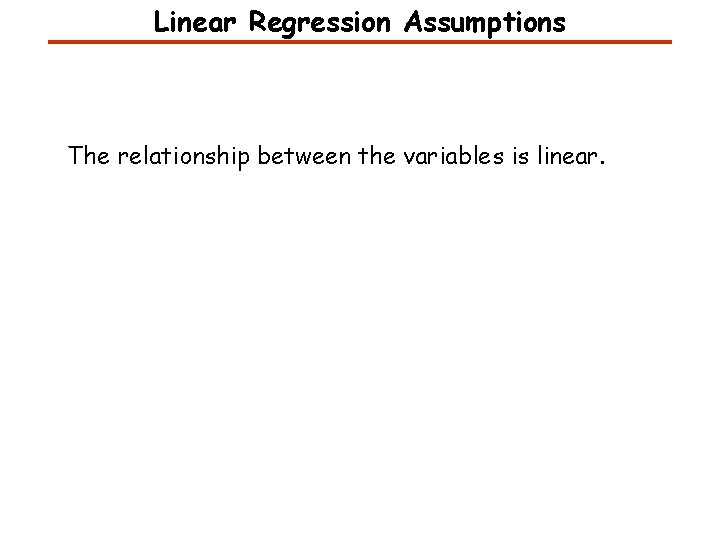

Linear Regression Assumptions The relationship between the variables is linear.
Linear Regression Assumptions The relationship between the variables is linear. Errors are independent, normally distributed with mean zero and constant variance.

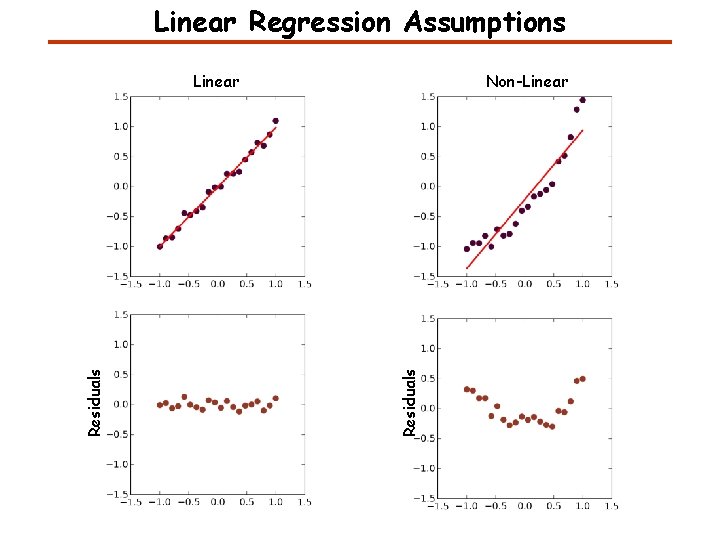

Linear Regression Assumptions Non-Linear Residuals Linear
Linear Regression Assumptions Variable Variance Residuals Constant Variance
Linear Regression Model Intercept Slope Dependent Variable Independent Variable Random Error Linear component Random Error component

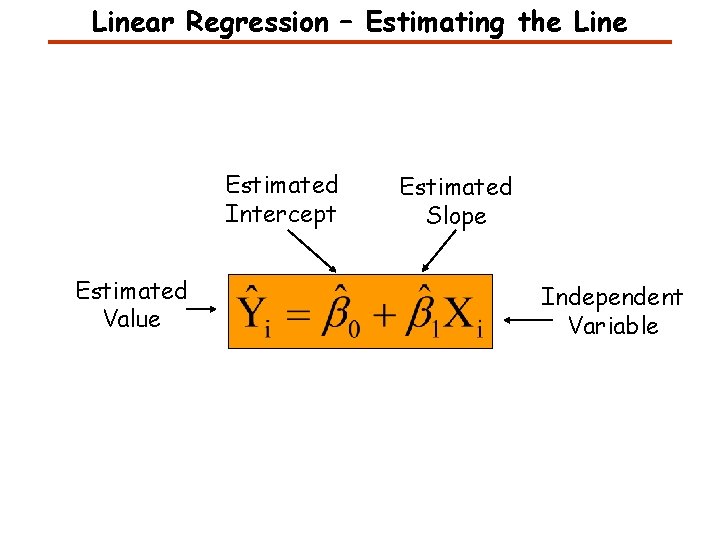

Linear Regression – Estimating the Line Estimated Intercept Estimated Value Estimated Slope Independent Variable

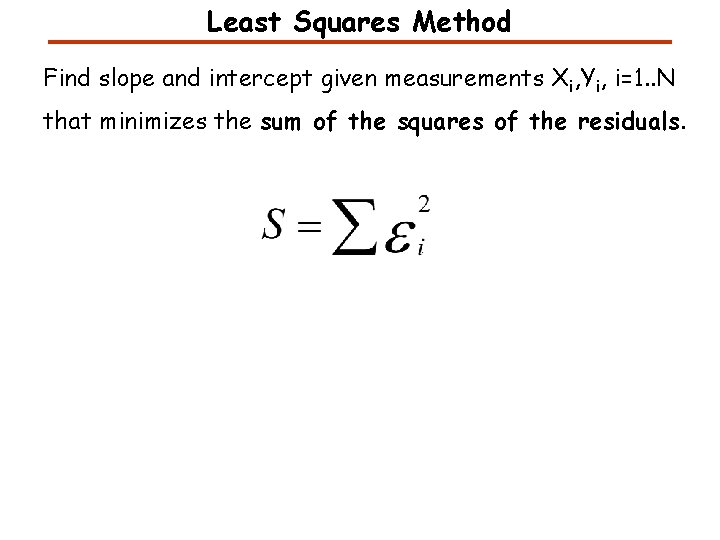

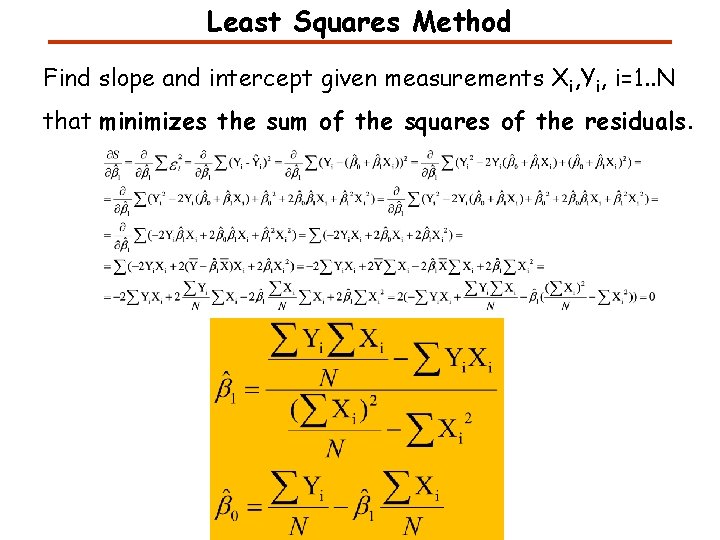

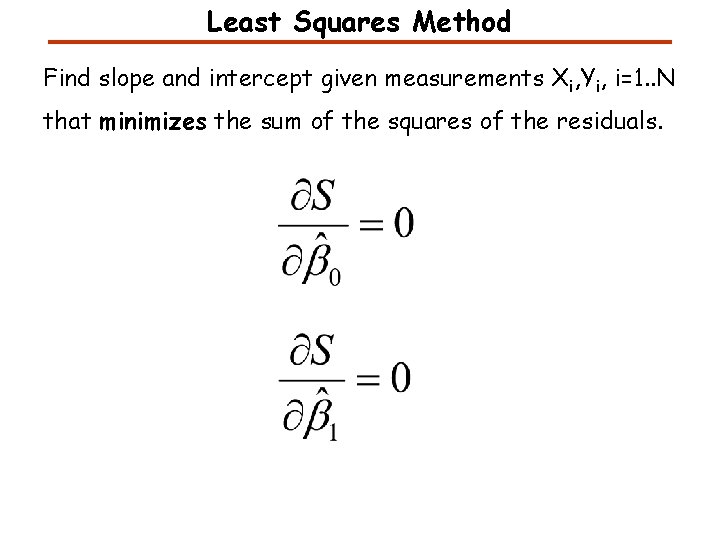

Least Squares Method Find slope and intercept given measurements Xi, Yi, i=1. . N that minimizes the sum of the squares of the residuals.
Least Squares Method Find slope and intercept given measurements Xi, Yi, i=1. . N that minimizes the sum of the squares of the residuals.
Least Squares Method Find slope and intercept given measurements Xi, Yi, i=1. . N that minimizes the sum of the squares of the residuals.
Least Squares Method Find slope and intercept given measurements Xi, Yi, i=1. . N that minimizes the sum of the squares of the residuals.

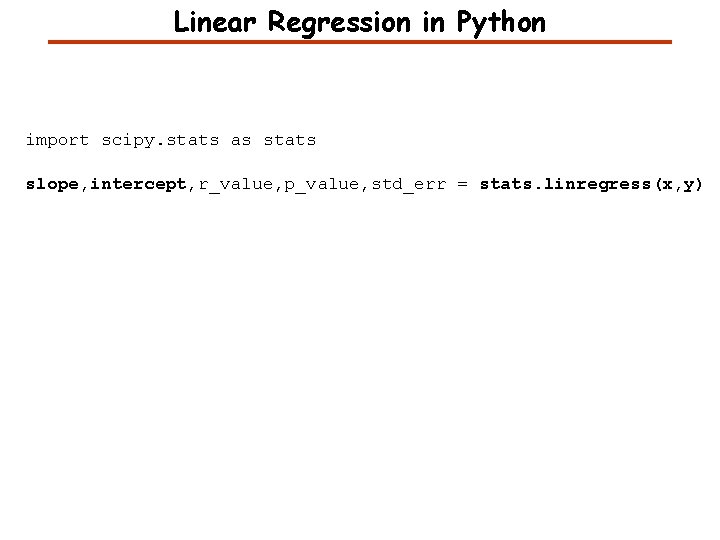

Linear Regression in Python import scipy. stats as stats slope, intercept, r_value, p_value, std_err = stats. linregress(x, y)

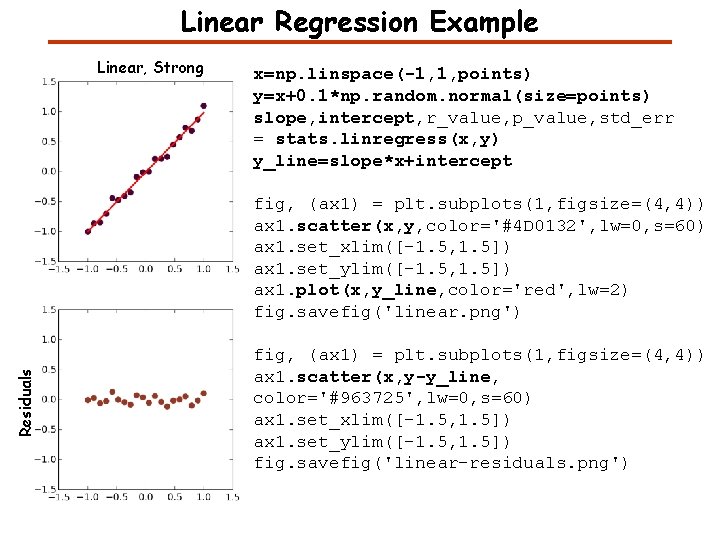

Linear Regression Example Linear, Strong x=np. linspace(-1, 1, points) y=x+0. 1*np. random. normal(size=points) slope, intercept, r_value, p_value, std_err = stats. linregress(x, y) y_line=slope*x+intercept Residuals fig, (ax 1) = plt. subplots(1, figsize=(4, 4)) ax 1. scatter(x, y, color='#4 D 0132', lw=0, s=60) ax 1. set_xlim([-1. 5, 1. 5]) ax 1. set_ylim([-1. 5, 1. 5]) ax 1. plot(x, y_line, color='red', lw=2) fig. savefig('linear. png') fig, (ax 1) = plt. subplots(1, figsize=(4, 4)) ax 1. scatter(x, y-y_line, color='#963725', lw=0, s=60) ax 1. set_xlim([-1. 5, 1. 5]) ax 1. set_ylim([-1. 5, 1. 5]) fig. savefig('linear-residuals. png')

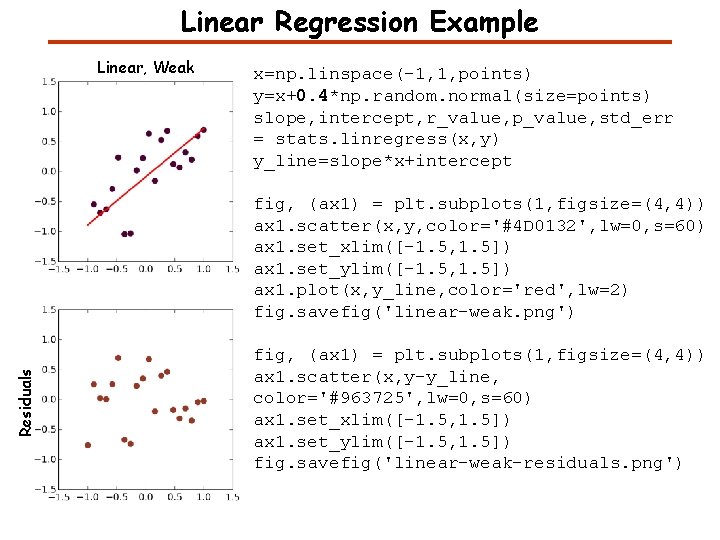

Linear Regression Example Linear, Weak x=np. linspace(-1, 1, points) y=x+0. 4*np. random. normal(size=points) slope, intercept, r_value, p_value, std_err = stats. linregress(x, y) y_line=slope*x+intercept Residuals fig, (ax 1) = plt. subplots(1, figsize=(4, 4)) ax 1. scatter(x, y, color='#4 D 0132', lw=0, s=60) ax 1. set_xlim([-1. 5, 1. 5]) ax 1. set_ylim([-1. 5, 1. 5]) ax 1. plot(x, y_line, color='red', lw=2) fig. savefig('linear-weak. png') fig, (ax 1) = plt. subplots(1, figsize=(4, 4)) ax 1. scatter(x, y-y_line, color='#963725', lw=0, s=60) ax 1. set_xlim([-1. 5, 1. 5]) ax 1. set_ylim([-1. 5, 1. 5]) fig. savefig('linear-weak-residuals. png')

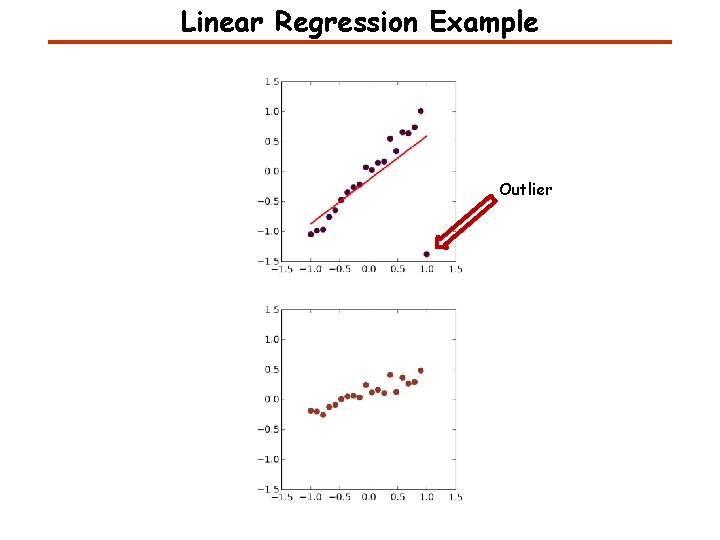

Linear Regression Example Outlier

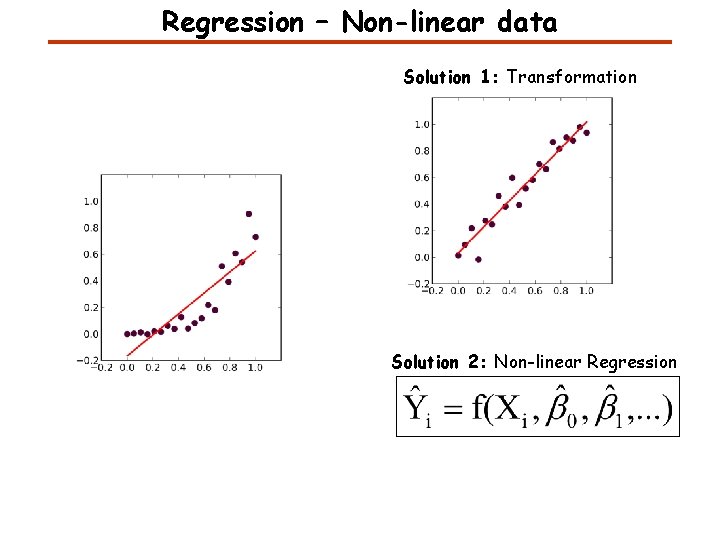

Regression – Non-linear data Solution 1: Transformation Solution 2: Non-linear Regression
Correlation Coefficient • A measure of the correlation between the two variables • Quantifies the association strength Pearson correlation coefficient:

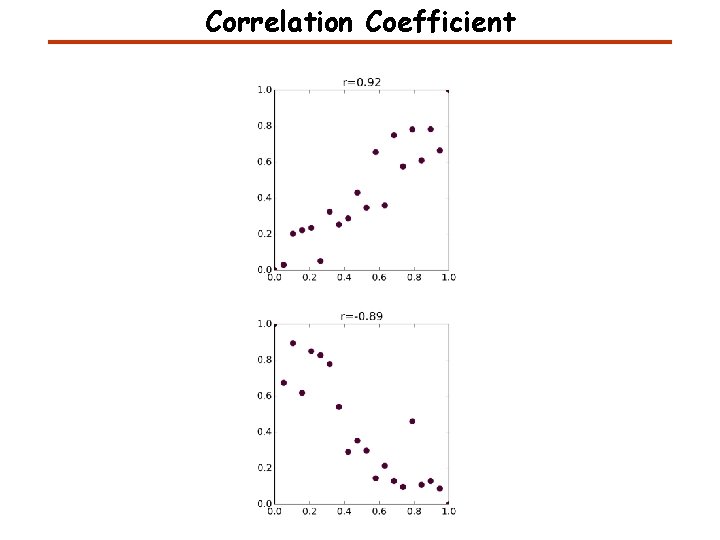

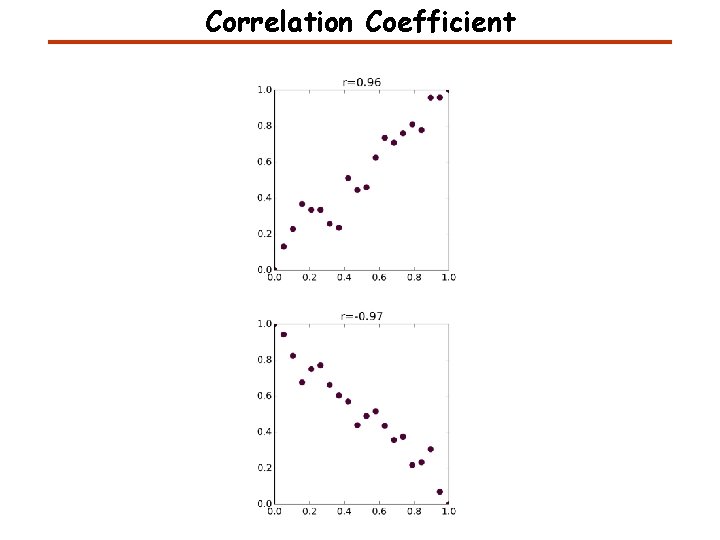

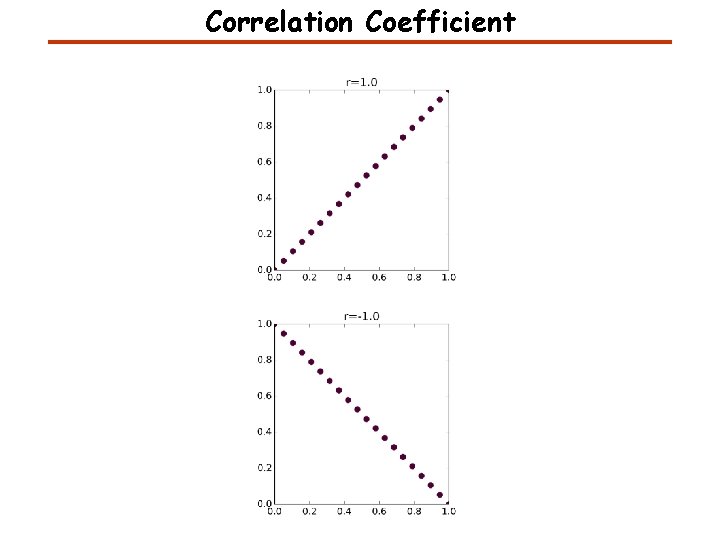

Correlation Coefficient
Correlation Coefficient
Correlation Coefficient
Correlation Coefficient
Correlation Coefficient

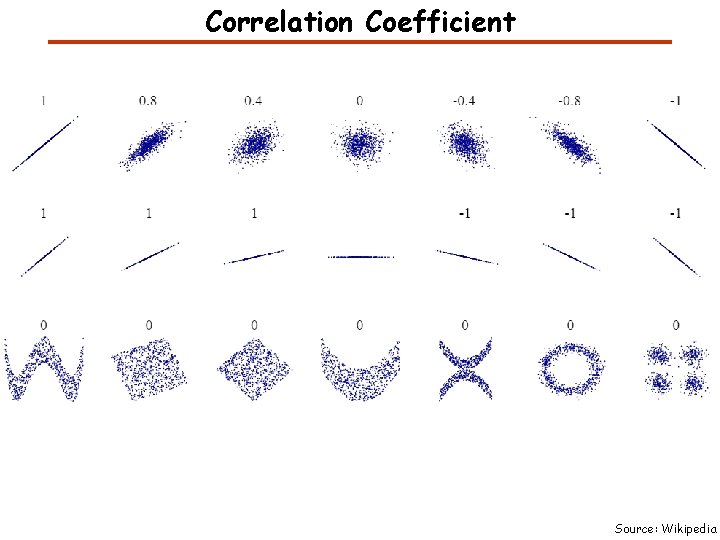

Correlation Coefficient Source: Wikipedia

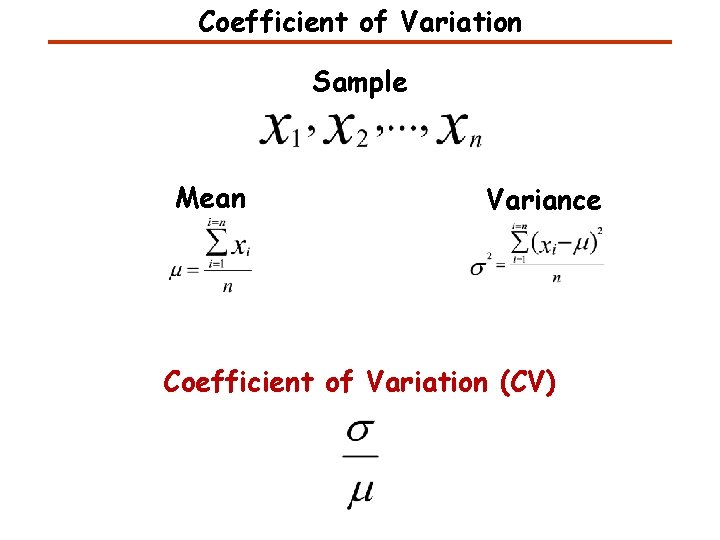

Coefficient of Variation Sample Mean Variance Coefficient of Variation (CV)

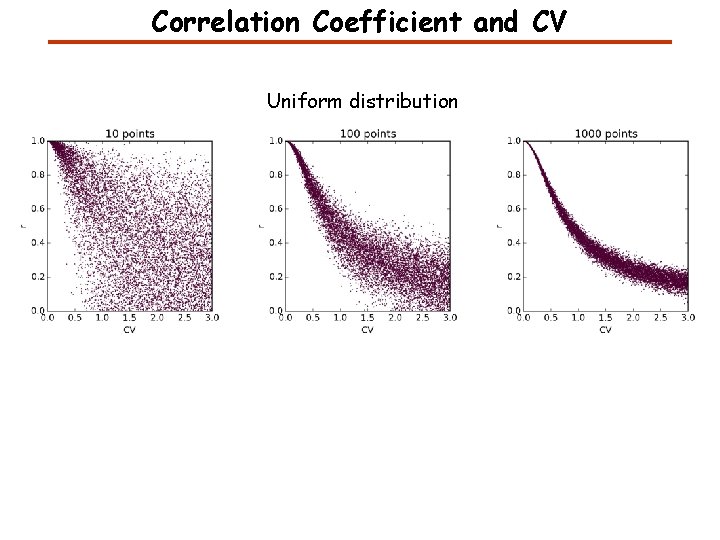

Correlation Coefficient and CV Uniform distribution

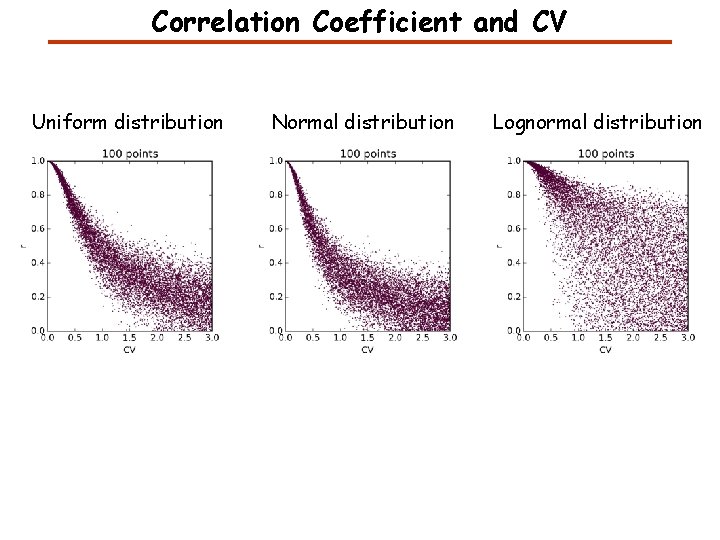

Correlation Coefficient and CV Uniform distribution Normal distribution Lognormal distribution
Correlation Coefficient - Outliers Outlier

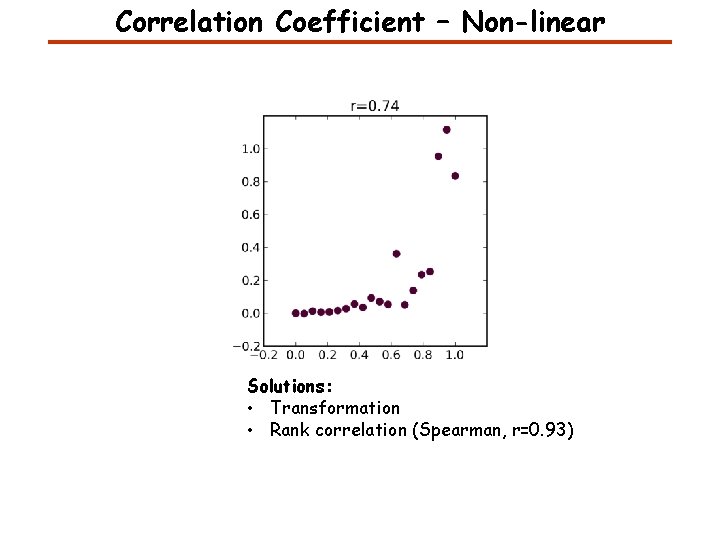

Correlation Coefficient – Non-linear Solutions: • Transformation • Rank correlation (Spearman, r=0. 93)

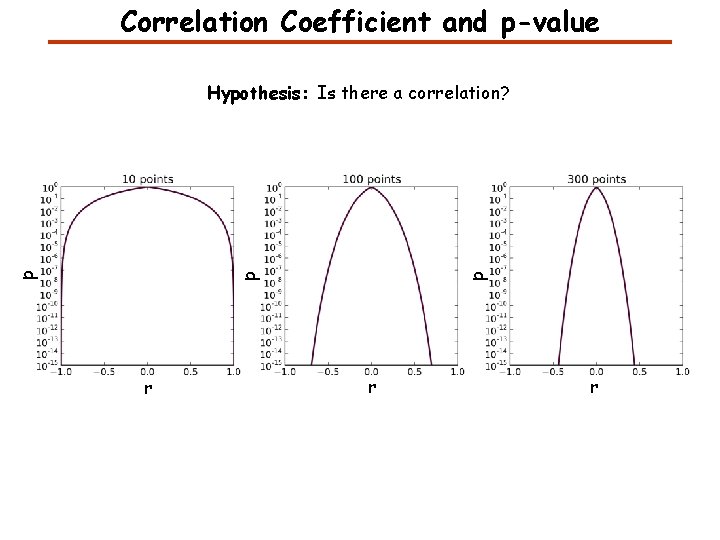

Correlation Coefficient and p-value r p p p Hypothesis: Is there a correlation? r r
Measured Concentration Application: Analytical Measurements Theoretical Concentration

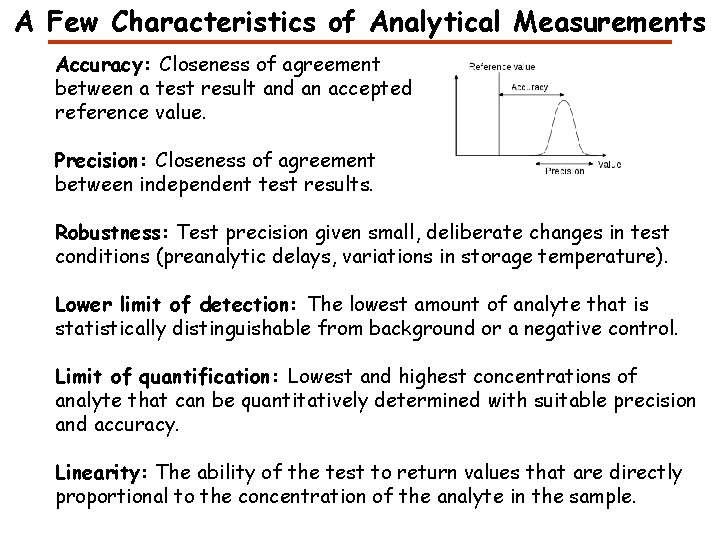

A Few Characteristics of Analytical Measurements Accuracy: Closeness of agreement between a test result and an accepted reference value. Precision: Closeness of agreement between independent test results. Robustness: Test precision given small, deliberate changes in test conditions (preanalytic delays, variations in storage temperature). Lower limit of detection: The lowest amount of analyte that is statistically distinguishable from background or a negative control. Limit of quantification: Lowest and highest concentrations of analyte that can be quantitatively determined with suitable precision and accuracy. Linearity: The ability of the test to return values that are directly proportional to the concentration of the analyte in the sample.

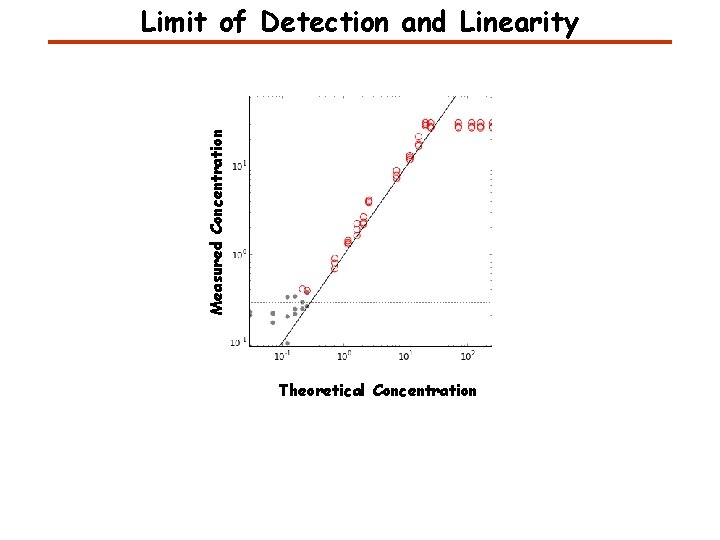

Measured Concentration Limit of Detection and Linearity Theoretical Concentration
Measured Concentration Precision and Accuracy Theoretical Concentration
Summary - Regression Source: http: //xkcdsw. com/content/img/2274. png

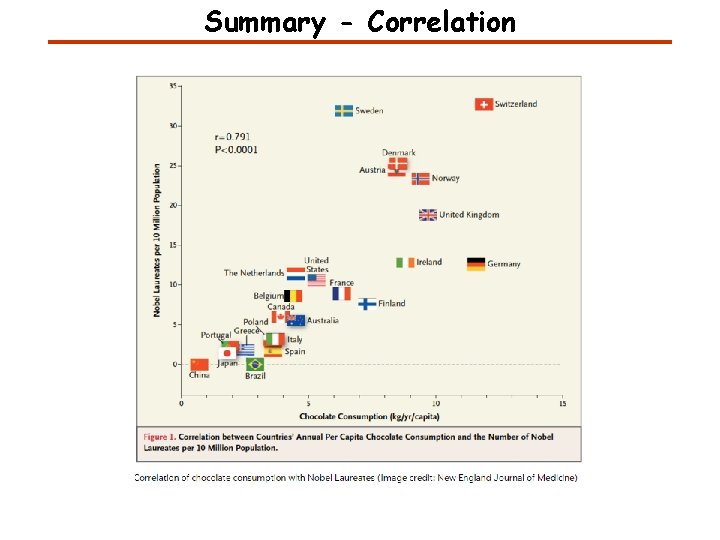

Summary - Correlation
Next Lecture: Experimental Design & Analysis Experimental Design by Christine Ambrosino www. hawaii. edu/fishlab/Nearside. htm
