DENTAL PLAQUE Most important chapter Understanding required Health

DENTAL PLAQUE

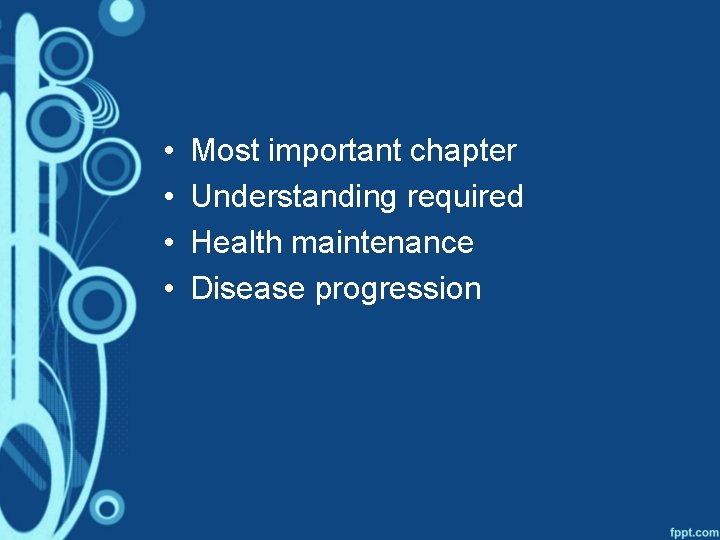

• • Most important chapter Understanding required Health maintenance Disease progression

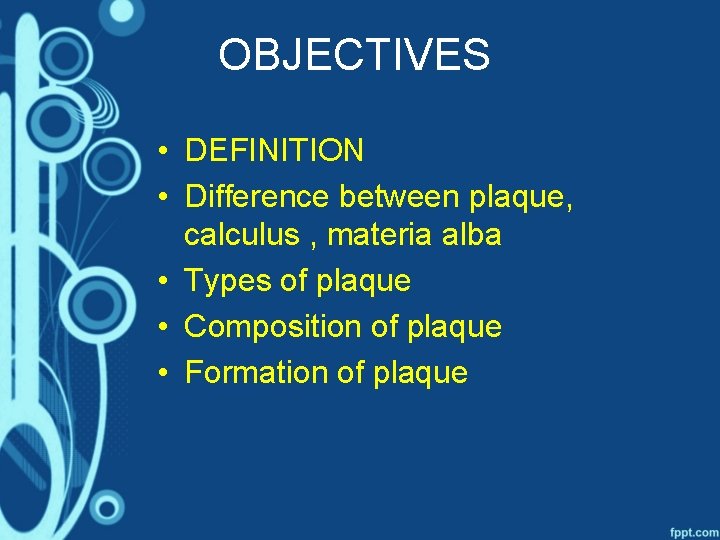

OBJECTIVES • DEFINITION • Difference between plaque, calculus , materia alba • Types of plaque • Composition of plaque • Formation of plaque

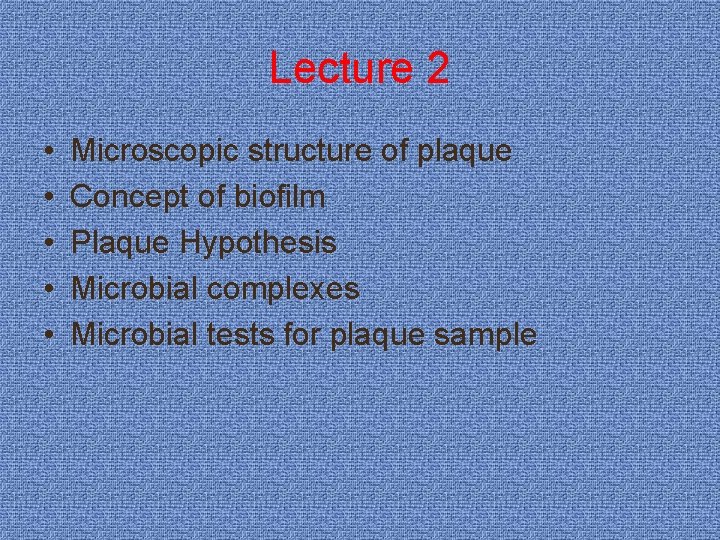

Lecture 2 • • • Microscopic structure of plaque Concept of biofilm Plaque Hypothesis Microbial complexes Microbial tests for plaque sample

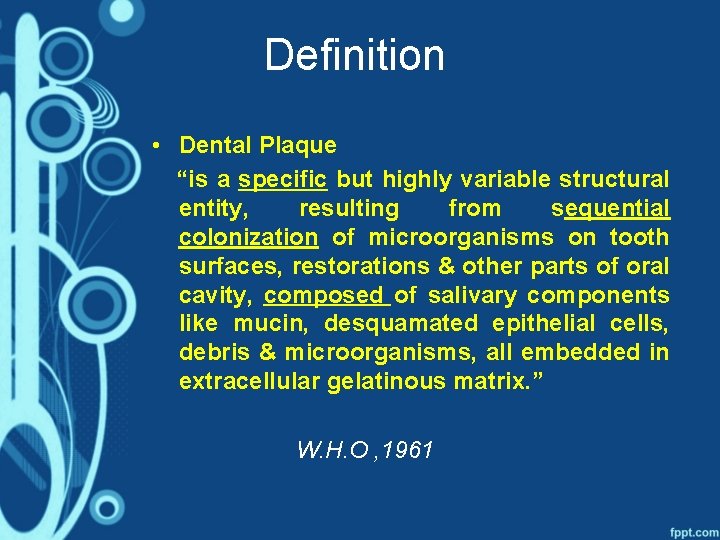

Definition • Dental Plaque “is a specific but highly variable structural entity, resulting from sequential colonization of microorganisms on tooth surfaces, restorations & other parts of oral cavity, composed of salivary components like mucin, desquamated epithelial cells, debris & microorganisms, all embedded in extracellular gelatinous matrix. ” W. H. O , 1961

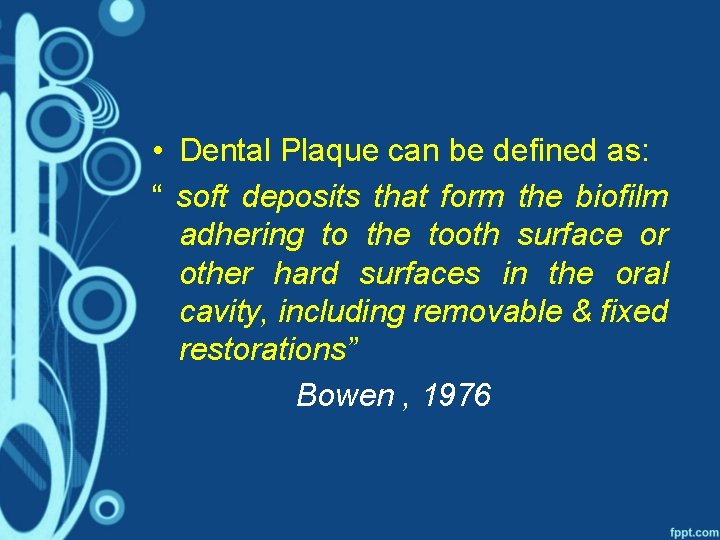

• Dental Plaque can be defined as: “ soft deposits that form the biofilm adhering to the tooth surface or other hard surfaces in the oral cavity, including removable & fixed restorations” Bowen , 1976

DIFFERENTIATION:

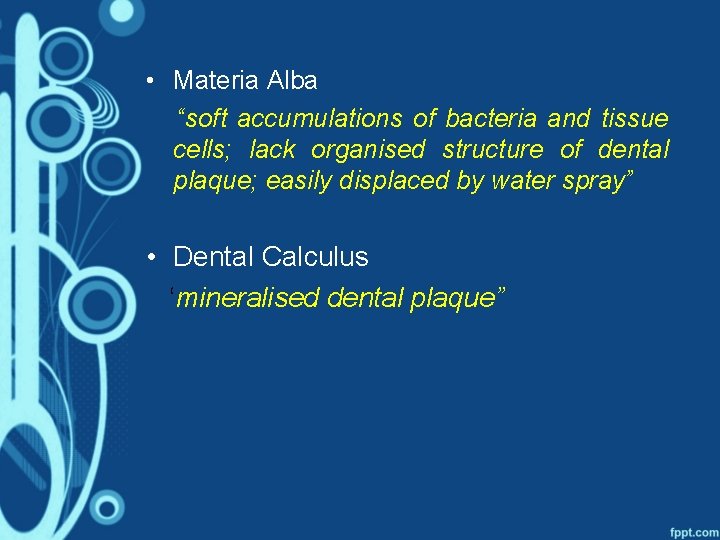

• Materia Alba “soft accumulations of bacteria and tissue cells; lack organised structure of dental plaque; easily displaced by water spray” • Dental Calculus ‘mineralised dental plaque”

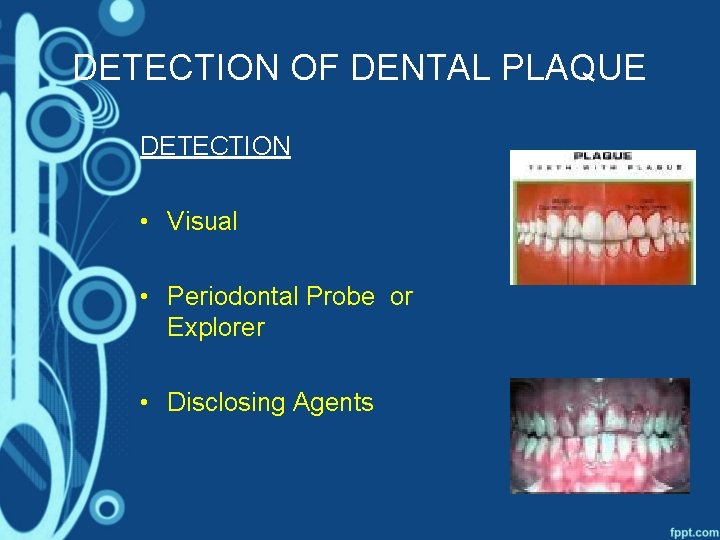

DETECTION OF DENTAL PLAQUE DETECTION • Visual • Periodontal Probe or Explorer • Disclosing Agents

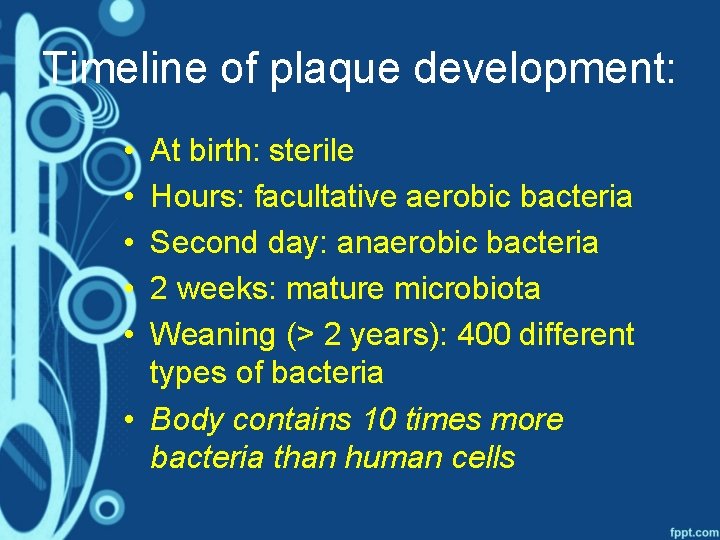

Timeline of plaque development: • • • At birth: sterile Hours: facultative aerobic bacteria Second day: anaerobic bacteria 2 weeks: mature microbiota Weaning (> 2 years): 400 different types of bacteria • Body contains 10 times more bacteria than human cells

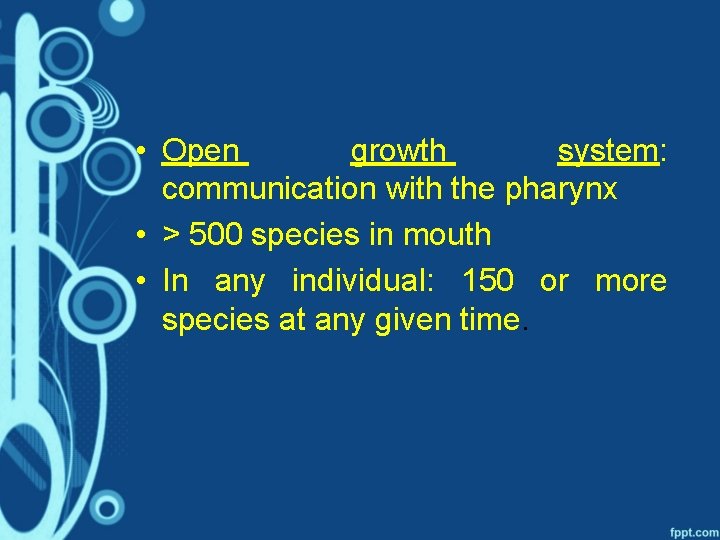

• Open growth system: communication with the pharynx • > 500 species in mouth • In any individual: 150 or more species at any given time.

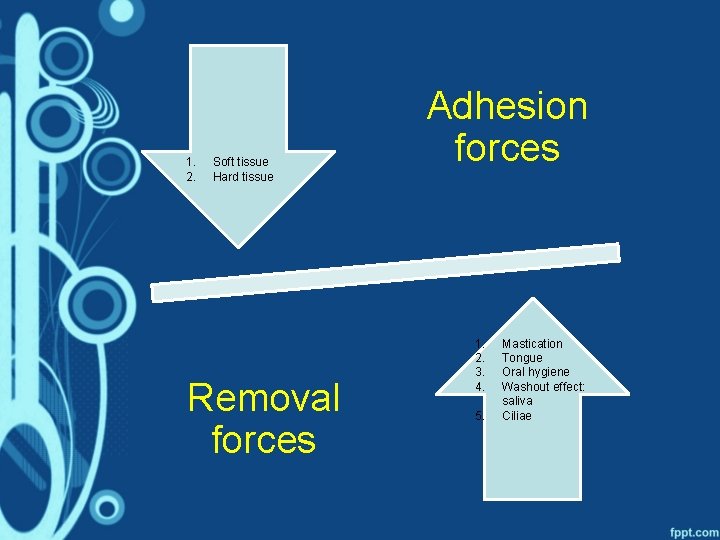

1. 2. Soft tissue Hard tissue Removal forces Adhesion forces 1. 2. 3. 4. 5. Mastication Tongue Oral hygiene Washout effect: saliva Ciliae

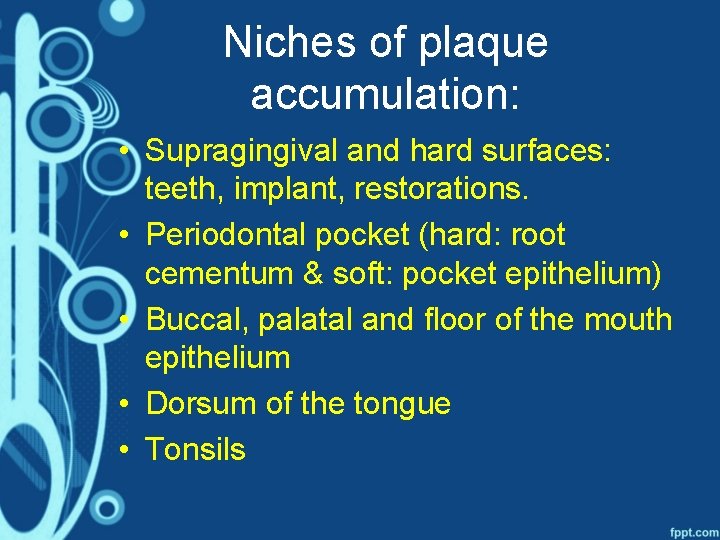

Niches of plaque accumulation: • Supragingival and hard surfaces: teeth, implant, restorations. • Periodontal pocket (hard: root cementum & soft: pocket epithelium) • Buccal, palatal and floor of the mouth epithelium • Dorsum of the tongue • Tonsils

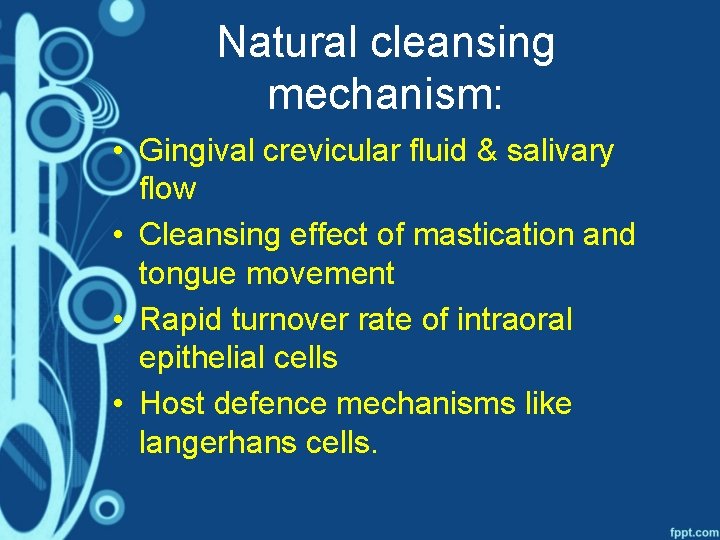

Natural cleansing mechanism: • Gingival crevicular fluid & salivary flow • Cleansing effect of mastication and tongue movement • Rapid turnover rate of intraoral epithelial cells • Host defence mechanisms like langerhans cells.

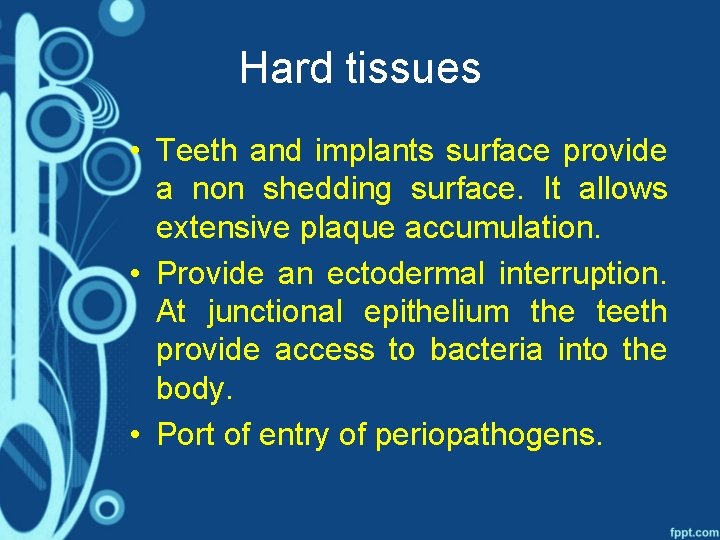

Hard tissues • Teeth and implants surface provide a non shedding surface. It allows extensive plaque accumulation. • Provide an ectodermal interruption. At junctional epithelium the teeth provide access to bacteria into the body. • Port of entry of periopathogens.

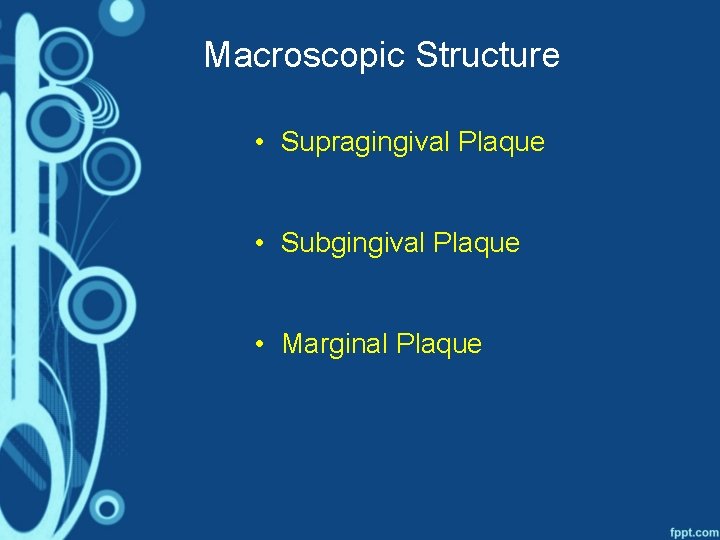

Macroscopic Structure • Supragingival Plaque • Subgingival Plaque • Marginal Plaque

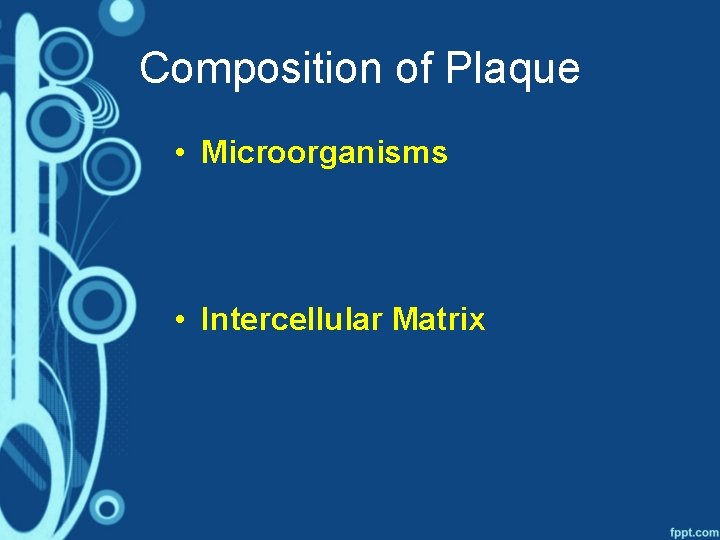

Composition of Plaque • Microorganisms • Intercellular Matrix

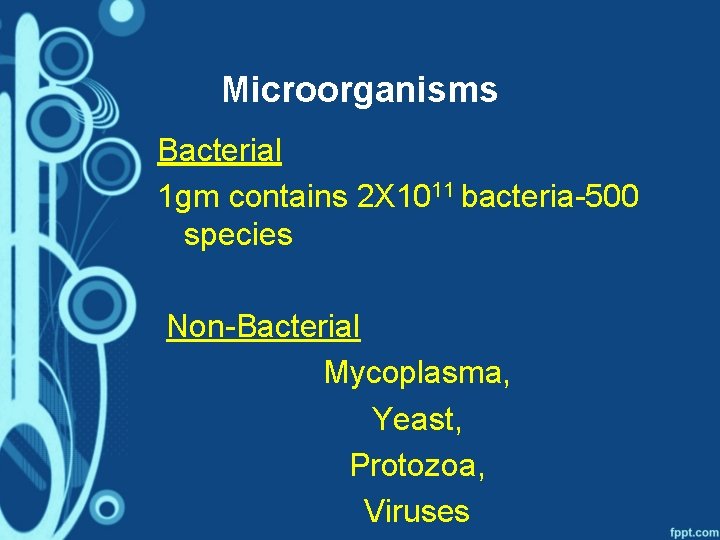

Microorganisms Bacterial 1 gm contains 2 X 1011 bacteria-500 species Non-Bacterial Mycoplasma, Yeast, Protozoa, Viruses

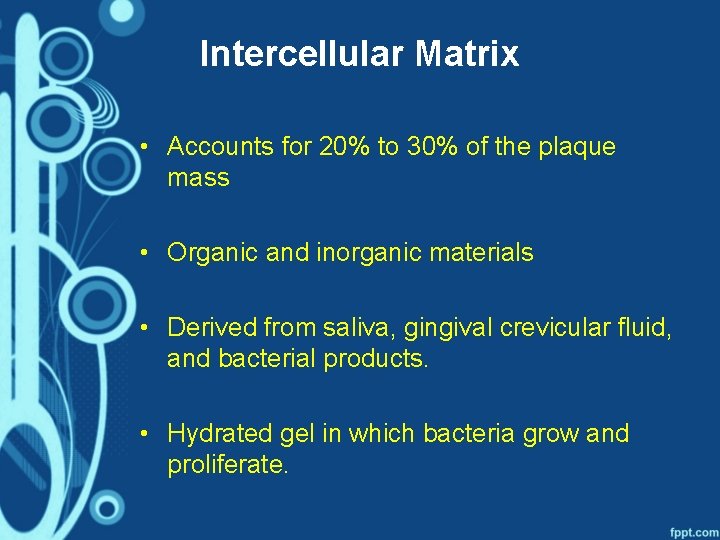

Intercellular Matrix • Accounts for 20% to 30% of the plaque mass • Organic and inorganic materials • Derived from saliva, gingival crevicular fluid, and bacterial products. • Hydrated gel in which bacteria grow and proliferate.

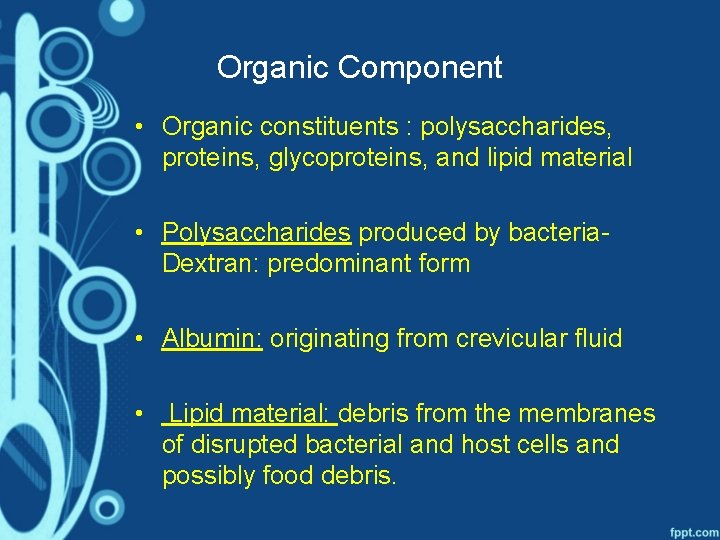

Organic Component • Organic constituents : polysaccharides, proteins, glycoproteins, and lipid material • Polysaccharides produced by bacteria. Dextran: predominant form • Albumin: originating from crevicular fluid • Lipid material: debris from the membranes of disrupted bacterial and host cells and possibly food debris.

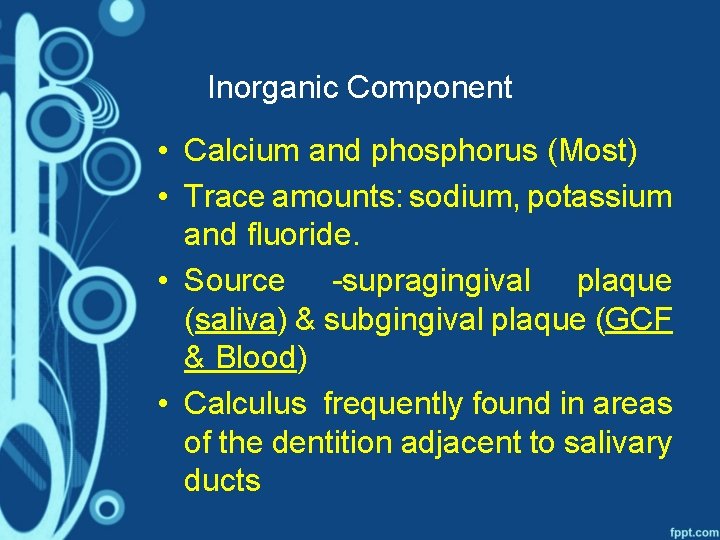

Inorganic Component • Calcium and phosphorus (Most) • Trace amounts: sodium, potassium and fluoride. • Source -supragingival plaque (saliva) & subgingival plaque (GCF & Blood) • Calculus frequently found in areas of the dentition adjacent to salivary ducts

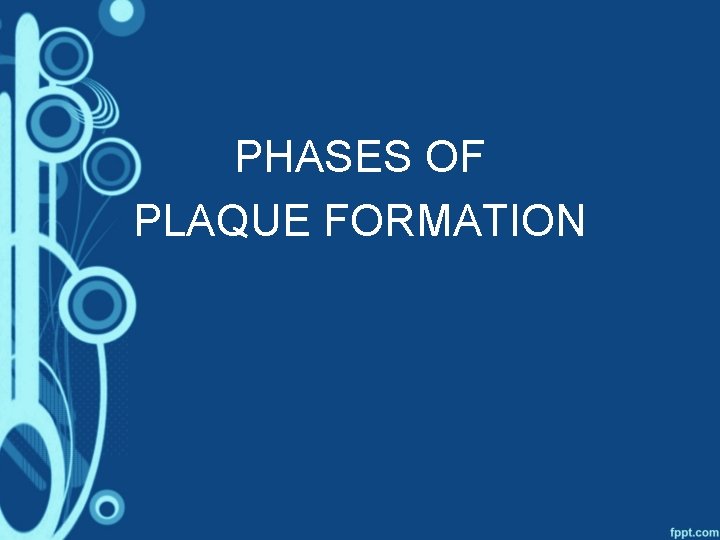

PHASES OF PLAQUE FORMATION

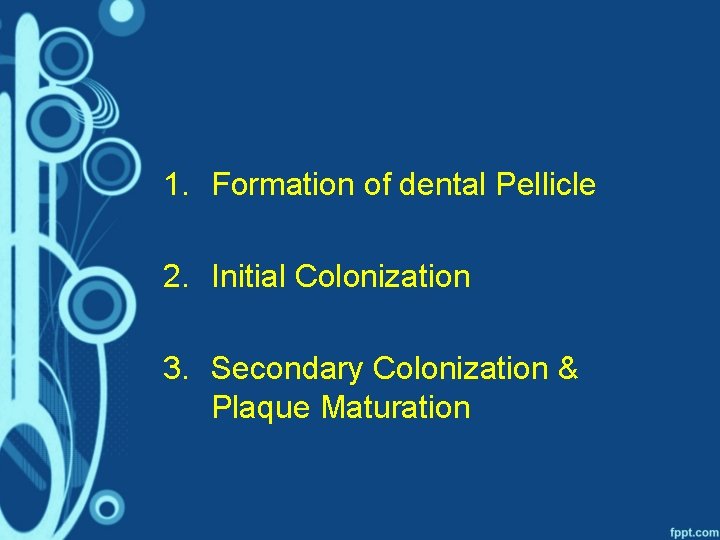

1. Formation of dental Pellicle 2. Initial Colonization 3. Secondary Colonization & Plaque Maturation

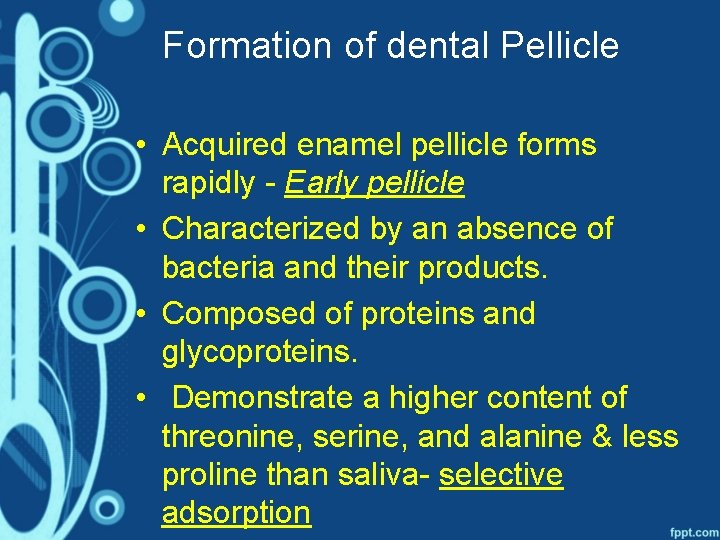

Formation of dental Pellicle • Acquired enamel pellicle forms rapidly - Early pellicle • Characterized by an absence of bacteria and their products. • Composed of proteins and glycoproteins. • Demonstrate a higher content of threonine, serine, and alanine & less proline than saliva- selective adsorption

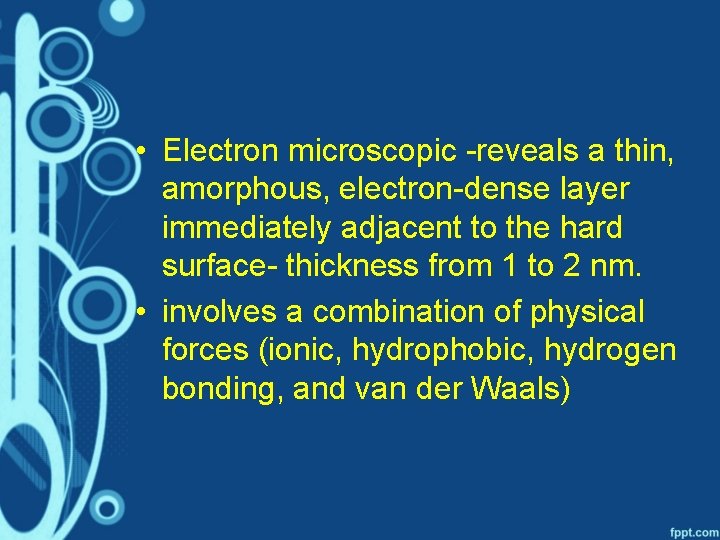

• Electron microscopic -reveals a thin, amorphous, electron-dense layer immediately adjacent to the hard surface- thickness from 1 to 2 nm. • involves a combination of physical forces (ionic, hydrophobic, hydrogen bonding, and van der Waals)

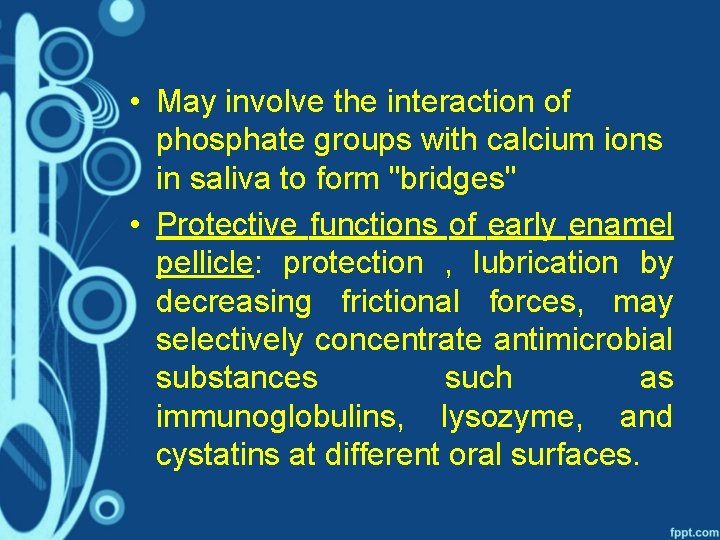

• May involve the interaction of phosphate groups with calcium ions in saliva to form "bridges" • Protective functions of early enamel pellicle: protection , lubrication by decreasing frictional forces, may selectively concentrate antimicrobial substances such as immunoglobulins, lysozyme, and cystatins at different oral surfaces.

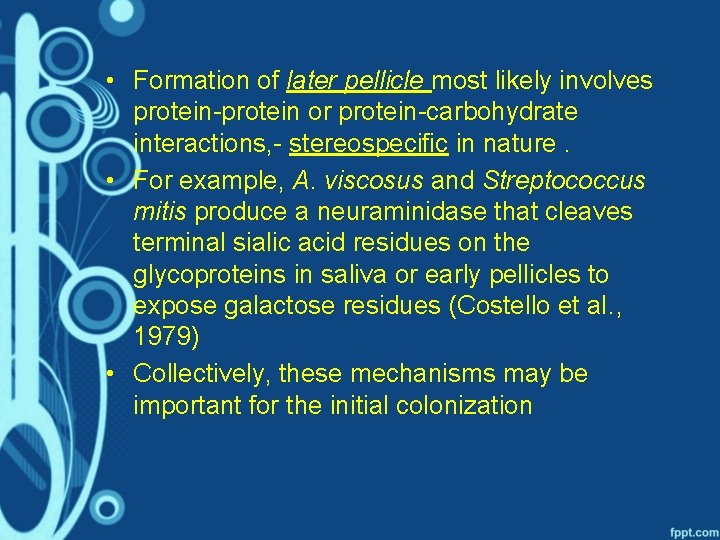

• Formation of later pellicle most likely involves protein-protein or protein-carbohydrate interactions, - stereospecific in nature. • For example, A. viscosus and Streptococcus mitis produce a neuraminidase that cleaves terminal sialic acid residues on the glycoproteins in saliva or early pellicles to expose galactose residues (Costello et a. I. , 1979) • Collectively, these mechanisms may be important for the initial colonization

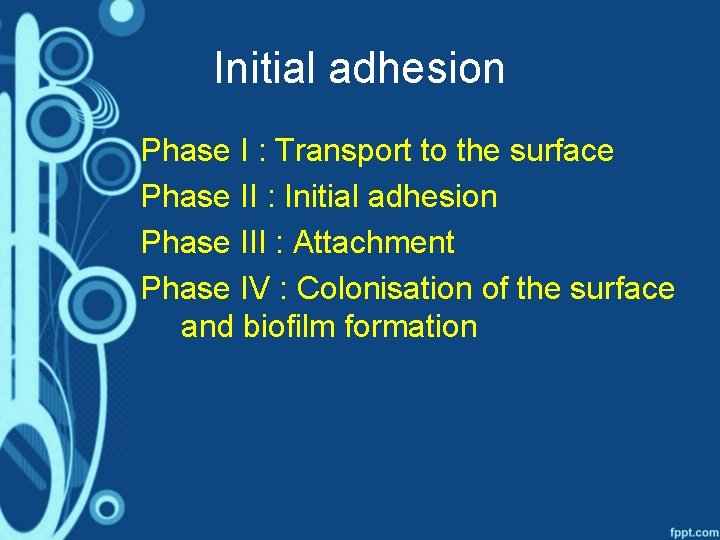

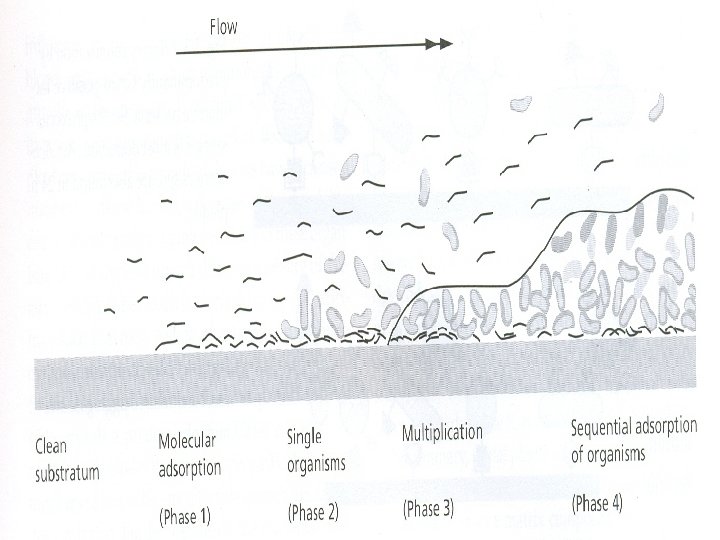

Initial adhesion Phase I : Transport to the surface Phase II : Initial adhesion Phase III : Attachment Phase IV : Colonisation of the surface and biofilm formation

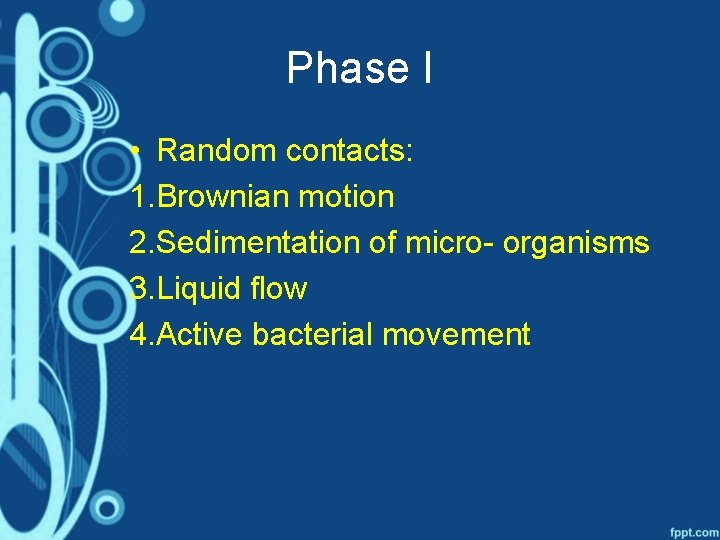

Phase I • Random contacts: 1. Brownian motion 2. Sedimentation of micro- organisms 3. Liquid flow 4. Active bacterial movement

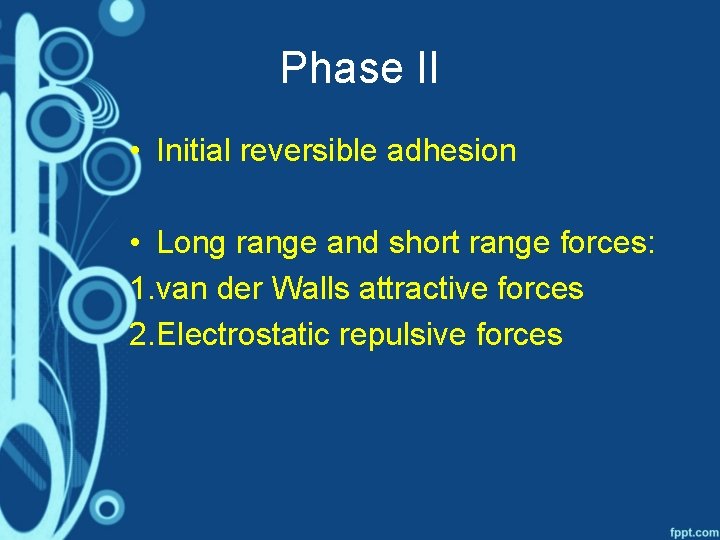

Phase II • Initial reversible adhesion • Long range and short range forces: 1. van der Walls attractive forces 2. Electrostatic repulsive forces

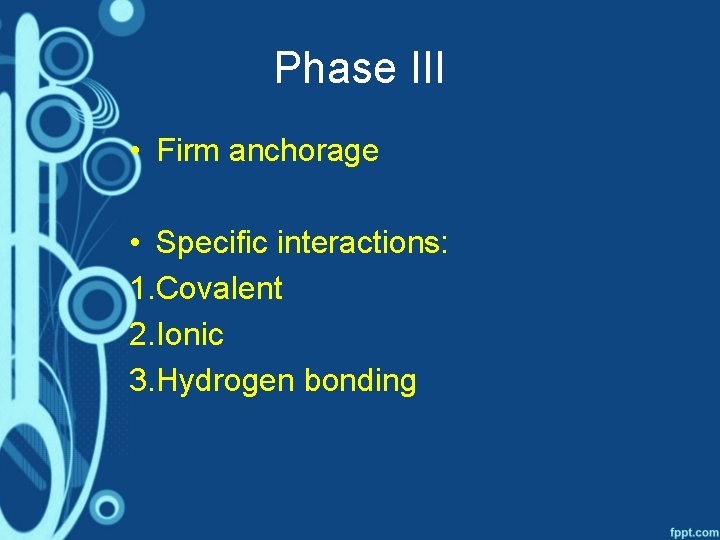

Phase III • Firm anchorage • Specific interactions: 1. Covalent 2. Ionic 3. Hydrogen bonding

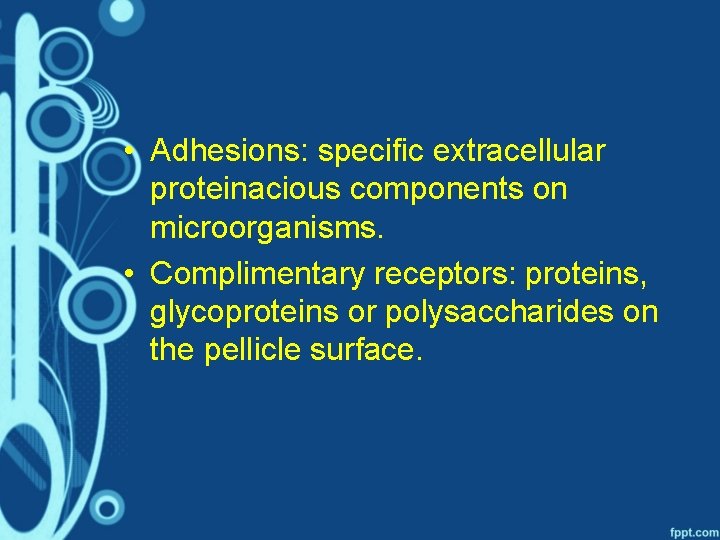

• Adhesions: specific extracellular proteinacious components on microorganisms. • Complimentary receptors: proteins, glycoproteins or polysaccharides on the pellicle surface.

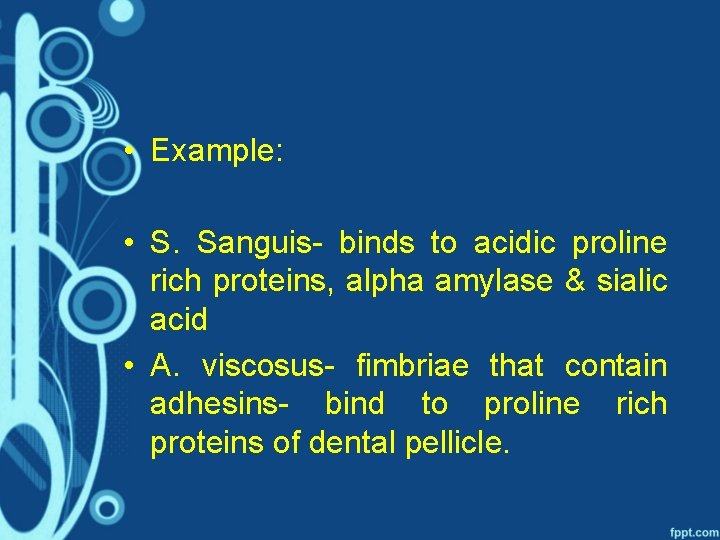

• Example: • S. Sanguis- binds to acidic proline rich proteins, alpha amylase & sialic acid • A. viscosus- fimbriae that contain adhesins- bind to proline rich proteins of dental pellicle.

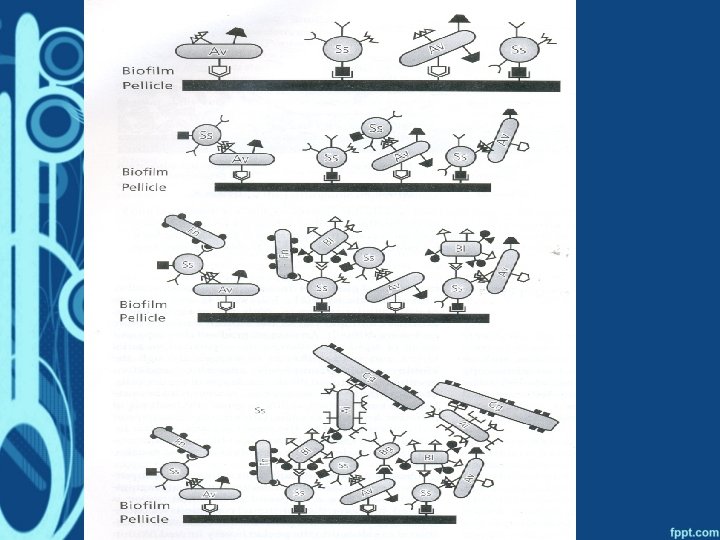

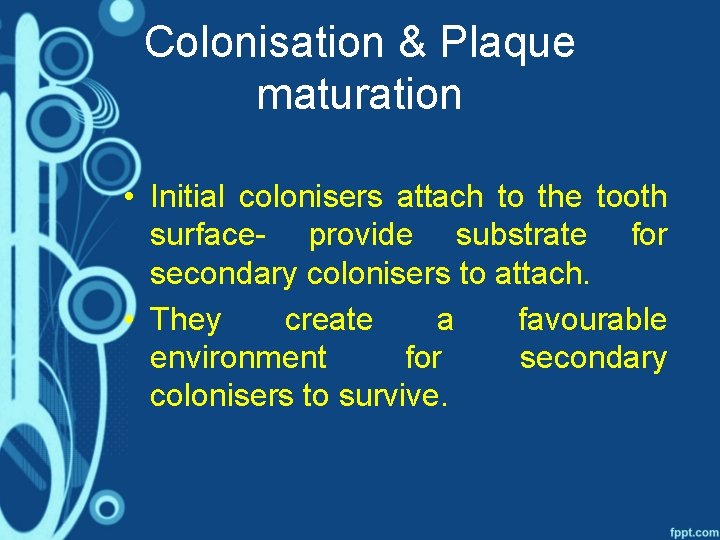

Colonisation & Plaque maturation • Initial colonisers attach to the tooth surface- provide substrate for secondary colonisers to attach. • They create a favourable environment for secondary colonisers to survive.

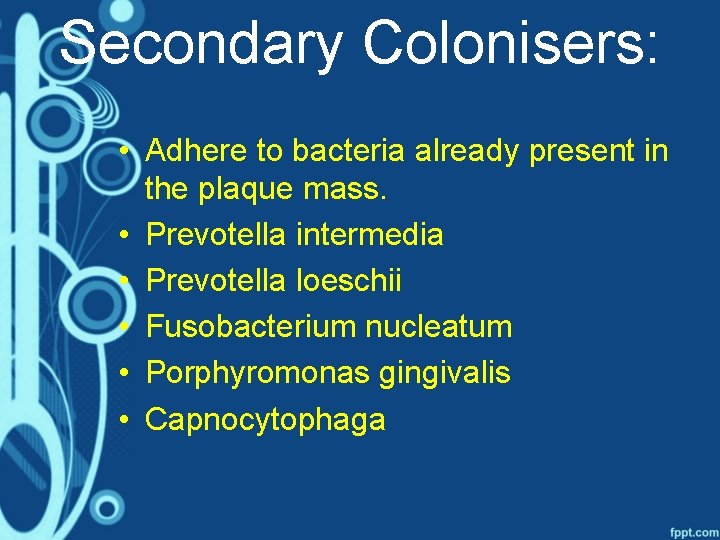

Secondary Colonisers: • Adhere to bacteria already present in the plaque mass. • Prevotella intermedia • Prevotella loeschii • Fusobacterium nucleatum • Porphyromonas gingivalis • Capnocytophaga

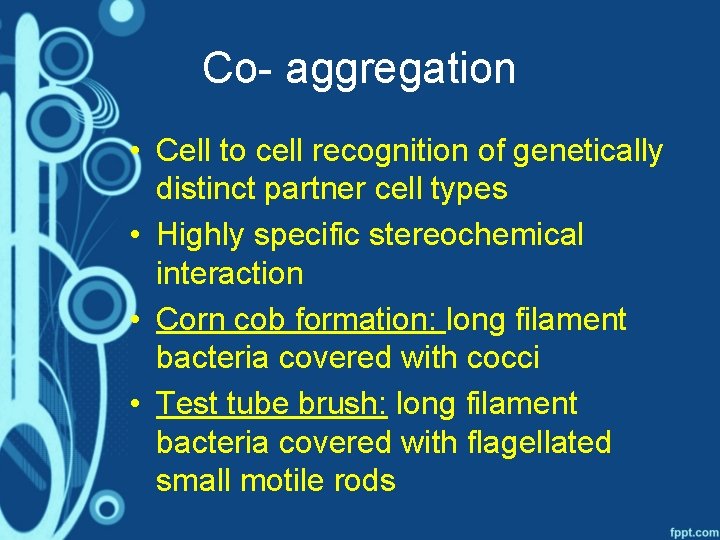

Co- aggregation • Cell to cell recognition of genetically distinct partner cell types • Highly specific stereochemical interaction • Corn cob formation: long filament bacteria covered with cocci • Test tube brush: long filament bacteria covered with flagellated small motile rods

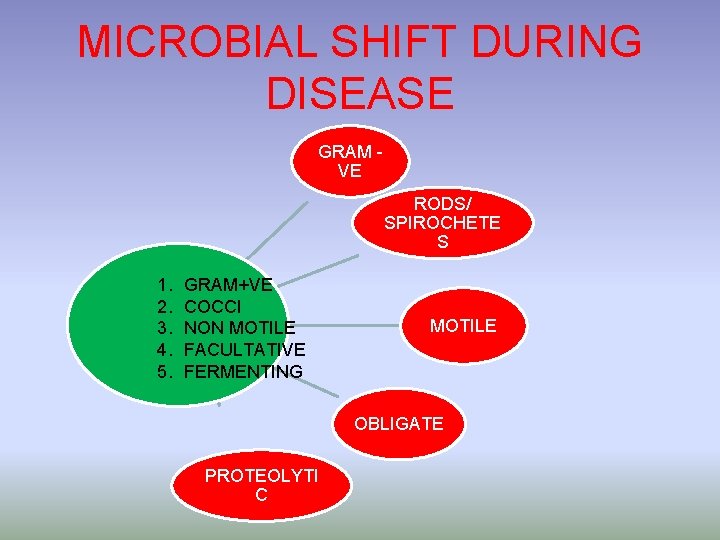

MICROBIAL SHIFT DURING DISEASE GRAM VE RODS/ SPIROCHETE S 1. 2. 3. 4. 5. GRAM+VE COCCI NON MOTILE FACULTATIVE FERMENTING MOTILE OBLIGATE PROTEOLYTI C

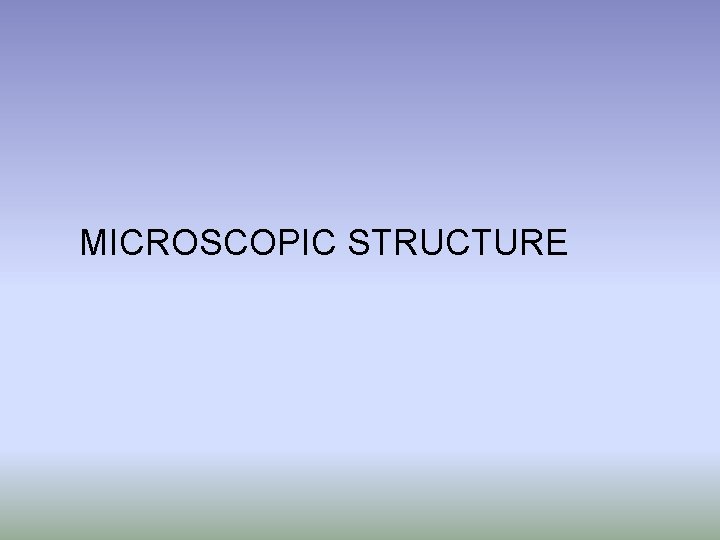

MICROSCOPIC STRUCTURE

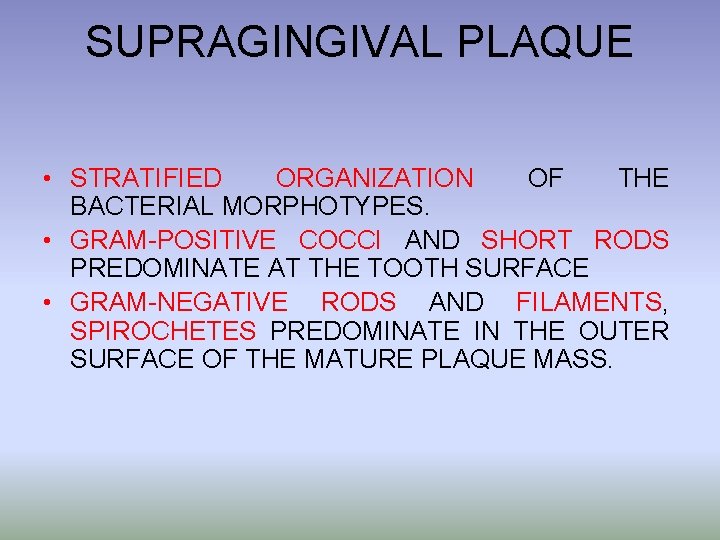

SUPRAGINGIVAL PLAQUE • STRATIFIED ORGANIZATION OF THE BACTERIAL MORPHOTYPES. • GRAM-POSITIVE COCCI AND SHORT RODS PREDOMINATE AT THE TOOTH SURFACE • GRAM-NEGATIVE RODS AND FILAMENTS, SPIROCHETES PREDOMINATE IN THE OUTER SURFACE OF THE MATURE PLAQUE MASS.

CORN COB STRUCTURE CORN-COB STRUCTURE

Thin section of supragingival plaque GRAM POSITIVE BACTERIA IN PALISADING ARRANGEMENT

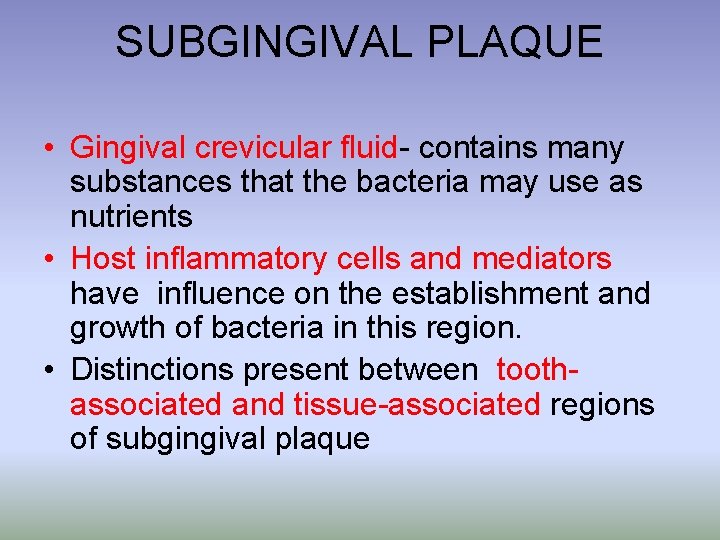

SUBGINGIVAL PLAQUE • Gingival crevicular fluid- contains many substances that the bacteria may use as nutrients • Host inflammatory cells and mediators have influence on the establishment and growth of bacteria in this region. • Distinctions present between toothassociated and tissue-associated regions of subgingival plaque

Thin section of plaque in a deep pocket RODS COCCI FILAMENTS

DENTAL PLAQUE AS BIOFILM

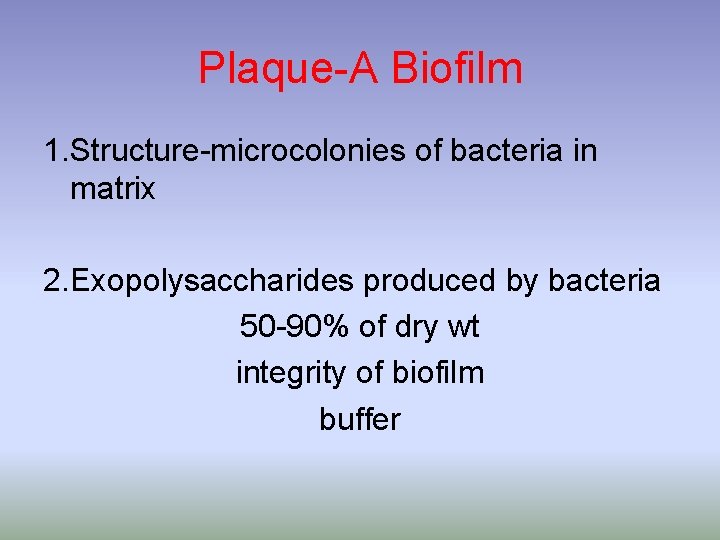

Plaque-A Biofilm 1. Structure-microcolonies of bacteria in matrix 2. Exopolysaccharides produced by bacteria 50 -90% of dry wt integrity of biofilm buffer

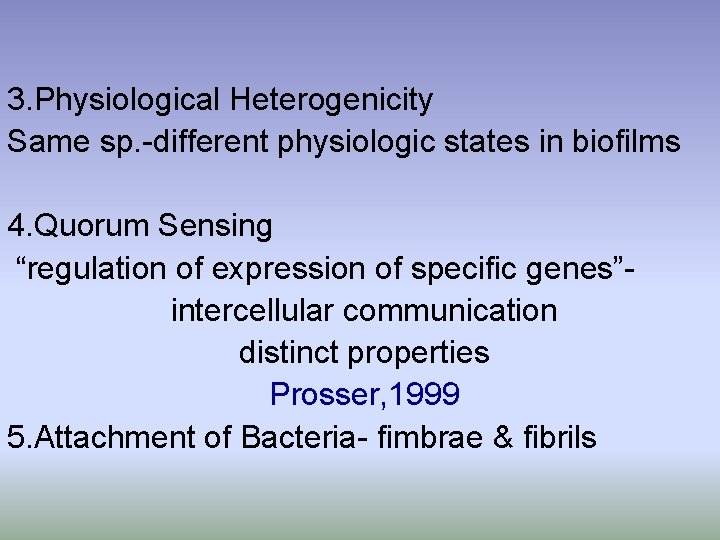

3. Physiological Heterogenicity Same sp. -different physiologic states in biofilms 4. Quorum Sensing “regulation of expression of specific genes”intercellular communication distinct properties Prosser, 1999 5. Attachment of Bacteria- fimbrae & fibrils

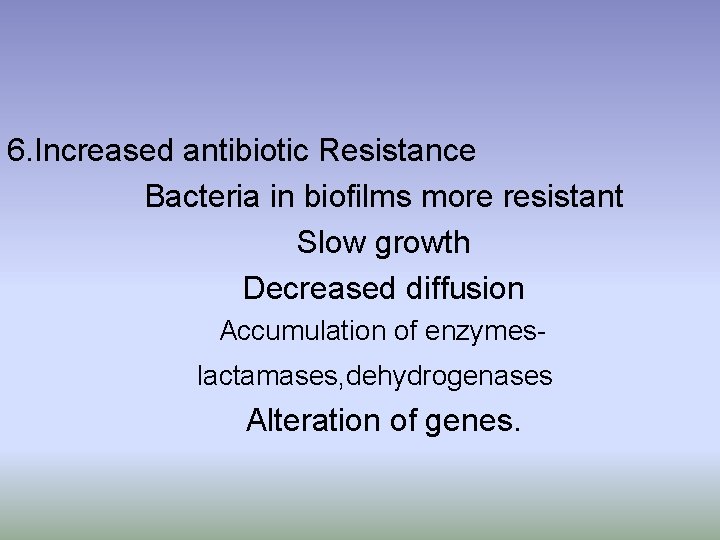

6. Increased antibiotic Resistance Bacteria in biofilms more resistant Slow growth Decreased diffusion Accumulation of enzymeslactamases, dehydrogenases Alteration of genes.

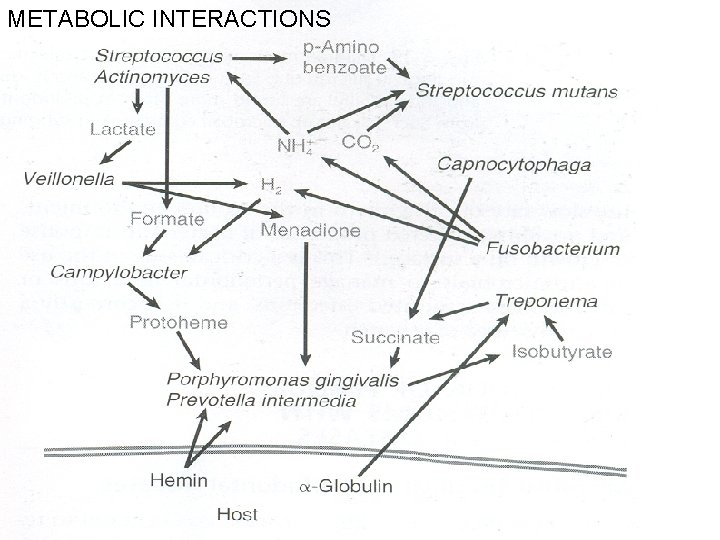

METABOLIC INTERACTIONS

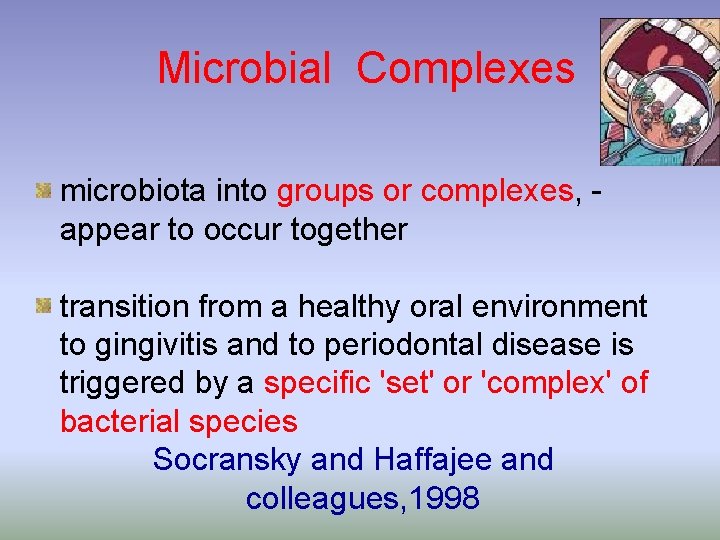

Microbial Complexes microbiota into groups or complexes, appear to occur together transition from a healthy oral environment to gingivitis and to periodontal disease is triggered by a specific 'set' or 'complex' of bacterial species Socransky and Haffajee and colleagues, 1998

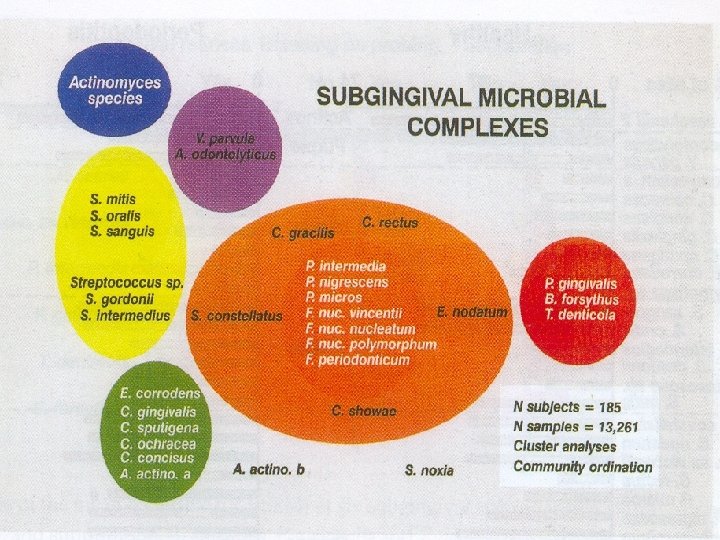

THE VARIOUS COMPLEXES

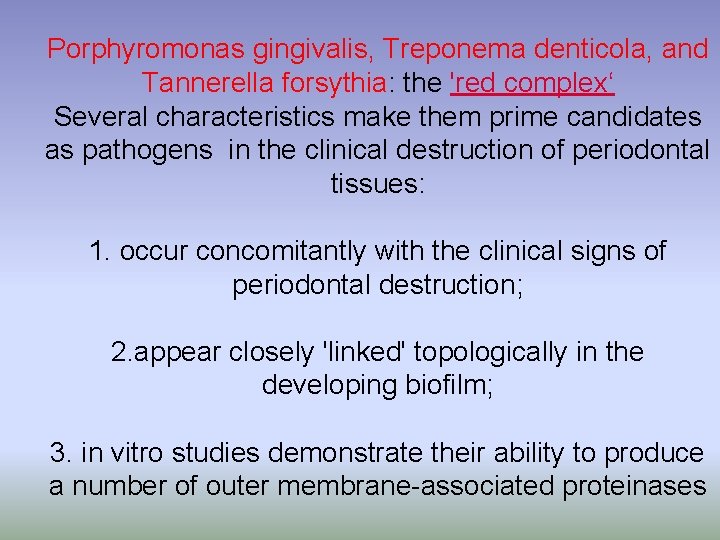

Porphyromonas gingivalis, Treponema denticola, and Tannerella forsythia: the 'red complex‘ Several characteristics make them prime candidates as pathogens in the clinical destruction of periodontal tissues: 1. occur concomitantly with the clinical signs of periodontal destruction; 2. appear closely 'linked' topologically in the developing biofilm; 3. in vitro studies demonstrate their ability to produce a number of outer membrane-associated proteinases

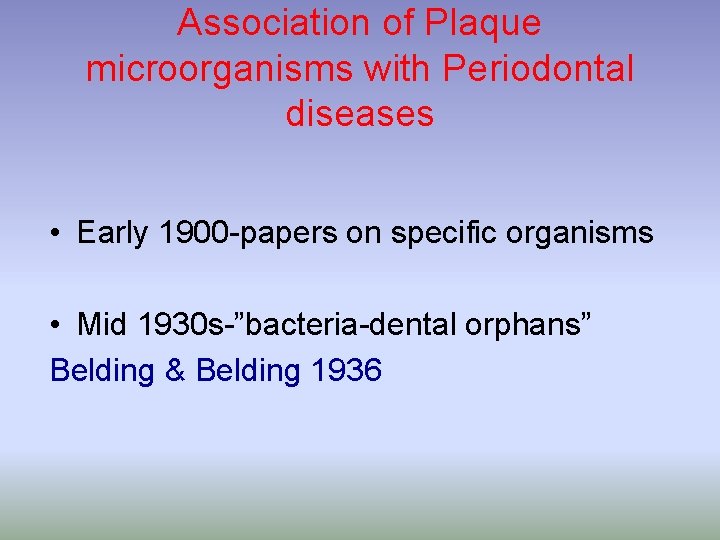

Association of Plaque microorganisms with Periodontal diseases • Early 1900 -papers on specific organisms • Mid 1930 s-”bacteria-dental orphans” Belding & Belding 1936

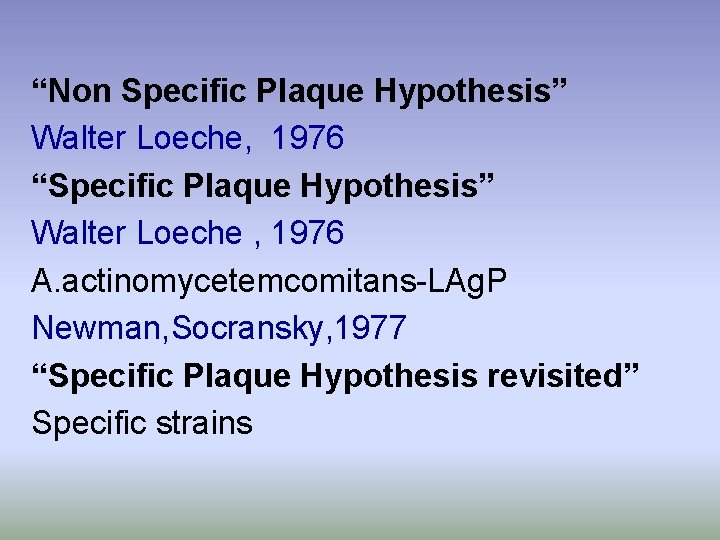

“Non Specific Plaque Hypothesis” Walter Loeche, 1976 “Specific Plaque Hypothesis” Walter Loeche , 1976 A. actinomycetemcomitans-LAg. P Newman, Socransky, 1977 “Specific Plaque Hypothesis revisited” Specific strains

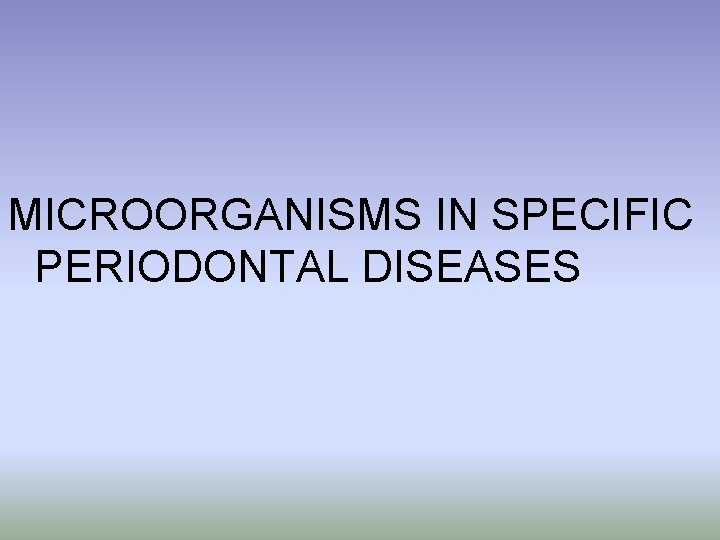

MICROORGANISMS IN SPECIFIC PERIODONTAL DISEASES

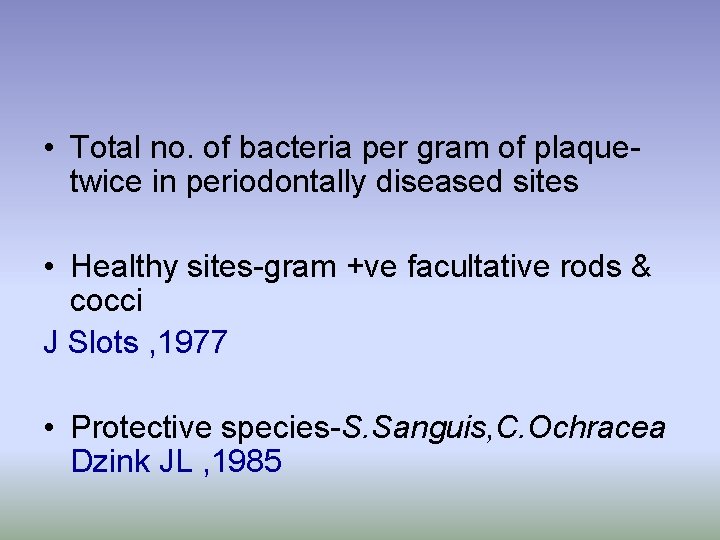

• Total no. of bacteria per gram of plaquetwice in periodontally diseased sites • Healthy sites-gram +ve facultative rods & cocci J Slots , 1977 • Protective species-S. Sanguis, C. Ochracea Dzink JL , 1985

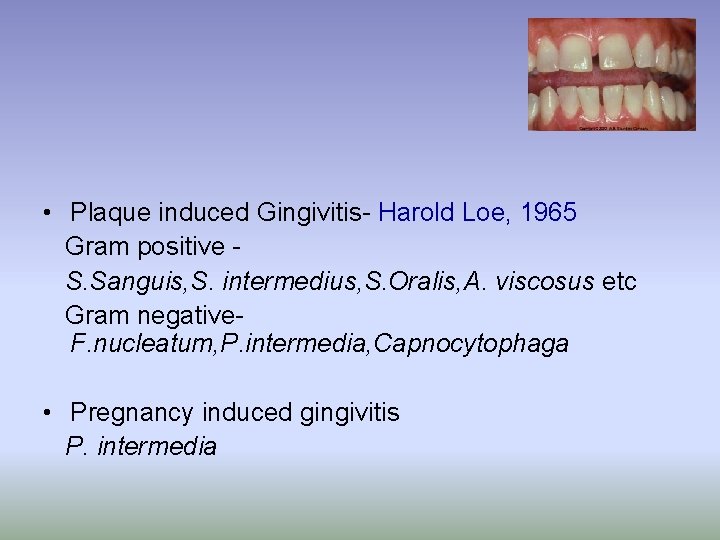

• Plaque induced Gingivitis- Harold Loe, 1965 Gram positive S. Sanguis, S. intermedius, S. Oralis, A. viscosus etc Gram negative. F. nucleatum, P. intermedia, Capnocytophaga • Pregnancy induced gingivitis P. intermedia

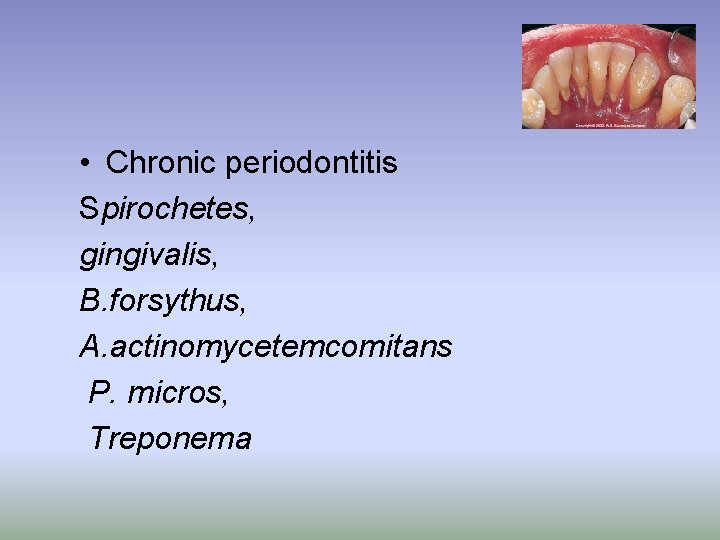

• Chronic periodontitis Spirochetes, gingivalis, B. forsythus, A. actinomycetemcomitans P. micros, Treponema

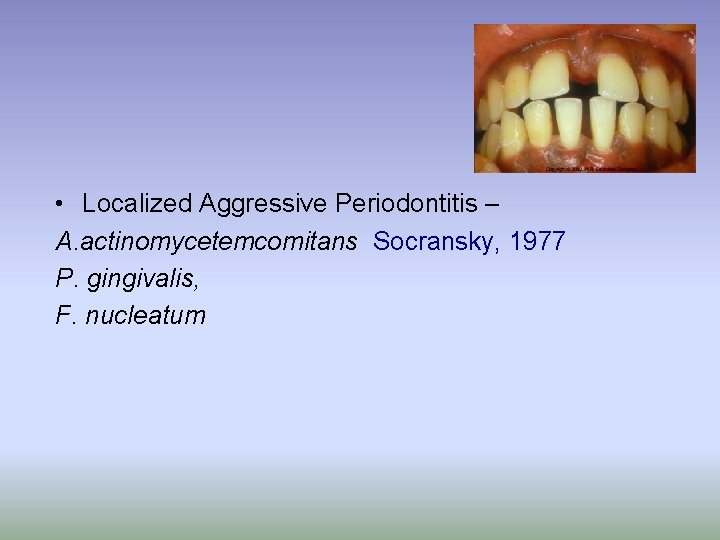

• Localized Aggressive Periodontitis – A. actinomycetemcomitans Socransky, 1977 P. gingivalis, F. nucleatum

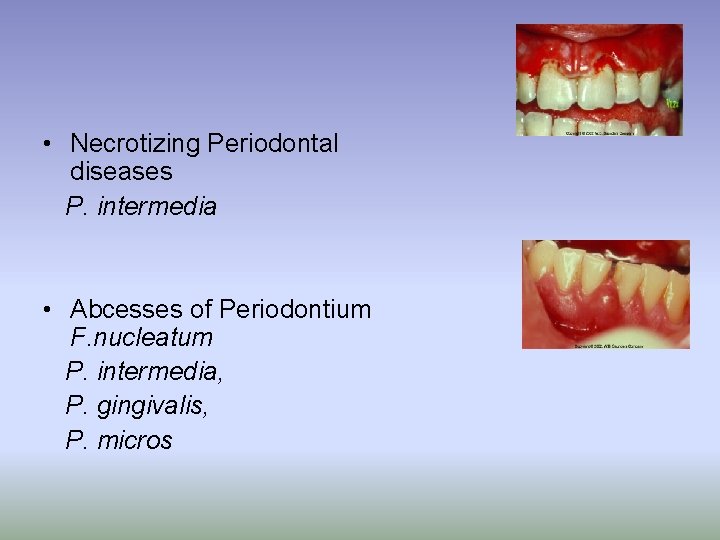

• Necrotizing Periodontal diseases P. intermedia • Abcesses of Periodontium F. nucleatum P. intermedia, P. gingivalis, P. micros

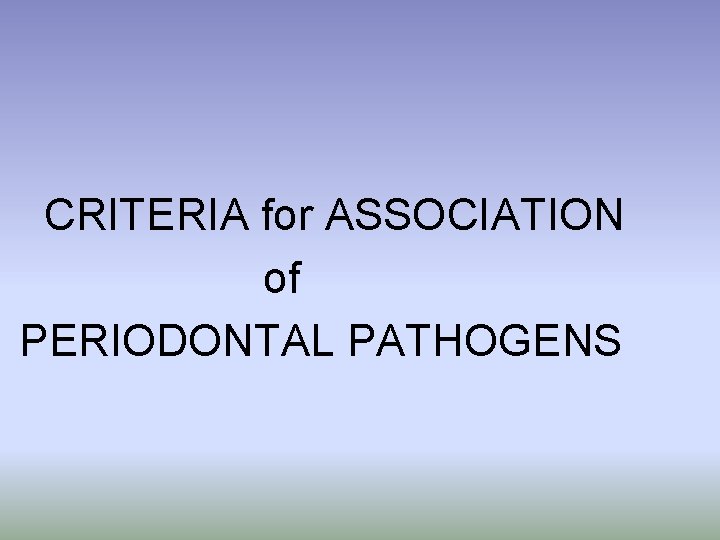

CRITERIA for ASSOCIATION of PERIODONTAL PATHOGENS

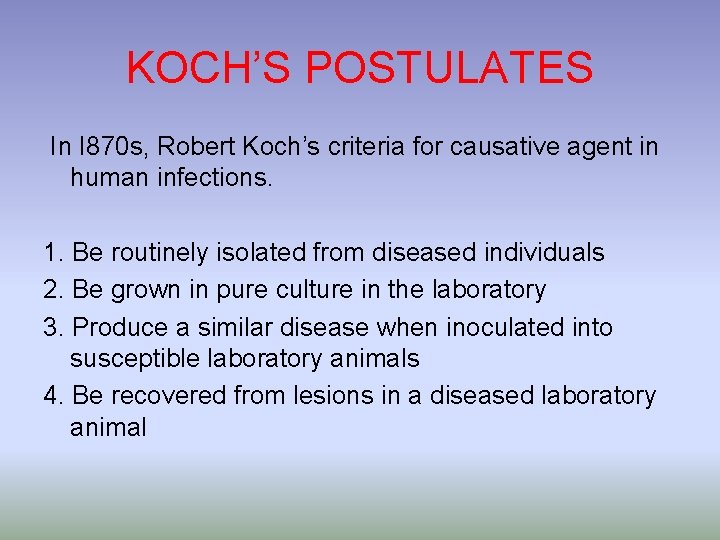

KOCH’S POSTULATES In I 870 s, Robert Koch’s criteria for causative agent in human infections. 1. Be routinely isolated from diseased individuals 2. Be grown in pure culture in the laboratory 3. Produce a similar disease when inoculated into susceptible laboratory animals 4. Be recovered from lesions in a diseased laboratory animal

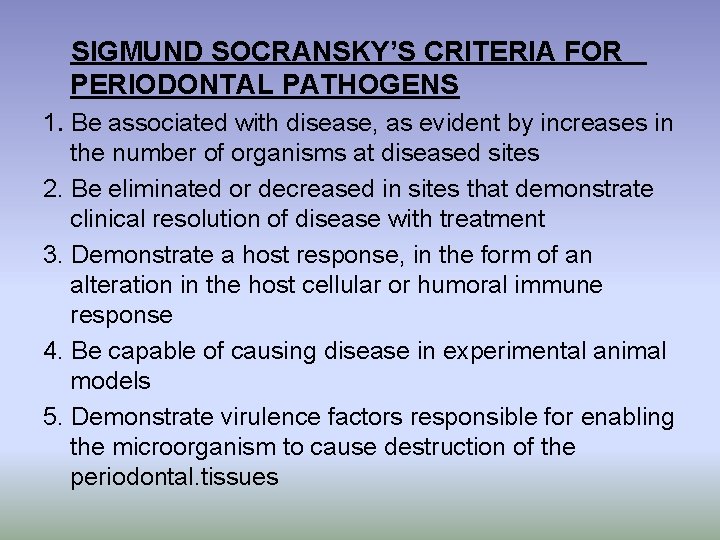

SIGMUND SOCRANSKY’S CRITERIA FOR PERIODONTAL PATHOGENS 1. Be associated with disease, as evident by increases in the number of organisms at diseased sites 2. Be eliminated or decreased in sites that demonstrate clinical resolution of disease with treatment 3. Demonstrate a host response, in the form of an alteration in the host cellular or humoral immune response 4. Be capable of causing disease in experimental animal models 5. Demonstrate virulence factors responsible for enabling the microorganism to cause destruction of the periodontal. tissues

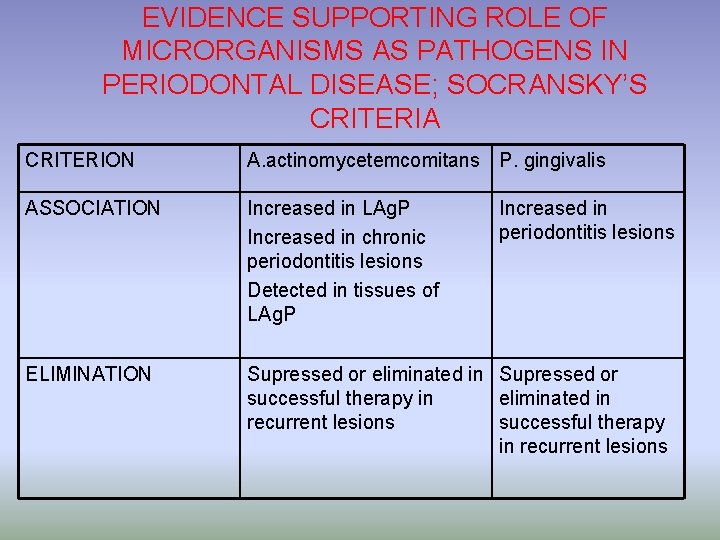

EVIDENCE SUPPORTING ROLE OF MICRORGANISMS AS PATHOGENS IN PERIODONTAL DISEASE; SOCRANSKY’S CRITERIA CRITERION A. actinomycetemcomitans P. gingivalis ASSOCIATION Increased in LAg. P Increased in chronic periodontitis lesions Detected in tissues of LAg. P ELIMINATION Supressed or eliminated in Supressed or successful therapy in eliminated in recurrent lesions successful therapy in recurrent lesions Increased in periodontitis lesions

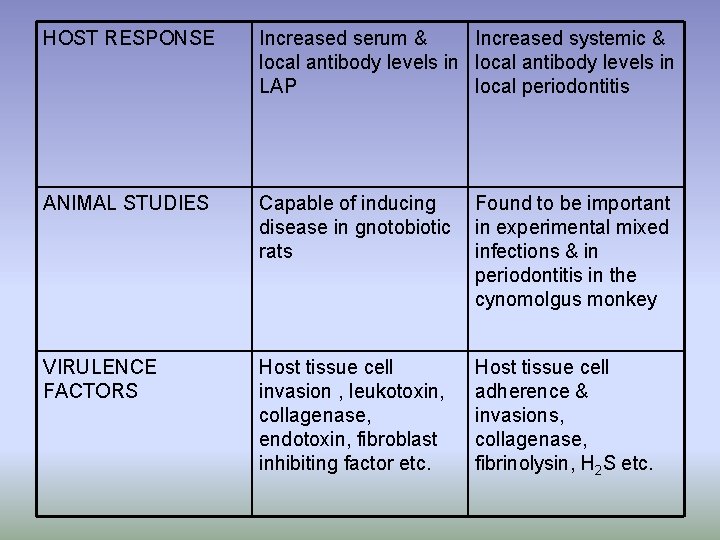

HOST RESPONSE Increased serum & Increased systemic & local antibody levels in LAP local periodontitis ANIMAL STUDIES Capable of inducing disease in gnotobiotic rats Found to be important in experimental mixed infections & in periodontitis in the cynomolgus monkey VIRULENCE FACTORS Host tissue cell invasion , leukotoxin, collagenase, endotoxin, fibroblast inhibiting factor etc. Host tissue cell adherence & invasions, collagenase, fibrinolysin, H 2 S etc.

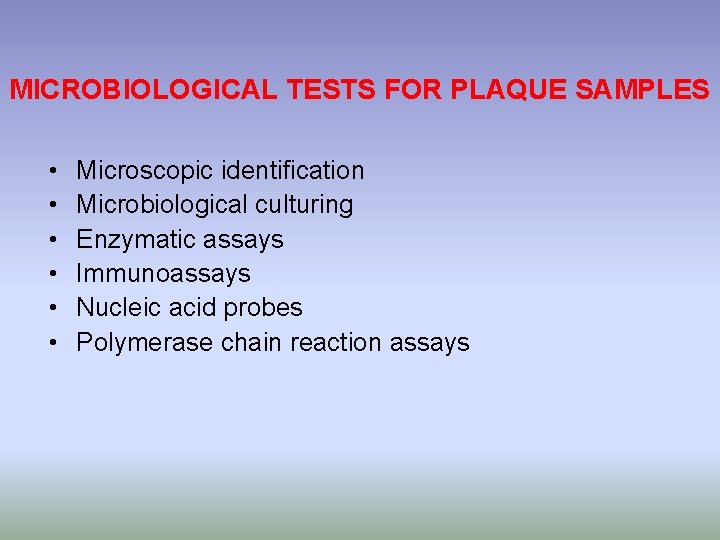

MICROBIOLOGICAL TESTS FOR PLAQUE SAMPLES • • • Microscopic identification Microbiological culturing Enzymatic assays Immunoassays Nucleic acid probes Polymerase chain reaction assays

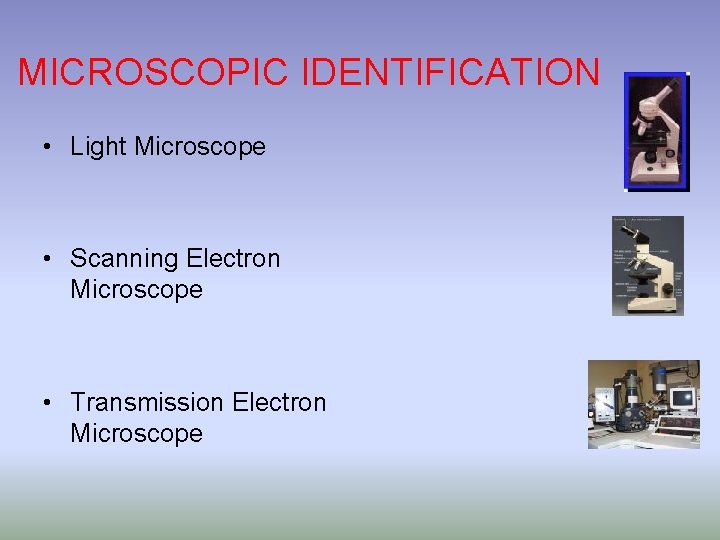

MICROSCOPIC IDENTIFICATION • Light Microscope • Scanning Electron Microscope • Transmission Electron Microscope

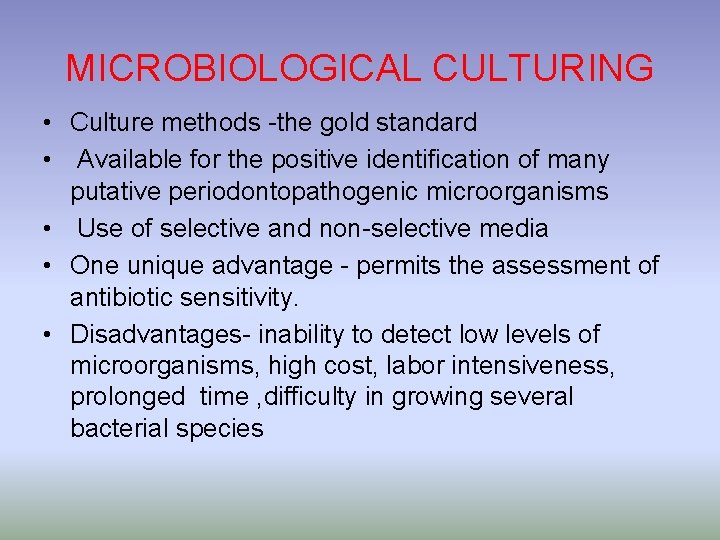

MICROBIOLOGICAL CULTURING • Culture methods -the gold standard • Available for the positive identification of many putative periodontopathogenic microorganisms • Use of selective and non-selective media • One unique advantage - permits the assessment of antibiotic sensitivity. • Disadvantages- inability to detect low levels of microorganisms, high cost, labor intensiveness, prolonged time , difficulty in growing several bacterial species

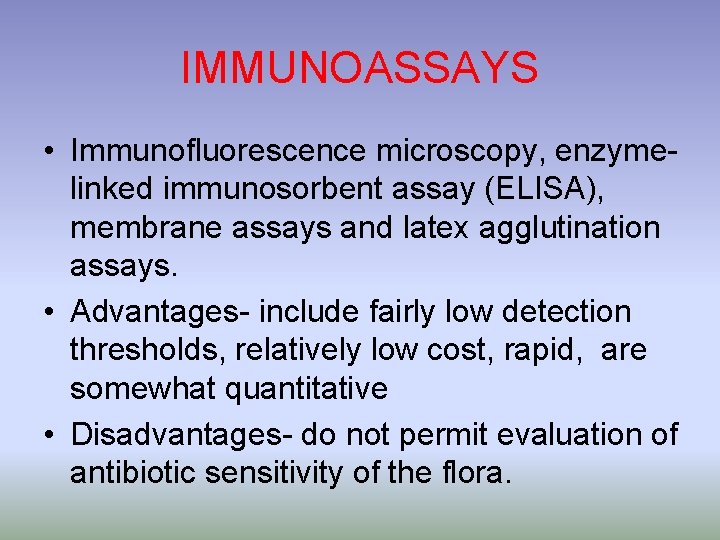

IMMUNOASSAYS • Immunofluorescence microscopy, enzymelinked immunosorbent assay (ELISA), membrane assays and latex agglutination assays. • Advantages- include fairly low detection thresholds, relatively low cost, rapid, are somewhat quantitative • Disadvantages- do not permit evaluation of antibiotic sensitivity of the flora.

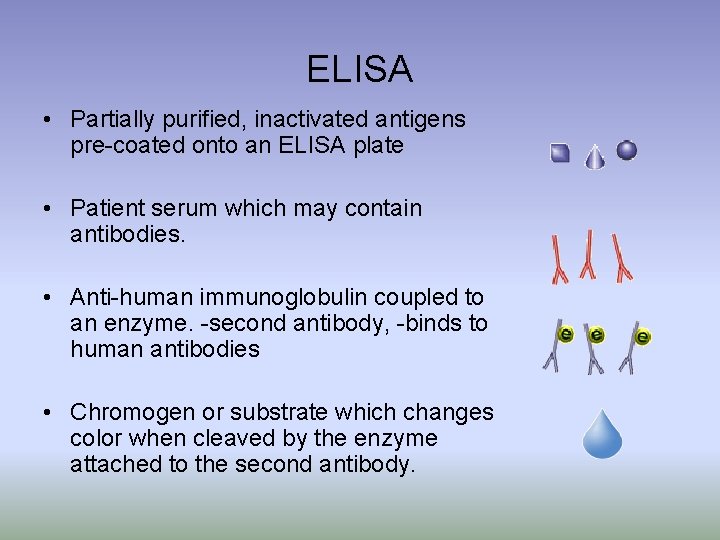

ELISA • Partially purified, inactivated antigens pre-coated onto an ELISA plate • Patient serum which may contain antibodies. • Anti-human immunoglobulin coupled to an enzyme. -second antibody, -binds to human antibodies • Chromogen or substrate which changes color when cleaved by the enzyme attached to the second antibody.

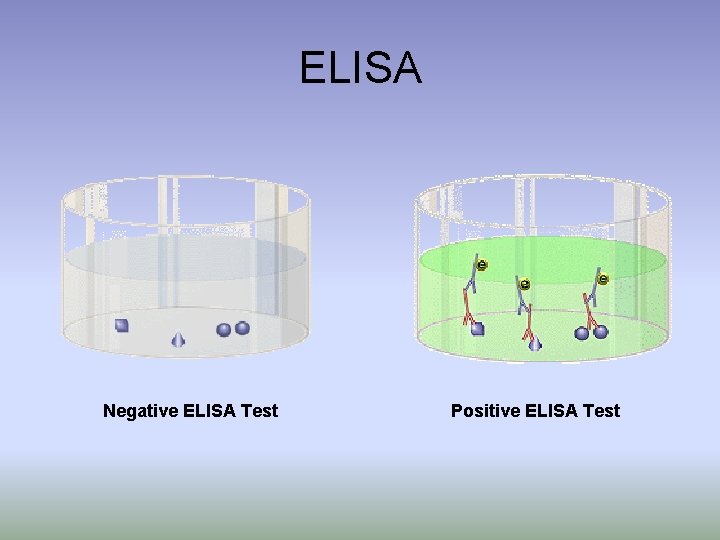

ELISA Negative ELISA Test Positive ELISA Test

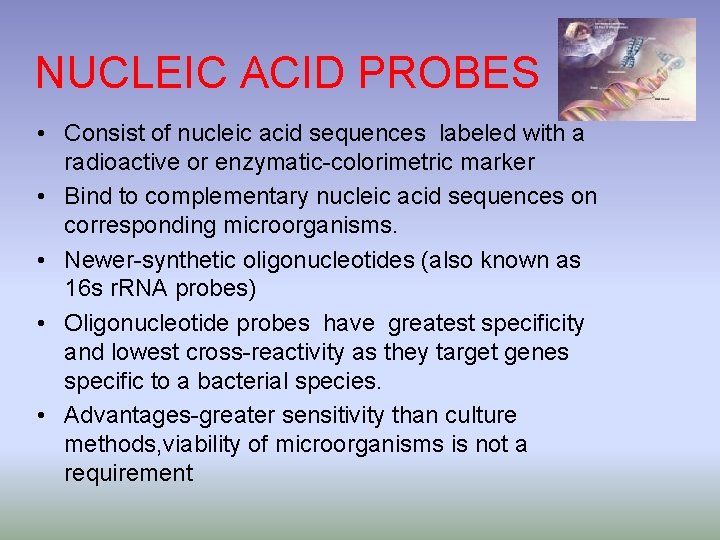

NUCLEIC ACID PROBES • Consist of nucleic acid sequences labeled with a radioactive or enzymatic-colorimetric marker • Bind to complementary nucleic acid sequences on corresponding microorganisms. • Newer-synthetic oligonucleotides (also known as 16 s r. RNA probes) • Oligonucleotide probes have greatest specificity and lowest cross-reactivity as they target genes specific to a bacterial species. • Advantages-greater sensitivity than culture methods, viability of microorganisms is not a requirement

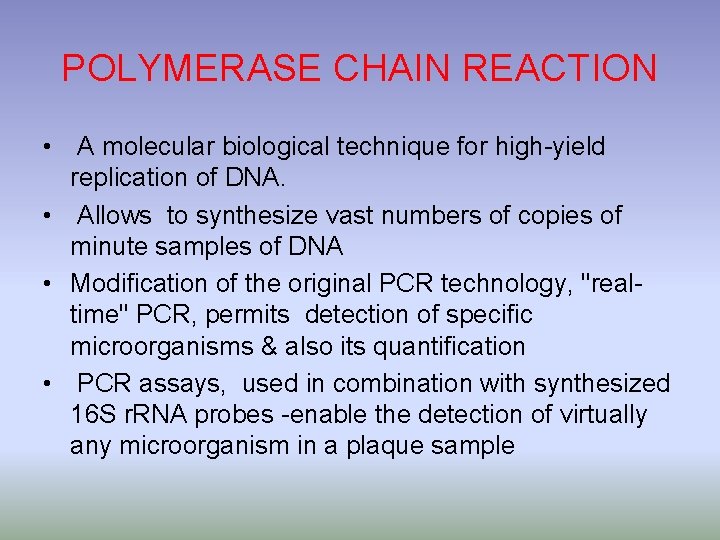

POLYMERASE CHAIN REACTION • A molecular biological technique for high-yield replication of DNA. • Allows to synthesize vast numbers of copies of minute samples of DNA • Modification of the original PCR technology, "realtime" PCR, permits detection of specific microorganisms & also its quantification • PCR assays, used in combination with synthesized 16 S r. RNA probes -enable the detection of virtually any microorganism in a plaque sample

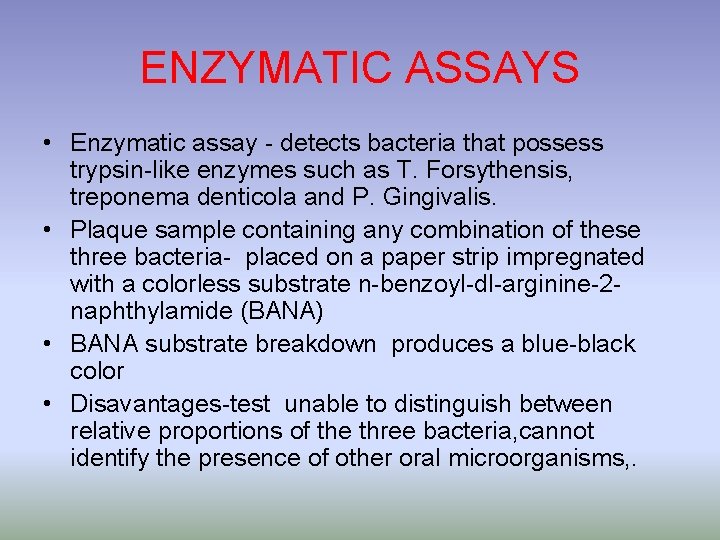

ENZYMATIC ASSAYS • Enzymatic assay - detects bacteria that possess trypsin-like enzymes such as T. Forsythensis, treponema denticola and P. Gingivalis. • Plaque sample containing any combination of these three bacteria- placed on a paper strip impregnated with a colorless substrate n-benzoyl-dl-arginine-2 naphthylamide (BANA) • BANA substrate breakdown produces a blue-black color • Disavantages-test unable to distinguish between relative proportions of the three bacteria, cannot identify the presence of other oral microorganisms, .
