CMPUT 329 Fall 2003 Topic C State Assignment
- Slides: 104
CMPUT 329 - Fall 2003 Topic C: State Assignment José Nelson Amaral CMPUT 329 - Computer Organization and Architecture II 1

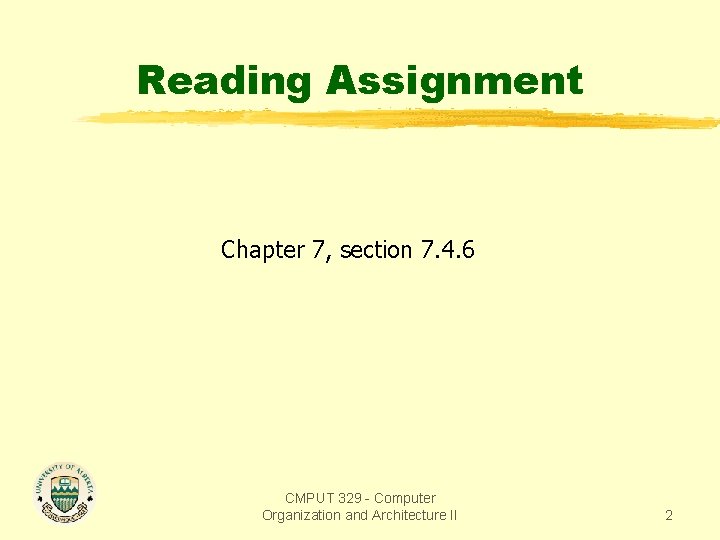

Reading Assignment Chapter 7, section 7. 4. 6 CMPUT 329 - Computer Organization and Architecture II 2
Incompletely Specified State Tables Network A X Sequential Network B Z Network C Assumptions: (i) Network A can only generate sequences X=100 and X = 110. (ii) Network B produces output Z=1 when it receives X=110 and output Z=0 for X=100 (iii) Network C ignores values of Z at other times. CMPUT 329 - Computer Organization and Architecture II 3
Incompletely Specified State Tables S 0 1/- S 1 CMPUT 329 - Computer Organization and Architecture II 4
Incompletely Specified State Tables S 0 S 2 0/- S 3 1/- S 1 1/- CMPUT 329 - Computer Organization and Architecture II 5
Incompletely Specified State Tables S 0 0/0 S 2 0/- S 3 1/- S 1 1/- CMPUT 329 - Computer Organization and Architecture II 6
Incompletely Specified State Tables S 0 0/1 S 2 0/- S 3 1/- S 1 1/- Whenever there is a don’t care state or a don’t care output, I can fill it with any value. CMPUT 329 - Computer Organization and Architecture II 7
Incompletely Specified State Tables S 0 0/1 S 2 0/- S 3 1/- S 1 1/- Therefore, I should fill it in a way that allows minimization of the state machine. CMPUT 329 - Computer Organization and Architecture II 8
Incompletely Specified State Tables 0/0 S 0 1/0/- 0/1 S 2 0/- S 3 S 1 1/- Therefore, I should fill it in a way the allows minimization of the state machined. CMPUT 329 - Computer Organization and Architecture II 9
Incompletely Specified State Tables 0/0 S 0 1/0/- 0/1 S 2 0/- S 3 S 1 1/- Therefore, I should fill it in a way the allows minimization of the state machined. CMPUT 329 - Computer Organization and Architecture II 10
Incompletely Specified State Tables 0/0 S 0 1/- 0/1 S 2 0/- S 3 S 1 1/- Therefore, I should fill it in a way the allows minimization of the state machined. CMPUT 329 - Computer Organization and Architecture II 11
Incompletely Specified State Tables 0/0 S 0 1/0/1 1/- S 1 CMPUT 329 - Computer Organization and Architecture II 12
Do State Assignments Matter? 00 1 S 4 1 1 S 0 0 00 0 1 0 S 3 01 1 0 11 S 2 10 0 CMPUT 329 - Computer Organization and Architecture II 13
State and Output Equations for Asgn #1 I 0 Q 1 1 1 X X X 1 1 1 Q 0 Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ CMPUT 329 - Computer Organization and Architecture II 14
State and Output Equations for Asgn #1 I 0 X Q 1 1 X X X 1 1 1 X X Q 0 1 Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ D 1 = Q 1 Q 2 ’ + Q 2 Q 1 ’ + Q 2 ’ I 0 CMPUT 329 - Computer Organization and Architecture II 15
State and Output Equations for Asgn #1 I 0 1 X Q 1 1 X X X 1 1 1 Q 0 Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ D 1 = Q 1 Q 2 ’ + Q 2 Q 1 ’ + Q 2 ’ I 0 D 0 = Q 2 Q 1’I 0’ + Q 2’Q 0’ I 0 + Q 1 Q 2’I 0’ CMPUT 329 - Computer Organization and Architecture II 16
State and Output Equations for Asgn #1 I 0 1 X Q 1 1 X X X 1 1 1 Q 0 Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ D 1 = Q 1 Q 2 ’ + Q 2 Q 1 ’ + Q 2 ’ I 0 D 0 = Q 2 Q 1’I 0’ + Q 2’Q 0’ I 0 + Q 1 Q 2’I 0’ CMPUT 329 - Computer Organization and Architecture II 17
State and Output Equations for Asgn #1 1 X Q 1 X 1 Q 0 X Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ D 1 = Q 1 Q 2 ’ + Q 2 Q 1 ’ + Q 2 ’ I 0 D 0 = Q 2 Q 1’I 0’ + Q 2’Q 0’ I 0 + Q 1 Q 2’I 0’ Z 0 = Q 2’Q 0 + Q 2 Q 1’ CMPUT 329 - Computer Organization and Architecture II 18
State and Output Equations for Asgn #1 1 Q 1 X X 1 X Q 0 Q 2 D 2 = Q 1 ’ I 0 ’ + Q 2 ’ I 0 ’ + Q 1 Q 0 ’ D 1 = Q 1 Q 2 ’ + Q 2 Q 1 ’ + Q 2 ’ I 0 D 0 = Q 2 Q 1’I 0’ + Q 2’Q 0’ I 0 + Q 1 Q 2’I 0’ Z 0 = Q 2’Q 0 + Q 2 Q 1’ Z 1 = Q 1 Q 0 ’ + Q 2 Q 1 ’ CMPUT 329 - Computer Organization and Architecture II 19
State and Output Equations for Asgn #1 same term, only pay for it once CMPUT 329 - Computer Organization and Architecture II 20
State and Output Equations for Asgn #2 I 0 1 X Q 1 1 X X X Q 0 Q 2 D 2 = Q 2’Q 1’ CMPUT 329 - Computer Organization and Architecture II 21
State and Output Equations for Asgn #2 I 0 Q 1 1 X X 1 1 1 Q 0 Q 2 D 2 = Q 2’Q 1’ D 1 = Q 2 + Q 0 + Q 1’I 0 CMPUT 329 - Computer Organization and Architecture II 22
State and Output Equations for Asgn #2 I 0 1 X Q 1 X X X Q 0 1 Q 2 D 2 = Q 2’Q 1’ D 1 = Q 2 + Q 0 + Q 1’I 0 D 0 = Q 2 I 0 CMPUT 329 - Computer Organization and Architecture II 23
State and Output Equations for Asgn #2 1 X Q 1 X X Q 0 1 Q 2 D 2 = Q 2’Q 1’ D 1 = Q 2 + Q 0 + Q 1’I 0 D 0 = Q 2 I 0 Z 0 = Q 2 CMPUT 329 - Computer Organization and Architecture II 24
State and Output Equations for Asgn #2 1 Q 1 X X 1 X Q 0 Q 2 D 2 = Q 2’Q 1’ D 1 = Q 2 + Q 0 + Q 1’I 0 D 0 = Q 2 I 0 Z 0 = Q 2 Z = Q + Q 2 Q 1’ CMPUT 329 - Computer 1 0 Organization and Architecture II 25
State and Output Equations for Asgn #2 CMPUT 329 - Computer Organization and Architecture II 26
State and Output Equations for Asgn #2 13 CMPUT 329 - Computer Organization and Architecture II 36 27
How to choose a state assignment? What makes one assignment yield a set of equations with a cost of 36 and another assignment result in a set of equations with a cost of 13? How can we choose the best state assignment for a given state machine? Could we try all assignments by enumeration? CMPUT 329 - Computer Organization and Architecture II 28

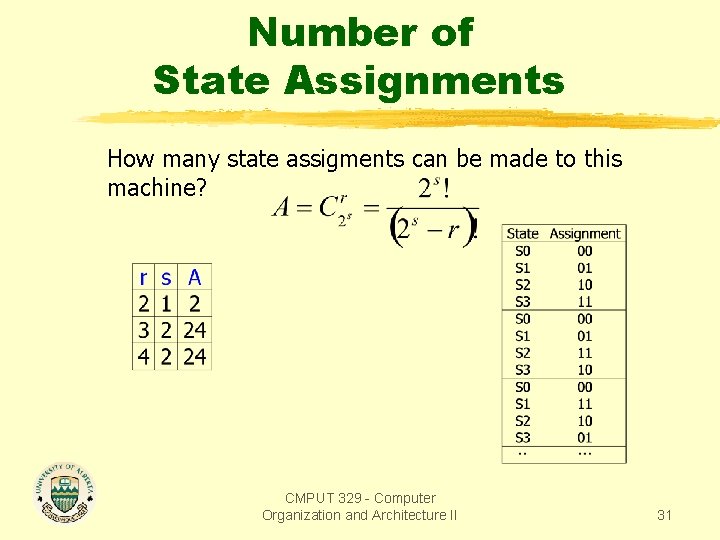

Number of State Assignments Given a finite state machine M with r states. Assume that we use s bits to encode the states, where s is the smallest integer such that 2 s r. How many state assigments can be made to this machine? CMPUT 329 - Computer Organization and Architecture II 29
Number of State Assignments How many state assigments can be made to this machine? CMPUT 329 - Computer Organization and Architecture II 30
Number of State Assignments How many state assigments can be made to this machine? CMPUT 329 - Computer Organization and Architecture II 31
Number of State Assignments How many state assigments can be made to this machine? CMPUT 329 - Computer Organization and Architecture II 32
Equivalent State Assignments (Definition 1) How many of these state assigments are equivalent to each other? State Equivalency (Mc. Cluskey and Unger, 1959): State assignments are equivalent if they differ only by the re-ordenation of the columns of bits in each assignment, or if they differ by complementing a columns of the matrix. CMPUT 329 - Computer Organization and Architecture II 33
Equivalent State Assignments (Definition 2) But, in 1967 Weiner and Smith showed that assignments that result from complementing a column of bits are not equivalent to each other. Therefore their definition of state equivalency is: State Equivalency (Weiner and Smith, 1967): State assignments are equivalent if they differ only by the re-ordenation of columns. CMPUT 329 - Computer Organization and Architecture II 34
Equivalent State Assignments (Example) Which of the following state assignments are equivalent? (a) (c) (b) CMPUT 329 - Computer Organization and Architecture II (d) 35
Number of Distinct State Assignments Given a finite state machine M with r states. Assume that we use s bits to encode the states, where s is the smallest integer such that 2 s r. How many distinct assignments exist for this machine? CMPUT 329 - Computer Organization and Architecture II 36
Number of Distinct State Assignments By Mc. Cluskey’s definition (1959), the number of equivalent state assignments is given by: Using Weiner-Smith’s definition (1967), Harrison found (in 1968) that the number of equivalent state assignments is: CMPUT 329 - Computer Organization and Architecture II 37
Number of Distinct State Assignments A: State Assignments N 1: Distinct State Assign. (Mc. Cluskey) N 2: Distinct State Assign. (Weiner-Smith-Harrison) CMPUT 329 - Computer Organization and Architecture II 38
Number of Distinct States Assignments A: State Assignments N 1: Distinct State Assignments (Mc. Cluskey) N 2: Distinct State Assign. (Weiner-Smith-Harrison) CMPUT 329 - Computer Organization and Architecture II 39
The Right Number of Distinct States In 1977, Rhyne and Noe showed that: (I) for circuits built with flip-flops SR, JK, and T, there are N 1 (Mc. Cluskey) distinct states. (ii) for machines implemented with flip-flops D, there are N 2 (Weiner-Smith-Harrison) distinct states. CMPUT 329 - Computer Organization and Architecture II 40

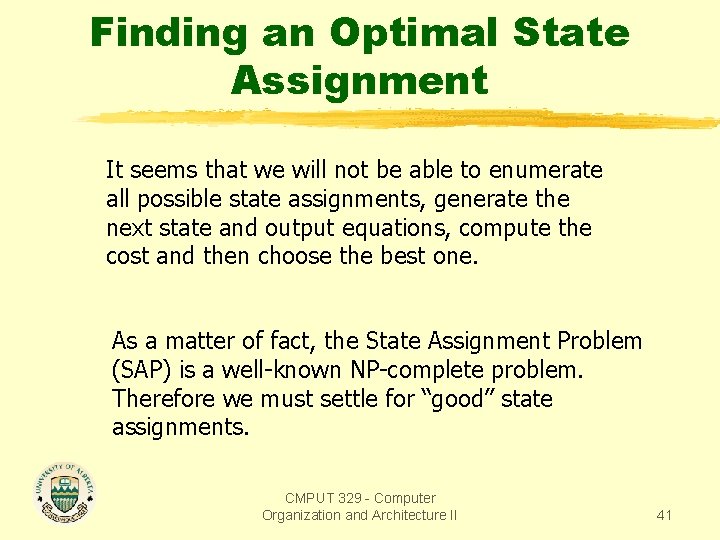

Finding an Optimal State Assignment It seems that we will not be able to enumerate all possible state assignments, generate the next state and output equations, compute the cost and then choose the best one. As a matter of fact, the State Assignment Problem (SAP) is a well-known NP-complete problem. Therefore we must settle for “good” state assignments. CMPUT 329 - Computer Organization and Architecture II 41
Distance Between States The distance between two states Sa and Sb, D(Sa, Sb) is defined as the Hamming distance between the code assigned to Sa, A(Sa), and the code assinged to Sb, A(Sb). CMPUT 329 - Computer Organization and Architecture II 42

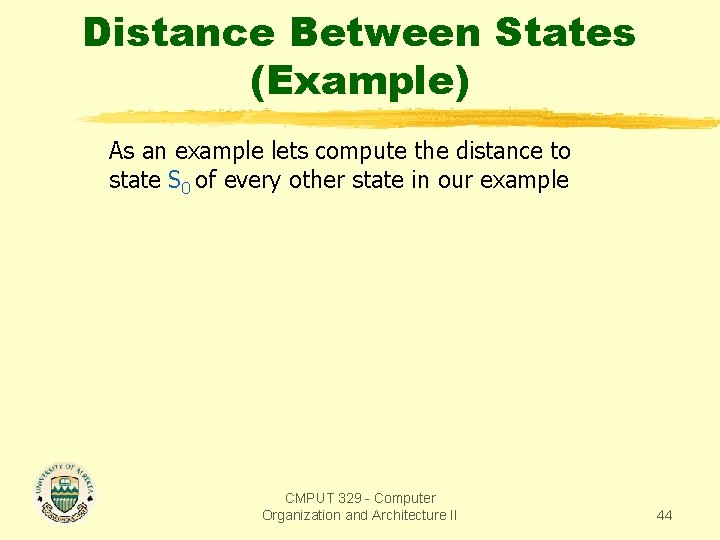

Distance Between States (Example) As an example lets compute the distance to state S 0 of every other state in our example CMPUT 329 - Computer Organization and Architecture II 43
Distance Between States (Example) As an example lets compute the distance to state S 0 of every other state in our example CMPUT 329 - Computer Organization and Architecture II 44
State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 45

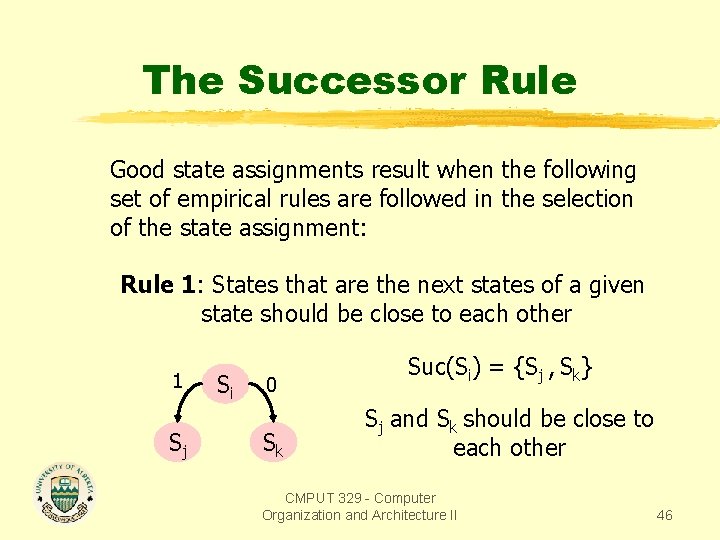

The Successor Rule Good state assignments result when the following set of empirical rules are followed in the selection of the state assignment: Rule 1: States that are the next states of a given state should be close to each other 1 Sj Si 0 Sk Suc(Si) = {Sj , Sk} Sj and Sk should be close to each other CMPUT 329 - Computer Organization and Architecture II 46

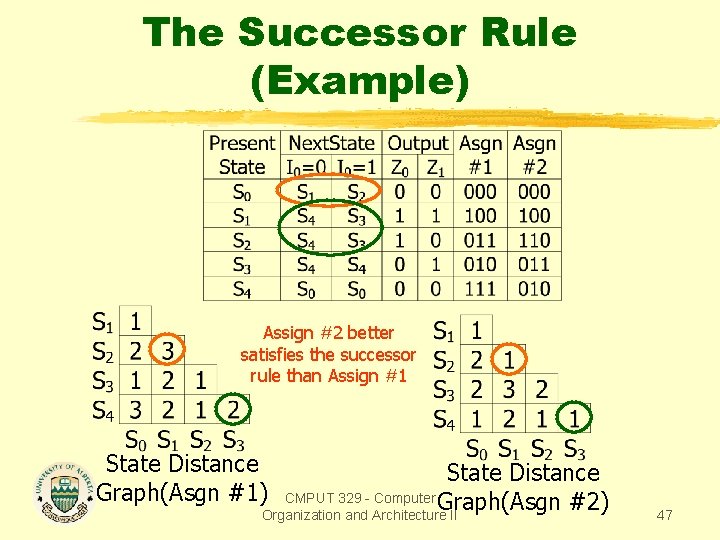

The Successor Rule (Example) Assign #2 better satisfies the successor rule than Assign #1 State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 47

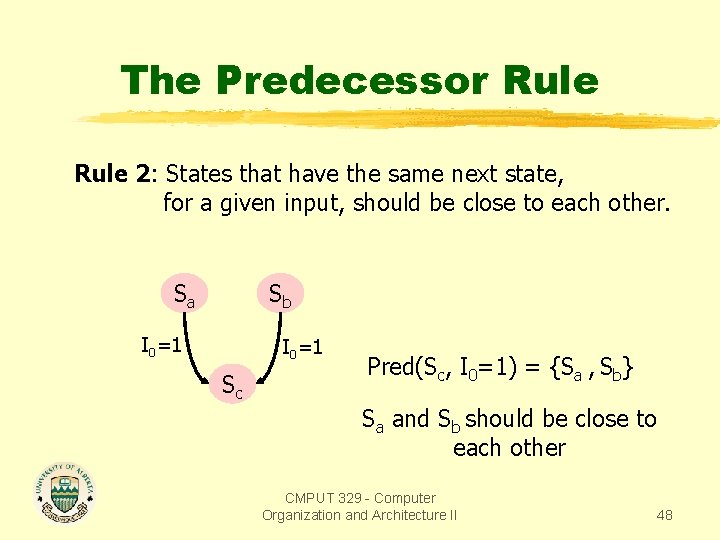

The Predecessor Rule 2: States that have the same next state, for a given input, should be close to each other. Sa Sb I 0=1 Sc Pred(Sc, I 0=1) = {Sa , Sb} Sa and Sb should be close to each other CMPUT 329 - Computer Organization and Architecture II 48
The Predecessor Rule (Example) Assign #2 better follows the predecessor rule than Assign #1 State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 49

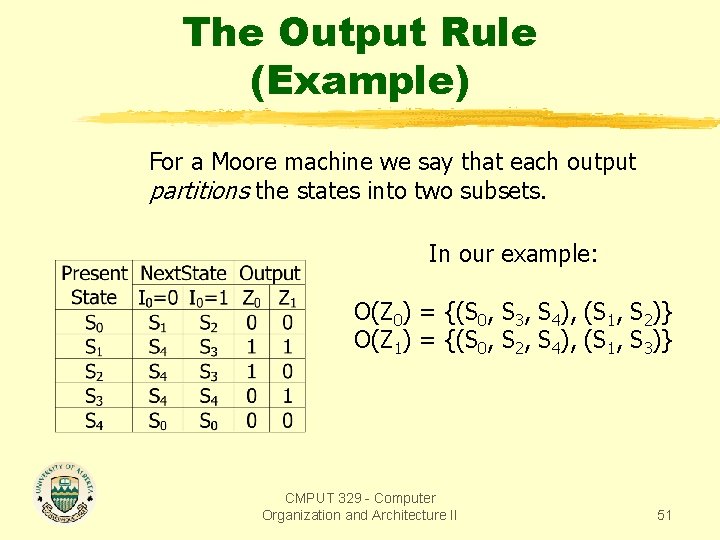

The Output Rule 3: States that have the same output for a given input should be close to each other. For a Moore machine we say that each output partitions the states into two subsets. CMPUT 329 - Computer Organization and Architecture II 50
The Output Rule (Example) For a Moore machine we say that each output partitions the states into two subsets. In our example: O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} CMPUT 329 - Computer Organization and Architecture II 51
The Output Rule (Example) O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} Assign #2 better follows the output rule for Z 0 State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 52
The Output Rule (Example) O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} Assign #2 better follows the output rule for Z 1 State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 53
The Transition Rule 4: If there is a state transition between two states, the states should be close to each other. Typically this rule is used to decide a tie between the other rules. CMPUT 329 - Computer Organization and Architecture II 54
The Transition Rule (Example) Assign #2 better follows the transition rule State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 55
The State “ 0” Guideline: The cost of the circuit will not be affected by the choice of which state receives the state “ 0” (according to Mc. Cluskey). Therefore to simplify reset generating circuits, the state “ 0” should always be assigned to the reset state. CMPUT 329 - Computer Organization and Architecture II 56
Successor Sets Using our definitions, we can compute the set of successors of each state in our example: S(S 0) S(S 1) S(S 2) S(S 3) S(S 4) CMPUT 329 - Computer Organization and Architecture II = = = {S 1, S 2} {S 3, S 4} {S 0} 57
Predecessor Sets We can also compute the set of predecessors of each state in our example: P P P P (S 1, I 0=0) (S 4, I 0=0) (S 0, I 0=0) (S 2, I 0=1) (S 3, I 0=1) (S 4, I 0=1) (S 0, I 0=1) CMPUT 329 - Computer Organization and Architecture II = = = = {S 0} {S 1, S 2 , S 3} {S 4} {S 0} {S 1, S 2} {S 3} {S 0} 58

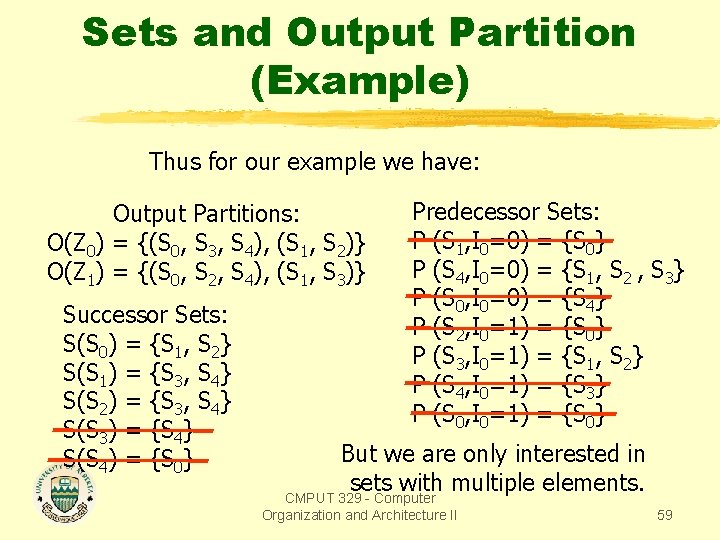

Sets and Output Partition (Example) Thus for our example we have: Output Partitions: O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} Successor Sets: S(S 0) = {S 1, S 2} S(S 1) = {S 3, S 4} S(S 2) = {S 3, S 4} S(S 3) = {S 4} S(S 4) = {S 0} Predecessor Sets: P (S 1, I 0=0) = {S 0} P (S 4, I 0=0) = {S 1, S 2 , S 3} P (S 0, I 0=0) = {S 4} P (S 2, I 0=1) = {S 0} P (S 3, I 0=1) = {S 1, S 2} P (S 4, I 0=1) = {S 3} P (S 0, I 0=1) = {S 0} But we are only interested in sets with multiple elements. CMPUT 329 - Computer Organization and Architecture II 59
Sets and Output Partition (Example) Thus for our example we have: Output Partitions: O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} Predecessor Sets: P (S 4, I 0=0) = {S 1, S 2 , S 3} P (S 3, I 0=1) = {S 1, S 2} Successor Sets: S(S 0) = {S 1, S 2} S(S 1) = {S 3, S 4} S(S 2) = {S 3, S 4} CMPUT 329 - Computer Organization and Architecture II 60
Obtaining Good State Assignments (Example) Successor Sets: S(S 0) = {S 1, S 2} S(S 1) = {S 3, S 4} S(S 2) = {S 3, S 4} Predecessor Sets: P (S 4, I 0=0) = {S 1, S 2 , S 3} P (S 3, I 0=1) = {S 1, S 2} Problem: Choose a good state assignment for this machine. Output Partitions: O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} CMPUT 329 - Computer Organization and Architecture II 61
The Desired Adjacency Graph (DAG) Based on early work of Armstrong (1962), Amaral (1990) incorporated the state assignment rules of Miller (1965) into a “Desired Adjacency Graph” that can be used to translate the state assignment rules into a graph that encodes the strenght of the connection between states. J. N. Amaral and W. C. Cunha, “State Assignment Algorithm for Incompletely Specified Finite State Machines, ” in Fifth Congress of the Brazilian Society for Microelectronics, pp. 174 -183, 1990. J. N. Amaral, K. Tumer, and J. Ghosh, “Designing Genetic Algorithms for the State Assignment Problem, ” IEEE Transactions on Systems, Man, and Cybernetics, vol. 25, No. 4, April, 1995. CMPUT 329 - Computer Organization and Architecture II 62

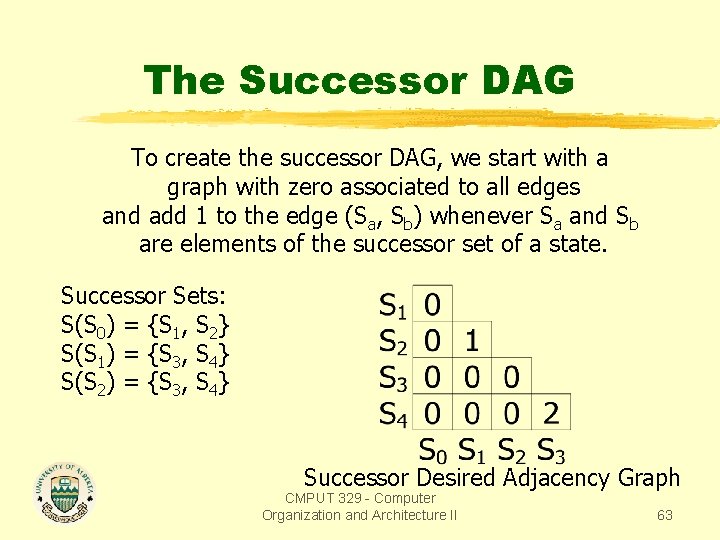

The Successor DAG To create the successor DAG, we start with a graph with zero associated to all edges and add 1 to the edge (Sa, Sb) whenever Sa and Sb are elements of the successor set of a state. Successor Sets: S(S 0) = {S 1, S 2} S(S 1) = {S 3, S 4} S(S 2) = {S 3, S 4} Successor Desired Adjacency Graph CMPUT 329 - Computer Organization and Architecture II 63
The Predecessor DAG To create the predecessor DAG, we start with a graph with zero associated to all edges and add 1 to the edge (Sa, Sb) whenever Sa and Sb are elements of the predecessor set of a state. Predecessor Sets: P (S 4, I 0=0) = {S 1, S 2 , S 3} P (S 3, I 0=1) = {S 1, S 2} Predecessor Desired Adjacency Graph CMPUT 329 - Computer Organization and Architecture II 64
The Output DAG To create the output DAG, we start with a graph with zero associated to all edges and add 1 to the edge (Sa, Sb) whenever Sa and Sb are in the same partition for an output Zp. Output Partitions: O(Z 0) = {(S 0, S 3, S 4), (S 1, S 2)} O(Z 1) = {(S 0, S 2, S 4), (S 1, S 3)} Output Desired Adjacency Graph CMPUT 329 - Computer Organization and Architecture II 65
The Transition DAG To create the transition DAG, we start with a graph with zero associated to all edges and add 1 to the edge (Sa, Sb) whenever there is a transition from state Sa to state Sb. Transition Desired Adjacency Graph CMPUT 329 - Computer Organization and Architecture II 66

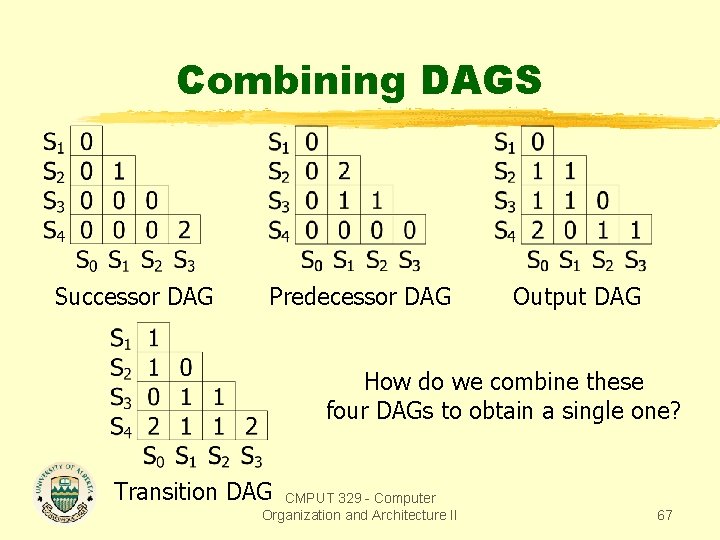

Combining DAGS Successor DAG Predecessor DAG Output DAG How do we combine these four DAGs to obtain a single one? Transition DAG CMPUT 329 - Computer Organization and Architecture II 67
The Weight of the Rules If all the rules were equally important, we could just add the values in the vertices. Comer [1984] suggests that Rule 2 (the predecessor rule) is the most important, followed by Rule 1 (the successor rule), and by Rule 3 (the output rule). Rule 4 (the transition rule) should be used only as a tie breaker. Amaral [1990] proposes the following weights for the combination of the Rule DAGs into a single DAG: DAG = 3 x. Successor + 4 x. Predecessor + 2 x. Output + Transition CMPUT 329 - Computer Organization and Architecture II 68
DAG = 3 x. Successor + 4 x. Predecessor + 2 x. Output + Transition Successor DAG Predecessor DAG Transition DAG CMPUT 329 - Computer Organization and Architecture II Output DAG 69
How Asgn #2 and Asgn #2 measure up? DAG State Distance Graph(Asgn #1) State Distance CMPUT 329 - Computer Graph(Asgn #2) Organization and Architecture II 70
Matching Code Distances with the DAG Code Distances CMPUT 329 - Computer Organization and Architecture II 71

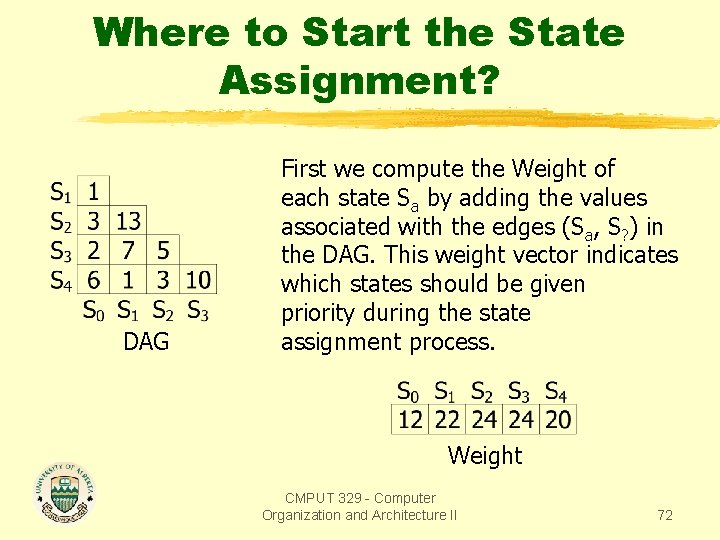

Where to Start the State Assignment? DAG First we compute the Weight of each state Sa by adding the values associated with the edges (Sa, S? ) in the DAG. This weight vector indicates which states should be given priority during the state assignment process. Weight CMPUT 329 - Computer Organization and Architecture II 72
Matching Code Distances with the DAG CMPUT 329 - Computer Organization and Architecture II 73
The Weight of the States We start with the state with the largest weight. DAG Weight CMPUT 329 - Computer Organization and Architecture II 74
The First State Assignment We start with the state with the largest weight. DAG If there is a tie, we start with the state (among the ones that tie) that has an edge with maximum value in the DAG. We assign “ 0” to this state. Weight CMPUT 329 - Computer Organization and Architecture II 75
The Second State Assignment We start with the state with the largest weight. DAG If there is a tie, we start with the state (among the ones that tie) that has an edge with maximum value in the DAG. We assign “ 0” to this state. Weight Then find the state with the strongest connection with that first state in the DAG and assign “ 1” to this second state. CMPUT 329 - Computer Organization and Architecture II 76
Incomplete Assignment Table DAG Each cell of the table contains how much would be added to the expression If the state of the row would be given CMPUT 329 -of Computer the code the column Organization and Architecture II 77
Incomplete Assignment Table DAG Thus the value at cell (S 0, 010) is: CMPUT 329 - Computer Organization and Architecture II 78
Incomplete Assignment Table DAG The value in the other cells is computed in the same way CMPUT 329 - Computer Organization and Architecture II 79
Incomplete Assignment Table DAG Then we add the values in each row. CMPUT 329 - Computer Organization and Architecture II 80

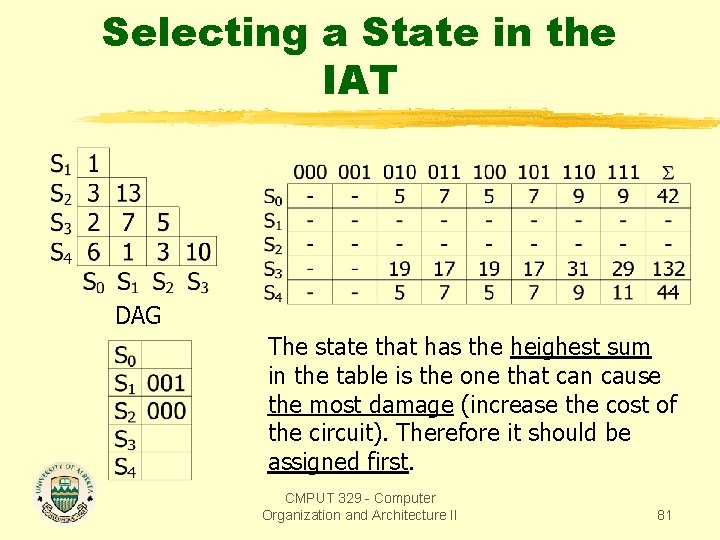

Selecting a State in the IAT DAG The state that has the heighest sum in the table is the one that can cause the most damage (increase the cost of the circuit). Therefore it should be assigned first. CMPUT 329 - Computer Organization and Architecture II 81
Selecting States in the IAT DAG Thus we look for the row with maximum sum in the Incomplete Assignment Table, and we pick the cell with the minimum weight. If there is a tie, we break it arbitrarily. CMPUT 329 - Computer Organization and Architecture II 82
Incomplete Assignment Table DAG Now we have to recompute the values in the table. Again we pick the minimum cell in the row with the maximum sum. CMPUT 329 - Computer Organization and Architecture II 83
Incomplete Assignment Table DAG Again we recompute the values in the table. We pick the minimum cell in the row. CMPUT 329 - Computer Organization and Architecture II 84
Checking the State Distance Graph DAG State Distance Graph Does this assignment make sense? To make checking it easier, we can build a state distance graph. CMPUT 329 - Computer Organization and Architecture II 85

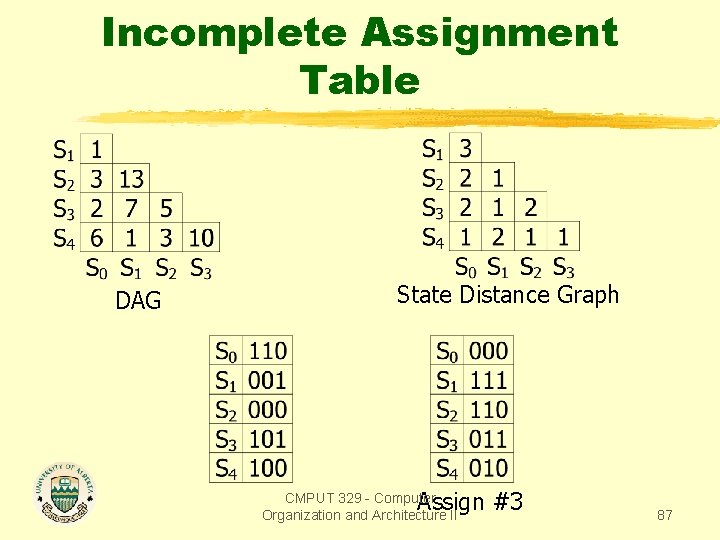

Incomplete Assignment Table But this assignment does not follow the guideline that says that the reset state (S 0) should be state “ 0”. To fix that, we have to complement the two first columns. Would that change the state distance graph? CMPUT 329 - Computer Organization and Architecture II 86
Incomplete Assignment Table DAG State Distance Graph Assign #3 CMPUT 329 - Computer Organization and Architecture II 87
Comparing Assignments #1, #2, and #3 Assign #3 DAG Assign #2 Assign #1 CMPUT 329 - Computer Organization and Architecture II 88
State and Output Equations for Asgn #3 CMPUT 329 - Computer Organization and Architecture II 89
D 2 Equations for Asgn #3 I 0 Asgn #3 1 X X X X Q 0 Q 1 Q 2 D 2 = Q 1 ’ CMPUT 329 - Computer Organization and Architecture II 90
Comparing D 2 Equation for Asgn #3 and Asgn #1 I 0 Asgn #3 1 X X X X Q 0 Q 1 I 0 Asgn #1 1 X Q 1 Q 2 D 2 = Q 1 ’ 1 X X X Q 0 D 2 = Q 2’Q 1’ Q 2 CMPUT 329 - Computer Organization and Architecture II 91
D 1 Equations for Asgn #3 I 0 Asgn #3 Q 1 1 X X X X 1 1 1 Q 0 Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ CMPUT 329 - Computer Organization and Architecture II 92
Comparing D 1 Equation for Asgn #3 and Asgn #1 I 0 Asgn #3 Q 1 I 0 Asgn #1 Q 1 X X X X 1 1 1 Q 0 Q 2 1 1 1 X X 1 1 1 Q 2 1 Q 0 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 1 = CMPUT Q 2 +329 Q 0 - Computer + Q 1’I 0 Organization and Architecture II 93
D 0 Equations for Asgn #3 I 0 Asgn #3 1 X X X 1 Q 0 1 Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ CMPUT 329 - Computer Organization and Architecture II 94
Comparing D 0 Equation for Asgn #3 and Asgn #1 I 0 Asgn #3 1 X X X 1 Q 1 I 0 Asgn #1 Q 1 X X 1 Q 2 Q 0 1 Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ 1 X X X Q 0 D 0 = Q 2 I 0 CMPUT 329 - Computer Organization and Architecture II 95
Z 0 Equations for Asgn #3 X Q 1 X 1 Q 0 1 Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ Z 0 = Q 2 CMPUT 329 - Computer Organization and Architecture II 96
Comparing D 0 Equation for Asgn #3 and Asgn #1 X Asgn #3 X Q 1 X 1 Q 0 1 Q 2 Asgn #1 1 X Q 1 X X 1 Q 2 Q 0 Z 0 = Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ Z 0 = Q 2 CMPUT 329 - Computer Organization and Architecture II 97
Z 1 Equations for Asgn #3 X Asgn #3 Q 1 X X 1 1 Q 0 Q 2 D 2 = Q 1 ’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ Z 0 = Q 2 Z 1 = Q 0 CMPUT 329 - Computer Organization and Architecture II 98
Comparing D 0 Equation for Asgn #3 and Asgn #1 X Asgn #3 Q 1 X X 1 1 Q 0 Q 2 Asgn #1 Q 1 1 X X 1 X Q 2 D 2 = Q 1 ’ Q 0 D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ Z 0 = Q 2 Z 1 = Q 0 + Q 2 Q 1 ’ Z 1 = Q 0 CMPUT 329 - Computer Organization and Architecture II 99
State and Output Equations for Asgn #3 D 2 = Q 2’Q 1’ D 1 = Q 2 + Q 0 + Q 1 ’ D 0 = Q 2 I 0 + Q 1 ’ I 0 ’ Z 0 = Q 2 Z 1 = Q 0 CMPUT 329 - Computer Organization and Architecture II 100
Comparing Equations for Asgns #1, #2, and #3 36 13 CMPUT 329 - Computer Organization and Architecture II 9 101
State of the Art for State Assignment G. De Micheli, R. K. Brayton, and A. Sangiovanni. Vicentelli, “Optimal State Assignment for Finite State Machines, ” IEEE Transactions on Computer Aided Design of Integrated Circuit Systems, vol. 4, pp. 269 -284, July 1985. S. Devadas, H. -K. T. Ma, A. R. Newton, and A. Sangiovanni-Vicentelli, “Mustang: State Assignment of finite state machines for optimal multi-level logic implementations, ” in International Conference on Computer Aided Design, pp. 16 -19, 1987. (KISS - Keep Internal State Simple) CMPUT 329 - Computer Organization and Architecture II 102
State of the Art for State Assignment D. Varma and E. A. Trachtenberg, “A fast algorithm for the optimal assignment of large finite state machines, ” in International Conference on Computer Aided Design, pp. 152 -155, 1988. T. Villa and A. Sangiovanni-Vicentelli, “NOVA: State assignment of finite state machines for optimal two-level logic implementation, ” IEEE Transactions on Computer Aided Design of Integrated Circuit Systems, vol. 9, pp. 905 -924, Sept. 1990. CMPUT 329 - Computer Organization and Architecture II 103
Where to find papers? To find papers on the subject, search for the keyword “state assignment” in citations of the site: http: //www. scienceindex. com You can use this site for any subject of your interest within Computing Science. CMPUT 329 - Computer Organization and Architecture II 104
