LAUNCH CRP 329 Product Profile LAUNCH Product Overview

  • Slides: 14
Download presentation
LAUNCH CRP 329 Product Profile

LAUNCH CRP 329 Product Profile

LAUNCH Product Overview CRP – Creader Professional, meaning a more professional code reader, is

LAUNCH Product Overview CRP – Creader Professional, meaning a more professional code reader, is a small-sized personal diagnostic tool developed by LAUNCH to meet more profound diagnostic demand from DIY market. Based on Android OS, and integrated with OBD&EOBD standard protocols and basic diagnostic functions of all car systems, it makes diagnosis and maintenance easier and cost even less. Meanwhile, with the application of Engine Oil Reset and TPMS, etc. , it makes product more competitive.

LAUNCH Product Main unit Appearance

LAUNCH Product Main unit Appearance

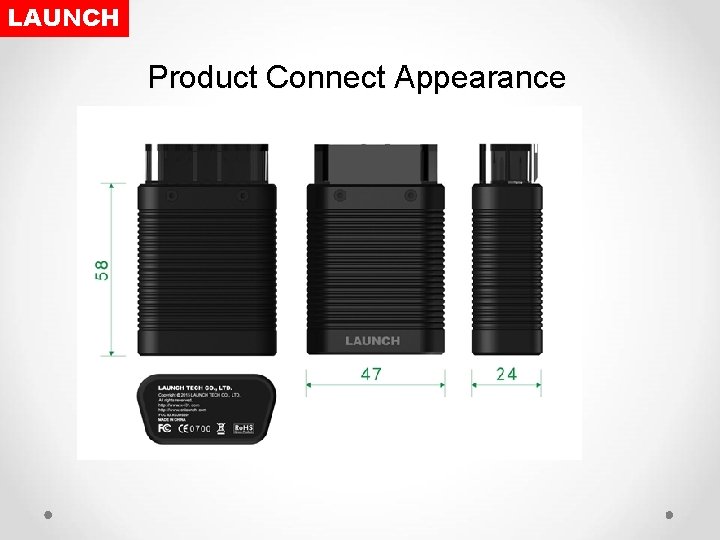

LAUNCH Product Connect Appearance

LAUNCH Product Connect Appearance

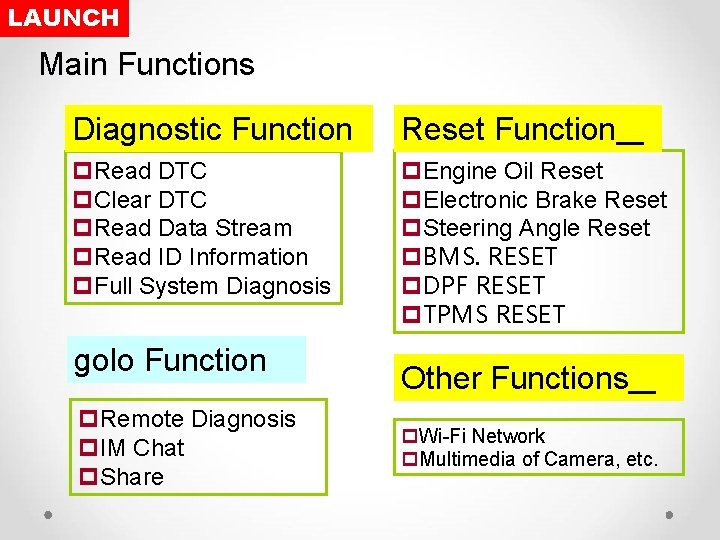

LAUNCH Main Functions Diagnostic Function Reset Function p. Read DTC p. Clear DTC p.

LAUNCH Main Functions Diagnostic Function Reset Function p. Read DTC p. Clear DTC p. Read Data Stream p. Read ID Information p. Full System Diagnosis p. Engine Oil Reset p. Electronic Brake Reset p. Steering Angle Reset p. BMS. RESET p. DPF RESET p. TPMS RESET golo Function p. Remote Diagnosis p. IM Chat p. Share Other Functions p. Wi-Fi Network p. Multimedia of Camera, etc.

LAUNCH Main Software Functions CRP 329 CRP 229 contains all ECU diagnosis but limited

LAUNCH Main Software Functions CRP 329 CRP 229 contains all ECU diagnosis but limited to basic diagnostic functions only, not including Actuation Test and Special Function. See below: ØRead DTC ØClear DTC ØRead Data Stream ØRead ID Information

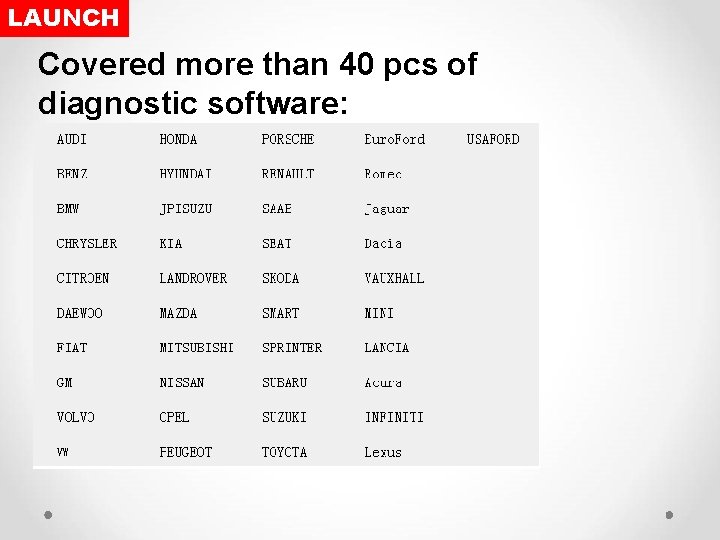

LAUNCH Covered more than 40 pcs of diagnostic software:

LAUNCH Covered more than 40 pcs of diagnostic software:

LAUNCH Android core for fast running speed n Android 6. 0 n 1. 0

LAUNCH Android core for fast running speed n Android 6. 0 n 1. 0 GHz Quad-Core Processer 。 n 1 G Memory n 16 G HD,Extended Micro SD(TF)Card up to 32 G. n 3450 m. Ah Polymer Lithiumlon Battery n 7’’ Color Capacitive Touch Screen n Support Wi-Fi Network n Support BT 4. 0、GPS。 n Support Camera Shooting Wireless Communication

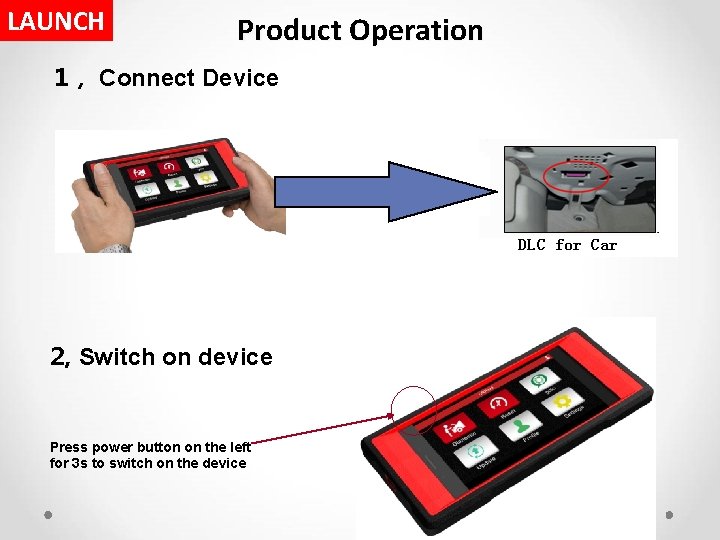

LAUNCH Product Operation 1, Connect Device Connect Blue. Tooth 2, Switch on device Press

LAUNCH Product Operation 1, Connect Device Connect Blue. Tooth 2, Switch on device Press power button on the left for 3 s to switch on the device

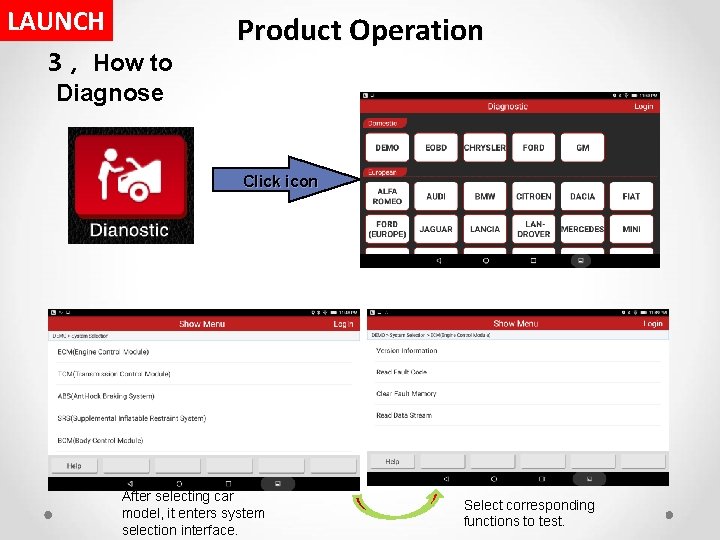

LAUNCH 3, How to Diagnose Product Operation Click icon After selecting car model, it

LAUNCH 3, How to Diagnose Product Operation Click icon After selecting car model, it enters system selection interface. Select corresponding functions to test.

LAUNCH Product Operation Software Upgrade Enter software main interface. Click Update to enter upgrading

LAUNCH Product Operation Software Upgrade Enter software main interface. Click Update to enter upgrading interface Select corresponding software of the car model to be upgraded. Click Update Automatically download.

LAUNCH Package Information

LAUNCH Package Information

LAUNCH Thanks

LAUNCH Thanks
