CMPUT 329 Fall 2003 Topic 5 QuineMc Cluskey
- Slides: 103
CMPUT 329 - Fall 2003 Topic 5: Quine-Mc. Cluskey Method José Nelson Amaral CMPUT 329 - Computer Organization and Architecture II 1
Reading Assignment Section 4. 4 CMPUT 329 - Computer Organization and Architecture II 2
Motivation Karnaugh maps are very effective for the minimization of expressions with up to 5 or 6 inputs. However they are difficult to use and error prone for circuits with many inputs. Karnaugh maps depend on our ability to visually identify prime implicants and select a set of prime implicants that cover all minterms. They do not provide a direct algorithm to be implemented in a computer. For larger systems, we need a programmable method!! CMPUT 329 - Computer Organization and Architecture II 3
Quine-Mc. Cluskey Willard van Orman Quine 1908 -2000, Edgar Pierce Chair of Philosophy at Harvard University. http: //members. aol. com/drquine/wv-quine. html Quine, Willard, “The problem of simplifying truth functions. ” American Mathematical Monthly, vol. 59, 1952. Quine, Willard, “A way to simplify truth functions. ” American Mathematical Monthly, vol. 62, 1955. Edward J. Mc. Cluskey, Professor of Electrical Engineering and Computer Science at Stanford http: //www-crc. stanford. edu/users/ejm/Mc. Cluskey_Edward. html Mc. Cluskey Jr. , Edward J. “Minimization of Boolean Functions. ” Bell Systems Technical Journal, vol. 35, pp. 1417 -1444, 1956 CMPUT 329 - Computer Organization and Architecture II 4
Outline of the Quine. Mc. Cluskey Method 1. Produce a minterm expansion (standard sum-of-products form) for a function F 2. Eliminate as many literals as possible by systematically applying XY + XY’ = X. 3. Use a prime implicant chart to select a minimum set of prime implicants that when ORed together produce F, and that contains a minimum number of literals. CMPUT 329 - Computer Organization and Architecture II 5
Determination of Prime Implicants AB’CD’ + AB’CD = AB’C (The dash indicates a missing variable) 1010 +1011=101 - We can combine the minterms above because they differ by a single bit. The minterms below won’t combine A’BC’D + A’BCD’ 0101 +0110 CMPUT 329 - Computer Organization and Architecture II 6
Quine-Mc. Cluskey Method An Example 1. Find all the prime implicants group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Group the minterms according to the number of 1 s in the minterm. This way we only have to compare minterms from adjacent groups. CMPUT 329 - Computer Organization and Architecture II 7
Quine-Mc. Cluskey Method An Example Column I Combining group 0 and group 1: Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 8
Quine-Mc. Cluskey Method An Example Column I Combining group 0 and group 1: Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 000 - 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 9
Quine-Mc. Cluskey Method An Example Column I Combining group 0 and group 1: Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 10
Quine-Mc. Cluskey Method An Example Column I Does it make group 0 sense to no combine group 0 group 1 with group 2 or 3? No, there at least two bits that are different. Column II 0 0000 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 11
Quine-Mc. Cluskey Method An Example Column I Does it make group 0 sense to no combine group 0 group 1 with group 2 or 3? No, there at least two bits that are different. Thus, next we combine group 1 and group 2. Column II 0 0000 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 12
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0, 1 0, 2 0, 8 1, 5 00000 -0 -000 0 -01 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 13
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0, 1 0, 2 0, 8 1, 5 00000 -0 -000 0 -01 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 14
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 00000 -0 -000 0 -01 -001 15
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 00000 -0 -000 0 -01 -001 16
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 00000 -0 -000 0 -01 -001 17

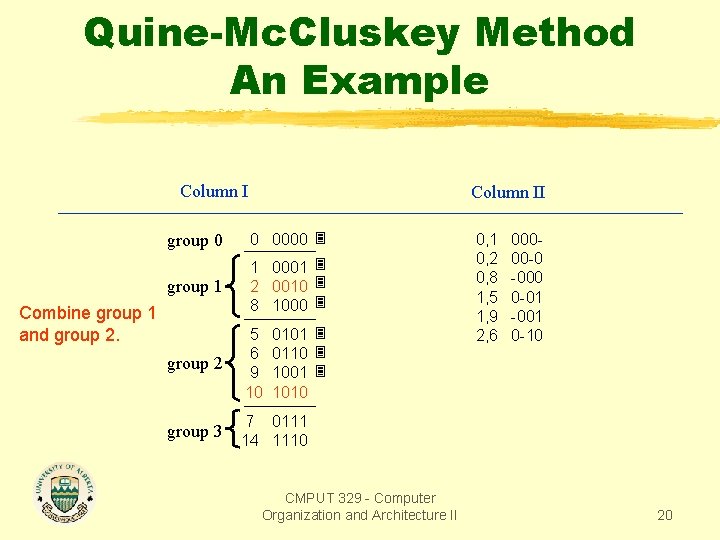

Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 00000 -0 -000 0 -01 -001 18
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 00000 -0 -000 0 -01 -001 0 -10 19
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 00000 -0 -000 0 -01 -001 0 -10 20
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 00000 -0 -000 0 -01 -001 0 -10 -010 21
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 00000 -0 -000 0 -01 -001 0 -10 -010 22
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 00000 -0 -000 0 -01 -001 0 -10 -010 23
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 1 and group 2. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 00000 -0 -000 0 -01 -001 0 -10 -010 100 - 24
Quine-Mc. Cluskey Method An Example Column I Again, there is no need to try to combine group 1 with group 2. Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 25
Quine-Mc. Cluskey Method An Example Column I Again, there is no need to try to combine group 1 with group 3. Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 Lets try to combine group 2 with group 23. group 3 5 6 9 10 0101 0110 1001 1010 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 7 0111 14 1110 CMPUT 329 - Computer Organization and Architecture II 26
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 27
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 28
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 6, 7 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 011 - 29
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 6, 14 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 011 -110 30
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 6, 14 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 011 -110 31
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 6, 14 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 011 -110 32
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 Combine group 2 and group 3. 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0, 2 0, 8 1, 5 1, 9 2, 6 2, 10 8, 9 8, 10 5, 7 6, 14 00000 -0 -000 0 -01 -001 0 -10 -010 10010 -0 01 -1 011 -110 33
Quine-Mc. Cluskey Method An Example Column I We have now completed the first step. All minterms in column I were included. We can divide column II into groups. Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 34
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 CMPUT 329 - Computer Organization and Architecture II 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 35
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II 36
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II 37
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II 38
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II 39
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II 40
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 41
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 42
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 43
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 44
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 45
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 46
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 CMPUT 329 - Computer Organization and Architecture II Column III 0, 1, 8, 9 -00 - 47
Quine-Mc. Cluskey Method An Example Column I group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 CMPUT 329 - Computer Organization and Architecture II 48
Quine-Mc. Cluskey Method An Example Column I group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 5 6 9 10 group 3 7 0111 14 1110 0101 0110 1001 1010 Column III 0, 1 000 - 0, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 100 - 8, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 CMPUT 329 - Computer Organization and Architecture II 49
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 0, 8, 1, 9 -00 - CMPUT 329 - Computer Organization and Architecture II 50
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 0, 8, 1, 9 -00 - CMPUT 329 - Computer Organization and Architecture II 51
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 -00 -0 -0 CMPUT 329 - Computer Organization and Architecture II 52
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 -00 -0 -0 CMPUT 329 - Computer Organization and Architecture II 53
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 -00 -0 -0 CMPUT 329 - Computer Organization and Architecture II 54
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 -00 -0 -0 CMPUT 329 - Computer Organization and Architecture II 55
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 -00 -0 -0 CMPUT 329 - Computer Organization and Architecture II 56
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 -00 -0 -0 --10 CMPUT 329 - Computer Organization and Architecture II 57
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 2, 10, 6, 14 -00 -0 -0 --10 CMPUT 329 - Computer Organization and Architecture II 58
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 2, 10, 6, 14 -00 -0 -0 --10 CMPUT 329 - Computer Organization and Architecture II 59
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 0101 0110 1001 1010 group 2 5 6 9 10 group 3 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 2, 10, 6, 14 -00 -0 -0 --10 CMPUT 329 - Computer Organization and Architecture II 60
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III CMPUT 329 - Computer Organization and Architecture II 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 2, 10, 6, 14 -00 -0 -0 --10 No more combinations are possible, thus we stop here. 61
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 0, 2, 8, 10 0, 8, 1, 9 0, 8, 2, 10 2, 6, 10, 14 2, 10, 6, 14 -00 -0 -0 --10 We can eliminate repeated combinations CMPUT 329 - Computer Organization and Architecture II 62
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 Now we form f with the terms not checked f = a’c’d CMPUT 329 - Computer Organization and Architecture II 63
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 f = a’c’d + a’bd CMPUT 329 - Computer Organization and Architecture II 64
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 f = a’c’d + a’bc CMPUT 329 - Computer Organization and Architecture II 65
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 f = a’c’d + a’bc + b’c’ CMPUT 329 - Computer Organization and Architecture II 66
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 f = a’c’d + a’bc + b’c’ + b’d’ CMPUT 329 - Computer Organization and Architecture II 67
Quine-Mc. Cluskey Method An Example Column II group 0 0 0000 group 1 1 0001 2 0010 8 1000 group 2 group 3 5 6 9 10 0101 0110 1001 1010 7 0111 14 1110 0, 1 0000, 2 00 -0 0, 8 -000 1, 5 0 -01 1, 9 -001 2, 6 0 -10 2, 10 -010 8, 9 1008, 10 10 -0 5, 7 01 -1 6, 7 0116, 14 -110 10, 14 1 -10 Column III 0, 1, 8, 9 -000, 2, 8, 10 -0 -0 2, 6, 10, 14 --10 f = a’c’d + a’bc + b’c’ + b’d’ + cd’ CMPUT 329 - Computer Organization and Architecture II 68
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 1 d c b CMPUT 329 - Computer Organization and Architecture II 69
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 c 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 70
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 c 1 d 1 1 b CMPUT 329 - Computer Organization and Architecture II 71
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 1 c 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 72
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 1 c 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 73
Quine-Mc. Cluskey Method An Example But, the form below is not minimized. Using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 1 c 1 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 74
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 F = a’bd 1 c 1 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 75
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 F = a’bd + cd’ 1 c 1 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 76
Quine-Mc. Cluskey Method An Example But, the form below is not minimized, using a Karnaugh map we can obtain: f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 F = a’bd + cd’ + b’c’ 1 c 1 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 77
Quine-Mc. Cluskey Method An Example What are the extra terms in the solution obtained with the Quine-Mc. Cluskey method? f = a’c’d + a’bc + b’c’ + b’d’ + cd’ a 1 F = a’bd + cd’ + b’c’ 1 Thus, we need a method to c eliminate this redundant terms from the Quine-Mc. Cluskey solution. 1 1 1 1 d 1 b CMPUT 329 - Computer Organization and Architecture II 78
The Prime Implicant Chart The prime implicant chart is the second part of the Quine-Mc. Cluskey procedure. It is used to select a minimum set of prime implicants. Similar to the Karnaugh map, we first select the essential prime implicants, and then we select enough prime implicants to cover all the minterms of the function. CMPUT 329 - Computer Organization and Architecture II 79
Prime Implicant Chart (Example) Prime Implicants minterms Question: Given the prime implicant chart above, how can we identify the essential prime implicants of the function? CMPUT 329 - Computer Organization and Architecture II 80
Prime Implicant Chart (Example) Prime Implicants minterms Similar to the Karnaugh map, all we have to do is to look for minterms that are covered by a single term. CMPUT 329 - Computer Organization and Architecture II 81
Prime Implicant Chart (Example) Prime Implicants minterms Once a term is included in the solution, all the minterms covered by that term are covered. Therefore we may now mark the covered minterms and find terms that are no longer useful. CMPUT 329 - Computer Organization and Architecture II 82
Prime Implicant Chart (Example) Prime Implicants minterms CMPUT 329 - Computer Organization and Architecture II 83
Prime Implicant Chart (Example) Prime Implicants minterms As we have not covered all the minterms with essential prime implicants, we must choose enough non-essential prime implicants to cover the remaining minterms. CMPUT 329 - Computer Organization and Architecture II 84
Prime Implicant Chart (Example) Prime Implicants minterms What strategy should we use to find a minimum cover for the remaining minterms? CMPUT 329 - Computer Organization and Architecture II 85
Prime Implicant Chart (Example) Prime Implicants minterms We choose first prime implicants that cover the most minterms. Should this strategy always work? ? CMPUT 329 - Computer Organization and Architecture II 86
Prime Implicant Chart (Example) Prime Implicants minterms Therefore our minimum solution is: f(a, b, c, d) = b’c’ + cd’ + a’bd CMPUT 329 - Computer Organization and Architecture II 87
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Which ones are the essential prime implicants in this chart? There is no essential prime implicants, how we proceed? CMPUT 329 - Computer Organization and Architecture II 88
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Also, all implicants cover the same number of minterms. We will have to proceed by trial and error. F(a, b, c) = a’b’ CMPUT 329 - Computer Organization and Architecture II 89
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Also, all implicants cover the same number of minterms. We will have to proceed by trial and error. F(a, b, c) = a’b’ + bc’ CMPUT 329 - Computer Organization and Architecture II 90
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Thus, we get the minimization: F(a, b, c) = a’b’ + bc’ + ac CMPUT 329 - Computer Organization and Architecture II 91
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Lets try another set of prime implicants. CMPUT 329 - Computer Organization and Architecture II 92
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Lets try another set of prime implicants. F(a, b, c) = a’c CMPUT 329 - Computer Organization and Architecture II 93
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Lets try another set of prime implicants. F(a, b, c) = a’c + b’c’ CMPUT 329 - Computer Organization and Architecture II 94
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms Lets try another set of prime implicants. F(a, b, c) = a’c + b’c’+ ab CMPUT 329 - Computer Organization and Architecture II 95
Cyclic Prime Implicant Chart F(a, b, c) = m(0, 1, 2, 5, 6, 7) 0 1 2 5 6 7 000 001 010 101 110 111 0, 1 0, 2 1, 5 2, 6 5, 7 6, 7 000 -0 -01 -10 1 -1 11 - Prime Implicants minterms This time we obtain: F(a, b, c) = a’c + b’c’+ ab CMPUT 329 - Computer Organization and Architecture II 96

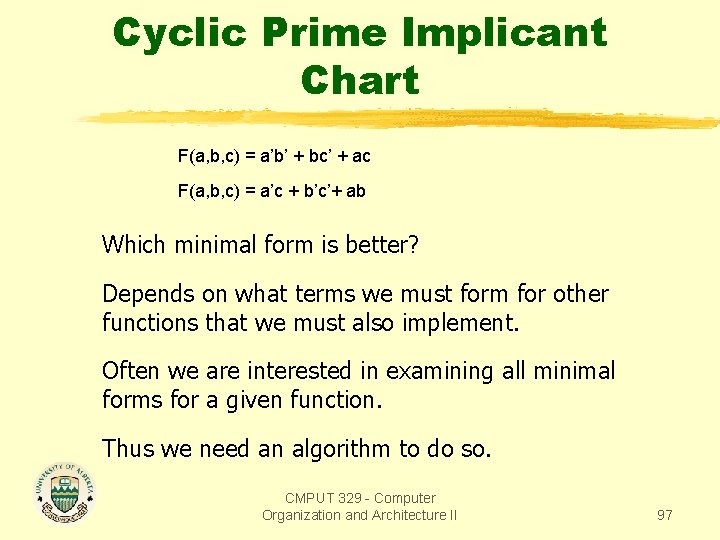

Cyclic Prime Implicant Chart F(a, b, c) = a’b’ + bc’ + ac F(a, b, c) = a’c + b’c’+ ab Which minimal form is better? Depends on what terms we must form for other functions that we must also implement. Often we are interested in examining all minimal forms for a given function. Thus we need an algorithm to do so. CMPUT 329 - Computer Organization and Architecture II 97
Petrick’s Method S. R. Petrick. A direct determination of the irredundant forms of a boolean function from the set of prime implicants. Technical Report AFCRC-TR-56 -110, Air Force Cambridge Research Center, Cambridge, MA, April, 1956. Goal: Given a prime implicant chart, determine all minimum sum-of-products solutions. CMPUT 329 - Computer Organization and Architecture II 98
Petrick’s Method An Example Prime Implicants minterms Step 1: Label all the rows in the chart. Step 2: Form a logic function P with the logic variables P 1, P 2, P 3 that is true when all the minterms in the chart are covered. CMPUT 329 - Computer Organization and Architecture II 99

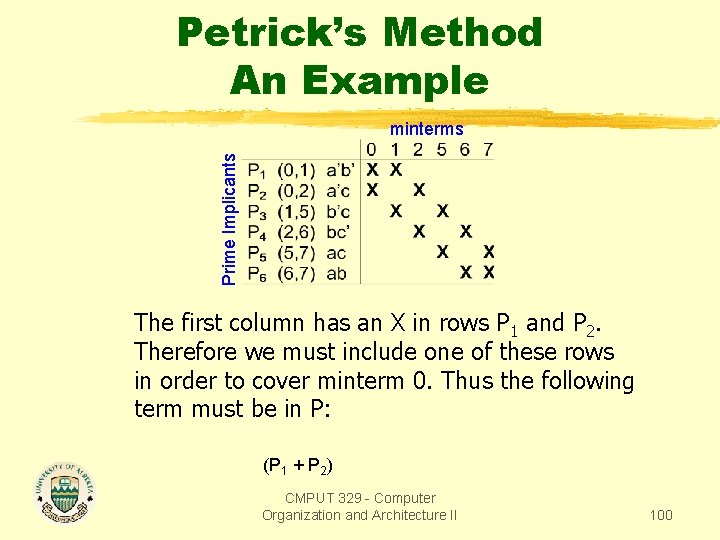

Petrick’s Method An Example Prime Implicants minterms The first column has an X in rows P 1 and P 2. Therefore we must include one of these rows in order to cover minterm 0. Thus the following term must be in P: (P 1 + P 2) CMPUT 329 - Computer Organization and Architecture II 100
Petrick’s Method An Example Prime Implicants minterms Following this technique, we obtain: P = (P 1 + P 2) (P 1 + P 3) (P 2 + P 4) (P 3 + P 5) (P 4 + P 6) (P 5 + P 6) P = (P 1 + P 2) (P 1 + P 3) (P 4 + P 2) (P 5 + P 3) (P 4 + P 6) (P 5 + P 6) P = (P 1 + P 2) (P 1 + P 3) (P 4 + P 2) (P 4 + P 6) (P 5 + P 3) (P 5 + P 6) P = (P 1 + P 2 P 3) (P 4 + P 2 P 6) (P 5 + P 3 P 6) CMPUT 329 - Computer Organization and Architecture II 101
Petrick’s Method An Example P = (P 1 + P 2) (P 1 + P 3) (P 2 + P 4) (P 3 + P 5) (P 4 + P 6) (P 5 + P 6) P = (P 1 + P 2) (P 1 + P 3) (P 4 + P 2) (P 5 + P 3) (P 4 + P 6) (P 5 + P 6) P = (P 1 + P 2) (P 1 + P 3) (P 4 + P 2) (P 4 + P 6) (P 5 + P 3) (P 5 + P 6) P = (P 1 + P 2 P 3) (P 4 + P 2 P 6) (P 5 + P 3 P 6) P = (P 1 P 4 + P 1 P 2 P 6 + P 2 P 3 P 4 + P 2 P 3 P 6) (P 5 + P 3 P 6) P = P 1 P 4 P 5 + P 1 P 2 P 5 P 6 + P 2 P 3 P 4 P 5 + P 2 P 3 P 5 P 6 + P 1 P 3 P 4 P 6 + P 1 P 2 P 3 P 6 + P 2 P 3 P 4 P 6 + P 2 P 3 P 6 P = P 1 P 4 P 5 + P 1 P 2 P 5 P 6 + P 2 P 3 P 4 P 5 + P 1 P 4 P 3 P 6 + P 2 P 3 P 6 CMPUT 329 - Computer Organization and Architecture II 102
Petrick’s Method An Example P = P 1 P 4 P 5 + P 1 P 2 P 5 P 6 + P 2 P 3 P 4 P 5 + P 1 P 4 P 3 P 6 + P 2 P 3 P 6 This expression says that to cover all the minterms we must include the terms in line P 1 and line P 4 and line P 5, or we must include line P 1, and line P 2, and line P 5, and line P 6, or … Considering that all the terms P 1, P 2, … have the same cost, how many minimal forms the function has? The two minimal forms are F = a’b’ + bc’ + ac P 1 P 4 P 5 and P 2 P 3 P 6: F = a’c’ + b’c + ab CMPUT 329 - Computer Organization and Architecture II 103
