CMPUT 329 Fall 2003 Topic 1 Boolean Algebra

CMPUT 329 - Fall 2003 Topic 1: Boolean Algebra José Nelson Amaral CMPUT 329 Computer Organization and Architecture II 1

Reading Assignment Wakerly, Chapter 4 (Sections 4. 1. 1, 4. 1. 2, 4. 1. 3) CMPUT 329 Computer Organization and Architecture II 2

What is a switching network? X 1 X 2 Switching Network Xm Z 1 Z 2 Zm Combinatorial Network: A stateless network. The output is completely determined by the values of the input. Sequential Network: The network stores an internal state. The output is determined by the input, and by the internal state. CMPUT 329 Computer Organization and Architecture II 3

Logic Functions: Boolean Algebra INVERTER X X’ If X=0 then X’=1 If X=1 then X’=0 C=A·B If A=1 AND B=1 then C=1 otherwise C=0 C=A+B If A=1 OR B=1 then C=1 otherwise C=0 AND A B OR A B CMPUT 329 Computer Organization and Architecture II 4

Boolean expressions and logic circuits Any Boolean expression can be implemented as a logic circuit. X = [A(C+D)]’+BE C D C+D A(C+D) [A(C+D)]’ A B E [A(C+D)]’+BE BE CMPUT 329 Computer Organization and Architecture II 5

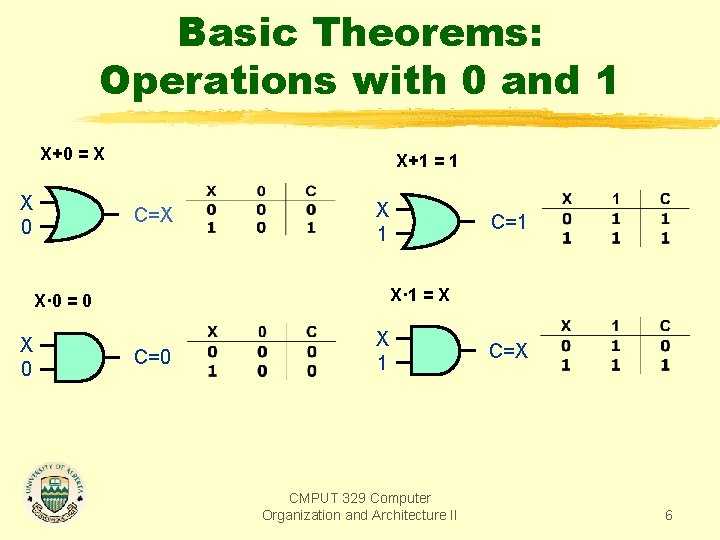

Basic Theorems: Operations with 0 and 1 X+0 = X X 0 X+1 = 1 C=X X 1 X· 1 = X X· 0 = 0 X 0 C=1 C=0 X 1 CMPUT 329 Computer Organization and Architecture II C=X 6

Basic Theorems: Idempotent Laws X+X = X X X C=X X·X = X X X C=X CMPUT 329 Computer Organization and Architecture II 7

Basic Theorems: Involution Law (X’)’=X X B C=X CMPUT 329 Computer Organization and Architecture II 8

Basic Theorems: Laws of Complementarity X+X’ = 1 X X’ C=1 X·X’ = 0 X X’ C=0 CMPUT 329 Computer Organization and Architecture II 9

Expression Simplification using the Basic Theorems X can be an arbitrarily complex expression. Simplify the following boolean expressions as much as you can using the basic theorems. (AB’ + D)E + 1 = 1 (AB’ + D)’ = 0 (AB + CD) + (CD + A) + (AB + CD)’ = 1 CMPUT 329 Computer Organization and Architecture II 10

Associative Law (X+Y)+Z = X+(Y+Z) X Y Z CMPUT 329 Computer Organization and Architecture II X C 11

Associative Law (XY)Z = X(YZ) X Y Z CMPUT 329 Computer Organization and Architecture II X C 12

First Distributive Law X(Y+Z) = XY+XZ CMPUT 329 Computer Organization and Architecture II 13

First Distributive Law X(Y+Z) = XY+XZ CMPUT 329 Computer Organization and Architecture II 14

First Distributive Law X(Y+Z) = XY+XZ CMPUT 329 Computer Organization and Architecture II 15

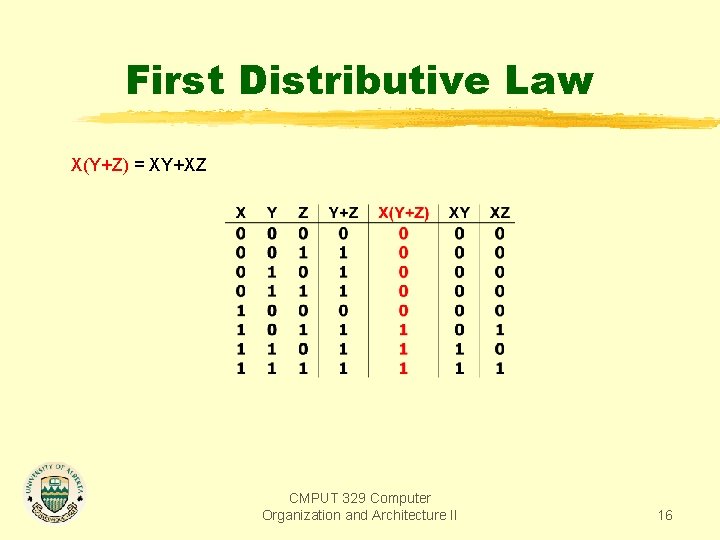

First Distributive Law X(Y+Z) = XY+XZ CMPUT 329 Computer Organization and Architecture II 16

First Distributive Law X(Y+Z) = XY+XZ CMPUT 329 Computer Organization and Architecture II 17

Second Distributive Law X+YZ = (X+Y)(X+Z) CMPUT 329 Computer Organization and Architecture II 18

Second Distributive Law X+YZ = (X+Y)(X+Z) CMPUT 329 Computer Organization and Architecture II 19

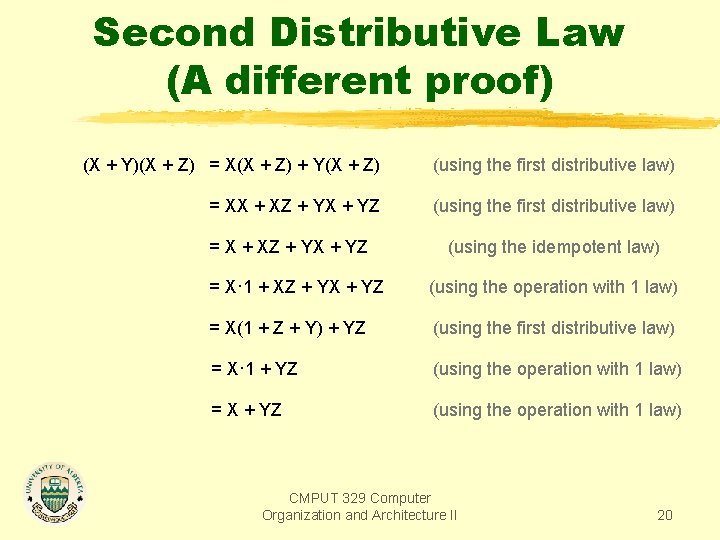

Second Distributive Law (A different proof) (X + Y)(X + Z) = X(X + Z) + Y(X + Z) (using the first distributive law) = XX + XZ + YX + YZ (using the first distributive law) = X + XZ + YX + YZ (using the idempotent law) = X· 1 + XZ + YX + YZ (using the operation with 1 law) = X(1 + Z + Y) + YZ (using the first distributive law) = X· 1 + YZ (using the operation with 1 law) = X + YZ (using the operation with 1 law) CMPUT 329 Computer Organization and Architecture II 20

Simplification Theorems XY + XY’ = X(Y + Y’) = X· 1 = X X + XY = X X(1 + Y) = X· 1 = X (X + Y)(X + Y’) = XX + XY’ + YX + YY’ = X + X(Y’ + Y) + 0 = X + X· 1 =X X(X + Y) = XX + XY = X· 1 + XY = X(1 + Y) = X· 1 = X (X + Y’)Y = XY XY + Y’Y = XY + 0 = XY XY’ + Y = X + Y (using the second distributive law) XY’ + Y = Y + XY’ = (Y + X)(Y + Y’) = (Y + X)· 1 = X + Y CMPUT 329 Computer Organization and Architecture II 21

Examples Simplify the following expressions: W = [M + N’P + (R + ST)’][M + N’P + R + ST] X = M + N’P Y = R + ST W = (X + Y’)(X + Y) W = XX + XY + Y’X + Y’Y W = X· 1 + XY’ + 0 W = X + X(Y + Y’) = X + X· 1 = X W = M + N’P CMPUT 329 Computer Organization and Architecture II 22
