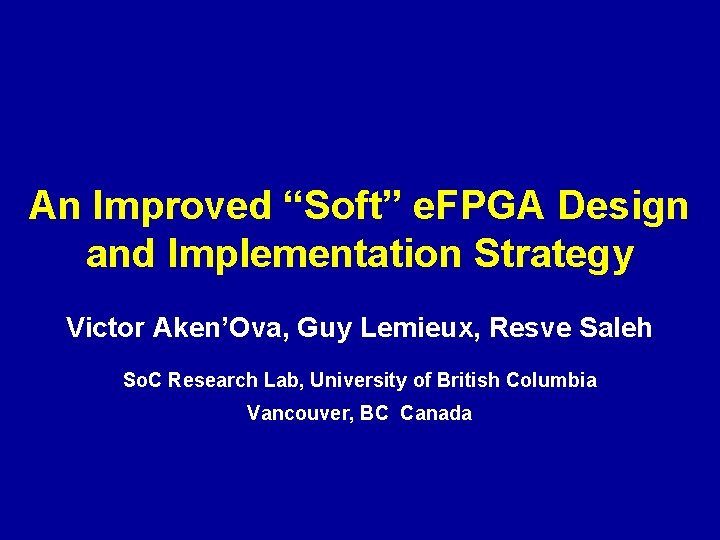

An Improved “Soft” e. FPGA Design and Implementation Strategy Victor Aken’Ova, Guy Lemieux, Resve Saleh So. C Research Lab, University of British Columbia Vancouver, BC Canada
Overview • Introduction and Motivation – Embedded FPGA (e. FPGA) • Soft Embedded FPGAs – Configurable Architecture • Improving Soft e. FPGAs – Tactical Standard Cells – Structured e. FPGA layout • Results • Summary and Conclusions 2
Introduction • So. C designs are getting more complex and costly • Programmability can be built into So. Cs to amortize costs by reducing chip re-spins Software Flexibility No Flexibility Hardware Flexibility e. FPGAs 3
Applications for e. FPGA Fabrics CPU 3 1 An e. FPGA for CPU acceleration 2 e. FPGA for product differentiation An e. FPGA for revisions 4

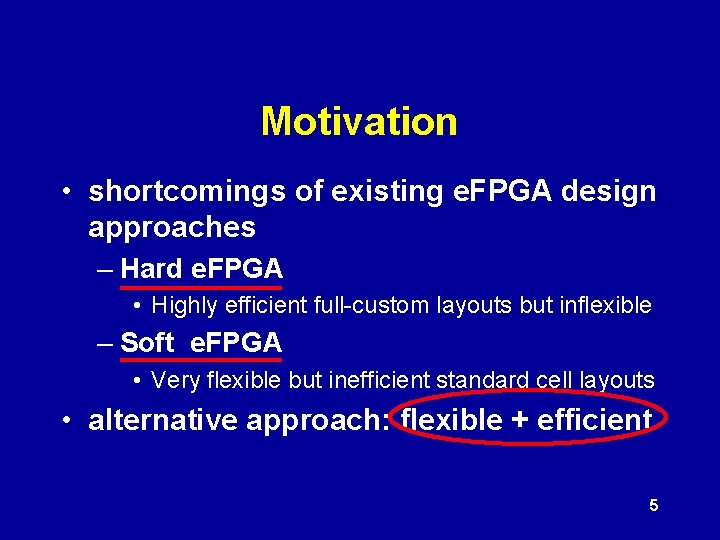

Motivation • shortcomings of existing e. FPGA design approaches – Hard e. FPGA • Highly efficient full-custom layouts but inflexible – Soft e. FPGA • Very flexible but inefficient standard cell layouts • alternative approach: flexible + efficient 5
“Hard” e. FPGA Approach with a library of 3 Cores user circuit 1 RTL ? ? 3 ? 2 Restrictive! overcapacity increases area and delay overheads 6
The “Soft” e. FPGA Approach e. FPGA RTL Generator auto generated e. FPGA ASIC flow much less logic and routing overcapacity Generic 7 x area and 2 x delay versus full-custom Standard Cells 7

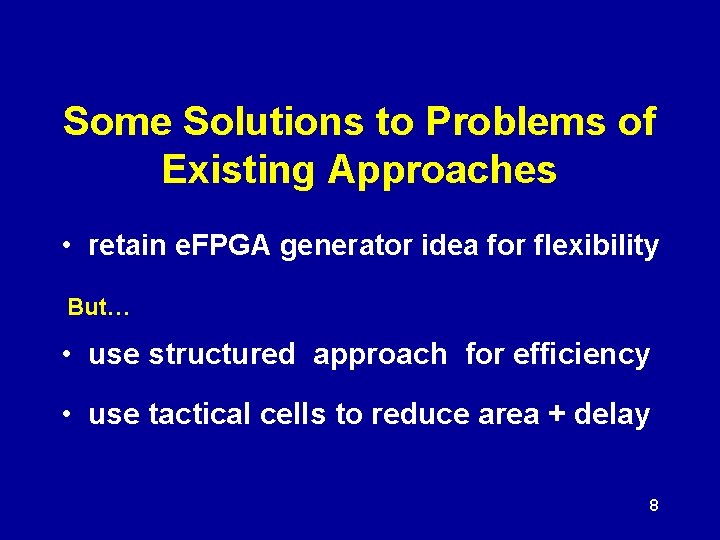

Some Solutions to Problems of Existing Approaches • retain e. FPGA generator idea for flexibility But… • use structured approach for efficiency • use tactical cells to reduce area + delay 8
Our Improved Design Approach “Soft++” e. FPGA RTL Generator auto generated e. FPGA Structured ASIC FLOW GOAL Tactical combine best of soft and hard approaches +Generic Cells 9
Island-style e. FPGA Architecture • used island-style architecture because – Mainstream: existing FPGA CAD tools can be leveraged – can exploit its regular structure to improve design efficiency • Created parameterized e. FPGA in VHDL 10
Island-style e. FPGA Architecture L: Left Edge TILE B: Bottom Edge TILE C: Corner TILE L C B (a) Island-style e. FPGA (b) e. FPGA Tile Layout 11
Unstructured vs. Structured e. FPGA Design Approach Fixed Logic Soft e. FPGA (a) unstructured e. FPGA layout tile 1 tile 2 tile 3 4 (b) structured e. FPGA layout 12

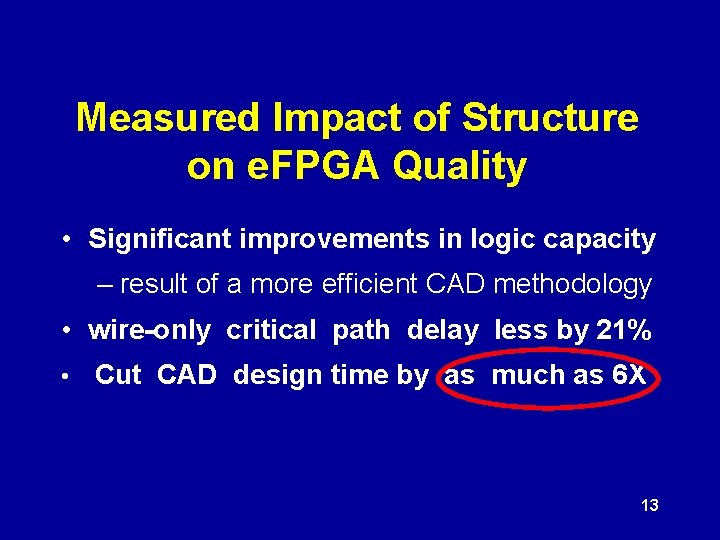

Measured Impact of Structure on e. FPGA Quality • Significant improvements in logic capacity – result of a more efficient CAD methodology • wire-only critical path delay less by 21% • Cut CAD design time by as much as 6 X 13

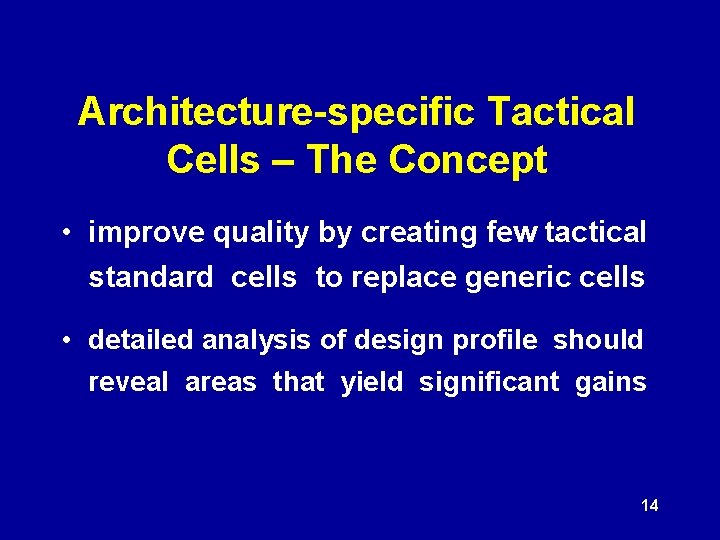

Architecture-specific Tactical Cells – The Concept • improve quality by creating few tactical standard cells to replace generic cells • detailed analysis of design profile should reveal areas that yield significant gains 14

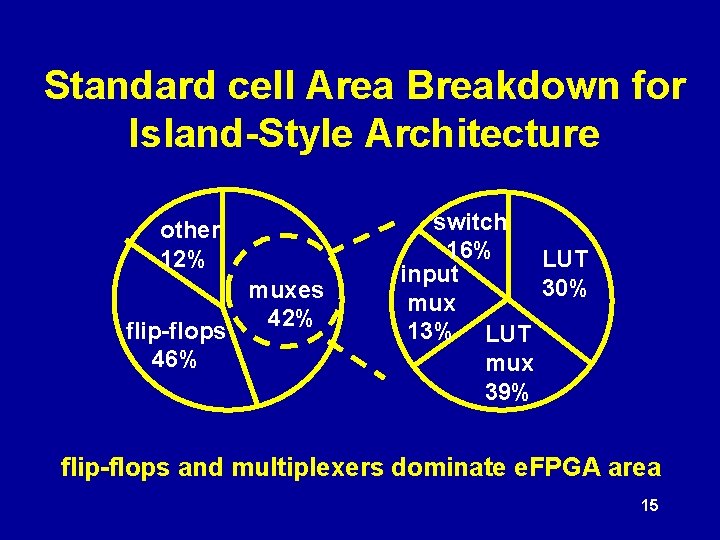

Standard cell Area Breakdown for Island-Style Architecture other 12% flip-flops 46% muxes 42% switch 16% LUT input 30% mux 13% LUT mux 39% flip-flops and multiplexers dominate e. FPGA area 15

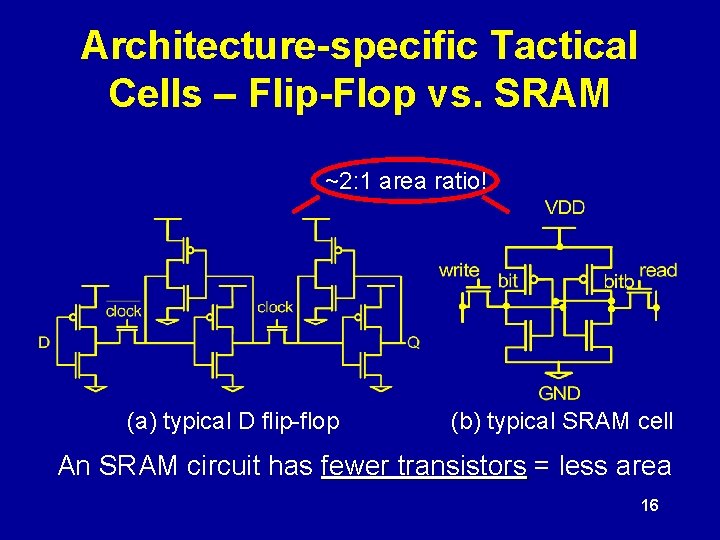

Architecture-specific Tactical Cells – Flip-Flop vs. SRAM ~2: 1 area ratio! (a) typical D flip-flop (b) typical SRAM cell An SRAM circuit has fewer transistors = less area 16

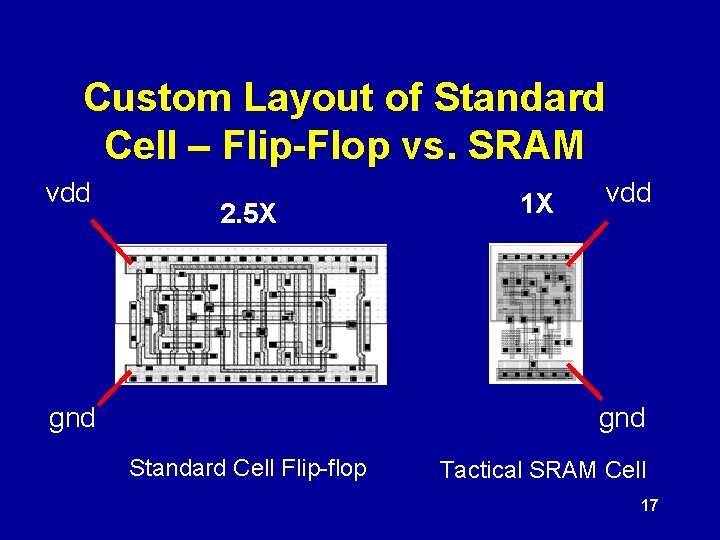

Custom Layout of Standard Cell – Flip-Flop vs. SRAM vdd 2. 5 X gnd 1 X vdd gnd Standard Cell Flip-flop Tactical SRAM Cell 17
Architecture-specific Tactical Cells – CMOS vs. Pass Gate A S 0 B S 0 C S 0 S 0 S 1 VDD A S 1 O B S 1 O C D S 0 D decompose into NAND, INV after extra output inverter ~4: 1 area ratio! pass tree logic uses fewer transistors and is faster 18
Layout Technique for Pass-Tree Multiplexers vdd n-well cutout gnd underutilized region extra NMOS (denser cell) gnd n-well cut-outs allow denser pass transistor tree layouts 19
Architecture-specific Tactical Cells – Cell Area Cell Equivalent Custom Standard cell Tactical cell improvement Factor 2 Area (um 2) Area (um ) 1 -SRAM 61 16: 1 MUX 899 2228 32: 1 MUX 4 -LUT 5 -LUT 1875 4180 24 146 2. 5 6. 1 293 530 1061 7. 6 3. 5 3. 9 20

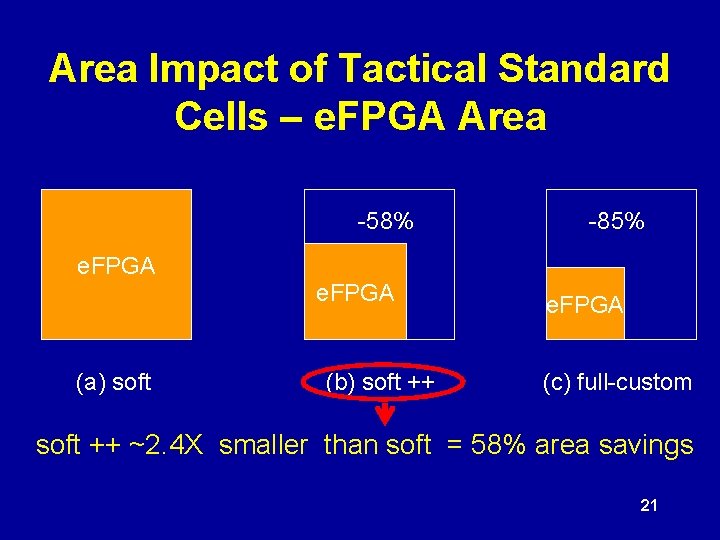

Area Impact of Tactical Standard Cells – e. FPGA Area -58% -85% e. FPGA (a) soft (b) soft ++ e. FPGA (c) full-custom soft ++ ~2. 4 X smaller than soft = 58% area savings 21
Area Graphs of Area and Delay Savings 2. 4 X Better 1. 6 – 2. 8 X full-custom area 1. 1 X of full-custom delay Delay Benchmarks 1. 4 X Better Benchmarks 22

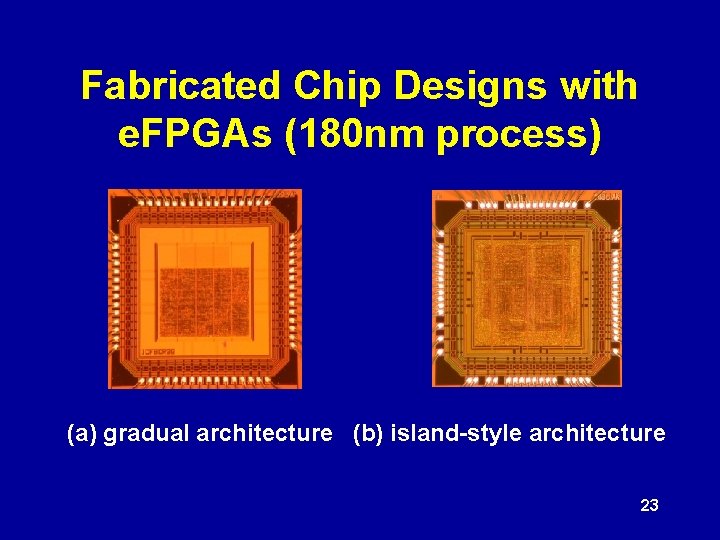

Fabricated Chip Designs with e. FPGAs (180 nm process) (a) gradual architecture (b) island-style architecture 23
Summary • e. FPGA area improved 58% (on average) – 2 to 2. 8 X larger than full-custom equivalent (worst case) • e. FPGA delay improved 40% (average) – within 10% of delay of full-custom versions • exploited the regularity of island-style architecture to increase logic capacity 24
End of Talk 25
Question and Answer Slide Soft++ hard Area Soft custom Logic Capacity soft++ fills some of performance gap left by hard 26
