Database Processing Fundamentals Design and Implementation Fifteenth Edition

Database Processing: Fundamentals, Design, and Implementation Fifteenth Edition Appendix C E-R Diagrams and the ID EF 1 X and UML Standards Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

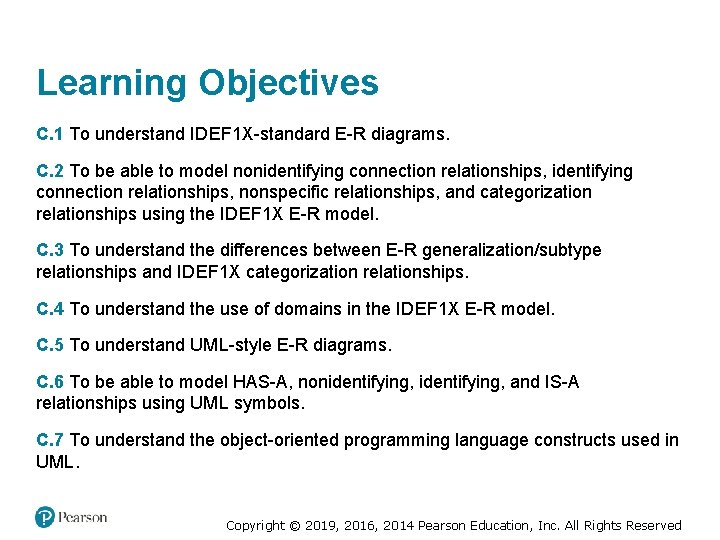

Learning Objectives C. 1 To understand IDEF 1 X-standard E-R diagrams. C. 2 To be able to model nonidentifying connection relationships, nonspecific relationships, and categorization relationships using the IDEF 1 X E-R model. C. 3 To understand the differences between E-R generalization/subtype relationships and IDEF 1 X categorization relationships. C. 4 To understand the use of domains in the IDEF 1 X E-R model. C. 5 To understand UML-style E-R diagrams. C. 6 To be able to model HAS-A, nonidentifying, and IS-A relationships using UML symbols. C. 7 To understand the object-oriented programming language constructs used in UML. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

IDEF 1 X • IDEF 1 X is an acronym for Integrated Definition 1, Extended. • IDEF 1 X is a variation of the entity-relationship (E-R) model discussed in Chapter Five. • IDEF 1 X was announced as a national standard in 1993. • IDEF 1 X assumes that a relational database will be used. • Being a government standard, most data modeling products support IDEF 1 X. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

Figure C-1 Correspondence of Terms between the Extended E-R Model and the IDEF 1 X Version Extended E-R model Term Corresponding IDEF 1 X E-R Version Term Remarks Entity Same. Attribute Same. Relationship Same. 1: 1 and 1: N relationships Nonidentifying connection relationship Connection relationship is the same as HAS-A relationship. N: M relationship Nonspecific relationship Blank ID-dependent relationship identifying connection relationship Blank Weak entity, but not ID dependent None Blank Supertype entity Generic entity has an IS-A relationship to a category cluster. Subtype entity Category entities are mutually exclusive in their category cluster. None Domain Blank Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

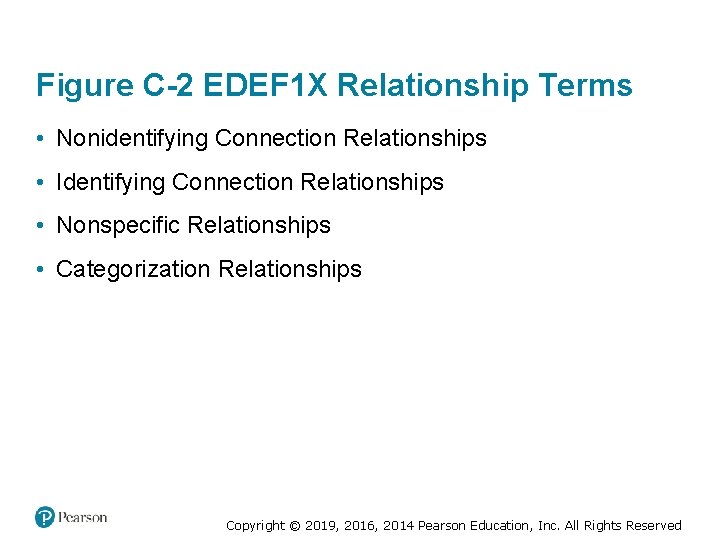

Figure C-2 EDEF 1 X Relationship Terms • Nonidentifying Connection Relationships • Identifying Connection Relationships • Nonspecific Relationships • Categorization Relationships Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

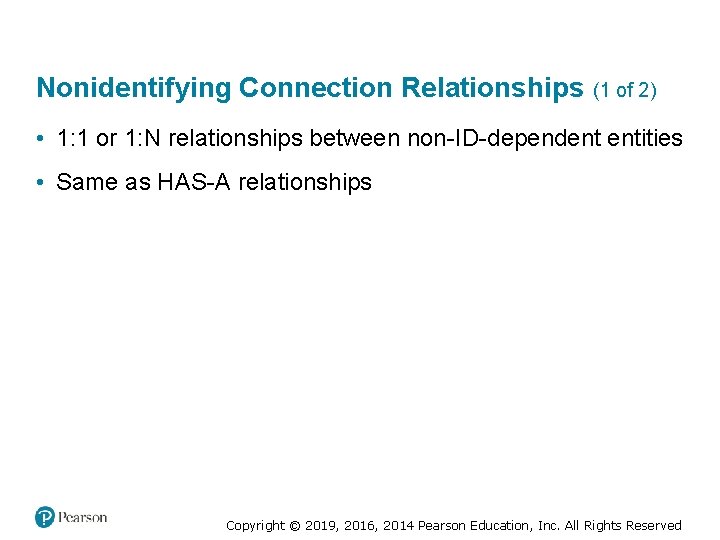

Nonidentifying Connection Relationships (1 of 2) • 1: 1 or 1: N relationships between non-ID-dependent entities • Same as HAS-A relationships Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

Nonidentifying Connection Relationships (2 of 2) • Default cardinality is 1: N, M-O. – This is shown by a dashed line with a filled-in circle by the child. – P (Positive = one or more) by the circle shows a required child. – (Diamond) next to parent indicates an optional parent. • 1: 1 is notated with a 1 next to the filled in circle. • Z indicates 0 or 1 children are allowed. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

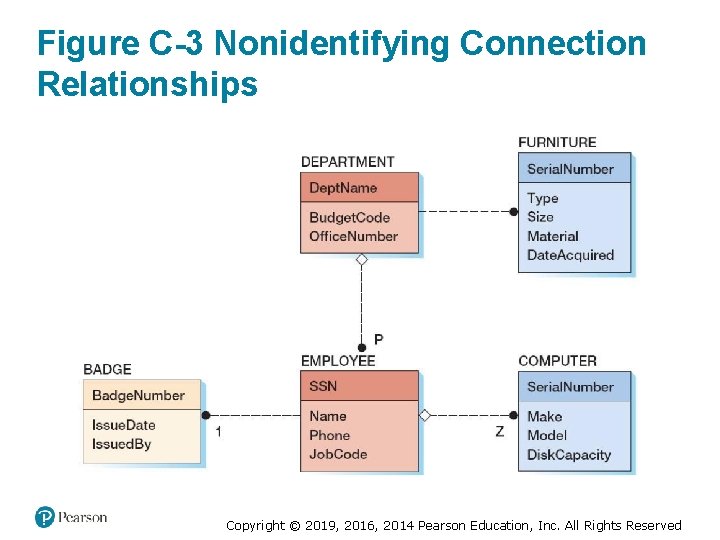

Figure C-3 Nonidentifying Connection Relationships Copyright © 2019, 2016, 2014 Pearson Education, Inc. All

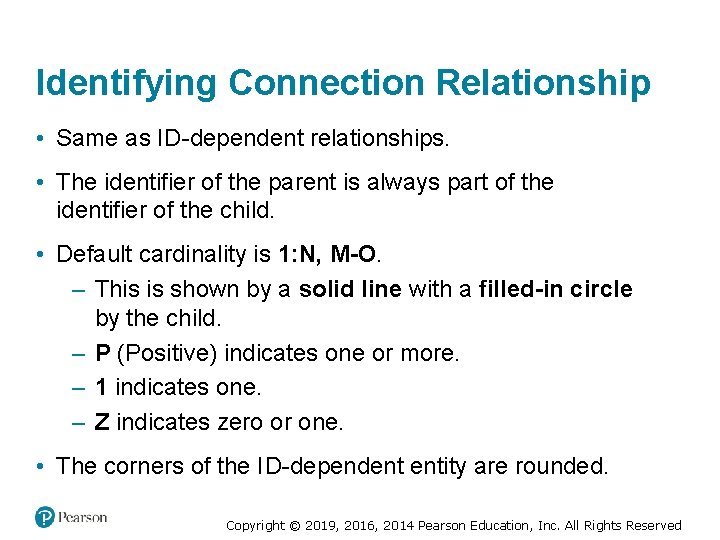

Identifying Connection Relationship • Same as ID-dependent relationships. • The identifier of the parent is always part of the identifier of the child. • Default cardinality is 1: N, M-O. – This is shown by a solid line with a filled-in circle by the child. – P (Positive) indicates one or more. – 1 indicates one. – Z indicates zero or one. • The corners of the ID-dependent entity are rounded. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

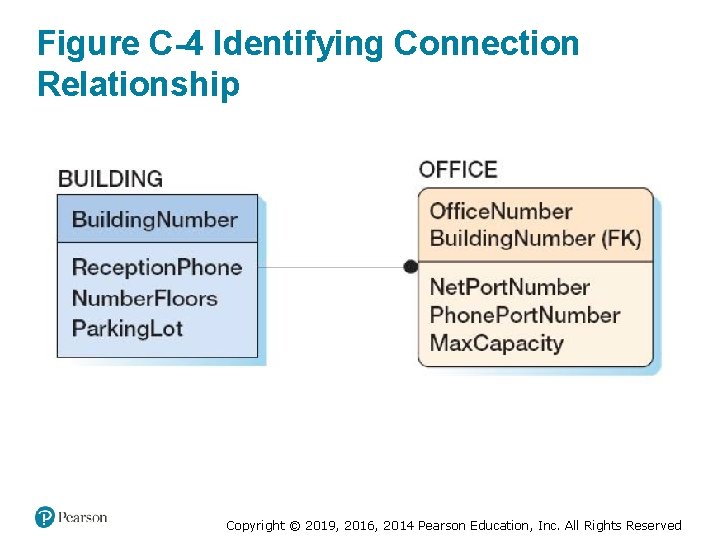

Figure C-4 Identifying Connection Relationship Copyright © 2019, 2016, 2014 Pearson Education, Inc. All

Nonspecific Relationships • Same as many-to-many (N: M) relationships. • Default cardinality is N: M, O-O. – This is shown by a solid line with a filled-in circle by both the parent and the child. – There is no way to indicate minimum cardinalities for this relationship. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

Figure C-5 Nonspecific Relationships Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights

Categorization Relationships • Same as supertype/subtype relationships. • A generic entity is a supertype. • A category entity is a subtype. • Category are grouped into category clusters. – There may be a discriminator. – Two types: ▪ Complete—every possible category is shown (two lines) ▪ Incomplete—not all possible categories are shown (one line) • Default cardinality is 1: 1, M-O. – This is shown by a solid line. – Minimum cardinality of 1 on the parent is not shown. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

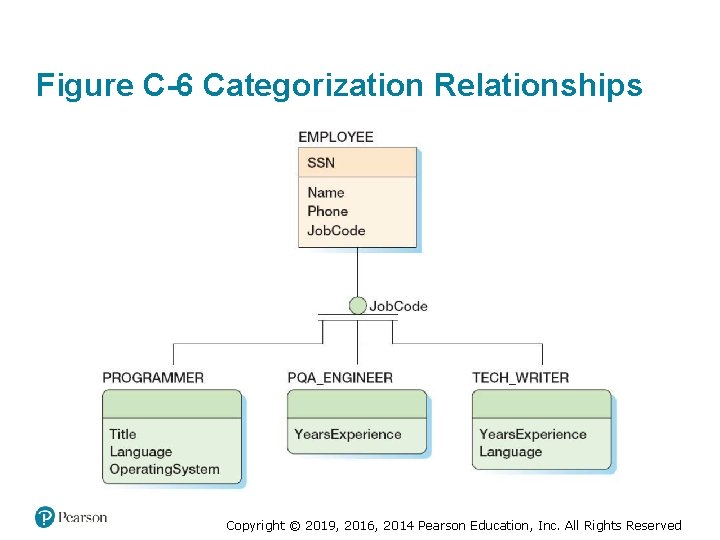

Figure C-6 Categorization Relationships Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights

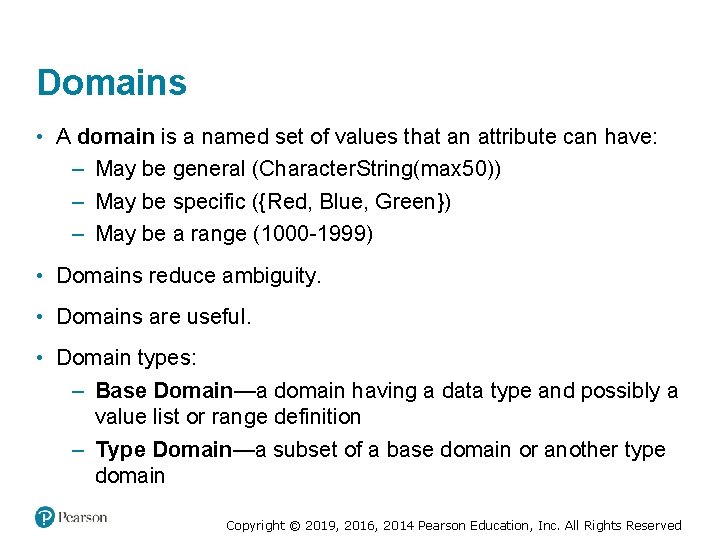

Domains • A domain is a named set of values that an attribute can have: – May be general (Character. String(max 50)) – May be specific ({Red, Blue, Green}) – May be a range (1000 -1999) • Domains reduce ambiguity. • Domains are useful. • Domain types: – Base Domain—a domain having a data type and possibly a value list or range definition – Type Domain—a subset of a base domain or another type domain Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

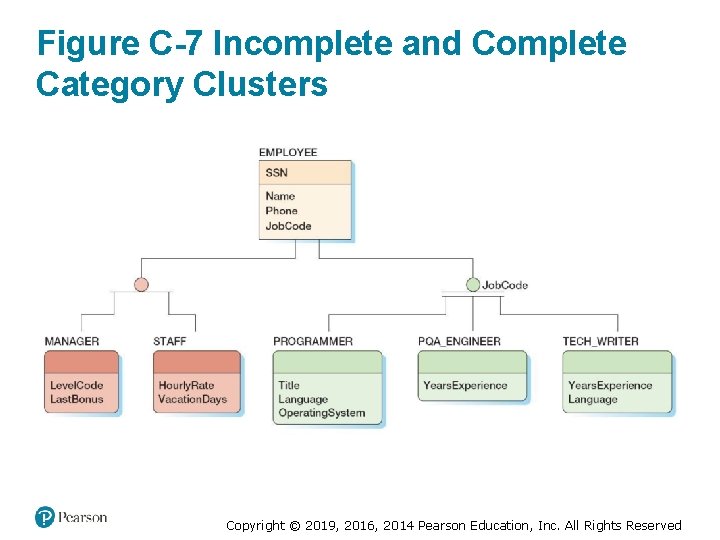

Figure C-7 Incomplete and Complete Category Clusters Copyright © 2019, 2016, 2014 Pearson Education,

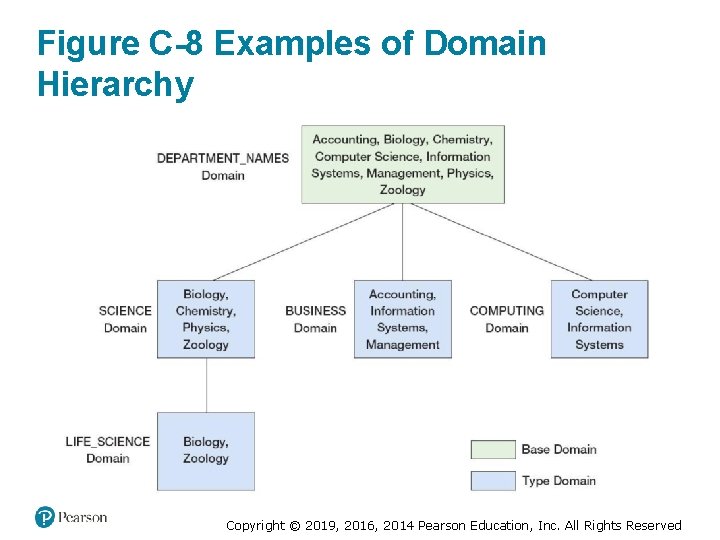

Figure C-8 Examples of Domain Hierarchy Copyright © 2019, 2016, 2014 Pearson Education, Inc.

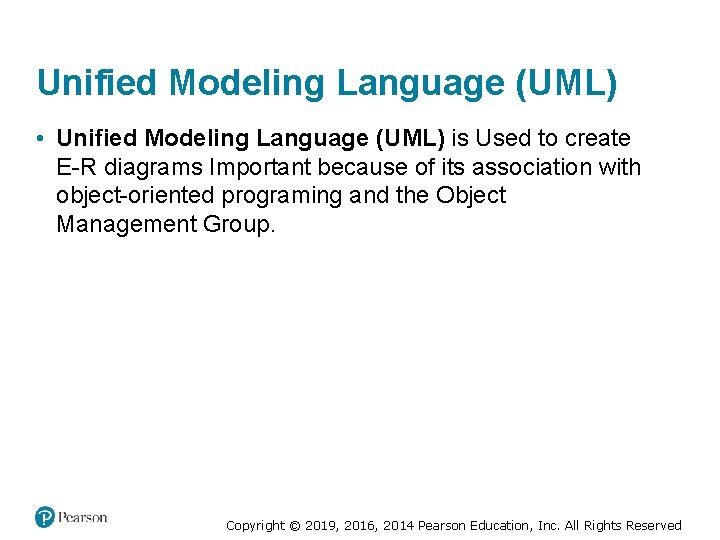

Unified Modeling Language (UML) • Unified Modeling Language (UML) is Used to create E-R diagrams Important because of its association with object-oriented programing and the Object Management Group. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

UML Representation of Strong Entities • UML Representation of Strong Entities: – Represents 1: 1, 1: N, and N: M HAS-A relationships – Each entity is represented by an entity class ▪ Top segment shows the name of the entity ▪ Second segment lists the names of the attributes in the entity ▪ Third segment documents constraints and lists methods that belong to the entity – Relationships are shown with a solid line between entities – Cardinalities are shown as x. . y ▪ x is the minimum required ▪ y is the maximum allowed ▪ * means an unlimited number Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

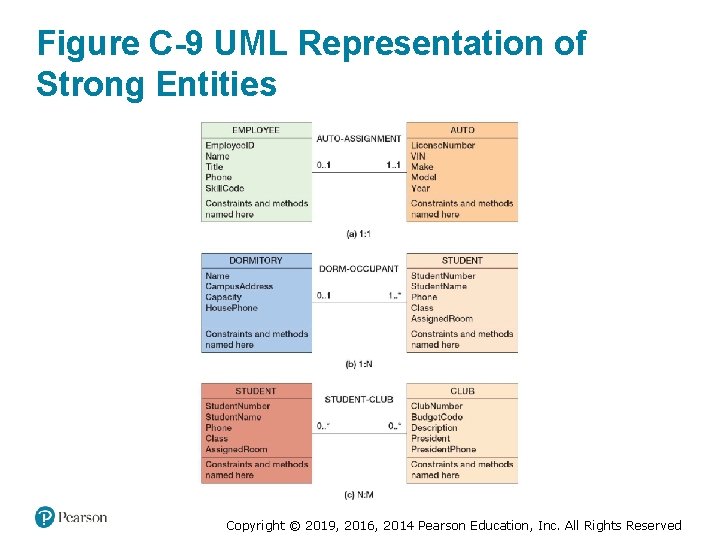

Figure C-9 UML Representation of Strong Entities Copyright © 2019, 2016, 2014 Pearson Education,

UML Representation of Weak Entities • UML Representation of Weak Entities: – A filled-in diamond is placed on the line to the parent of the weak entity (the child). – All weak entities have a parent, so the cardinality on the parent entity is always shown as 1. – ID-dependent weak entity relationships are denoted as <identifying>. – Non-ID-dependent weak entity relationships are denoted as <non-identifying>. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

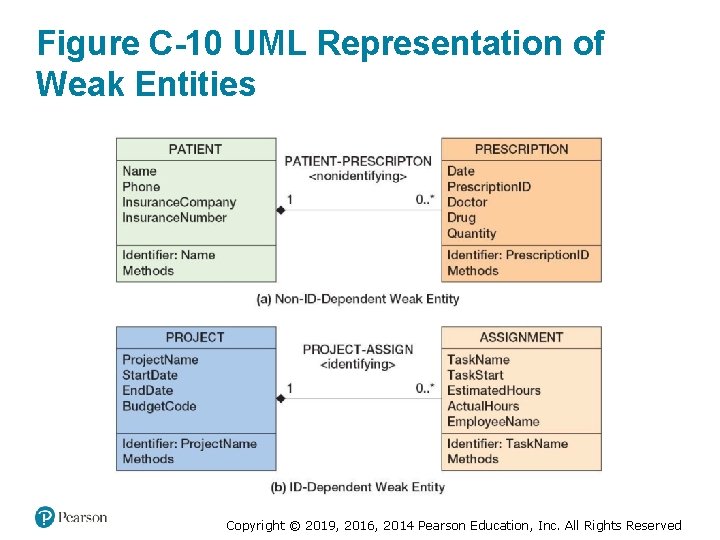

Figure C-10 UML Representation of Weak Entities Copyright © 2019, 2016, 2014 Pearson Education,

UML Representation of Subtypes • UML Representation of Subtypes: – Represents IS-A relationships – Current version of UML does not provide a means to document exclusivity but notation can be added to a UML diagram. Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

Figure C-11 UML Representation of IS-A Relationships Copyright © 2019, 2016, 2014 Pearson Education,

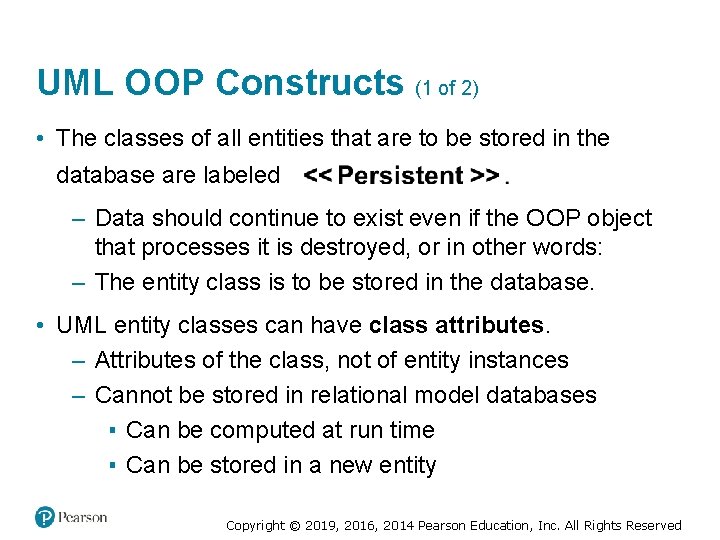

UML OOP Constructs (1 of 2) • The classes of all entities that are to be stored in the database are labeled – Data should continue to exist even if the OOP object that processes it is destroyed, or in other words: – The entity class is to be stored in the database. • UML entity classes can have class attributes. – Attributes of the class, not of entity instances – Cannot be stored in relational model databases ▪ Can be computed at run time ▪ Can be stored in a new entity Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

UML OOP Constructs (2 of 2) • Notation for visibility of attributes and methods – + (plus sign) —indicates attribute is public ▪ Is accessible and changeable by any method of any object – # (number sign) —indicates attribute is protected ▪ Is accessible only to methods of this class or its subclasses – − (minus sign) —indicates attribute is private ▪ Is accessible only to methods of this class • UML third segment holds constraints and methods – Constraints such as Primary. Key – Methods such as Get. Name() and Set. Name() Copyright © 2019, 2016, 2014 Pearson Education, Inc. All Rights Reserved

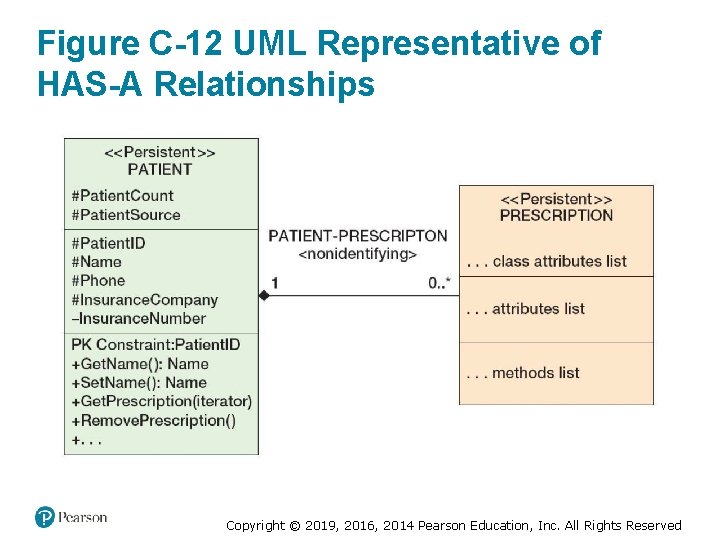

Figure C-12 UML Representative of HAS-A Relationships Copyright © 2019, 2016, 2014 Pearson Education,
