Alveolar Airspace lung disease Acute chronic and ground

Alveolar / Airspace lung disease Acute, chronic and ground glass consolidation / opacification Jacques le Roux 03/02/2012

Definition (air space disease) Disease process (fluid or cells) that replaces the normal air spaces in the lung n Homogeneous opacity characterised by little or no volume loss, n Effacement of pulmonary vessels unlike ground glass opacities n And if airways remain air filled you see air bronchograms n

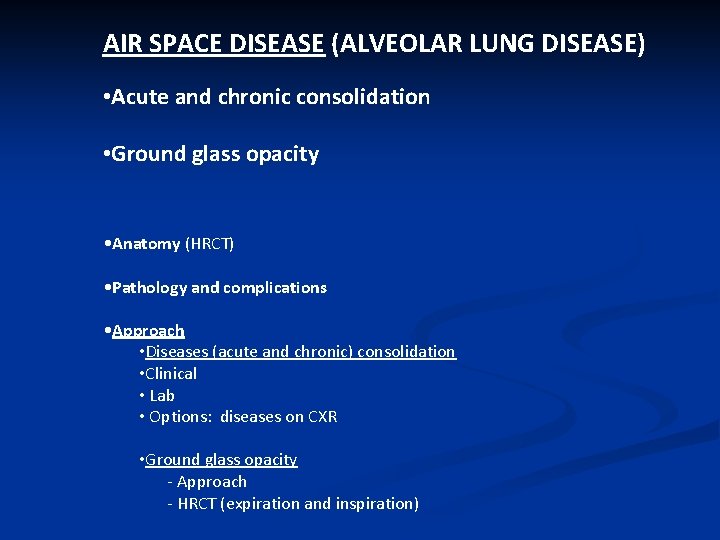

AIR SPACE DISEASE (ALVEOLAR LUNG DISEASE) • Acute and chronic consolidation • Ground glass opacity • Anatomy (HRCT) • Pathology and complications • Approach • Diseases (acute and chronic) consolidation • Clinical • Lab • Options: diseases on CXR • Ground glass opacity - Approach - HRCT (expiration and inspiration)

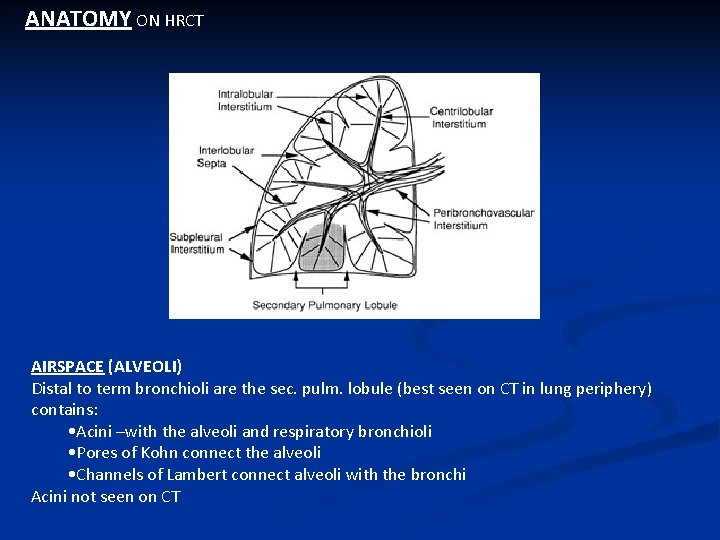

ANATOMY ON HRCT AIRSPACE (ALVEOLI) Distal to term bronchioli are the sec. pulm. lobule (best seen on CT in lung periphery) contains: • Acini –with the alveoli and respiratory bronchioli • Pores of Kohn connect the alveoli • Channels of Lambert connect alveoli with the bronchi Acini not seen on CT

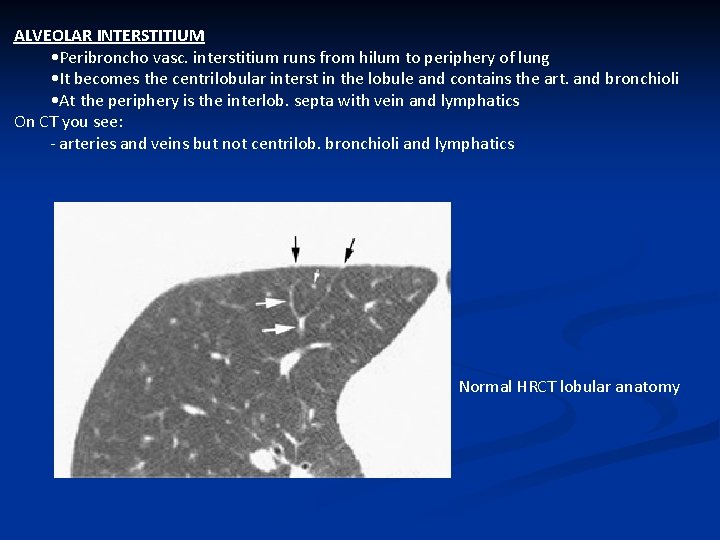

ALVEOLAR INTERSTITIUM • Peribroncho vasc. interstitium runs from hilum to periphery of lung • It becomes the centrilobular interst in the lobule and contains the art. and bronchioli • At the periphery is the interlob. septa with vein and lymphatics On CT you see: - arteries and veins but not centrilob. bronchioli and lymphatics Normal HRCT lobular anatomy

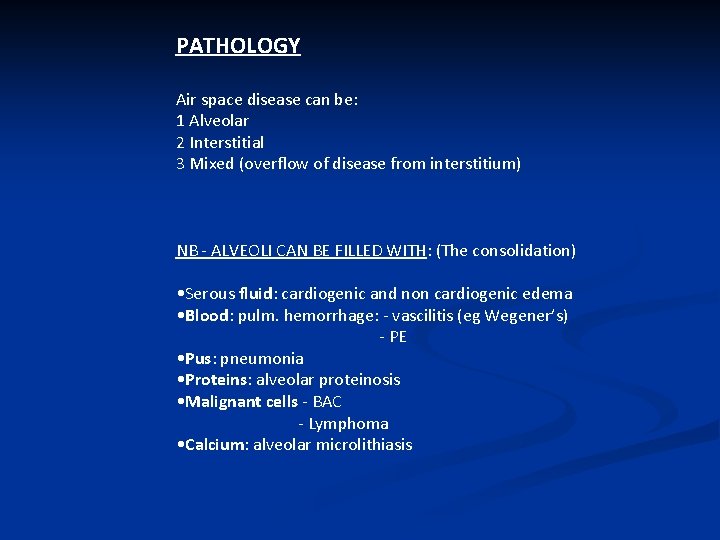

PATHOLOGY Air space disease can be: 1 Alveolar 2 Interstitial 3 Mixed (overflow of disease from interstitium) NB - ALVEOLI CAN BE FILLED WITH: (The consolidation) • Serous fluid: cardiogenic and non cardiogenic edema • Blood: pulm. hemorrhage: - vascilitis (eg Wegener’s) - PE • Pus: pneumonia • Proteins: alveolar proteinosis • Malignant cells - BAC - Lymphoma • Calcium: alveolar microlithiasis

COMPLICATIONS ACUTE • Pleural effusion • Empyema with or without BR. pleural fistel • Lung abcess • Atelectasis (Broncho PN) CHRONIC • PAH • Bronchiectasis (traction) • Emphysema (irregular) - in area of fibrosis GROUND GLASS OPACITY (Mainly a HRCT term) • Sign of acute disease • Can Δ early changes before consolidation is present • Means: -hazy increase in lung density (high att) -CAN SEE VESSELS THROUGH THE HAZE If reticulations are superimposed, use term ‘crazy paving’ or honey combing

Acute and chronic air space consolidation

AIRSPACE DISEASE (CONSOLIDATION) ACUTE 1. Pneumonia (bact, viral, PCP, mycoplasma) 2. ARDS, AIP (Ideopatic ARDS – Hamman Rich) 3. Hemorrhage (PE) 4. Aspiration 5. Acute eosin. PN (Löffler) 6. Radiation CHRONIC 1. Tumors - BAC - Lymphoma 2. Inflam - TB, Fungi - COP (BOOP) - with eosinophilia: - chronic eosinophilic PN - ABPA (aspergillosis) - Drugs (penicillin) - Churg-Strauss (asthma + granulomas) 3. Vascular - pulm renal syndromes eg. Good Pasture, H-S Purpura, Wegener 4. Other • Alveolar sarcoidosis • Interst. Pneumonias (UIP, DIP, NSIP) • Chronic hypersensit PN (Farmer Lung) • Lipoid PN (laxatives, eye drops)

CLINICAL (IMPORTANT) ACUTE • Dyspnea • Purulent sputum • Fever • Bronchial breathing LAB: • Immunocompromised patient eg AIDS • Sputum • Lung func tests • Sarcoid (↑ ACE and calcium) • Wegener (ANCA) • Good pasture (Anti-GBM) • Other: - Bronchoscopy – lavage, biopsy CHRONIC • Dyspnea • Dry cough • Finger clubbing • Dry crepitations

CXR THE APPROACH A. NON SPECIFIC – Does not tell cause SIGNS OF CONSOLIDATION (HRCT can’t tell you more than CXR) • Opacities - fluffy hazy - margin indistinct (except if process is against a fissure) - tend to merge into one another • Air bronchogram – there is air in bronchi and exudate around them (black branching tubular structures) • Silhouette sign (2 objects in contact with each other and must have same density) - margin will be obscure • No blood vessels in opacity • No volume loss – structures don’t move eg fissures, diaph, mediastinum • Spine sign (lat film)

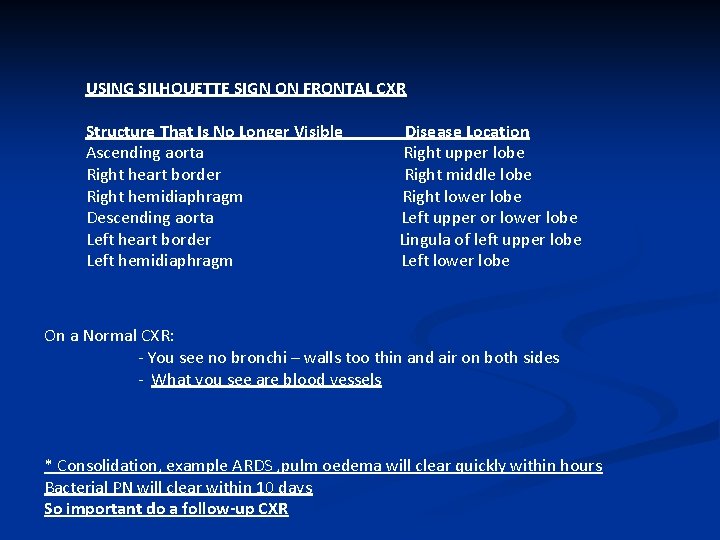

USING SILHOUETTE SIGN ON FRONTAL CXR Structure That Is No Longer Visible Ascending aorta Right heart border Right hemidiaphragm Descending aorta Left heart border Left hemidiaphragm Disease Location Right upper lobe Right middle lobe Right lower lobe Left upper or lower lobe Lingula of left upper lobe Left lower lobe On a Normal CXR: - You see no bronchi – walls too thin and air on both sides - What you see are blood vessels * Consolidation, example ARDS , pulm oedema will clear quickly within hours Bacterial PN will clear within 10 days So important do a follow-up CXR

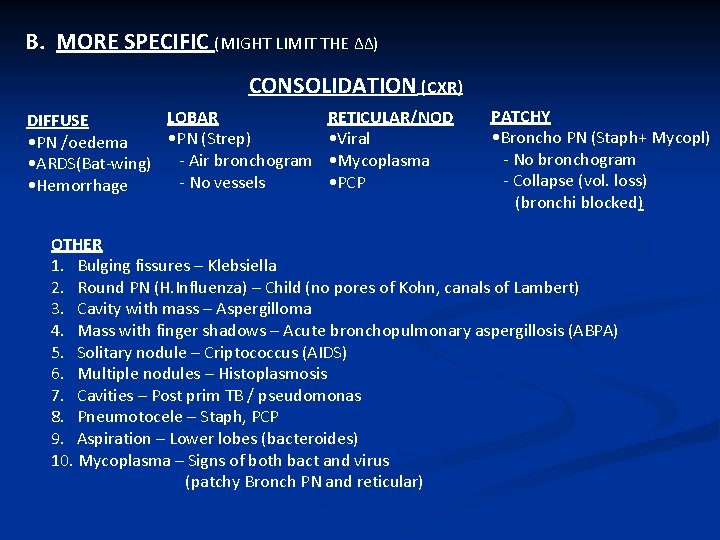

B. MORE SPECIFIC (MIGHT LIMIT THE ΔΔ) CONSOLIDATION (CXR) LOBAR DIFFUSE • PN (Strep) • PN /oedema - Air bronchogram • ARDS(Bat-wing) - No vessels • Hemorrhage RETICULAR/NOD • Viral • Mycoplasma • PCP PATCHY • Broncho PN (Staph+ Mycopl) - No bronchogram - Collapse (vol. loss) (bronchi blocked) OTHER 1. Bulging fissures – Klebsiella 2. Round PN (H. Influenza) – Child (no pores of Kohn, canals of Lambert) 3. Cavity with mass – Aspergilloma 4. Mass with finger shadows – Acute bronchopulmonary aspergillosis (ABPA) 5. Solitary nodule – Criptococcus (AIDS) 6. Multiple nodules – Histoplasmosis 7. Cavities – Post prim TB / pseudomonas 8. Pneumotocele – Staph, PCP 9. Aspiration – Lower lobes (bacteroides) 10. Mycoplasma – Signs of both bact and virus (patchy Bronch PN and reticular)

Examples

DIFFUSE CARDIOGENIC PULM EDEMA • Bilat perihilum airspace disease (bat-wing) • ↑Heart • Cardiogenic pulm edema due to eg CHF • Usually pleural effusions • Kerley lines • Peribronch cuffing NON CARDIOGENIC EDEMA (ARDS) • Bilat perihilum airspace disease (bat-wing) • Normal heart • Non cardiac. pulm edema due to eg septic shock • Usually no pleura eff. or Kerley lines

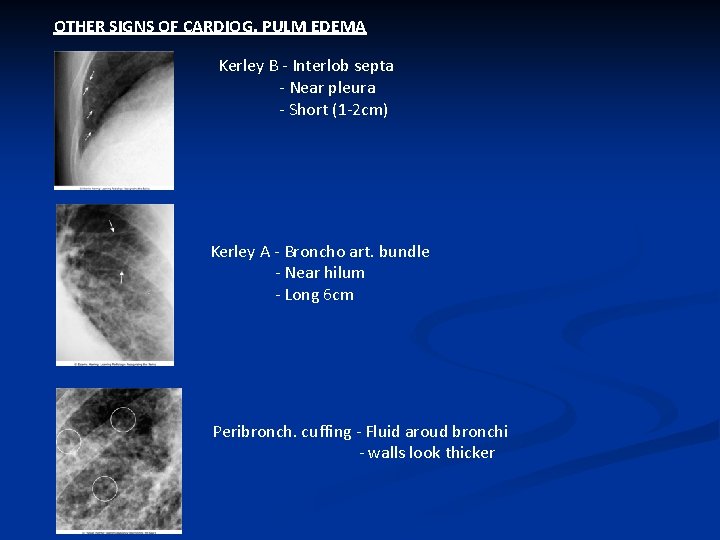

OTHER SIGNS OF CARDIOG. PULM EDEMA Kerley B - Interlob septa - Near pleura - Short (1 -2 cm) Kerley A - Broncho art. bundle - Near hilum - Long 6 cm Peribronch. cuffing - Fluid aroud bronchi - walls look thicker

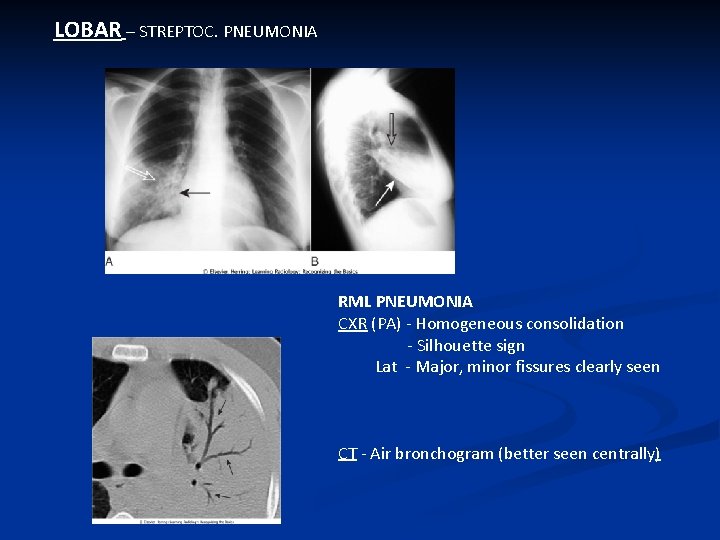

LOBAR – STREPTOC. PNEUMONIA RML PNEUMONIA CXR (PA) - Homogeneous consolidation - Silhouette sign Lat - Major, minor fissures clearly seen CT - Air bronchogram (better seen centrally)

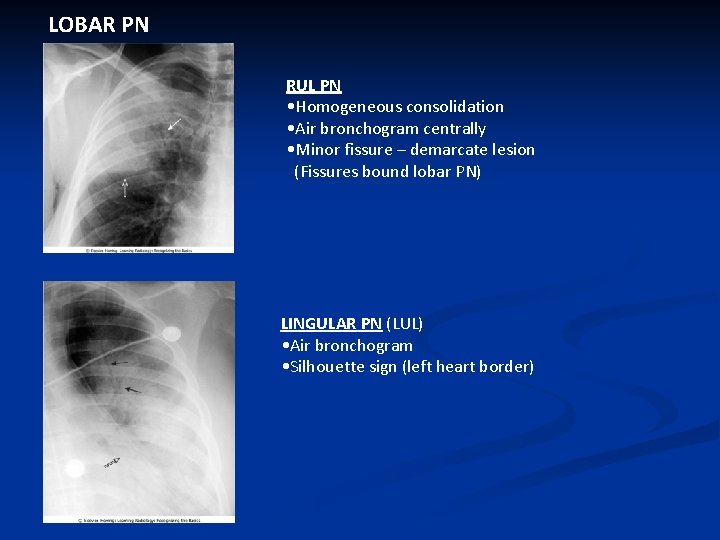

LOBAR PN RUL PN • Homogeneous consolidation • Air bronchogram centrally • Minor fissure – demarcate lesion (Fissures bound lobar PN) LINGULAR PN (LUL) • Air bronchogram • Silhouette sign (left heart border)

BRONCHO PN - STAPH • Patchy consolidation, moving centrifugally • Lung segments are not bound by fissures (only lobes) • No air bronchogram because exudate fills bronchi as well as airspaces

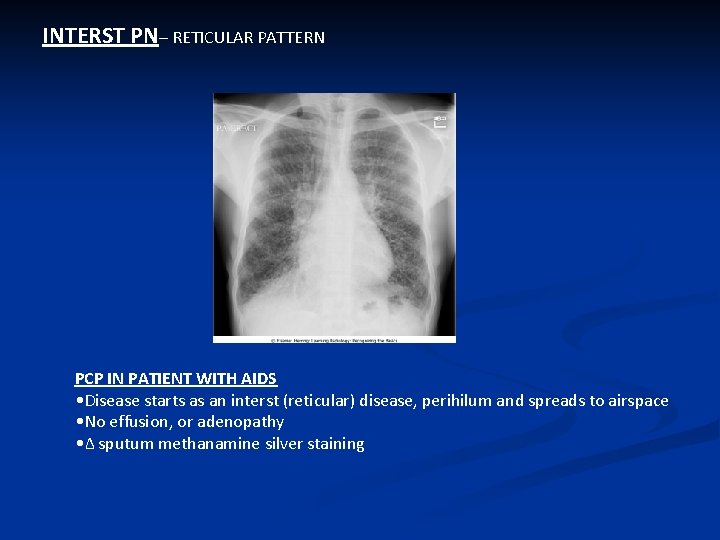

INTERST PN– RETICULAR PATTERN PCP IN PATIENT WITH AIDS • Disease starts as an interst (reticular) disease, perihilum and spreads to airspace • No effusion, or adenopathy • Δ sputum methanamine silver staining

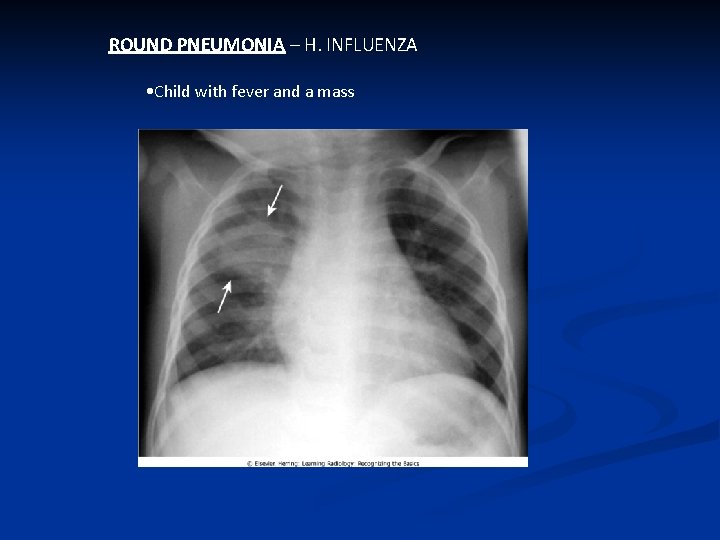

ROUND PNEUMONIA – H. INFLUENZA • Child with fever and a mass

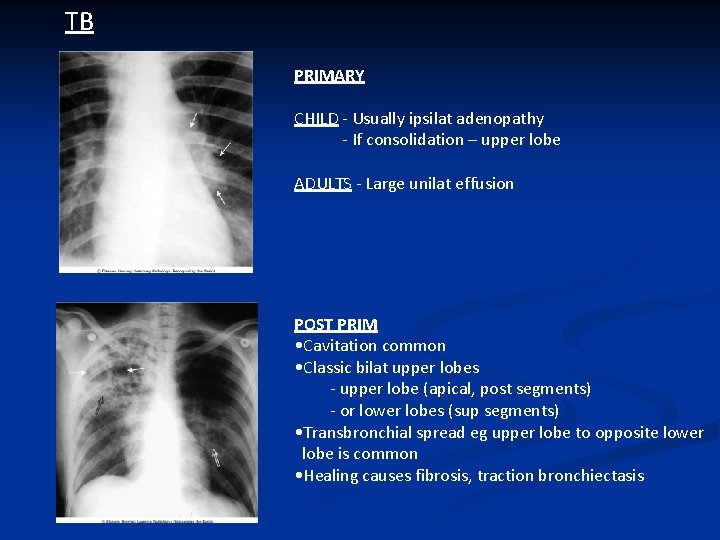

TB PRIMARY CHILD - Usually ipsilat adenopathy - If consolidation – upper lobe ADULTS - Large unilat effusion POST PRIM • Cavitation common • Classic bilat upper lobes - upper lobe (apical, post segments) - or lower lobes (sup segments) • Transbronchial spread eg upper lobe to opposite lower lobe is common • Healing causes fibrosis, traction bronchiectasis

ASPIRATION PN – Anaerobic organisms (Bacteroides) Lower lobes – R more affected (R bronchus short, straight, wide) • ACUTE aspiration gives airspace disease – in stroke patient • CHRONIC aspiration cavitation

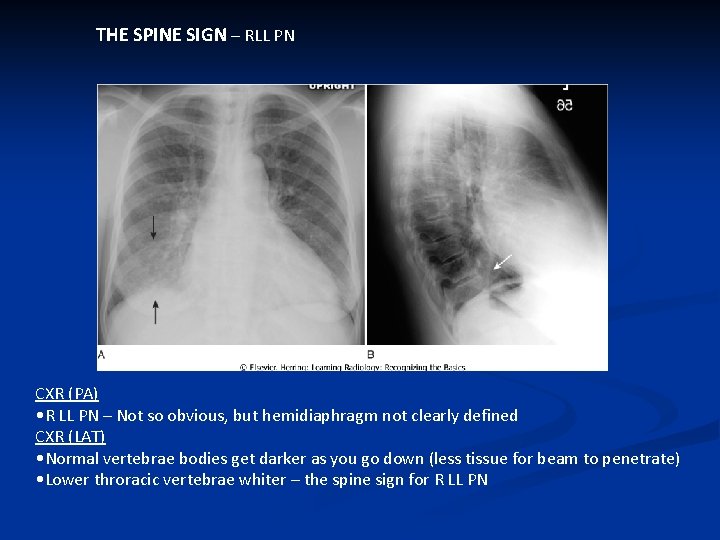

THE SPINE SIGN – RLL PN CXR (PA) • R LL PN – Not so obvious, but hemidiaphragm not clearly defined CXR (LAT) • Normal vertebrae bodies get darker as you go down (less tissue for beam to penetrate) • Lower throracic vertebrae whiter – the spine sign for R LL PN

Broncho PN – STAPH • Patchy consolidation L and R • Abcess and cavity formation

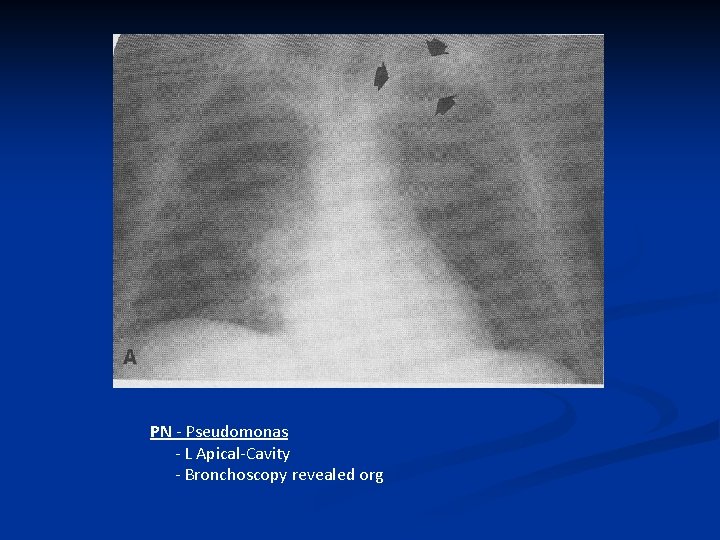

PN - Pseudomonas - L Apical-Cavity - Bronchoscopy revealed org

PN – Mycoplasma (sputum Δ) • Diffuse reticular interst markings • Bilat lower lung zone airspace disease

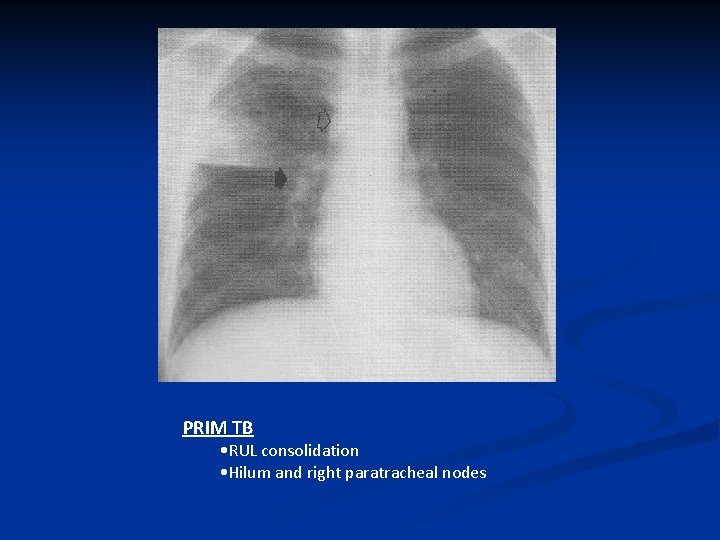

PRIM TB • RUL consolidation • Hilum and right paratracheal nodes

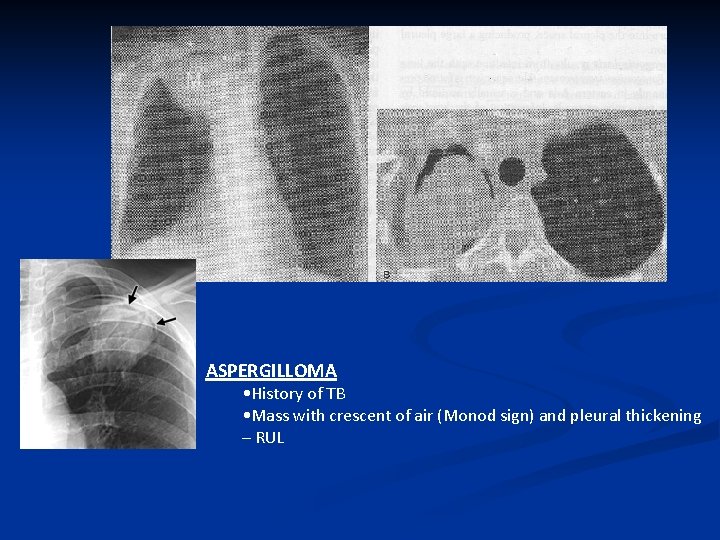

ASPERGILLOMA • History of TB • Mass with crescent of air (Monod sign) and pleural thickening – RUL

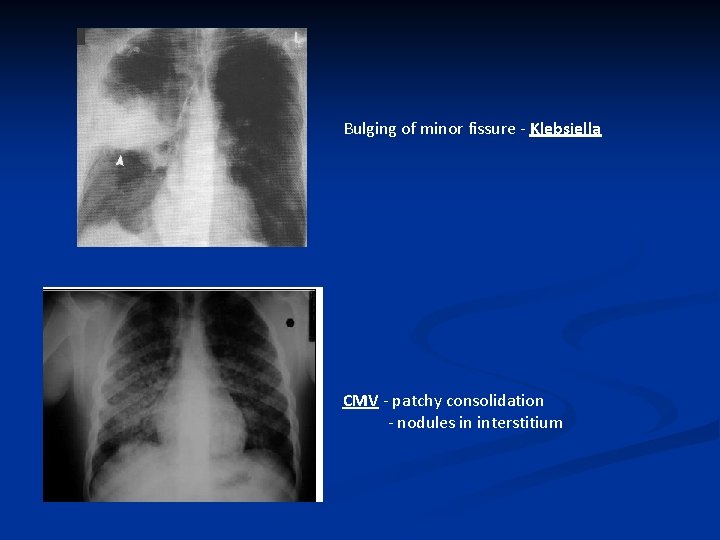

Bulging of minor fissure - Klebsiella CMV - patchy consolidation - nodules in interstitium

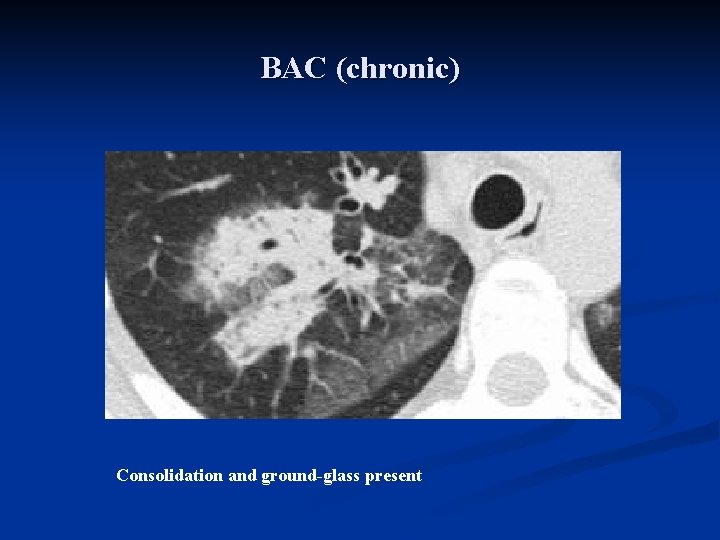

BAC (chronic) Consolidation and ground-glass present

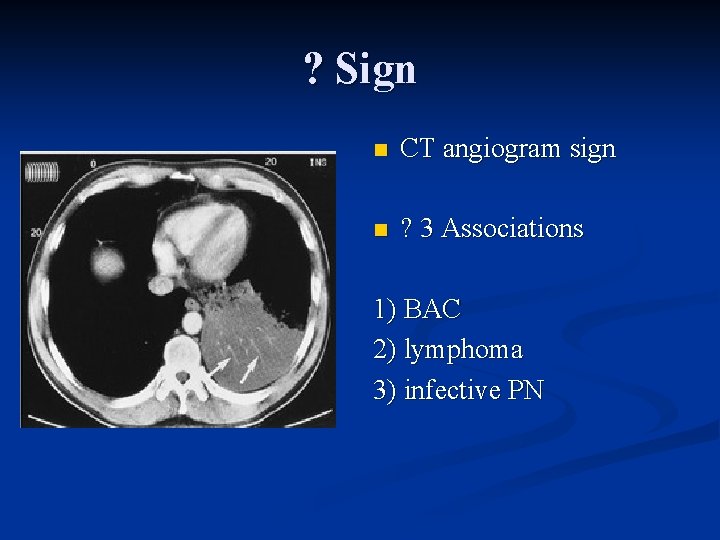

? Sign n CT angiogram sign n ? 3 Associations 1) BAC 2) lymphoma 3) infective PN

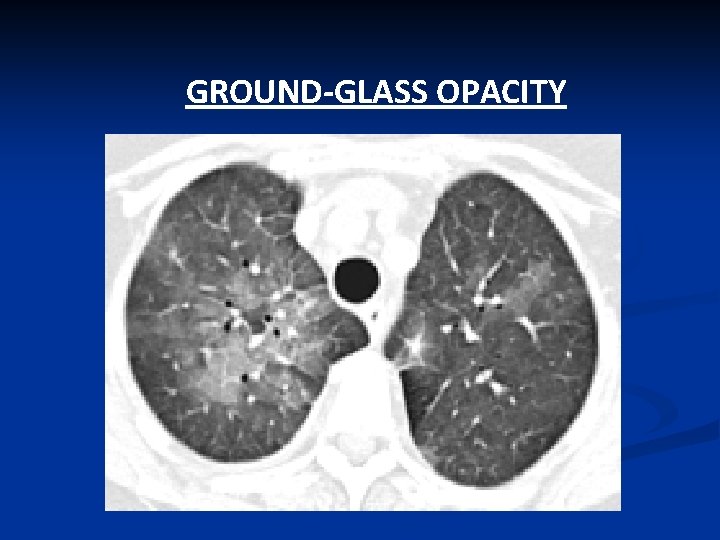

GROUND-GLASS OPACITY

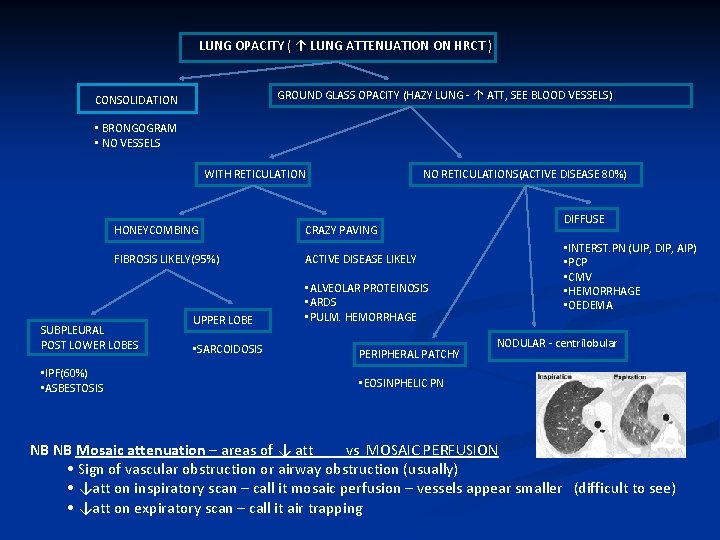

LUNG OPACITY ( ↑ LUNG ATTENUATION ON HRCT ) GROUND GLASS OPACITY (HAZY LUNG - ↑ ATT, SEE BLOOD VESSELS) CONSOLIDATION • BRONGOGRAM • NO VESSELS WITH RETICULATION HONEYCOMBING CRAZY PAVING FIBROSIS LIKELY(95%) ACTIVE DISEASE LIKELY SUBPLEURAL POST LOWER LOBES • IPF(60%) • ASBESTOSIS NO RETICULATIONS(ACTIVE DISEASE 80%) UPPER LOBE • SARCOIDOSIS • ALVEOLAR PROTEINOSIS • ARDS • PULM. HEMORRHAGE PERIPHERAL PATCHY DIFFUSE • INTERST. PN (UIP, DIP, AIP) • PCP • CMV • HEMORRHAGE • OEDEMA NODULAR - centrilobular • EOSINPHELIC PN NB NB Mosaic attenuation – areas of ↓ att vs MOSAIC PERFUSION • Sign of vascular obstruction or airway obstruction (usually) • ↓att on inspiratory scan – call it mosaic perfusion – vessels appear smaller (difficult to see) • ↓att on expiratory scan – call it air trapping

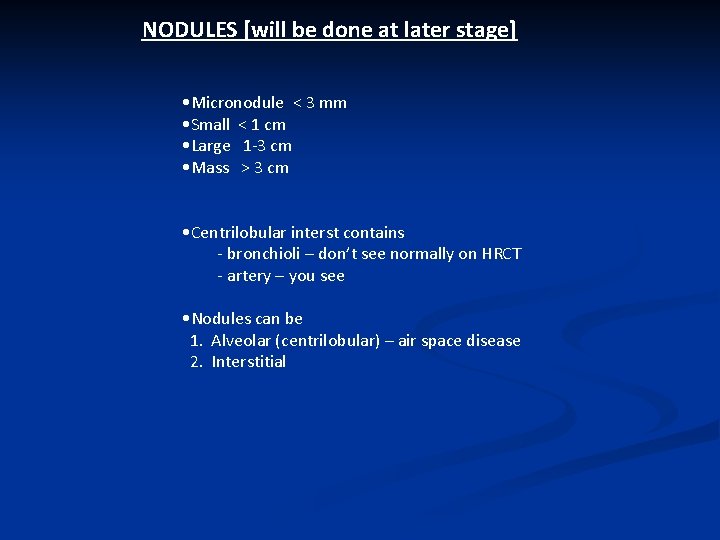

NODULES [will be done at later stage] • Micronodule < 3 mm • Small < 1 cm • Large 1 -3 cm • Mass > 3 cm • Centrilobular interst contains - bronchioli – don’t see normally on HRCT - artery – you see • Nodules can be 1. Alveolar (centrilobular) – air space disease 2. Interstitial

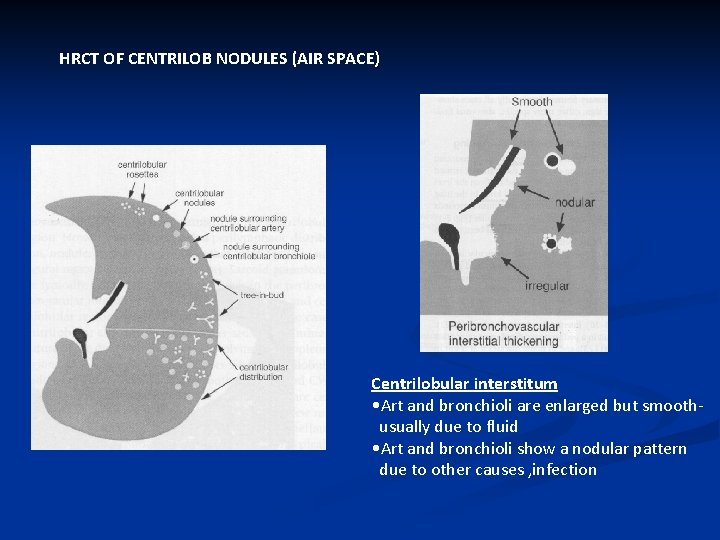

HRCT OF CENTRILOB NODULES (AIR SPACE) Centrilobular interstitum • Art and bronchioli are enlarged but smoothusually due to fluid • Art and bronchioli show a nodular pattern due to other causes , infection

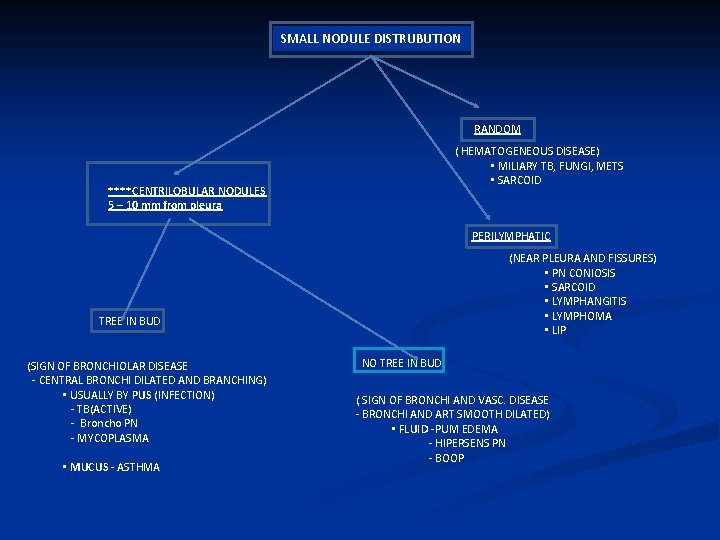

SMALL NODULE DISTRUBUTION RANDOM ( HEMATOGENEOUS DISEASE) • MILIARY TB, FUNGI, METS • SARCOID ****CENTRILOBULAR NODULES 5 – 10 mm from pleura PERILYMPHATIC (NEAR PLEURA AND FISSURES) • PN CONIOSIS • SARCOID • LYMPHANGITIS • LYMPHOMA • LIP TREE IN BUD (SIGN OF BRONCHIOLAR DISEASE - CENTRAL BRONCHI DILATED AND BRANCHING) • USUALLY BY PUS (INFECTION) - TB(ACTIVE) - Broncho PN - MYCOPLASMA • MUCUS - ASTHMA NO TREE IN BUD ( SIGN OF BRONCHI AND VASC. DISEASE - BRONCHI AND ART SMOOTH DILATED) • FLUID -PUM EDEMA - HIPERSENS PN - BOOP

Examples

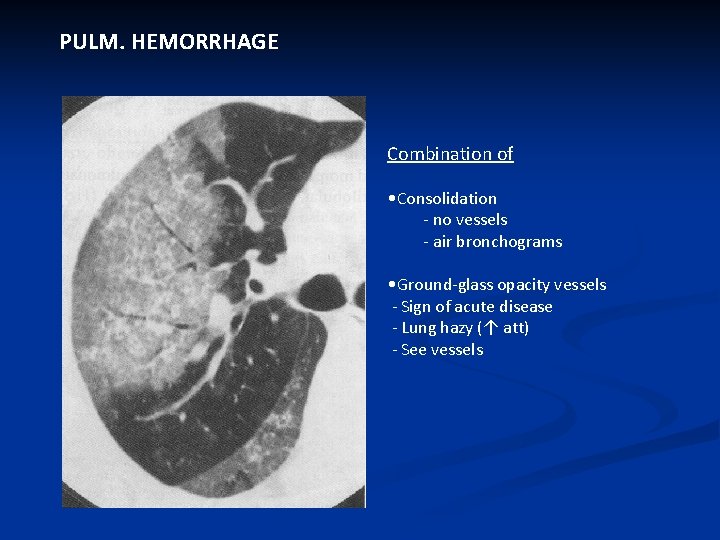

PULM. HEMORRHAGE Combination of • Consolidation - no vessels - air bronchograms • Ground-glass opacity vessels - Sign of acute disease - Lung hazy (↑ att) - See vessels

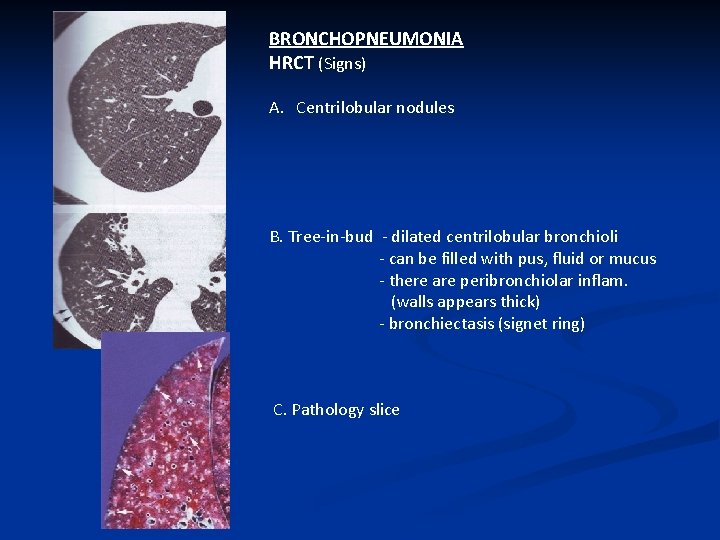

BRONCHOPNEUMONIA HRCT (Signs) A. Centrilobular nodules B. Tree-in-bud - dilated centrilobular bronchioli - can be filled with pus, fluid or mucus - there are peribronchiolar inflam. (walls appears thick) - bronchiectasis (signet ring) C. Pathology slice

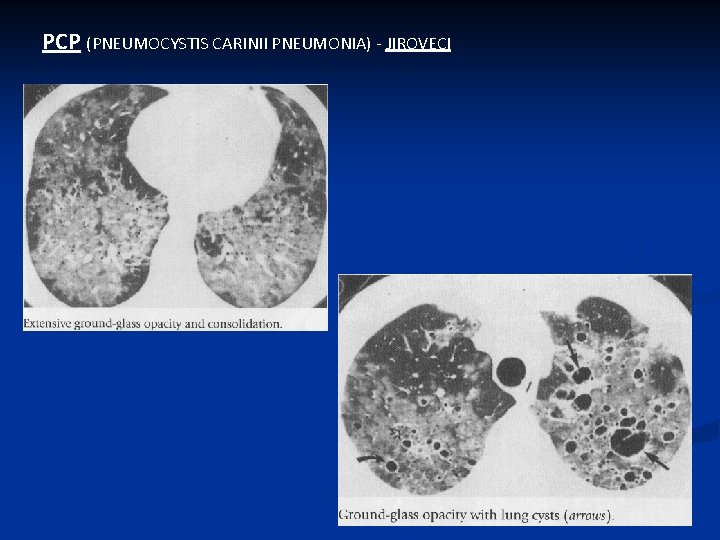

PCP (PNEUMOCYSTIS CARINII PNEUMONIA) - JIROVECI

TB

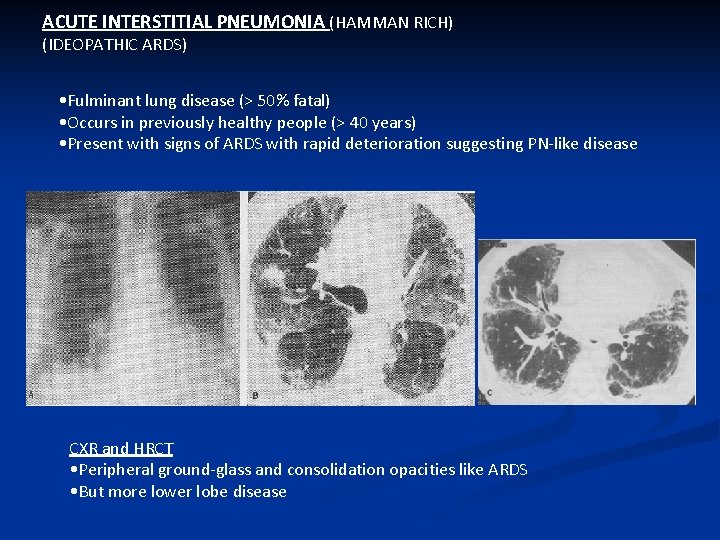

ACUTE INTERSTITIAL PNEUMONIA (HAMMAN RICH) (IDEOPATHIC ARDS) • Fulminant lung disease (> 50% fatal) • Occurs in previously healthy people (> 40 years) • Present with signs of ARDS with rapid deterioration suggesting PN-like disease CXR and HRCT • Peripheral ground-glass and consolidation opacities like ARDS • But more lower lobe disease

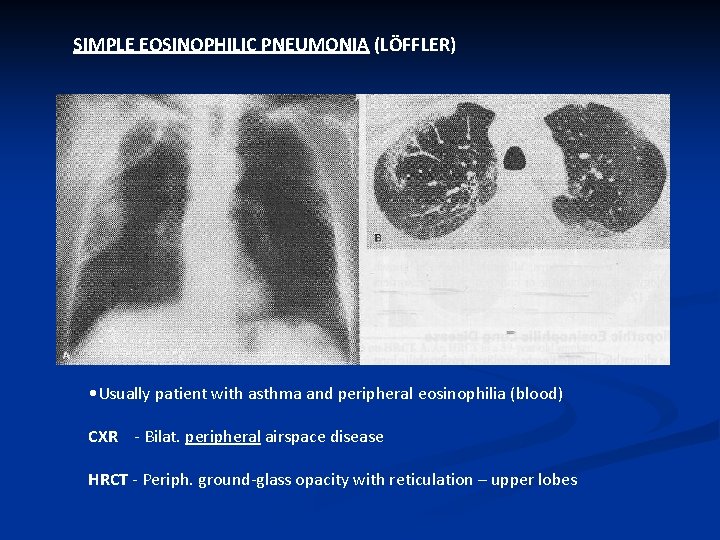

SIMPLE EOSINOPHILIC PNEUMONIA (LÖFFLER) • Usually patient with asthma and peripheral eosinophilia (blood) CXR - Bilat. peripheral airspace disease HRCT - Periph. ground-glass opacity with reticulation – upper lobes

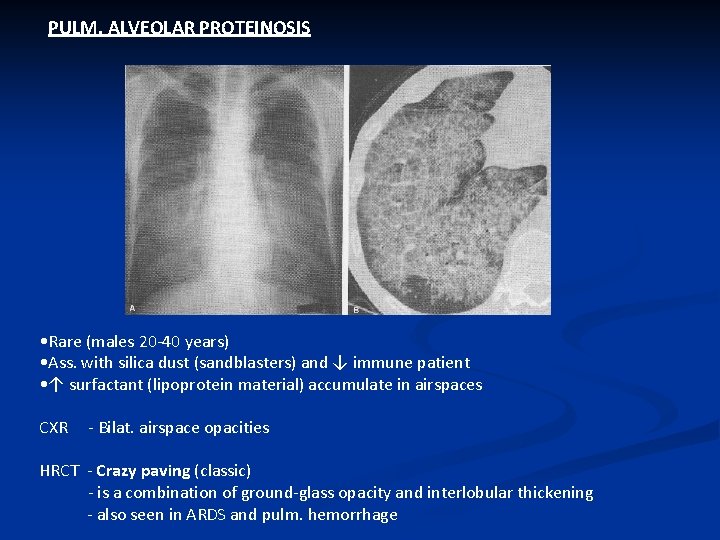

PULM. ALVEOLAR PROTEINOSIS • Rare (males 20 -40 years) • Ass. with silica dust (sandblasters) and ↓ immune patient • ↑ surfactant (lipoprotein material) accumulate in airspaces CXR - Bilat. airspace opacities HRCT - Crazy paving (classic) - is a combination of ground-glass opacity and interlobular thickening - also seen in ARDS and pulm. hemorrhage

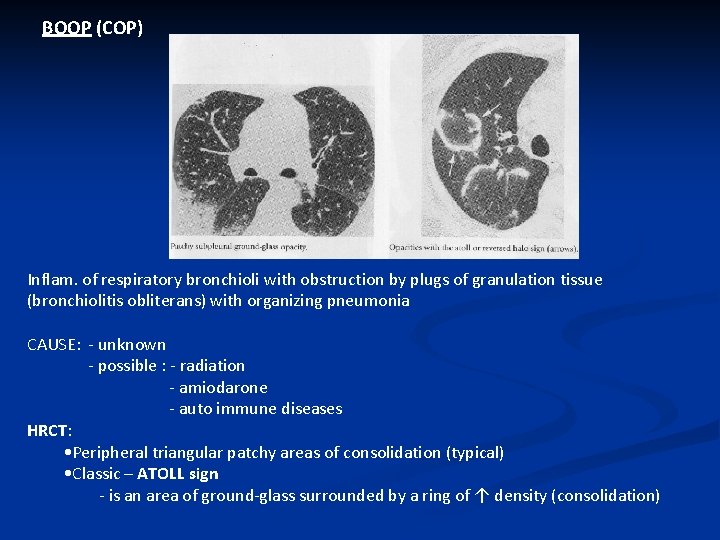

BOOP (COP) Inflam. of respiratory bronchioli with obstruction by plugs of granulation tissue (bronchiolitis obliterans) with organizing pneumonia CAUSE: - unknown - possible : - radiation - amiodarone - auto immune diseases HRCT: • Peripheral triangular patchy areas of consolidation (typical) • Classic – ATOLL sign - is an area of ground-glass surrounded by a ring of ↑ density (consolidation)

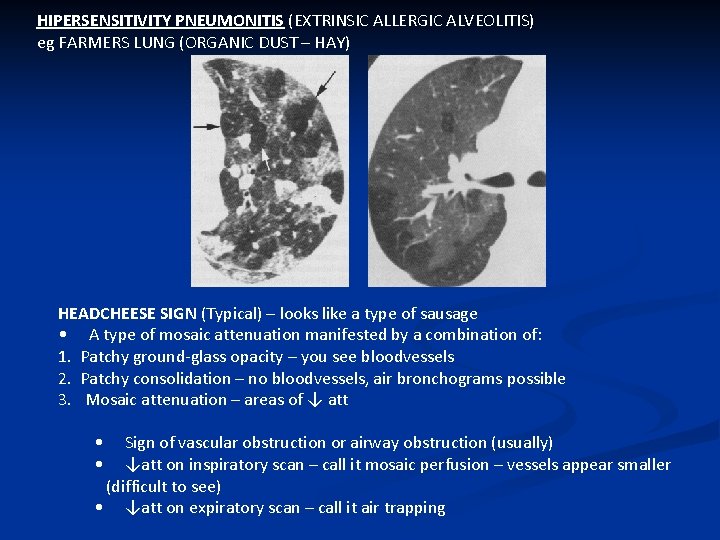

HIPERSENSITIVITY PNEUMONITIS (EXTRINSIC ALLERGIC ALVEOLITIS) eg FARMERS LUNG (ORGANIC DUST – HAY) HEADCHEESE SIGN (Typical) – looks like a type of sausage • A type of mosaic attenuation manifested by a combination of: 1. Patchy ground-glass opacity – you see bloodvessels 2. Patchy consolidation – no bloodvessels, air bronchograms possible 3. Mosaic attenuation – areas of ↓ att • • Sign of vascular obstruction or airway obstruction (usually) ↓att on inspiratory scan – call it mosaic perfusion – vessels appear smaller (difficult to see) • ↓att on expiratory scan – call it air trapping

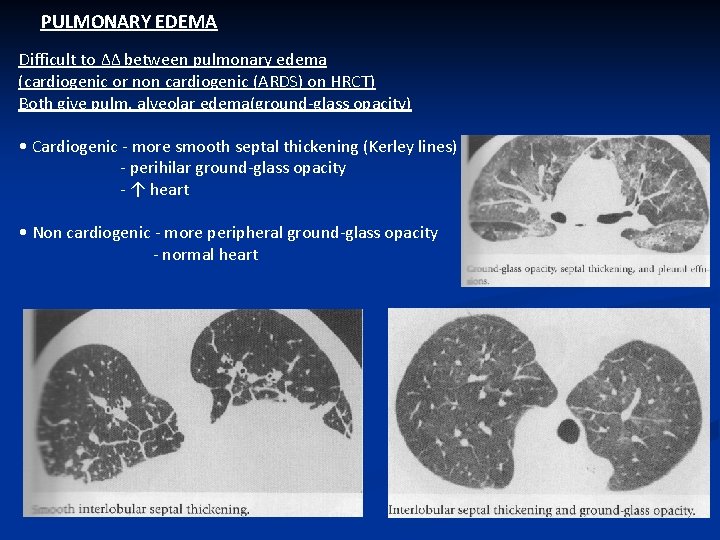

PULMONARY EDEMA Difficult to ΔΔ between pulmonary edema (cardiogenic or non cardiogenic (ARDS) on HRCT) Both give pulm. alveolar edema(ground-glass opacity) • Cardiogenic - more smooth septal thickening (Kerley lines) - perihilar ground-glass opacity - ↑ heart • Non cardiogenic - more peripheral ground-glass opacity - normal heart

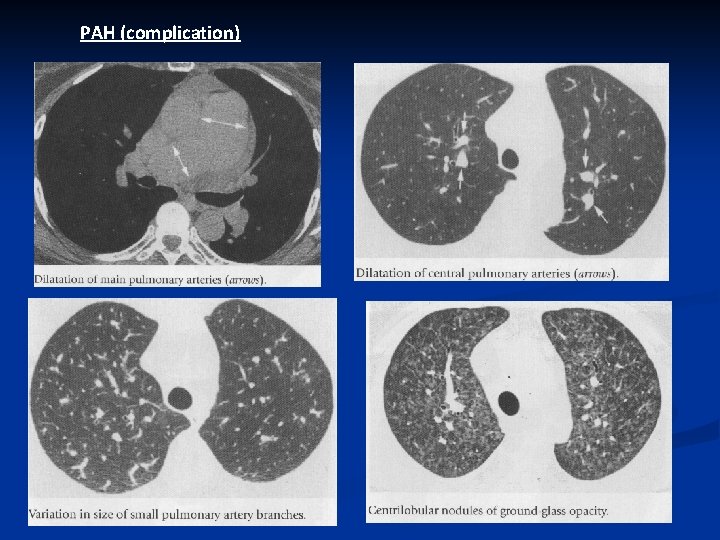

PAH (complication)

SUMMARY • CXR will tell you there is a consolidation (airspace disease) but not the cause, (no blood vessels , air bronchograms, silhouette sign) • If you were given one investigation to detect the cause for ground-glass opacity - Non invasive : HRCT - Invasive : Lung biopsy *NB! Ground-glass = area of increased density , see vessels, acute changes Mosaic attentuation = areas of decreased density / attentuation sign of vascular obstruction or airway obstruction On expiratory scan decreased att = air trapping Mosaic perfusion = area of decreased attentuation on inspiratory scan vessels appear smaller, difficult to see thinking chronic PE

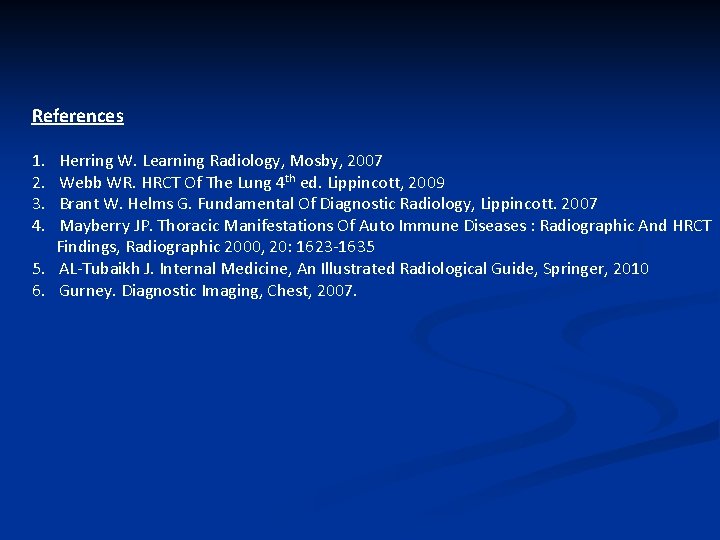

References 1. 2. 3. 4. Herring W. Learning Radiology, Mosby, 2007 Webb WR. HRCT Of The Lung 4 th ed. Lippincott, 2009 Brant W. Helms G. Fundamental Of Diagnostic Radiology, Lippincott. 2007 Mayberry JP. Thoracic Manifestations Of Auto Immune Diseases : Radiographic And HRCT Findings, Radiographic 2000, 20: 1623 -1635 5. AL-Tubaikh J. Internal Medicine, An Illustrated Radiological Guide, Springer, 2010 6. Gurney. Diagnostic Imaging, Chest, 2007.
