Xilinx Reference Design Test Report ---EVREF 0101 -A 08. 2017 1 The Future of

Xilinx Reference Design Test Report ---EVREF 0101 -A 08. 2017 1 The Future of Analog IC Technology®

Block Diagram – EVB EVREF 0101 -A or -B -B Vin 12 V Vin

Block Diagram – EVB EVREF 0101 -A or -B -B Vin 12 V Vin Vo MPM 3695 -25 PG SEQ_EN 1 EN 0. 85 V +/-3% @ 3 -20 A Rail 1 SEQ_PG 1 -A for >20 A, use 2 x MPM 3695 -25 -B for <20 A, use MPM 3695 -25 Vin SEQ_EN 3 MPM 3620 A PG EN Vin SEQ_EN 2 Vo Vo MPM 3630 A EN PG Vin SEQ_EN 2 1. 8 V +/-3% @ 2 A 1. 2 V+/-3% @ 3 A Vin SEQ_EN 3 Rail 3 SEQ_PG 2 -A for 3 – 10 A, use MPM 3695 -25 -B for <3 A, use MPM 3630 A PG 0. 9 V+/-3% @ 2 A SEQ_PG 2 MPM 3695 -10 Rail 2 SEQ_PG 3 EN Vo MPM 3620 A SEQ_EN 4 MPM 3610 A Vo EN PG Vin Vo MPM 3606 A EN PG Vin Vo Rail 6 -A for 2 – 10 A, use MPM 3695 -25 -B for <2 A, use MPM 3620 A 1. 8 V+/-3% @ 1 A Rail 7 SEQ_PG 3 1. 7 -3. 4 V @ 0. 3 A SEQ_PG 4 Rail 8 (USER) MPM 3695 -10 Vin SEQ_EN 4 SEQ 2 MPM 3610 A Vo SEQ_PG 4 EN PG Vin Vo MPM 3610 A EN 1. 1 -1. 5 V @ 0. 5 A PG 0. 85 V+/-3% @1 A SEQ_PG 2 Rail 4 (USER) SEQ_EN 4 Rail 5 SEQ_EN 4 MPM 3606 A EN PG Vin Vo MPM 3610 A EN PG 1. 1 -3. 4 V @ 0. 5 A SEQ_PG 4 0. 95 -1. 9 V @ 1. 0 A SEQ_PG 4 Rail 9 (USER) Rail 10 (USER) 2 The Future of Analog IC Technology®

Block Diagram – EVB EVREF 0101 -A or -B Cont’d -B Vin 12 V

Block Diagram – EVB EVREF 0101 -A or -B Cont’d -B Vin 12 V AUX_3 V 3: 3. 3 V +/-5% Vin Vo MPM 3606 A EN PG LED 1 LED 4 10 kΩ SEQ_PG 4 SEQ_PG 1 AUX_3 V 3 SEQ_PG 1 SEQ_EN 1 SEQ_PG 2 SEQ_EN 2 SEQ_PG 3 SEQ_PG 4 EN_SEQ VDD Sequencer SEQ_EN 3 SEQ_EN 4 TSEL GND 3 The Future of Analog IC Technology®

EVREF 0101 -A Demo Board Rail 1 Max 50 A Rail 3 1. 8

EVREF 0101 -A Demo Board Rail 1 Max 50 A Rail 3 1. 8 V Max 3 -10 A Rail 9 1. 7 -3. 4 V 0. 5 A Rail 6 0. 9 V Max 2 -10 A Rail 2 1. 8 V/2 A Rail 8 1. 7 -3. 4 V/0. 3 A Rail 4 1. 1 -1. 5 V Max 0. 5 A Rail 10 0. 95 -1 V 1 A Rail 7 1. 8 V/1 A Total 10 output rails Rail 5 Max 2 -10 A 4 The Future of Analog IC Technology®

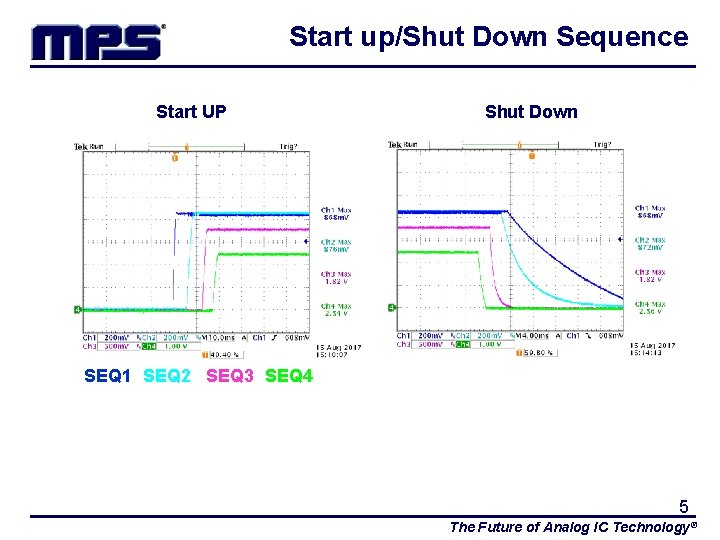

Start up/Shut Down Sequence Start UP Shut Down SEQ 1 SEQ 2 SEQ 3

Start up/Shut Down Sequence Start UP Shut Down SEQ 1 SEQ 2 SEQ 3 SEQ 4 5 The Future of Analog IC Technology®

SEQ 1(Rail 1)---Schematic 6 The Future of Analog IC Technology®

SEQ 1(Rail 1)---Schematic 6 The Future of Analog IC Technology®

SEQ 1(Rail 1)---Efficiency & Transient 2 Phase MPM 3695 -25, VIN=12 V, VOUT=0. 85

SEQ 1(Rail 1)---Efficiency & Transient 2 Phase MPM 3695 -25, VIN=12 V, VOUT=0. 85 V, COUT=4 x 100 u. F per phase Max Efficiency 86. 6% Vpp = 24. 8 m. V, less than ± 2% of VOUT @5 A/us, 10 A to 20 A 7 The Future of Analog IC Technology®

SEQ 1(Rail 1)---VOUT Ripple 2 Phase MPM 3695 -25, VIN=12 V, VOUT=0. 85 V,

SEQ 1(Rail 1)---VOUT Ripple 2 Phase MPM 3695 -25, VIN=12 V, VOUT=0. 85 V, COUT=4 x 100 u. F per phase IO=0 A IO=20 A Max Vpp = 4. 4 m. V, around 0. 5% of VOUT 8 The Future of Analog IC Technology®

SEQ 2(Rail 3)---Schematic 9 The Future of Analog IC Technology®

SEQ 2(Rail 3)---Schematic 9 The Future of Analog IC Technology®

SEQ 2(Rail 3)---Efficiency & Transient MPM 3695 -25, VIN=12 V, VOUT=1. 2 V, COUT=6

SEQ 2(Rail 3)---Efficiency & Transient MPM 3695 -25, VIN=12 V, VOUT=1. 2 V, COUT=6 x 100 u. F Max Efficiency 89. 3% Vpp = 29. 2 m. V, less than ± 2% of VOUT @5 A/us, 5 A to 10 A 10 The Future of Analog IC Technology®

SEQ 2(Rail 3)---VOUT Ripple MPM 3695 -25, VIN=12 V, VOUT=1. 2 V, COUT=6 x

SEQ 2(Rail 3)---VOUT Ripple MPM 3695 -25, VIN=12 V, VOUT=1. 2 V, COUT=6 x 100 u. F IO=0 A IO=10 A Max Vpp = 1. 56 m. V, less than 0. 5% of VOUT 11 The Future of Analog IC Technology®

SEQ 2(Rail 6)---Schematic 12 The Future of Analog IC Technology®

SEQ 2(Rail 6)---Schematic 12 The Future of Analog IC Technology®

SEQ 2(Rail 6)---Efficiency & Transient MPM 3695 -10, VIN=12 V, VOUT=0. 9 V, COUT=6

SEQ 2(Rail 6)---Efficiency & Transient MPM 3695 -10, VIN=12 V, VOUT=0. 9 V, COUT=6 x 100 u. F Max Efficiency 78% Vpp = 32. 8 m. V, less than ± 2% of VOUT @5 A/us, 2 A to 8 A 13 The Future of Analog IC Technology®

SEQ 2(Rail 6)---VOUT Ripple MPM 3695 -10, VIN=12 V, VOUT=0. 9 V, COUT=6 x

SEQ 2(Rail 6)---VOUT Ripple MPM 3695 -10, VIN=12 V, VOUT=0. 9 V, COUT=6 x 100 u. F IO=0 A IO=8 A Max Vpp = 3. 7 m. V, less than 0. 5% of VOUT 14 The Future of Analog IC Technology®

SEQ 2(Rail 5)---Schematic 15 The Future of Analog IC Technology®

SEQ 2(Rail 5)---Schematic 15 The Future of Analog IC Technology®

SEQ 2(Rail 5)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=0. 85 V, COUT=22

SEQ 2(Rail 5)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=0. 85 V, COUT=22 u. F Max Efficiency 72. 3% Vpp = 27. 8 m. V, less than ± 2% of VOUT @5 A/us, 0. 5 A to 1 A 16 The Future of Analog IC Technology®

SEQ 2(Rail 5)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=0. 85 V, COUT=22 u.

SEQ 2(Rail 5)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=0. 85 V, COUT=22 u. F IO=0 A IO=1 A Vpp = 4. 5 m. V@ full load, around 0. 5% of VOUT 17 The Future of Analog IC Technology®

SEQ 3(Rail 7)---Schematic 18 The Future of Analog IC Technology®

SEQ 3(Rail 7)---Schematic 18 The Future of Analog IC Technology®

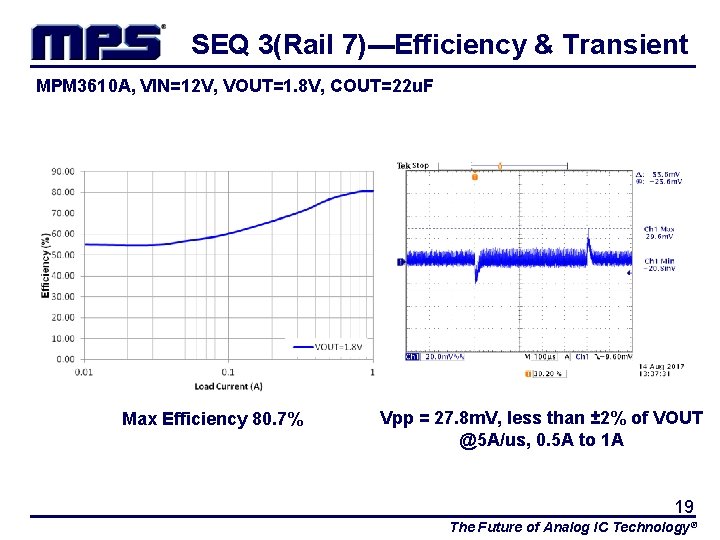

SEQ 3(Rail 7)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 8 V, COUT=22

SEQ 3(Rail 7)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u. F Max Efficiency 80. 7% Vpp = 27. 8 m. V, less than ± 2% of VOUT @5 A/us, 0. 5 A to 1 A 19 The Future of Analog IC Technology®

SEQ 3(Rail 7)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u.

SEQ 3(Rail 7)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u. F IO=0 A IO=1 A Vpp = 10 m. V@ full load, around 0. 5% of VOUT 20 The Future of Analog IC Technology®

SEQ 3(Rail 2)---Schematic 21 The Future of Analog IC Technology®

SEQ 3(Rail 2)---Schematic 21 The Future of Analog IC Technology®

SEQ 3(Rail 2)---Efficiency & Transient MPM 3620 A, VIN=12 V, VOUT=1. 8 V, COUT=22*2

SEQ 3(Rail 2)---Efficiency & Transient MPM 3620 A, VIN=12 V, VOUT=1. 8 V, COUT=22*2 u. F Max Efficiency 84. 3% Vpp = 108 m. V, less than ± 4% of VOUT @2. 5 A/us, 1 A to 2 A 22 The Future of Analog IC Technology®

SEQ 3(Rail 2)---VOUT Ripple MPM 3620 A, VIN=12 V, VOUT=1. 8 V, COUT=22*2 u.

SEQ 3(Rail 2)---VOUT Ripple MPM 3620 A, VIN=12 V, VOUT=1. 8 V, COUT=22*2 u. F IO=0 A IO=2 A Vpp = 3. 1 m. V@ full load, less than 0. 5% of VOUT 23 The Future of Analog IC Technology®

SEQ 4(Rail 10)---Schematic 24 The Future of Analog IC Technology®

SEQ 4(Rail 10)---Schematic 24 The Future of Analog IC Technology®

SEQ 4(Rail 10)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 5 V, COUT=22

SEQ 4(Rail 10)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 5 V, COUT=22 u. F Max Efficiency 75% Vpp = 54. 8 m. V, less than ± 2% of VOUT @2. 5 A/us, 0. 5 A to 1 A 25 The Future of Analog IC Technology®

SEQ 4(Rail 10)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 5 V, COUT=22 u.

SEQ 4(Rail 10)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 5 V, COUT=22 u. F IO=0 A IO=1 A Vpp = 7. 6 m. V@ full load, around 0. 5% of VOUT 26 The Future of Analog IC Technology®

SEQ 4(Rail 9)---Schematic 27 The Future of Analog IC Technology®

SEQ 4(Rail 9)---Schematic 27 The Future of Analog IC Technology®

SEQ 4(Rail 9)---Efficiency & Transient MPM 3606 A, VIN=12 V, VOUT=1. 8 V, COUT=22

SEQ 4(Rail 9)---Efficiency & Transient MPM 3606 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u. F Max Efficiency 77% Vpp = 58. 4 m. V, less than ± 2% of VOUT @2. 5 A/us, 0 A to 0. 5 A 28 The Future of Analog IC Technology®

SEQ 4(Rail 9)---VOUT Ripple MPM 3606 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u.

SEQ 4(Rail 9)---VOUT Ripple MPM 3606 A, VIN=12 V, VOUT=1. 8 V, COUT=22 u. F IO=0 A IO=0. 5 A Vpp = 7. 4 m. V@ full load, less than 0. 5% of VOUT 29 The Future of Analog IC Technology®

SEQ 4(Rail 4)---Schematic 30 The Future of Analog IC Technology®

SEQ 4(Rail 4)---Schematic 30 The Future of Analog IC Technology®

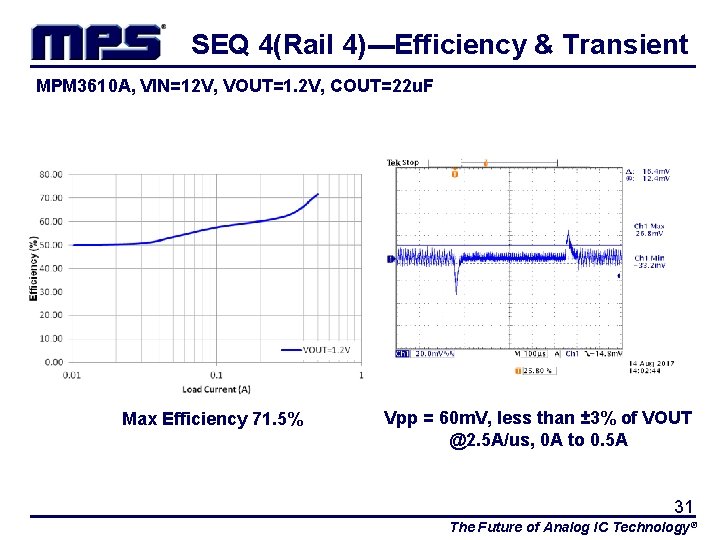

SEQ 4(Rail 4)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 2 V, COUT=22

SEQ 4(Rail 4)---Efficiency & Transient MPM 3610 A, VIN=12 V, VOUT=1. 2 V, COUT=22 u. F Max Efficiency 71. 5% Vpp = 60 m. V, less than ± 3% of VOUT @2. 5 A/us, 0 A to 0. 5 A 31 The Future of Analog IC Technology®

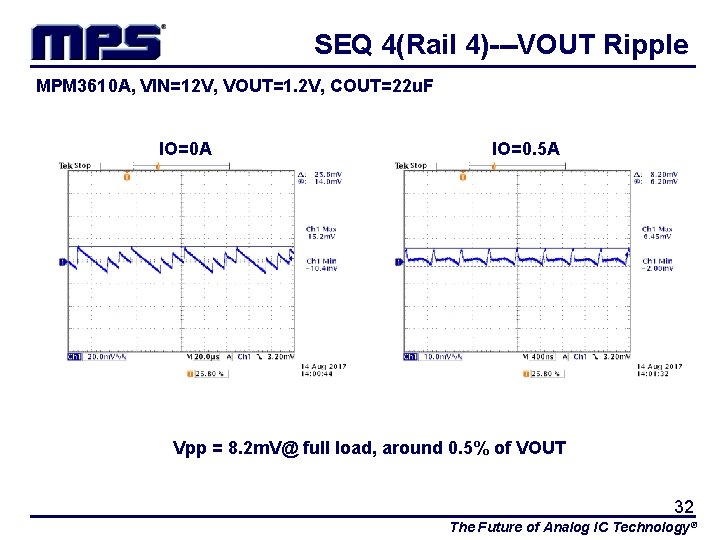

SEQ 4(Rail 4)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 2 V, COUT=22 u.

SEQ 4(Rail 4)---VOUT Ripple MPM 3610 A, VIN=12 V, VOUT=1. 2 V, COUT=22 u. F IO=0 A IO=0. 5 A Vpp = 8. 2 m. V@ full load, around 0. 5% of VOUT 32 The Future of Analog IC Technology®

SEQ 4(Rail 8)---Schematic 33 The Future of Analog IC Technology®

SEQ 4(Rail 8)---Schematic 33 The Future of Analog IC Technology®

SEQ 4(Rail 8)---Efficiency & Transient MPM 3606 A, VIN=12 V, VOUT=2. 5 V, COUT=22

SEQ 4(Rail 8)---Efficiency & Transient MPM 3606 A, VIN=12 V, VOUT=2. 5 V, COUT=22 u. F Max Efficiency 80% Vpp = 46 m. V, less than ± 1% of VOUT @2. 5 A/us, 0 A to 0. 5 A 34 The Future of Analog IC Technology®

SEQ 4(Rail 8)---VOUT Ripple MPM 3606 A, VIN=12 V, VOUT=2. 5 V, COUT=22 u.

SEQ 4(Rail 8)---VOUT Ripple MPM 3606 A, VIN=12 V, VOUT=2. 5 V, COUT=22 u. F IO=0 A IO=0. 5 A Vpp = 1. 76 m. V@ full load, less than 0. 5% of VOUT 35 The Future of Analog IC Technology®
