SystemonChip Design Introduction to Zynq Dr Hao Zheng
- Slides: 46
System-on-Chip Design Introduction to Zynq Dr Hao Zheng Computer Sci. & Eng. U. of South Florida
Reading The ZYNQ Book • Chapter 1: Introduction • Chapter 2: The Zynq Device (“What is it? ) • Chapter 5: Applications and Opportunities (“What can I do with it? ”) Xilinx Educational Video • Why Zynq? http: //www. xilinx. com/training/zynq/why-zynq. htm
Traditional Architecture Source: The Zynq Book
FPGA with Soft Processor Core Source: The Zynq Book
Zynq Architecture Source: The Zynq Book
Embedded So. C Architecture Source: The Zynq Book

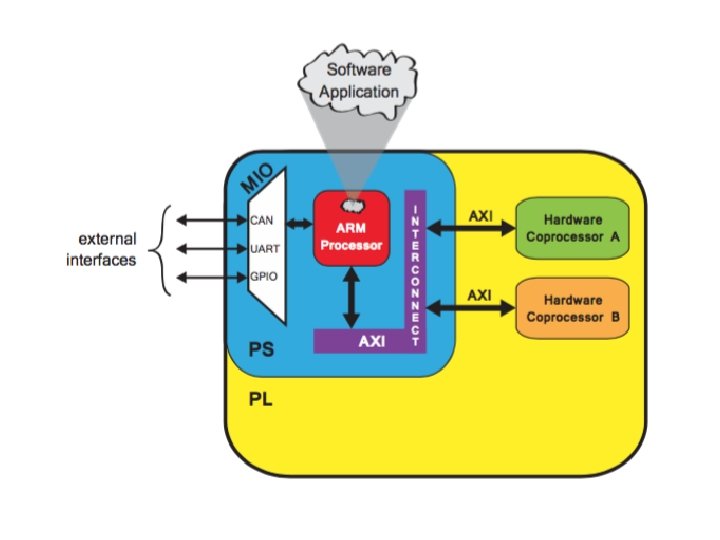

Implement Embedded So. C on Zynq Source: The Zynq Book
Zynq Highlights Source: Xilinx Video Tutorials
ARM Processor Roadmap Source: Xilinx White Paper: Extensible Processing Platform

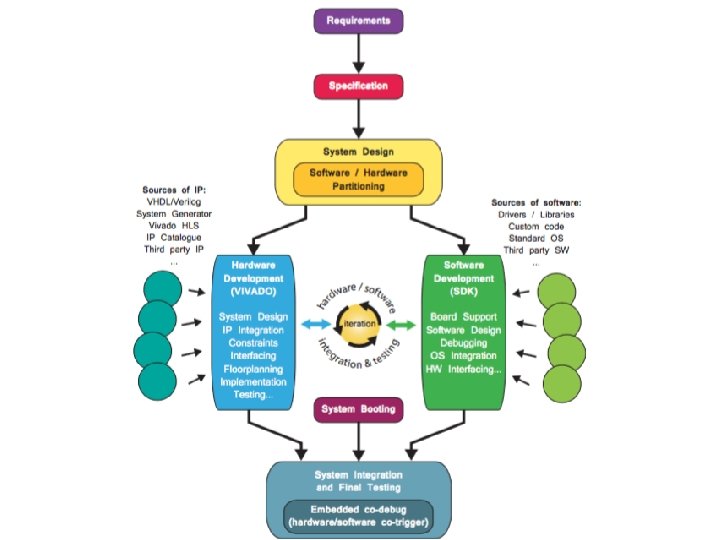

Basic Design Flow for Zynq So. C Source: The Zynq Book

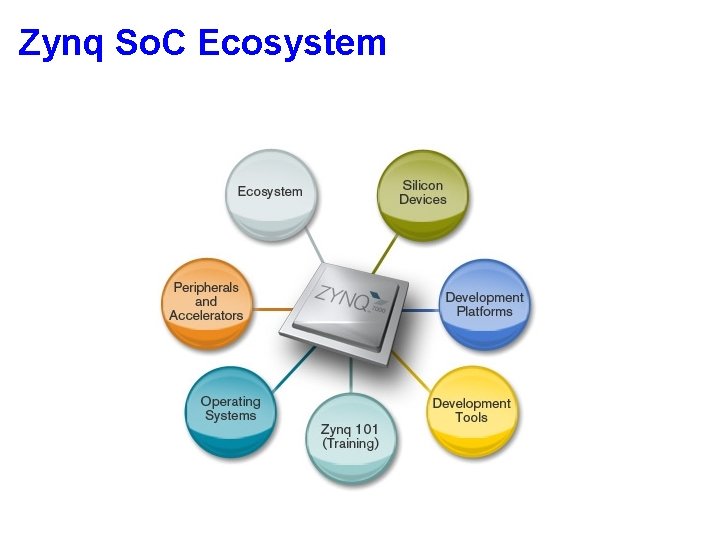

Zynq So. C Ecosystem
Zynq So. C Ecosystem Source: The Zynq Book
Alternative Solutions Xilinx Zynq-7000 All Programmable So. Cs with Cortex-A 9 MPCore Altera Arria V & Cyclone V Hard processor system (HPS) with Cortex-A 9 MPCore Microsemi Smartfusion 2 Cortex M 3
The Zynq Processing System Source: The Zynq Book
Application Processing Unit (APU) APU programming is through Xlinx SDK Source: The Zynq Book
NEON Co-Processor SIMD Execution for media and DSP applications Source: The Zynq Book
PS External Interfaces: MIO Source: The Zynq Book
Programmable Logic (PL) CLBs and IOBs Source: The Zynq Book
Basic Logic Elements (BLEs)
Switch Matrix

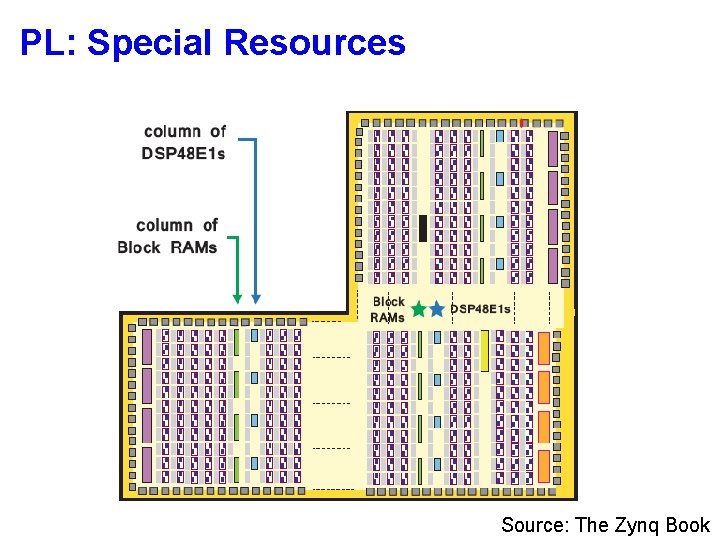

PL: Special Resources Source: The Zynq Book

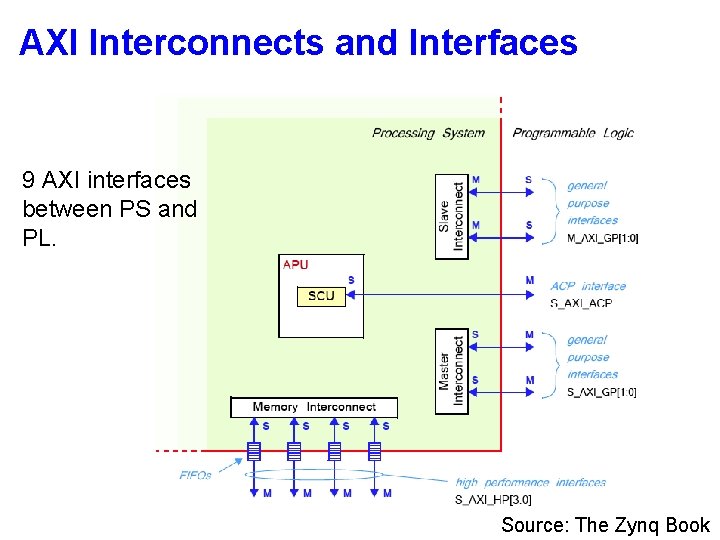

AXI Interconnects and Interfaces 9 AXI interfaces between PS and PL. Source: The Zynq Book

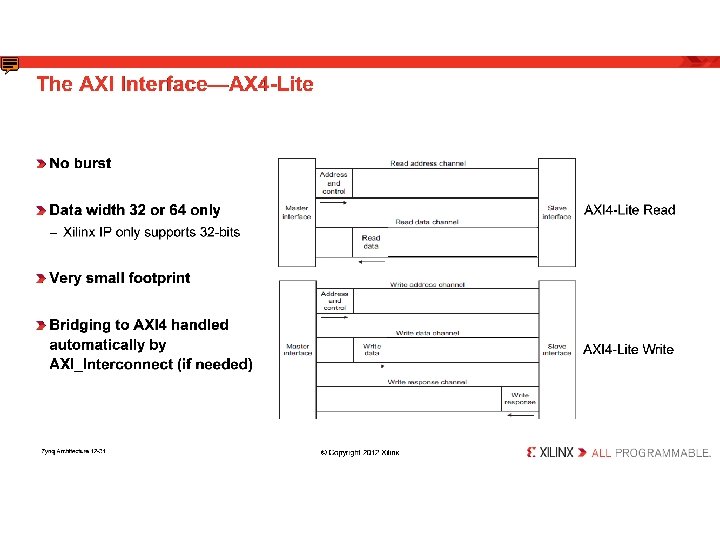

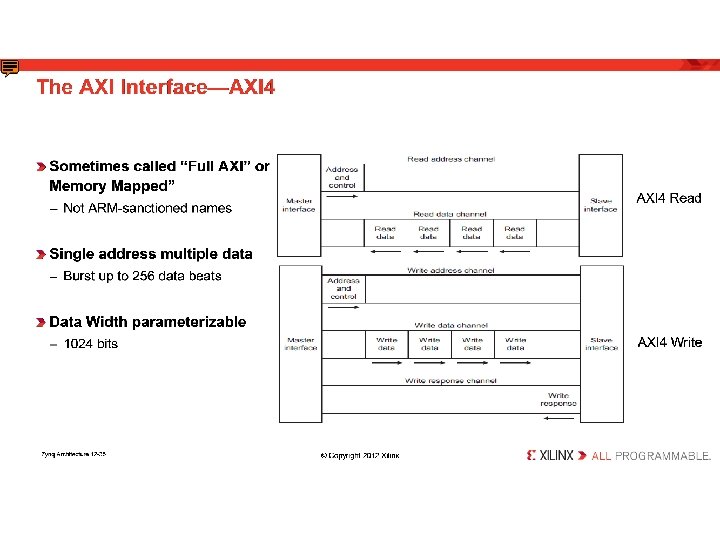

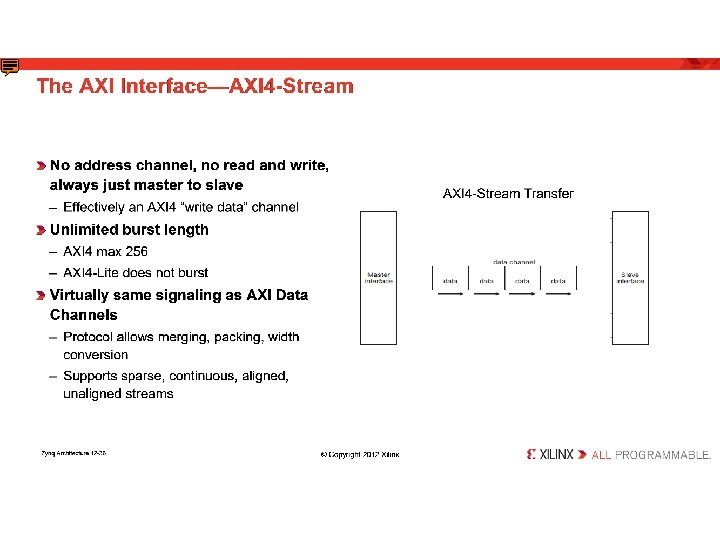

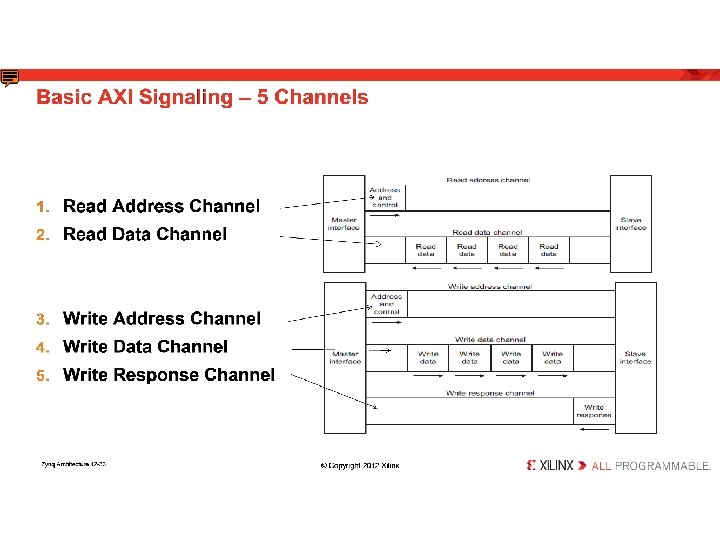

Using Extended Multiplexed Input/Output (EMIO) to Interface Between PS and PL Source: The Zynq Book
Choice Among Various Implementation Platforms Source: Xcell Journal, no. 88, Q 3 2014
Advantages of Zynq Source: Xcell Journal, no. 88, Q 3 2014

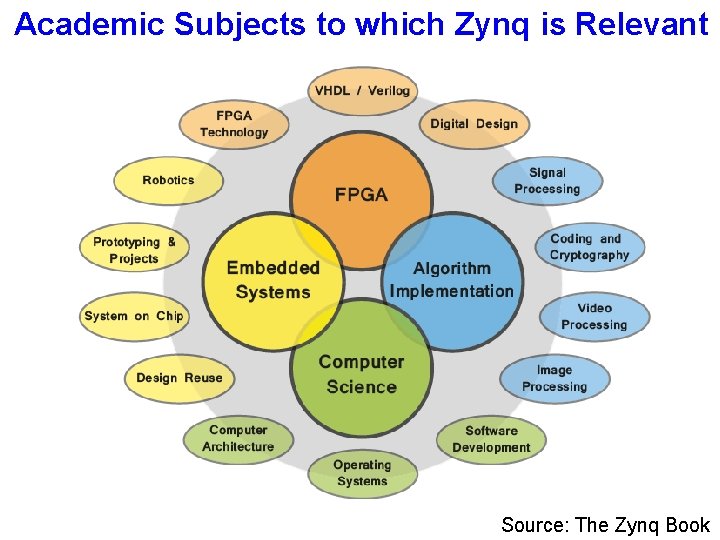

Academic Subjects to which Zynq is Relevant Source: The Zynq Book

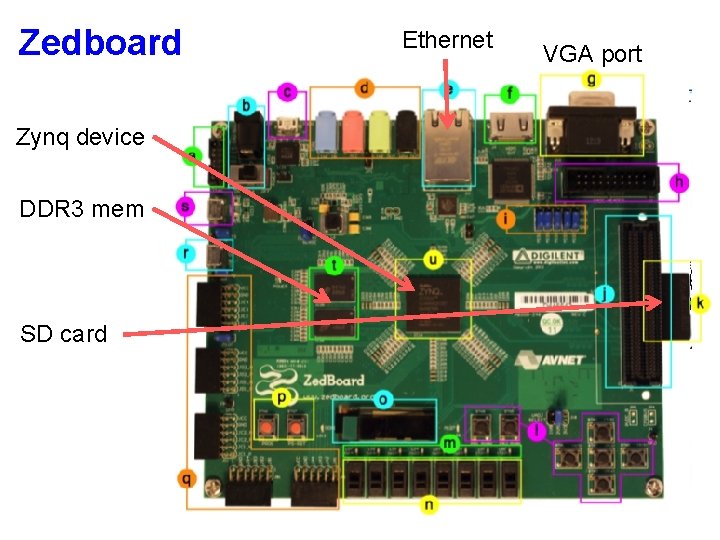

Zedboard Zynq device DDR 3 mem SD card Ethernet VGA port
Backup
System-on-a-Board Source: The Zynq Book
System-on-Chip (So. C) Source: The Zynq Book
Design Flow for Zynq So. C Source: Xilinx White Paper: Extensible Processing Platform
Automotive Applications
Automotive Applications Lane and Road Sign Recognition Source: The Zynq Book
Computer Vision Detection of Cars at a Junction Source: The Zynq Book
Smart Home Source: The Zynq Book
Communication Systems Wireless Basestation Satellite Groundstation Wired Network Switches Source: The Zynq Book
Control and Instrumentation Systems Industrial Control Room Wind Turbines High Energy Physics Experiment Source: The Zynq Book
Medical Applications MRI Scanning Robot Assisted Surgery Source: The Zynq Book
ZYBO General Purpose Input Output (GPIO) Source: ZYBO Reference Manual
Pmod Connector Source: ZYBO Reference Manual
