Objectives After completing this module, you will be able to: • • • Describe the differences between Logi. CORE and Alliance. CORE solutions List two benefits of using cores in your designs Create customized cores by using the CORE Generator GUI Instantiate cores into your schematic or HDL design Run behavioral simulation on a design containing cores CORE Generator System - 8 - 3 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

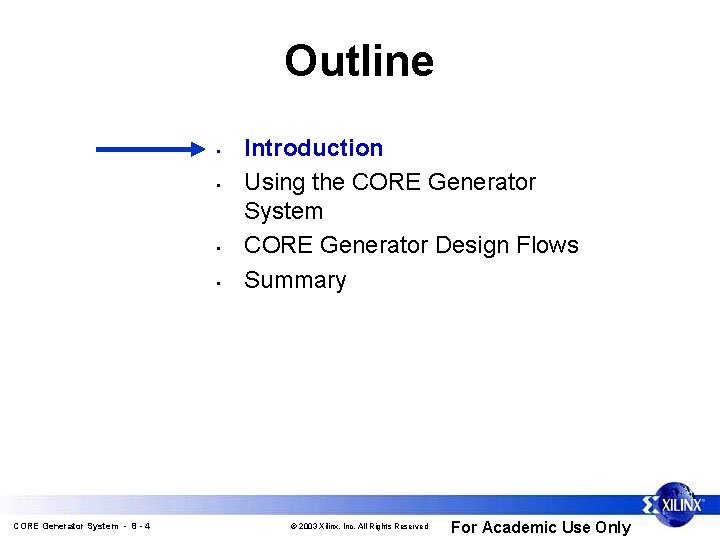

Outline • • CORE Generator System - 8 - 4 Introduction Using the CORE Generator System CORE Generator Design Flows Summary © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

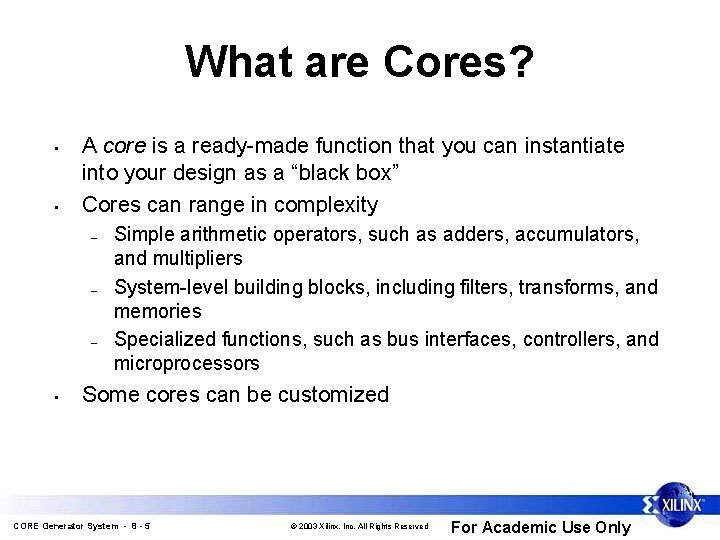

What are Cores? • • A core is a ready-made function that you can instantiate into your design as a “black box” Cores can range in complexity – – – • Simple arithmetic operators, such as adders, accumulators, and multipliers System-level building blocks, including filters, transforms, and memories Specialized functions, such as bus interfaces, controllers, and microprocessors Some cores can be customized CORE Generator System - 8 - 5 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

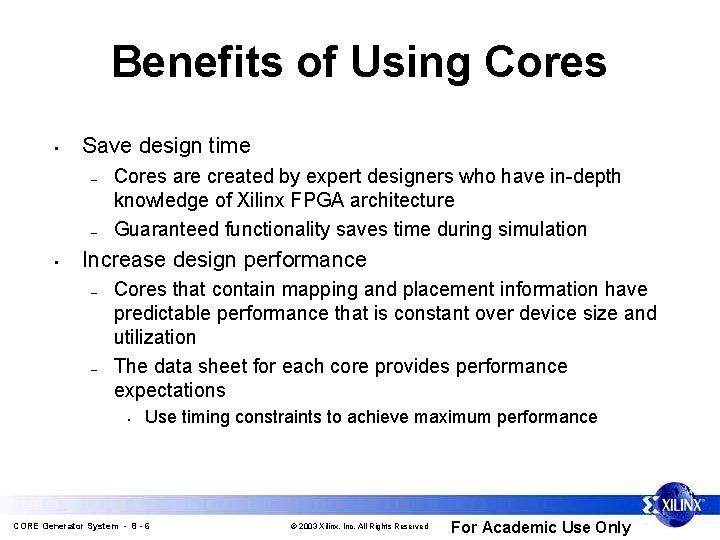

Benefits of Using Cores • Save design time – – • Cores are created by expert designers who have in-depth knowledge of Xilinx FPGA architecture Guaranteed functionality saves time during simulation Increase design performance – – Cores that contain mapping and placement information have predictable performance that is constant over device size and utilization The data sheet for each core provides performance expectations • Use timing constraints to achieve maximum performance CORE Generator System - 8 - 6 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Types of Cores • Logi. CORE • Alliance. CORE • The CORE Generator GUI lists the type of each core CORE Generator System - 8 - 7 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Logi. CORE Solutions • • Typically customizable Fully tested, documented, and supported by Xilinx Many are pre-placed for predictable timing Many are unlicensed and provided for free with the Xilinx software – • • More complex Logi. CORE products are licensed Support VHDL and Verilog flows with several EDA tools Schematic flow support for Foundation, Mentor, and Innoveda for most cores CORE Generator System - 8 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Alliance. CORE Solutions • Point-solution cores – • Sold and supported by Xilinx Alliance. CORE partners – • • • Typically not customizable (some HDL versions are customizable) Partners may be contacted directly to provide customized cores All cores optimized for Xilinx; some are pre-placed Typically supplied as an EDIF netlist Support VHDL and Verilog flows, some schematic CORE Generator System - 8 - 9 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Sample Functions • Logi. CORE solutions – DSP functions • Time skew buffers, FIR filters, correlators – Math functions • Accumulators, adders, multipliers, integrators, square root – Memories • Pipelined delay elements, single and dual-port RAM • Synchronous FIFOs – PCI master and slave interfaces, PCI bridge CORE Generator System - 8 - 10 • Alliance. CORE solutions – Peripherals • DMA controllers • Programmable interrupt controllers • UARTs – Communications and networking • ATM • Reed-Solomon encoders / decoders • T 1 framers – Standard bus interfaces • PCMCIA, USB © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Outline • • CORE Generator System - 8 - 11 Introduction Using the CORE Generator System CORE Generator Design Flows Summary © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

What is the CORE Generator System? • Graphical User Interface (GUI) that allows central access to the cores themselves, plus: – – • Interfaces with design entry tools – – • Data sheets Customizable parameters (available for some cores) Creates graphical symbols for schematic-based designs Creates instantiation templates for HDL-based designs Web access from the Help menu – The IP Center contains new cores to download and install • – You always have access to the latest cores Direct access to http: //support. xilinx. com CORE Generator System - 8 - 12 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Invoking the CORE Generator System • • • From the Project Navigator, select Project New Source Select IP (Core. Gen & Architecture Wizard) and enter a filename Click Next, then select the type of core CORE Generator System - 8 - 13 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Xilinx CORE Generator System GUI Cores can be organized by function, vendor, or device family Core type, version, device support, vendor, and status CORE Generator System - 8 - 14 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Selecting a Core • • Double-click folders to browse the catalog of cores Double-click a core to open its information window – Or select a core, and click the Customize or Data Sheet icons in the toolbar CORE Generator System - 8 - 15 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Core Customize Window Core Overview tab provides version information and a brief functional description Parameter s tab allows you to customize the core Contact tab provides information about the vendor CORE Generator System - 8 - 16 © 2003 Xilinx, Inc. All Rights Reserved Web Links tab provides direct access to related Web pages Data sheet access For Academic Use Only

CORE Data Sheets • Performance expectations (not shown) Features Functionality Pinout Resource utilization CORE Generator System - 8 - 17 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

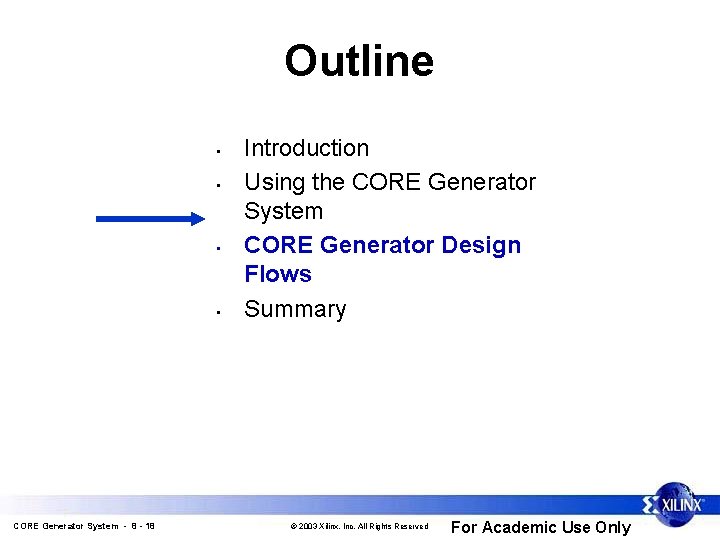

Outline • • CORE Generator System - 8 - 18 Introduction Using the CORE Generator System CORE Generator Design Flows Summary © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

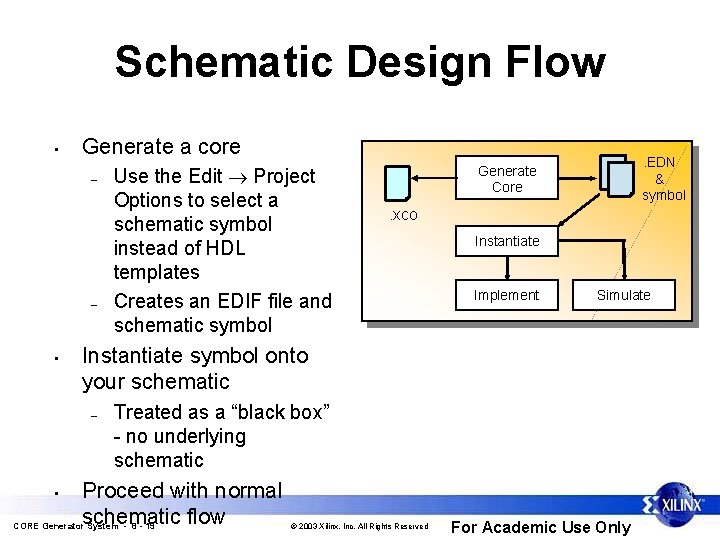

Schematic Design Flow • Generate a core – – • Use the Edit Project Options to select a schematic symbol instead of HDL templates Creates an EDIF file and schematic symbol . EDN & symbol Generate Core . xco Instantiate Implement Simulate Instantiate symbol onto your schematic – Treated as a “black box” - no underlying schematic Proceed with normal schematic flow CORE Generator System - 8 - 19 • © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

HDL Design Flow compxlib. exe Xilinx. Core. Lib Generate Core . xco Instantiate Simulate CORE Generator System - 8 - 20 . VHD, . VHO, . V. VEO Compile library for behavioral simulation (one time only). EDN Core generation and integration Implement © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

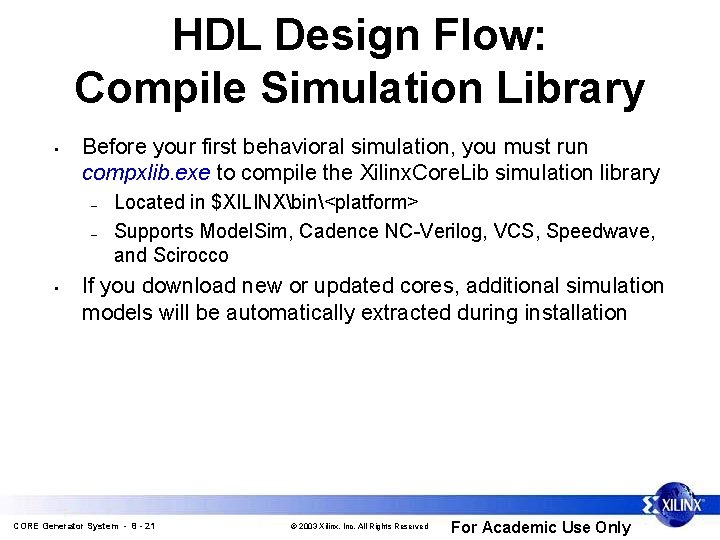

HDL Design Flow: Compile Simulation Library • Before your first behavioral simulation, you must run compxlib. exe to compile the Xilinx. Core. Lib simulation library – – • Located in $XILINXbin<platform> Supports Model. Sim, Cadence NC-Verilog, VCS, Speedwave, and Scirocco If you download new or updated cores, additional simulation models will be automatically extracted during installation CORE Generator System - 8 - 21 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

HDL Design Flow: Core Generation and Integration • Generate or purchase a core – – – • Instantiate the core into your HDL source – • • Netlist file (EDN) Instantiation template files (VHO or VEO) Behavioral simulation wrapper files (VHD or V) Cut and paste from the templates provided in the VEO or VHO file Design is ready for synthesis and implementation Use the wrapper files for behavioral simulation – – ISE automatically uses wrapper files when cores are present in the design VHDL: Analyze the wrapper file for each core before analyzing the file that instantiates the core CORE Generator System - 8 - 22 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

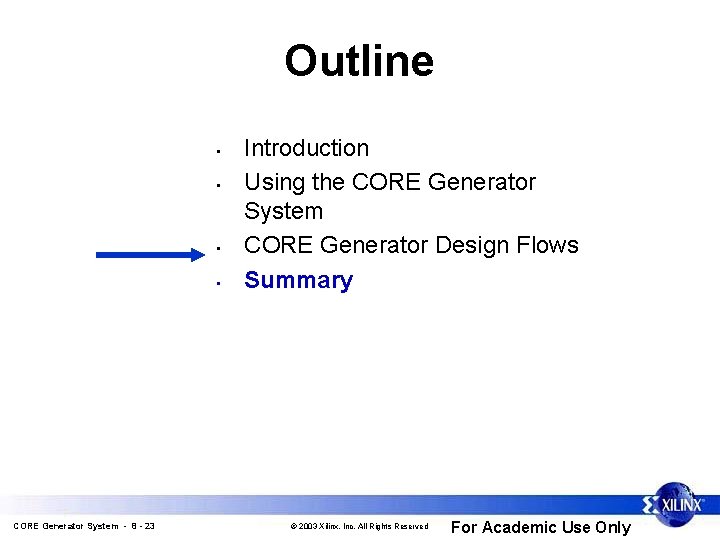

Outline • • CORE Generator System - 8 - 23 Introduction Using the CORE Generator System CORE Generator Design Flows Summary © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

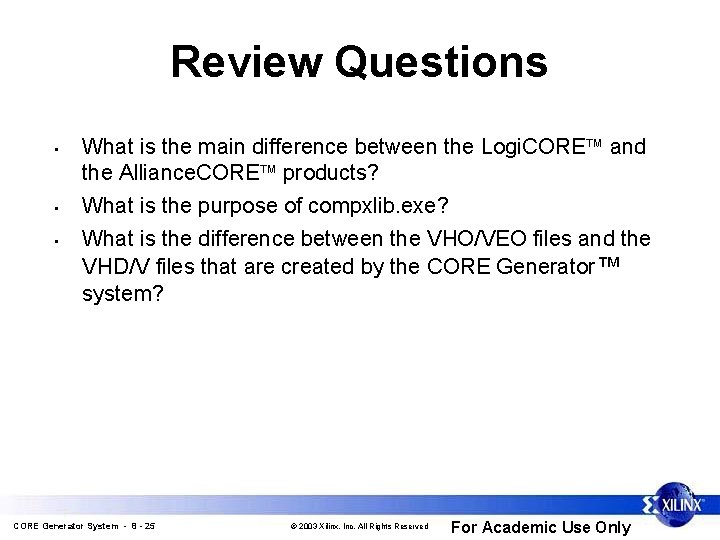

Review Questions • • • What is the main difference between the Logi. CORE and the Alliance. CORE products? What is the purpose of compxlib. exe? What is the difference between the VHO/VEO files and the VHD/V files that are created by the CORE Generator™ system? CORE Generator System - 8 - 25 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Answers • What is the main difference between the Logi. CORE and the Alliance. CORE products? – – • What is the purpose of compxlib. exe? – • Logi. CORE products are sold and supported by Xilinx Alliance. CORE products are sold and supported by Alliance. CORE partners Makes it easy to compile the Xilinx. Core. Lib library before your first behavioral simulation What is the difference between the VHO/VEO files and the VHD/V files that are created by the CORE Generator™ system? – – VHO/VEO files contain instantiation templates VHD/V files are wrappers for behavioral simulation that reference the Xilinx. Core. Lib library CORE Generator System - 8 - 26 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Summary • • • A core is a ready-made function that you can “drop” into your design Logi. CORE products are sold and supported by Xilinx Alliance. CORE products are sold and supported by Alliance. CORE partners Using cores can save design time and provide increased performance Cores can be used in schematic or HDL design flows CORE Generator System - 8 - 27 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only

Where Can I Learn More? • Xilinx IP Center http: //www. xilinx. com/ipcenter – – • • Software updates Download new cores as they are released Tech Tips on http: //support. xilinx. com Software manuals: CORE Generator Guide CORE Generator System - 8 - 28 © 2003 Xilinx, Inc. All Rights Reserved For Academic Use Only
