XILINX FPGAs • Xilinx lunched first commercial FPGA XC 2000 in 1985 • Xilinx

XILINX FPGAs • Xilinx lunched first commercial FPGA XC 2000 in 1985 • Xilinx SRAM based family devices are • • • XC 2000 XC 3000 XC 4000 Spartan Virtex • Xilinx has recently introduced an antifuse based FPGA is XC 8100. • XC 3000 and XC 4000 has improvements in Density, Performance, Pin count, Voltage levels and Functionality • XC 4000 and Spartan have same basic architecture and they differ in density and voltage levels • XC 4000 has 2000 -15000 equivalent gates

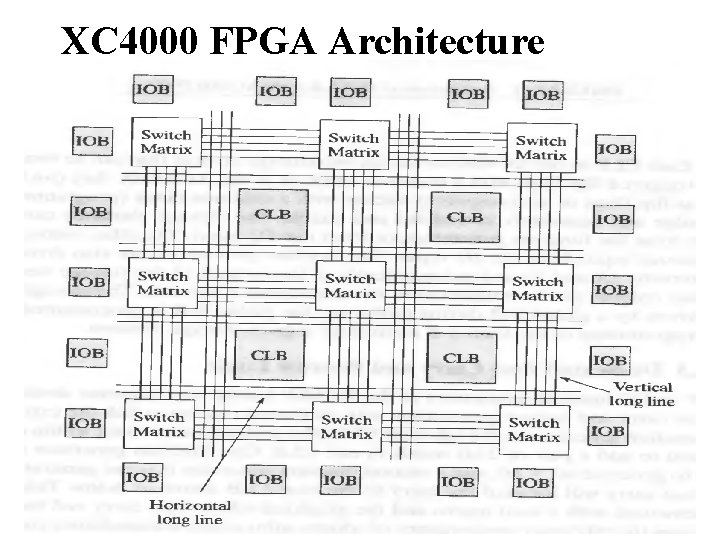

XC 4000 FPGA Architecture

XC 4000 FPGA Architecture

XC 4000 CLB

XC 4000 CLB

XC 4000 CLB • Each CLB consists LUTs, Multiplexers, Registers, and path for Control

XC 4000 CLB • Each CLB consists LUTs, Multiplexers, Registers, and path for Control signals. • XC 3000 had single programmable LUT with 5 inputs • Each LUT has 5 -ns delay which is independent of function being implemented • XC 4000 consists 3 function generator (F, G, and H) and each based on LUT • Function generators F and G can implement any 4 variable Boolean function • Function generator H can implement any 3 variable function only and it gets the input from F and G LUTs

XC 4000 CLB • Three LUTs can be programmed to implement a logic function

XC 4000 CLB • Three LUTs can be programmed to implement a logic function up to 9 variables • Each CLB has 2 edge triggered flip-flops and are programmed to operate as flip-flop or a latch • Flip-flops can get their inputs from LUTs or from Din input • LUTs can drive the outputs X and Y directly and are connected to interconnect network

XC 4000 Programmable Interconnect Resource

XC 4000 Programmable Interconnect Resource

Contd. , • XC 4000 was designed with interconnect structure is arranged in horizontal

Contd. , • XC 4000 was designed with interconnect structure is arranged in horizontal and vertical channels • Each channel has 3 types of general purpose interconnect • • • Single length line or Short lines Long lines Double length line or Very Long lines • The short length lines span a single CLB • The long length lines span two CLBs • The very long length lines span the entire width of the chip
