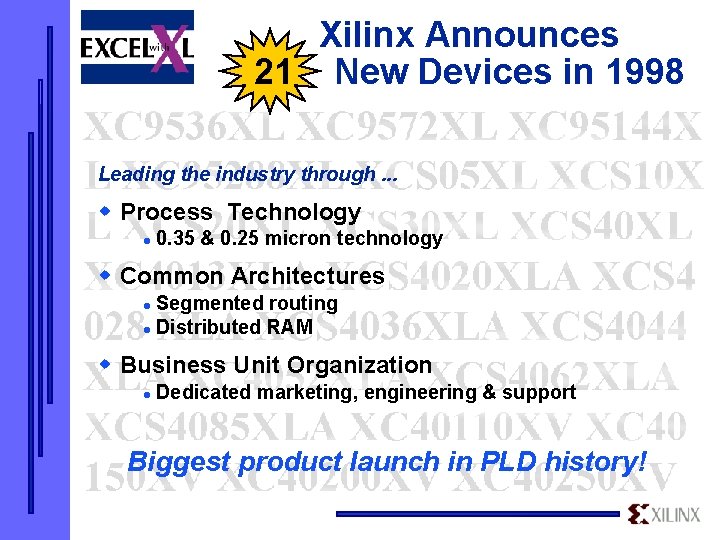

Xilinx Announces 21 New Devices in 1998 Leading the industry through. . . w Process Technology l 0. 35 & 0. 25 micron technology w Common Architectures Segmented routing l Distributed RAM l w Business Unit Organization l Dedicated marketing, engineering & support Biggest product launch in PLD history!

Xilinx Announces 21 New Devices in 1998 w XC 9500 XL: Industry’s speed & cost leader 1 st 0. 35 micron & 3. 3 V Flash CPLD technology w Spartan. XL: Industry’s lowest cost FPGAs for under $3 w XC 4000 XLA: Industry’s fastest FPGA w XC 4000 XV: Industry’s largest FPGA 1 st 500, 000 gate FPGA, doubles density Biggest product launch in PLD history!

4 New 9500 XL Devices w Lowest cost CPLD solution w 1 st ISP CPLD with 10, 000 program/erase cycles & 20 year data retention w Highest performance: t. PD = 4 ns, f. SYS = 200 MHz w First CPLD in chip scale packaging (CSP) w Lowest price per macrocell solution Industry’s first true 0. 35 µm 3. 3 v Flash CPLD

9500 XL The True 3. 3 v Solution True 3. 3 V 0. 35µm Small Die Xilinx XC 9500 XL (0. 35µm metal) Large Die (0. 5µm metal) Degraded 5 V Inefficient 3. 3 V Lattice Altera isp. LSI 2000 V Max 7000 A Vantis Mach 5 LV Slow (0. 5µm drawn length) Fast (0. 35µm drawn length)

Spartan Series FPGAs 5 New 3. 3 V Devices

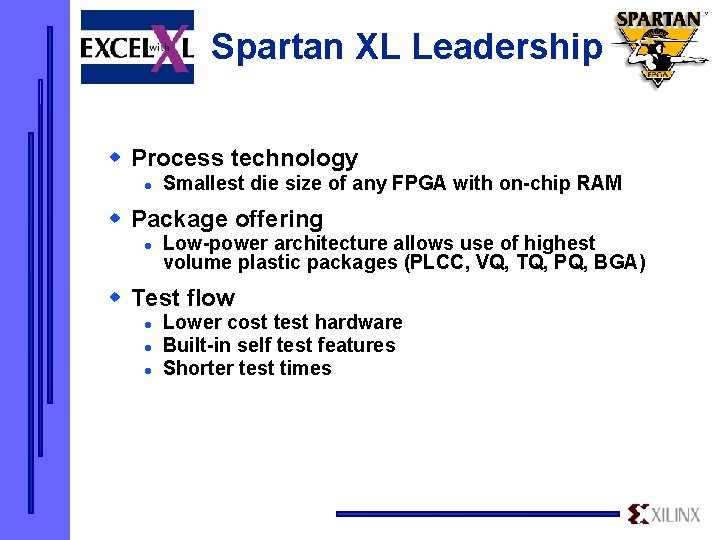

Spartan XL Leadership w Process technology l Smallest die size of any FPGA with on-chip RAM w Package offering l Low-power architecture allows use of highest volume plastic packages (PLCC, VQ, TQ, PQ, BGA) w Test flow l l l Lower cost test hardware Built-in self test features Shorter test times

Spartan. XL 3. 3 Volt FPGAs u First FPGA below $3. 00 u Entire u Up family of 5 devices under $10. 00 to 40, 000 system gates with on-chip Select. RAMTM u Programmable logic advantages at ASIC prices

XC 4000 XLA & XC 4000 XV

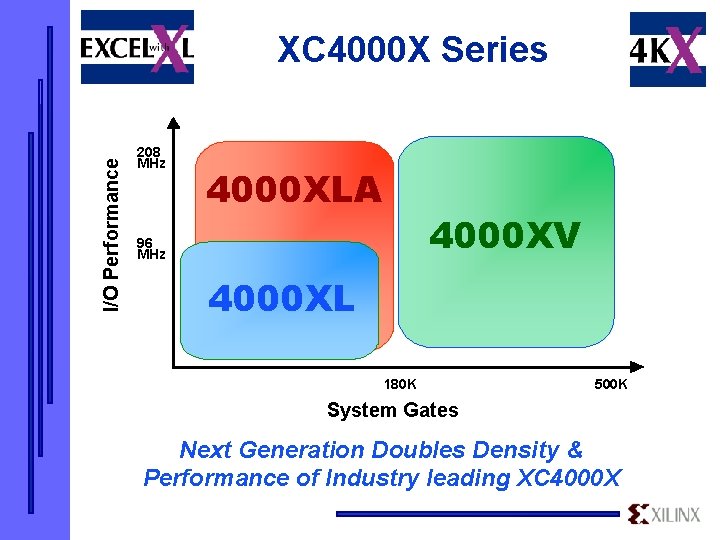

I/O Performance XC 4000 X Series 208 MHz 4000 XLA 4000 XV 96 MHz 4000 XL 180 K 500 K System Gates Next Generation Doubles Density & Performance of Industry leading XC 4000 X

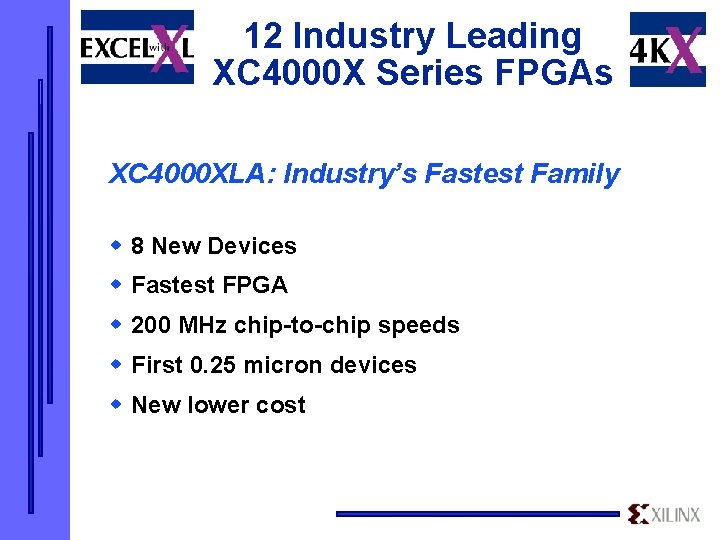

12 Industry Leading XC 4000 X Series FPGAs XC 4000 XLA: Industry’s Fastest Family w 8 New Devices w Fastest FPGA w 200 MHz chip-to-chip speeds w First 0. 25 micron devices w New lower cost

XC 4000 XLA Doubles System Speeds 208 MHz 133 MHz 96 MHz System Speed = 1 / (Clk-Out + Setup + Hold)

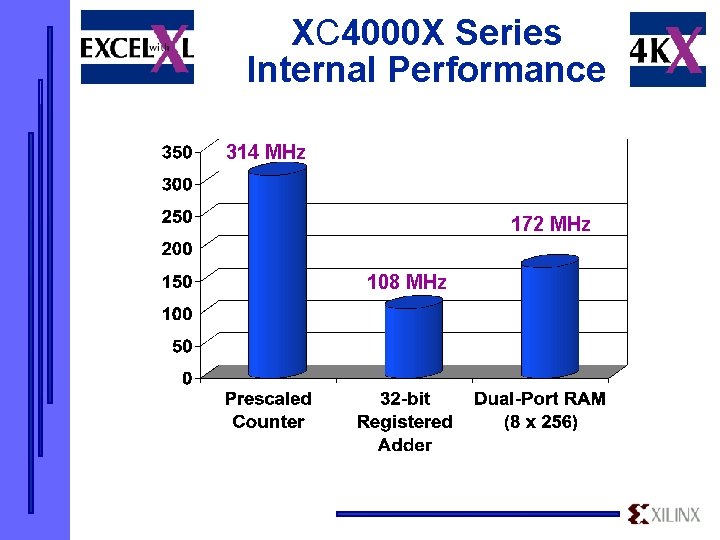

XC 4000 X Series Internal Performance 314 MHz 172 MHz 108 MHz

12 Industry Leading XC 4000 X Series FPGAs XC 4000 XV: Industry’s Largest FPGA w 4 New Devices w 500, 000 system gates w First 2. 5 v FPGA w Advanced 0. 25 micron 5 LM process

0. 25 Micron Process Reduces Power Consumption

Xilinx Leadership Continues with 2 M & 4 M SPROM Previously 256 256 XC 40250 XV Today XC 40250 XV 256 256 256 256 256 24 devices 24 x 256 kbit = 6 Mbit 1704 L 1702 L Available Today! 2 devices 4 Mbit + 2 Mbit = 6 Mbit Largest configuration SPROM in the industry

Summary w “Excel with XL” largest product launch in history w 21 new devices pushing the technology limits w Lowest cost families in industry 9500 XL CPLD l Spartan. XL FPGA l w Fastest FPGA: 4000 XLA w Highest density FPGA: 4000 XV w 2 M & 4 M SPROMs Xilinx: “The Programmable Logic Company”
