Windows Heap Exploitation (Win 2 KSP 0 through Win. XPSP 2) Original Can. Sec. West 04 Presentation: Matt Conover & Oded Horovitz XP SP 2 Additions added/presented, Matt Conover @ Sy. Scan 2004
Agenda § § § “Practical” Windows heap internals How to exploit Win 2 K – Win. XP SP 1 heap overflows 3 rd party (me ) assessment of Win. XP SP 2 improvements How to exploit Win. XP SP 2 heap overflows Summary
Windows Heap Internals Many heaps can coexist in one process (normally 2 -3) PEB 0 x 0010 Default Heap 0 x 0080 Heaps Count 0 x 0090 Heap List 0 x 70000 Default Heap 0 x 170000 2 nd Heap
Windows Heap Internals Important heap structures Segment List Virtual Allocation list Free Lists Lookaside List
Windows Heap Internals Introduction to Free Lists § § § 128 doubly-linked list of free chunks (from 8 bytes to 1024 bytes) Chunk size is table row index * 8 bytes Entry [0] is a variable sized free lists contains buffers of 1 KB <= size < 512 KB, sorted in ascending order 0 1400 2000 16 16 48 48 1 2 3 4 5 6 2000 2408

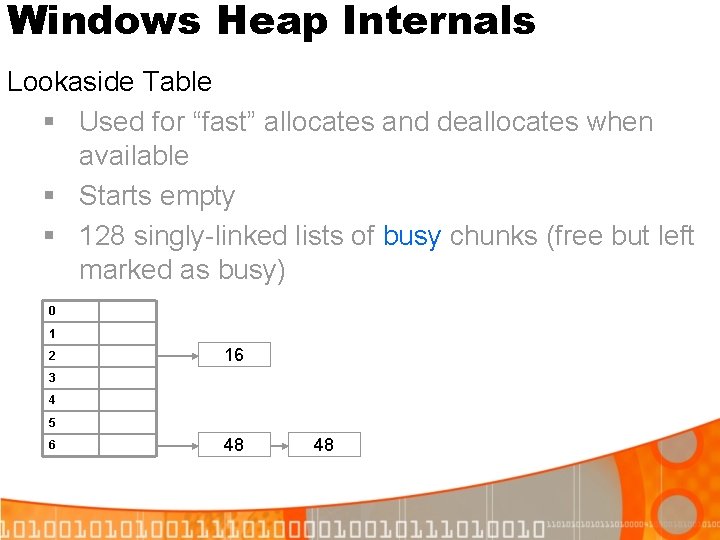

Windows Heap Internals Lookaside Table § Used for “fast” allocates and deallocates when available § Starts empty § 128 singly-linked lists of busy chunks (free but left marked as busy) 0 1 2 16 3 4 5 6 48 48

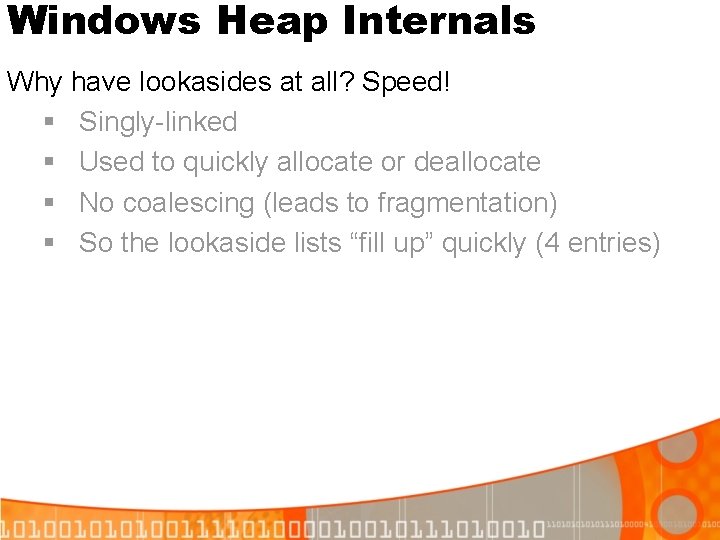

Windows Heap Internals Why have lookasides at all? Speed! § Singly-linked § Used to quickly allocate or deallocate § No coalescing (leads to fragmentation) § So the lookaside lists “fill up” quickly (4 entries)
Windows Heap Internals 01 – Busy 02 – Extra present 04 – Fill pattern 08 – Virtual Alloc 10 – Last entry 20 – FFU 1 40 – FFU 2 80 – No coalesce Basic chunk structure – 8 Bytes Previous chunk size Self Size 0 1 Overflow direction 2 3 Segment Index 4 5 Unused Tag index bytes (Debug) Flags 6 7 8
Windows Heap Internals Free chunk structure – 16 Bytes Previous chunk size Self Size Segment Index Next chunk 0 1 2 Unused Tag index bytes (Debug) Flags Previous chunk 3 4 5 6 7 8
Windows Heap Internals Allocation algorithm (high level) § § § If size >= 512 K, virtual memory is used (not on heap) If < 1 K, first check the Lookaside lists. If there is no free entries on the Lookaside, check the matching free list If >= 1 K or no matching entry was found, use the heap cache (not discussed in this presentation). If >= 1 K and no free entry in the heap cache, use Free. Lists[0] (the variable sized free list) If still can’t find any free entry, extend heap as needed

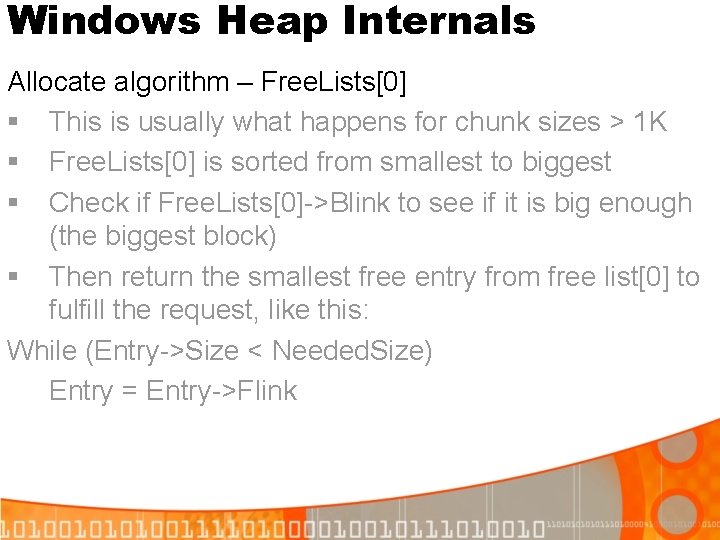

Windows Heap Internals Allocate algorithm – Free. Lists[0] § This is usually what happens for chunk sizes > 1 K § Free. Lists[0] is sorted from smallest to biggest § Check if Free. Lists[0]->Blink to see if it is big enough (the biggest block) § Then return the smallest free entry from free list[0] to fulfill the request, like this: While (Entry->Size < Needed. Size) Entry = Entry->Flink
Windows Heap Internals Allocate algorithm – Virtual Allocate § Used when Chunk. Size > Virtual. Alloc threshold (508 K) § Virtual allocate header is placed on the beginning of the buffer § Buffer is added to busy list of virtually allocated buffers (this is what Halvar’s Virtual. Alloc overwrite is faking)

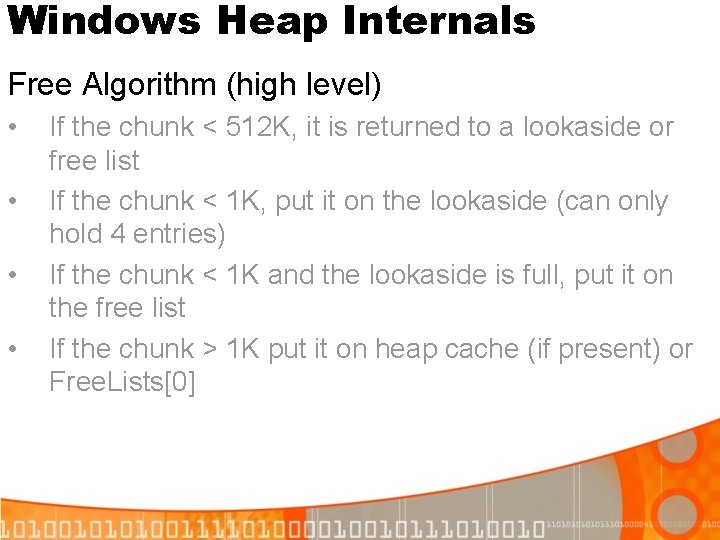

Windows Heap Internals Free Algorithm (high level) • • If the chunk < 512 K, it is returned to a lookaside or free list If the chunk < 1 K, put it on the lookaside (can only hold 4 entries) If the chunk < 1 K and the lookaside is full, put it on the free list If the chunk > 1 K put it on heap cache (if present) or Free. Lists[0]

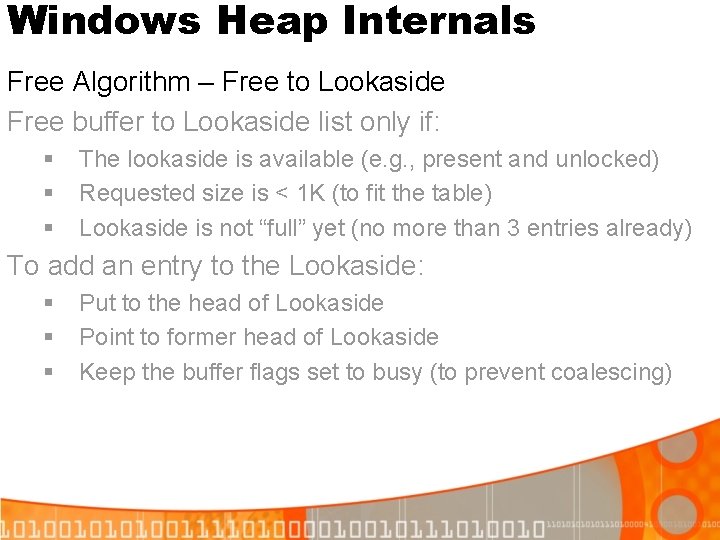

Windows Heap Internals Free Algorithm – Free to Lookaside Free buffer to Lookaside list only if: § § § The lookaside is available (e. g. , present and unlocked) Requested size is < 1 K (to fit the table) Lookaside is not “full” yet (no more than 3 entries already) To add an entry to the Lookaside: § § § Put to the head of Lookaside Point to former head of Lookaside Keep the buffer flags set to busy (to prevent coalescing)
Windows Heap Internals Free Algorithm – Coalesce Step 1: Buffer free Step 2: Buffer removed from free list A B C Step 3: Buffer removed from free list A + B Coalesced A C A + B + C Coalesced A Step 4: Buffer placed back on the free list
Windows Heap Internals Free Algorithm – Coalesce Where coalesce cannot happen: § Chunk to be freed is virtually allocated § Chunk to be freed will be put on Lookaside § Chunk to be coalesced with is busy § Highest bit in chunk flags is set § …
Windows Heap Internals Free Algorithm – Coalesce (cont) Where coalesce cannot happen: § Chunk to be freed is first no backward coalesce § Chunk to be freed is last no forward coalesce § The size of the coalesced chunk would be >= 508 K
Windows Heap Internals Summary – Questions? Just remember: • • Lookasides are allocated from and freed to before free lists Free. Lists[0] is mainly used for 1 K <= Chunk. Size < 512 K Coalescing only happens for entries going onto Free. List, not lookaside list Entries on a certain lookaside will stay there until they are allocated from

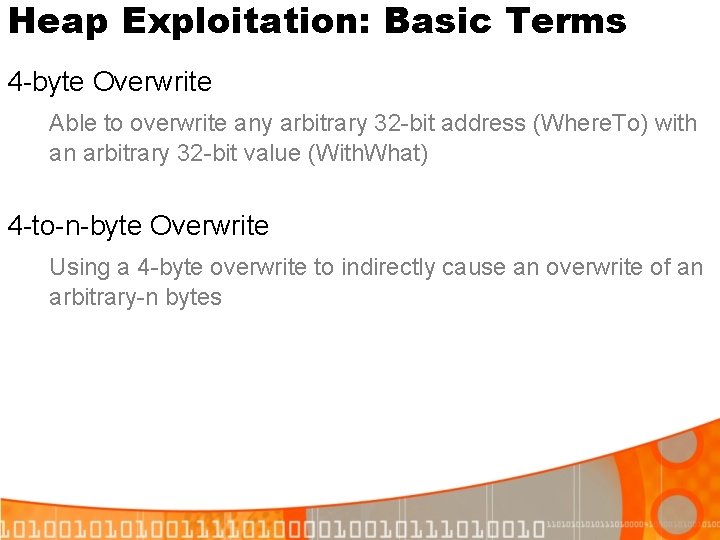

Heap Exploitation: Basic Terms 4 -byte Overwrite Able to overwrite any arbitrary 32 -bit address (Where. To) with an arbitrary 32 -bit value (With. What) 4 -to-n-byte Overwrite Using a 4 -byte overwrite to indirectly cause an overwrite of an arbitrary-n bytes

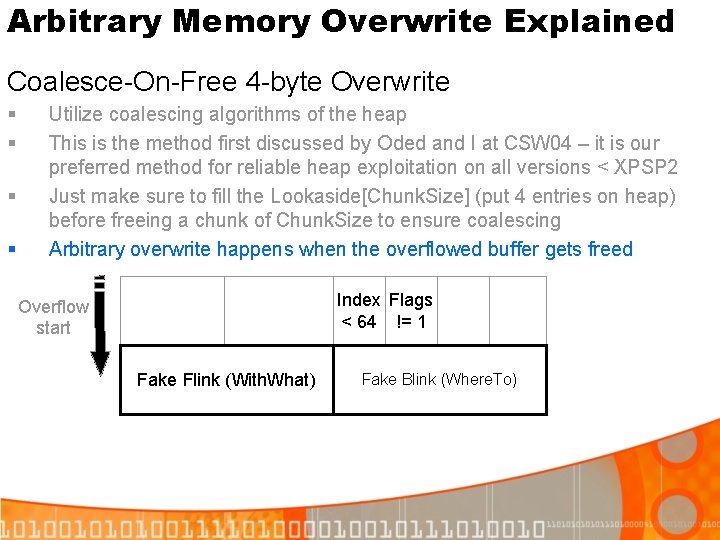

Arbitrary Memory Overwrite Explained Coalesce-On-Free 4 -byte Overwrite § § Utilize coalescing algorithms of the heap This is the method first discussed by Oded and I at CSW 04 – it is our preferred method for reliable heap exploitation on all versions < XPSP 2 Just make sure to fill the Lookaside[Chunk. Size] (put 4 entries on heap) before freeing a chunk of Chunk. Size to ensure coalescing Arbitrary overwrite happens when the overflowed buffer gets freed Index Flags < 64 != 1 Overflow start Fake Flink (With. What) Fake Blink (Where. To)
Arbitrary Memory Overwrite Lookaside List Head Overwrite: 4 -to-n-byte overwrite § What we want to do is overwrite a Lookaside list head and then allocate from it § We must be the first one to allocate that size § We will get a chunk back pointing to whatever location in memory we want § Use this to overwrite a function pointer or put the shellcode at a known writable location
Arbitrary Memory Overwrite Lookaside List Head Overwrite: How To • Use the Coalesce-on-Free Overwrite, with these values: • • • To calculate the Fake. Chunk. Blink value: • • Fake. Chunk. Blink = &Lookaside[Chunk. Size] where Chunk. Size is a pretty infrequently allocated size Fake. Chunk. Flink = what we want a pointer to Lookaside. Table = Heap. Base + 0 x 688 Index = (Chunk. Size/8)+1 Fake. Chunk. Blink = Lookaside. Table + Index * Entry. Size (0 x 30) Set Fake. Chunk. Flags = 0 x 20, Fake. Chunk. Index = 1 -63, Fake. Chunk. Previous. Size = 1, Fake. Chunk. Size = 1

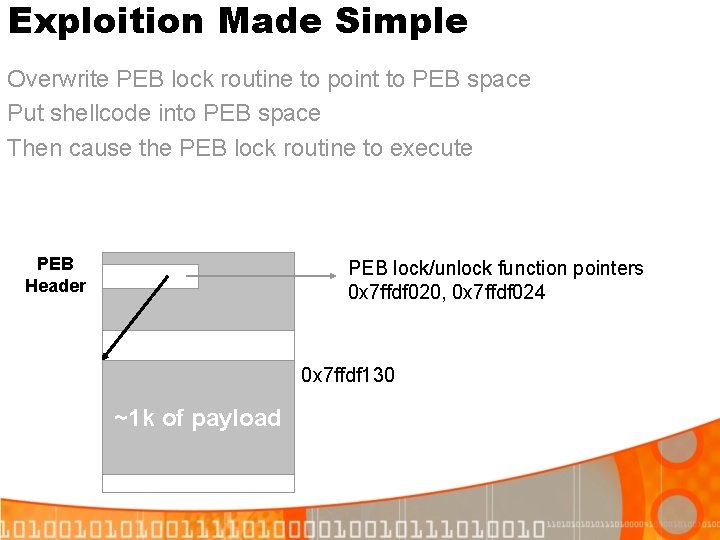

Exploition Made Simple Overwrite PEB lock routine to point to PEB space Put shellcode into PEB space Then cause the PEB lock routine to execute PEB Header PEB lock/unlock function pointers 0 x 7 ffdf 020, 0 x 7 ffdf 024 0 x 7 ffdf 130 ~1 k of payload
Exploitation Made Simple Win 2 K through Win. XP SP 1 in a single attempt: § First 4 -byte overwrite: § § § 4 -to-n-byte overwrite: § § § Blink = &Lookaside[(n/8)+1] Flink = 0 x 7 ffdf 154 Be the first to allocate n bytes (cause Heap. Alloc(n)): § § Blink = 0 x 7 ffdf 020, Flink = 0 x 7 ffdf 154 Put your shellcode into the returned buffer All done! Either wait, or cause a crash immediately: § For example, do 4 -byte overwrite with Blink = 0 x. ABAB

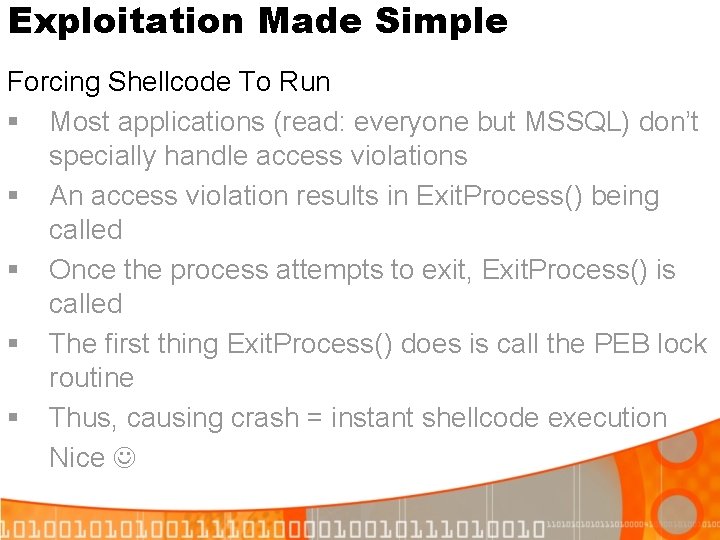

Exploitation Made Simple Forcing Shellcode To Run § Most applications (read: everyone but MSSQL) don’t specially handle access violations § An access violation results in Exit. Process() being called § Once the process attempts to exit, Exit. Process() is called § The first thing Exit. Process() does is call the PEB lock routine § Thus, causing crash = instant shellcode execution Nice
Exploitation Made Simple Demo
Heap Exploitation Questions? This technique we just covered is very reliably, providing success almost every time on all Win 2 K (all service packs) and Win. XP (up to SP 2) On to XP SP 2….

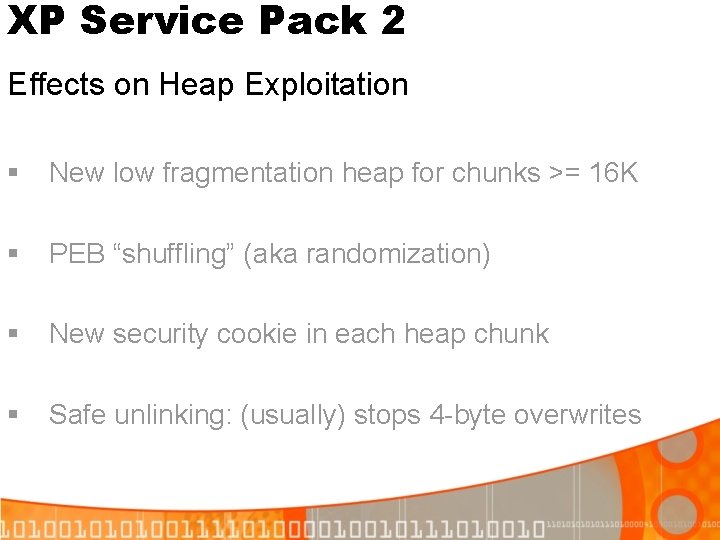

XP Service Pack 2 Effects on Heap Exploitation § New low fragmentation heap for chunks >= 16 K § PEB “shuffling” (aka randomization) § New security cookie in each heap chunk § Safe unlinking: (usually) stops 4 -byte overwrites

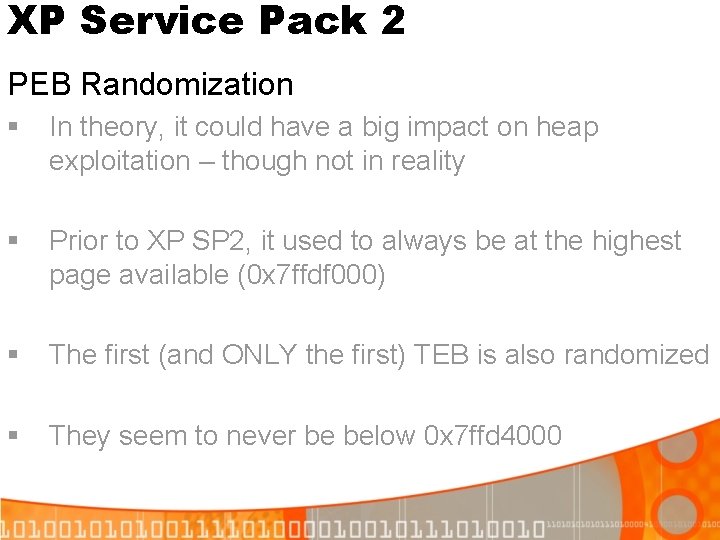

XP Service Pack 2 PEB Randomization § In theory, it could have a big impact on heap exploitation – though not in reality § Prior to XP SP 2, it used to always be at the highest page available (0 x 7 ffdf 000) § The first (and ONLY the first) TEB is also randomized § They seem to never be below 0 x 7 ffd 4000

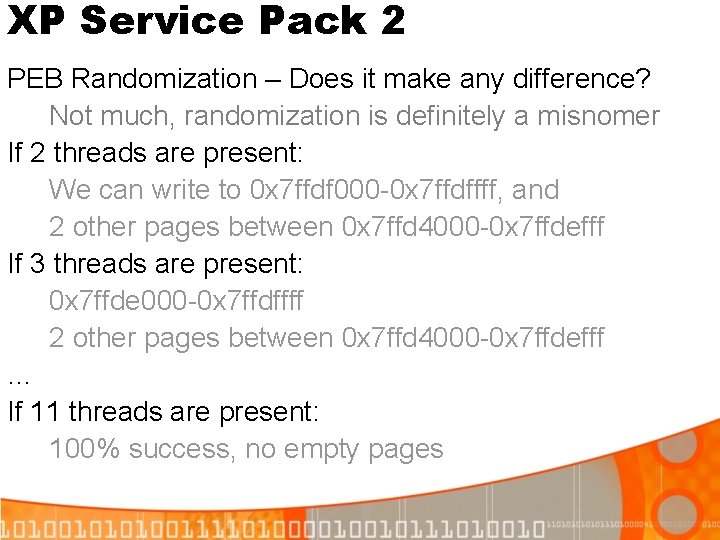

XP Service Pack 2 PEB Randomization – Does it make any difference? Not much, randomization is definitely a misnomer If 2 threads are present: We can write to 0 x 7 ffdf 000 -0 x 7 ffdffff, and 2 other pages between 0 x 7 ffd 4000 -0 x 7 ffdefff If 3 threads are present: 0 x 7 ffde 000 -0 x 7 ffdffff 2 other pages between 0 x 7 ffd 4000 -0 x 7 ffdefff … If 11 threads are present: 100% success, no empty pages

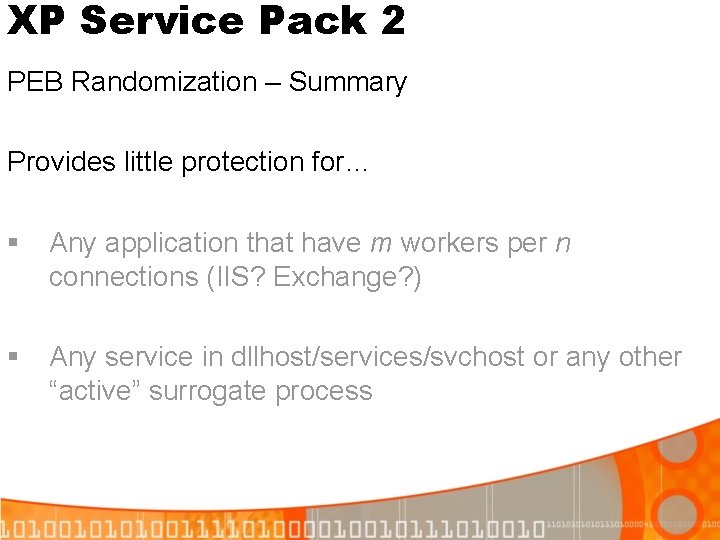

XP Service Pack 2 PEB Randomization – Summary Provides little protection for… § Any application that have m workers per n connections (IIS? Exchange? ) § Any service in dllhost/services/svchost or any other “active” surrogate process
XP Service Pack 2 Heap header cookie *reminder: overflow direction XP SP 2 Header Self Size Previous chunk size New Cookie Flags Unused bytes Current Header Self Size Previous chunk size Segment Index Flags Unused Tag index bytes (Debug) 0 1 2 3 4 5 6 Segment Index 7 8

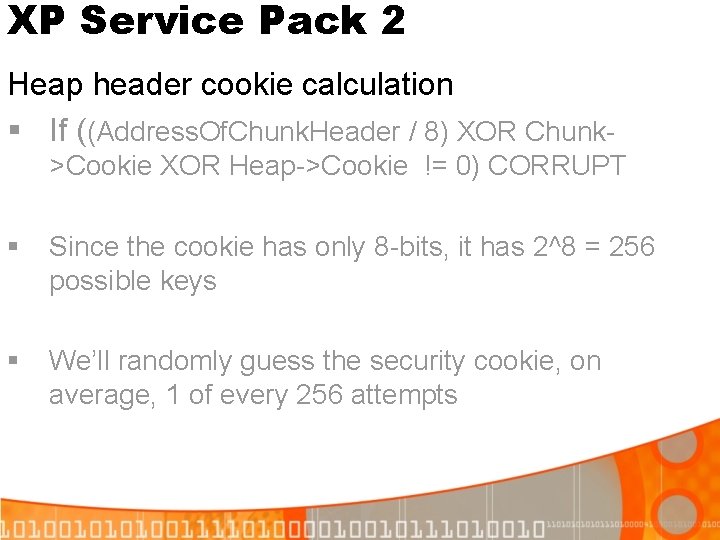

XP Service Pack 2 Heap header cookie calculation § If ((Address. Of. Chunk. Header / 8) XOR Chunk>Cookie XOR Heap->Cookie != 0) CORRUPT § Since the cookie has only 8 -bits, it has 2^8 = 256 possible keys § We’ll randomly guess the security cookie, on average, 1 of every 256 attempts

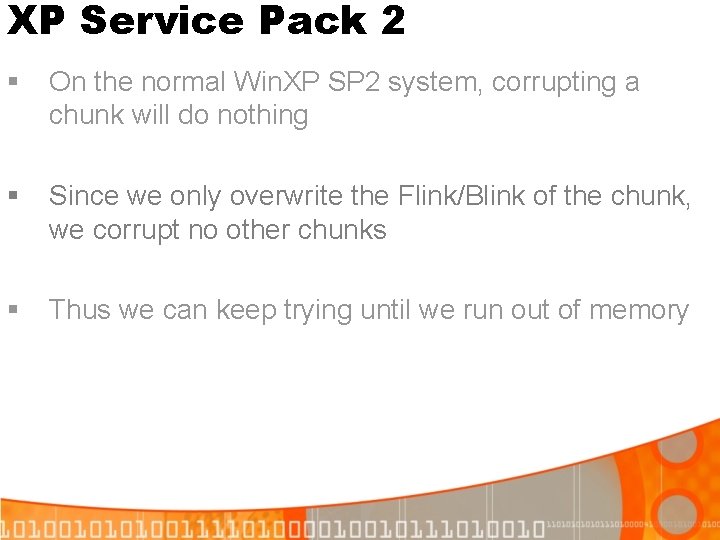

XP Service Pack 2 § On the normal Win. XP SP 2 system, corrupting a chunk will do nothing § Since we only overwrite the Flink/Blink of the chunk, we corrupt no other chunks § Thus we can keep trying until we run out of memory

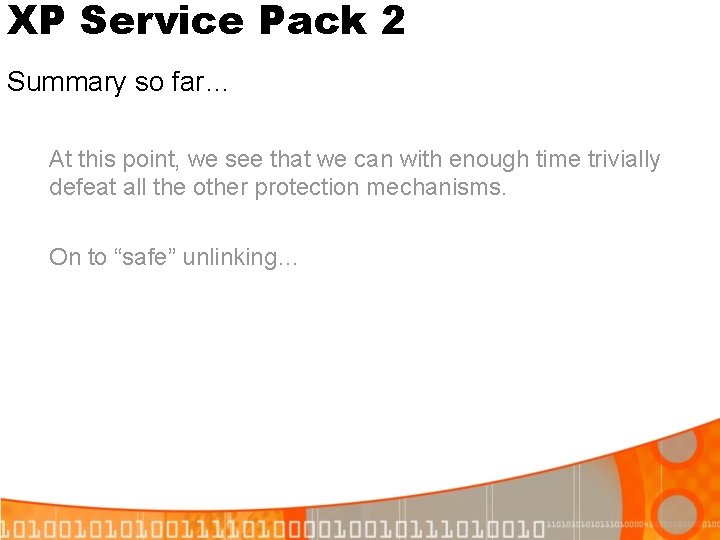

XP Service Pack 2 Summary so far… At this point, we see that we can with enough time trivially defeat all the other protection mechanisms. On to “safe” unlinking…
XP Service Pack 2 Safe Unlinking § Safe unlinking means that Remove. List. Entry(B) will make this check: (B->Flink)->Blink == B && (B->Blink)->Flink == B In other words: C->Blink == B && A->Flink == B Can it be evaded? Yes, in one particular case. Header to free A B C
XP Service Pack 2 Un. Safe-Unlinking Free. List Overwrite Technique p = Heap. Alloc(n); Fill. Lookaside(n); Heap. Free(p); Empty. Lookaside(n); Overwrite p[0] (somewhere on the heap) with: p->Flags = Busy (to prevent accidental coalescing) p ->Flink = (BYTE *)&List. Head[(n/8)+1] - 4 p ->Blink = (BYTE *)&List. Head[(n/8)+1] + 4 Heap. Alloc(n); // defeats safe unlinking (ignore result) p = Heap. Alloc(n); // defeats safe unlinking // p now points to &List. Head[(n/8)]. Blink
XP Service Pack 2 Defeating Safe Unlinking (before overwrite) List. Head[n-1] List. Head[n+1] [4] Blink [0] Flink Free. Chunk

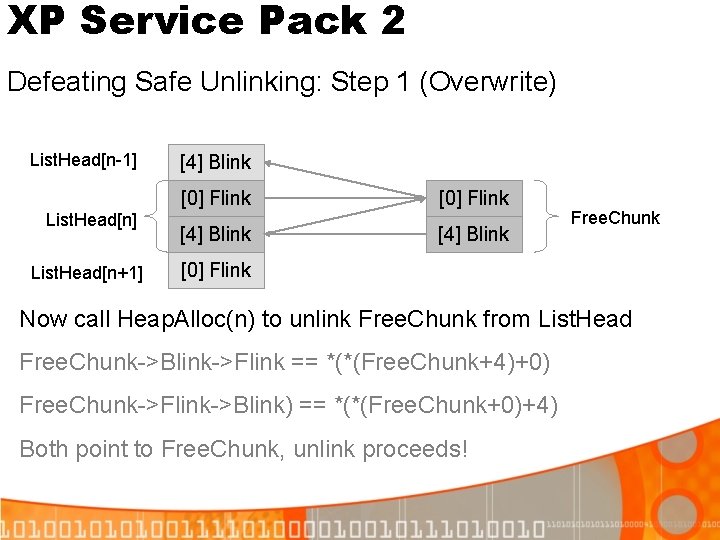

XP Service Pack 2 Defeating Safe Unlinking: Step 1 (Overwrite) List. Head[n-1] List. Head[n+1] [4] Blink [0] Flink [4] Blink Free. Chunk [0] Flink Now call Heap. Alloc(n) to unlink Free. Chunk from List. Head Free. Chunk->Blink->Flink == *(*(Free. Chunk+4)+0) Free. Chunk->Flink->Blink) == *(*(Free. Chunk+0)+4) Both point to Free. Chunk, unlink proceeds!
XP Service Pack 2 Defeating Safe Unlinking: Step 2 (1 st alloc) List. Head[n-1] [4] Blink [0] Flink List. Head[n] List. Head[n+1] [4] Blink [0] Flink Free. Chunk->Blink->Flink = Free. Chunk->Flink->Blink = Free. Chunk->Blink Returns pointer to previous Free. Chunk

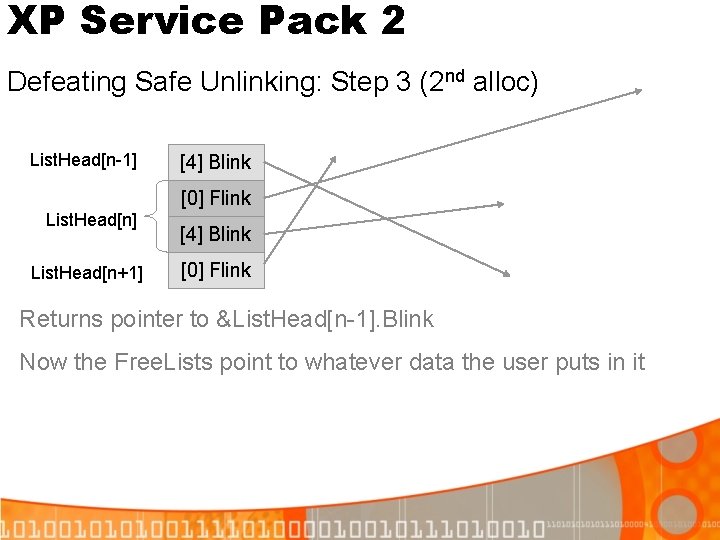

XP Service Pack 2 Defeating Safe Unlinking: Step 3 (2 nd alloc) List. Head[n-1] [4] Blink [0] Flink List. Head[n] List. Head[n+1] [4] Blink [0] Flink Returns pointer to &List. Head[n-1]. Blink Now the Free. Lists point to whatever data the user puts in it
XP Service Pack 2 Questions?
XP Service Pack 2 Unsafe-Unlinking Free. List Overwrite Technique § For vulnerabilities where you can control the allocation size, safe unlinking can be evadable. § But is this reliable? Hardly. § …

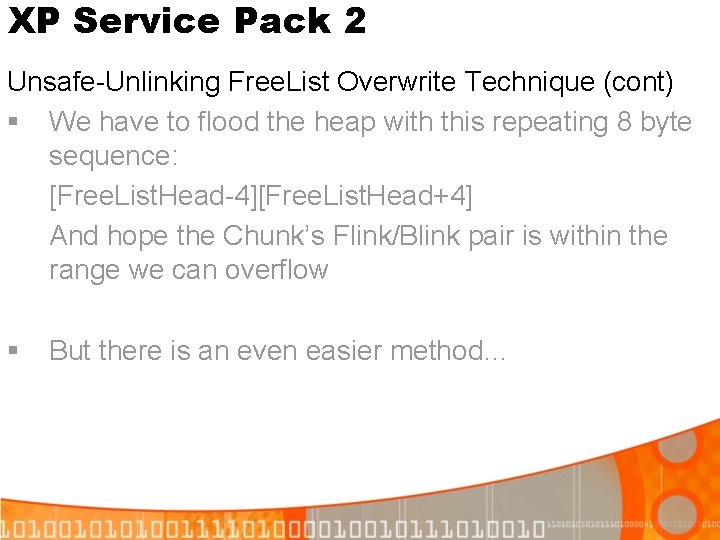

XP Service Pack 2 Unsafe-Unlinking Free. List Overwrite Technique (cont) § We have to flood the heap with this repeating 8 byte sequence: [Free. List. Head-4][Free. List. Head+4] And hope the Chunk’s Flink/Blink pair is within the range we can overflow § But there is an even easier method…
XP Service Pack 2 Chunk-on-Lookaside Overwrite Technique § In fact on XP SP 2, there is an even easier method § Lookasides lists take precedence over free lists § This is quite convenient because… § Lookaside lists (singly linked) are easier to exploit than the free lists (doubly linked)
XP Service Pack 2 Chunk-on-Lookaside Overwrites § Heap. Alloc checks the lookaside before the free list § There is no check to see if the cookie was overwritten since it was freed § It is a singly-linked list, thus the safe unlinking check doesn’t apply § Result: a clean exploitation technique (albeit with brute-forcing required)
XP Service Pack 2 Chunk-on-Lookaside Overwrites (Technique Summary) // We need at least 2 entries on lookaside a_n[0] = Heap. Alloc(n) a_n[1] = Heap. Alloc(n) Heap. Free(a_n[1]) Heap. Free(a_n[0]) Overwrite a_n[0] (somewhere on the heap) with: a_n[0]. Flags = Busy (to prevent accidental coalescing) a_n[0]. Flink = Address. We. Want Heap. Alloc(n) // discard, this returns a_n[0] p = Heap. Alloc(n) p now points to Address. We. Want

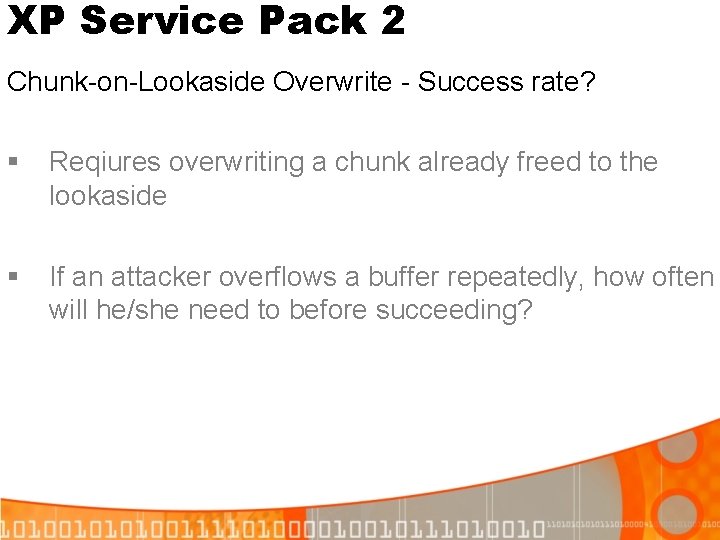

XP Service Pack 2 Chunk-on-Lookaside Overwrite - Success rate? § Reqiures overwriting a chunk already freed to the lookaside § If an attacker overflows a buffer repeatedly, how often will he/she need to before succeeding?
XP Service Pack 2 Chunk-on-Lookaside Overwrite – Empirical results § § § § 64 K heap with 1 segment All chunk sizes between 8 -1024 bytes Max overflow size = 1016 bytes Random number of allocs between 10 -1000 Free probability of 50% Took an average of 84 allocations to be within overflow range It will take at least 2 overwrites (one to overwrite a function pointer, one to place shellcode)
XP Service Pack 2 Chunk-on-Lookaside Overwrite – Empirical results § Application specific function pointer and writable location for shellcode: § § 84*2 = 168 attempts to execute shellcode Using PEB lock routine + PEB space (application generic): § § 84*2*12=2, 016 attempts to execute shellcode The 12 is for the 12 possible locations of the PEB due to PEB randomization
XP Service Pack 2 Chunk-on-Lookaside Overwrite – Summary § To exploit a non-application specific heap exploit will take 2000+ attempts to do it reliably § But now ask yourself… how long does it take generate 2000 heap overwrite attempts? § Lets be overly conservative and assume 5 minutes § That will really slow down a worm… § But will it help you if someone is specifically trying to hack your machine?

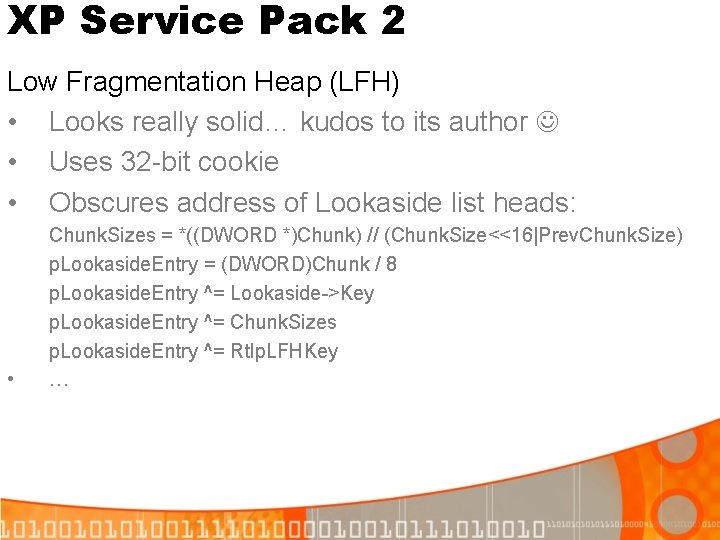

XP Service Pack 2 Low Fragmentation Heap (LFH) • Looks really solid… kudos to its author • Uses 32 -bit cookie • Obscures address of Lookaside list heads: • Chunk. Sizes = *((DWORD *)Chunk) // (Chunk. Size<<16|Prev. Chunk. Size) p. Lookaside. Entry = (DWORD)Chunk / 8 p. Lookaside. Entry ^= Lookaside->Key p. Lookaside. Entry ^= Chunk. Sizes p. Lookaside. Entry ^= Rtlp. LFHKey …

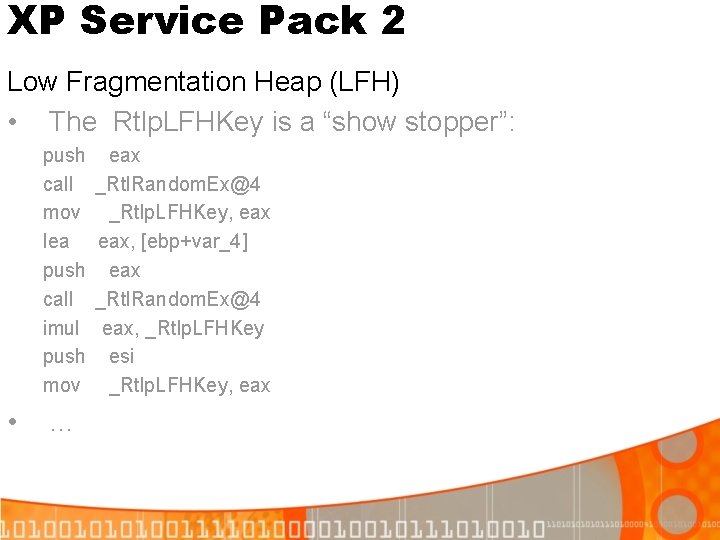

XP Service Pack 2 Low Fragmentation Heap (LFH) • The Rtlp. LFHKey is a “show stopper”: push call mov lea push call imul push mov • … eax _Rtl. Random. Ex@4 _Rtlp. LFHKey, eax, [ebp+var_4] eax _Rtl. Random. Ex@4 eax, _Rtlp. LFHKey esi _Rtlp. LFHKey, eax

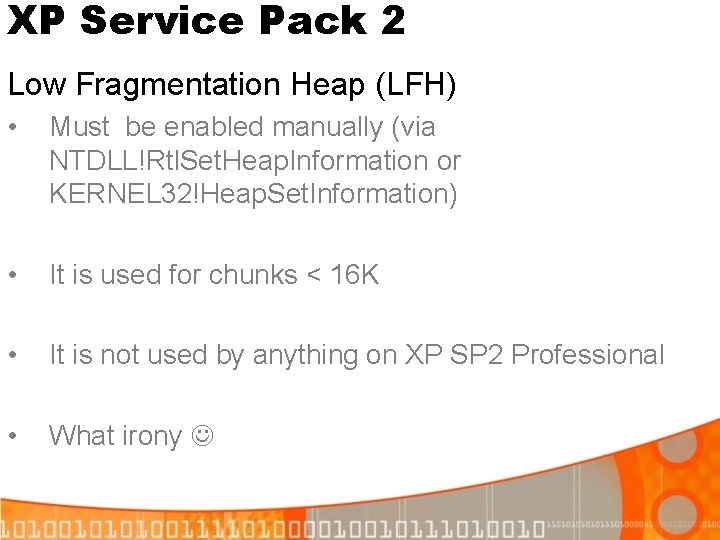

XP Service Pack 2 Low Fragmentation Heap (LFH) • Must be enabled manually (via NTDLL!Rtl. Set. Heap. Information or KERNEL 32!Heap. Set. Information) • It is used for chunks < 16 K • It is not used by anything on XP SP 2 Professional • What irony

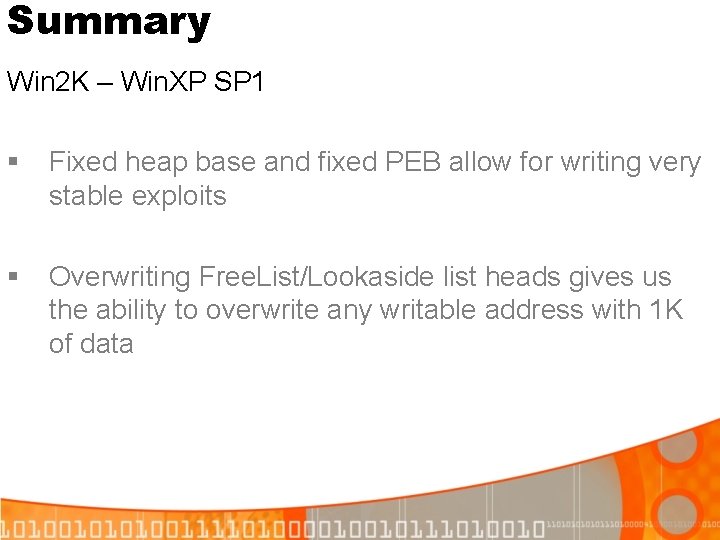

Summary Win 2 K – Win. XP SP 1 § Fixed heap base and fixed PEB allow for writing very stable exploits § Overwriting Free. List/Lookaside list heads gives us the ability to overwrite any writable address with 1 K of data
Summary Win. XP SP 2 § Decreases reliability (more bruteforcing is necessary) § But with enough time, exploitation will still succeed § XP SP 2 will really slow worm propagation, but not help a targeted victim §. . .

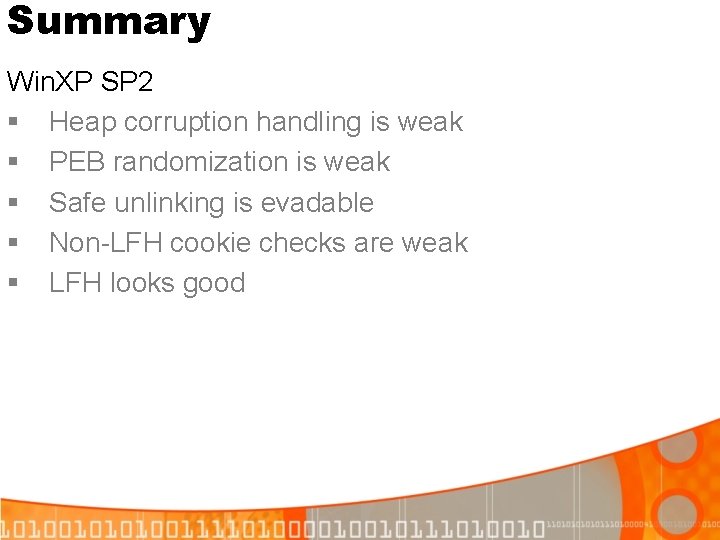

Summary Win. XP SP 2 § Heap corruption handling is weak § PEB randomization is weak § Safe unlinking is evadable § Non-LFH cookie checks are weak § LFH looks good

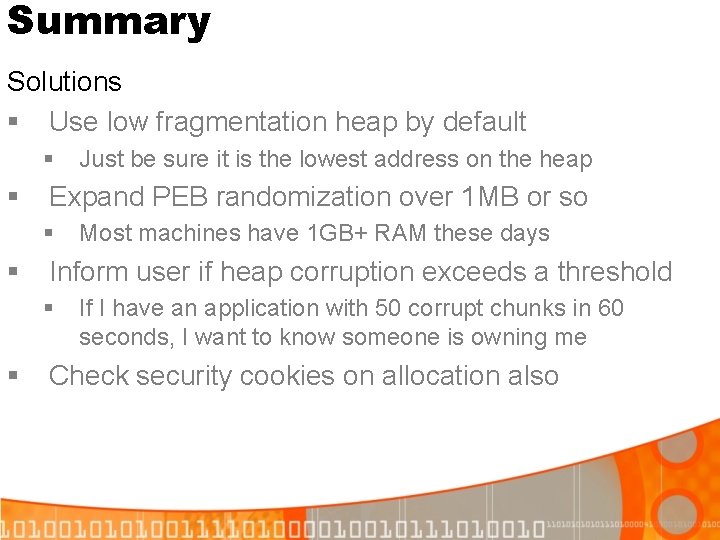

Summary Solutions § Use low fragmentation heap by default § § Expand PEB randomization over 1 MB or so § § Most machines have 1 GB+ RAM these days Inform user if heap corruption exceeds a threshold § § Just be sure it is the lowest address on the heap If I have an application with 50 corrupt chunks in 60 seconds, I want to know someone is owning me Check security cookies on allocation also

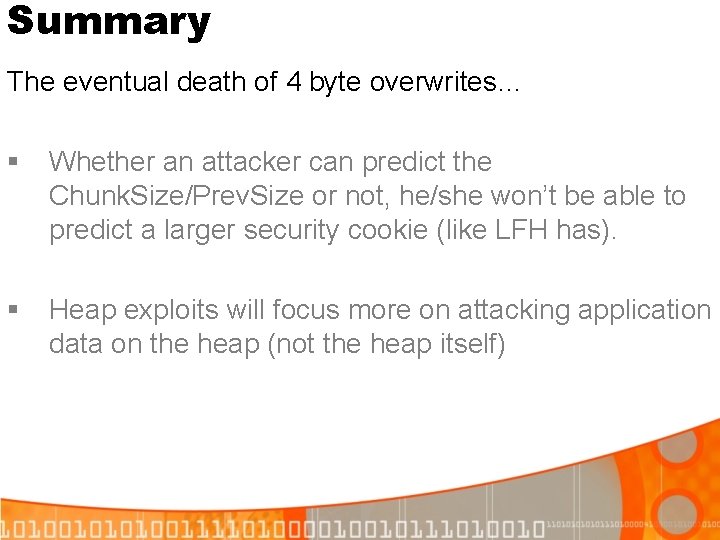

Summary The eventual death of 4 byte overwrites… § Whether an attacker can predict the Chunk. Size/Prev. Size or not, he/she won’t be able to predict a larger security cookie (like LFH has). § Heap exploits will focus more on attacking application data on the heap (not the heap itself)
