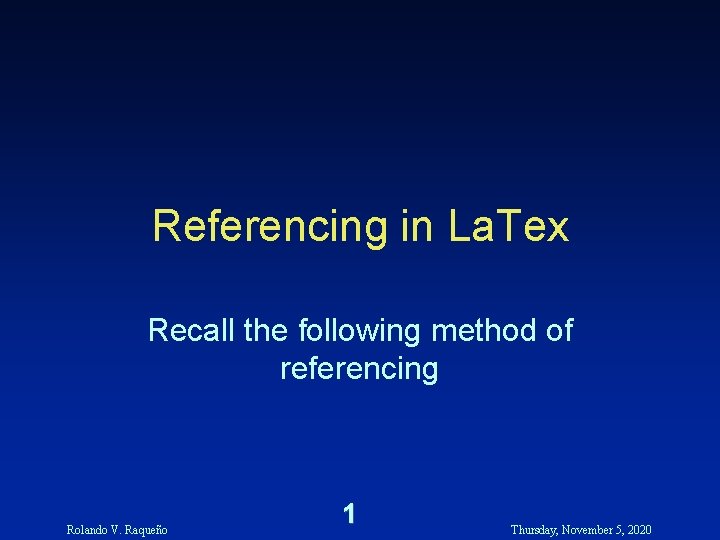

Referencing in La. Tex Recall the following method of referencing Rolando V. Raqueño 1 Thursday, November 5, 2020

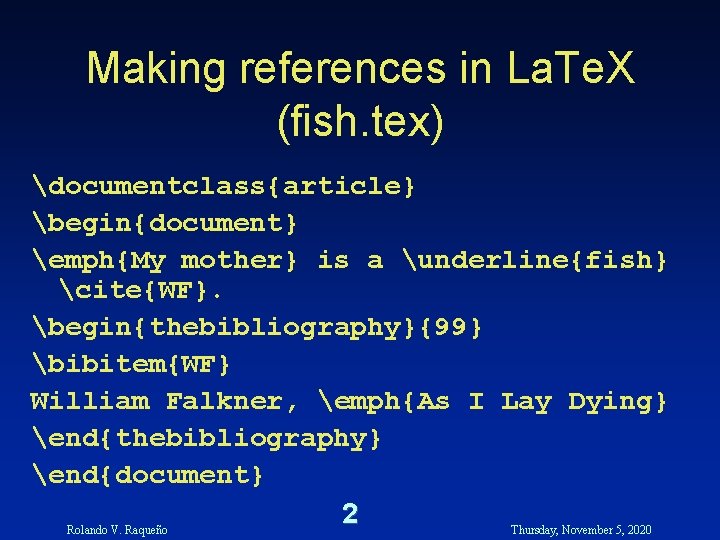

Making references in La. Te. X (fish. tex) documentclass{article} begin{document} emph{My mother} is a underline{fish} cite{WF}. begin{thebibliography}{99} bibitem{WF} William Falkner, emph{As I Lay Dying} end{thebibliography} end{document} 2 Rolando V. Raqueño Thursday, November 5, 2020

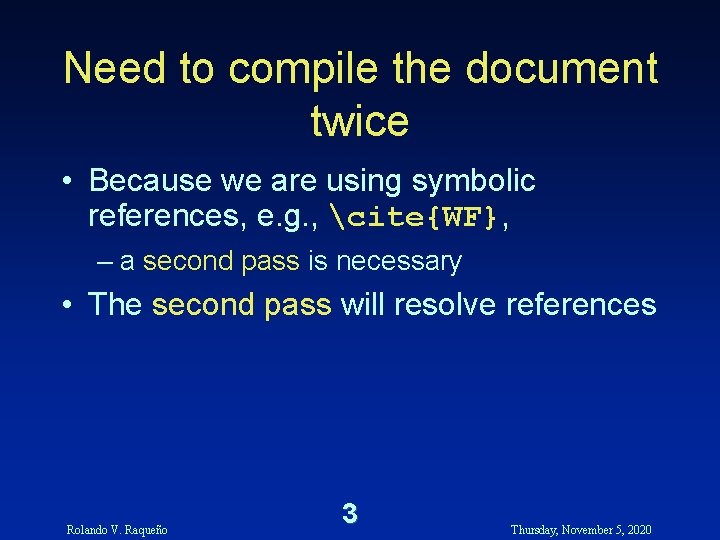

Need to compile the document twice • Because we are using symbolic references, e. g. , cite{WF}, – a second pass is necessary • The second pass will resolve references Rolando V. Raqueño 3 Thursday, November 5, 2020

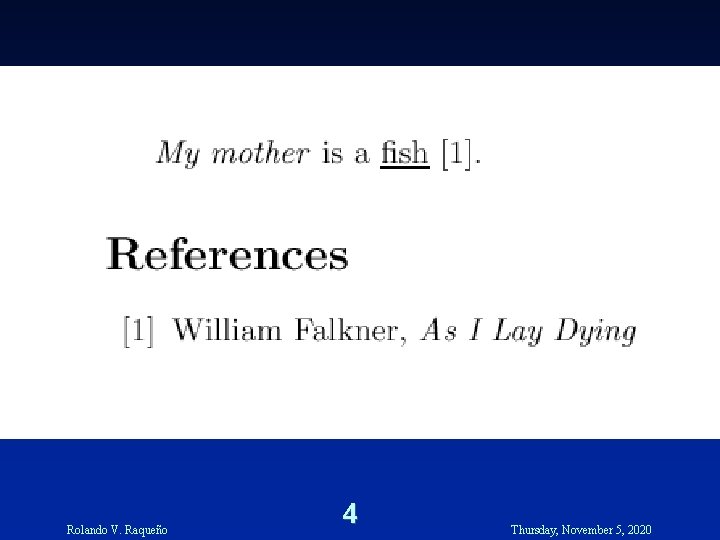

Rolando V. Raqueño 4 Thursday, November 5, 2020

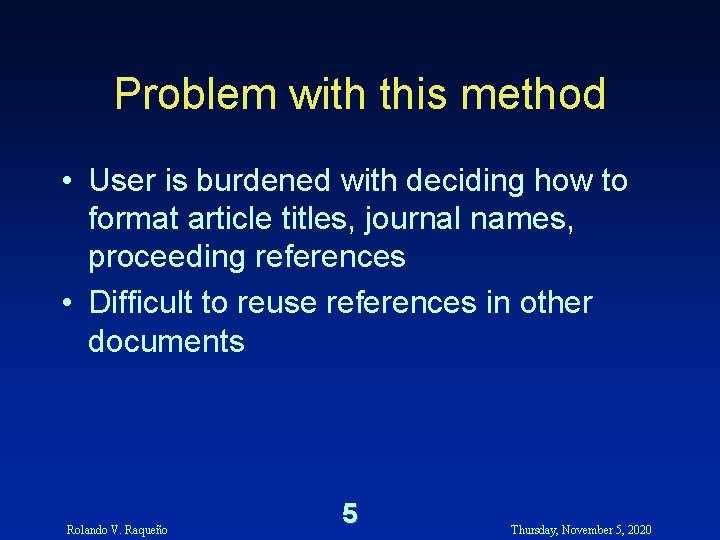

Problem with this method • User is burdened with deciding how to format article titles, journal names, proceeding references • Difficult to reuse references in other documents Rolando V. Raqueño 5 Thursday, November 5, 2020

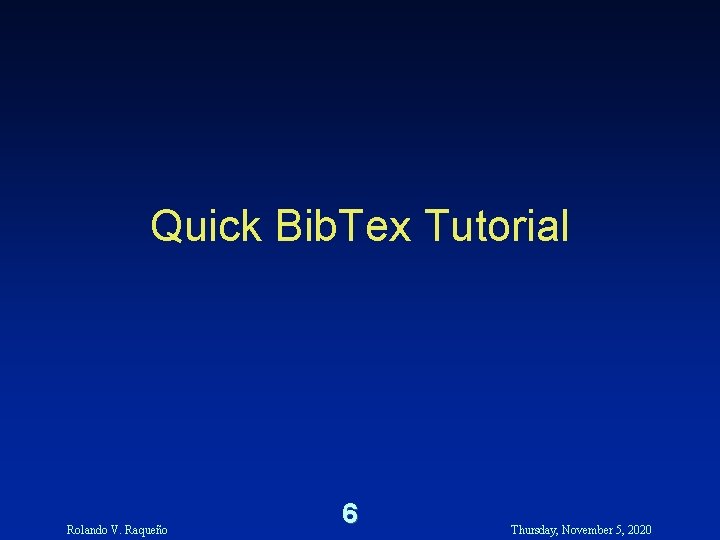

Quick Bib. Tex Tutorial Rolando V. Raqueño 6 Thursday, November 5, 2020

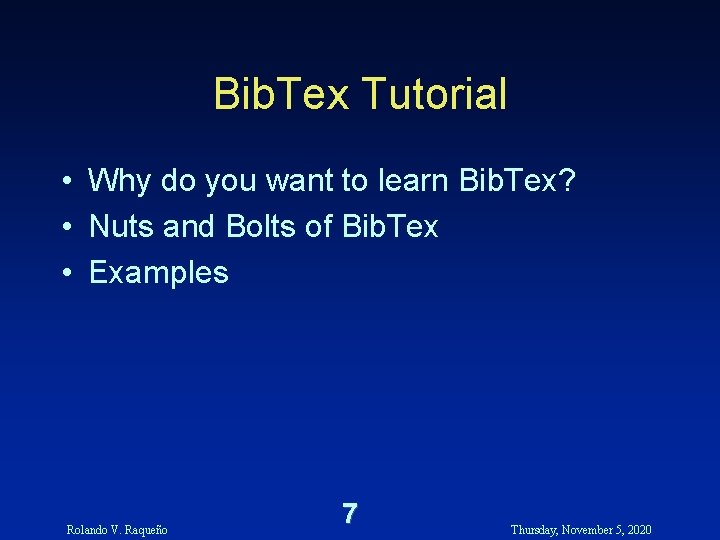

Bib. Tex Tutorial • Why do you want to learn Bib. Tex? • Nuts and Bolts of Bib. Tex • Examples Rolando V. Raqueño 7 Thursday, November 5, 2020

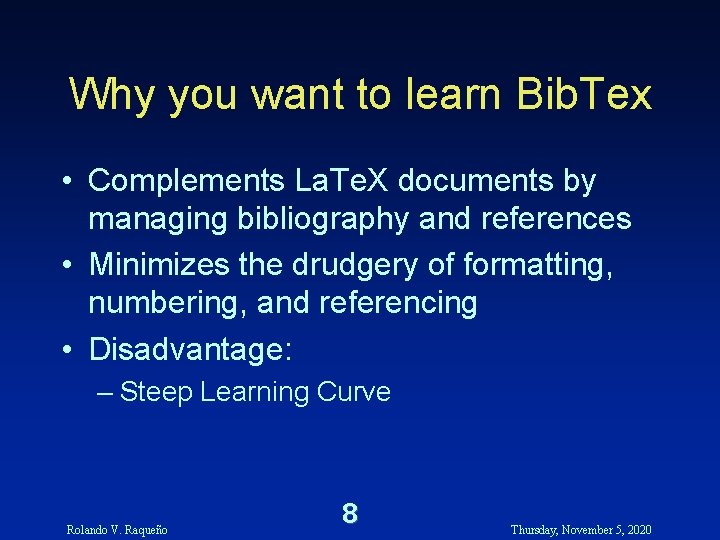

Why you want to learn Bib. Tex • Complements La. Te. X documents by managing bibliography and references • Minimizes the drudgery of formatting, numbering, and referencing • Disadvantage: – Steep Learning Curve Rolando V. Raqueño 8 Thursday, November 5, 2020

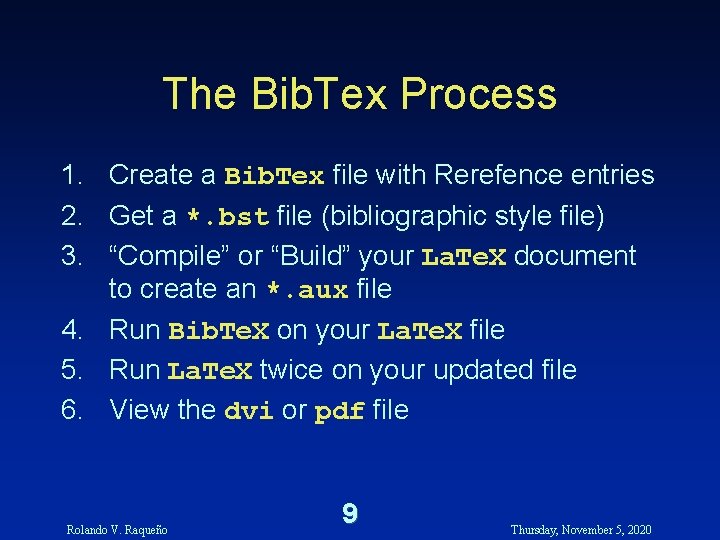

The Bib. Tex Process 1. Create a Bib. Tex file with Rerefence entries 2. Get a *. bst file (bibliographic style file) 3. “Compile” or “Build” your La. Te. X document to create an *. aux file 4. Run Bib. Te. X on your La. Te. X file 5. Run La. Te. X twice on your updated file 6. View the dvi or pdf file Rolando V. Raqueño 9 Thursday, November 5, 2020

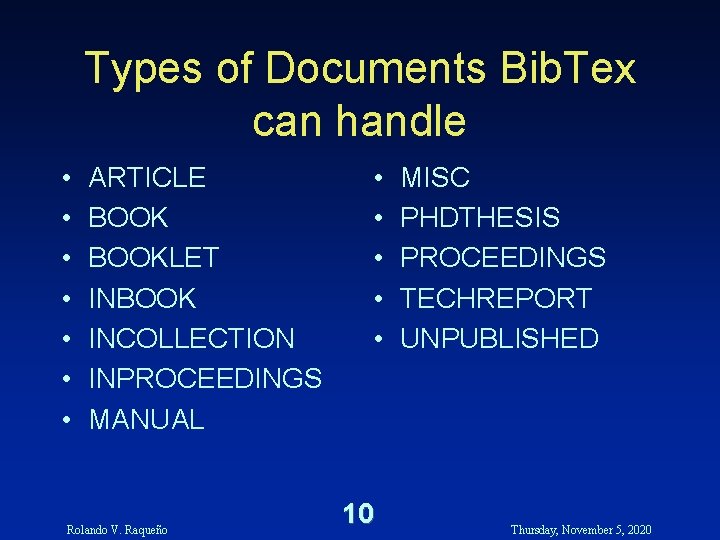

Types of Documents Bib. Tex can handle • • ARTICLE BOOKLET INBOOK INCOLLECTION INPROCEEDINGS MANUAL Rolando V. Raqueño • • • 10 MISC PHDTHESIS PROCEEDINGS TECHREPORT UNPUBLISHED Thursday, November 5, 2020

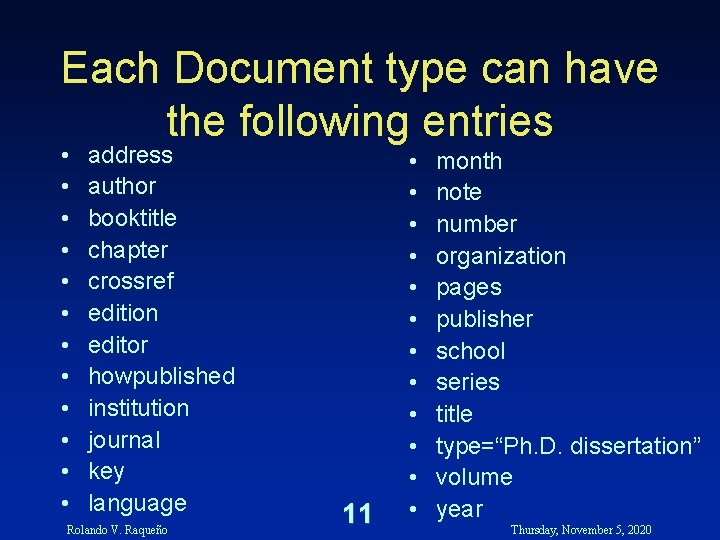

Each Document type can have the following entries • • • address author booktitle chapter crossref edition editor howpublished institution journal key language Rolando V. Raqueño 11 • • • month note number organization pages publisher school series title type=“Ph. D. dissertation” volume year Thursday, November 5, 2020

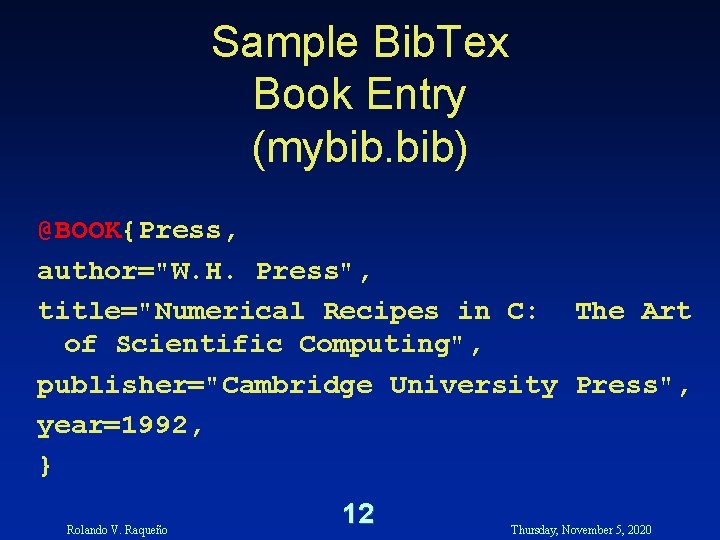

Sample Bib. Tex Book Entry (mybib. bib) @BOOK{Press, author="W. H. Press", title="Numerical Recipes in C: The Art of Scientific Computing", publisher="Cambridge University Press", year=1992, } Rolando V. Raqueño 12 Thursday, November 5, 2020

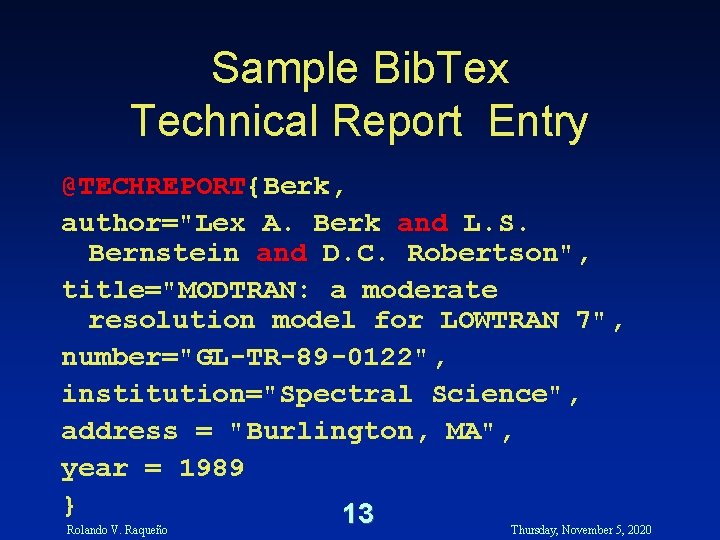

Sample Bib. Tex Technical Report Entry @TECHREPORT{Berk, author="Lex A. Berk and L. S. Bernstein and D. C. Robertson", title="MODTRAN: a moderate resolution model for LOWTRAN 7", number="GL-TR-89 -0122", institution="Spectral Science", address = "Burlington, MA", year = 1989 } 13 Rolando V. Raqueño Thursday, November 5, 2020

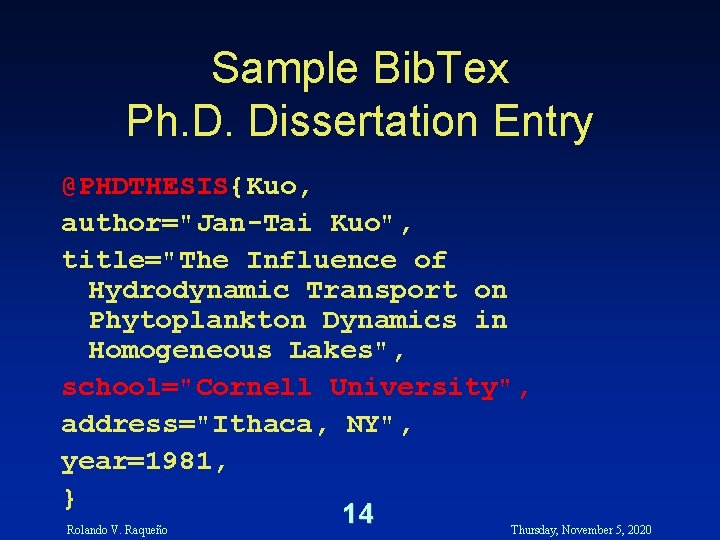

Sample Bib. Tex Ph. D. Dissertation Entry @PHDTHESIS{Kuo, author="Jan-Tai Kuo", title="The Influence of Hydrodynamic Transport on Phytoplankton Dynamics in Homogeneous Lakes", school="Cornell University", address="Ithaca, NY", year=1981, } 14 Rolando V. Raqueño Thursday, November 5, 2020

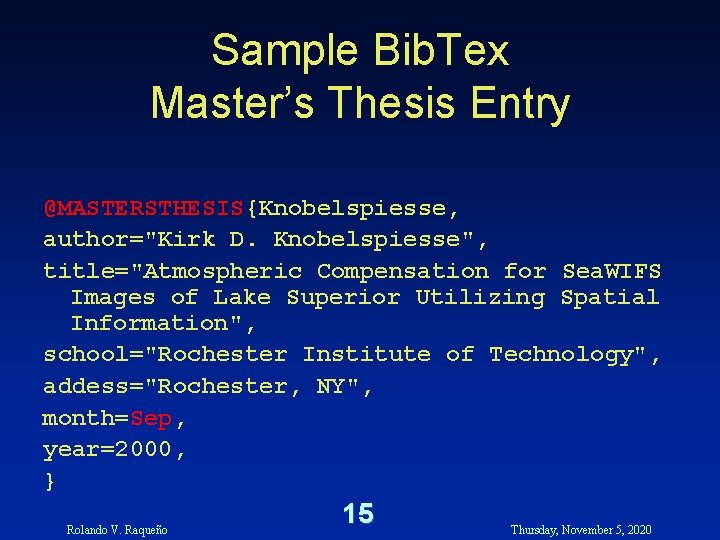

Sample Bib. Tex Master’s Thesis Entry @MASTERSTHESIS{Knobelspiesse, author="Kirk D. Knobelspiesse", title="Atmospheric Compensation for Sea. WIFS Images of Lake Superior Utilizing Spatial Information", school="Rochester Institute of Technology", addess="Rochester, NY", month=Sep, year=2000, } Rolando V. Raqueño 15 Thursday, November 5, 2020

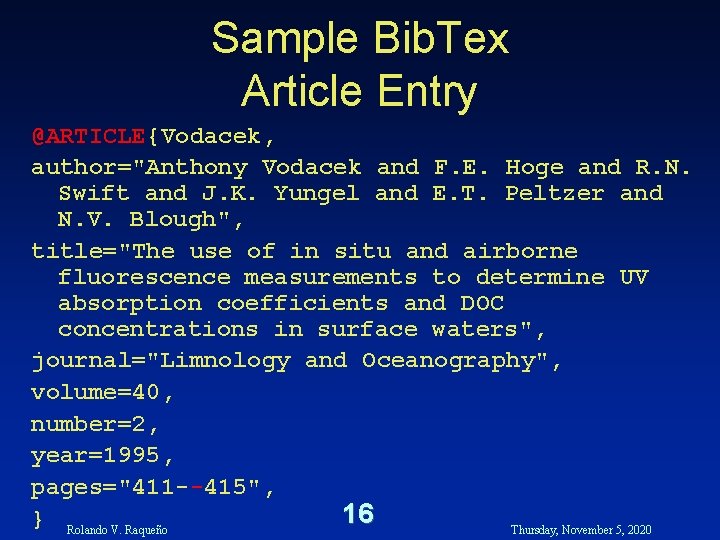

Sample Bib. Tex Article Entry @ARTICLE{Vodacek, author="Anthony Vodacek and F. E. Hoge and R. N. Swift and J. K. Yungel and E. T. Peltzer and N. V. Blough", title="The use of in situ and airborne fluorescence measurements to determine UV absorption coefficients and DOC concentrations in surface waters", journal="Limnology and Oceanography", volume=40, number=2, year=1995, pages="411 --415", 16 } Rolando V. Raqueño Thursday, November 5, 2020

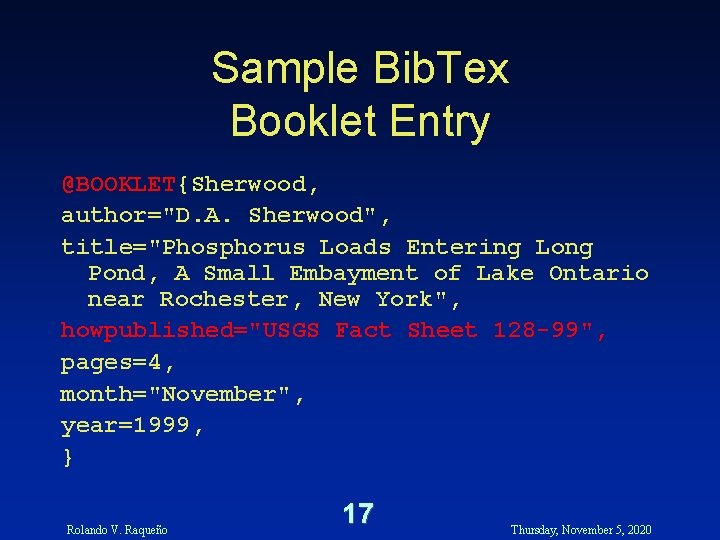

Sample Bib. Tex Booklet Entry @BOOKLET{Sherwood, author="D. A. Sherwood", title="Phosphorus Loads Entering Long Pond, A Small Embayment of Lake Ontario near Rochester, New York", howpublished="USGS Fact Sheet 128 -99", pages=4, month="November", year=1999, } Rolando V. Raqueño 17 Thursday, November 5, 2020

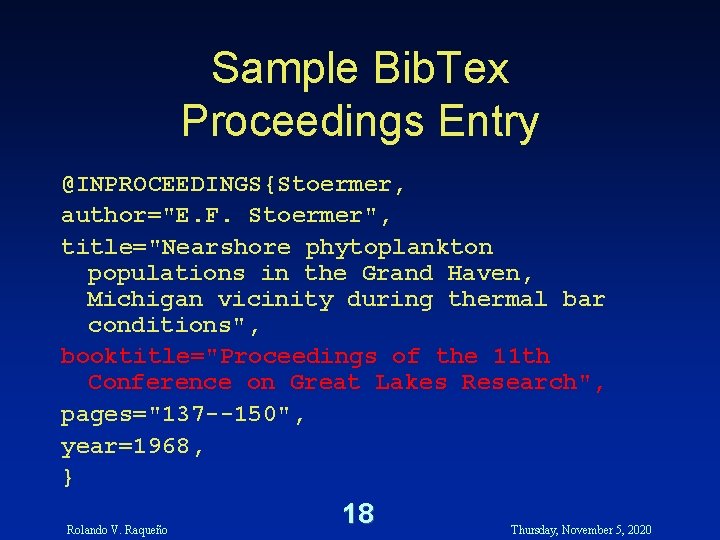

Sample Bib. Tex Proceedings Entry @INPROCEEDINGS{Stoermer, author="E. F. Stoermer", title="Nearshore phytoplankton populations in the Grand Haven, Michigan vicinity during thermal bar conditions", booktitle="Proceedings of the 11 th Conference on Great Lakes Research", pages="137 --150", year=1968, } Rolando V. Raqueño 18 Thursday, November 5, 2020

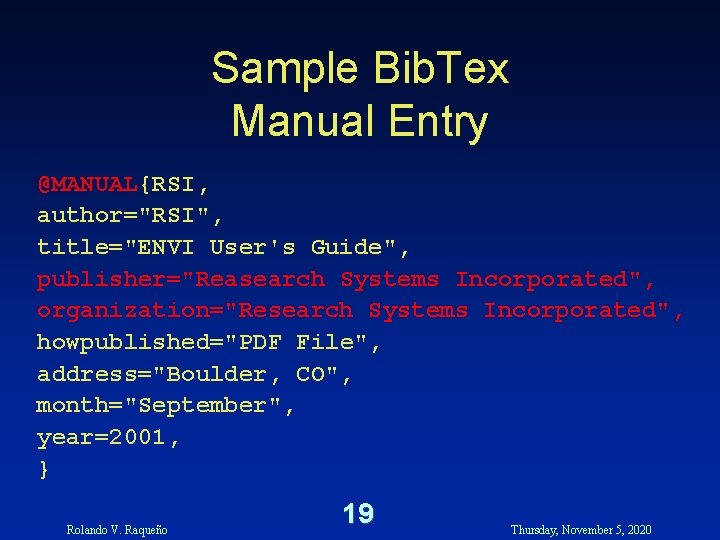

Sample Bib. Tex Manual Entry @MANUAL{RSI, author="RSI", title="ENVI User's Guide", publisher="Reasearch Systems Incorporated", organization="Research Systems Incorporated", howpublished="PDF File", address="Boulder, CO", month="September", year=2001, } Rolando V. Raqueño 19 Thursday, November 5, 2020

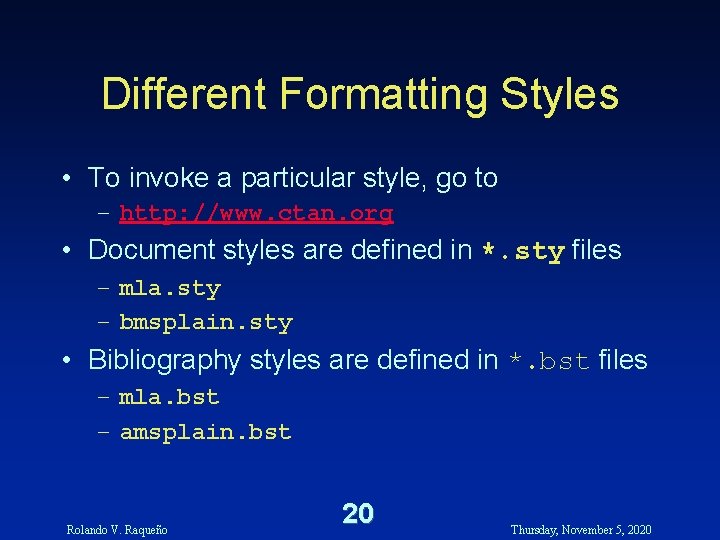

Different Formatting Styles • To invoke a particular style, go to – http: //www. ctan. org • Document styles are defined in *. sty files – mla. sty – bmsplain. sty • Bibliography styles are defined in *. bst files – mla. bst – amsplain. bst Rolando V. Raqueño 20 Thursday, November 5, 2020

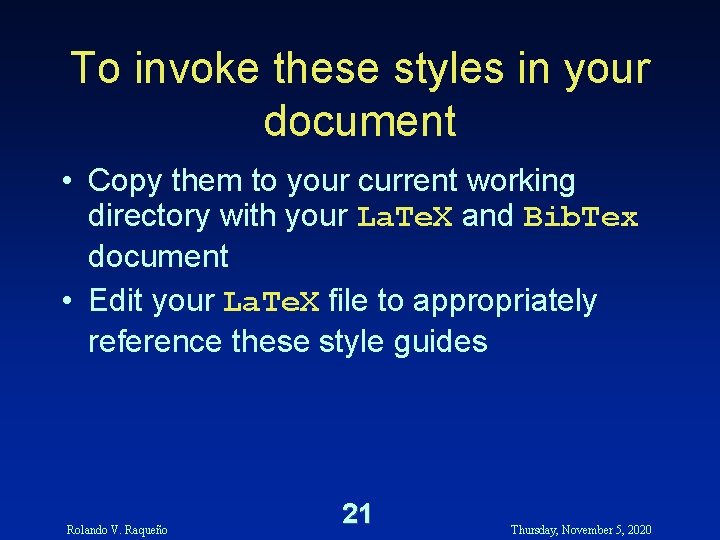

To invoke these styles in your document • Copy them to your current working directory with your La. Te. X and Bib. Tex document • Edit your La. Te. X file to appropriately reference these style guides Rolando V. Raqueño 21 Thursday, November 5, 2020

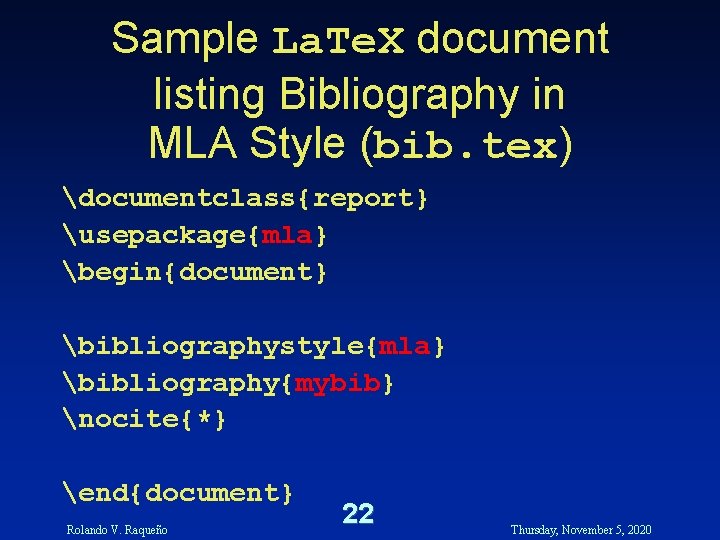

Sample La. Te. X document listing Bibliography in MLA Style (bib. tex) documentclass{report} usepackage{mla} begin{document} bibliographystyle{mla} bibliography{mybib} nocite{*} end{document} Rolando V. Raqueño 22 Thursday, November 5, 2020

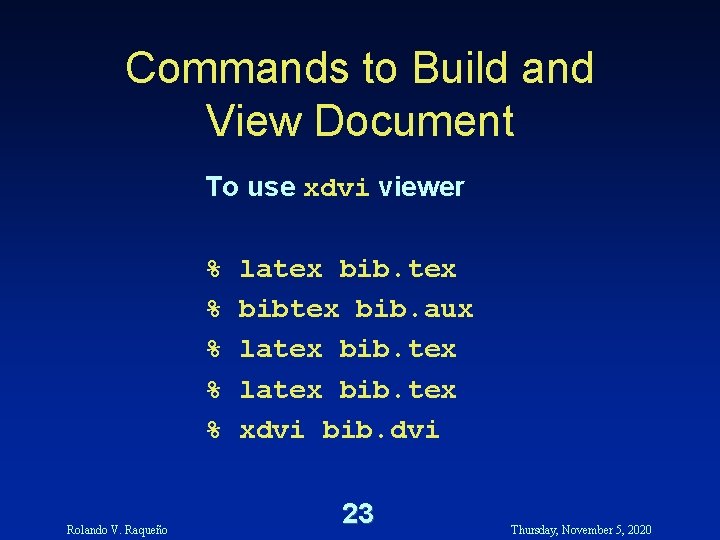

Commands to Build and View Document To use xdvi viewer % % % Rolando V. Raqueño latex bib. aux latex bib. tex xdvi bib. dvi 23 Thursday, November 5, 2020

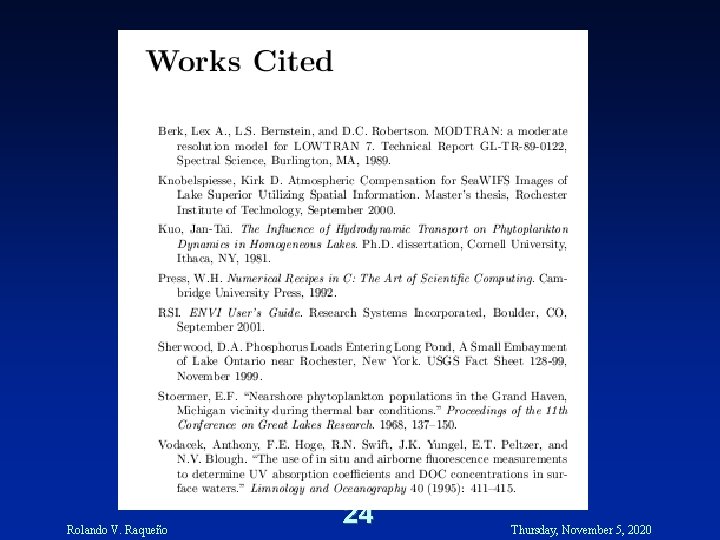

Rolando V. Raqueño 24 Thursday, November 5, 2020

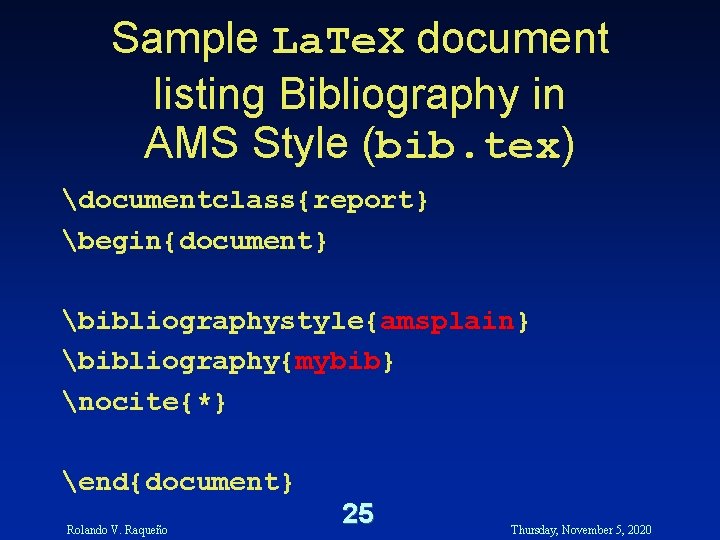

Sample La. Te. X document listing Bibliography in AMS Style (bib. tex) documentclass{report} begin{document} bibliographystyle{amsplain} bibliography{mybib} nocite{*} end{document} Rolando V. Raqueño 25 Thursday, November 5, 2020

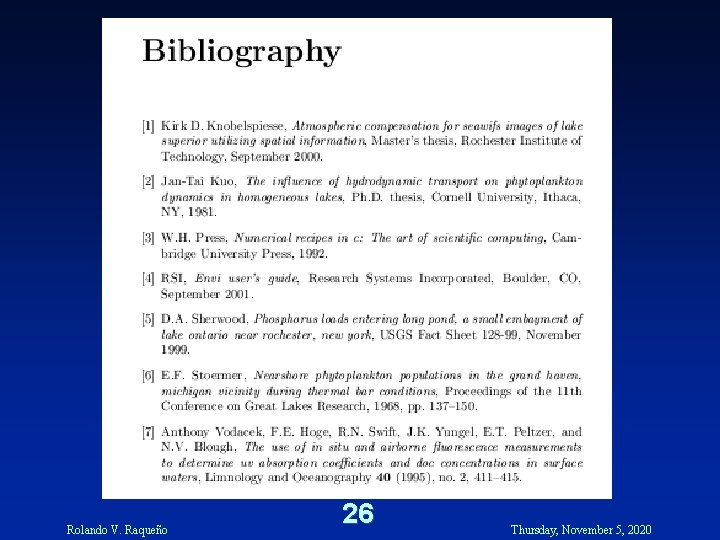

Rolando V. Raqueño 26 Thursday, November 5, 2020

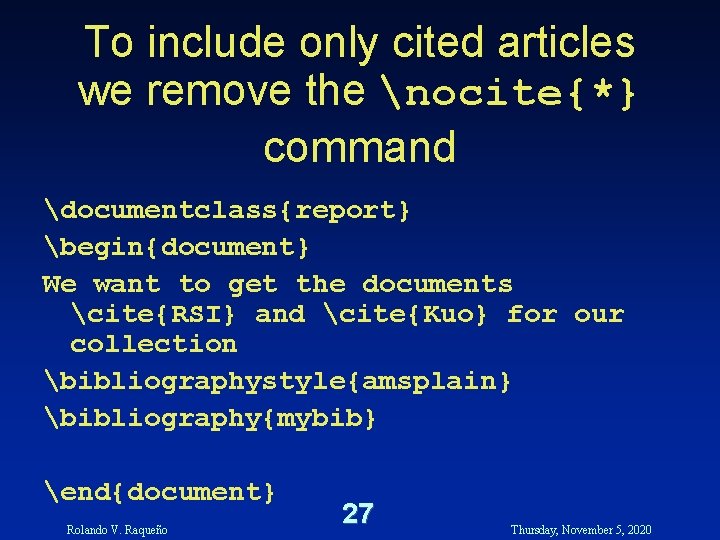

To include only cited articles we remove the nocite{*} command documentclass{report} begin{document} We want to get the documents cite{RSI} and cite{Kuo} for our collection bibliographystyle{amsplain} bibliography{mybib} end{document} Rolando V. Raqueño 27 Thursday, November 5, 2020

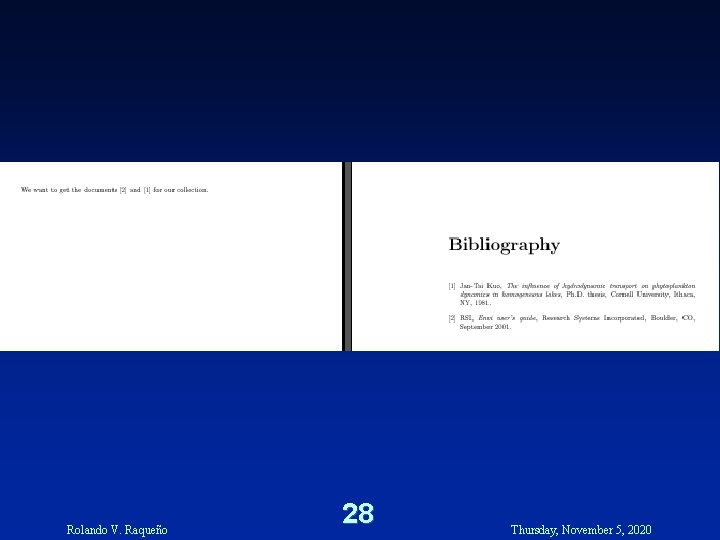

Rolando V. Raqueño 28 Thursday, November 5, 2020

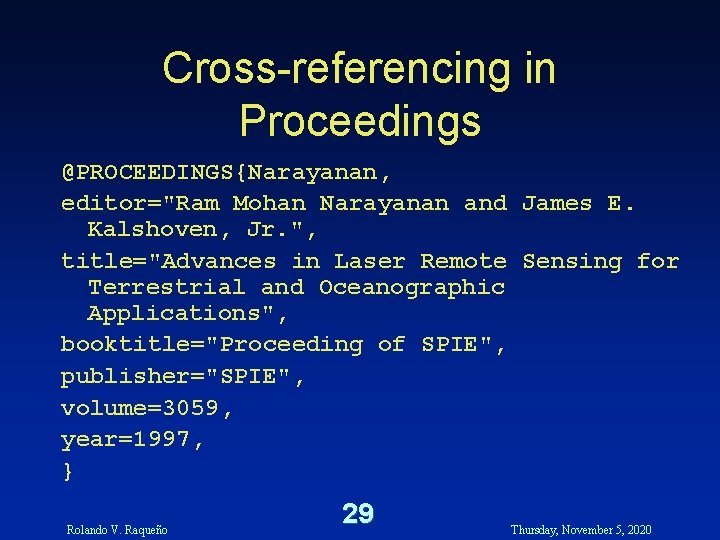

Cross-referencing in Proceedings @PROCEEDINGS{Narayanan, editor="Ram Mohan Narayanan and James E. Kalshoven, Jr. ", title="Advances in Laser Remote Sensing for Terrestrial and Oceanographic Applications", booktitle="Proceeding of SPIE", publisher="SPIE", volume=3059, year=1997, } Rolando V. Raqueño 29 Thursday, November 5, 2020

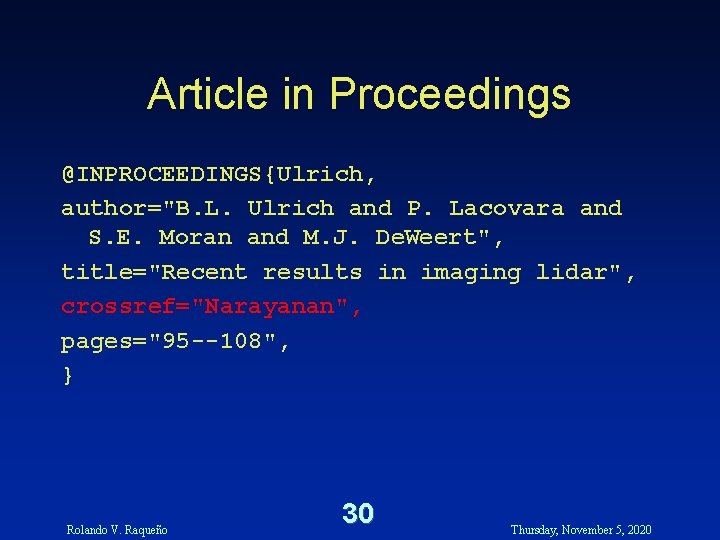

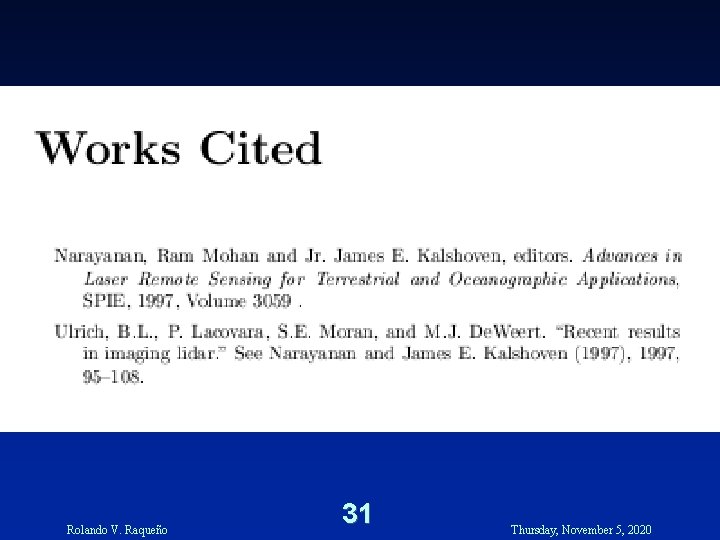

Article in Proceedings @INPROCEEDINGS{Ulrich, author="B. L. Ulrich and P. Lacovara and S. E. Moran and M. J. De. Weert", title="Recent results in imaging lidar", crossref="Narayanan", pages="95 --108", } Rolando V. Raqueño 30 Thursday, November 5, 2020
Rolando V. Raqueño 31 Thursday, November 5, 2020

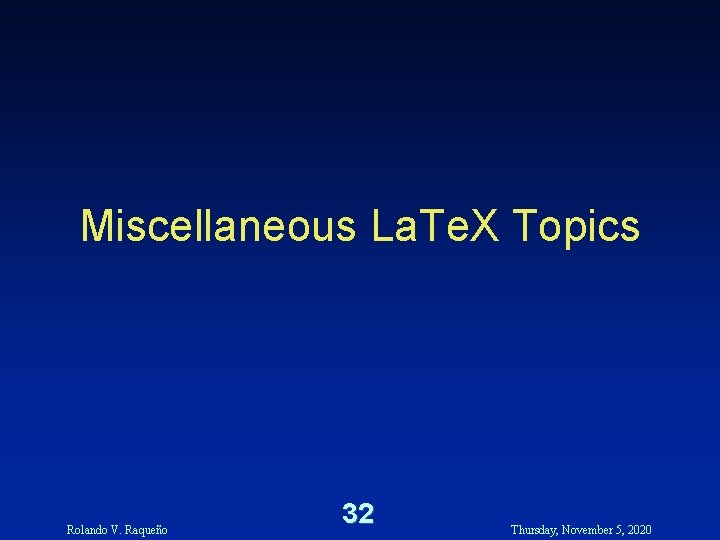

Miscellaneous La. Te. X Topics Rolando V. Raqueño 32 Thursday, November 5, 2020

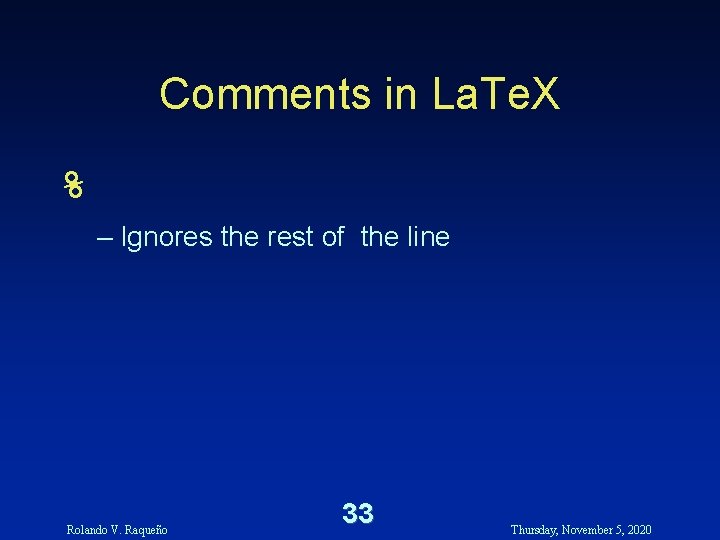

Comments in La. Te. X % – Ignores the rest of the line Rolando V. Raqueño 33 Thursday, November 5, 2020

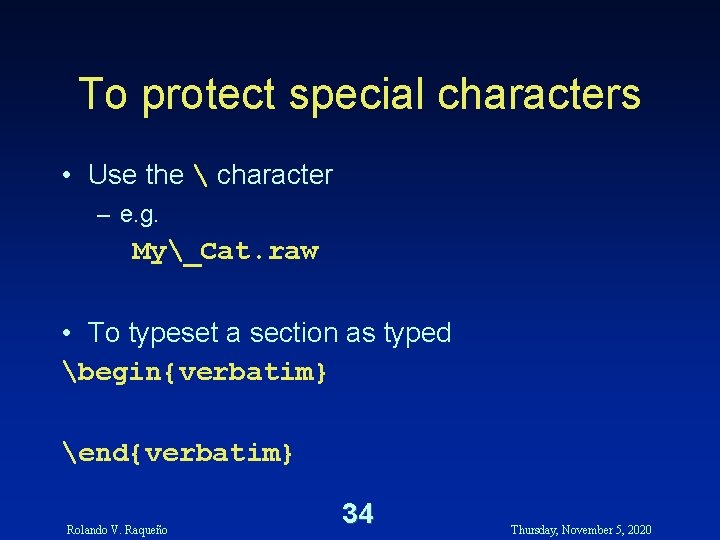

To protect special characters • Use the character – e. g. My_Cat. raw • To typeset a section as typed begin{verbatim} end{verbatim} Rolando V. Raqueño 34 Thursday, November 5, 2020

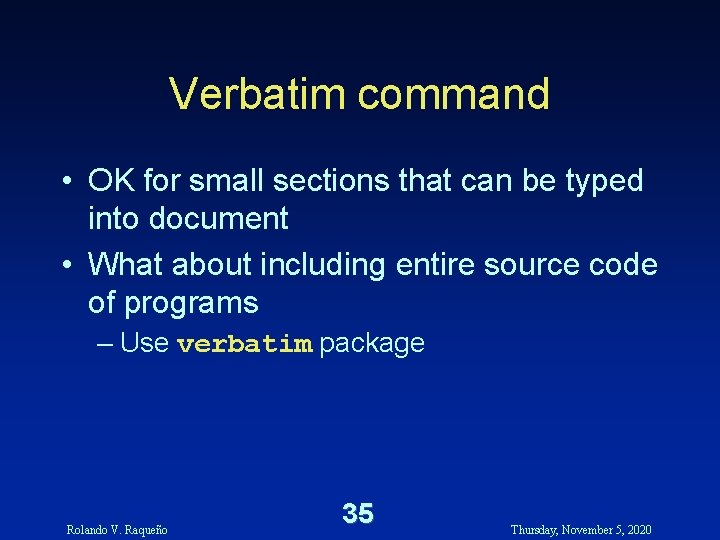

Verbatim command • OK for small sections that can be typed into document • What about including entire source code of programs – Use verbatim package Rolando V. Raqueño 35 Thursday, November 5, 2020

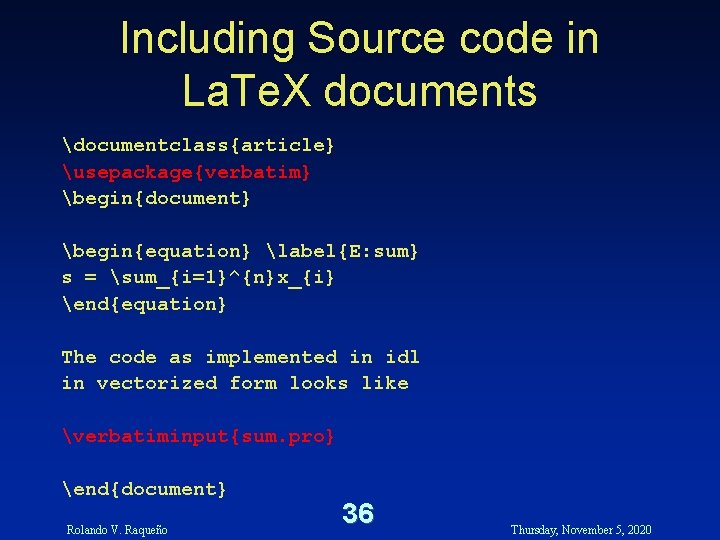

Including Source code in La. Te. X documents documentclass{article} usepackage{verbatim} begin{document} begin{equation} label{E: sum} s = sum_{i=1}^{n}x_{i} end{equation} The code as implemented in idl in vectorized form looks like verbatiminput{sum. pro} end{document} Rolando V. Raqueño 36 Thursday, November 5, 2020

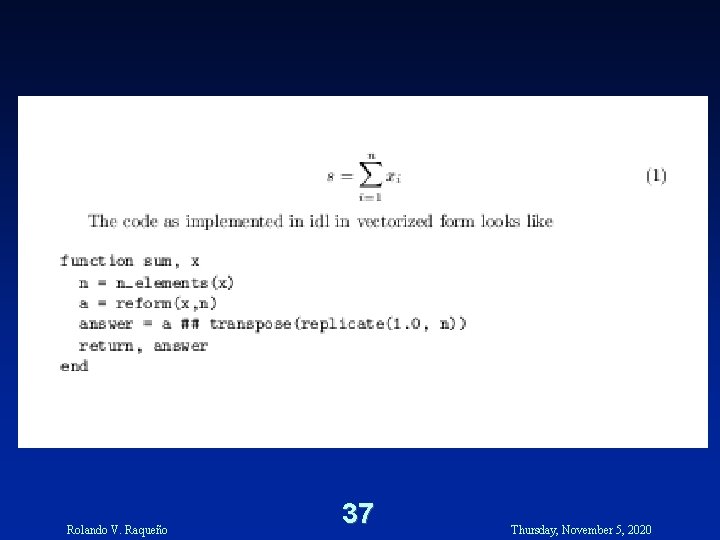

Rolando V. Raqueño 37 Thursday, November 5, 2020

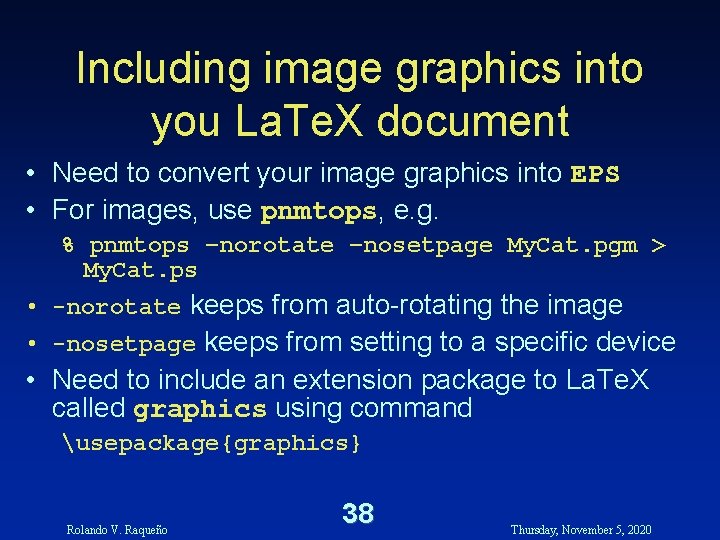

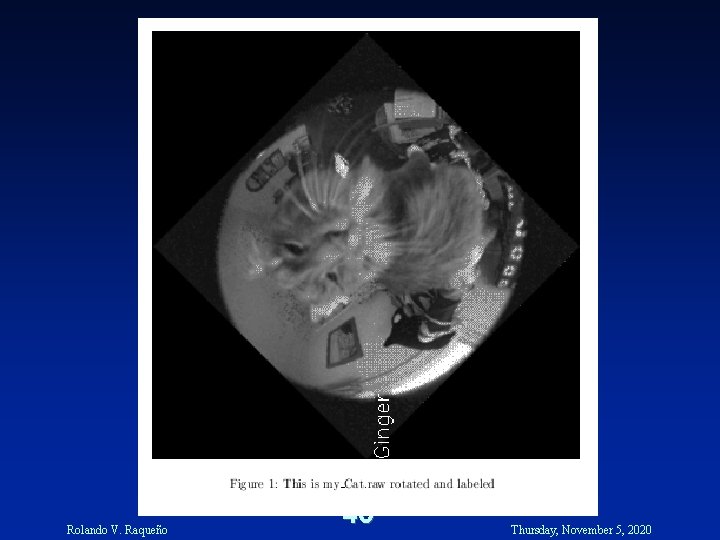

Including image graphics into you La. Te. X document • Need to convert your image graphics into EPS • For images, use pnmtops, e. g. % pnmtops –norotate –nosetpage My. Cat. pgm > My. Cat. ps • -norotate keeps from auto-rotating the image • -nosetpage keeps from setting to a specific device • Need to include an extension package to La. Te. X called graphics using command usepackage{graphics} Rolando V. Raqueño 38 Thursday, November 5, 2020

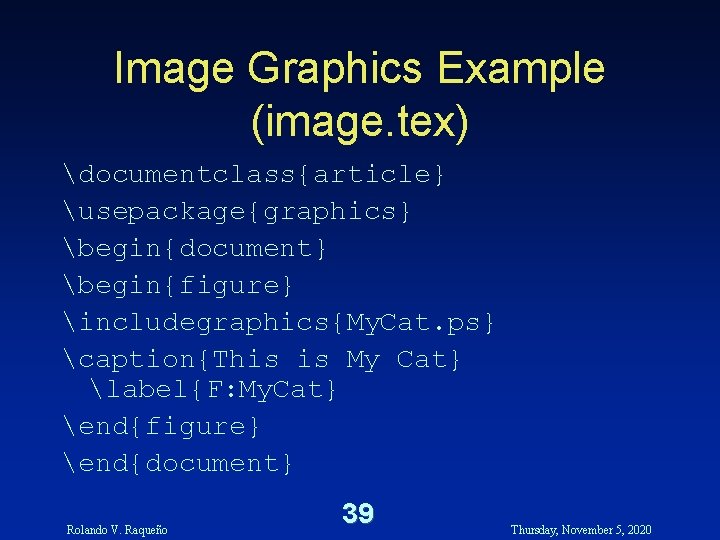

Image Graphics Example (image. tex) documentclass{article} usepackage{graphics} begin{document} begin{figure} includegraphics{My. Cat. ps} caption{This is My Cat} label{F: My. Cat} end{figure} end{document} Rolando V. Raqueño 39 Thursday, November 5, 2020
Rolando V. Raqueño 40 Thursday, November 5, 2020

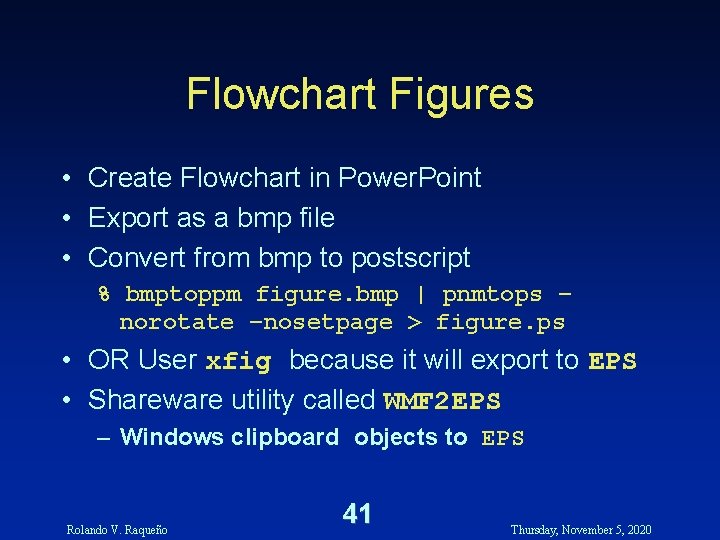

Flowchart Figures • Create Flowchart in Power. Point • Export as a bmp file • Convert from bmp to postscript % bmptoppm figure. bmp | pnmtops – norotate –nosetpage > figure. ps • OR User xfig because it will export to EPS • Shareware utility called WMF 2 EPS – Windows clipboard objects to EPS Rolando V. Raqueño 41 Thursday, November 5, 2020

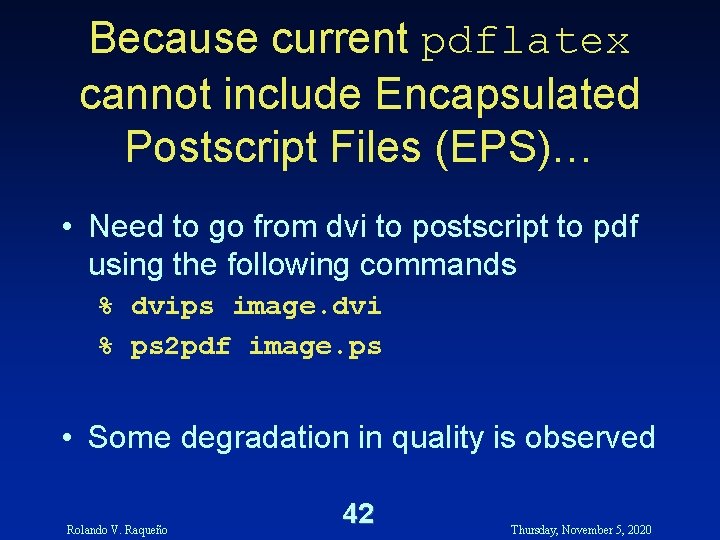

Because current pdflatex cannot include Encapsulated Postscript Files (EPS)… • Need to go from dvi to postscript to pdf using the following commands % dvips image. dvi % ps 2 pdf image. ps • Some degradation in quality is observed Rolando V. Raqueño 42 Thursday, November 5, 2020
