On Recent Developments in N8 Supergravity Renata Kallosh

On Recent Developments in N=8 Supergravity Renata Kallosh Stanford university EU RTN Varna, September 15, 2008

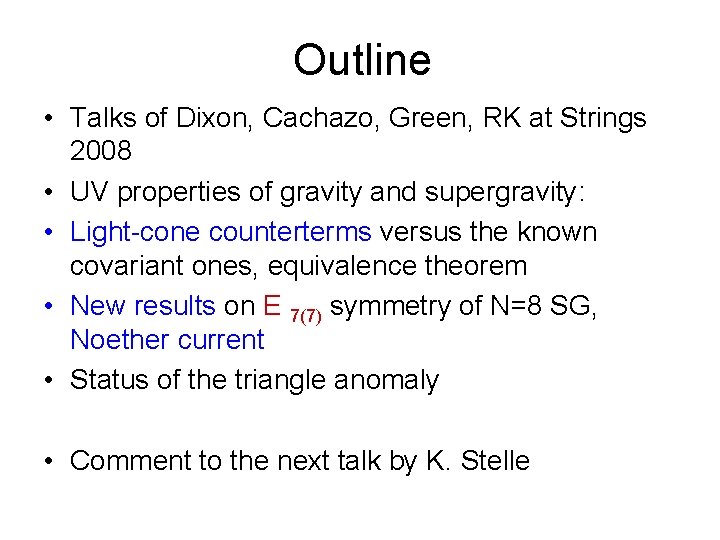

Outline • Talks of Dixon, Cachazo, Green, RK at Strings 2008 • UV properties of gravity and supergravity: • Light-cone counterterms versus the known covariant ones, equivalence theorem • New results on E 7(7) symmetry of N=8 SG, Noether current • Status of the triangle anomaly • Comment to the next talk by K. Stelle

A possibility of UV finite N=8 SG RK, ar. Xiv: 0808. 2310 • Recent work • RK The Effective Action of N=8 SG, ar. Xiv: 0711. 2108 • RK, Soroush, Explicit Action of E 7, 7 on N=8 SG Fields, ar. Xiv: 0802. 4106 • RK, T. Kugo, A footprint of E 7, 7 symmetry in tree diagrams of N=8 SG, work in progress • RK +… Counterterms in helicity formalism, work in progress • Most relevant work • Bern, Carrasco, Dixon, Johansson, Kosower, Roiban, Three-Loop Superfiniteness of N=8 SG, hep-th/0702112, 0808. 4112 • Bianchi, Elvang, Freedman, Generating Tree Amplitudes in N=4 SYM and N = 8 SG • Drummond, Henn, Korchemsky and Sokatchev, Dual superconformal symmetry of scattering amplitudes in N=4 SYM, ar. Xiv: 0807. 1095

In N=8 SG

(h), (i) graphs have 3 and 4 -particle cuts!

Counterterms in gravity On-shell counterterms in gravity should be generally covariant, composed from contractions of Riemann tensor . Terms containing Ricci tensor and scalar removable by nonlinear field redefinition in Einstein action Since has mass dimension 2, and the loop-counting parameter GN = 1/MPl 2 has mass dimension -2, every additional requires another loop, by dimensional analysis One-loop However, is Gauss-Bonnet term, total derivative in four dimensions. So pure gravity is UV finite at one loop (but not with matter) ‘t Hooft, Veltman (1974)

Pure gravity diverges at two loops Relevant counterterm, RK 1974, van Nieuwenhuizen, Wu, 1977 is nontrivial. By explicit Feynman diagram calculation it appears with a nonzero coefficient at two loops Goroff, Sagnotti (1986); van de Ven (1992)

Pure supergravity (N ≥ 1): Divergences deferred to at least three loops cannot be supersymmetrized – it produces a helicity amplitude (-+++) forbidden by supersymmetry Grisaru (1977); Tomboulis (1977) However, at three loops, there is a perfectly acceptable counterterm, for N=1 supergravity: The square of the Bel-Robinson tensor, abbreviated , plus (many) other terms containing other fields in the N=8 multiplet. Deser, Kay, Stelle (1977) RK (1981); Howe, Stelle, Townsend (1981) : N=8 only linearized form 2007 N=8 SG is finite at the 3 -loop order A 3=0 Bern, Carrasco, Dixon, Johansson, Kosower, Roiban

Maximal supergravity De. Wit, Freedman (1977); Cremmer, Julia, Scherk (1978); Cremmer, Julia (1978, 1979) • Most supersymmetry allowed, for maximum particle spin of 2 • Theory has 28 = 256 massless states. • Multiplicity of states, vs. helicity, from coefficients in binomial expansion of (x+y)8 – 8 th row of Pascal’s triangle SUSY charges Qa, a=1, 2, …, 8 shift helicity by 1/2 • Ungauged theory, in flat spacetime

Basic Strategy N=4 Super-Yang-Mills Tree Amplitudes KLT Bern, Dixon, Dunbar, Perelstein and Rozowsky (1998) N =8 Unitarity Supergravity Loop Amplitudes Tree Amplitudes Divergences • Kawai-Lewellen-Tye relations: sum of products of gauge theory tree amplitudes gives gravity tree amplitudes. • Unitarity method: efficient formalism for perturbatively quantizing gauge and gravity theories. Loop amplitudes from tree amplitudes. Key features of this approach: • Gravity calculations mapped into much simpler gauge theory calculations. • Only on-shell states appear.

Kawai-Lewellen-Tye relations KLT, 1986 Derive from relation between open & closed string amplitudes. Low-energy limit gives N=8 supergravity amplitudes as quadratic combinations of N=4 SYM amplitudes , consistent with product structure of Fock space,

Bern, Dixon, Dunbar and Kosower Unitarity Method Two-particle cut: Three- particle cut: Generalized unitarity: Apply decomposition of cut amplitudes in terms of product of tree amplitudes.

UV divergent diagrams in unitarity cut method Integral in D dimensions scales as Critical dimension Dc for log divergence (if no cancellations) obeys N=8 BDDPR (1998) N=4 SYM

Current Summary of Dixon et al • Old power-counting formula from iterated 2 -particle cuts predicted N=8 • At 3 loops, new terms found from 3 - and 4 -particle cuts reduce the overall degree of divergence, so that, not only is N=8 finite at 3 loops, but Dc = 6 at L=3, same as for N=4 SYM! • Will the same happen at higher loops, so that the formula N=4 SYM continues to be obeyed by N=8 supergravity as well? • If so, N=8 supergravity would represent a perturbatively finite, pointlike theory of quantum gravity • Not of direct phenomenological relevance, but could it point the way to other, more relevant, finite theories?

3 -loop manifestly supersymmetric linearized counterterm ( known since 1981) RK; Howe, Stelle, Townsend SUPERACTION (Integral over a submafifold of the full superspace) • 2007 N=8 SG is finite at the 3 -loop order A 3=0 Bern, Carrasco, Dixon, Johansson, Kosower, Roiban

L-loop counterterms • Howe, Lindstrom, RK, 1981 : Starting from 8 -loop order infinite # of non-linear counterterms is available: • 8 -loop example with manifest E 7, 7 symmetry • Analogous candidates for the L-loop divergences, integrals over the full superspace • What could be the reason for AL=0 to provide all-loop order UV finite N=8 SG?

A possible explanation of the 3 -loop computation with UV finite answer • A miracle! • Howe, Stelle, 2002: if a harmonic superspace of the type of Galperin, Ivanov, Kalitsyn, Ogievetsky, Sokatchev exists for N=8 SG with manifest >16 supersymmetries, the onset of divergences will start at L=5 • Our new explanation: if valid for the 3–loop order, is also valid for all-loop orders. • Main idea: to compare the candidate counterterms in 4+32 covariant onshell superspace with those in 4+16 light-cone superspace. • Transform both results for the S-matrix into helicity formalism, easy to compare • We have found a mismatch between the covariant and light-cone UV divergent answers for the S-matrix. If gauge anomalies are absent, we may apply the S-matrix equivalence theorem for different gauges. All -loop finiteness of N=8 SG follows.

Light-cone superspace Brink, Lindgren, Nilsson, 1983 Brink, Kim, Ramond, 2007 • Light-cone chiral superfield for the CPT invariant N=8 supermultiplet Only helicity states! Most suitable for helicity formalism amplitudes! Nobody ever constructed the light-cone superfield counterterms.

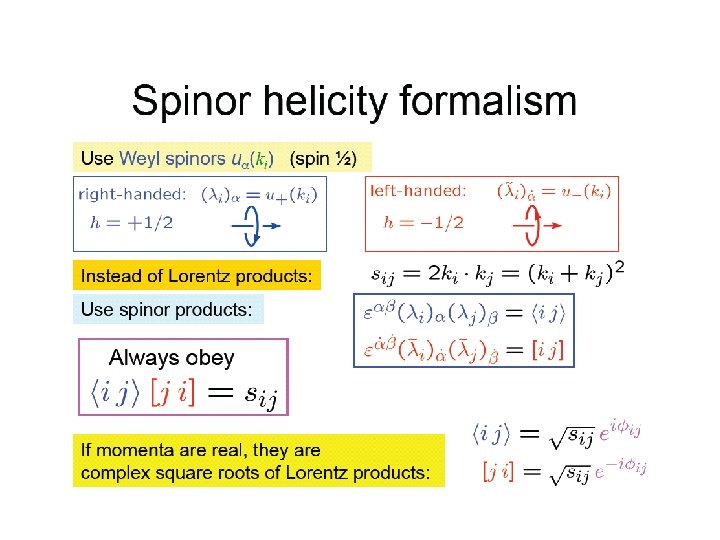

N=8 SG divergences in helicity formalism • 4 -graviton • Covariant superfields / helicity formalism

We were not able to match a complete answer for the 4 -scalar UV divergent amplitude in the light-cone gauge together with the superfield partners, including a complete SU(8) structure and a 4 -graviton amplitude deduced from the covariant superfield counterterms. • If the equivalence theorem for the S-matrix in lightcone versus covariant gauges is valid (if there are no anomalies in the BRST symmetry of N=8 SG) we consider this as a possible explanation of the recent 3 -loop computation as well as a prediction for the all -loop finitness of the perturbative theory.

Important note: the number of scalars before gauge-fixing a local SU(8) is 133, the number of independent parameters in the group element of E 7(7) After gauge-fixing SU(8) the number of physical scalars is 70!

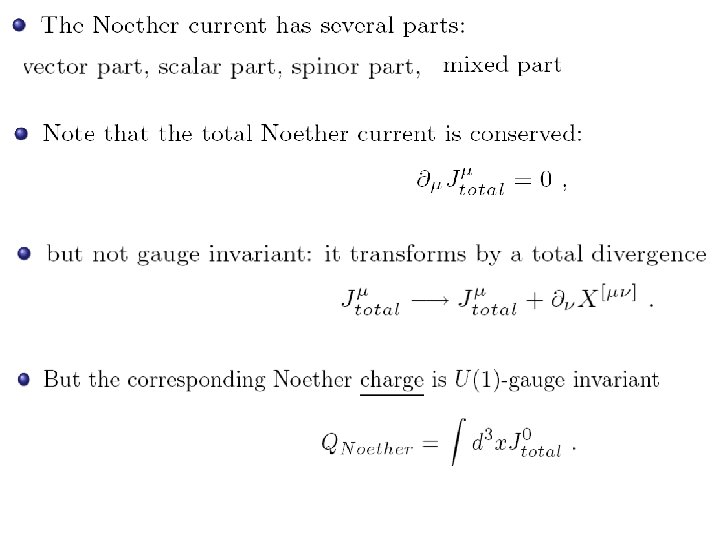

A hope that a better understanding of symmetries may help to understand the situation with higher loops. • N=8 local supergravity has a gauge SU(8) chiral symmetry and a global E 7, 7 (R) symmetry • This is a continuos symmetry in perturbative supergravity (as different from string theory where it is discrete) conserved Noether current! • It was poorly understood until recently (not acidentally called “hidden”) We have constructed the conserved Noether current Based on R. K. and M. Soroush,

We have found an explicit, closed form exact in all orders in k E 7, 7 transformations of all fields in theory.

of the work with M. Soroush

What is known about N=8 anomalies? SU(8) is chiral, anomalies possible Gauge theory anomalies make QFT inconsistent! 1984 Computed the contribution to SU(8) anomaly from fermions: 8 gravitini and 56 gaugini, found a non-vanishing answer Later in 1985 N. Marcus computed the contribution from vectors to triangle anomaly: Found an exact cancellation! During Strings 2008 many discussions. The main point is: can we trust this computation? Preliminary conclusion, most likely the claim about the cancellation of SU(8) anomaly is correct.

• In 4 d the consistent anomaly is associated with the 6 -form (10)

T SU(8) subgroup X Orthogonal to SU(8)

Implications of the one-loop SU(8) anomaly cancellation • E 7(7) is not anomalous due to consistency condition for anomalies • Supersymmetry is not anomalous since the algebra of two local supersymmetries has a local SU(8) symmetry • Maybe all this will help to understand the status of UV divergences in N=8 supergravity.

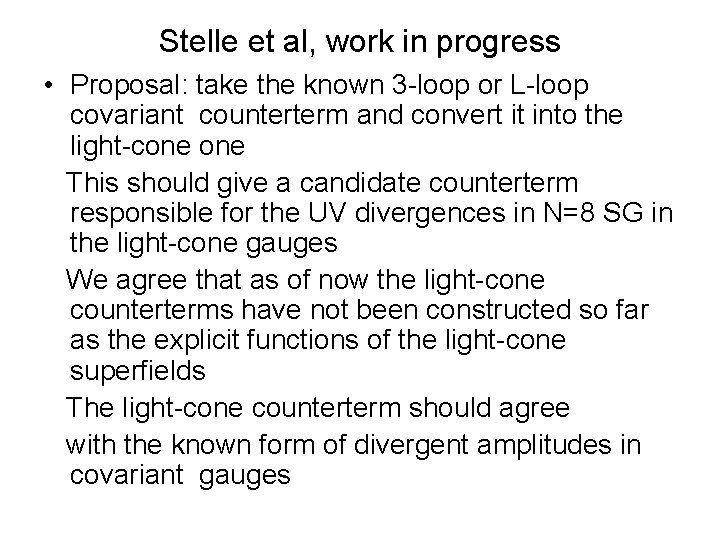

Stelle et al, work in progress • Proposal: take the known 3 -loop or L-loop covariant counterterm and convert it into the light-cone This should give a candidate counterterm responsible for the UV divergences in N=8 SG in the light-cone gauges We agree that as of now the light-cone counterterms have not been constructed so far as the explicit functions of the light-cone superfields The light-cone counterterm should agree with the known form of divergent amplitudes in covariant gauges

4 -graviton divergent amplitude 4 -vector divergent amplitude

2 -vectors, 2 -scalars divergent amplitude

4 -scalar divergent amplitude

If the light-cone superfield counterterms (to be constructed) will reproduce the known covariant answer for the divergent amplitudes, we will have to use other tools to study UV divergences in N=8 SG All p+ and 1/p+ should disappear and all helicity brackets should appear! • If they will not agree with expected structures, this will prove • A 3=0 and eventually AL=0 and N=8 SG finiteness

Back up slides

Compare spectra 28 = 256 massless states, ~ expansion of (x+y)8 SUSY 24 = 16 states ~ expansion of (x+y)4

Light-cone superspace Brink, Lindgren, Nilsson, 1983 Brink, Kim, Ramond, 2007 • Light-cone chiral superfield for the CPT invariant N=8 supermultiplet New results: Simplest example of the Lorentz covariant 4 -scalar UV divergent amplitude • Incomplete SU(8) structure, the second SU(8) structure is not covariant

N = 8 Supergravity from N = 4 Super-Yang-Mills KLT only valid at tree level. To answer questions of divergences in quantum gravity we need loops. Unitarity method provides a machinery for turning tree amplitudes into loop amplitudes. Apply KLT to unitarity cuts: Unitarity cuts in gravity theories can be reexpressed as sums of products of unitarity cuts in gauge theory. Allows advances in gauge theory to be carried over to gravity.

N=8 supergravity in four dimensions during the last 25 years was believed to be UV divergent. During the last few years studies of multi-particle amplitudes in QCD were simplified using N=4 super Yang-Mills theory. This, in turn, led to significant progress in computation of amplitudes in N=8 supergravity. Some spectacular cancellations of UV divergences were discovered. Is N=8 supergravity UV finite? If the answer is "yes" what would this mean for Quantum Gravity?

UV finite or not? • Quantum gravity is nonrenormalizable by power counting, because the coupling, Newton’s constant, GN = 1/MPl 2 is dimensionful • String theory cures the divergences of quantum gravity by introducing a new length scale, the string tension, at which particles are no longer pointlike. • Is this necessary? Or could enough symmetry, e. g. supersymmetry, allow a point particle theory of quantum gravity to be perturbatively ultraviolet finite? • If the latter is true, even if in a “toy model”, it would have a big impact on how we think about quantum gravity. If N=8 massless QFT will be found UV finite one would compare it with early days of massless Yang-Mills theory before one knew how to add a Higgs mechanism and to describe the realistic particle physics.
