Surface developments Example of a surface development net

Surface developments Example of a surface development (net) Flaps push against the top to give a better grip, as the tongue presses harder against front of box. The dashed lines are fold lines. Small ‘cut-ins’ allow the top flap to fold over easily. Tongue to hold the lid down. One glue tab only: this reduces cost and speeds up assembly. The width of the glue tab should only be a few mm less than the side.

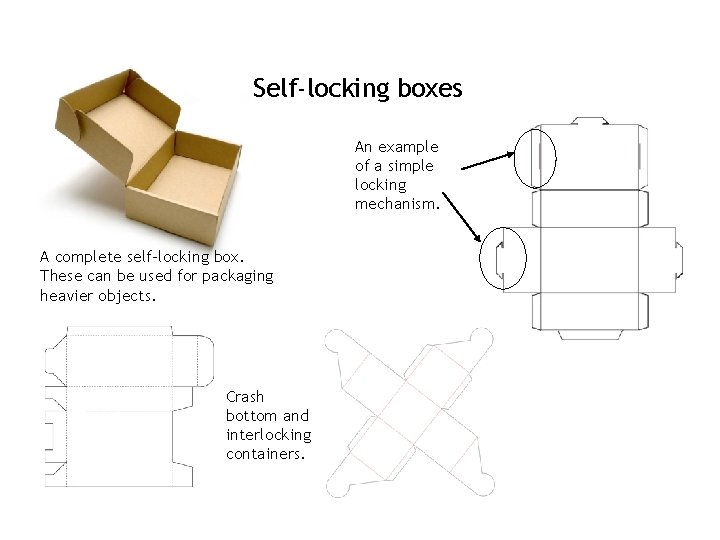

Self-locking boxes An example of a simple locking mechanism. A complete self-locking box. These can be used for packaging heavier objects. Crash bottom and interlocking containers.

TESSALATION AND DIE CUTTING Industry aims to reduce waste and keep costs low. Most high-speed production lines cut out the nets using a process called ‘die cutting’. This is computer-aided manufacture (CAM). To do this, each net is positioned to fit as closely as possible to the next. There is just a small gap to allow for the width of the cutting blades. This process is called tessellation. Less wasted card reduces the environmental impact and keeps raw material costs to the bare minimum. Die cutting is similar to hightech pastry cutting. Blades are arranged to cut the outline and as they are pressed down, other, less sharp blades will either lightly score or compress the fibres on the fold lines. In this way, the outline is cut through completely and the folds are scored for easy assembly.
