Pellet Target developments A. Gerasimov, V. Chernetsky, M. Büscher, P. Fedorets, A. Kantsyrev, E. Lushchevskaia, V. Panyushkin, A. Bogdanov, A. Dolgolenko, P. Balanutsa, E. Ladygina, L. Gusev, S. Mineev, I. Tarasenko, V. Demekhin, S. Makagonov, D. Bogachenko, N. Kristi, V. Karasev Institute for Theoretical and Experimental Physics named by A. I. Alikhanov of National Research Centre «Kurchatov Institute» Moscow, Russia PANDA Meeting, Darmstadt, Novemver 05 -09, 2018
After transfer of the first prototype from FZJ to ITEP Activities: Transfer succeeded on the end of May. • Papers for coming equipment • Unpacking • Assembling subsystems • Testing subsystems
Subsystems for the second prototype hydrogen purifier system purifier • Assembled • Connected • Tested for leakages pump
Subsystems for the second prototype beam dump system • Assembled • Tested for leakages dump chamber pump

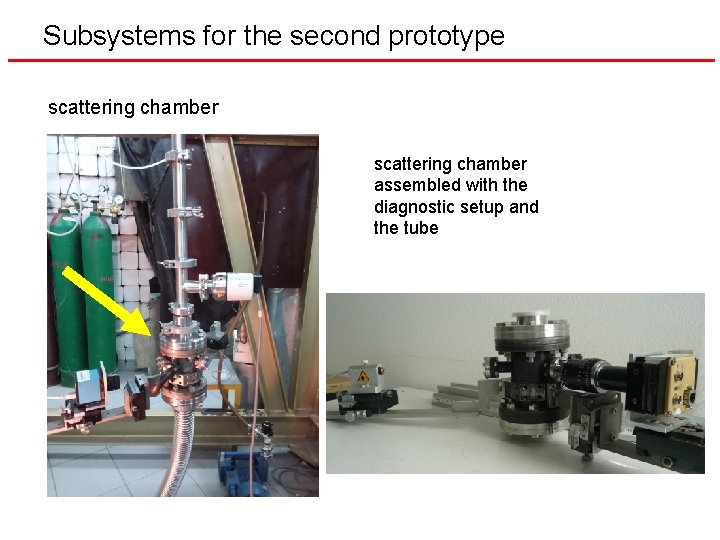

Subsystems for the second prototype scattering chamber assembled with the diagnostic setup and the tube
Adjustment system elements System of linear actuator + stepper motor operated via L-CARD E 14 -140 controller 4 modules for four axes: 1) 4 stepper motors - delivered 2) 4 linear actuators - produced 3) 4 mechanical support – produced 4) software on Delphi prog. – done and tested 5) Test with L-Card controller and Delphi prog. – done 6) Installation on the Pellet target – in progress USB L-CARD - controller
New light modules for diagnostics New backlight elements based on the LED Cree XP-E 1 W, Red with operational control - designed and produced - test on the Pellet target in progress
DAQ for pellet target – mix of present system with integration to EPICS of GSI/FAIR Data acquisition system Software will be modified for integration to EPICS system of GSI/FAIR. Use of Raspberry Pi controller as bridge for slow control system Data To pellet target Data From PANDA control system Ready for start Stop of pellets generation Pellet size and frequency Start of pellets generation Error in pellet target Set of luminosity mode (ten or more variations) Actual luminosity mode Present DAQ system – based on individual software-hardware modules (installed on PAC, PLC controllers and Windows PCs) united by TCP/IP Sockets protocole and using of My. SQL database for data storing Raspberry PI 3 Model B – as bridge to EPICS Experimental Physics and Industrial Control System at GSI (already using in PANDA and CBM experiments)
Current activities and last achievements 1. Transfer of the first prototype from FZJ to ITEP 2. Commissioning of the subsystems from the first prototype. 3. Development of the adjustment system 4. Update of the diagnostics system 5. Advanced data acquisition with PLC 6. Continue R&D for TDR 7. Preparation of the draft of the TDR
