ENABLING OBJECTIVES • DESCRIBE THE PURPOSE, FUNCTION, COMPONENT PARTS, OPERATING CHARACTERISTICS, SAFETY PRECAUTIONS & MAINTENANCE REQUIREMENTS FOR THE EEBD • DESCRIBE THE ALLOWANCE & STOWAGE REQUIREMENTS FOR EEBD’S ABOARD SHIP • DESCRIBE THE ALLOWANCE & STOWAGE REQUIREMENTS FOR SEEDS ABOARD SHIP LT 3. 12 2

ENABLING OBJECTIVES • DESCRIBE the purpose, function, component parts, operating characteristics, safety precautions & maintenance requirements for the Supplementary Emergency Egress Device (SEED) • DESCRIBE the purpose & requirements for use of Photoluminescent Paint aboard ship LT 3. 12 3

TEN COMMANDMENTS OF DAMAGE CONTROL ¶ KEEP YOUR SHIP WATERTIGHT · DO NOT VIOLATE MAT’L CONDITION ¸ HAVE CONFIDENCE IN YOUR SHIP’S ABILITY TO WITHSTAND SEVERE DAMAGE ¹KNOW YOUR WAY AROUND -- EVEN IN THE DARK! º KNOW HOW TO USE & MAINTAIN DAMAGE CONTROL EQUIPMENT » REPORT DAMAGE TO THE NEAREST DCRS ¼ KEEP PERSONAL ARTICLES PROPERLY SECURED LT 3. 12 4

TEN COMMANDMENTS OF DAMAGE CONTROL ½ PRACTICE PERSONAL DAMAGE CONTROL. PROTECT YOURSELF SO YOU CAN PROTECT YOUR SHIP! ¾ TAKE EVERY POSSIBLE STEP TO SAVE THE SHIP AS LONG AS A BIT OF HOPE REMAINS. ¿ KEEP COOL; DON’T GIVE UP THE SHIP! LT 3. 1 5

LT 3. 12 6

EMERGENCY EGRESS • Personnel must perform Emergency Egress within 96 hours after arriving onboard and every 6 months thereafter • Document on PQS Boards LT 3. 12 7

PHOTOLUMINESCENT PAINT • Primary purpose: – Provide rapid Emergency Egress information – Identify locations of selected DC systems & Equipment • Use paint or preformed signs • 3 -M Corporation sole provider for signs • Ref: NSTM 079 Vol 2 pgs 18 - 23 LT 3. 12 8

Emergency Escape Breathing Device (EEBD) LT 3. 12 9

EEBD Description Self-contained Breathing Device LT 3. 12 10

EEBD Description Self-contained Breathing Device Non-rechargeable, Non-repairable LT 3. 12 11

EEBD Description Self-contained Breathing Device Non-rechargeable, Non-repairable Provides 15 minutes of Oxygen LT 3. 12 12

EEBD Description Self-contained Breathing Device Non-rechargeable, Non-repairable Provides 15 minutes of Oxygen Provides flash and eye protection LT 3. 12 13

EEBD Description Self-contained Breathing Device Non-rechargeable, Non-repairable Provides 15 minutes of Oxygen Provides some flash and eye protection Weighs 5 pounds LT 3. 12 14

EEBD Description Self-contained Breathing Device Non-rechargeable, Non-repairable Provides 15 minutes of Oxygen Provides some flash and eye protection Weighs 5 pounds LT 3. 12 15

Components Hood Nomex Shell Clear Viewing Window Elastic Neck Seal Support Harness LT 3. 12 16

Components Nomex Shell Provides flash protection Similar material to shell of the FFE Includes no thermal barrier LT 3. 12 17

Components Clear Viewing Window Permits vision NOT flame resistant LT 3. 12 18

Components Elastic Neck Seal One size fits all No clothing or hair LT 3. 12 19

Components Support Harness Automatically adjusts to fit Supports life support pack LT 3. 12 20

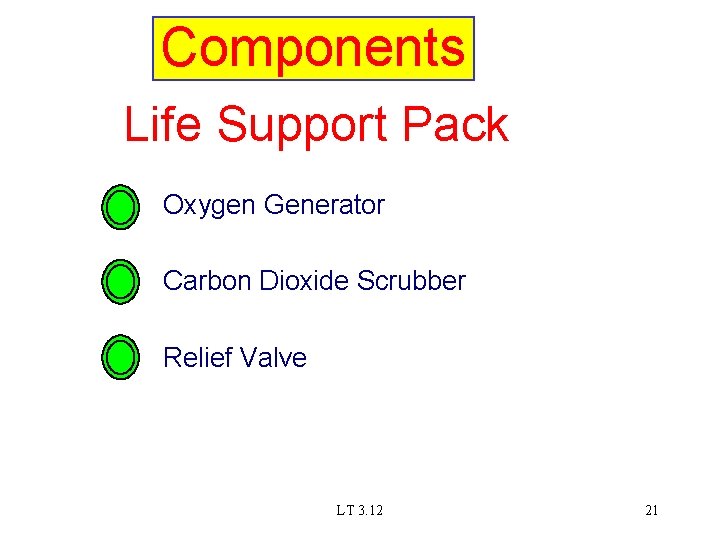

Components Life Support Pack Oxygen Generator Carbon Dioxide Scrubber Relief Valve LT 3. 12 21

Components Oxygen Generator Breakdown of Sodium Candle By-products are salt and heat Operates for 15 minutes LT 3. 12 22

Components Carbon Dioxide Scrubber Reacts with Lithium Hydroxide By-products: ? Operates until reactant is exhausted LT 3. 12 23

DONNING PROCEDURES • • • OPEN CASE & REMOVE DEVICE OPEN VACUUM BAG PULL OUT ACTIVATING RING LISTEN FOR “HISSING” SOUND GRASP HOOD WITH THUMBS IN ELASTIC NECK BAND STRETCH OPEN • PULL HOOD DOWN ON FOREHEAD LT 3. 12 24

SAFETY PRECAUTIONS • Stay away from flames • for a minimum 15 Minutes • (recommended) due to O 2 • Avoid neck seal leakage • Unit is hot to touch Use for egress only not firefighting When activated, ensure no flames are present LT 3. 12 25

AFLOAT SAFETY INFORMATION FOR MAY 1997 • Area of discrepancy: • “EEBD donning & operation knowledge is • Use, care, and low” maintenance of Personal Protective • “Photoluminescent paint Equipment markings were missing or worn” LT 3. 12 26

Allowances Ship's Complement 150% Embarked Personnel 100% LT 3. 12 27

Stowage Berthing Compartments 100% (One EEBD for each sleeping surface) LT 3. 12 28

Stowage Main Engineering Spaces 200% of maximum manning (Two EEBD's per each GQ watchstander) LT 3. 12 29

Shelf Life United States Navy 16 Years Manufacture date stamped on Humidity Indicator Card LT 3. 12 30

Required Modification to humidity card 10 - 84 60 or 10 - 84 60 LT 3. 12 31

Required Modification to humidity card 10 - 84 60 Marks must be visible through inspection window LT 3. 12 32

Required Modification to Vacuum Bag 4 1/2" 1" Stowage Bag Tear Strip TEAR NOTCH LT 3. 12 33

Supplemental Emergency Egress Device (SEED) LT 3. 12 34

SEED Overview NOT a replacement of the EEBD Used only in Engineering Spaces Provides 30 breaths of air (1 -3 MIN. ) LT 3. 12 35

SEED Overview SINGLE STAGE REGULATOR ALWAYS PRESSURIZED SEED OUTFITTING = TO NUMBER OF PERSONNEL IN PROPULSION DIVISION READ PRESSURE ON PRESSURE GAGE GREEN or RED STORED IN LOCKED CABINET LT 3. 12 36

IMPROVED SEED HOLSTER • Covered holsters • Includes protective flap – Protects regulator – Allows viewing of pressure indicator – Secured with hook & pile fastener – Allows more rapid removal LT 3. 12 37
