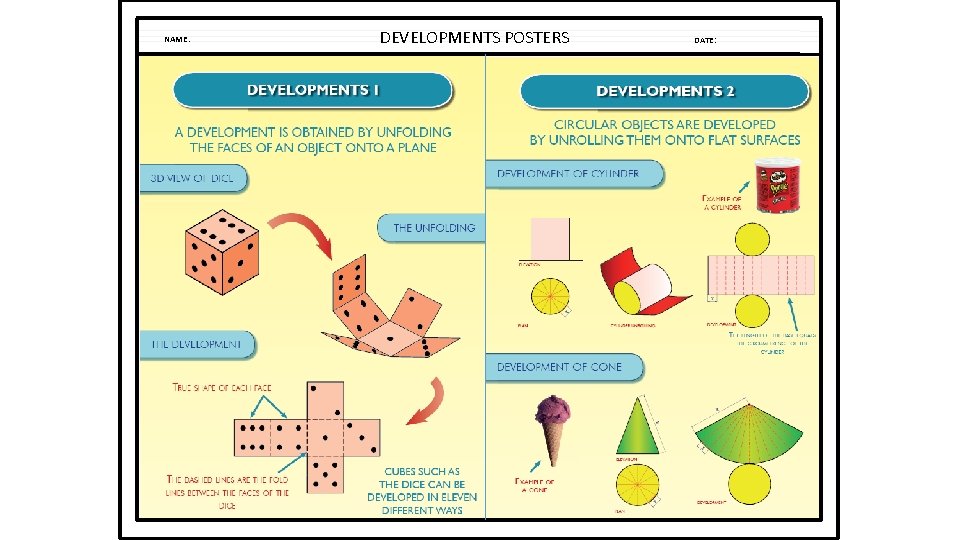

NAME: DEVELOPMENTS POSTERS DATE:

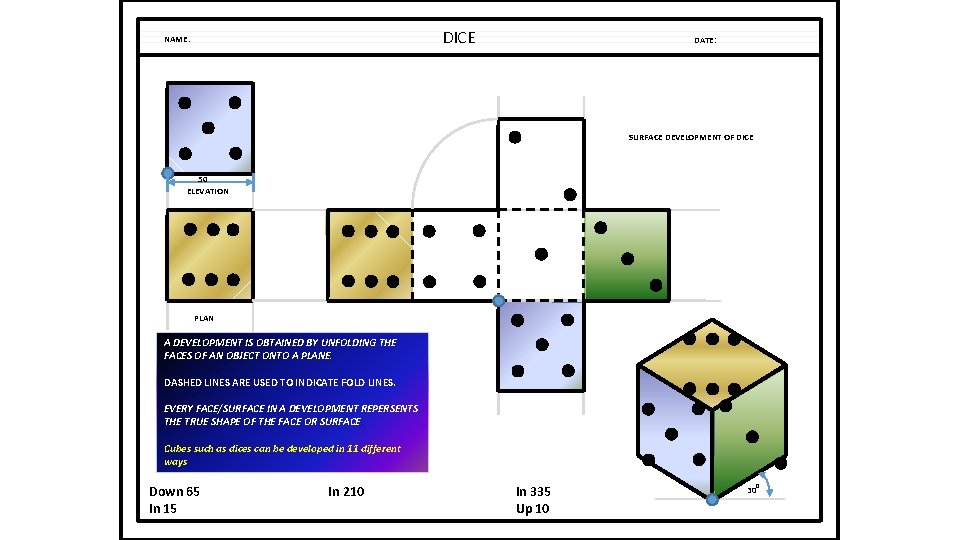

DICE NAME: DATE: SURFACE DEVELOPMENT OF DICE 50 ELEVATION PLAN A DEVELOPMENT IS OBTAINED BY UNFOLDING THE FACES OF AN OBJECT ONTO A PLANE. DASHED LINES ARE USED TO INDICATE FOLD LINES. EVERY FACE/SURFACE IN A DEVELOPMENT REPERSENTS THE TRUE SHAPE OF THE FACE OR SURFACE. Cubes such as dices can be developed in 11 different ways Down 65 In 15 In 210 In 335 Up 10 30°

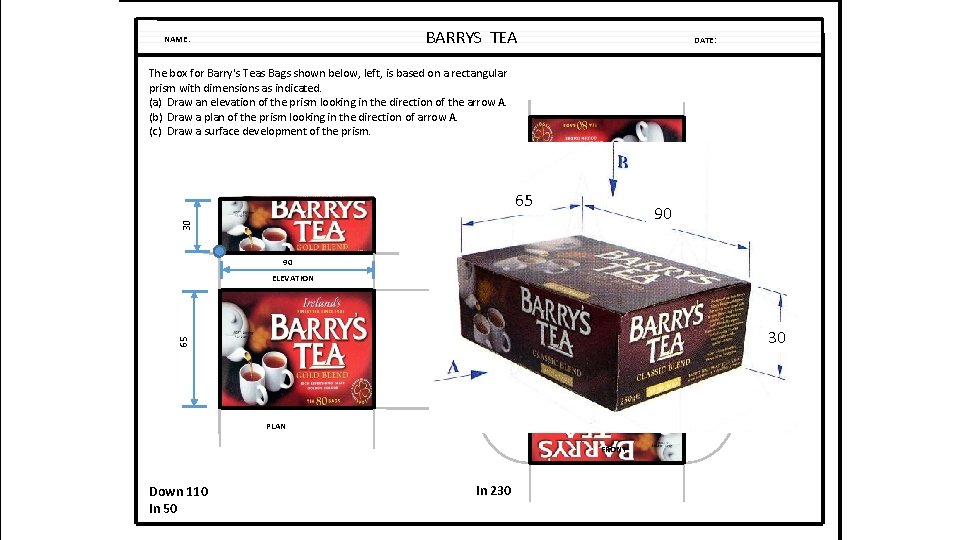

BARRYS TEA NAME: DATE: The box for Barry's Teas Bags shown below, left, is based on a rectangular prism with dimensions as indicated. (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan of the prism looking in the direction of arrow A. (c) Draw a surface development of the prism. LID 65 30 90 90 BACK 65 ELEVATION SIDE 30 BASE 90 PLAN FRONT Down 110 In 50 In 230 SIDE 30 30

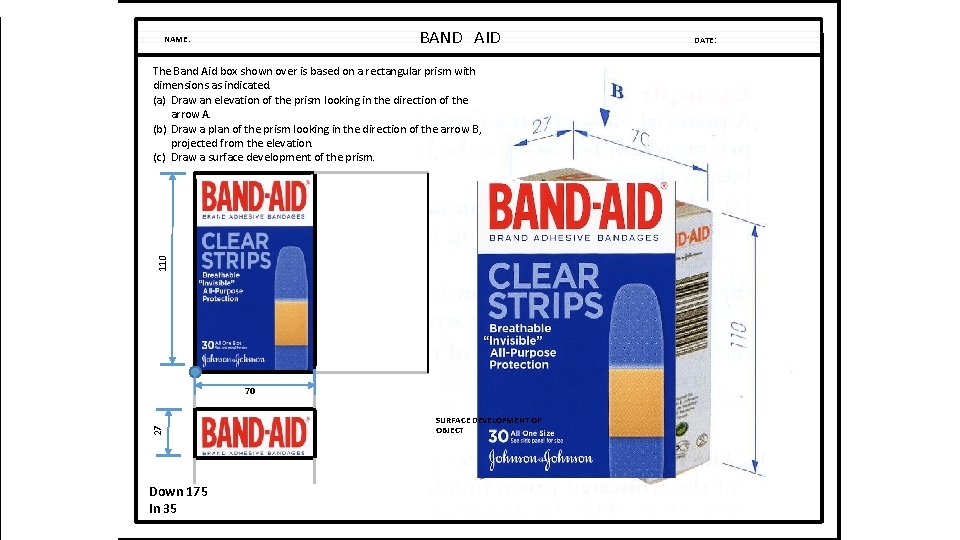

BAND AID DATE: 110 The Band Aid box shown over is based on a rectangular prism with dimensions as indicated. (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan of the prism looking in the direction of the arrow B, projected from the elevation. (c) Draw a surface development of the prism. TOP 70 27 70 Down 175 In 35 TOP SIDE BACK 70 BASE SURFACE DEVELOPMENT OF OBJECT In 270 SIDE 27 NAME:

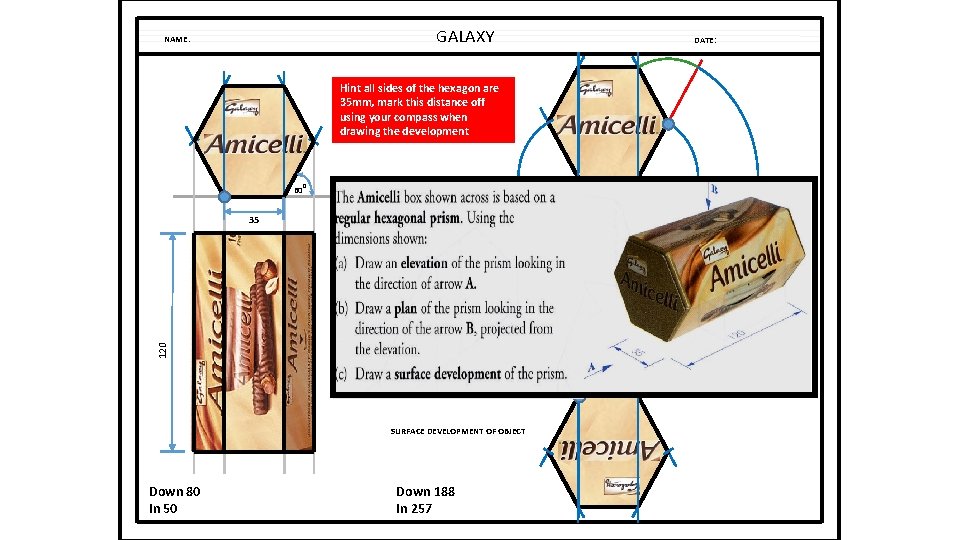

GALAXY NAME: Hint all sides of the hexagon are 35 mm, mark this distance off using your compass when drawing the development 60° 120 35 SURFACE DEVELOPMENT OF OBJECT Down 80 In 50 Down 188 In 257 DATE:

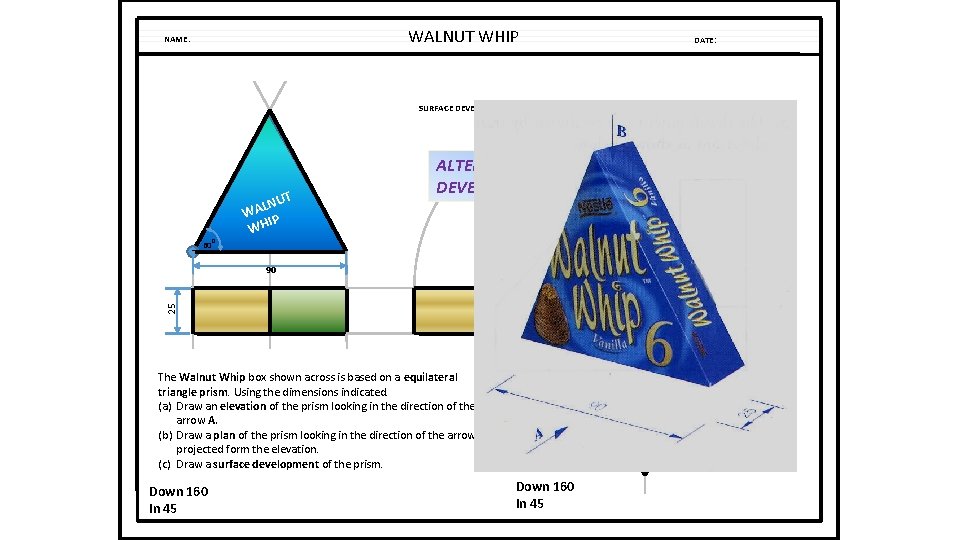

WALNUT WHIP NAME: DATE: SURFACE DEVELOPMENT OF OBJECT 60° T LNU A W P I WH ALTERNATIVE DEVELOPMENT NUT WAL WHIP 25 90 U WALN WHIP The Walnut Whip box shown across is based on a equilateral triangle prism. Using the dimensions indicated. (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan of the prism looking in the direction of the arrow B, projected form the elevation. (c) Draw a surface development of the prism. T Down 160 In 45

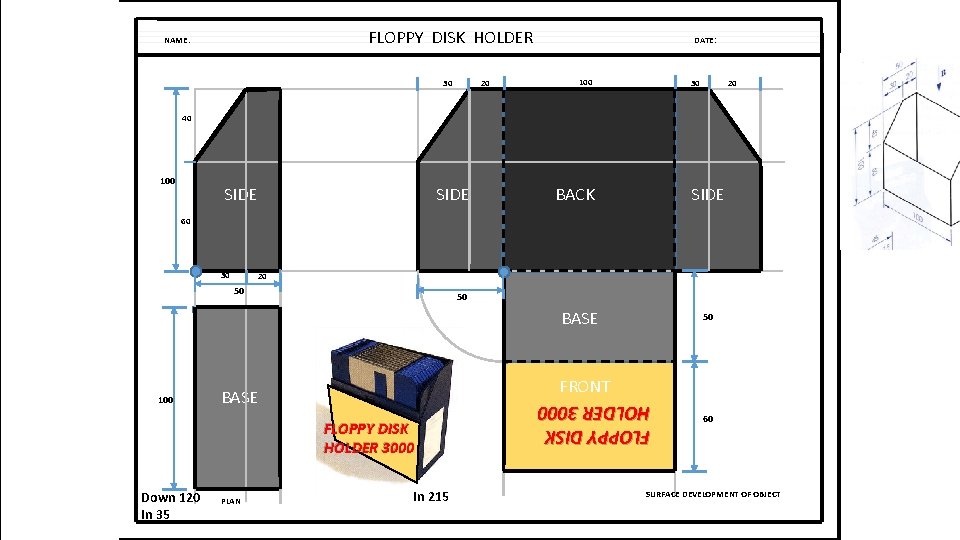

FLOPPY DISK HOLDER NAME: 30 20 DATE: 100 30 20 40 100 SIDE BACK 60 30 20 50 50 BASE FRONT BASE FLOPPY DISK HOLDER 3000 Down 120 In 35 PLAN In 215 FLOPPY DISK HOLDER 3000 100 50 60 SURFACE DEVELOPMENT OF OBJECT

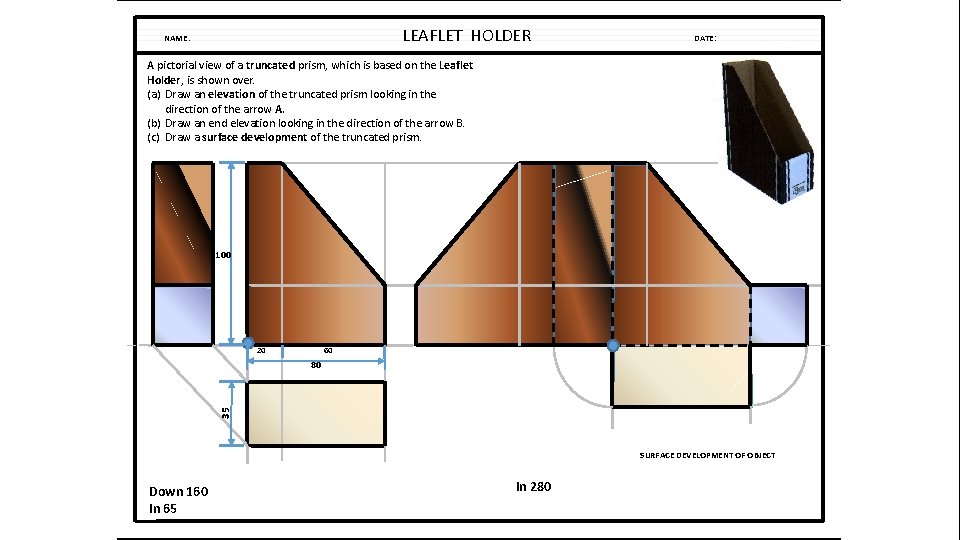

LEAFLET HOLDER NAME: DATE: A pictorial view of a truncated prism, which is based on the Leaflet Holder, is shown over. (a) Draw an elevation of the truncated prism looking in the direction of the arrow A. (b) Draw an end elevation looking in the direction of the arrow B. (c) Draw a surface development of the truncated prism. 100 20 60 35 80 SURFACE DEVELOPMENT OF OBJECT Down 160 In 65 In 280

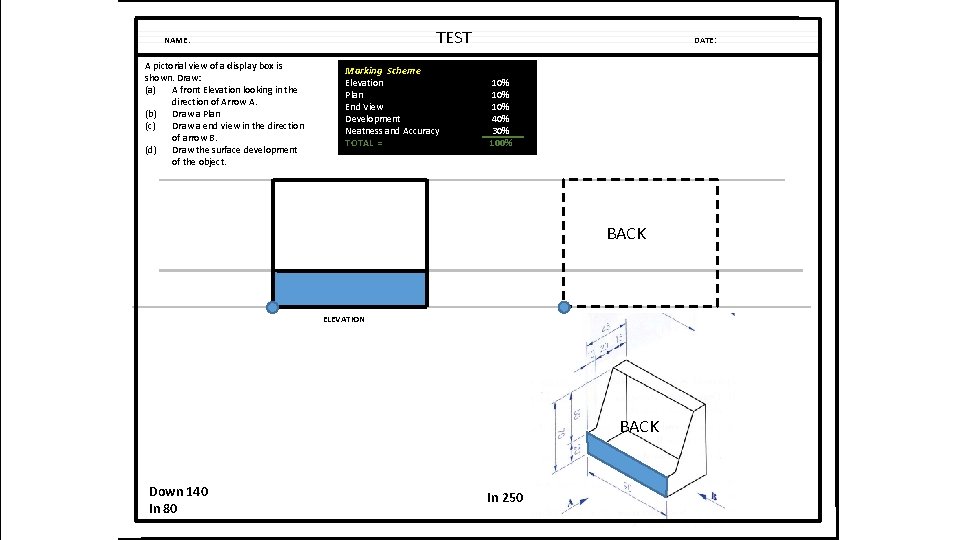

TEST NAME: A pictorial view of a display box is shown. Draw: (a) A front Elevation looking in the direction of Arrow A. (b) Draw a Plan (c) Draw a end view in the direction of arrow B. (d) Draw the surface development of the object. Marking Scheme Elevation Plan End View Development Neatness and Accuracy TOTAL = DATE: 10% 10% 40% 30% 100% BACK ELEVATION BACK Down 140 In 80 In 250

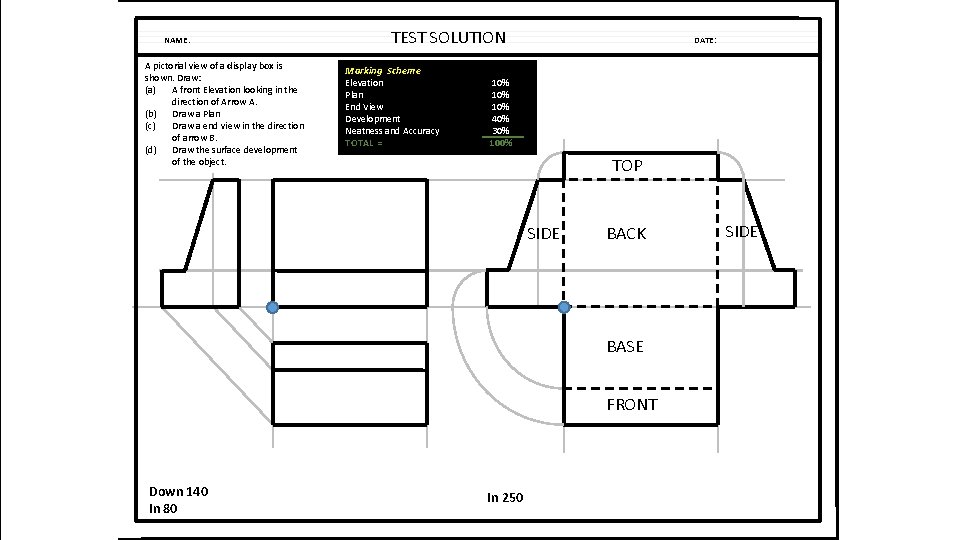

NAME: A pictorial view of a display box is shown. Draw: (a) A front Elevation looking in the direction of Arrow A. (b) Draw a Plan (c) Draw a end view in the direction of arrow B. (d) Draw the surface development of the object. TEST SOLUTION Marking Scheme Elevation Plan End View Development Neatness and Accuracy TOTAL = DATE: 10% 10% 40% 30% 100% TOP SIDE BACK BASE FRONT Down 140 In 80 In 250 SIDE

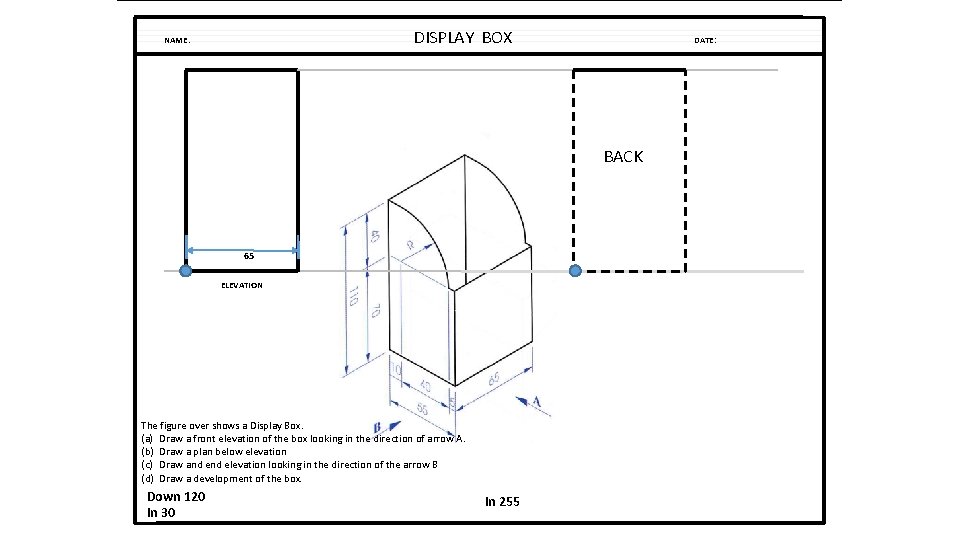

DISPLAY BOX NAME: DATE: BACK 65 ELEVATION The figure over shows a Display Box. (a) Draw a front elevation of the box looking in the direction of arrow A. (b) Draw a plan below elevation (c) Draw and elevation looking in the direction of the arrow B (d) Draw a development of the box. Down 120 In 30 In 255

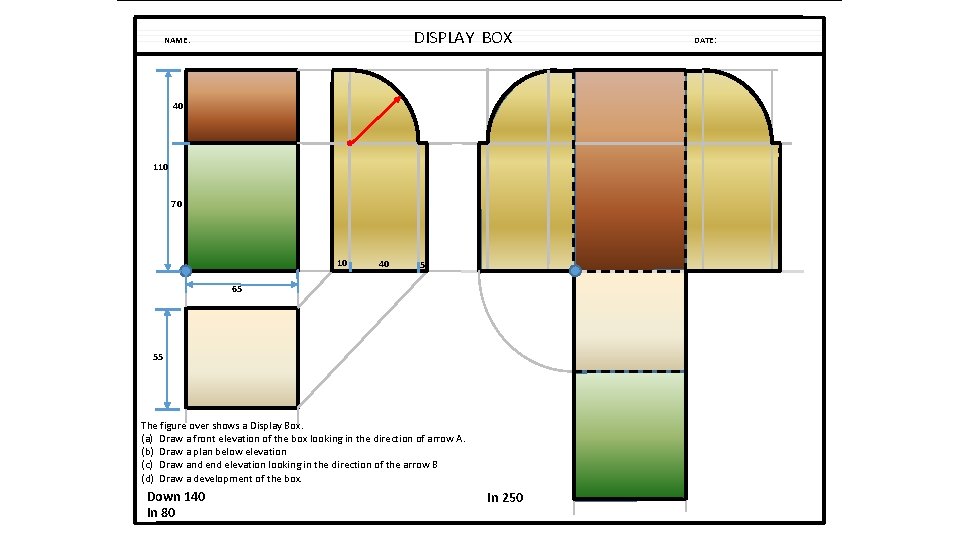

DISPLAY BOX NAME: 40 110 70 10 40 5 65 55 The figure over shows a Display Box. (a) Draw a front elevation of the box looking in the direction of arrow A. (b) Draw a plan below elevation (c) Draw and elevation looking in the direction of the arrow B (d) Draw a development of the box. Down 140 In 80 In 250 DATE:

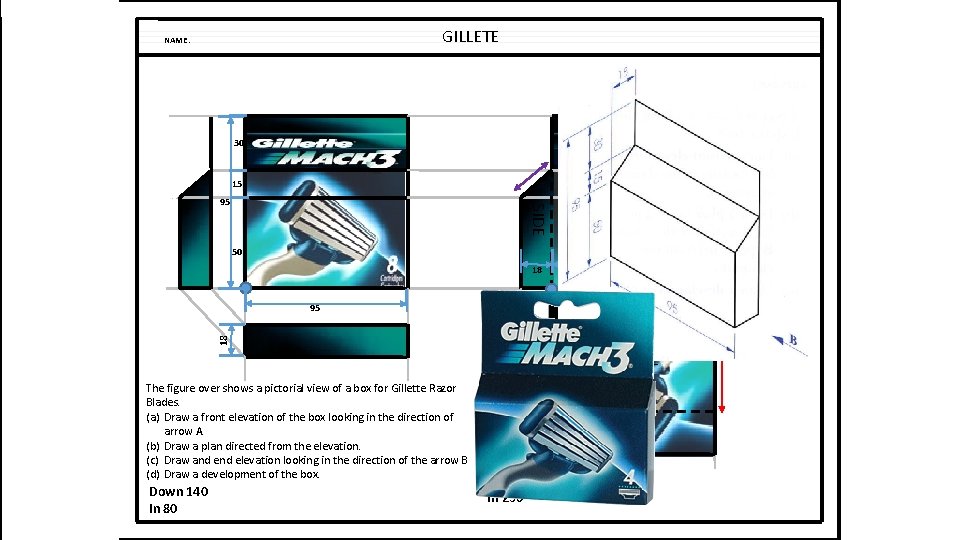

GILLETE NAME: 30 15 BACK 50 18 95 BASE 18 95 FRONT The figure over shows a pictorial view of a box for Gillette Razor Blades. (a) Draw a front elevation of the box looking in the direction of arrow A. (b) Draw a plan directed from the elevation. (c) Draw and elevation looking in the direction of the arrow B (d) Draw a development of the box. Down 140 In 80 LID In 250 SIDE 95

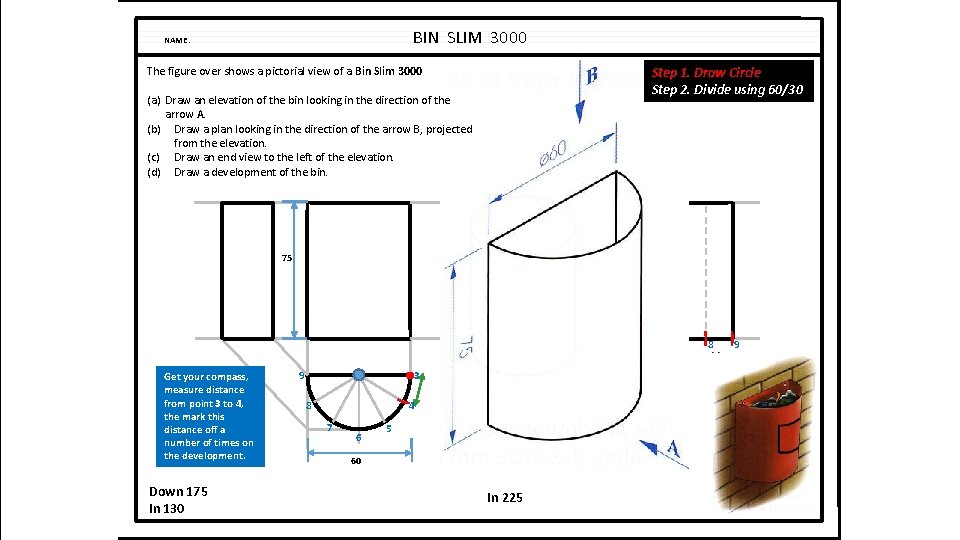

BIN SLIM 3000 NAME: Step 1. Draw Circle Step 2. Divide using 60/30 The figure over shows a pictorial view of a Bin Slim 3000 (a) Draw an elevation of the bin looking in the direction of the arrow A. (b) Draw a plan looking in the direction of the arrow B, projected from the elevation. (c) Draw an end view to the left of the elevation. (d) Draw a development of the bin. 75 9 Get your compass, measure distance from point 3 to 4, the mark this distance off a number of times on the development. Down 175 In 130 3 9 8 4 7 6 3 8 4 7 6 5 60 In 225 5 4 5 6 7 8 9

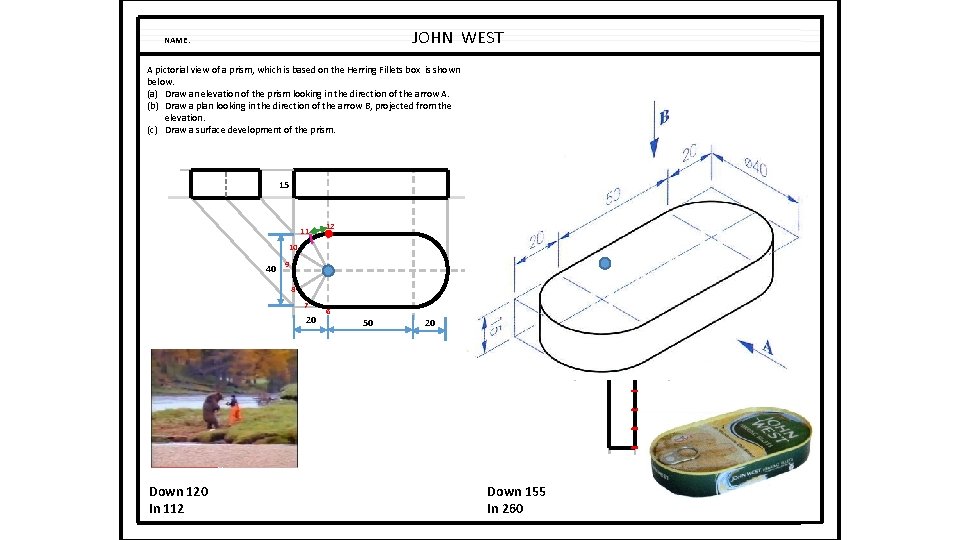

JOHN WEST NAME: A pictorial view of a prism, which is based on the Herring Fillets box is shown below. (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan looking in the direction of the arrow B, projected from the elevation. (c) Draw a surface development of the prism. 6 7 8 15 9 11 12 6 10 11 12 10 9 8 7 11 10 40 9 50 8 7 20 Down 120 In 112 15 6 50 20 Down 155 In 260 12

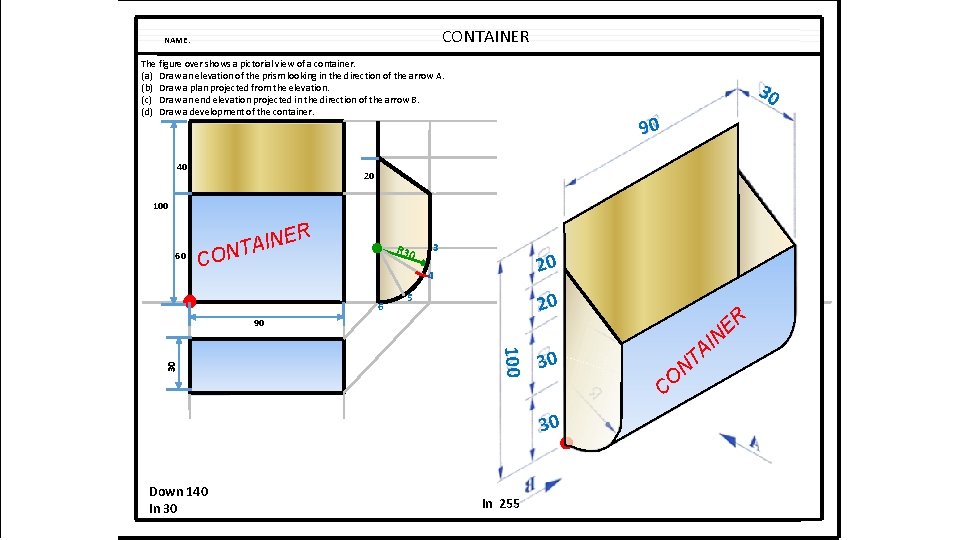

CONTAINER NAME: The figure over shows a pictorial view of a container. (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan projected from the elevation. (c) Draw an end elevation projected in the direction of the arrow B. (d) Draw a development of the container. 40 30 90 20 100 R 30 3 4 6 6 5 90 90 4 100 30 20 24 0 3 5 30 5 R In 255 E AIN 30 I A T N CO 6 Down 140 In 30 SIDE BACK NT CON SIDE CO 60 ER TAIN R E N

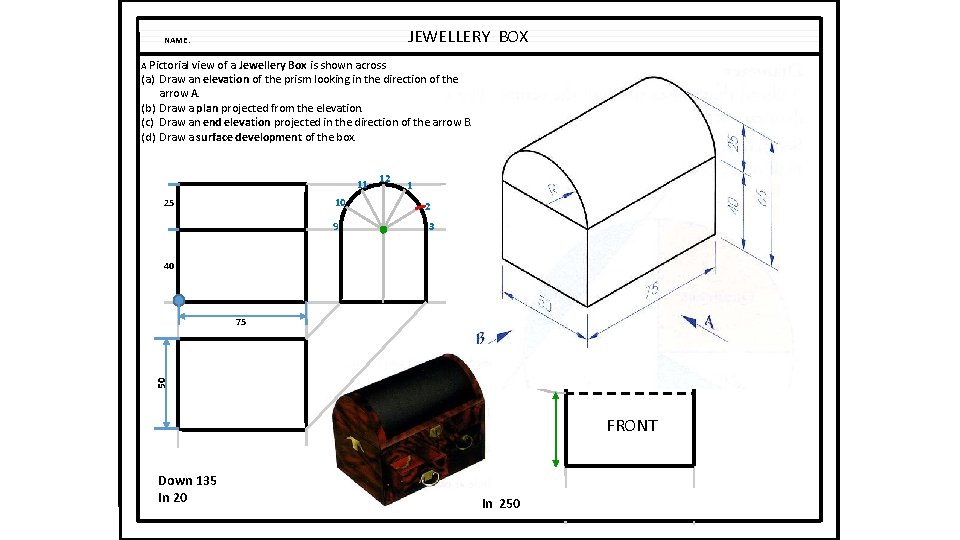

JEWELLERY BOX NAME: A Pictorial view of a Jewellery Box is shown across (a) Draw an elevation of the prism looking in the direction of the arrow A. (b) Draw a plan projected from the elevation. (c) Draw an end elevation projected in the direction of the arrow B. (d) Draw a surface development of the box. 9 10 11 12 11 10 25 9 12 11 1 2 3 12 10 1 1 2 9 3 SIDE 40 LID BACK 75 75 50 BASE FRONT Down 135 In 20 In 250 SIDE

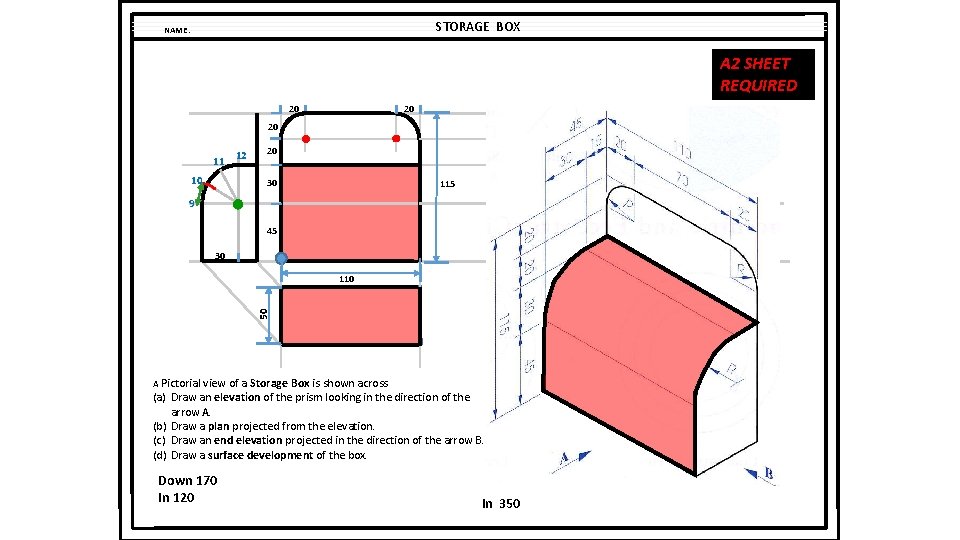

STORAGE BOX NAME: A 2 SHEET REQUIRED 20 20 20 11 12 10 20 11 30 12 10 115 9 0 R 3 9 45 30 50 110 A Pictorial view of a (a) (b) (c) (d) Storage Box is shown across Draw an elevation of the prism looking in the direction of the arrow A. Draw a plan projected from the elevation. Draw an end elevation projected in the direction of the arrow B. Draw a surface development of the box. Down 170 In 120 In 350 9 10 11 12
