MAKING ECGS EASY APPLICATION FOR THE ECG EVALUATING
- Slides: 45
MAKING ECG’S EASY APPLICATION FOR THE ECG EVALUATING THE ECG

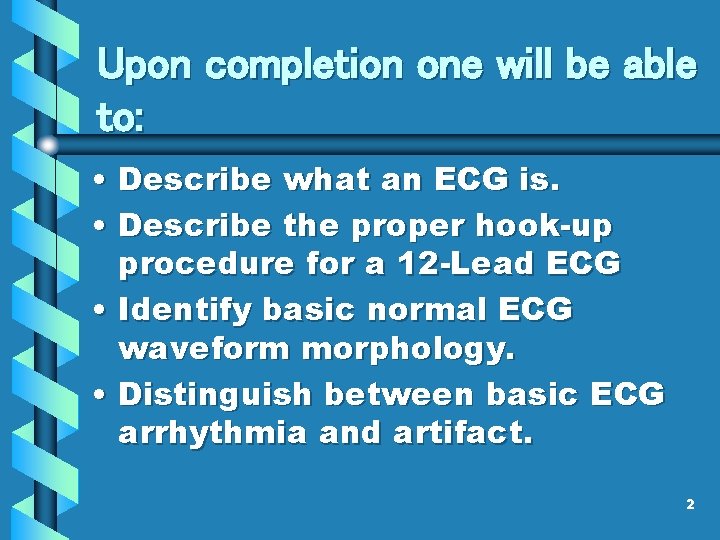

Upon completion one will be able to: • Describe what an ECG is. • Describe the proper hook-up procedure for a 12 -Lead ECG • Identify basic normal ECG waveform morphology. • Distinguish between basic ECG arrhythmia and artifact. 2

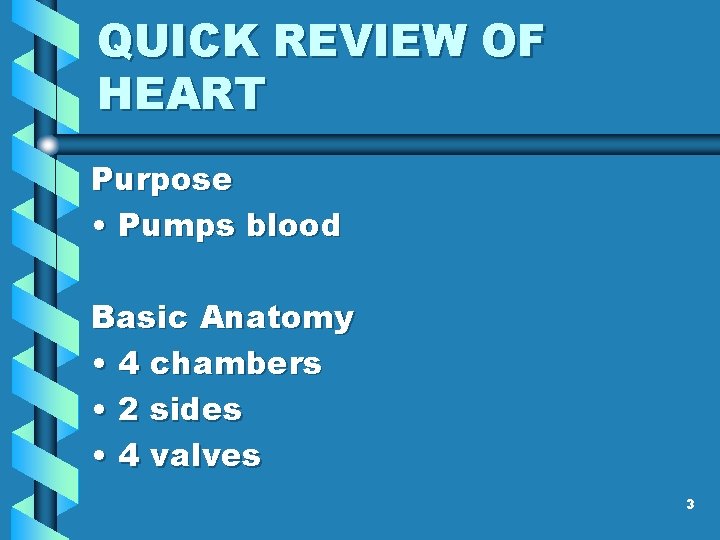

QUICK REVIEW OF HEART Purpose • Pumps blood Basic Anatomy • 4 chambers • 2 sides • 4 valves 3
THE CONDUCTINGY SYSTEM • SA Node • Inter-nodal pathway • AV Node • Bundle of HIS • Bundle Branches • Purkinje Fibers 4

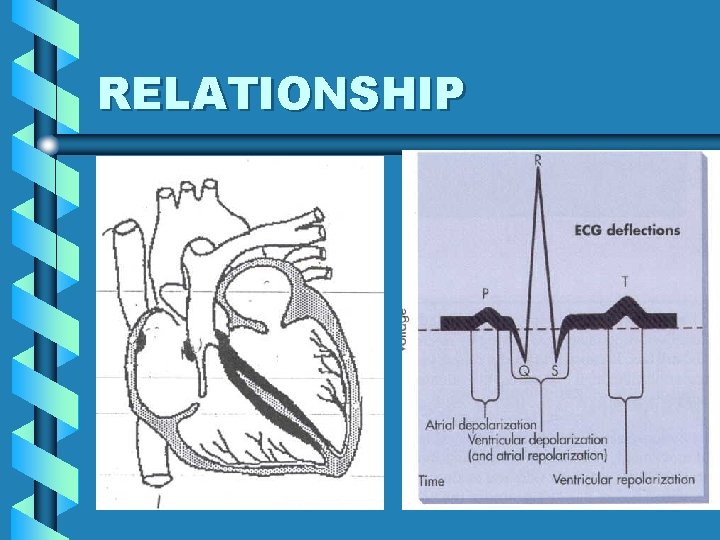

RELATIONSHIP 5

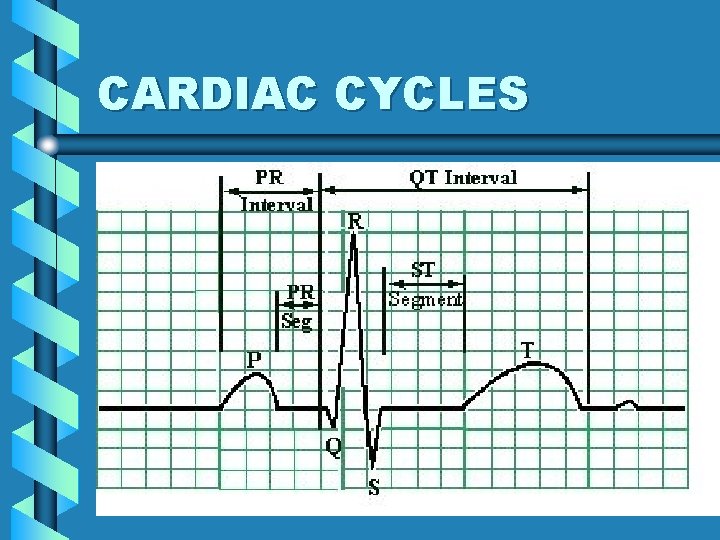

CARDIAC CYCLES 6

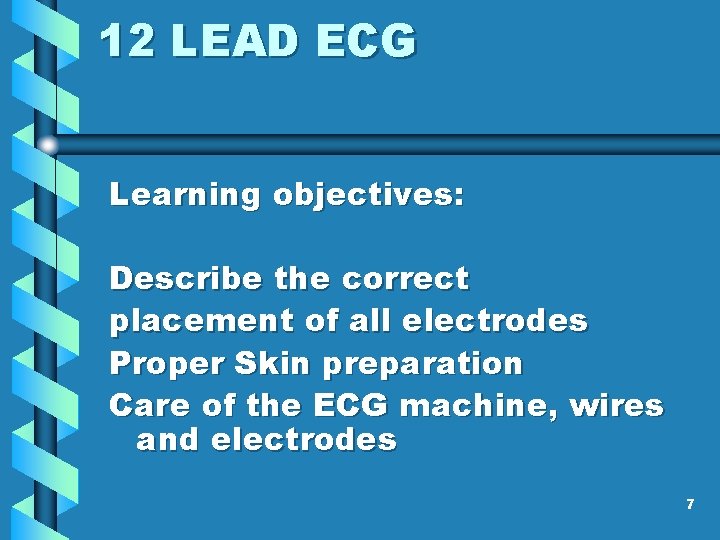

12 LEAD ECG Learning objectives: Describe the correct placement of all electrodes Proper Skin preparation Care of the ECG machine, wires and electrodes 7
Principles of Electrocardiograph • Electrocardiograph – is the instrument that records the electrical activity of the heart • Electrocardiogram (ECG) is the record of that activity 8
HOOKING UP THE 12 -LEAD ECG • Proper skin prep • Placement of the limb electrodes • Placement of the chest electrodes 9

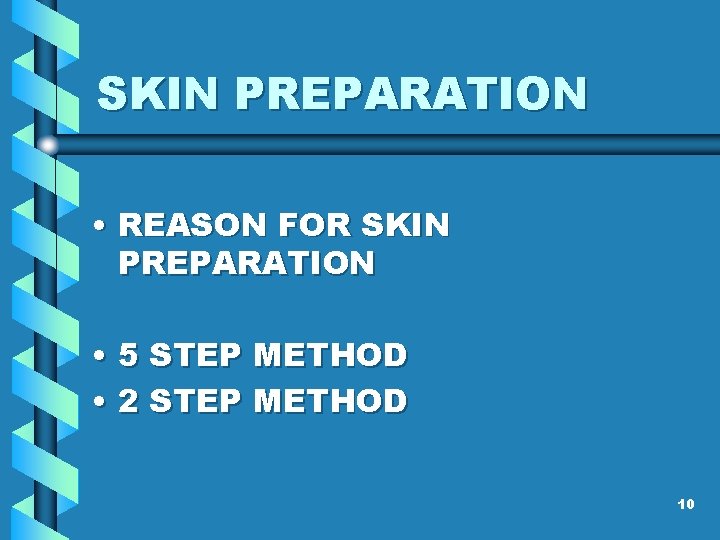

SKIN PREPARATION • REASON FOR SKIN PREPARATION • 5 STEP METHOD • 2 STEP METHOD 10

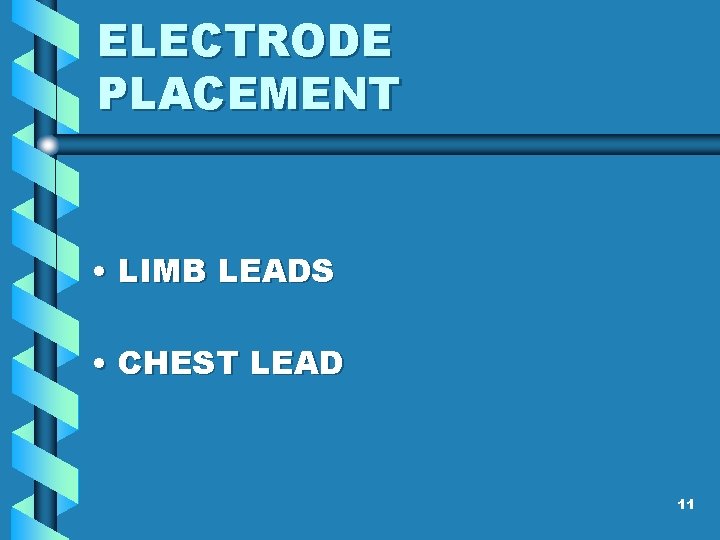

ELECTRODE PLACEMENT • LIMB LEADS • CHEST LEAD 11
LIMB LEADS • Bipolar leads I II III • Augment leads Avr Avl Avf 12

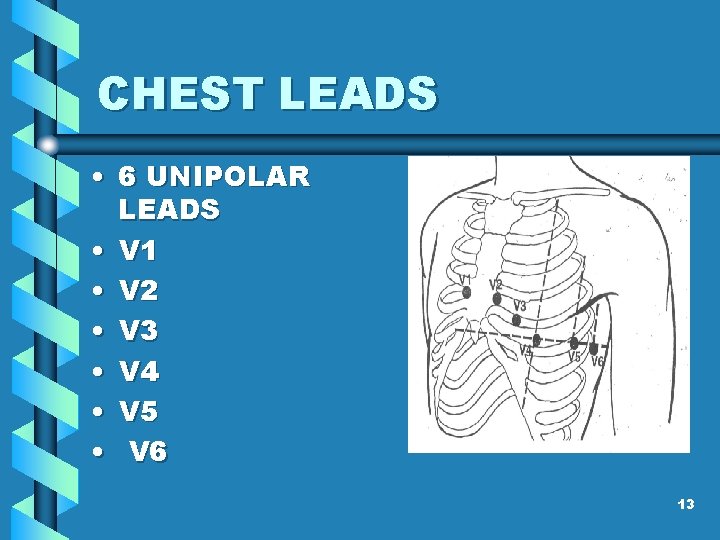

CHEST LEADS • 6 UNIPOLAR LEADS • V 1 • V 2 • V 3 • V 4 • V 5 • V 6 13

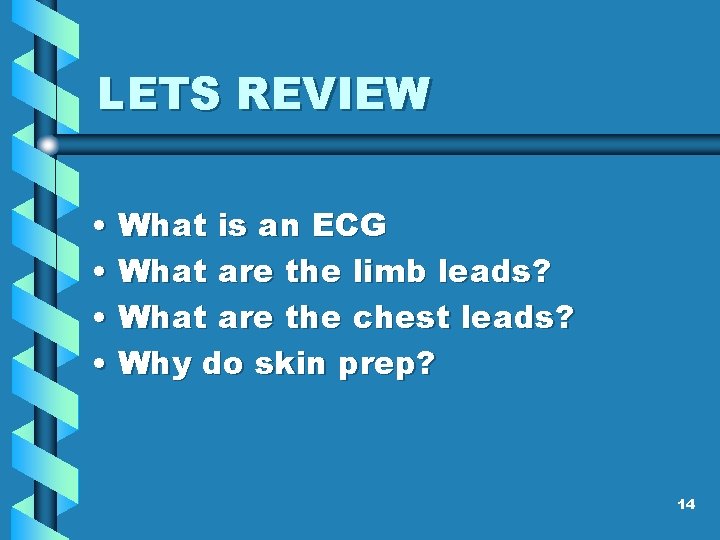

LETS REVIEW • What is an ECG • What are the limb leads? • What are the chest leads? • Why do skin prep? 14

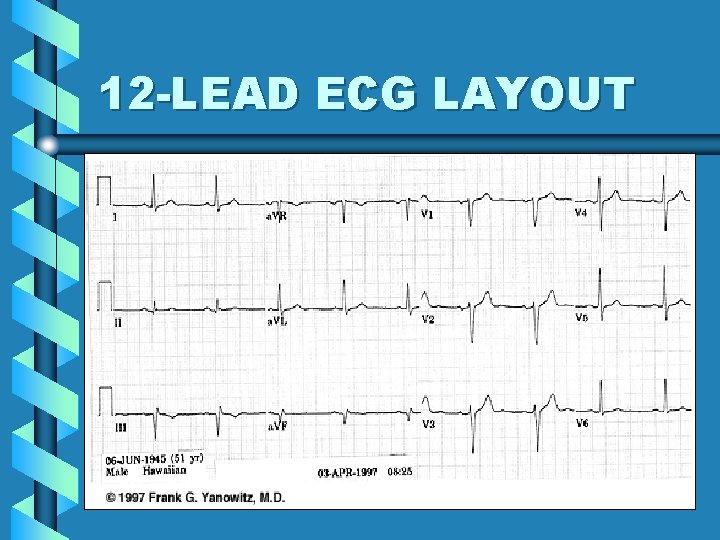

12 -LEAD ECG LAYOUT 15
INFORMATION ON THE ECG • Patients demographics • Heart rate and measurements • Speed ECG is recorded at • Voltage ECG is recorded at • What the filter is set on 16

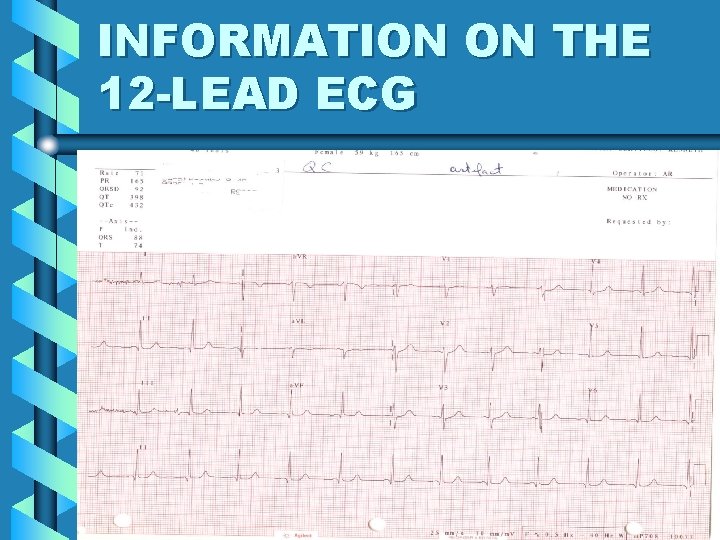

INFORMATION ON THE 12 -LEAD ECG 17
WHAT YOU NEED TO LOOK FOR • Are the limb leads hooked up correctly? • Are the chest leads hooked up correctly? • Is the ECG free of artifact. • Is this ECG a Critical Value 18
IS the ECG HOOKED UP CORRECTLY? LIMB LEADS Normal 12 -lead • AVR – always negative • Lead I – always positive • Lead II, III – positive or biphasic CHEST LEADS COLUMN III • R wave progression • Small to Tall COLUMN IV • R wave progression • Tall to Small 19

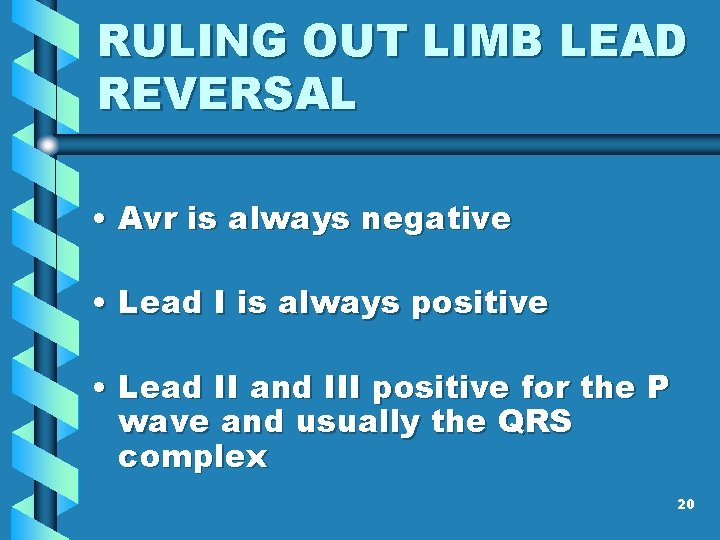

RULING OUT LIMB LEAD REVERSAL • Avr is always negative • Lead I is always positive • Lead II and III positive for the P wave and usually the QRS complex 20

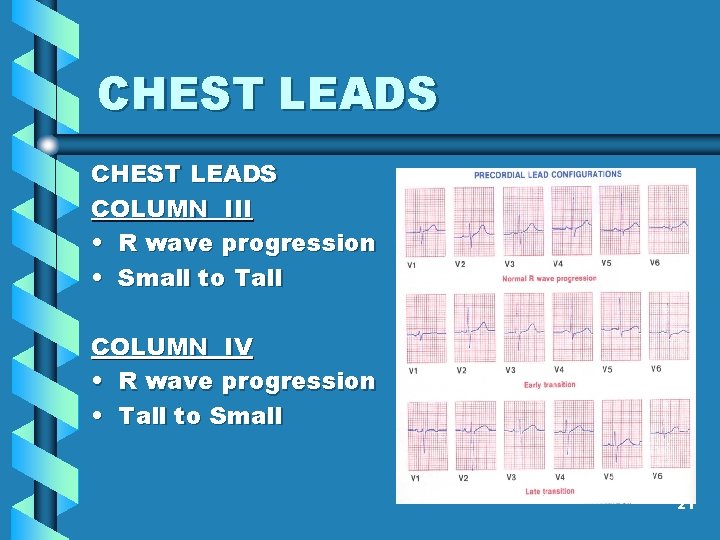

CHEST LEADS COLUMN III • R wave progression • Small to Tall COLUMN IV • R wave progression • Tall to Small 21
LIMB LEADS 22

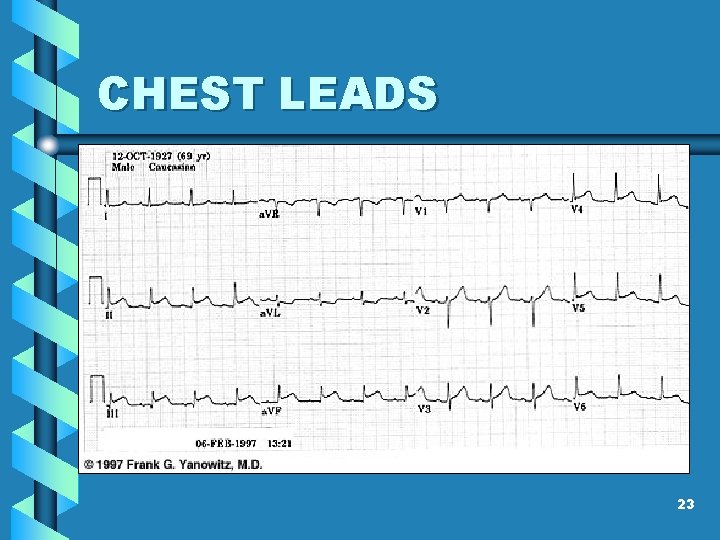

CHEST LEADS 23
24

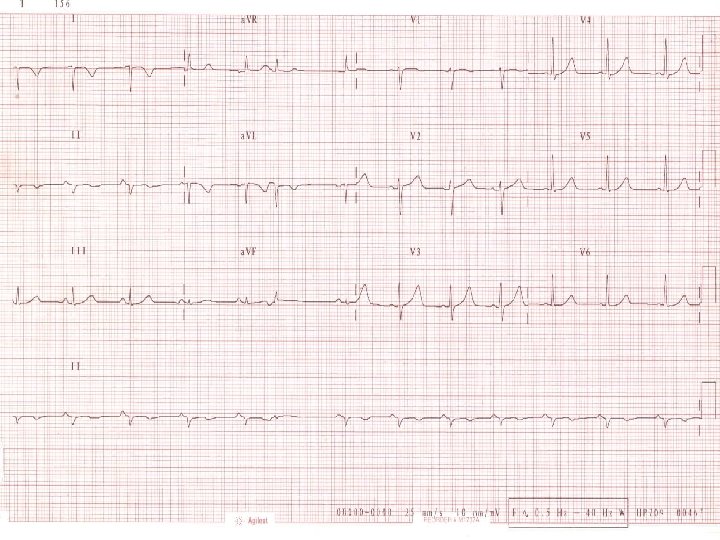

25
26
27

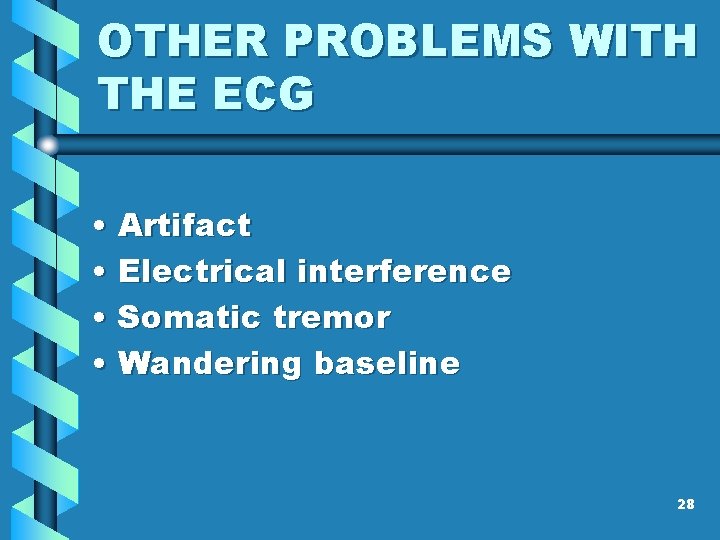

OTHER PROBLEMS WITH THE ECG • Artifact • Electrical interference • Somatic tremor • Wandering baseline 28
EINTHOVENS TRIANGLE 29
ARTIFACT ON THE ECG 30

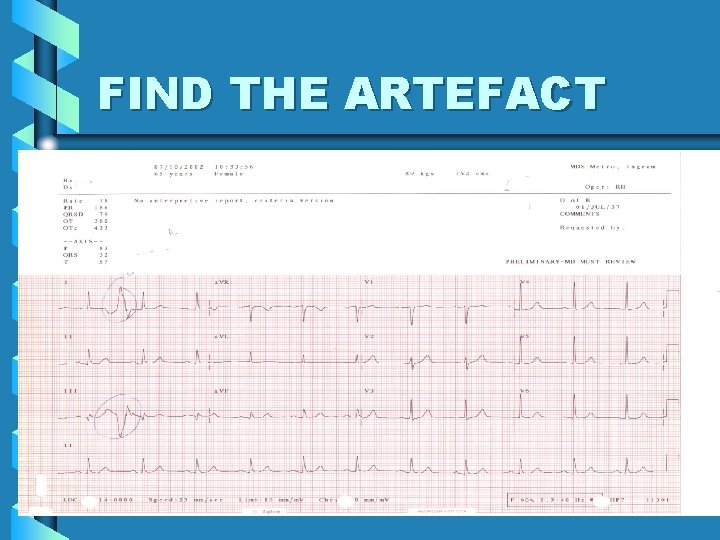

FIND THE ARTEFACT 31
WANDERIN BASELINE 32
SOMATIC TREMOR 33
ELECTRICAL INTERFERANCE 34

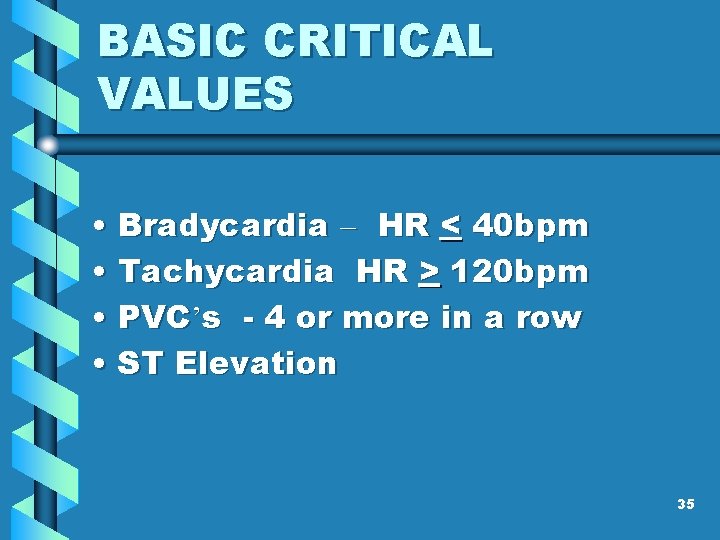

BASIC CRITICAL VALUES • Bradycardia – HR < 40 bpm • Tachycardia HR > 120 bpm • PVC’s - 4 or more in a row • ST Elevation 35

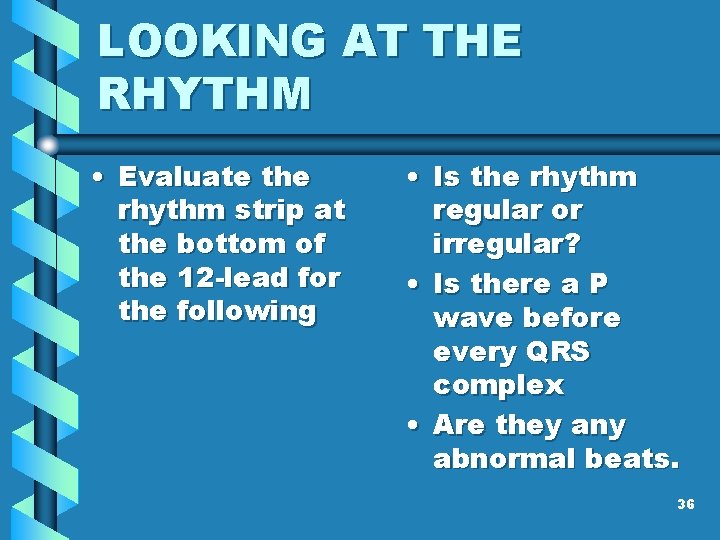

LOOKING AT THE RHYTHM • Evaluate the rhythm strip at the bottom of the 12 -lead for the following • Is the rhythm regular or irregular? • Is there a P wave before every QRS complex • Are they any abnormal beats. 36

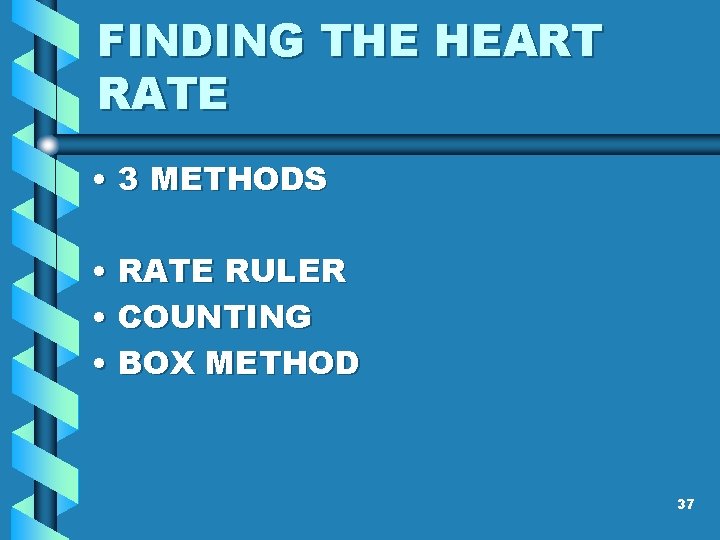

FINDING THE HEART RATE • 3 METHODS • RATE RULER • COUNTING • BOX METHOD 37

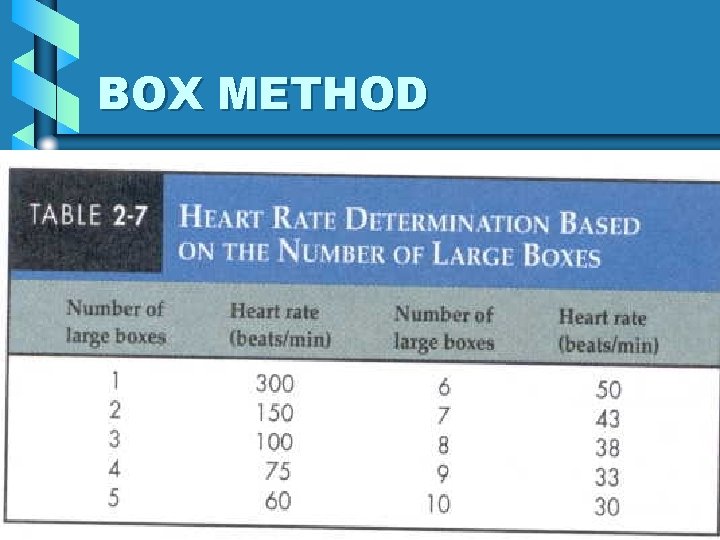

BOX METHOD 38
39

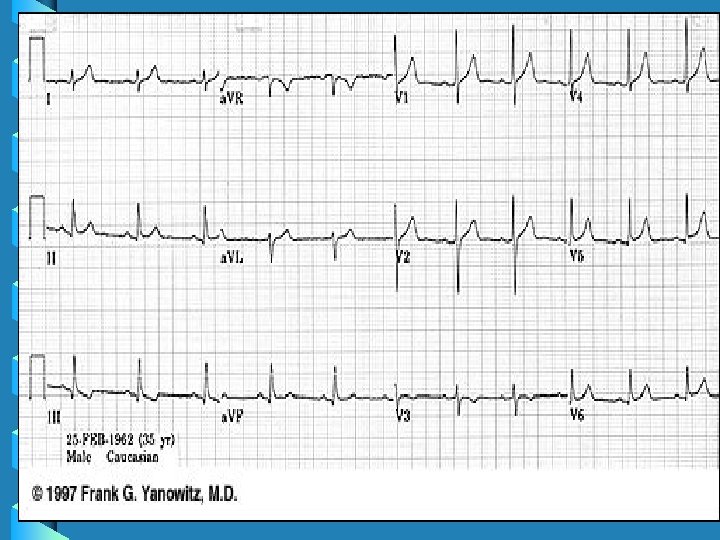

40

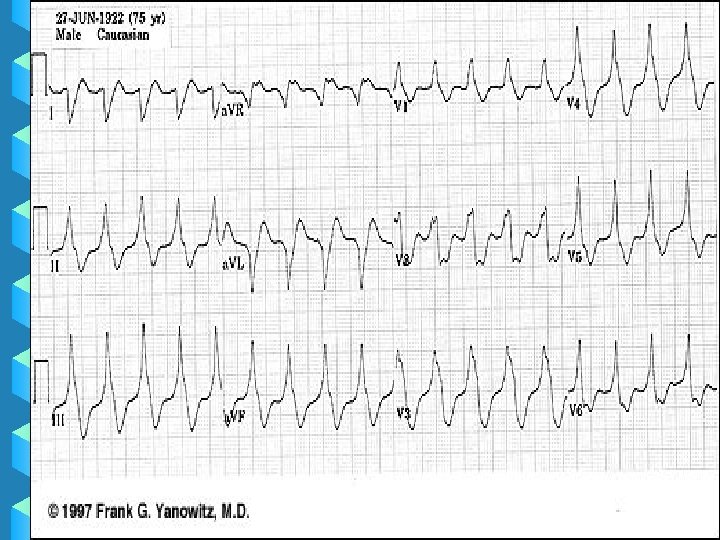

41

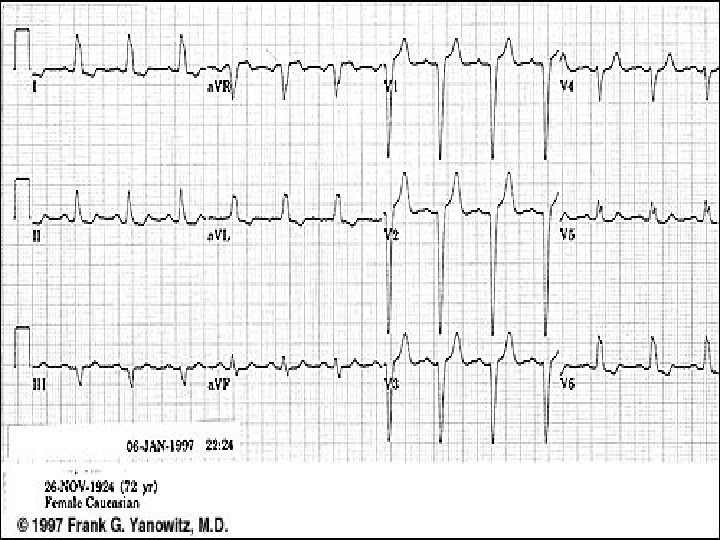

42
ECTOPIC BEATS 43

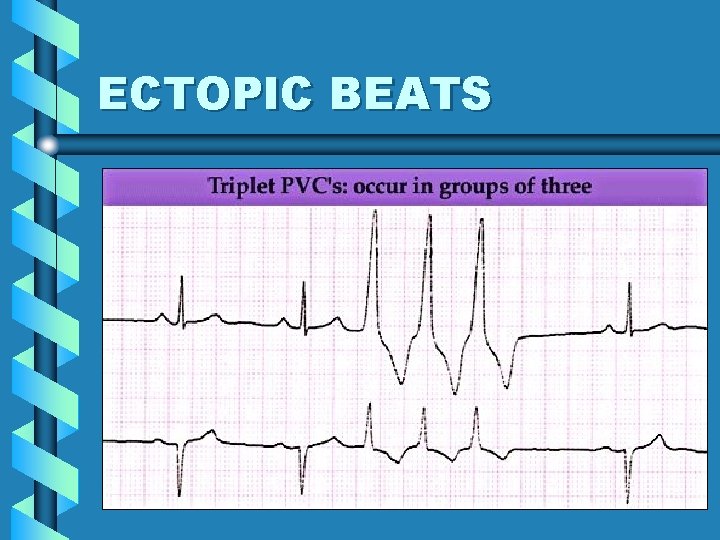

ECTOPIC BEATS 44

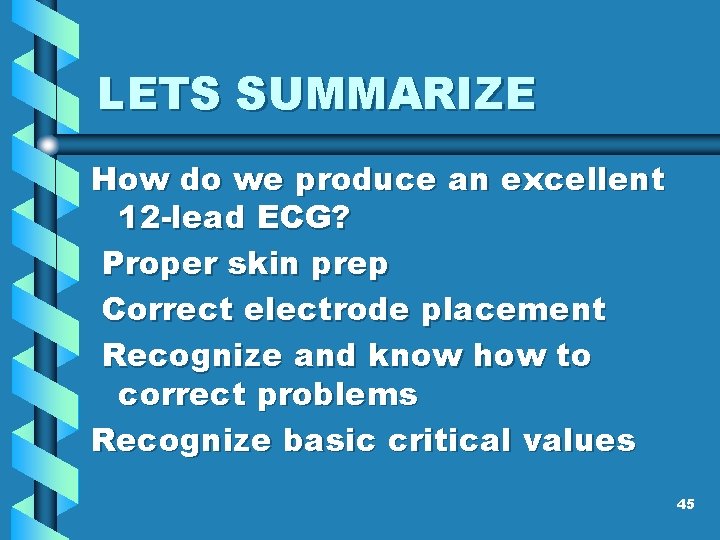

LETS SUMMARIZE How do we produce an excellent 12 -lead ECG? Proper skin prep Correct electrode placement Recognize and know how to correct problems Recognize basic critical values 45
