Lecture 18 VHDL Modeling of Sequential Machines Prith

Lecture 18 VHDL Modeling of Sequential Machines Prith Banerjee ECE C 03 Advanced Digital Design Spring 1998 ECE C 03 Lecture 18 ECE C 03 Lecture 6 1

Outline • • Describing Sequential Behavior in VHDL Latches Flip-Flops Finite State Machines Synthesis Using VHDL Using Packages in VHDL READING: Dewey 17. 1, 17. 3, 17. 4, 17. 5, 17. 6, 17. 7, 17. 8, 17. 10, 18. 1, 18. 2 ECE C 03 Lecture 18 ECE C 03 Lecture 6 2

Latches • Latches are easily described by using the concurrent signal assignment statement entity JK_LATCH is port ( J, K : in BIT; Q : inout BIT : = ‘ 0’; Q_BAR : inout BIT : = ‘ 1’; ) end JK_LATCH; architecture TRUTH_TABLE of JK_LATCH is begin -- Map truth table into conditional concurrent statements Q <= Q when (J = ‘ 0’ and K = ‘ 0’) else ‘ 0’ when (J = ‘ 0’ and ‘K=‘ 1’) else ‘ 1’ when (J=‘ 1’ and K = ‘ 0’) else Q_BAR; Q_BAR <= not Q; end TRUTH_TABLE; ECE C 03 Lecture 18 ECE C 03 Lecture 6 JK Q+ 00 Q 01 0 10 1 11 Q/ 3

Level-sensitive Synchronous Behavior • When a control signal like a clock controls whether the gated latch responds to inputs entity JK_GATED_LATCH is port ( J, K, CLK : in BIT; Q : inout BIT : = ‘ 0’; Q_BAR : inout BIT : = ‘ 1’; ) end JK_LATCH; architecture TRUTH_TABLE of JK_GATED_LATCH is begin CLKED : block (CLK = ‘) -- guard expression begin Q <= guarded Q when (J = ‘ 0’ and K = ‘ 0’) else ‘ 0’ when (J = ‘ 0’ and ‘K=‘ 1’) else ‘ 1’ when (J=‘ 1’ and K = ‘ 0’) else Q_BAR; Q_BAR <= not Q; end block CLKED; ECE end TRUTH_TABLE; C 03 Lecture 18 ECE C 03 Lecture 6 4

Block Statements • A block statement provides a way to combine a group of concurrent statements together • A group of statements can be placed under a guard • FORMAT label: block (guard expression) -- declarative part begin -- statement part end block label • A guard is a boolean expression that evaluates to true or false. • Concurrent statements in block execute if guard is ECE C 03 Lecture 18 ECE C 03 Lecture 6 true 5

Guarded Statement • A guarded assignment statement executes if either – (1) the guard expression changes from FALSE to TRUE – (2) The guard expression is TRUE and one of the signals appearing on the right hand side of the signal assignment changes value • Example: B 1 : block (CONTROL_SIGNAL = ‘ 1’) begin X <= guarded A or B after 5 min; Y <= A or B after 5 min; end blcok B 1 ECE C 03 Lecture 18 ECE C 03 Lecture 6 6 5 10 15 20 25 30 35

Flip-flops • Edge-triggered flip-flops are controlled by signal transitions, latches are controlled by levels. entity JK_FF is port ( J, K, CLK : in BIT; Q : inout BIT : = ‘ 0’; Q_BAR : inout BIT : = ‘ 1’; ) end JK_LATCH; architecture DATA_FLOW of JK_FF is begin CLKED : block (CLK = ‘ 1’ and not CLK’STABLE) -- guard expression begin Q <= guarded Q when (J = ‘ 0’ and K = ‘ 0’) else ‘ 0’ when (J = ‘ 0’ and ‘K=‘ 1’) else ‘ 1’ when (J=‘ 1’ and K = ‘ 0’) else Q_BAR; Q_BAR <= not Q; end block CLKED; ECE end DATA_FLOW; C 03 Lecture 18 ECE C 03 Lecture 6 7

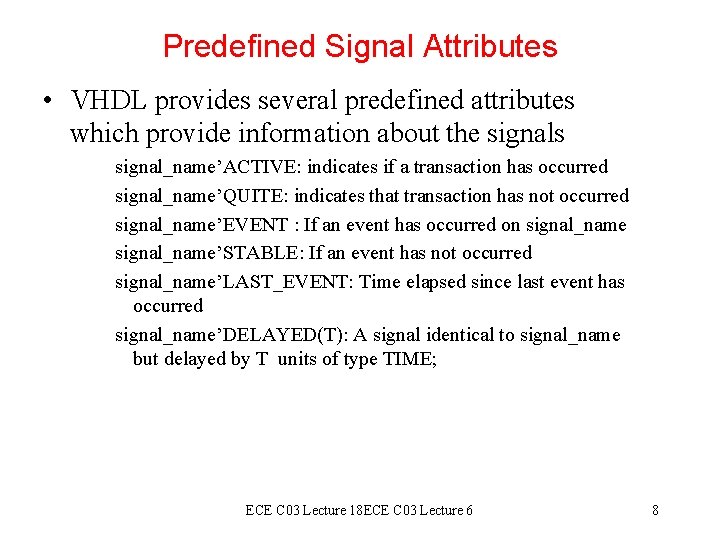

Predefined Signal Attributes • VHDL provides several predefined attributes which provide information about the signals signal_name’ACTIVE: indicates if a transaction has occurred signal_name’QUITE: indicates that transaction has not occurred signal_name’EVENT : If an event has occurred on signal_name’STABLE: If an event has not occurred signal_name’LAST_EVENT: Time elapsed since last event has occurred signal_name’DELAYED(T): A signal identical to signal_name but delayed by T units of type TIME; ECE C 03 Lecture 18 ECE C 03 Lecture 6 8

Setup and Hold Times • Setup and hold times are timing restrictions placed on synchronous sequential systems • Use assertions in VHDL to describe requirements architecture DATA_FLOW of D_FF is begin assert not (CLK’DELAYED(HOLD) = ‘ 1’ and not CLK’DELAYED(HOLD)’STABLE and not D’STABLE(SETUP+HOLD) Setup report “Setup/Hold Timing Violation”; CLKED: block (CLK = ‘ 1’ and not CLK’STABLE) Q <= guarded D; Q_BAR <= not Q; ECE C 03 Lecture 18 ECE C 03 Lecture 6 end DATA_FLOW; CLK’DELAYED(HOLD) D Hold 9

Synchronous Finite State Machines • Consider example of binary counter Z 0 A Z 1 B Z 2 C ECE C 03 Lecture 18 ECE C 03 Lecture 6 10

Data flow VHDL Modeling of Counter entity BIN_COUNTER is port (CLK : in BIT; Z : out BIT_VECTOR(2 downto 0)); end BIN_COUNTER; architecture DATA_FLOW of BIN_COUNTER is type FF_INDEX is (A, B, C); type FF_TYPE is array (FF_INDEX) of BIT; signal Q : FF_TYPE; begin DFF: block (CLK = ‘ 1’ and not CLK’STABLE) -- rising edge begin -- State D flip flops Q(A) <= guarded (Q(A) and not Q(B) ) or (Q(A) and not Q(C)) or (not Q(A) and Q(B) and Q(C); Q(B) <= guarded Q(B) xor Q(C); Q(C) <= guarded not Q(C); end block DFF; -- output function Z <= Q(A) & Q(B) ECE & C 03 Q(C); Lecture 18 ECE C 03 Lecture 6 end DATA_FLOW; 11

Algorithmic Modeling of State Machines • Until now, we showed state machines being modeled by data flow (using concurrent statements) • We will describe using algorithmic or procedural form using conventional programming language semantics – – – process statements wait statements variable and signal assignments if and case statements loop statements ECE C 03 Lecture 18 ECE C 03 Lecture 6 12

Binary Counter State Diagram S 7 111 S 0 000 S 1 001 S 6 110 S 2 010 S 5 101 S 3 011 S 4 100 ECE C 03 Lecture 18 ECE C 03 Lecture 6 13

VHDL Model of Counter architecture ALGORITHM of BIN_COUNTER is begin process variable PRESENT_STATE: BIT_VECTOR(2 downto 0) : = B” 111”; begin case PRESENT_STATE is when B” 000” => PRESENT_STATE : = B” 001”; when B” 001” => PRESENT_STATE : = B” 010”; when B” 010” => PRESENT_STATE : = B” 011”; when B” 011” => PRESENT_STATE : = B” 100”; when B” 100” => PRESENT_STATE : = B” 101”; when B” 101” => PRESENT_STATE : = B” 110”; when B” 110” => PRESENT_STATE : = B” 111”; when B” 111” => PRESENT_STATE : = B” 000”; end case; Z <= PRESENT_STATE after 10 nsec; wait until (CLK = ‘ 1’; end process; end ALGORITHM; ECE C 03 Lecture 18 ECE C 03 Lecture 6 14

VHDL Model of FSMs for Synthesis • One can define a VHDL model of a FSM (Mealy Machine) using two processes – One for the combinational logic for the next state and output functions – One for the sequential elements Output logic function Primary inputs Next state Logic function Presnt state Memory elements, FFs ECE C 03 Lecture 18 ECE C 03 Lecture 6 15

Architecture Body of FSM architecture rtl of entname is subtype state_type is std_ulogic_vector(3 downto 0); constant s 0 : state_type : = "0001"; constant s 1 : state_type : = "0010"; constant s 2 : state_type : = "0100"; s 0 constant s 3 : state_type : = "1000"; signal state, next_state : state_type; signal con 1, con 2, con 3 : std_ulogic; s 1 signal out 1, out 2 : std_ulogic; signal clk, reset : std_ulogic; -- process comb logic s 2 -- process state registers end architecture rtl; s 3 ECE C 03 Lecture 18 ECE C 03 Lecture 6 16

Process Statements for Comb/State Reg Logic when s 3 => begin state_logic : process (state, con 1, con 2, con 3) is begin case state is when s 0 => out 1 <= '0'; out 2 <= '0'; next_state <= s 1; when s 1 => out 1 <= '1'; if con 1 = '1' then next_state <= s 2; else next_state <= s 1; end if; when s 2 => out 2 <= '1'; next_state <= s 3; if con 2 = '0' then next_state <= s 3; elsif con 3 = '0' then out 1 <= '0'; next_state <= s 2; else next_state <= s 1; end if; when others => null; end case; end process state_logic; state_register : process (clk, reset) is begin if reset = '0' then state <= s 0; elsif rising_edge(clk) then state <= next_state; end if; end process state_register; ECE C 03 Lecture 18 ECE C 03 Lecture 6 17

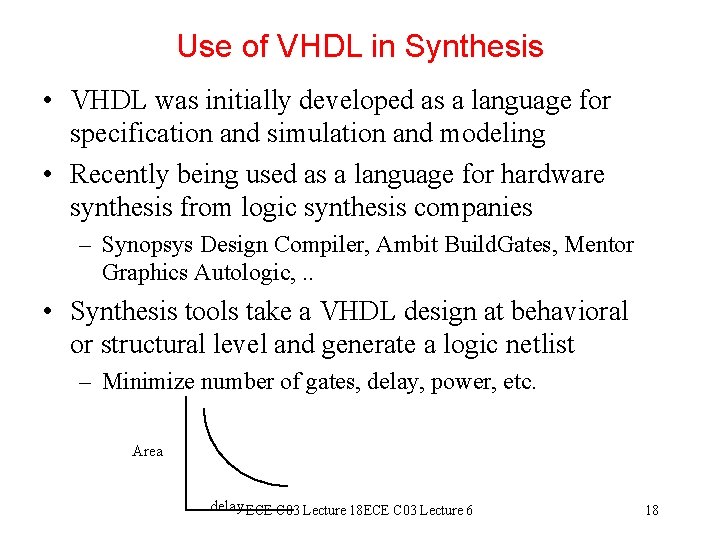

Use of VHDL in Synthesis • VHDL was initially developed as a language for specification and simulation and modeling • Recently being used as a language for hardware synthesis from logic synthesis companies – Synopsys Design Compiler, Ambit Build. Gates, Mentor Graphics Autologic, . . • Synthesis tools take a VHDL design at behavioral or structural level and generate a logic netlist – Minimize number of gates, delay, power, etc. Area delay ECE C 03 Lecture 18 ECE C 03 Lecture 6 18

Synthesizable Subset of VHDL • There a number of constructs that cannot be synthesized into hardware – File operations including textio – Assertion statements • There are some generally accepted ways of entering VHDL descriptions such that it correctly synthesizes the logic ECE C 03 Lecture 18 ECE C 03 Lecture 6 19

Synthesizable VHDL • Most synthesis tools can take in a structural VHDL specifying flip-flops and gates explictly and then minimize the design • When one tries to do true synthesis, i. e. specify a design in behavioral form, then not all tools can recognize and synthesize correct logic • Example: all synthesis tools recognize the rising edge of a clock signal if specified as: – rising_edge(clk) <=> clk’event and clk = ‘ 1’ – If specified otherwise, tools do not recognize clock edge ECE C 03 Lecture 18 ECE C 03 Lecture 6 20

Four ways of specifying DFF 3: DFF 1: process (clk) is q <= d when begin rising_edge(clk) if rising_edge(clk) then else q; q <= d; end if; end process; DFF 4: block THIS IS RECOGNIZED AS (rising_edge(clk) and not A FF BY MOST TOOLS clk’stable) is DFF 2: process is begin q <= guarded d; wait until rising_edge(clk)l end block; q <= d; end process; ECE C 03 Lecture 18 ECE C 03 Lecture 6 21

Registered Comparator • The devices stores result of comparison of two inputs a and b on rising clock edge Process (clk) is begin if (a=b) then d : = ‘ 1; else d : = ‘ 0’; end if; if rising_edge(clk) then q <= d; end if; end process; Process(clk) is begin if rising_edge(clk) then if (a=b) then q <= ‘ 1’; else q <= ‘ 0’; end if; end process; THIS WILL CORRECTLY SYNTHESIZE THIS WILL NOT SYNTHESIZE SINCE ASSIGNMENT HAPPENS ON SINCE PROCESS EXECUTESECE FORC 03 Lecture 18 ECE C 03 Lecture 6 OF CLOCK 22 RISING EDGE BOTH EDGES OF CLOCK

Examples of Correct Synthesis • To synthesize a simple logic gate: y <= a or b; • To implement a multiplexer: y <= a when x = ‘ 1’ else b; ANOTHER WAY: case x is when x = ‘ 1’ => y <= a; when x = ‘ 0’ => y <= b; end case; • To implement a DFF elseif rising_edge(clk) then process (reset, clk) is begin q <= d; if reset = ‘ 1’ then end if; q <= 0; ECE C 03 Lecture 18 ECE C 03 Lecture 6 end process; 23

Implied Latches in VHDL Descriptions • EXAMPLE of a Multiplexer where all cases specified, I. e. y gets a new value in all cases, hence is a combinational logic: case x is when x = ‘ 1’ => y <= a; when x = ‘ 0’ => y <= b; end case; a b y x • EXAMPLE of a D latch where for one case, output not specified, implied that previous value retained case x is when x = ‘ 1’ => y <= a; end case; a d clk q y x ECE C 03 Lecture 18 ECE C 03 Lecture 6 24

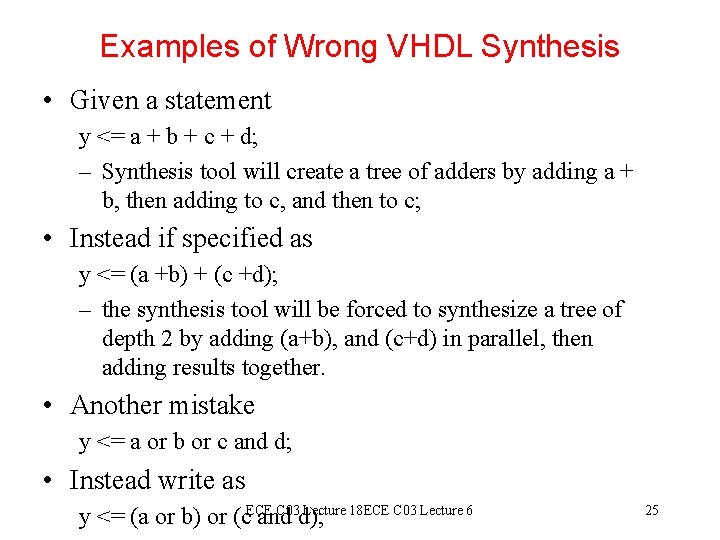

Examples of Wrong VHDL Synthesis • Given a statement y <= a + b + c + d; – Synthesis tool will create a tree of adders by adding a + b, then adding to c, and then to c; • Instead if specified as y <= (a +b) + (c +d); – the synthesis tool will be forced to synthesize a tree of depth 2 by adding (a+b), and (c+d) in parallel, then adding results together. • Another mistake y <= a or b or c and d; • Instead write as C 03 Lecture 18 ECE C 03 Lecture 6 y <= (a or b) or (c. ECE and d); 25

Use of Packages in VHDL • A VHDL package is simply a way of grouping a collection of related declarations that serve a common purpose • Can be reused by other designs package identifier is {package declaration} end package identifier; ECE C 03 Lecture 18 ECE C 03 Lecture 6 26

Predefined Packages • The predefined types in VHDL are stored in a library “std’ • Each design unit is automatically preceded by the following context clause library std, work; use std. standard. all; package standard is type boolean is (false, true); -- defined for operators =, <=, >=, . . type bit is (‘ 0’, ‘ 1’); -- defined for logic operations and, or, not… type character is (. . ); type integer is range IMPLEMENTATION_DEFINED; subtype natural is integer range 0 to integer’high; type bit_vector is array(natural range <>) of bit; … end package standard; ECE C 03 Lecture 18 ECE C 03 Lecture 6 27

Package IEEE Standard 1164 • IEEE standard is based on multi-valued logic type and standard logic gates type std_ulogic is (‘U’ -- uninitialized ‘X’ -- forcing unknown ‘ 0’ -- forcing zero ‘ 1’ -- forcing one ‘Z’ -- high impedance ‘W’ -- weak impedance ‘L’ -- weak zero ‘H’ -- weak one ‘-’ -- don’t care); Include a line before each entity or architecture body library ieee; use ieee. std_logic 1164. all; ECE C 03 Lecture 18 ECE C 03 Lecture 6 28

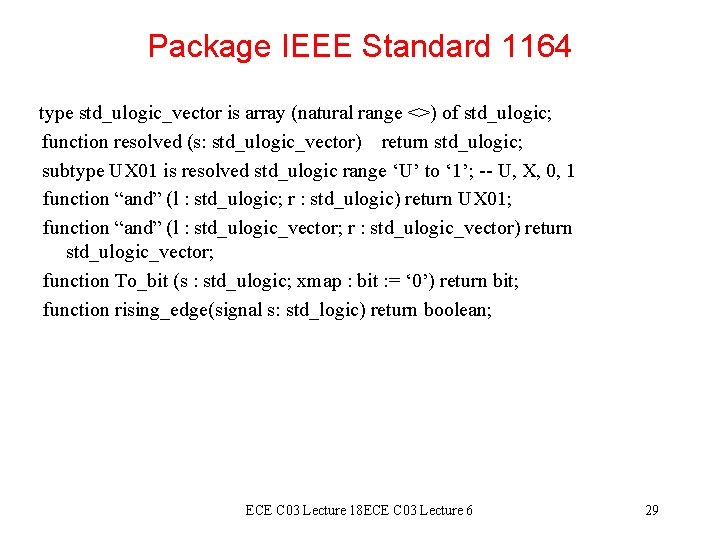

Package IEEE Standard 1164 type std_ulogic_vector is array (natural range <>) of std_ulogic; function resolved (s: std_ulogic_vector) return std_ulogic; subtype UX 01 is resolved std_ulogic range ‘U’ to ‘ 1’; -- U, X, 0, 1 function “and” (l : std_ulogic; r : std_ulogic) return UX 01; function “and” (l : std_ulogic_vector; r : std_ulogic_vector) return std_ulogic_vector; function To_bit (s : std_ulogic; xmap : bit : = ‘ 0’) return bit; function rising_edge(signal s: std_logic) return boolean; ECE C 03 Lecture 18 ECE C 03 Lecture 6 29

Summary • • Describing Sequential Behavior in VHDL Latches Flip-Flops Finite State Machines Synthesis Using VHDL Using Packages in VHDL NEXT LECTURE: Case Study: Pipelined Multiplier Accumulator • READING: P. Ashenden, “The Designer’s Guide to VHDL”, Morgan Kaufmann, Chapter 6 ECE C 03 Lecture 18 ECE C 03 Lecture 6 30
