VHDL Project III: Two’s Complement Array Multiplier Slides Available at: www. pages. drexel. edu/~mjm 46 Matthew Murach
Today’s Agenda Design a two’s complement device this is related to homework two and will be collected. n Discuss the implementation of this device with your array multiplier. n Discuss possible review sessions for next Wednesday’s midterm. n

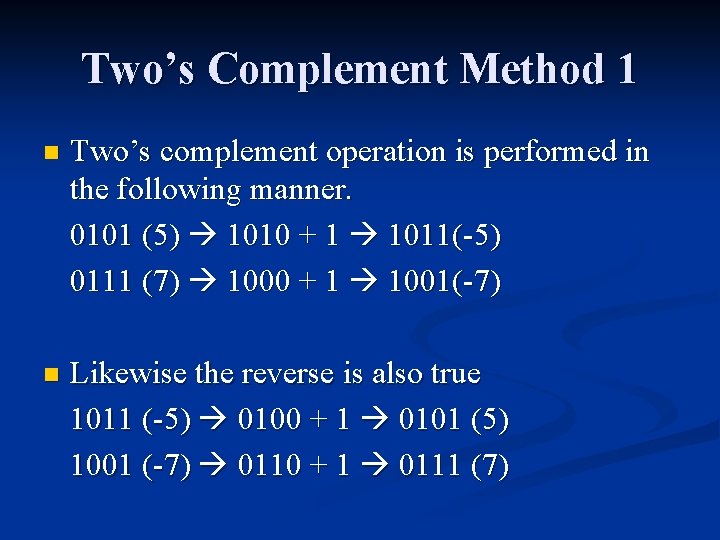

Two’s Complement Method 1 n Two’s complement operation is performed in the following manner. 0101 (5) 1010 + 1 1011(-5) 0111 (7) 1000 + 1 1001(-7) n Likewise the reverse is also true 1011 (-5) 0100 + 1 0101 (5) 1001 (-7) 0110 + 1 0111 (7)
Two’s complement (cont) n Note that two’s complement uses the following procedure: 1. ) Invert the bits 2. ) Add one to the result n There exists another algorithm that computes the two’s complement.
Booth’s algorithm In Booth’s algorithm, we locate the first 1 starting from the least significant bit (LSB) n Then we invert the rest. 0111 (7) 1001 (-7) 0100 (4) 1100 (-4) 0100 (4) 1011 + 1 1100 (-4) n
Guidelines for two’s complement Your two’s complement design should operate with any size vector. That is to say that you must have a generic for the size of the vector. n Your device should have the following signals control logic, an input vector, and an output vector. Note that you do not have to make your two’s complement synchronous. n
