ELECTRICITY AND MICROHYDRO Wind and Hydro Power Technologies
- Slides: 58
ELECTRICITY AND MICROHYDRO Wind and Hydro Power Technologies Spring 2011
FEATURE PRESENTATION: A SHORT CLASSIC http: //www. youtube. com/watch? v=Ipa. EGhjp. Zg c
CONCEPTS OF ELECTRICITY Electricity is a form of energy that is caused be the flow of electrons through the atoms of a conductor. Flow rate of electrons or the number passing a given point in a circuit per unit time is called current measured in electrons per second
Alternating Current (AC) – The type of electricity where the charge flows in one direction the other direction. EX: Homes, Wind Turbines, Microhydro Turbines, Alternators. Direct Current (DC) - electrons flow in one direction. Example: Batteries, PV modules, Generators http: //www. youtube. com/watch? v=JZj. Mu. IHo. Beg&feature=related
CURRENT Flow rate of electrons or the number passing a given point in a circuit per unit time is called current. Measured in Amps - - --- Count ‘um passing here!
Time Delay? Does it take time for electrons to flow from a switch to a bulb? 10 miles - -- - - Light Bulb
Time Delay? Does it take time for electrons to flow from a switch to a bulb? 10 miles Light Bulb - - - - - - - - -- - - - - -- - - - - NO!! Wire is already full of electrons!
VOLTAGE voltage (Volts, V). Electro-motive force (EMF) or electrical pressure 12 v, 24 v, & 48 v common for DC systems 120 v and much higher are common for AC
Resistance Measure of energy “used up” Depends on the material (and temperature) Resistance: opposition to electron movement Unit: Ohm ( ); Wires: very low resistance (often neglected) Insulators: very high resistance (often assumed to be infinite) As resistance increases, it takes more “push” (voltage) to cause a current I=V/R Ohm’s Law
Power is the rate at which energy is being delivered or consumed Power = (Current)(Voltage) P = IV Units: Watt (W) So if 2 A of current is flowing through a load at 120 V, the Power used by the load is P = IV = (2 A)(120 V) = 240 W
Another Example: A microhydro system is rated at 1000 watts @ 48 VAC What is the amperage that is deliver to the battery? 1 k. W @ 48 volts AC
Another Example: A microhydro system is rated at 1000 watts @ 48 VAC What is the amperage that is deliver to the battery? Power = Amps X Volts 1000 W = ? amps x 48 V 1000 W = amps 48 V Amps = 20. 8 1 k. W @ 48 volts AC
Power Power: Rate at which energy is delivered Power = Energy Time Measured in Watts (W), kilowatts (k. W), or horsepower Power is an instantaneous quantity Power does not accumulate Think gallons per minute
Energy Energy: Ability to do something Measured in kilowatt Hours (k. Whrs) Why? Since Power = Energy/Time, then Power Time = Energy does accumulates over time Think gallons Gallons = (gallons/min) minutes
How does this relate to microhydro? Turbines are linked to generators/alternators Which produce either AC or DC Power. �Used to power a load directly or, �Charge batteries for later use or, �Sell back to the grid for a profit Power has to be transferred from the turbine to the load. We call this the“wire run” More on this later!
Balance Of System
What is the BOS? DC only system (small cabin) Charge controller Batteries Conventional AC system (house) Charge controller Batteries Inverter
Typical Off-Grid Battery Charging System
Off-Grid Batteryless System
Grid-Tie Batteryless System
ie. Xantrex “C” Series Charge Controller • 12, 24, 48 VDC • automatically directs extra power to a dedicated load such as an electric water heater and ensures batteries are never over-charged. Model # is rated DC current Model List Price ($US) C 35 $119. 00 C 40 $159. 00 C 60 $199. 00 www. xantrex. com
Diversion Load, aka Dump Load Usually a resistive load like a heater At least as large as the full turbine output and within the current limit of the charge controller Head lights as dump load for wind turbine
Dump Loads All dump loads place a load on the turbine and transfer the energy to a form of a heater. You have 2 options: �Air heating element �Water heating element
Outback Inverters
Xantrex Inverters
Batteryless Grid-Tie Options Systems available for PV and wind Still a special system for Microhydro Contact Hydro Induction Power www. hipowerhydro. com
Balance of System Design Outline Wire run and its importance Wire run sizing System circuits Battery bank sizing System specs.
Wire Run Need to know the distance from the turbine to the load to: Determine system voltage and design Calculate what type of wire/cable to use How much it will cost.
Good location of turbine to load Turbine Powerhous e
House / Load 2, 000 foot wire run
Why is wire size Important? Incorrect wire size Correctly sized wire: Saves on Installation costs & Conserves resources & Keeps the fire department away!
System Voltage and Design System Voltage can be determined by the wire run distance. Short wire runs can use lower voltage Longer wire runs should user higher voltage System Design and Configuration Larger systems with long wire runs can be AC systems with transformers.

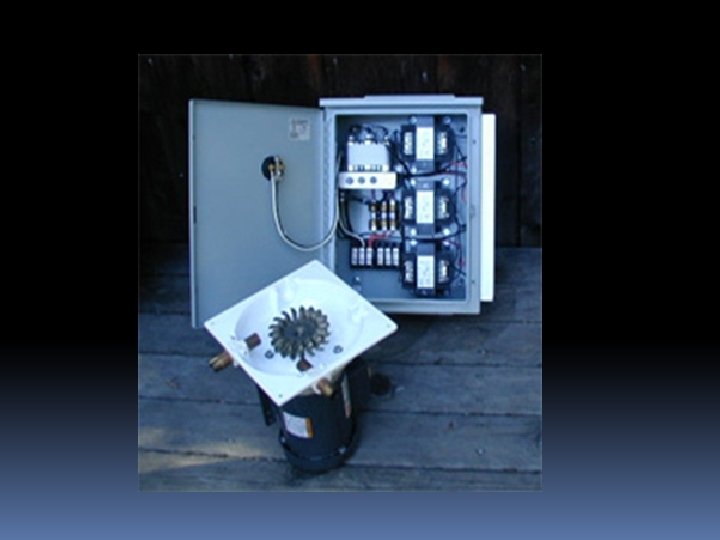

Hydro Induction Power Good for long wire runs, 60' 500' head, 10 - 600 gpm The units produce 3 -Phase 120 V, 240 V, or 480 V 'wild' (unregulated) AC, which is then stepped down to battery voltage. The heavy-duty brushless alternator is housed on the Harris Housing www. hipowerhydro. com HV 600 with 2 Nozzles $2500 HV 600 with 4 Nozzles $2600 HV 1200 with 4 Nozzles $3000 HV 1800 with 4 Nozzles $3500 HV 3600 with 4 Nozzles $5000 Turgo option $600
Electrical Transmission on a large scale Microhydro systems can use this model!
Low voltag AC microhydro diagram Low Voltage AC Hydro Generator Designed Balance of System Step-up Transformer Step-Down Transformer AC Wire Run
Low voltag AC microhydro diagram High Voltage AC Hydro Generator Designed Balance of System Step-Down Transformer AC Wire Run
What do Transformers Do? Transfers electrical energy from one circuit to another with a different voltage. Known as mutual induction How is this beneficial to a microhydro system? Answer: allows for longer wire runs from turbine to the load with lower line
Large Transformers (need cooling)
Wire Run / Wire Sizing Needed information: Distance from turbine to load Voltage of the turbine Max output of the turbine Type of output? AC or DC, 3 phase or single phase. Important Considerations Diameter of wire (American Wire Gauge – AWG) Length of wire Free Air or Conduit Type of insulation on wire Temperature of location where wire located Moisture where wire is located Will conductor be exposed to sunlight Color of insulation Voltage Drop
Ampacity The quantity of electrons or amperes that a conductor can safely carry Factors affecting ampacity �Size (diameter) of wire �Type of wire (copper or aluminum) �Insulation �Temperature
American Wire Gauge (AWG)
Wire Sizing for DC Applications Voltage drop is caused by a conductors electrical resistance This voltage drop can be used to calculate power loss For DC systems – efficiency is paramount! Voltage Drop (Volts) = Electrical Resistance (Ohms) X Current (Amps) Power Loss (Watts) = Voltage Drop (volts) X Current (Amps) Power Loss (Watts) = Ohms X Amps²
VDI Voltage drop Index Easier method for determining wire size What you need to know Amps (Watts/volts) Feet (one-way distance) Acceptable % volt drop Voltage
How to Use Formula and Chart Example: 1 KW, 24 volt system, 50 feet, 3% drop Amps = 1000 watts/ 24 volts = 41. 67 amps VDI = 41. 67 amps * 50 feet = 28. 9 3% * 24 volts
VDI Chart 24 V VDI = 28. 9 2 AWG wire That’s pretty big wire What if we make it a 48 volt system?
How to Use Formula and Chart Example: 1 KW, 48 volt system, 50 feet, 3% drop Amps = 1000 watts/ 48 volts = 20. 8 amps VDI = 20. 8 amps * 50 feet = 7. 23 3% * 48 volts
VDI Chart 48 V VDI = 7. 2 8 AWG wire That’s better (smaller, less $, same losses).
Energy Storage - Batteries
Battery Bank Sizing Battery storage for PV and Wind systems typically require 3 or more days of battery storage Hydro systems run all the time Batteries in a hydro system typically need to store energy for less than a day Often, the battery is sized to provide sufficient current to the inverter rather than an amount of storage
Battery Capacity (Amp-Hours) Battery capacity is rated in amp-hours. 1 amp-hour is the equivalent of drawing 1 amp steadily for one hour, or 2 amps steadily for half an hour.
Series Connections
Parallel Connections
Series & Parallel
Battery Cables
Life Expectancy and cost At least 5 years Often over 10 years or 1500 deep cycles Shipping is expensive Cost is about $200$400 per 6 V battery
Battery Care Don’t discharge beyond 80% Charge at recommended rate Keep batteries at room temperature Use distilled water Size batteries properly Equalize every few months Keep batteries and connections clean
