TESLA Models for All Situations TESLA 4000 TESLA 3000 TESLA LITE

TESLA Hardware Common Features • • • Built on reliable rugged protective relay platform Flash memory - no external storage devices Universal power supply: 48– 250 VDC nominal & 120 AC IRIG-B time sync input Pluggable terminal blocks Modem/Ethernet interfaces Compact 3 rack unit device Front panel indicating LEDs DNP & Modbus SCADA protocol emulations IEC 61850 functionality (excluding TESLA 3000) 10 year warranty

TESLA Models 4000 3000 LITE 36 analog inputs (modules) 64 status inputs 8 control outputs 36/18 analog inputs (modules) 64/32 status inputs 8/4 control outputs 12 CT inputs, 6 PT inputs 38 status inputs 7 control outputs Rear Comm 2 RJ 45 or Optical Ethernet 2 RS 232 Internal modem option IRIG-B 1 RJ 45 Ethernet 2 RS 232 Internal modem option IRIG-B 2 RJ 45 or Optical Ethernet 2 RS 232 Internal modem option IRIG-B Front Comm 1 RJ 45 Ethernet 1 USB 1 RS 232 1 RJ 45 Ethernet 1 USB Memory 4 G Flash Drive On-board Flash I/O

TESLA Input Modules • • • AC voltage, AC current & low signal DC modules Locate up to 1200 meters from TESLA Connect using shielded twisted pair cable Great amount of flexibility during installation Drastically reduce installation costs due to the eliminated need of running CT cables – ideal for retrofits

Multi-Function Power System Monitor & Recorder Digital Fault Recorder DFR Far more than “just” a recorder. Continuous Disturbance Recorder CDR Digital Swing Recorder DSR Sequence of Events Recorder SER Phasor Measurement Unit PMU Long Term Trend Recorder LTR Power Quality Recorder PQR

TESLA Functions 4000 3000 LITE DFR 32 - 384 spc on 36 channels 0. 2 - 15 sec record, extend to 30 spc = Samples Per Cycle 32 - 128 spc on 36 channels 32 - 256 spc on 18 channels 32 - 324 spc on 9 channels 0. 2 - 15 sec record, extend to 30 SER 250 events Circular buffer DSR 1 spc, 30 minute record 1 spc, 15 minute record LTR 60 channels 10 -3600 sec sample rate 90 day storage PQR Standard CDR Standard 1 spc on 36 channels Option 1 spc on 36 channels NA PMU Standard 12 phasors 6 – 60 per second Option 12 phasors 6 – 60 per second NA 96 spc on 18 channels 0. 2 - 10 sec record

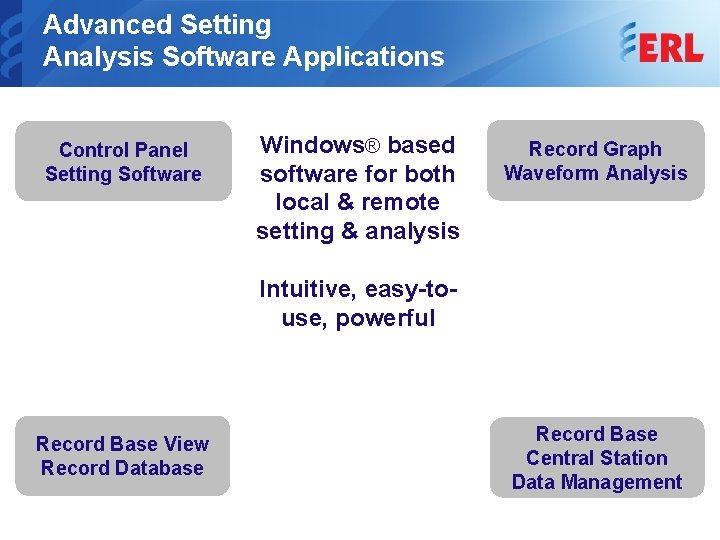

Advanced Setting Analysis Software Applications Control Panel Setting Software Windows® based software for both local & remote setting & analysis Record Graph Waveform Analysis Intuitive, easy-touse, powerful Record Base View Record Database Record Base Central Station Data Management

Why Apply the TESLA Solution? Obtain Valuable System & Operational Info Extremely Easy & Cost Effective Installation Comply With Governing Guidelines Gain Advantages Over Relay Recording

The TESLA Power System Recorder The Complete Power System Solution
