ARC HYDRO GROUNDWATER Data Model and Tools Company
- Slides: 41
ARC HYDRO GROUNDWATER Data Model and Tools
Company Background § Software development § Training § Consulting
Arc Hydro GW Background Extension to Arc Hydro, originally published in 2002 by David Maidment and ESRI Press Data model and tools are developed by Aquaveo in partnership with ESRI
Upcoming Book Published by ESRI Press Due late summer or early fall 2010
Arc Hydro Groundwater TOOLS
Groundwater Analyst Wells Time Series Import Data
Subsurface Analyst Borehole management Borehole visualization Cross-sections Geo. Volumes

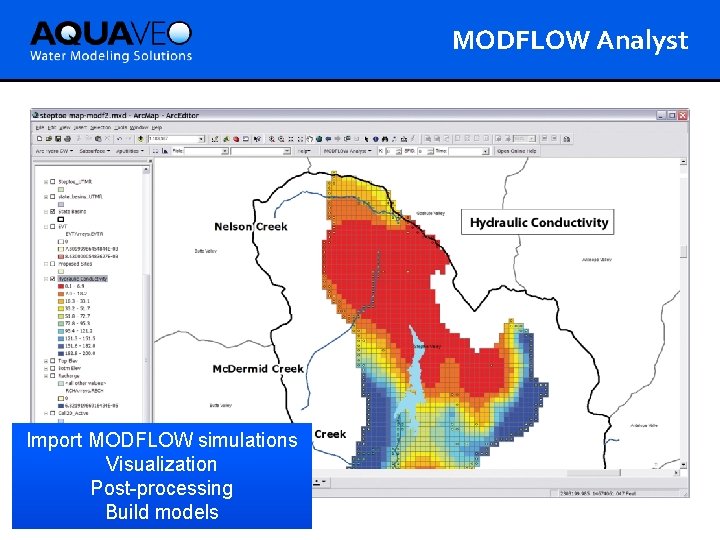

MODFLOW Analyst Import MODFLOW simulations Visualization Post-processing Build models
Arc Hydro Groundwater DATA MODEL

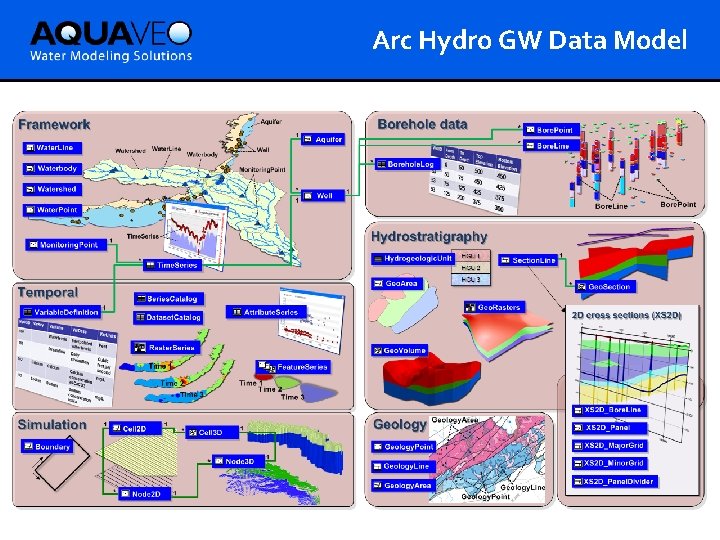

Arc Hydro GW Data Model
Framework Surface water Groundwater Temporal

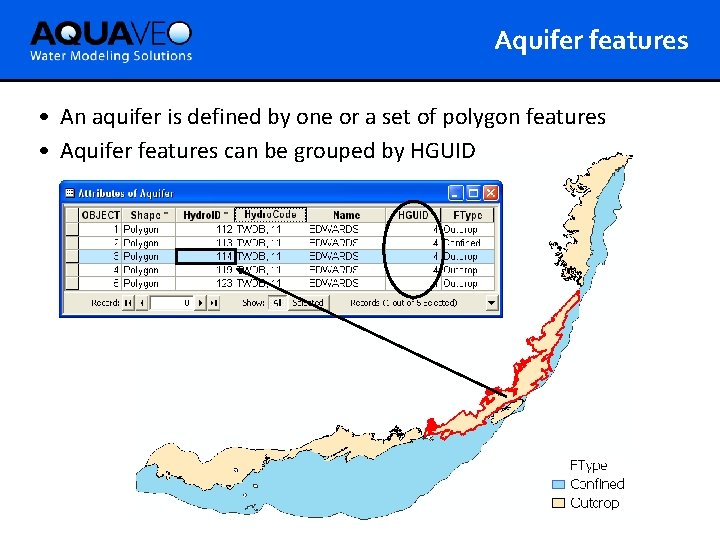

Aquifer features • An aquifer is defined by one or a set of polygon features • Aquifer features can be grouped by HGUID

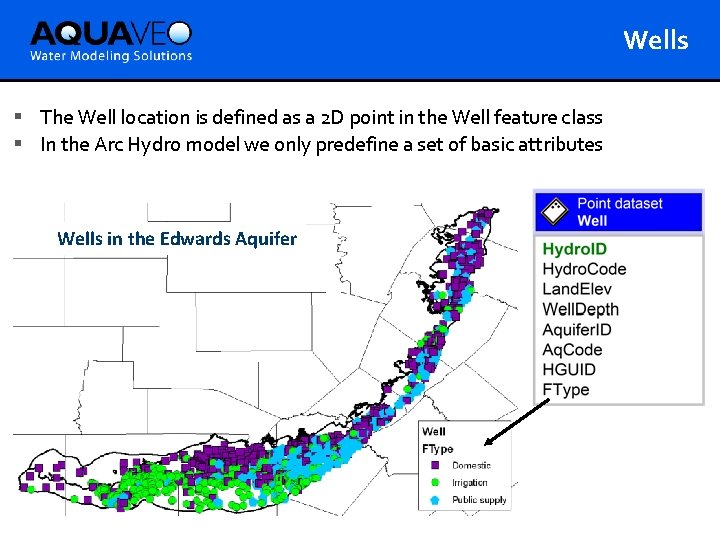

Wells § The Well location is defined as a 2 D point in the Well feature class § In the Arc Hydro model we only predefine a set of basic attributes Wells in the Edwards Aquifer
Aquifer and well Well Hydro. ID = 53

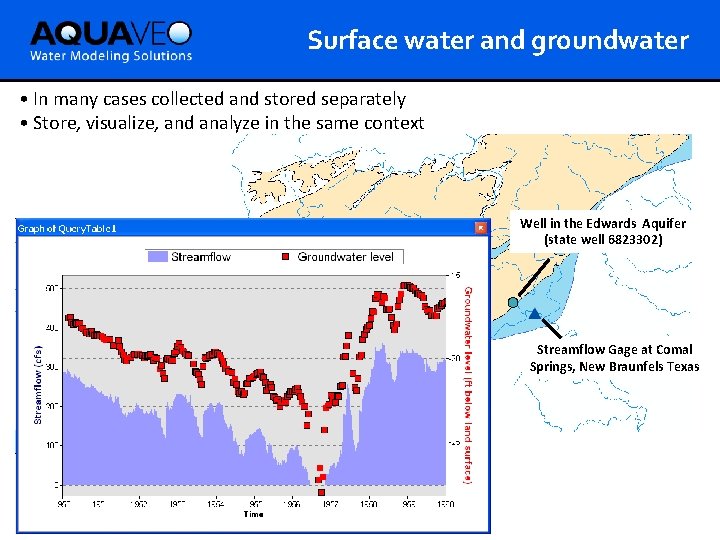

Surface water and groundwater • In many cases collected and stored separately • Store, visualize, and analyze in the same context Well in the Edwards Aquifer (state well 6823302) Streamflow Gage at Comal Springs, New Braunfels Texas
Framework Temporal
Time series views – create graph Well Hydro. ID = 2791 • Feature. ID of the time series = Hydro. ID of the spatial feature (e. g. Well)

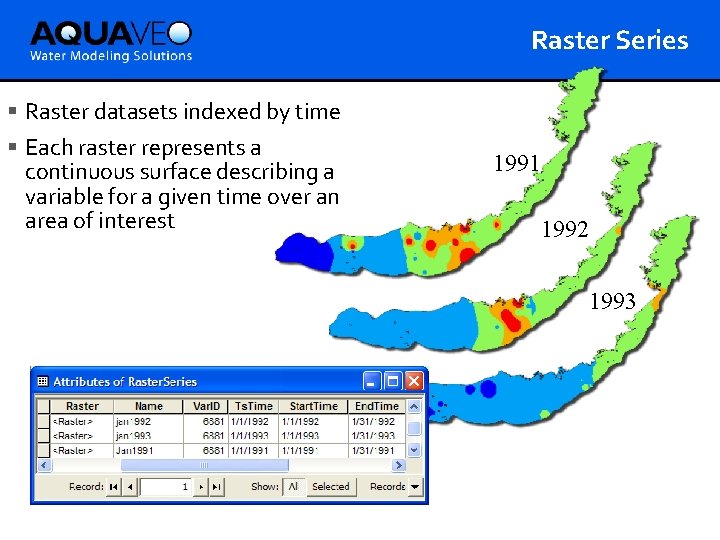

Raster Series § Raster datasets indexed by time § Each raster represents a continuous surface describing a variable for a given time over an area of interest 1991 1992 1993
Arc Hydro Groundwater WELLS AND TIME SERIES DEMO

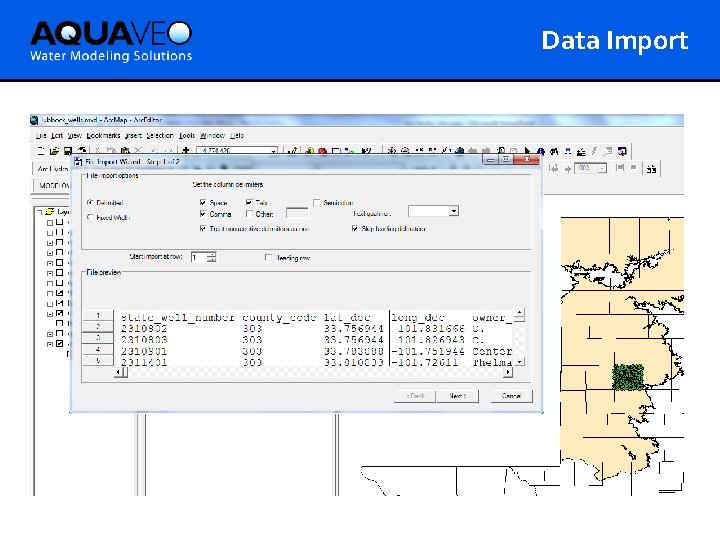

Data Import
Time Series Statistics
Time Series Grapher
Water Level Mapping
Arc Hydro GW Data Model

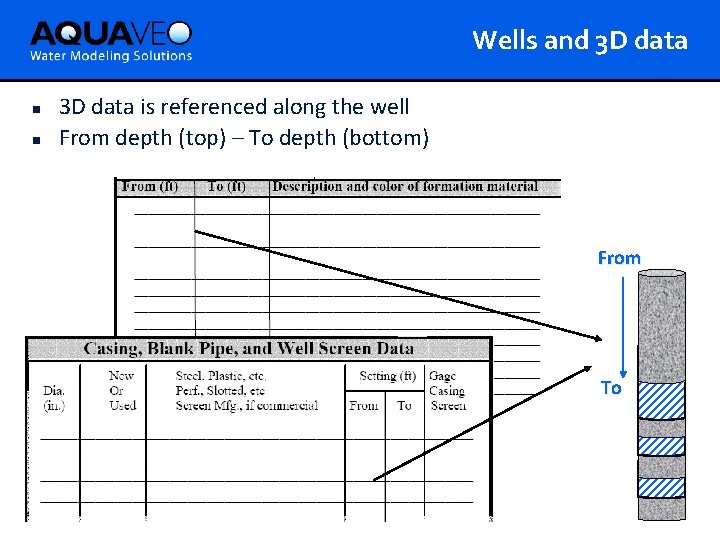

Wells and 3 D data n n 3 D data is referenced along the well From depth (top) – To depth (bottom) From To

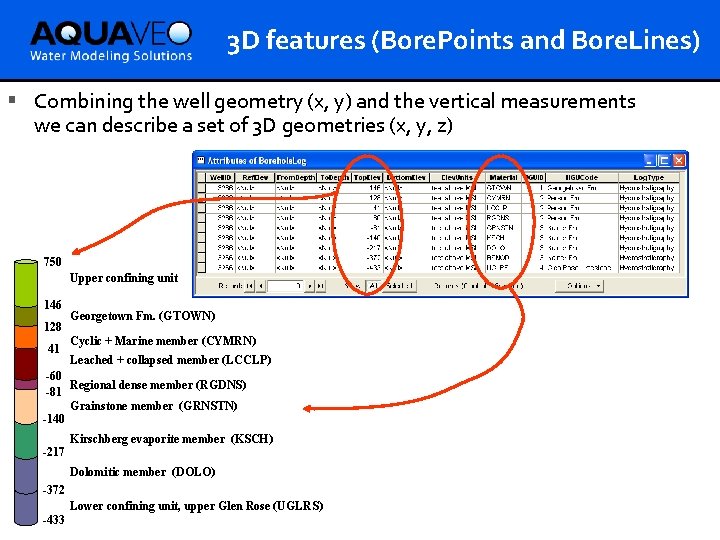

3 D features (Bore. Points and Bore. Lines) § Combining the well geometry (x, y) and the vertical measurements we can describe a set of 3 D geometries (x, y, z) 750 Upper confining unit 146 128 41 Georgetown Fm. (GTOWN) Cyclic + Marine member (CYMRN) Leached + collapsed member (LCCLP) -60 Regional dense member (RGDNS) -81 Grainstone member (GRNSTN) -140 -217 Kirschberg evaporite member (KSCH) Dolomitic member (DOLO) -372 Lower confining unit, upper Glen Rose (UGLRS) -433
3 D Borelines
3 D Borepoints

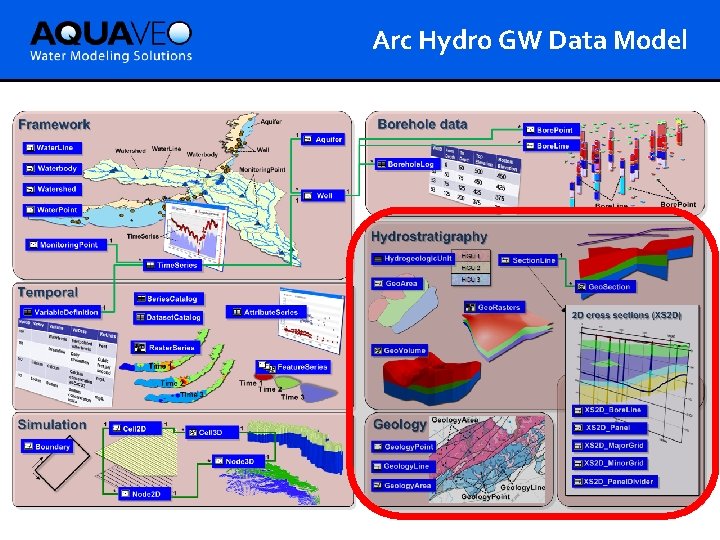

Arc Hydro GW Data Model
Arc Hydro Groundwater HYDROSTRATIGRAPHY DEMO

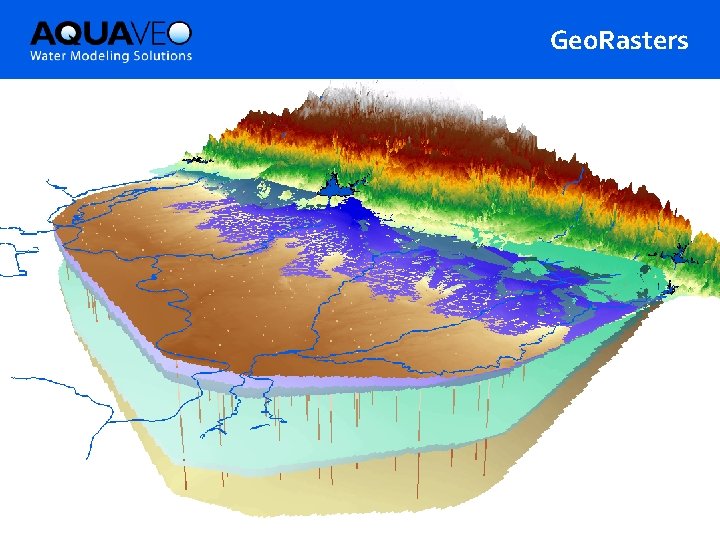

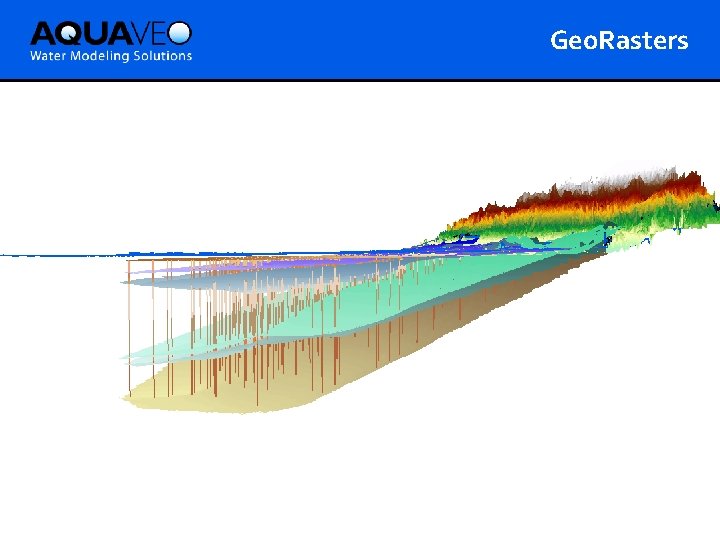

Geo. Rasters
Geo. Rasters
Geo. Volumes

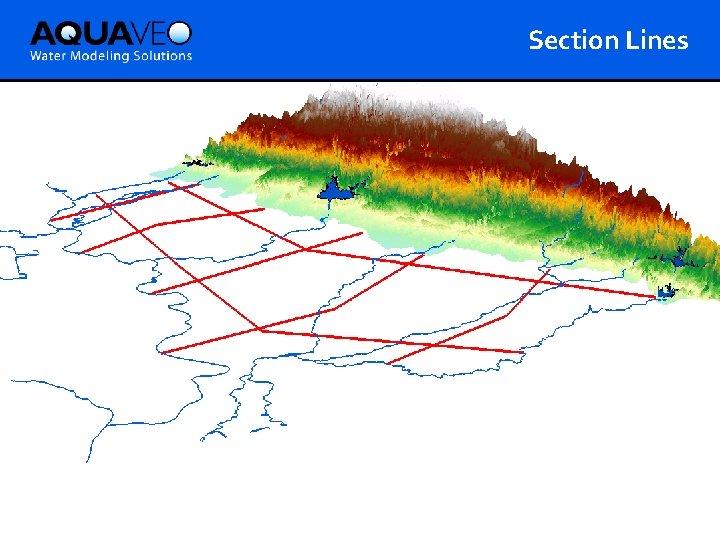

Section Lines

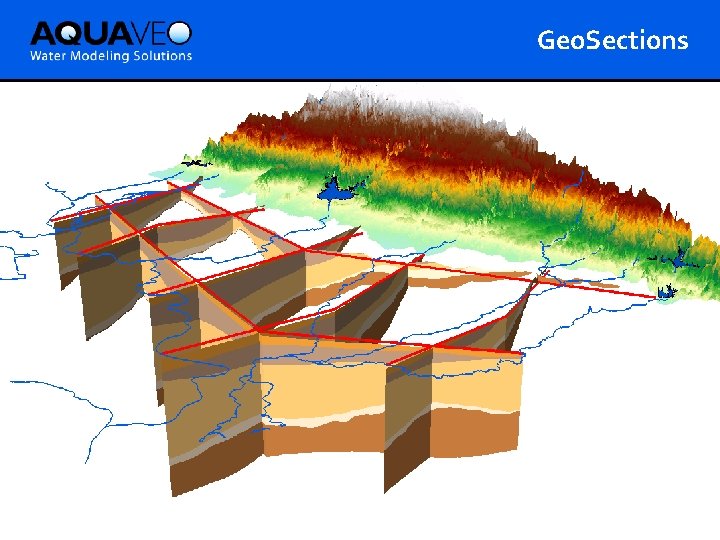

Geo. Sections
3 D 2 D
2 D Cross Section Editing Edit cross sections in Arc. Map Borehole data Outcrop Salt water interface Panel divider Panel
Well Construction Data

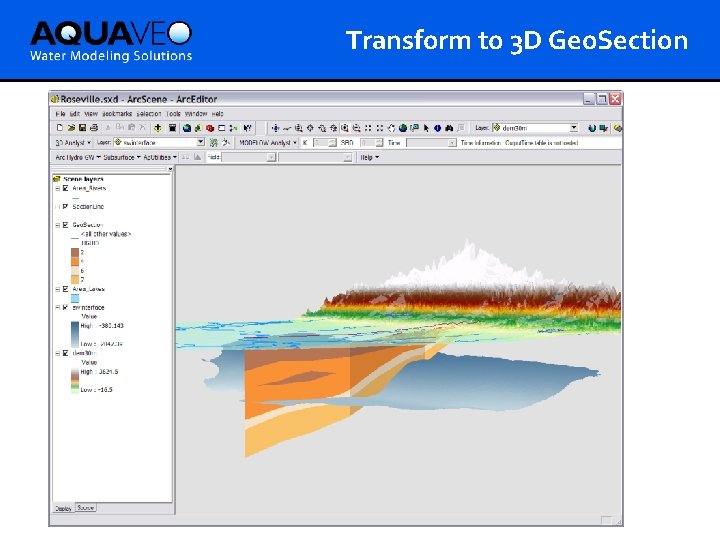

Transform to 3 D Geo. Section

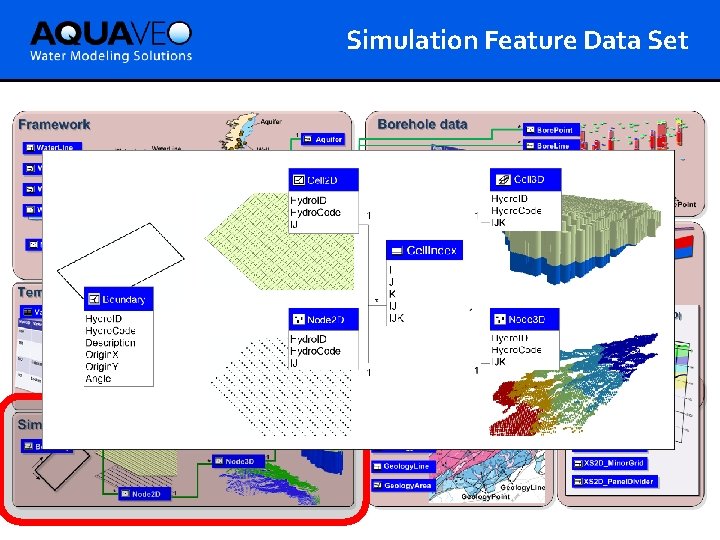

Simulation Feature Data Set
For more information http: //www. archydrogw. com (AHGW Wiki page) http: //www. aquaveo. com/archydro (Info on tools) Norm Jones njones@aquaveo. com
