Chapter 10 graph SANGJI University Kwangman KO kkmansangji

Chapter 10 그래프(graph) SANGJI University Kwangman KO (kkman@sangji. ac. kr)

그래프 표현의 예 V(G 1)= {0, 1, 2, 3}, V(G 2)= {0, 1, 2}, kkman@sangji. ac. kr E(G 1)= {(0, 1), (0, 2), (0, 3), (1, 2), (2, 3)} E(G 3)= {(0, 1), (0, 2))} E(G 2)= {<0, 1>, <1, 0>, <1, 2>} Chap. 10: Graph -10 -

kkman@sangji. ac. kr Chap. 10: Graph -17 -

스텝 탐색한 꼭지점 1 A 2 B, F, G A 3 B, F, H A, G 4 B, F A, G, H 5 B A, G, H, F 6 C, D A, G, H, F, B 7 C, E A, G, H, F, B, D 8 C A, G, H, F, B, D, E 9 kkman@sangji. ac. kr 스택 A, G, H, F, B, D, E, C Chap. 10: Graph -21 -

kkman@sangji. ac. kr Chap. 10: Graph -22 -

스텝 큐 1 A 2 B, F, G A 3 F, G, C, D A, B 4 G, C, D A, B, F 5 C, D, H A, B, F, G 6 D, H A, B, F, G, C 7 H, E A, B, F, G, C, D 8 E A, B, F, G, C, D, H 9 kkman@sangji. ac. kr 탐색한 꼭지점 A, B, F, G, C, D, H, E Chap. 10: Graph -26 -

kkman@sangji. ac. kr Chap. 10: Graph -27 -

BFS 알고리즘 void bfs_mat(Graph. Type *g, int v) { int w; Queue. Type q; init(&q); // 큐 초기화 visited[v] = TRUE; // 정점 v 방문 표시 printf("%d ", v); enqueue(&q, v); // 시작 정점을 큐에 저장 while(!is_empty(&q)){ v = dequeue(&q); // 큐에 정점 추출 for(w=0; w<g->n; w++) // 인접 정점 탐색 if(g->adj_mat[v][w] && !visited[w]){ visited[w] = TRUE; // 방문 표시 printf("%d ", w); enqueue(&q, w); // 방문한 정점을 큐에 저장 } } } kkman@sangji. ac. kr Chap. 10: Graph -28 -

kkman@sangji. ac. kr Chap. 10: Graph -38 -

kkman@sangji. ac. kr Chap. 10: Graph -44 -

kkman@sangji. ac. kr Chap. 10: Graph -51 -

kkman@sangji. ac. kr Chap. 10: Graph -52 -

kkman@sangji. ac. kr Chap. 10: Graph -53 -

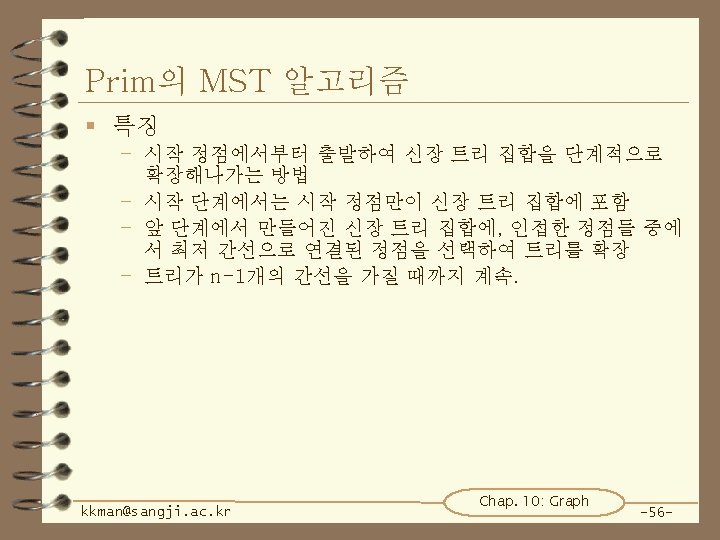

Prim의 MST 알고리즘 kkman@sangji. ac. kr Chap. 10: Graph -58 -

Prim의 MST 알고리즘 kkman@sangji. ac. kr Chap. 10: Graph -59 -

Prim의 MST 알고리즘 kkman@sangji. ac. kr Chap. 10: Graph -60 -

kkman@sangji. ac. kr Chap. 10: Graph -62 -

kkman@sangji. ac. kr Chap. 10: Graph -65 -

kkman@sangji. ac. kr Chap. 10: Graph -67 -

kkman@sangji. ac. kr Chap. 10: Graph -69 -

kkman@sangji. ac. kr Chap. 10: Graph -70 -

kkman@sangji. ac. kr Chap. 10: Graph -71 -

kkman@sangji. ac. kr Chap. 10: Graph -72 -

kkman@sangji. ac. kr Chap. 10: Graph -73 -

kkman@sangji. ac. kr Chap. 10: Graph -74 -

kkman@sangji. ac. kr Chap. 10: Graph -75 -
