Lecture 6 Graph Traversal • Graph • Undirected graph • Directed graph 6/19/2021 Xiaojuan

Lecture 6 Graph Traversal • Graph • Undirected graph • Directed graph 6/19/2021 Xiaojuan Cai 1

Overview • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021 DFS, BFS,

Overview • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021 DFS, BFS, Application Xiaojuan Cai 2

Graph theory The Königsberg Bridge problem (Source from Wikipedia) 6/19/2021 Xiaojuan Cai 3

Graph theory The Königsberg Bridge problem (Source from Wikipedia) 6/19/2021 Xiaojuan Cai 3

Graph terminology Undirected graph 6/19/2021 Directed graph Xiaojuan Cai 5

Graph terminology Undirected graph 6/19/2021 Directed graph Xiaojuan Cai 5

Adjacency Matrix v. s. Adjacency List G=<V, E> Directed: n + m Undirected: n

Adjacency Matrix v. s. Adjacency List G=<V, E> Directed: n + m Undirected: n + 2 m Directed: n 2 Undirected: n 2 For every edge connected with v. . . Is u and v connected with an edge? 6/19/2021 Xiaojuan Cai 6

Important graph problems Path. Is there a directed path from s to t ?

Important graph problems Path. Is there a directed path from s to t ? Shortest path. What is the shortest directed path from s to t ? Topological sort. Can you draw the digraph so that all edges point upwards? Strong connectivity. Is there a directed path between all pairs of vertices? Transitive closure. For each vertices v and w, is there a path from v to w ? 6/19/2021 Xiaojuan Cai 7

Where are we? • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021

Where are we? • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021 DFS, BFS, Application Xiaojuan Cai 8

DFS Depth-first-search. • Unroll a ball of string behind you. • Mark each visited

DFS Depth-first-search. • Unroll a ball of string behind you. • Mark each visited intersection and each visited passage. • Retrace steps when no unvisited options. 6/19/2021 Xiaojuan Cai 9

Maze exploration 6/19/2021 Xiaojuan Cai 10

Maze exploration 6/19/2021 Xiaojuan Cai 10

Depth-first search pre/post = 0/0 u v w 1/ 6 u v 2/ 5

Depth-first search pre/post = 0/0 u v w 1/ 6 u v 2/ 5 x y y 3/4 z z 4/ 1 x w x y v DFS tree u 6/19/2021 Xiaojuan Cai w z 5/ 3 6/2 11

Depth-first search time = 0 u v w pre/post 1/ 12 u v 2/

Depth-first search time = 0 u v w pre/post 1/ 12 u v 2/ 11 x y y 3/10 z z 4/ 5 x w x y v DFS tree u 6/19/2021 Xiaojuan Cai w z 6/ 9 7/8 12

DFS tree: undirected 1/ 6 u How to figure out back edges? v 2/

DFS tree: undirected 1/ 6 u How to figure out back edges? v 2/ 5 • tree edge: • back edge: y 3/4 4/ 1 x DFS tree 6/19/2021 w z 5/ 3 6/2 Xiaojuan Cai 13

6/19/2021 Xiaojuan Cai 14

6/19/2021 Xiaojuan Cai 14

time <-- 0 v. pre <-- infinity v. post <-- infinity time <-- time

time <-- 0 v. pre <-- infinity v. post <-- infinity time <-- time + 1 v. pre <-- time + 1 v. post <-- time 6/19/2021 Xiaojuan Cai 15

Quiz: Complexity Time Undirected 6/19/2021 Adj. Matrix ? Adj. List ? Xiaojuan Cai Space

Quiz: Complexity Time Undirected 6/19/2021 Adj. Matrix ? Adj. List ? Xiaojuan Cai Space ? 16

Complexity Time Undirected 6/19/2021 Adj. Matrix O(|V|2) Adj. List O(|V| + 2|E|) Xiaojuan Cai

Complexity Time Undirected 6/19/2021 Adj. Matrix O(|V|2) Adj. List O(|V| + 2|E|) Xiaojuan Cai Space O(|V|) 17

DFS application? 6/19/2021 Xiaojuan Cai 19

DFS application? 6/19/2021 Xiaojuan Cai 19

Breadth-first search u v w a 1 x x y z u 2 b

Breadth-first search u v w a 1 x x y z u 2 b u v x y w z a b 2 v 3 y z 4 4 w b 5 5 a BFS tree 6/19/2021 Xiaojuan Cai 20

6/19/2021 Xiaojuan Cai 21

6/19/2021 Xiaojuan Cai 21

Quiz: Complexity Time Adj. Matrix ? Undirected ? Adj. List 6/19/2021 Space Xiaojuan Cai

Quiz: Complexity Time Adj. Matrix ? Undirected ? Adj. List 6/19/2021 Space Xiaojuan Cai ? 22

Complexity Time Adj. Matrix 2 O(|V| ) Undirected O(|V|) Adj. List 6/19/2021 Space O(|V|

Complexity Time Adj. Matrix 2 O(|V| ) Undirected O(|V|) Adj. List 6/19/2021 Space O(|V| + 2|E|) Xiaojuan Cai 23

BFS Application: The shortest u path u v w a x v y x

BFS Application: The shortest u path u v w a x v y x y z b z w b a Discussion: How to record the shortest path? 6/19/2021 Xiaojuan Cai 24

6/19/2021 Xiaojuan Cai 26

6/19/2021 Xiaojuan Cai 26

w. parent <-- v 6/19/2021 Xiaojuan Cai 27

w. parent <-- v 6/19/2021 Xiaojuan Cai 27

Connectivity #trees == #connected components 6/19/2021 Xiaojuan Cai 28

Connectivity #trees == #connected components 6/19/2021 Xiaojuan Cai 28

Graph acyclicity NO back edges! 6/19/2021 Xiaojuan Cai 29

Graph acyclicity NO back edges! 6/19/2021 Xiaojuan Cai 29

Where are we? • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021

Where are we? • Graph • Undirected graph ‣ • Directed graph ‣ 6/19/2021 DFS, BFS, Application Xiaojuan Cai 30

DFS tree: directed time = 0 u v w 1/ 8 w u 9/12

DFS tree: directed time = 0 u v w 1/ 8 w u 9/12 v 2/ 7 x y z y 4/ 5 x z 10/ 11 3/6 x DFS trees y zv w u 6/19/2021 Xiaojuan Cai 31

DFS tree 1/ 8 w u • tree edge: 9/12 • back edge: 10/

DFS tree 1/ 8 w u • tree edge: 9/12 • back edge: 10/ 11 • forward edge: • cross edge: z v 2/ 7 y 4/ 5 6/19/2021 x 3/6 type edge(u, v) tree [u [v ]v ]u back [v [u ]u ]v forward [u [v ]v ]u cross [v ]v [u ]u Xiaojuan Cai 32

Quiz Run DFS on the following graph. Which type are the following edges: CB,

Quiz Run DFS on the following graph. Which type are the following edges: CB, DC, FC (Whenever you have a choice of vertices to explore, always pick the one that is alphabetically first. ) A. tree edge C. forward edge B. back edge D. cross edge

Application: Garbage collector Mark-sweep algorithm. [Mc. Carthy, 1960] • Mark: mark all reachable objects.

Application: Garbage collector Mark-sweep algorithm. [Mc. Carthy, 1960] • Mark: mark all reachable objects. • Sweep: if object is unmarked, it is garbage (so add to free list). Memory cost. Uses 1 extra mark bit per object (plus DFS stack). roots DFS needs O(|V|) space. How to do Mark-sweep with O(1) space? 6/19/2021 Xiaojuan Cai 34

Graph acyclicity NO back edges! A directed acyclic graph is usually called a DAG.

Graph acyclicity NO back edges! A directed acyclic graph is usually called a DAG. 6/19/2021 Xiaojuan Cai 35

Graph acyclicity 1/ 8 w u • tree edge: 9/12 • back edge: 10/

Graph acyclicity 1/ 8 w u • tree edge: 9/12 • back edge: 10/ 11 • forward edge: • cross edge: z v 2/ 7 y 4/ 5 3/6 x An edge (u, v) is a back edge iff post(u) < post(v) 6/19/2021 type edge(u, v) tree [u [v ]v ]u back [v [u ]u ]v forward [u [v ]v ]u cross [v ]v [u ]u Xiaojuan Cai 36

Applications 6/19/2021 Xiaojuan Cai 37

Applications 6/19/2021 Xiaojuan Cai 37

DAG: Topological sort Problem: Topo. Sort Input: A DAG (directed acyclic graph) G =

DAG: Topological sort Problem: Topo. Sort Input: A DAG (directed acyclic graph) G = (V , E ) Output: A linear ordering of its vertices in such a way that if (v, w) ∈ E, then v appears before w in the ordering. 6/19/2021 Xiaojuan Cai 38

Topological order 6/19/2021 Xiaojuan Cai 39

Topological order 6/19/2021 Xiaojuan Cai 39

Topological sort by DFS Proposition In DAG, every edge (u, v) yields post[v] <

Topological sort by DFS Proposition In DAG, every edge (u, v) yields post[v] < post[u]. 1/ 8 w u • tree edge: 9/12 • back edge: 10/ 11 • forward edge: • cross edge: z v 2/ 7 y 4/5 6/19/2021 x 3/6 type edge(u, v) tree [u [v ]v ]u back [v [u ]u ]v forward [u [v ]v ]u cross [v ]v [u ]u Xiaojuan Cai 40

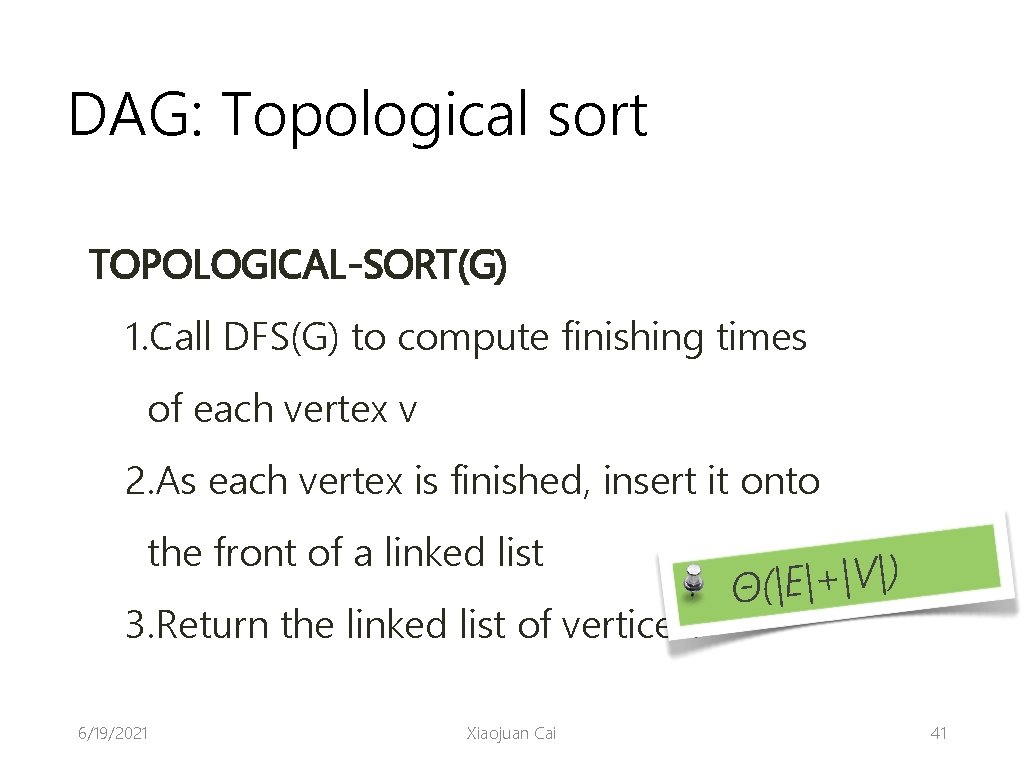

DAG: Topological sort TOPOLOGICAL-SORT(G) 1. Call DFS(G) to compute finishing times of each vertex

DAG: Topological sort TOPOLOGICAL-SORT(G) 1. Call DFS(G) to compute finishing times of each vertex v 2. As each vertex is finished, insert it onto the front of a linked list 3. Return the linked list of vertices. 6/19/2021 Xiaojuan Cai ) | V | + | E | ( Θ 41

Connectivity #trees == #connected components 6/19/2021 u v w x y z Xiaojuan Cai

Connectivity #trees == #connected components 6/19/2021 u v w x y z Xiaojuan Cai ? 43

Strong connected components 6/19/2021 Xiaojuan Cai 44

Strong connected components 6/19/2021 Xiaojuan Cai 44

Ecological food webs http: //www. twingroves. district 96. k 12. il. us/Wetlands/Salamander/Sal. Graphics/salfoodweb. gif

Ecological food webs http: //www. twingroves. district 96. k 12. il. us/Wetlands/Salamander/Sal. Graphics/salfoodweb. gif 6/19/2021 Xiaojuan Cai 45

Strong connected components Lemma Every directed graph is a DAG of its strongly connected

Strong connected components Lemma Every directed graph is a DAG of its strongly connected component. 6/19/2021 Xiaojuan Cai 46

Some properties Property 1 If dfs is started at node u, then it will

Some properties Property 1 If dfs is started at node u, then it will terminate precisely when all nodes reachable from u have been visited. Property 2 The node that receives the highest post number in DFS must lie in a source strongly connected component. Property 3 If C and C′ are scc, and there is an edge from a node in C to a node in C′, then the highest post number in C is bigger than the highest post number in C′. 6/19/2021 Xiaojuan Cai 47

Kosaraju-Sharir algorithm Reversed graph 6/19/2021 Xiaojuan Cai 48

Kosaraju-Sharir algorithm Reversed graph 6/19/2021 Xiaojuan Cai 48

Kosaraju-Sharir algorithm 1. Run DFS on GR. 2. Run the undirected connected components algorithm

Kosaraju-Sharir algorithm 1. Run DFS on GR. 2. Run the undirected connected components algorithm on G, and during the DFS, process the vertices in decreasing order of their post numbers from step 1. ) | V | + | E | Θ( 6/19/2021 Xiaojuan Cai 49

Tarjan’s algorithm (briefly) • //color[u] = 0: unvisited; 1: visited and in Stack, 2:

Tarjan’s algorithm (briefly) • //color[u] = 0: unvisited; 1: visited and in Stack, 2: visited and not in Stack • try all vertex u, if color[u] = 0, DFS(u) • DFS(u): • • • Push u into stack, color[u] = 1, pre[u], low[u] = ++time try all neighbor v of u if color[v] = 0, DFS(v), low[u] = min{low[u], low[v]} else if color[v] = 1, low[u] = min{low[u], pre[v]} if low[u]==pre[u] • Pop v from stack, color[v] = 2, until v=u;

BFS, DFS applications 6/19/2021 Xiaojuan Cai 53

BFS, DFS applications 6/19/2021 Xiaojuan Cai 53

BFS, DFS applications BFS. • Choose root web page as source s. • Maintain

BFS, DFS applications BFS. • Choose root web page as source s. • Maintain a Queue of websites to explore. • Maintain a SET of discovered websites. • Dequeue the next website and enqueue websites to which it links (provided you haven't done so before). 6/19/2021 Xiaojuan Cai 54

BFS, DFS applications • Vertex: pixel. • Edge: between two adjacent gray pixels. •

BFS, DFS applications • Vertex: pixel. • Edge: between two adjacent gray pixels. • Blob: all pixels connected to given pixel. 6/19/2021 Xiaojuan Cai 55

BFS, DFS applications roots Every data structure is a digraph. • Vertex = object.

BFS, DFS applications roots Every data structure is a digraph. • Vertex = object. • Edge = reference. Roots. Objects known to be directly accessible by program (e. g. , stack). Reachable objects. Objects indirectly accessible by program (starting at a root and following a chain of pointers). 6/19/2021 Xiaojuan Cai 56

BFS, DFS applications Every program is a digraph. • Vertex = basic block of

BFS, DFS applications Every program is a digraph. • Vertex = basic block of instructions • Edge = jump. Dead-code elimination. Find (and remove) unreachable code. Infinite-loop detection. Determine whether exit is unreachable. 6/19/2021 Xiaojuan Cai 57

Quiz Which of the following statements are true for undirected graph? A. If u

Quiz Which of the following statements are true for undirected graph? A. If u is connected to v and v is connected to w, then u is connected to w. B. Removing any edge from a connected graph G breaks the graph into two connected components. C. An acyclic graph G is connected if and only if it has V-1 edges. D. If you add two edges to a graph G, its number of components can decrease by at most 2.

Quiz Which of the following statements are true for directed graph? A. A digraph

Quiz Which of the following statements are true for directed graph? A. A digraph on V vertices with fewer than V edges contains more than one strong component. B. If we modify the Kosaraju-Sharir algorithm to replace the second DFS with BFS, then it will still find the strong components. C. If u is strongly connected to v and v is strongly connected to w, then u is strongly connected to w. D. If you add two edges to a digraph, its number of strong components can decrease by at most 2.

Challenges 6/19/2021 Xiaojuan Cai 60

Challenges 6/19/2021 Xiaojuan Cai 60

Challenge 1 0 Problem. Is a graph bipartite? How difficult? • Any programmer could

Challenge 1 0 Problem. Is a graph bipartite? How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 student. • Hire an expert. • Intractable. • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 1 2 3 0 -1 0 -2 0 -5 0 -6 1 -3 2 -4 4 -5 4 -6 6 4 5 0 1 2 3 0 -1 0 -2 0 -5 0 -6 1 -3 2 -4 4 -5 4 -6 6 4 5 61

Challenge 1 0 Problem. Is a graph bipartite? How difficult? • Any programmer could

Challenge 1 0 Problem. Is a graph bipartite? How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 ✓ student. • Hire an expert. • Intractable. • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 1 2 3 0 -1 0 -2 0 -5 0 -6 1 -3 2 -4 4 -5 4 -6 6 4 5 0 1 2 3 0 -1 0 -2 0 -5 0 -6 1 -3 2 -4 4 -5 4 -6 6 4 5 62

Challenge 2 0 Problem. Find a cycle. 1 How difficult? • Any programmer could

Challenge 2 0 Problem. Find a cycle. 1 How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 ✓ student. • Hire an expert. • Intractable. • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 2 3 0 -1 0 -2 0 -5 0 -6 1 -3 2 -4 4 -5 4 -6 6 4 5 0 1 2 3 6 4 5 63

Challenge 3 Problem. Find a cycle that uses every edge exactly once. (Eulerian tour)

Challenge 3 Problem. Find a cycle that uses every edge exactly once. (Eulerian tour) How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 ✓ student. • Hire an expert. • Intractable. • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 0 1 2 3 5 0 -1 -2 -3 -4 -2 -0 -6 -4 -5 -0 6 4 0 -1 0 -2 0 -5 0 -6 1 -2 2 -3 2 -4 3 -4 4 -5 4 -6 64

Challenge 4 Problem. Find a cycle that uses every vertex exactly once. (Hamiltonian tour)

Challenge 4 Problem. Find a cycle that uses every vertex exactly once. (Hamiltonian tour) How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 student. • Hire an expert. • Intractable. ✓ • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 0 1 2 3 5 0 -5 -3 -4 -6 -2 -1 -0 6 4 0 -1 0 -2 0 -5 0 -6 1 -2 2 -6 3 -4 3 -5 4 -6 65

Challenge 5 Problem. Are two graphs identical except for vertex names? (Graph isomorphism) How

Challenge 5 Problem. Are two graphs identical except for vertex names? (Graph isomorphism) How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 student. • Hire an expert. • Intractable. • No one knows. ✓ • Impossible. 0 1 2 3 0 -1 0 -2 0 -5 0 -6 3 -4 3 -5 4 -6 6 4 5 0 -4 0 -5 0 -6 1 -4 1 -5 2 -4 3 -4 5 -6 3 2 4 6 1 5 0 6/19/2021 Xiaojuan Cai 0↔ 4, 1↔ 3, 2↔ 2, 3↔ 6, 4↔ 5, 5↔ 0, 6↔ 1 66

Challenge 6 Problem. Lay out a graph in the plane without crossing edges? How

Challenge 6 Problem. Lay out a graph in the plane without crossing edges? How difficult? • Any programmer could do it. • Need to be a typical diligent SE 222 student. • Hire an expert. ✓ • Intractable. • No one knows. • Impossible. 6/19/2021 Xiaojuan Cai 0 -1 0 -2 0 -5 0 -6 3 -4 3 -5 4 -6 1 2 0 6 3 4 5 0 1 2 3 6 4 5 67
