Chapter 1 Matter and Change 1 Section 1

Chapter 1 “Matter and Change” 1

Section 1. 3 Properties of Matter Ø OBJECTIVES: –Define physical property, and list several common physical properties of substances. –Distinguish between matter and substances 2

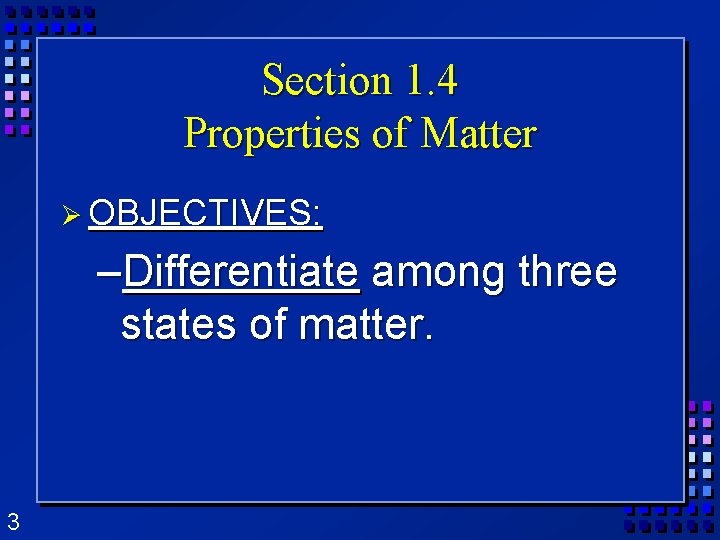

Section 1. 4 Properties of Matter Ø OBJECTIVES: –Differentiate among three states of matter. 3

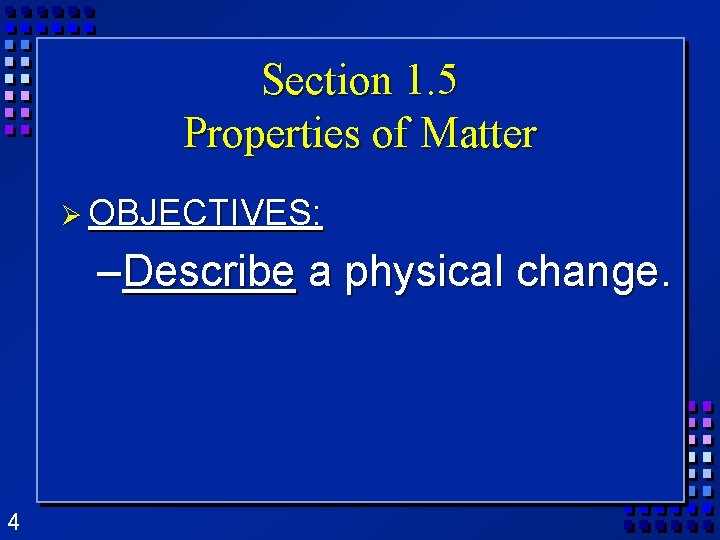

Section 1. 5 Properties of Matter Ø OBJECTIVES: –Describe a physical change. 4

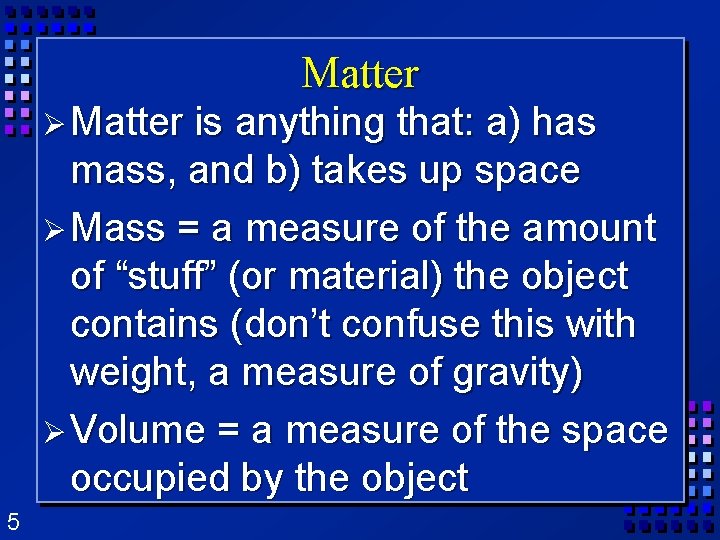

Matter Ø Matter is anything that: a) has mass, and b) takes up space Ø Mass = a measure of the amount of “stuff” (or material) the object contains (don’t confuse this with weight, a measure of gravity) Ø Volume = a measure of the space occupied by the object 5

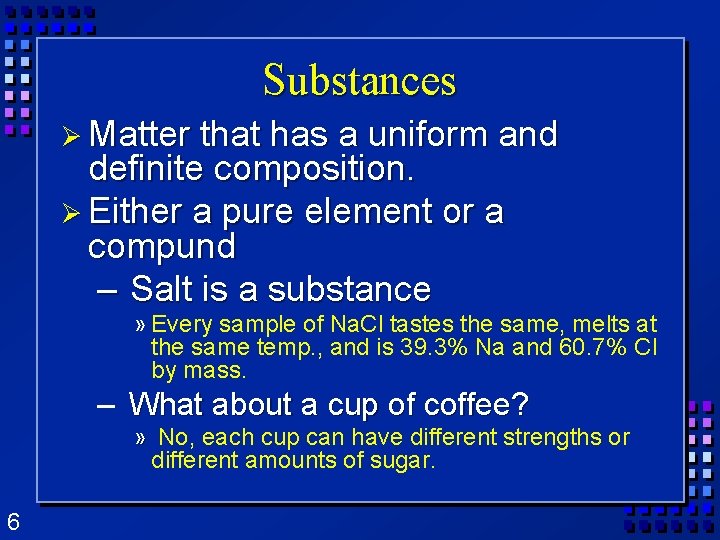

Substances Ø Matter that has a uniform and definite composition. Ø Either a pure element or a compund – Salt is a substance » Every sample of Na. Cl tastes the same, melts at the same temp. , and is 39. 3% Na and 60. 7% Cl by mass. – What about a cup of coffee? » No, each cup can have different strengths or different amounts of sugar. 6

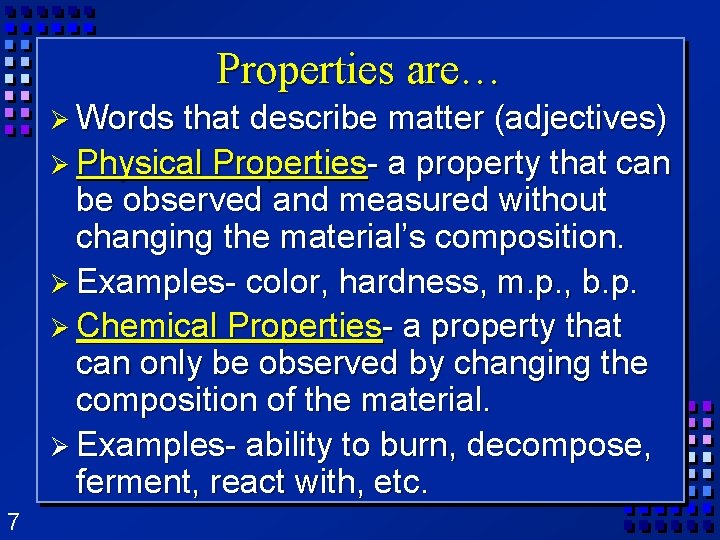

Properties are… Ø Words that describe matter (adjectives) Ø Physical Properties- a property that can be observed and measured without changing the material’s composition. Ø Examples- color, hardness, m. p. , b. p. Ø Chemical Properties- a property that can only be observed by changing the composition of the material. Ø Examples- ability to burn, decompose, ferment, react with, etc. 7

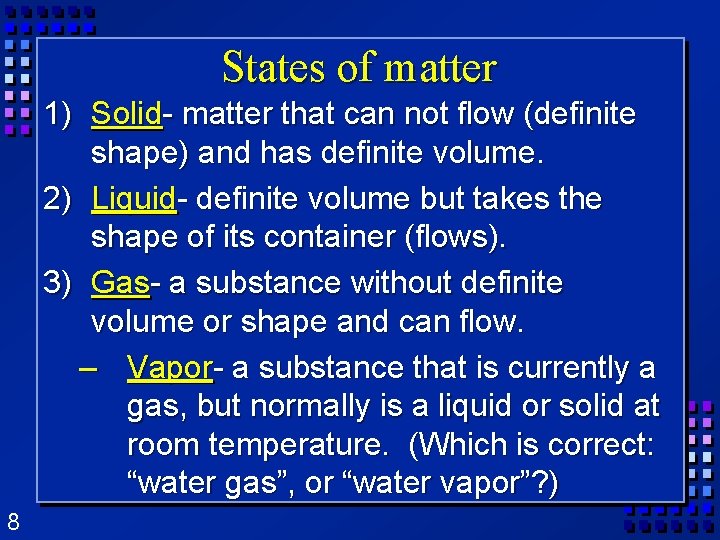

States of matter 1) Solid- matter that can not flow (definite shape) and has definite volume. 2) Liquid- definite volume but takes the shape of its container (flows). 3) Gas- a substance without definite volume or shape and can flow. – Vapor- a substance that is currently a gas, but normally is a liquid or solid at room temperature. (Which is correct: “water gas”, or “water vapor”? ) 8

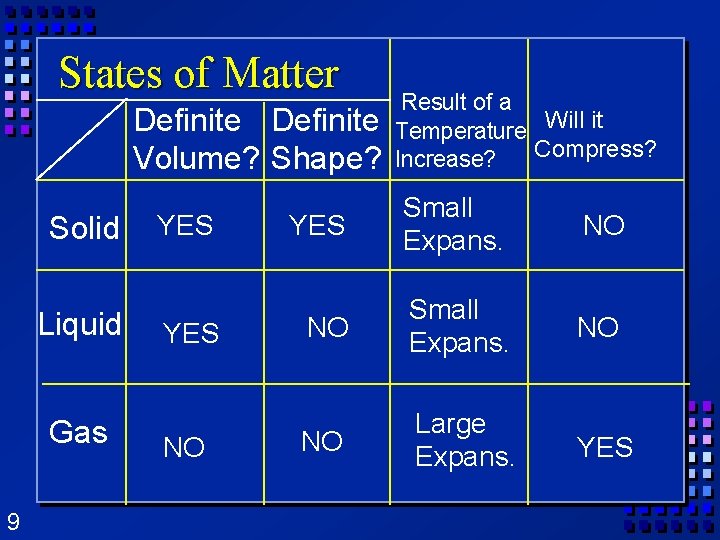

States of Matter Definite Volume? Shape? Solid Liquid Gas 9 YES NO Result of a Temperature Will it Compress? Increase? YES Small Expans. NO NO Large Expans. YES

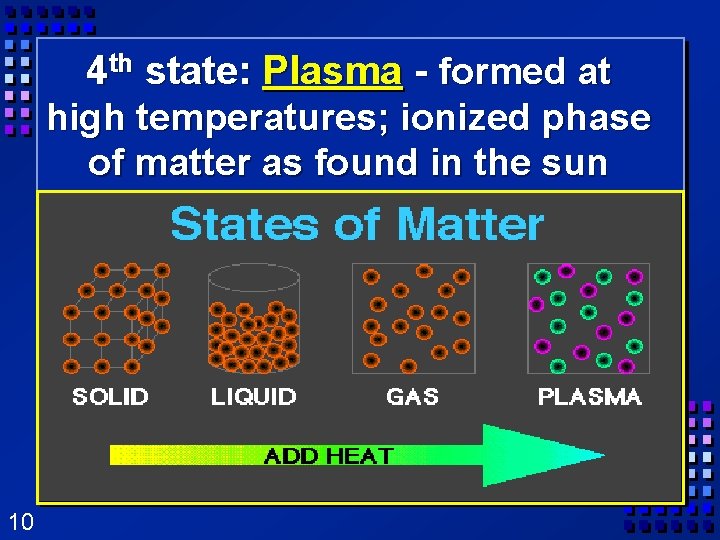

4 th state: Plasma - formed at high temperatures; ionized phase of matter as found in the sun 10

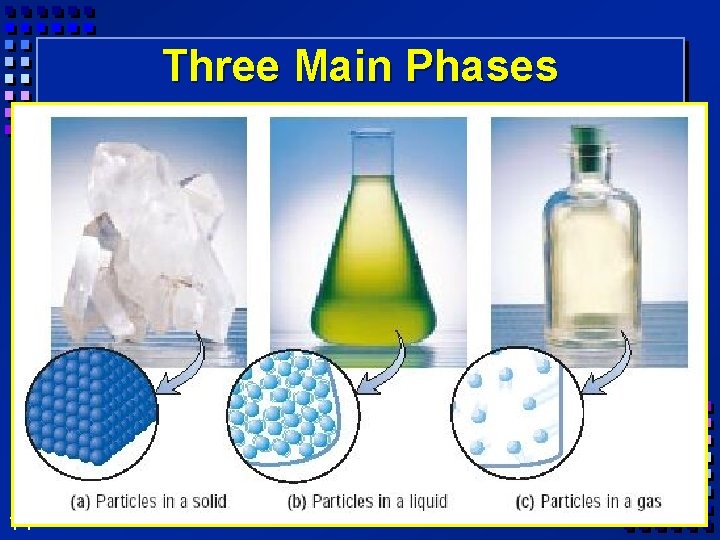

Three Main Phases 11

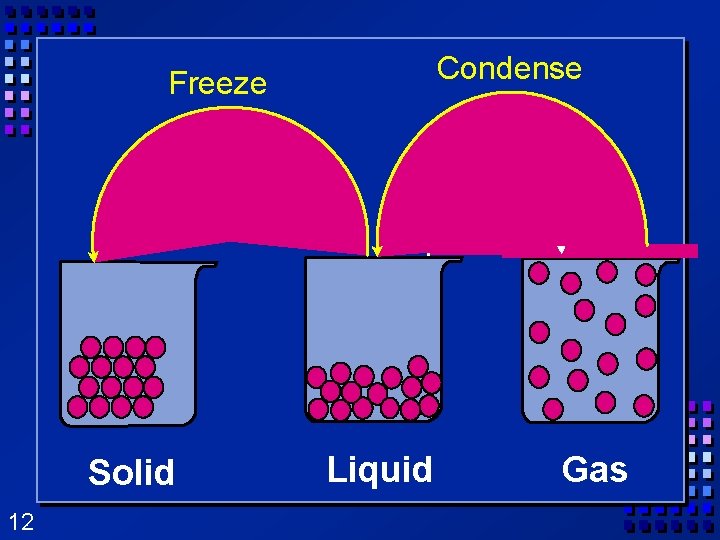

Condense Freeze Evaporate Melt Solid 12 Liquid Gas

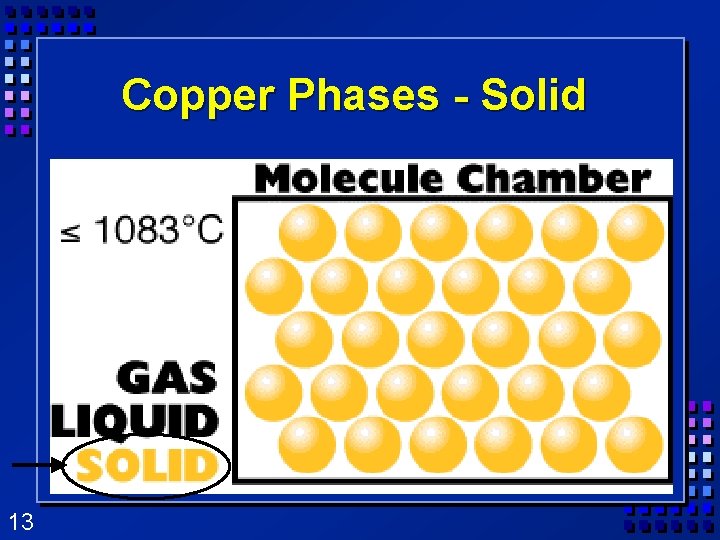

Copper Phases - Solid 13

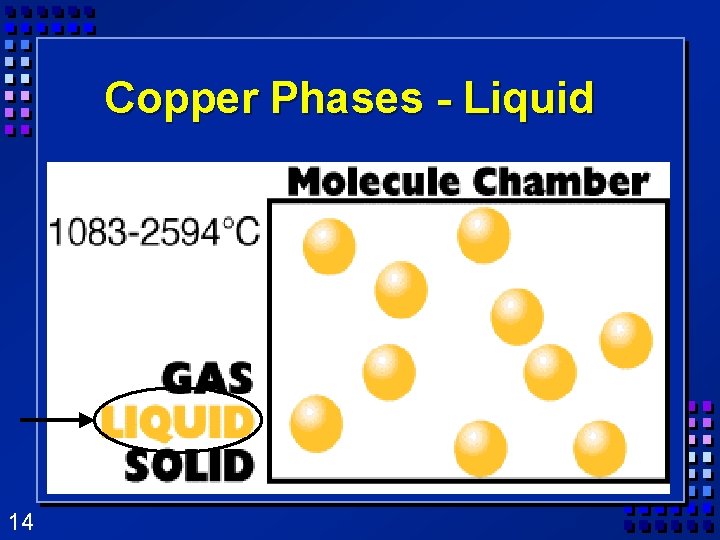

Copper Phases - Liquid 14

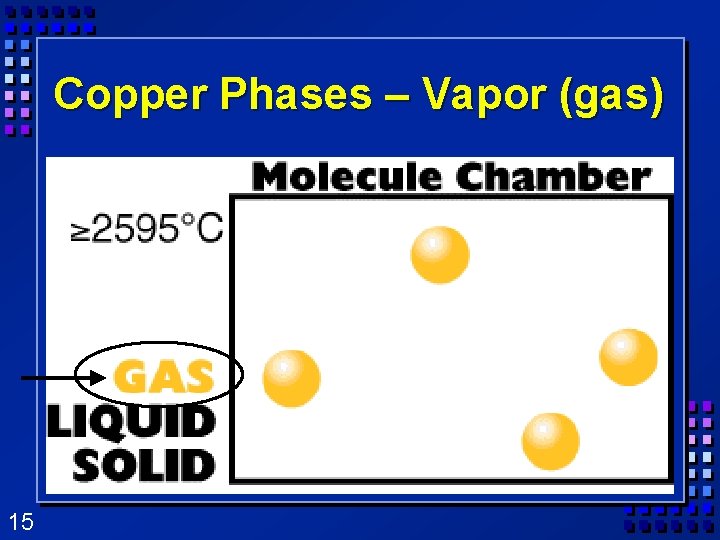

Copper Phases – Vapor (gas) 15

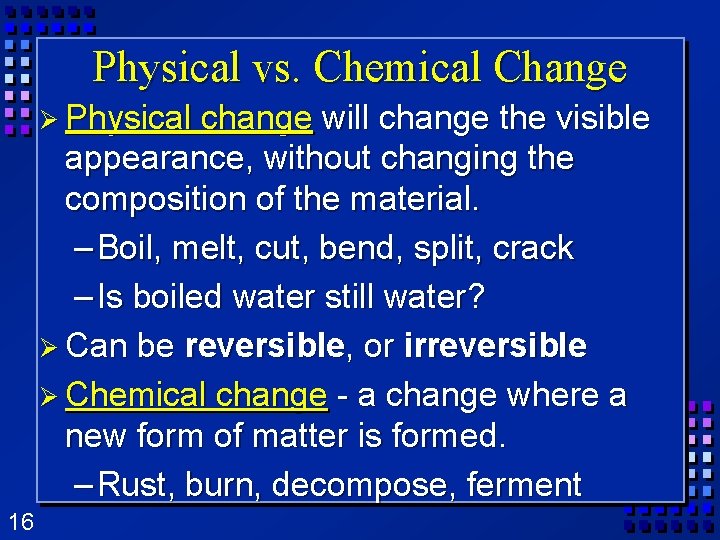

Physical vs. Chemical Change Ø Physical change will change the visible appearance, without changing the composition of the material. – Boil, melt, cut, bend, split, crack – Is boiled water still water? Ø Can be reversible, or irreversible Ø Chemical change - a change where a new form of matter is formed. – Rust, burn, decompose, ferment 16

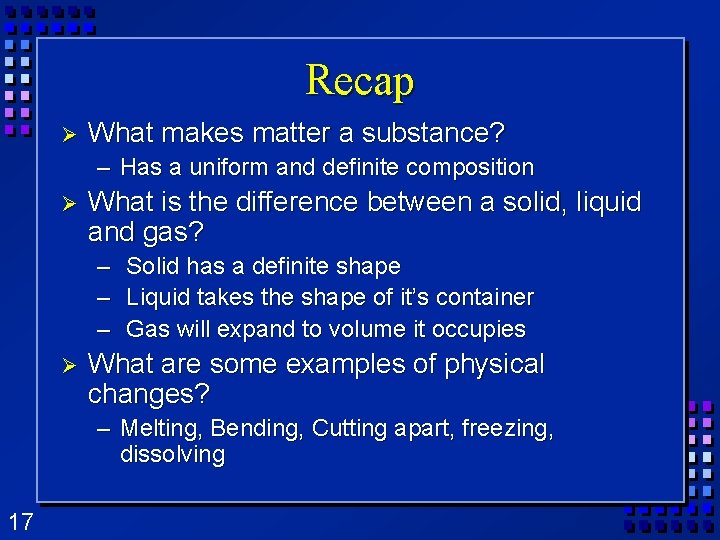

Recap Ø What makes matter a substance? – Has a uniform and definite composition Ø What is the difference between a solid, liquid and gas? – Solid has a definite shape – Liquid takes the shape of it’s container – Gas will expand to volume it occupies Ø What are some examples of physical changes? – Melting, Bending, Cutting apart, freezing, dissolving 17

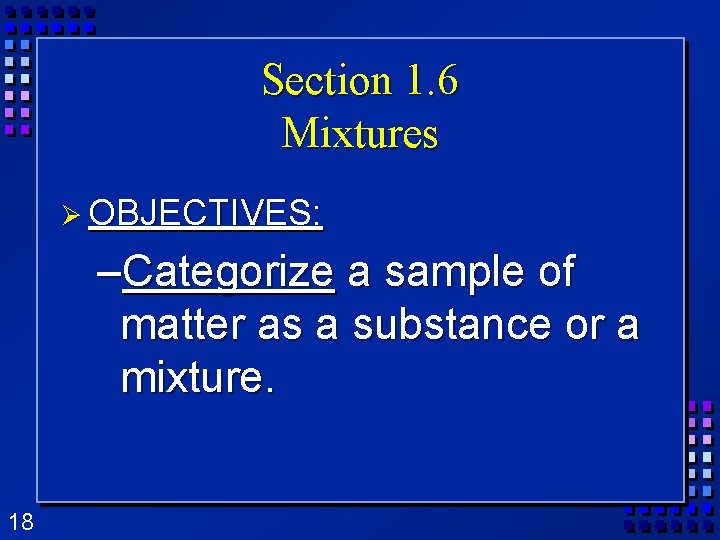

Section 1. 6 Mixtures Ø OBJECTIVES: –Categorize a sample of matter as a substance or a mixture. 18

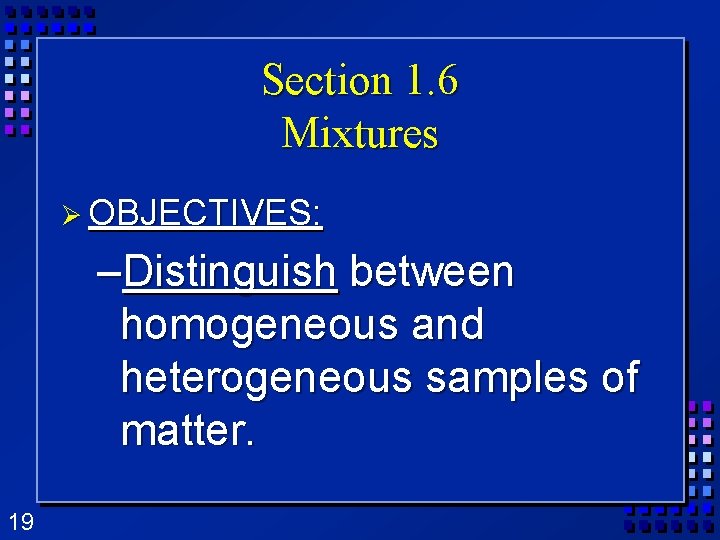

Section 1. 6 Mixtures Ø OBJECTIVES: –Distinguish between homogeneous and heterogeneous samples of matter. 19

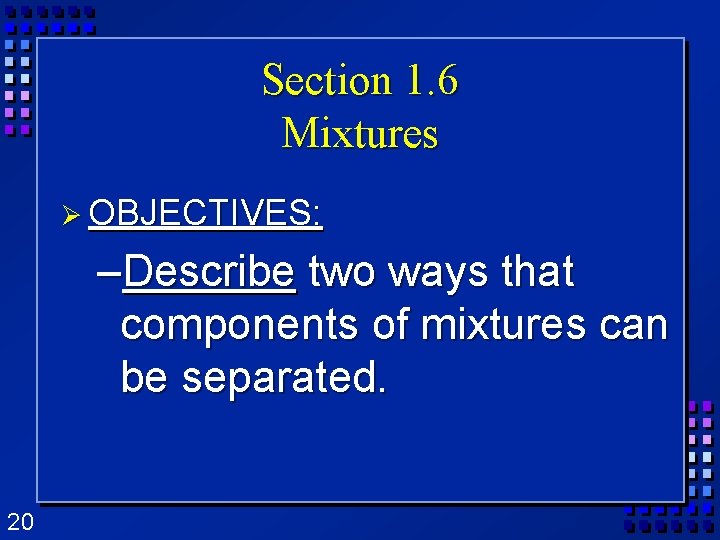

Section 1. 6 Mixtures Ø OBJECTIVES: –Describe two ways that components of mixtures can be separated. 20

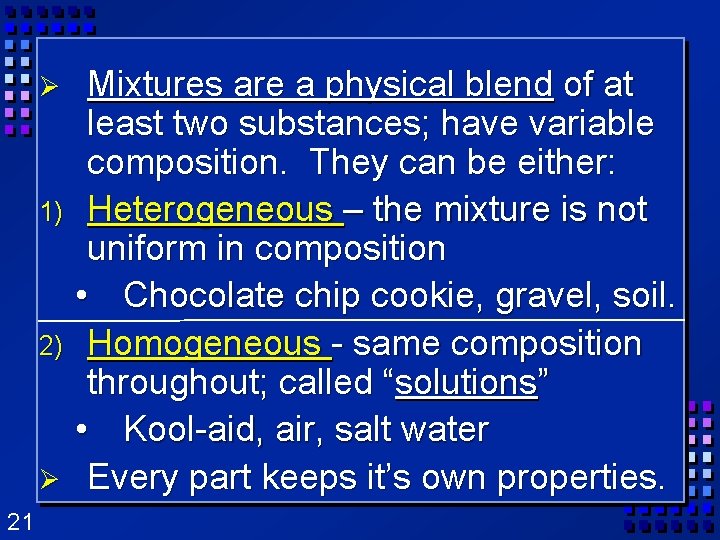

Mixtures are a physical blend of at least two substances; have variable composition. They can be either: 1) Heterogeneous – the mixture is not uniform in composition • Chocolate chip cookie, gravel, soil. 2) Homogeneous - same composition throughout; called “solutions” • Kool-aid, air, salt water Ø Every part keeps it’s own properties. Ø 21

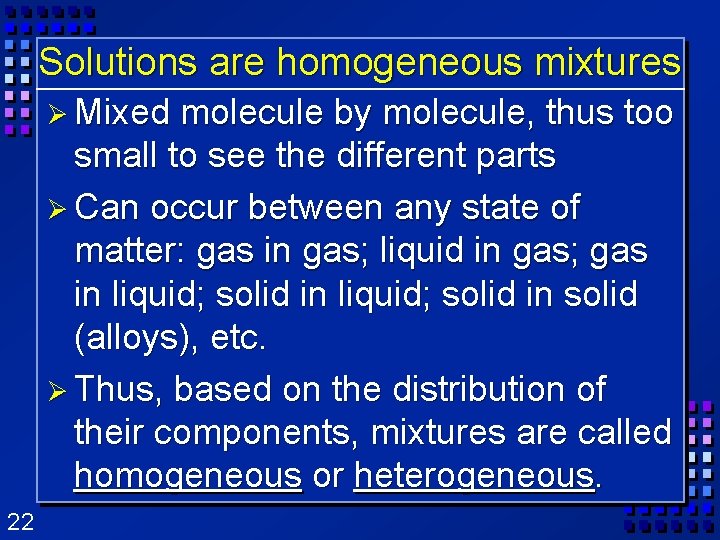

Solutions are homogeneous mixtures Ø Mixed molecule by molecule, thus too small to see the different parts Ø Can occur between any state of matter: gas in gas; liquid in gas; gas in liquid; solid in solid (alloys), etc. Ø Thus, based on the distribution of their components, mixtures are called homogeneous or heterogeneous. 22

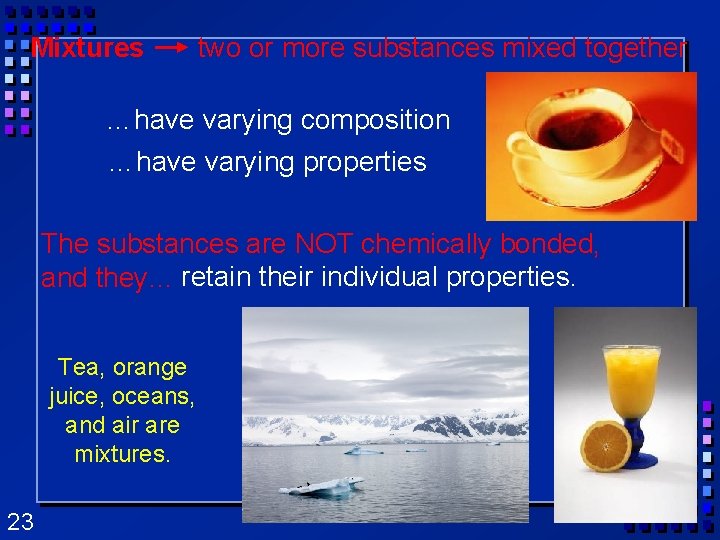

Mixtures two or more substances mixed together …have varying composition …have varying properties The substances are NOT chemically bonded, and they… retain their individual properties. Tea, orange juice, oceans, and air are mixtures. 23

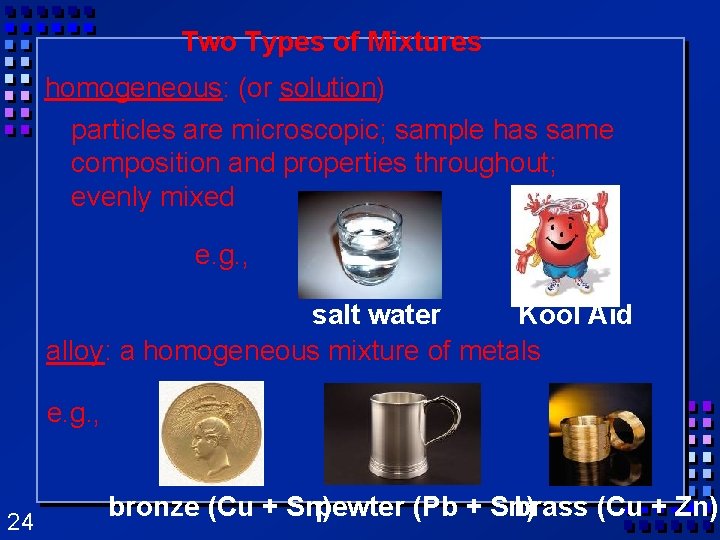

Two Types of Mixtures homogeneous: (or solution) particles are microscopic; sample has same composition and properties throughout; evenly mixed e. g. , salt water Kool Aid alloy: a homogeneous mixture of metals e. g. , 24 bronze (Cu + Sn) pewter (Pb + Sn) brass (Cu + Zn)

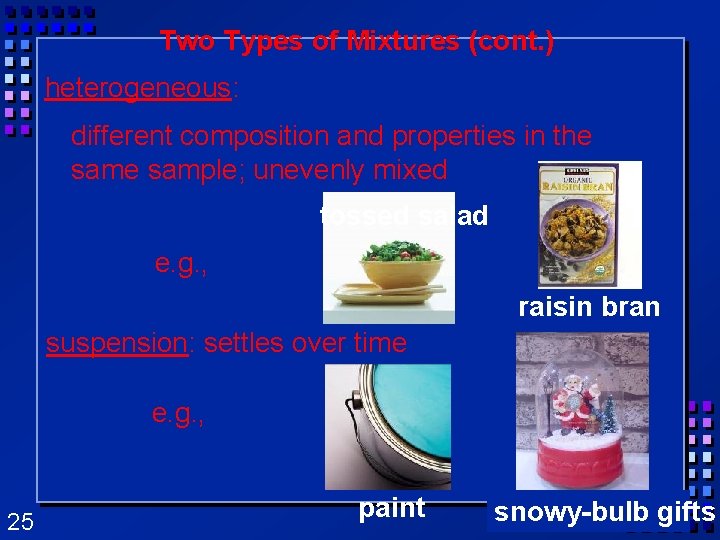

Two Types of Mixtures (cont. ) heterogeneous: different composition and properties in the sample; unevenly mixed tossed salad e. g. , raisin bran suspension: settles over time e. g. , 25 paint snowy-bulb gifts

Contrast… 24 K GOLD 24/24 atoms are gold 14/24 atoms are gold pure gold mixture of gold & copper element homogeneous mixture Au + Cu Au 26 14 K GOLD

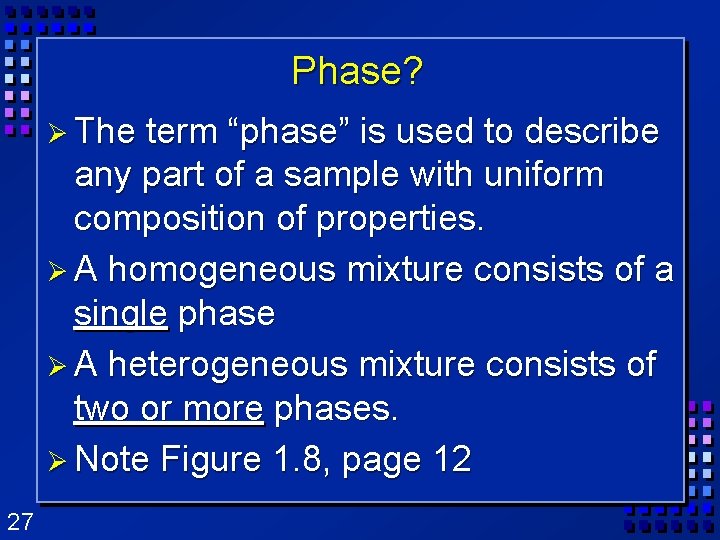

Phase? Ø The term “phase” is used to describe any part of a sample with uniform composition of properties. Ø A homogeneous mixture consists of a single phase Ø A heterogeneous mixture consists of two or more phases. Ø Note Figure 1. 8, page 12 27

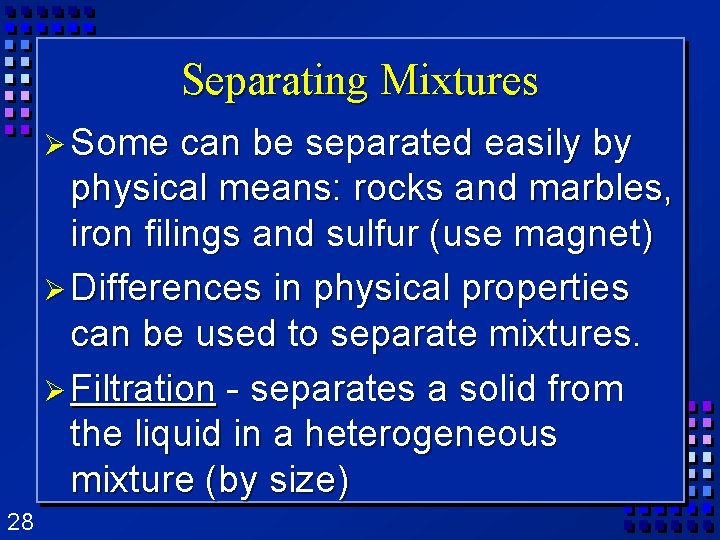

Separating Mixtures Ø Some can be separated easily by physical means: rocks and marbles, iron filings and sulfur (use magnet) Ø Differences in physical properties can be used to separate mixtures. Ø Filtration - separates a solid from the liquid in a heterogeneous mixture (by size) 28

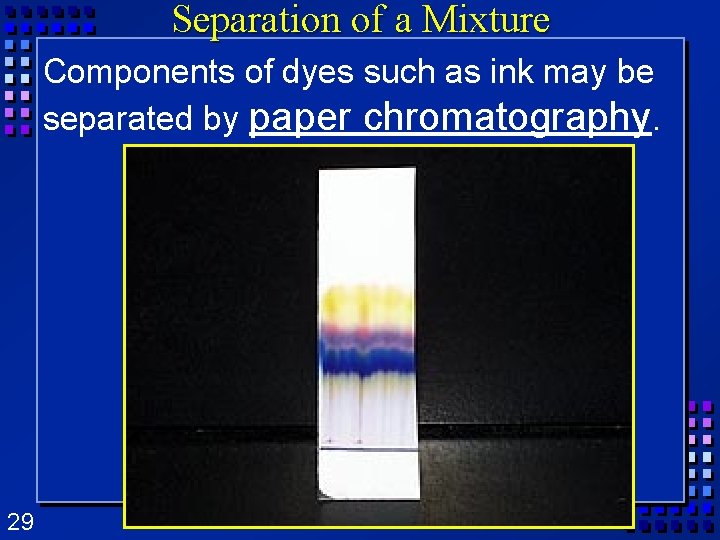

Separation of a Mixture Components of dyes such as ink may be separated by paper chromatography. 29

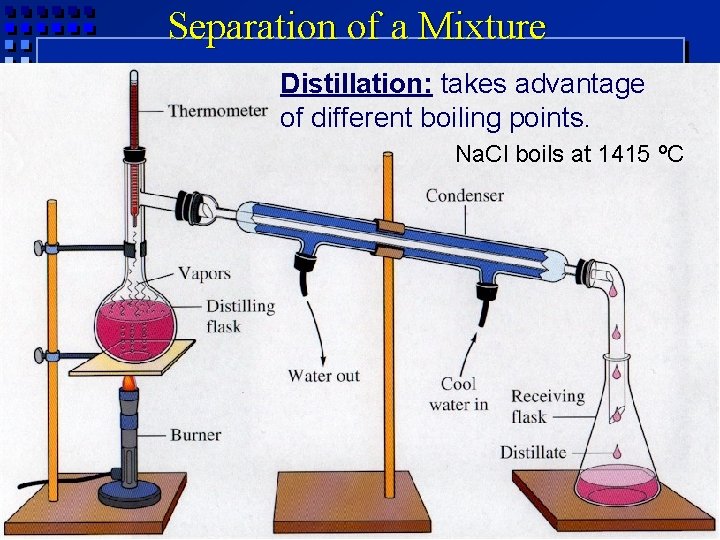

Separation of a Mixture Distillation: takes advantage of different boiling points. Na. Cl boils at 1415 o. C 30

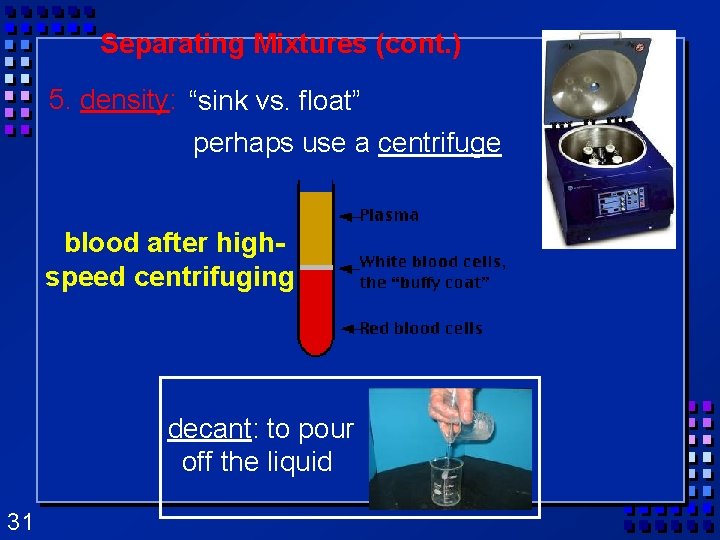

Separating Mixtures (cont. ) 5. density: “sink vs. float” perhaps use a centrifuge blood after highspeed centrifuging decant: to pour off the liquid 31

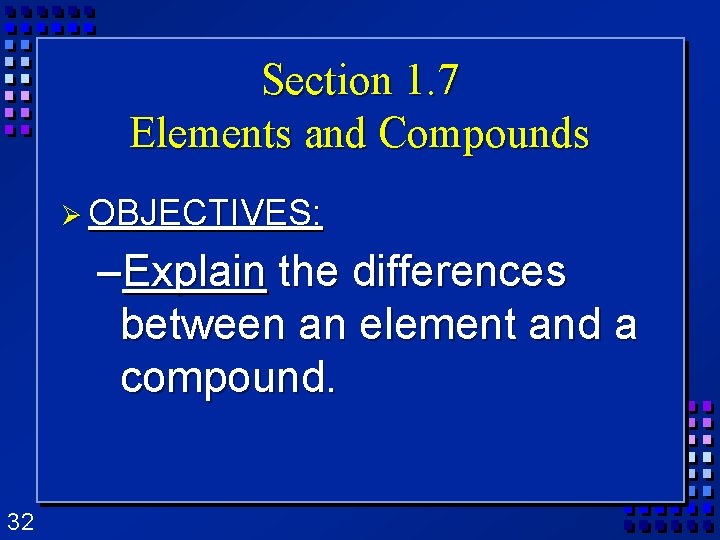

Section 1. 7 Elements and Compounds Ø OBJECTIVES: –Explain the differences between an element and a compound. 32

Section 1. 7 Elements and Compounds Ø OBJECTIVES: –Distinguish between a substance and a mixture. 33

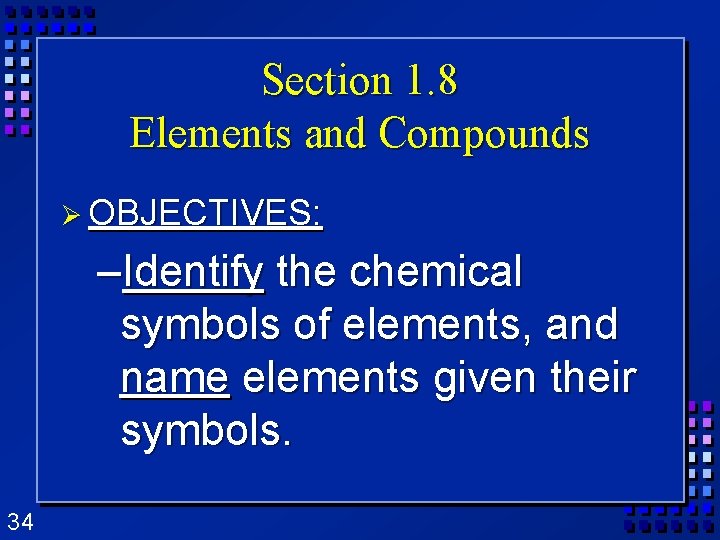

Section 1. 8 Elements and Compounds Ø OBJECTIVES: –Identify the chemical symbols of elements, and name elements given their symbols. 34

Substances are either: a) elements, or b) compounds 35

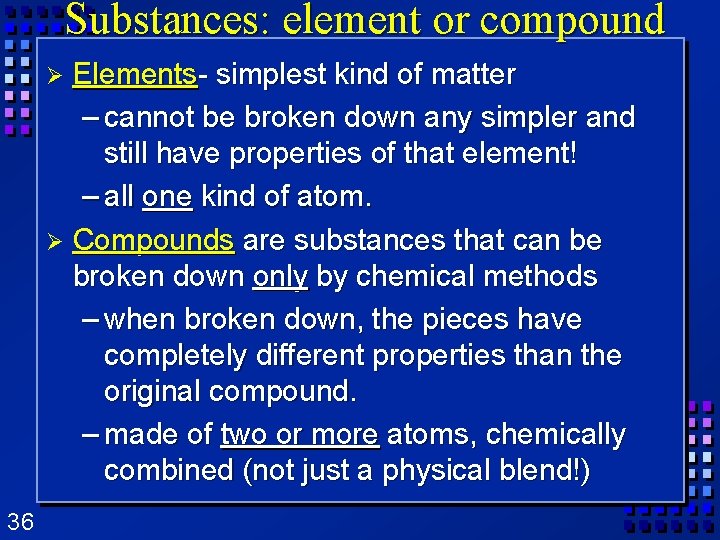

Substances: element or compound Elements- simplest kind of matter – cannot be broken down any simpler and still have properties of that element! – all one kind of atom. Ø Compounds are substances that can be broken down only by chemical methods – when broken down, the pieces have completely different properties than the original compound. – made of two or more atoms, chemically combined (not just a physical blend!) Ø 36

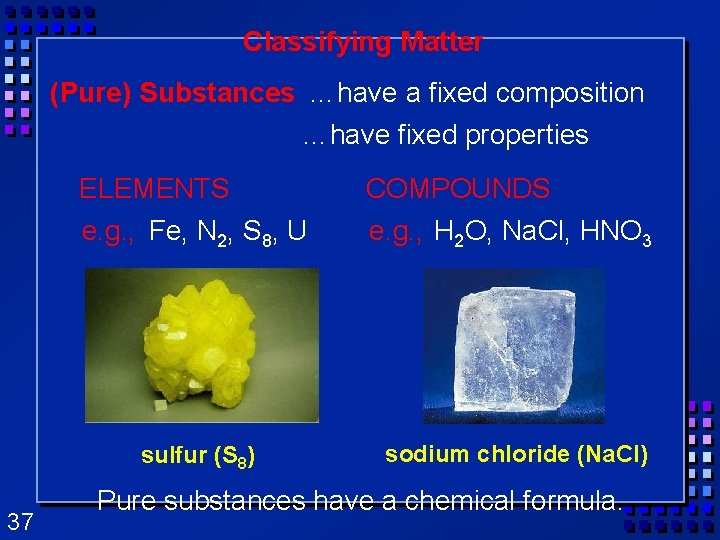

Classifying Matter (Pure) Substances …have a fixed composition …have fixed properties 37 ELEMENTS COMPOUNDS e. g. , Fe, N 2, S 8, U e. g. , H 2 O, Na. Cl, HNO 3 sulfur (S 8) sodium chloride (Na. Cl) Pure substances have a chemical formula.

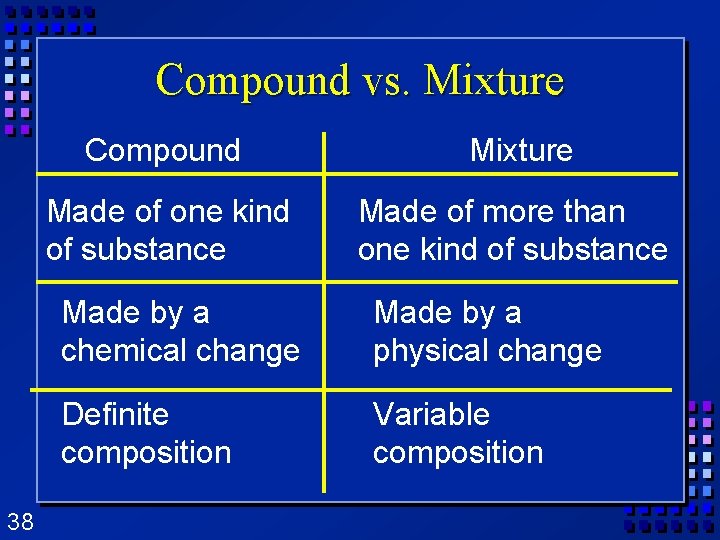

Compound vs. Mixture 38 Compound Mixture Made of one kind of substance Made of more than one kind of substance Made by a chemical change Made by a physical change Definite composition Variable composition

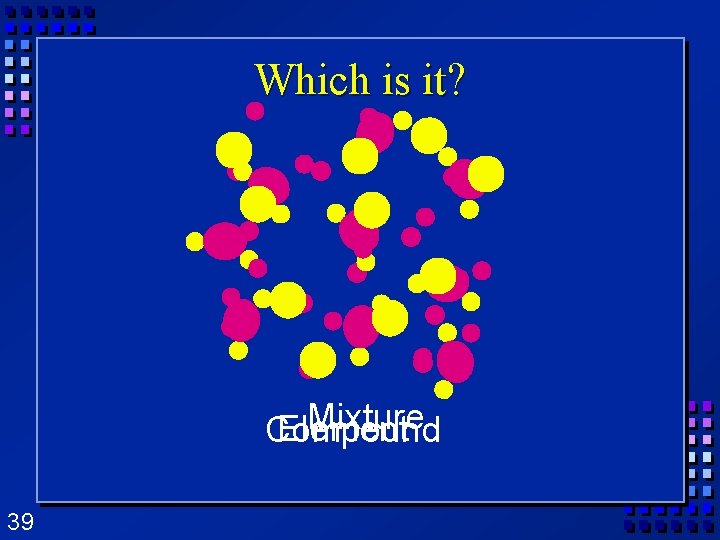

Which is it? Mixture Element Compound 39

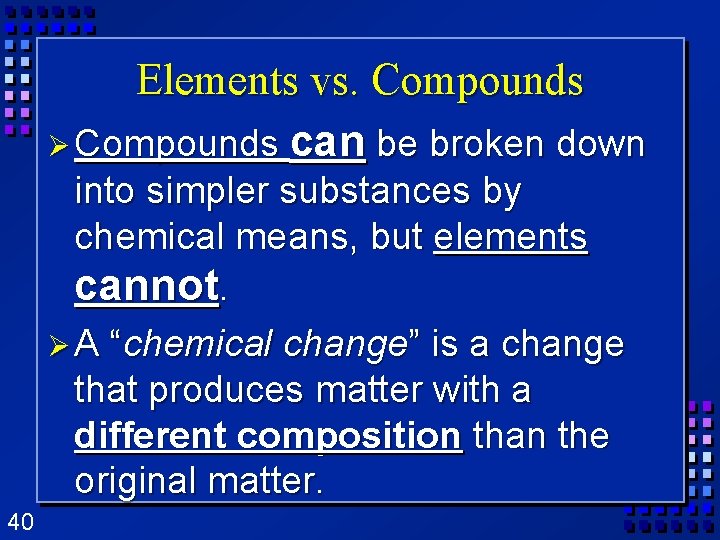

Elements vs. Compounds Ø Compounds can be broken down into simpler substances by chemical means, but elements cannot. Ø A “chemical change” is a change that produces matter with a different composition than the original matter. 40

Chemical Change A change in which one or more substances are converted into different substances. Heat and light are often evidence of a chemical change. 41

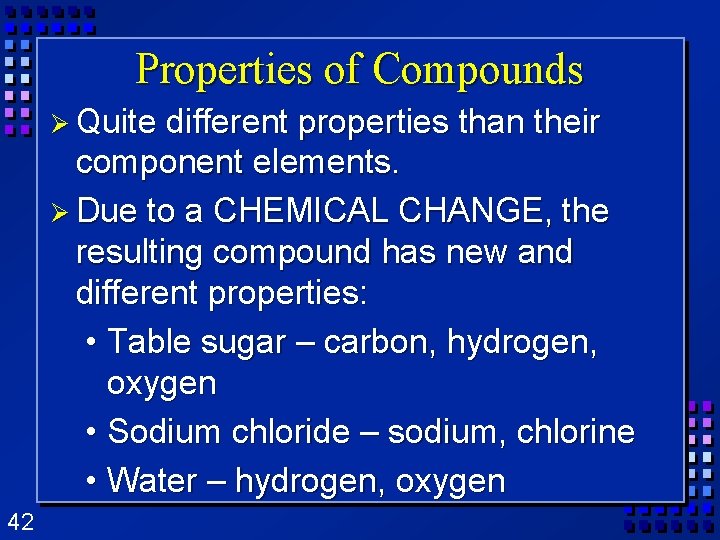

Properties of Compounds Ø Quite different properties than their component elements. Ø Due to a CHEMICAL CHANGE, the resulting compound has new and different properties: • Table sugar – carbon, hydrogen, oxygen • Sodium chloride – sodium, chlorine • Water – hydrogen, oxygen 42

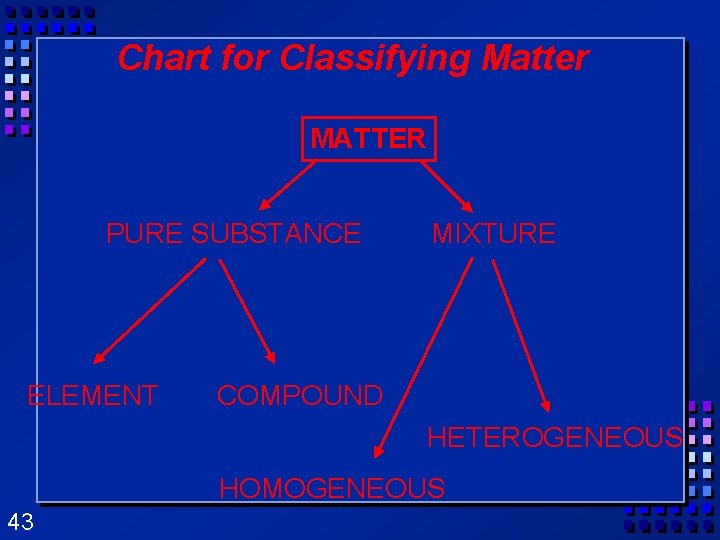

Chart for Classifying Matter MATTER PURE SUBSTANCE ELEMENT MIXTURE COMPOUND HETEROGENEOUS HOMOGENEOUS 43

Symbols & Formulas there are 117 elements Ø Elements have a 1 or two letter symbol, and compounds have a formula. Ø An element’s first letter always capitalized; if there is a second letter, it is written lowercase: B, Ba, C, Ca, H, He Ø Start learning the elements names and symbols listed in Table A. 1 on page 782 Ø Some names come from Latin or other languages; note Table 1. 5, page 17 Ø Currently, 44

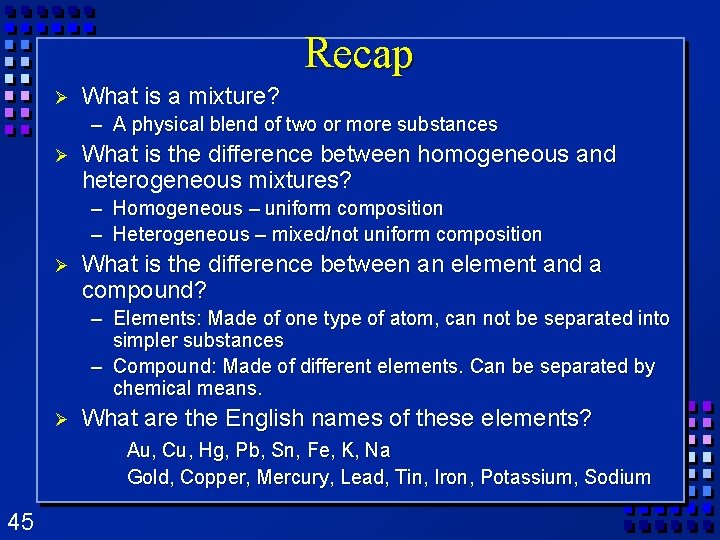

Recap Ø What is a mixture? – A physical blend of two or more substances Ø What is the difference between homogeneous and heterogeneous mixtures? – Homogeneous – uniform composition – Heterogeneous – mixed/not uniform composition Ø What is the difference between an element and a compound? – Elements: Made of one type of atom, can not be separated into simpler substances – Compound: Made of different elements. Can be separated by chemical means. Ø What are the English names of these elements? Au, Cu, Hg, Pb, Sn, Fe, K, Na Gold, Copper, Mercury, Lead, Tin, Iron, Potassium, Sodium 45

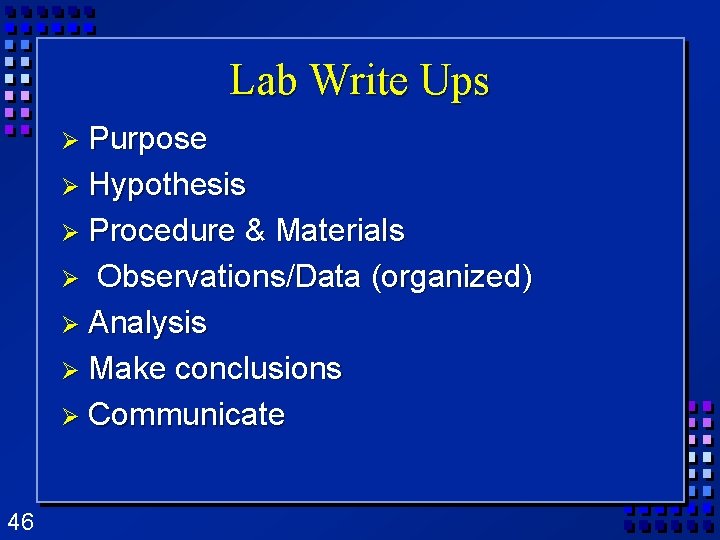

Lab Write Ups Ø Purpose Ø Hypothesis Ø Procedure & Materials Ø Observations/Data (organized) Ø Analysis Ø Make conclusions Ø Communicate 46

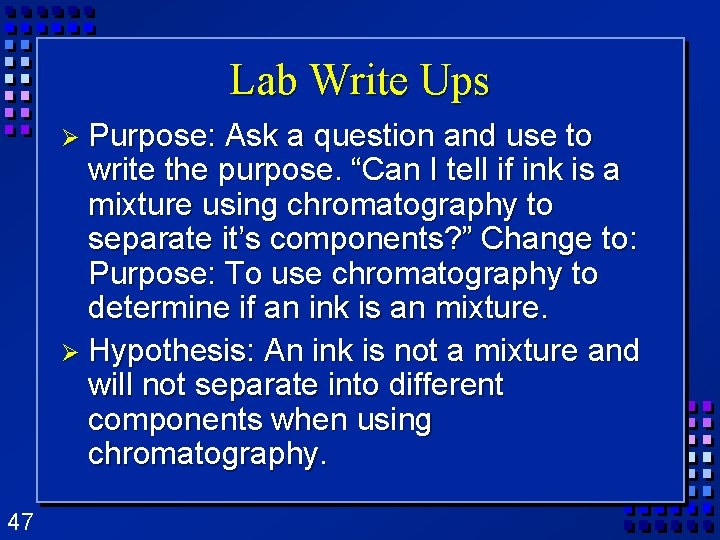

Lab Write Ups Ø Purpose: Ask a question and use to write the purpose. “Can I tell if ink is a mixture using chromatography to separate it’s components? ” Change to: Purpose: To use chromatography to determine if an ink is an mixture. Ø Hypothesis: An ink is not a mixture and will not separate into different components when using chromatography. 47

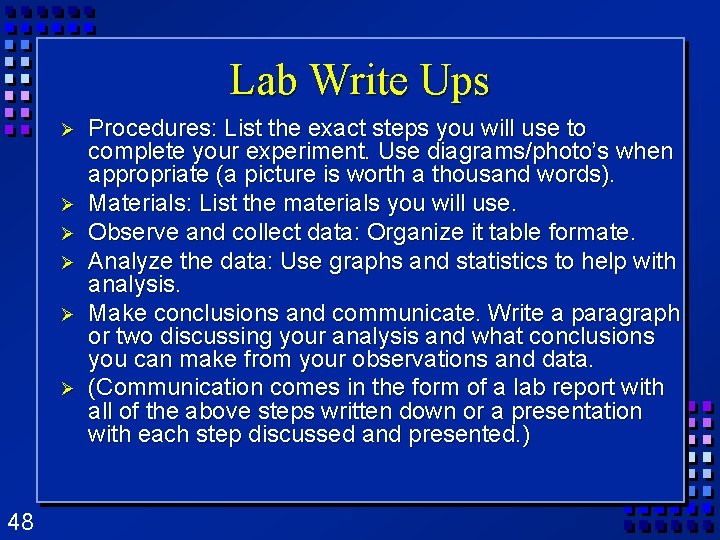

Lab Write Ups Ø Ø Ø 48 Procedures: List the exact steps you will use to complete your experiment. Use diagrams/photo’s when appropriate (a picture is worth a thousand words). Materials: List the materials you will use. Observe and collect data: Organize it table formate. Analyze the data: Use graphs and statistics to help with analysis. Make conclusions and communicate. Write a paragraph or two discussing your analysis and what conclusions you can make from your observations and data. (Communication comes in the form of a lab report with all of the above steps written down or a presentation with each step discussed and presented. )

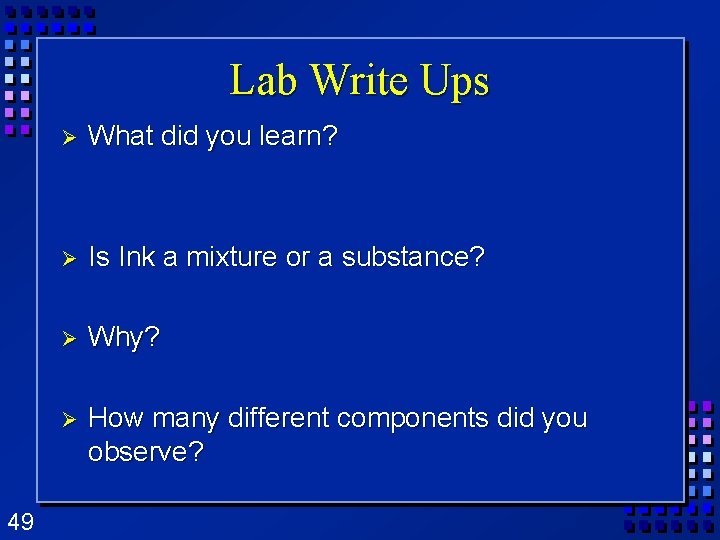

Lab Write Ups 49 Ø What did you learn? Ø Is Ink a mixture or a substance? Ø Why? Ø How many different components did you observe?

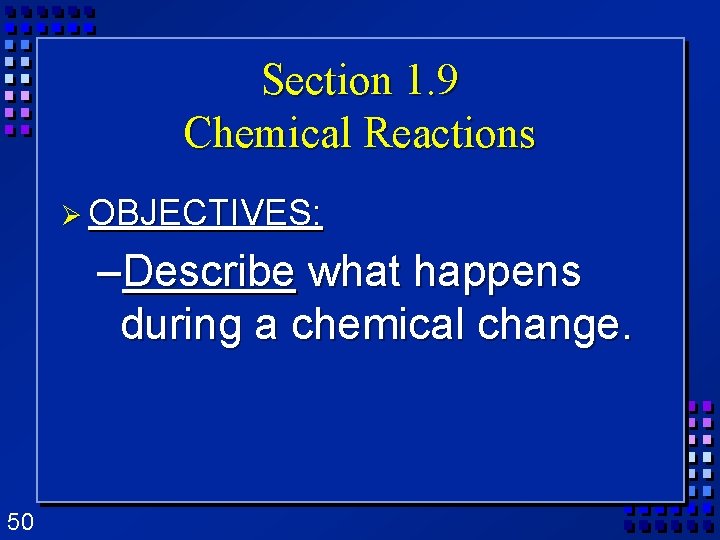

Section 1. 9 Chemical Reactions Ø OBJECTIVES: –Describe what happens during a chemical change. 50

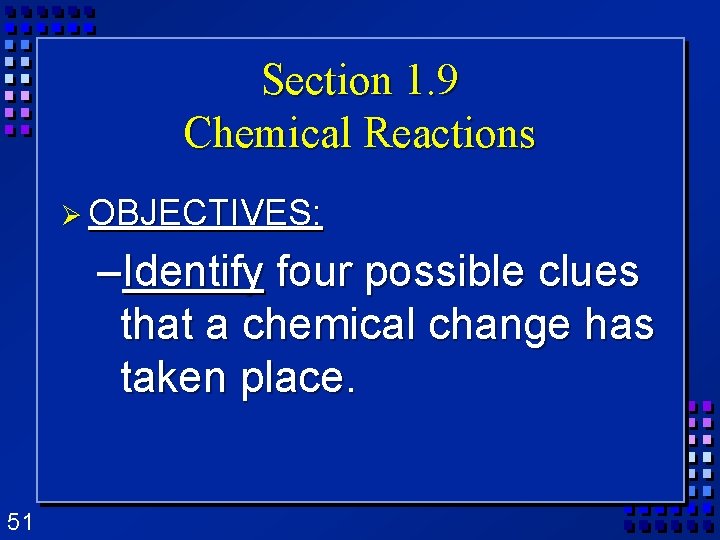

Section 1. 9 Chemical Reactions Ø OBJECTIVES: –Identify four possible clues that a chemical change has taken place. 51

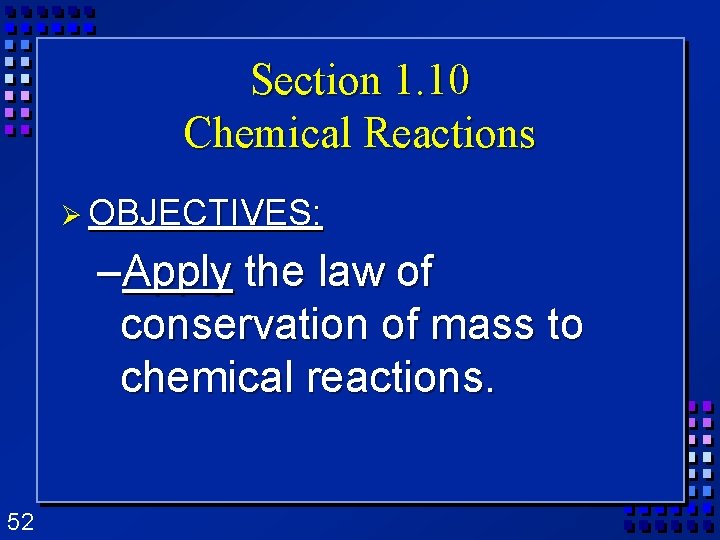

Section 1. 10 Chemical Reactions Ø OBJECTIVES: –Apply the law of conservation of mass to chemical reactions. 52

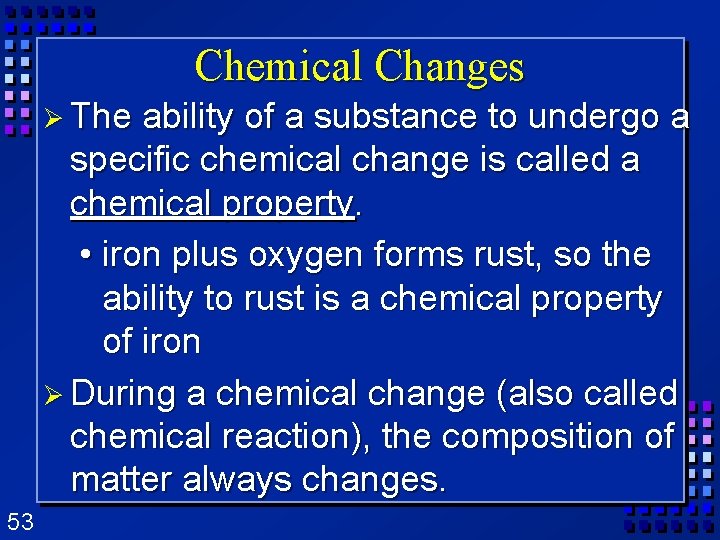

Chemical Changes Ø The ability of a substance to undergo a specific chemical change is called a chemical property. • iron plus oxygen forms rust, so the ability to rust is a chemical property of iron Ø During a chemical change (also called chemical reaction), the composition of matter always changes. 53

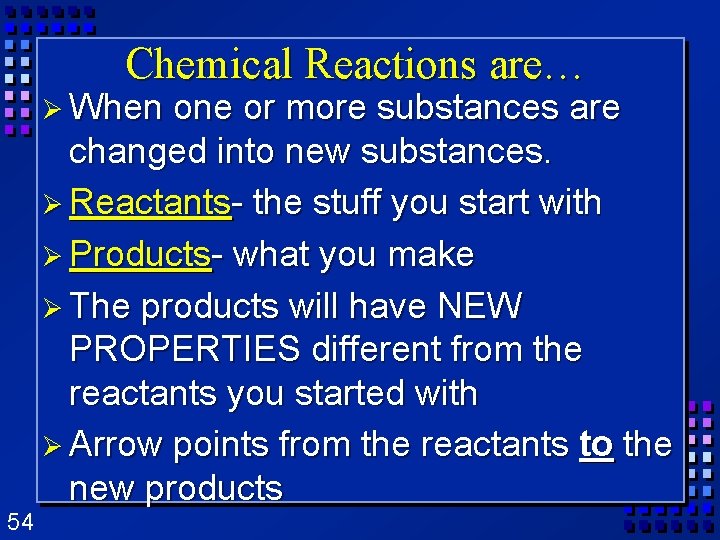

Chemical Reactions are… Ø When 54 one or more substances are changed into new substances. Ø Reactants- the stuff you start with Ø Products- what you make Ø The products will have NEW PROPERTIES different from the reactants you started with Ø Arrow points from the reactants to the new products

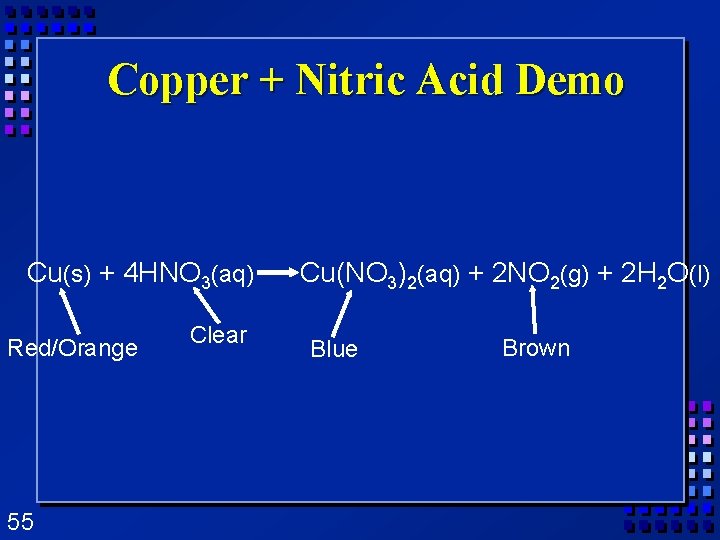

Copper + Nitric Acid Demo Cu(s) + 4 HNO 3(aq) Red/Orange 55 Clear Cu(NO 3)2(aq) + 2 NO 2(g) + 2 H 2 O(l) Blue Brown

Recognizing Chemical Changes 1) Energy is absorbed or released (temperature changes hotter or colder) 2) Color changes 3) Gas production (bubbling, fizzing, or odor change; smoke) 4) formation of a precipitate - a solid that separates from solution (won’t dissolve) 5) Irreversibility - not easily reversed But, there are examples of these that are not chemical – boiling water bubbles, etc. 56

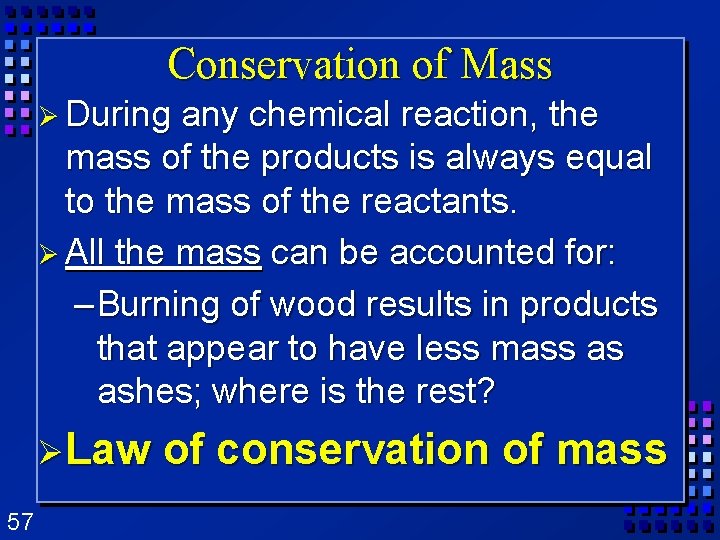

Conservation of Mass Ø During any chemical reaction, the mass of the products is always equal to the mass of the reactants. Ø All the mass can be accounted for: – Burning of wood results in products that appear to have less mass as ashes; where is the rest? ØLaw 57 of conservation of mass

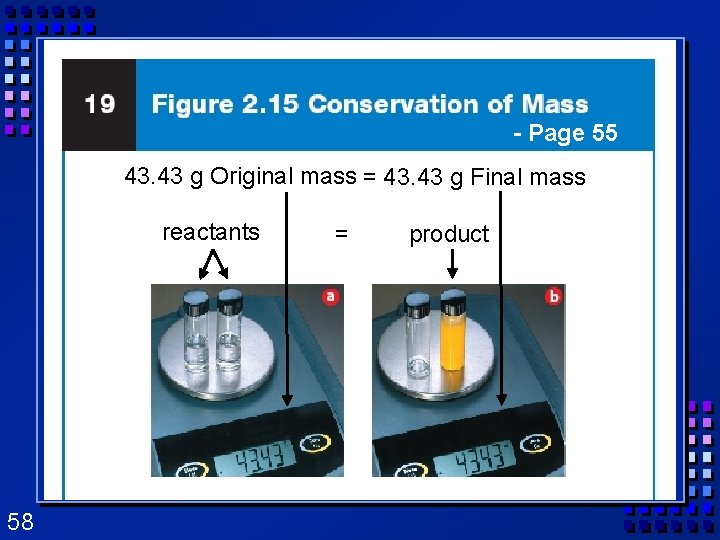

- Page 55 43. 43 g Original mass = 43. 43 g Final mass reactants 58 = product

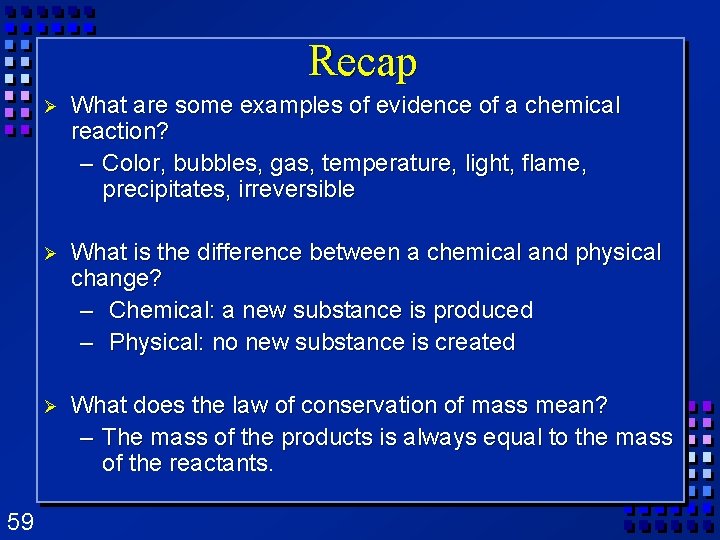

Recap 59 Ø What are some examples of evidence of a chemical reaction? – Color, bubbles, gas, temperature, light, flame, precipitates, irreversible Ø What is the difference between a chemical and physical change? – Chemical: a new substance is produced – Physical: no new substance is created Ø What does the law of conservation of mass mean? – The mass of the products is always equal to the mass of the reactants.

60

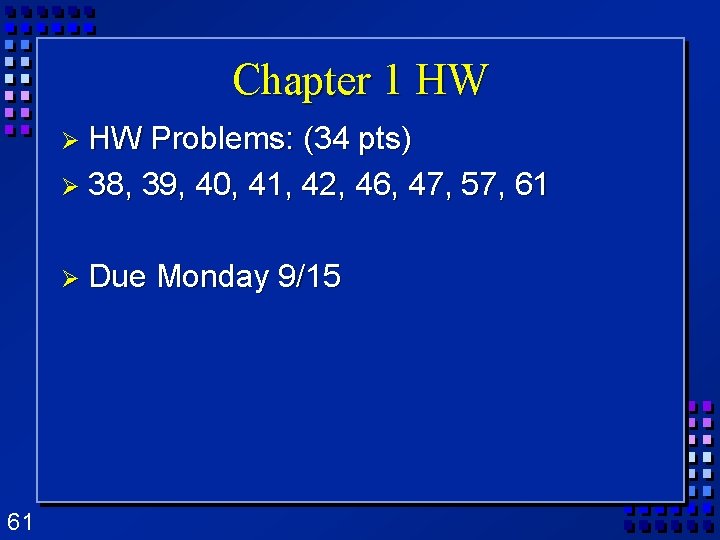

Chapter 1 HW Ø HW Problems: (34 pts) Ø 38, 39, 40, 41, 42, 46, 47, 57, 61 Ø Due 61 Monday 9/15

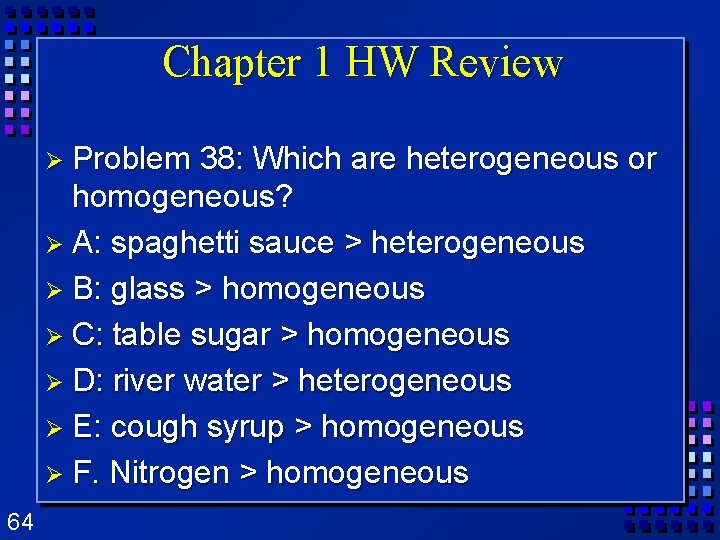

Chapter 1 HW Review Ø Problem 38: Which are heterogeneous or homogeneous? Ø A: spaghetti sauce > heterogeneous Ø B: glass > homogeneous Ø C: table sugar > homogeneous Ø D: river water > heterogeneous Ø E: cough syrup > homogeneous Ø F. Nitrogen > homogeneous 64

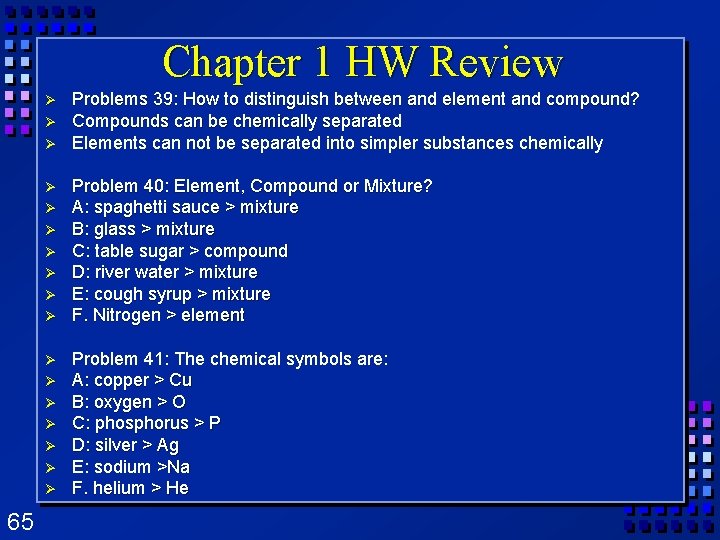

Chapter 1 HW Review Ø Ø Ø Ø Ø 65 Problems 39: How to distinguish between and element and compound? Compounds can be chemically separated Elements can not be separated into simpler substances chemically Problem 40: Element, Compound or Mixture? A: spaghetti sauce > mixture B: glass > mixture C: table sugar > compound D: river water > mixture E: cough syrup > mixture F. Nitrogen > element Problem 41: The chemical symbols are: A: copper > Cu B: oxygen > O C: phosphorus > P D: silver > Ag E: sodium >Na F. helium > He

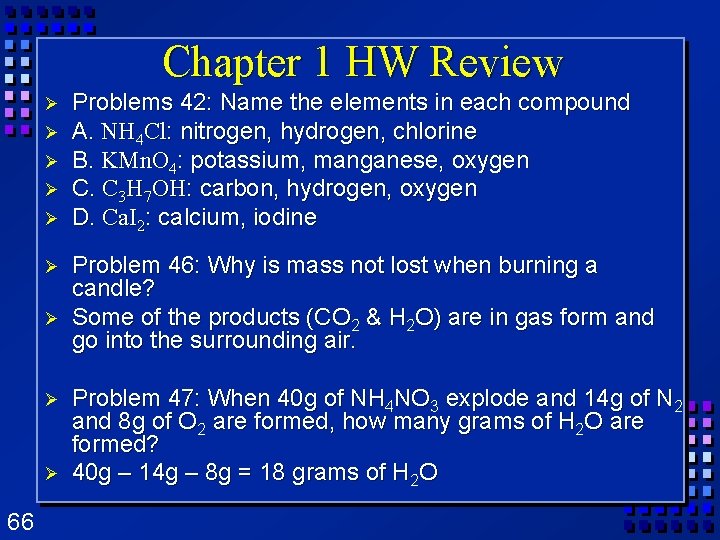

Chapter 1 HW Review Ø Ø Ø Ø Ø 66 Problems 42: Name the elements in each compound A. NH 4 Cl: nitrogen, hydrogen, chlorine B. KMn. O 4: potassium, manganese, oxygen C. C 3 H 7 OH: carbon, hydrogen, oxygen D. Ca. I 2: calcium, iodine Problem 46: Why is mass not lost when burning a candle? Some of the products (CO 2 & H 2 O) are in gas form and go into the surrounding air. Problem 47: When 40 g of NH 4 NO 3 explode and 14 g of N 2 and 8 g of O 2 are formed, how many grams of H 2 O are formed? 40 g – 14 g – 8 g = 18 grams of H 2 O

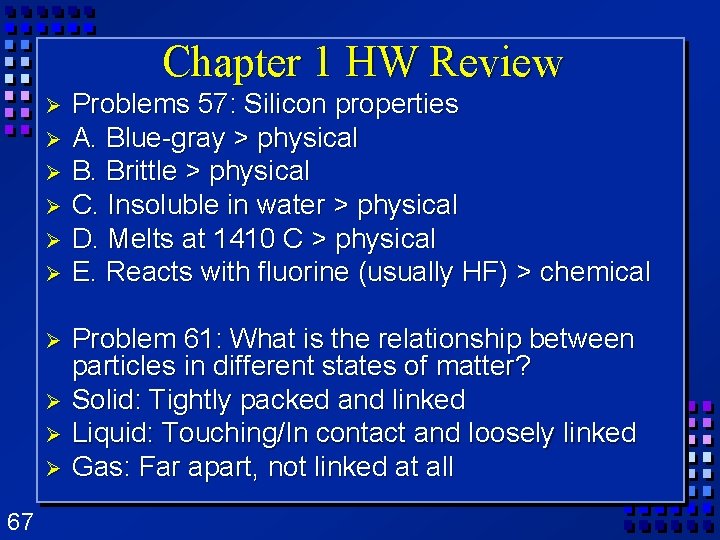

Chapter 1 HW Review Ø Ø Ø Ø Ø 67 Problems 57: Silicon properties A. Blue-gray > physical B. Brittle > physical C. Insoluble in water > physical D. Melts at 1410 C > physical E. Reacts with fluorine (usually HF) > chemical Problem 61: What is the relationship between particles in different states of matter? Solid: Tightly packed and linked Liquid: Touching/In contact and loosely linked Gas: Far apart, not linked at all

Chapter 1 Review “Matter and Change” Chemistry Clatskanie High School 69

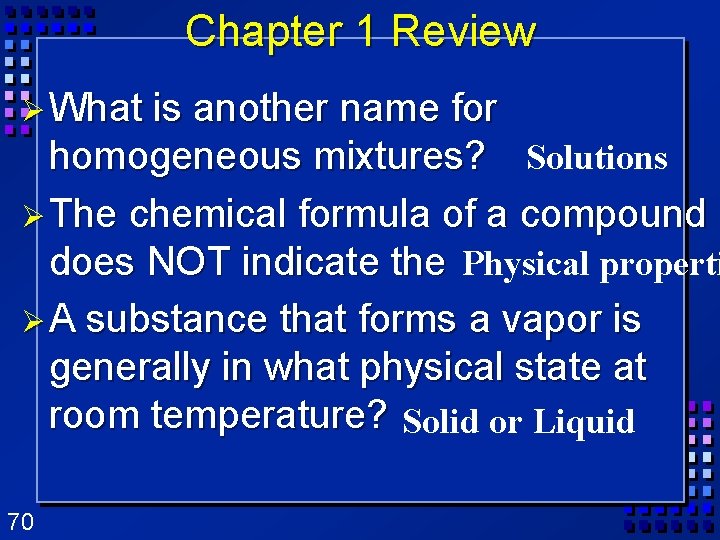

Chapter 1 Review Ø What is another name for homogeneous mixtures? Solutions Ø The chemical formula of a compound does NOT indicate the Physical properti Ø A substance that forms a vapor is generally in what physical state at room temperature? Solid or Liquid 70

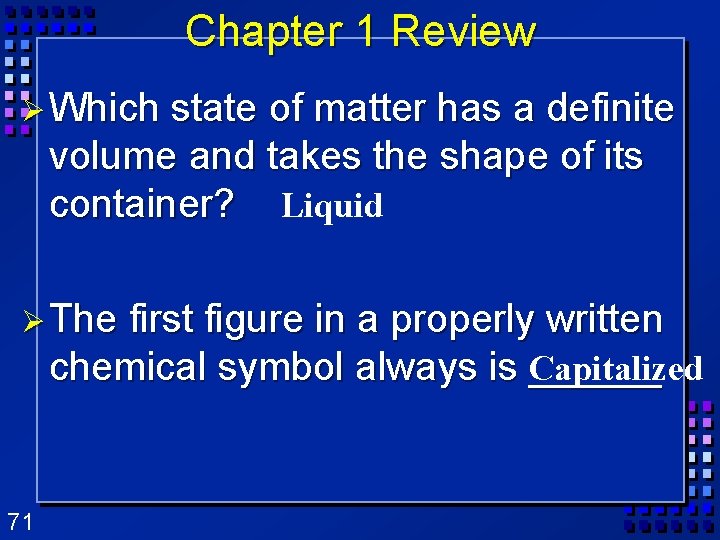

Chapter 1 Review Ø Which state of matter has a definite volume and takes the shape of its container? Liquid Ø The first figure in a properly written chemical symbol always is Capitalized ______ 71

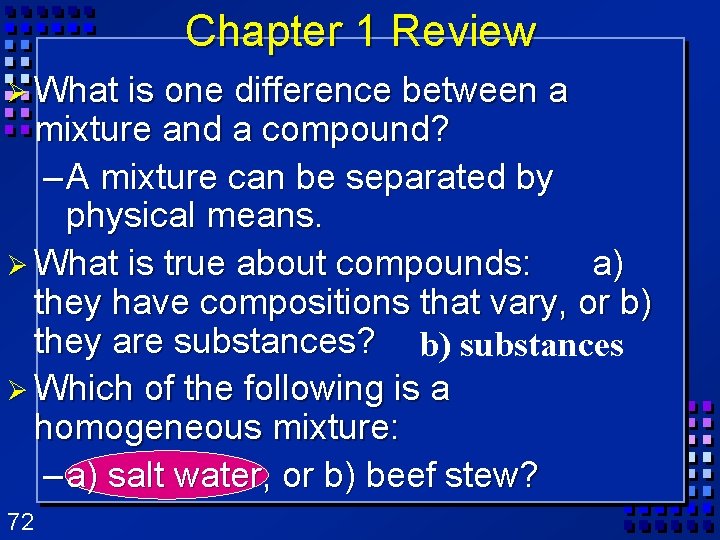

Chapter 1 Review Ø What is one difference between a mixture and a compound? – A mixture can be separated by physical means. Ø What is true about compounds: a) they have compositions that vary, or b) they are substances? b) substances Ø Which of the following is a homogeneous mixture: – a) salt water, or b) beef stew? 72

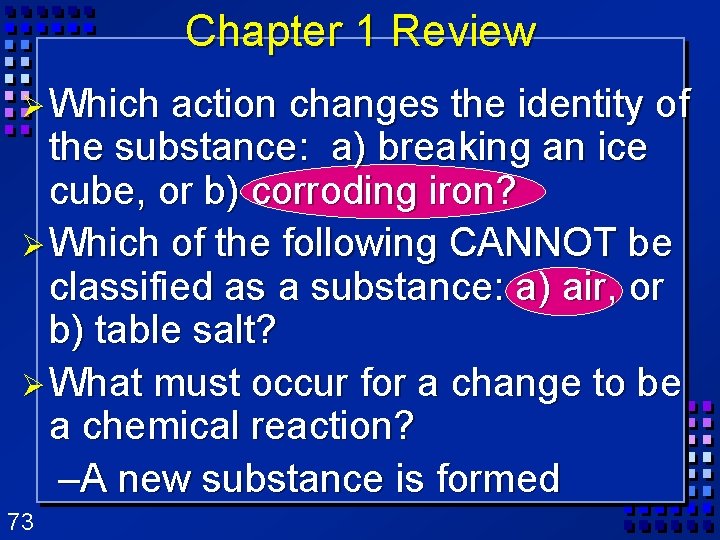

Chapter 1 Review Ø Which action changes the identity of the substance: a) breaking an ice cube, or b) corroding iron? Ø Which of the following CANNOT be classified as a substance: a) air, or b) table salt? Ø What must occur for a change to be a chemical reaction? –A new substance is formed 73

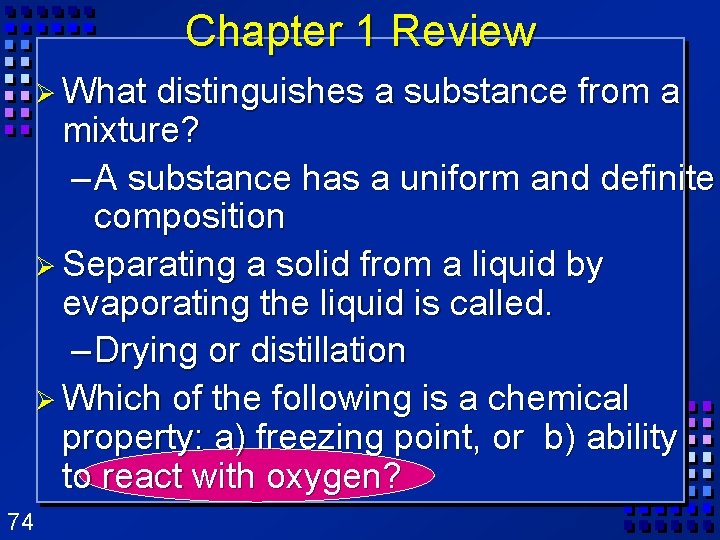

Chapter 1 Review Ø What distinguishes a substance from a mixture? – A substance has a uniform and definite composition Ø Separating a solid from a liquid by evaporating the liquid is called. – Drying or distillation Ø Which of the following is a chemical property: a) freezing point, or b) ability to react with oxygen? 74

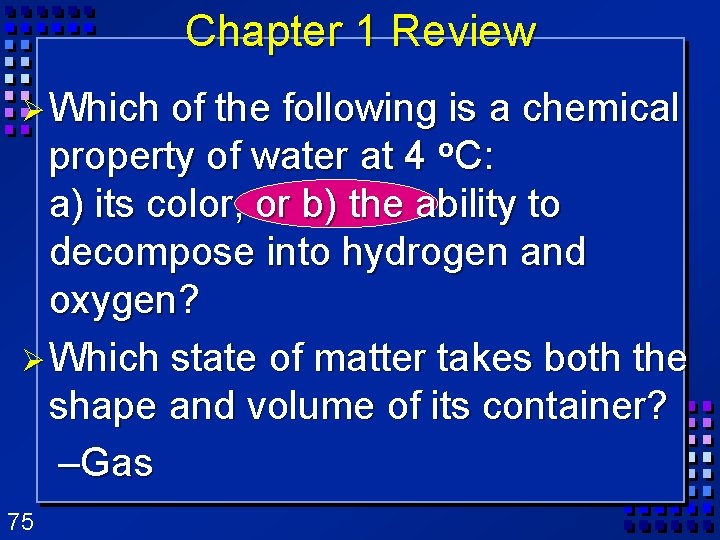

Chapter 1 Review Ø Which of the following is a chemical property of water at 4 o. C: a) its color, or b) the ability to decompose into hydrogen and oxygen? Ø Which state of matter takes both the shape and volume of its container? –Gas 75

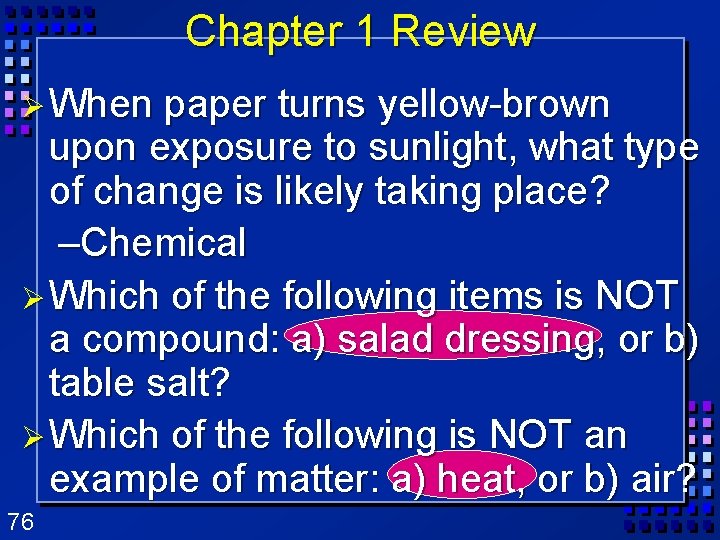

Chapter 1 Review Ø When paper turns yellow-brown upon exposure to sunlight, what type of change is likely taking place? –Chemical Ø Which of the following items is NOT a compound: a) salad dressing, or b) table salt? Ø Which of the following is NOT an example of matter: a) heat, or b) air? 76

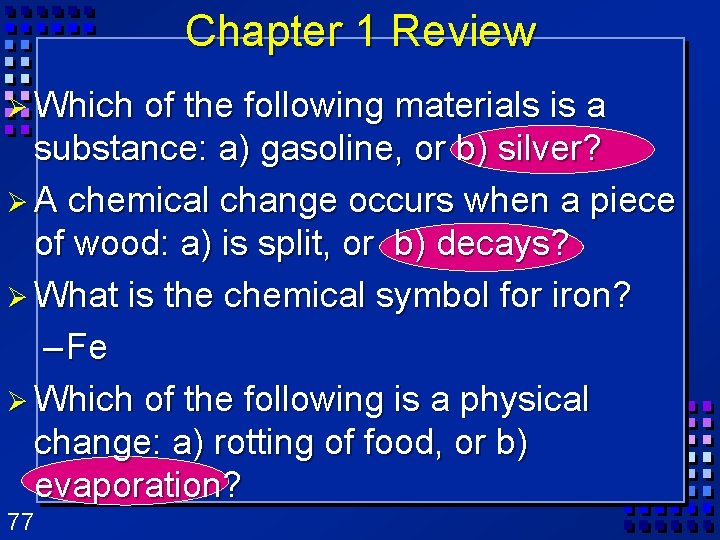

Chapter 1 Review Ø Which of the following materials is a substance: a) gasoline, or b) silver? Ø A chemical change occurs when a piece of wood: a) is split, or b) decays? Ø What is the chemical symbol for iron? – Fe Ø Which of the following is a physical change: a) rotting of food, or b) evaporation? 77

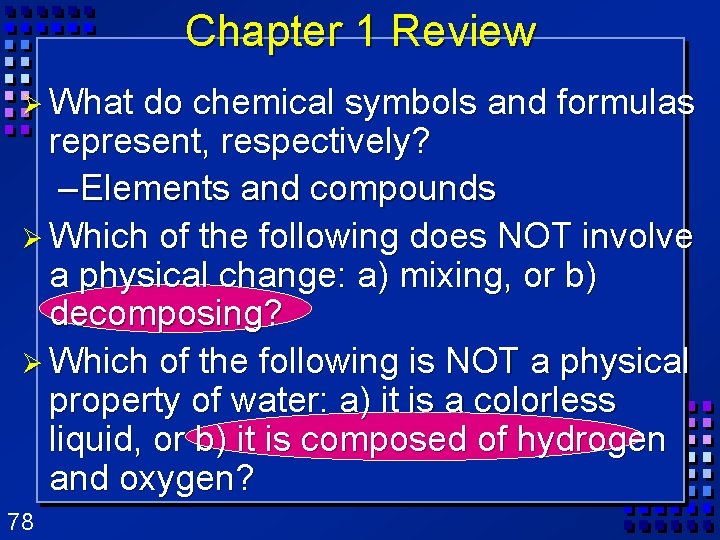

Chapter 1 Review Ø What do chemical symbols and formulas represent, respectively? – Elements and compounds Ø Which of the following does NOT involve a physical change: a) mixing, or b) decomposing? Ø Which of the following is NOT a physical property of water: a) it is a colorless liquid, or b) it is composed of hydrogen and oxygen? 78

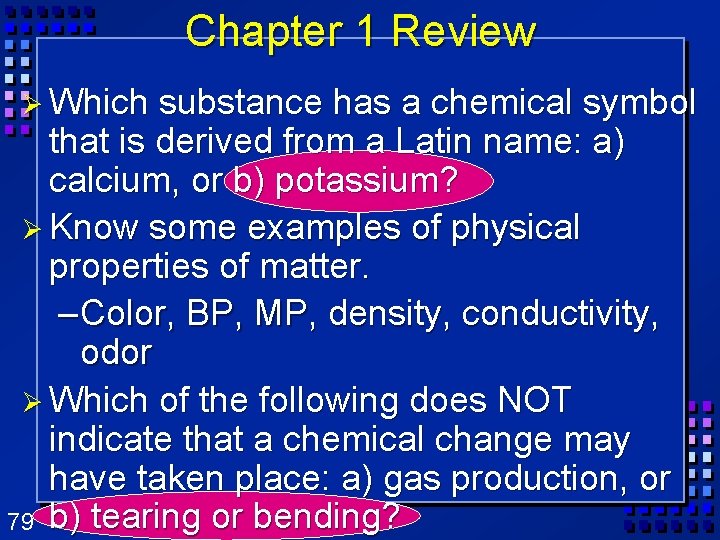

Chapter 1 Review Ø Which substance has a chemical symbol that is derived from a Latin name: a) calcium, or b) potassium? Ø Know some examples of physical properties of matter. – Color, BP, MP, density, conductivity, odor Ø Which of the following does NOT indicate that a chemical change may have taken place: a) gas production, or 79 b) tearing or bending?

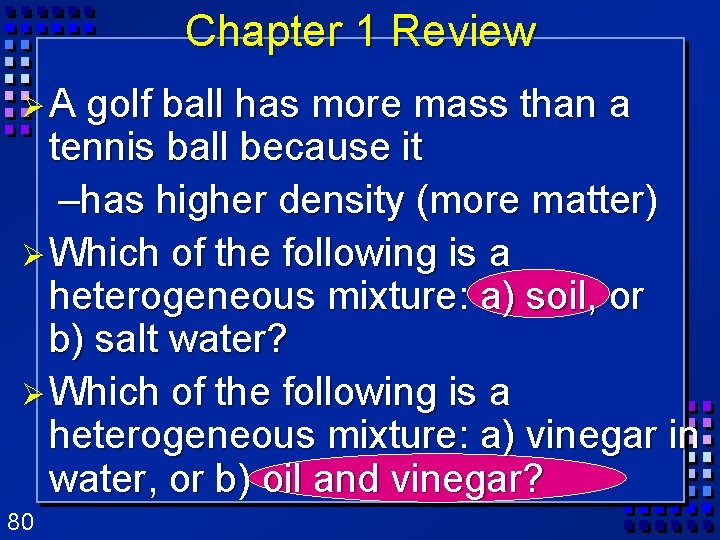

Chapter 1 Review ØA golf ball has more mass than a tennis ball because it –has higher density (more matter) Ø Which of the following is a heterogeneous mixture: a) soil, or b) salt water? Ø Which of the following is a heterogeneous mixture: a) vinegar in water, or b) oil and vinegar? 80

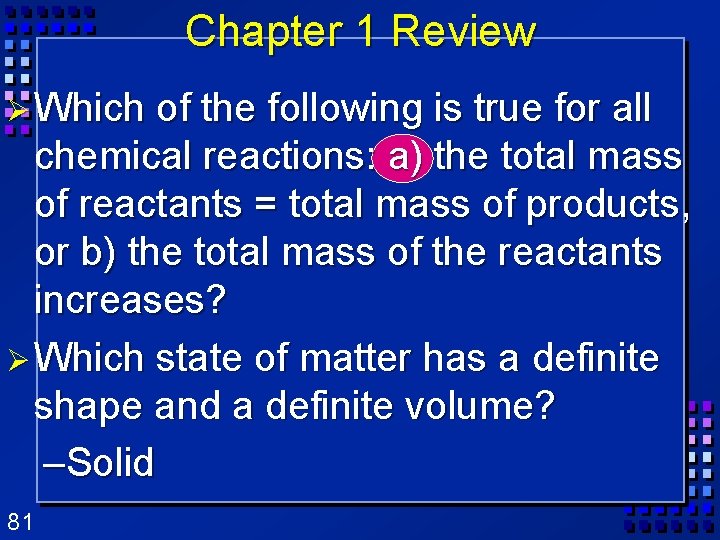

Chapter 1 Review Ø Which of the following is true for all chemical reactions: a) the total mass of reactants = total mass of products, or b) the total mass of the reactants increases? Ø Which state of matter has a definite shape and a definite volume? –Solid 81

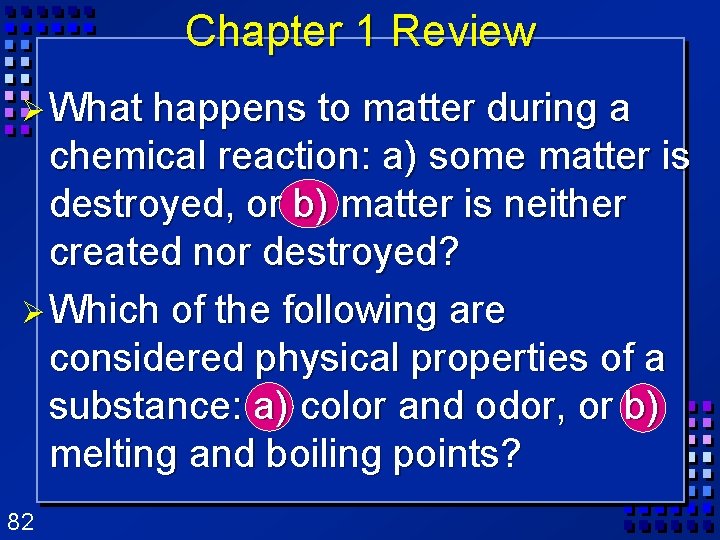

Chapter 1 Review Ø What happens to matter during a chemical reaction: a) some matter is destroyed, or b) matter is neither created nor destroyed? Ø Which of the following are considered physical properties of a substance: a) color and odor, or b) melting and boiling points? 82

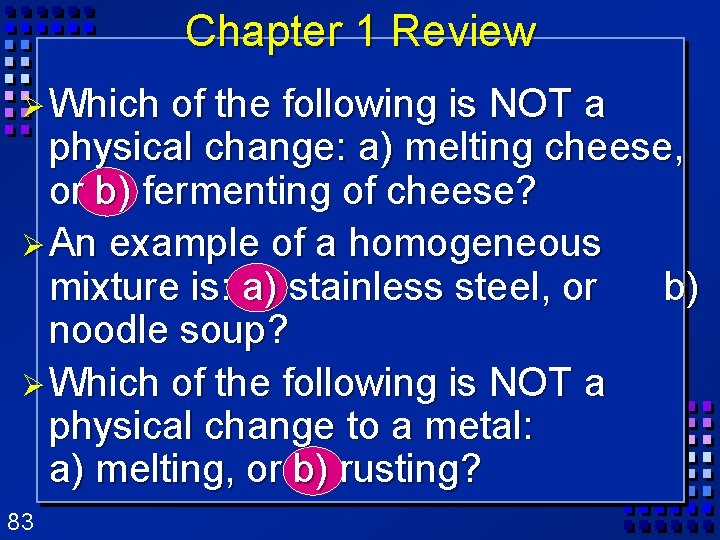

Chapter 1 Review Ø Which of the following is NOT a physical change: a) melting cheese, or b) fermenting of cheese? Ø An example of a homogeneous mixture is: a) stainless steel, or b) noodle soup? Ø Which of the following is NOT a physical change to a metal: a) melting, or b) rusting? 83

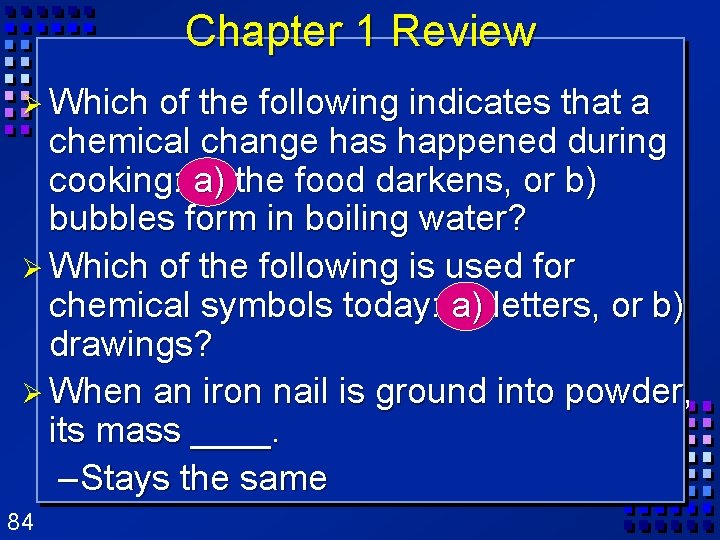

Chapter 1 Review Ø Which of the following indicates that a chemical change has happened during cooking: a) the food darkens, or b) bubbles form in boiling water? Ø Which of the following is used for chemical symbols today: a) letters, or b) drawings? Ø When an iron nail is ground into powder, its mass ____. – Stays the same 84

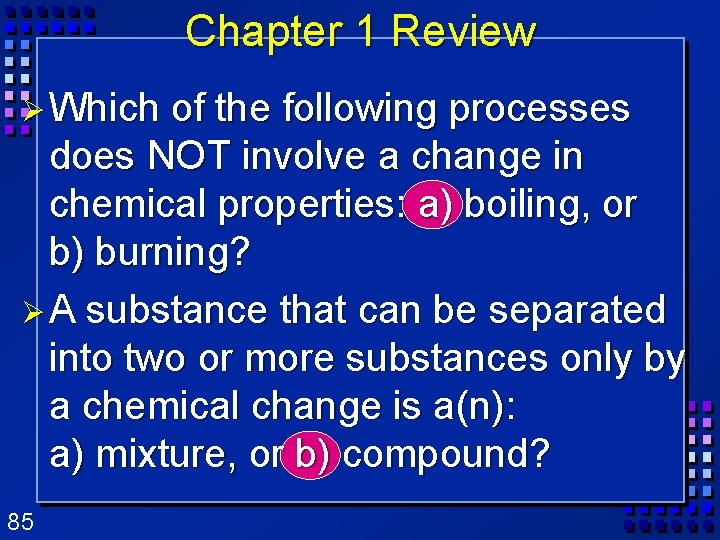

Chapter 1 Review Ø Which of the following processes does NOT involve a change in chemical properties: a) boiling, or b) burning? Ø A substance that can be separated into two or more substances only by a chemical change is a(n): a) mixture, or b) compound? 85

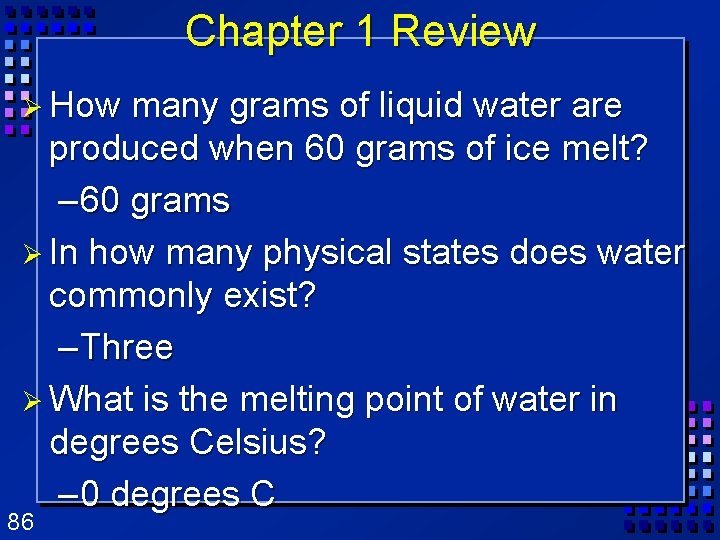

Chapter 1 Review Ø How many grams of liquid water are produced when 60 grams of ice melt? – 60 grams Ø In how many physical states does water commonly exist? – Three Ø What is the melting point of water in degrees Celsius? – 0 degrees C 86

Chapter 1 Review Ø What is the boiling point of water in degrees Celsius? – 100 degrees C 87
