Section 2 Describing Energy is the ability to
![Section 2: Describing Energy is the ability to cause change. K What I Know Section 2: Describing Energy is the ability to cause change. K What I Know](https://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-1.jpg)

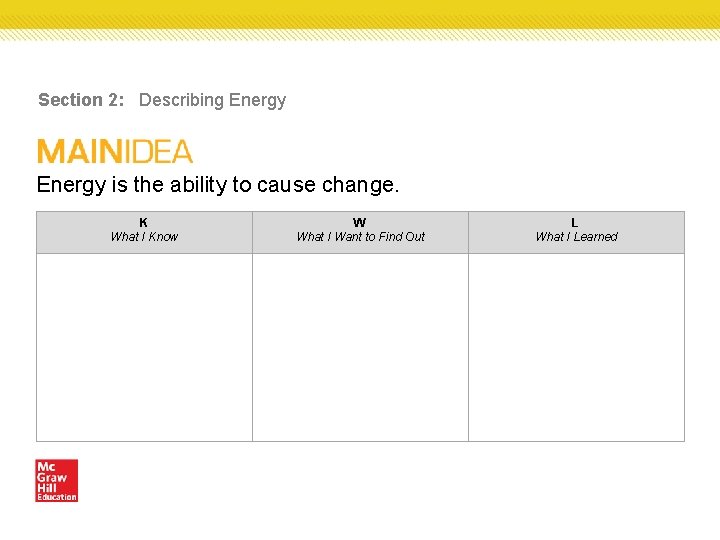

Section 2: Describing Energy is the ability to cause change. K What I Know W What I Want to Find Out L What I Learned
![ENERGY UNIT 5(A) Recognize and demonstrate that objects and substances in motion have kinetic ENERGY UNIT 5(A) Recognize and demonstrate that objects and substances in motion have kinetic](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-2.jpg)

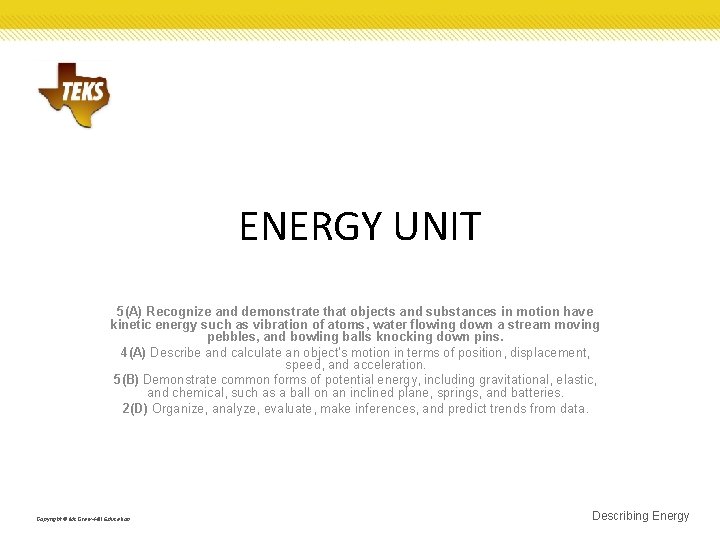

ENERGY UNIT 5(A) Recognize and demonstrate that objects and substances in motion have kinetic energy such as vibration of atoms, water flowing down a stream moving pebbles, and bowling balls knocking down pins. 4(A) Describe and calculate an object’s motion in terms of position, displacement, speed, and acceleration. 5(B) Demonstrate common forms of potential energy, including gravitational, elastic, and chemical, such as a ball on an inclined plane, springs, and batteries. 2(D) Organize, analyze, evaluate, make inferences, and predict trends from data. Copyright © Mc. Graw-Hill Education Describing Energy
![Essential Questions • How can you calculate kinetic energy? • What are some different Essential Questions • How can you calculate kinetic energy? • What are some different](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-3.jpg)

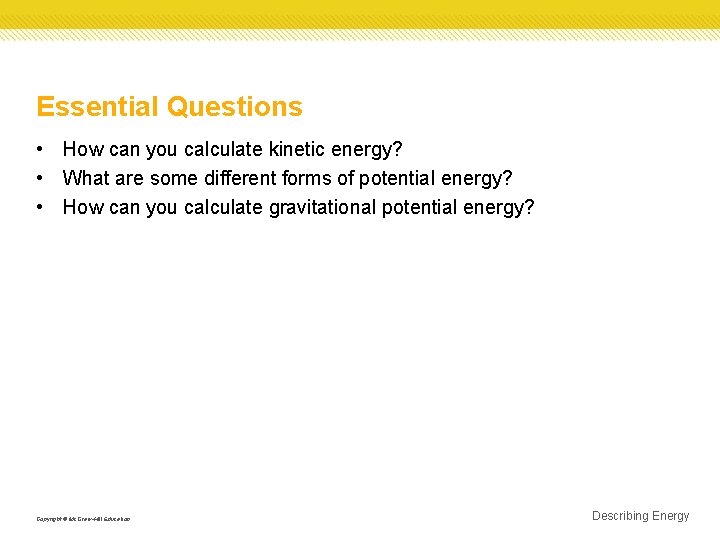

Essential Questions • How can you calculate kinetic energy? • What are some different forms of potential energy? • How can you calculate gravitational potential energy? Copyright © Mc. Graw-Hill Education Describing Energy
![VOCABULARY New • • • Energy work system kinetic energy potential energy elastic potential VOCABULARY New • • • Energy work system kinetic energy potential energy elastic potential](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-4.jpg)
VOCABULARY New • • • Energy work system kinetic energy potential energy elastic potential energy • chemical potential energy • gravitational potential energy Copyright © Mc. Graw-Hill Education Describing Energy
![WHAT IS WORK? • Work is force applied through a distance. • Work requires WHAT IS WORK? • Work is force applied through a distance. • Work requires](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-5.jpg)
WHAT IS WORK? • Work is force applied through a distance. • Work requires both force and motion. Copyright © Mc. Graw-Hill Education Work and Machines
![Doing Work • Conditions that must be satisfied for work to be done: – Doing Work • Conditions that must be satisfied for work to be done: –](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-6.jpg)

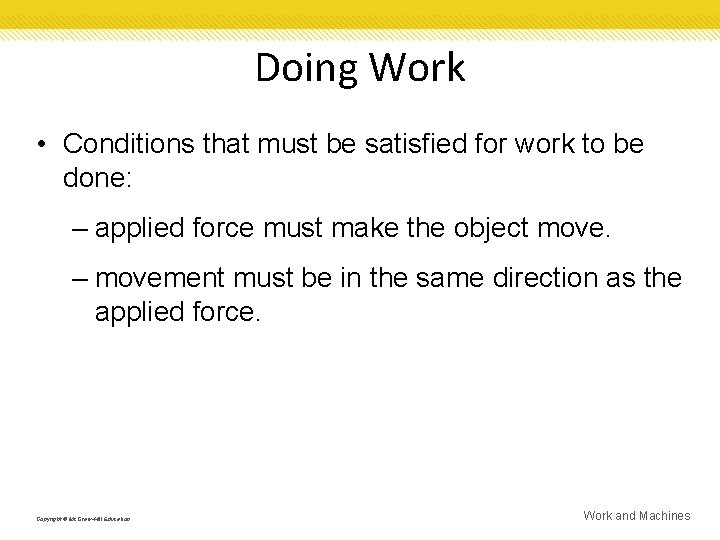

Doing Work • Conditions that must be satisfied for work to be done: – applied force must make the object move. – movement must be in the same direction as the applied force. Copyright © Mc. Graw-Hill Education Work and Machines
![Force and Direction of Motion When you lift a stack of books, your arms Force and Direction of Motion When you lift a stack of books, your arms](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-7.jpg)
Force and Direction of Motion When you lift a stack of books, your arms apply a force upward and the books move upward. • Because the force and distance are in the same direction, your arms have done work on the books. When you carry books while walking, you might think that your arms are doing work. However, in this case, the force exerted by your arms does no work on the books. • The force exerted by your arms on the books is upward, but the books are moving horizontally. • The force you exert is at right angles to the direction the books are moving. Copyright © Mc. Graw-Hill Education Work and Machines
![CALCULATING WORK • Depends on – amount of force exerted – distance over which CALCULATING WORK • Depends on – amount of force exerted – distance over which](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-8.jpg)

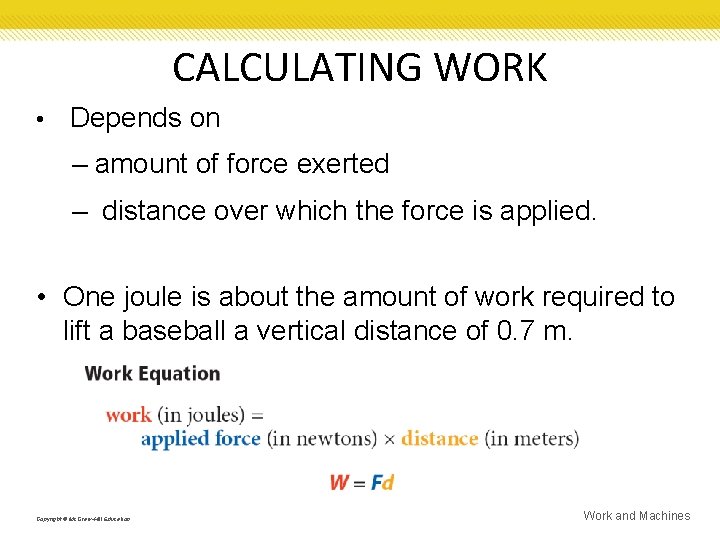

CALCULATING WORK • Depends on – amount of force exerted – distance over which the force is applied. • One joule is about the amount of work required to lift a baseball a vertical distance of 0. 7 m. Copyright © Mc. Graw-Hill Education Work and Machines
![CHANGE REQUIRES ENERGY Energy is the ability to cause change. • Anything that causes CHANGE REQUIRES ENERGY Energy is the ability to cause change. • Anything that causes](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-9.jpg)
CHANGE REQUIRES ENERGY Energy is the ability to cause change. • Anything that causes change must have energy. • Energy has several different forms. 1. Electrical, 2. Chemical, 3. Radiant, 4. Thermal Copyright © Mc. Graw-Hill Education Describing Energy
![WORK TRANSFERS ENERGY Energy can also be described as the ability to do work. WORK TRANSFERS ENERGY Energy can also be described as the ability to do work.](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-10.jpg)
WORK TRANSFERS ENERGY Energy can also be described as the ability to do work. • Therefore, energy can be measured with the same units as work. • Energy, like work, can be measured in joules. Copyright © Mc. Graw-Hill Education Describing Energy
![SYSTEMS A system is anything that you can imagine a boundary around. • It SYSTEMS A system is anything that you can imagine a boundary around. • It](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-11.jpg)

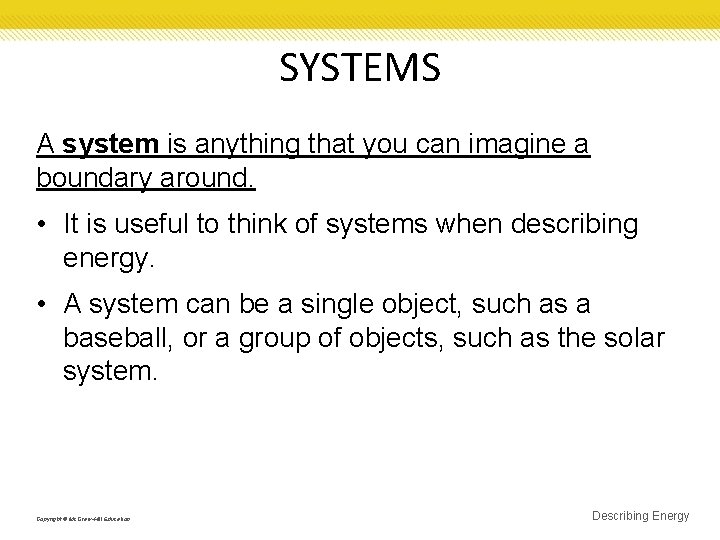

SYSTEMS A system is anything that you can imagine a boundary around. • It is useful to think of systems when describing energy. • A system can be a single object, such as a baseball, or a group of objects, such as the solar system. Copyright © Mc. Graw-Hill Education Describing Energy
![KINETIC ENERGY • the energy a moving object has because of its motion. – KINETIC ENERGY • the energy a moving object has because of its motion. –](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-12.jpg)

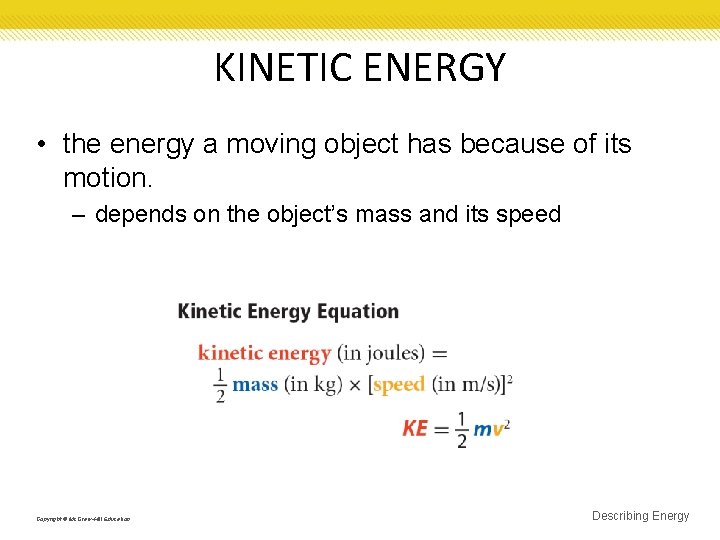

KINETIC ENERGY • the energy a moving object has because of its motion. – depends on the object’s mass and its speed Copyright © Mc. Graw-Hill Education Describing Energy
![SOLVE FOR KINETIC ENERGY Use with Example Problem 4. Problem A jogger with a SOLVE FOR KINETIC ENERGY Use with Example Problem 4. Problem A jogger with a](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-13.jpg)
SOLVE FOR KINETIC ENERGY Use with Example Problem 4. Problem A jogger with a mass of 60. 0 kg is moving forward at a speed of 3. 0 m/s. What is the jogger’s kinetic energy from this forward motion? Response ANALYZE THE PROBLEM KNOWN mass: m = 60. 0 kg speed: v = 3. 0 m/s UNKNOWN kinetic energy: KE Copyright © Mc. Graw-Hill Education Describing Energy
![POTENTIAL ENERGY • Stored energy due to the interactions between objects – A hanging POTENTIAL ENERGY • Stored energy due to the interactions between objects – A hanging](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-14.jpg)

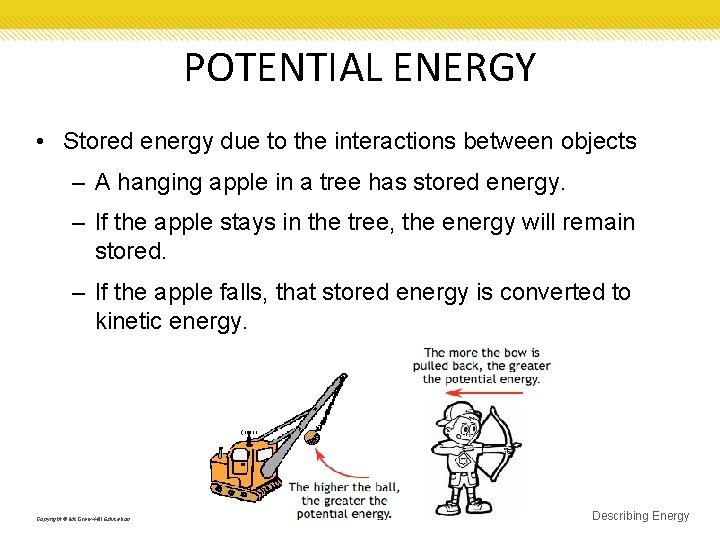

POTENTIAL ENERGY • Stored energy due to the interactions between objects – A hanging apple in a tree has stored energy. – If the apple stays in the tree, the energy will remain stored. – If the apple falls, that stored energy is converted to kinetic energy. Copyright © Mc. Graw-Hill Education Describing Energy
![ELASTIC POTENTIAL ENERGY • energy stored by something that can stretch or compress, such ELASTIC POTENTIAL ENERGY • energy stored by something that can stretch or compress, such](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-15.jpg)

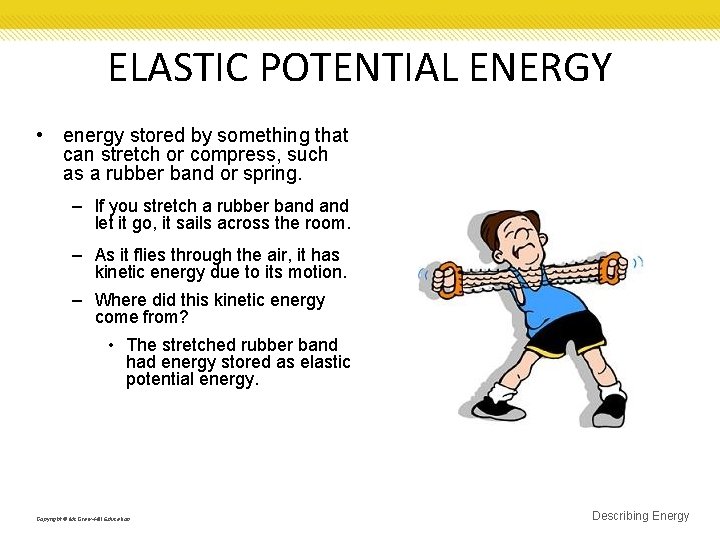

ELASTIC POTENTIAL ENERGY • energy stored by something that can stretch or compress, such as a rubber band or spring. – If you stretch a rubber band let it go, it sails across the room. – As it flies through the air, it has kinetic energy due to its motion. – Where did this kinetic energy come from? • The stretched rubber band had energy stored as elastic potential energy. Copyright © Mc. Graw-Hill Education Describing Energy
![CHEMICAL POTENTIAL ENERGY • Energy stored due to chemical bonds – Energy is stored CHEMICAL POTENTIAL ENERGY • Energy stored due to chemical bonds – Energy is stored](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-16.jpg)

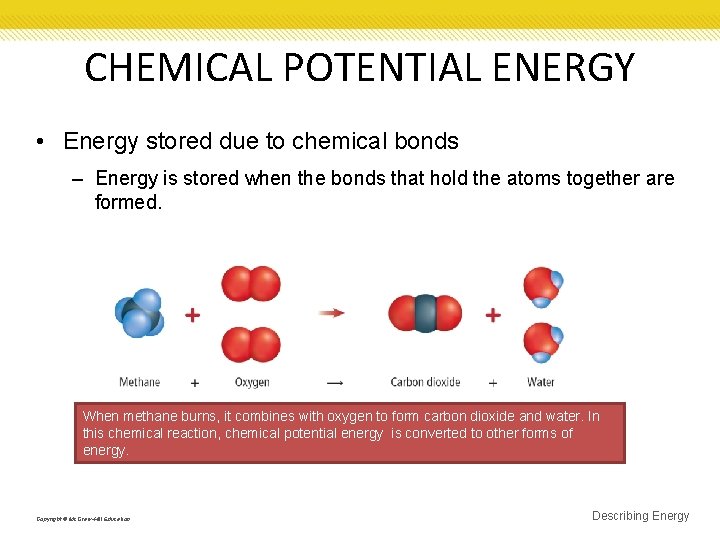

CHEMICAL POTENTIAL ENERGY • Energy stored due to chemical bonds – Energy is stored when the bonds that hold the atoms together are formed. When methane burns, it combines with oxygen to form carbon dioxide and water. In this chemical reaction, chemical potential energy is converted to other forms of energy. Copyright © Mc. Graw-Hill Education Describing Energy
![GRAVITATIONAL POTENTIAL ENERGY • Energy due to gravitational forces between objects. – Together, an GRAVITATIONAL POTENTIAL ENERGY • Energy due to gravitational forces between objects. – Together, an](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-17.jpg)

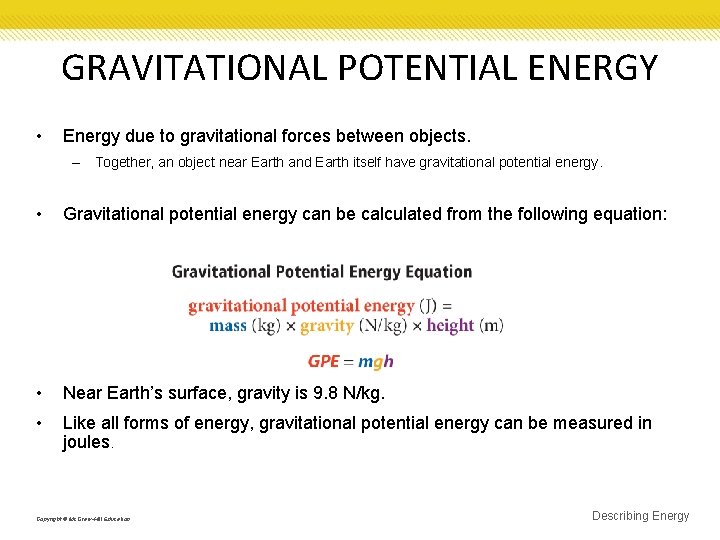

GRAVITATIONAL POTENTIAL ENERGY • Energy due to gravitational forces between objects. – Together, an object near Earth and Earth itself have gravitational potential energy. • Gravitational potential energy can be calculated from the following equation: • Near Earth’s surface, gravity is 9. 8 N/kg. • Like all forms of energy, gravitational potential energy can be measured in joules. Copyright © Mc. Graw-Hill Education Describing Energy
![CHANGING GPE According to the equation for gravitational potential energy, the GPE of an CHANGING GPE According to the equation for gravitational potential energy, the GPE of an](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-18.jpg)
CHANGING GPE According to the equation for gravitational potential energy, the GPE of an Earth system can be increased by increasing the object’s height. Gravitational potential energy also increases if the mass of the object increases. Copyright © Mc. Graw-Hill Education Describing Energy
![SOLVE FOR GRAVITATIONAL POTENTIAL ENERGY Use with Example Problem 5. SOLVE FOR THE UNKNOWN SOLVE FOR GRAVITATIONAL POTENTIAL ENERGY Use with Example Problem 5. SOLVE FOR THE UNKNOWN](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-19.jpg)
SOLVE FOR GRAVITATIONAL POTENTIAL ENERGY Use with Example Problem 5. SOLVE FOR THE UNKNOWN Problem • A 4. 0 -kg ceiling fan is placed 2. 5 m above the floor. What is the gravitational potential energy of the Earth-ceiling fan system relative to the floor? Set Up the Problem GPE = mgh • Solve the Problem GPE = (4. 0 kg)(9. 8 N/kg)(2. 5 m) = 98 J • m = 98 J Response ANALYZE THE PROBLEM EVALUATE THE ANSWER KNOWN Round 9. 8 N/kg to 10 N/kg. Then, GPE = (4. 0 kg)(10 N/kg)(2. 5 m) = 100 J. This is very close to the answer above. Therefore, that answer is reasonable. mass: m = 4. 0 kg gravity: g = 9. 8 N/kg height: h = 2. 5 m UNKNOWN gravitational potential energy: GPE Copyright © Mc. Graw-Hill Education Describing Energy
![Review Essential Questions • How can you calculate kinetic energy? • What are some Review Essential Questions • How can you calculate kinetic energy? • What are some](http://slidetodoc.com/presentation_image/5cf9ff3905bf0935182a04670e84d141/image-20.jpg)

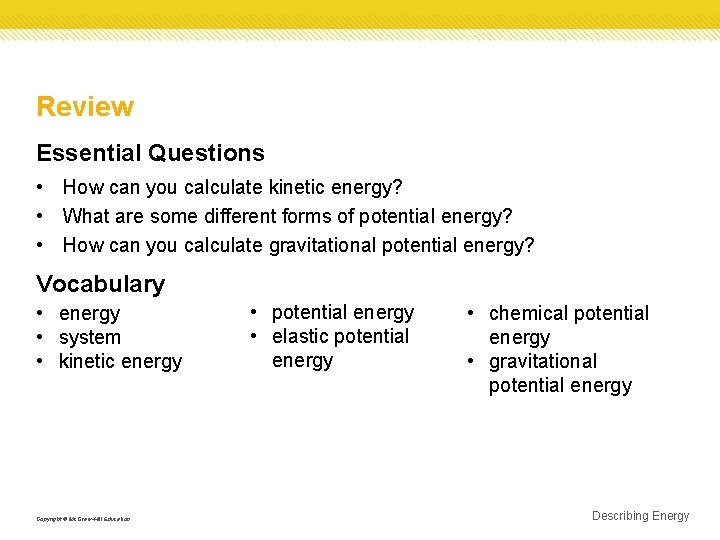

Review Essential Questions • How can you calculate kinetic energy? • What are some different forms of potential energy? • How can you calculate gravitational potential energy? Vocabulary • energy • system • kinetic energy Copyright © Mc. Graw-Hill Education • potential energy • elastic potential energy • chemical potential energy • gravitational potential energy Describing Energy
