Semantic Mapping with Media Wiki Jeroen De Dauw
- Slides: 76
Semantic Mapping with Media. Wiki Jeroen De Dauw
Presentation outline • Introduction to Media. Wiki • Introduction to Semantic Media. Wiki – Questions • Maps • Semantic Maps – Questions
Media. Wiki
Media. Wiki
Media. Wiki Key features
Media. Wiki
Media. Wiki
Media. Wiki Key features • Everyone can edit
Media. Wiki
Media. Wiki Key features • Everyone can edit • Rich content • Organization • Customization • Internationalization • Scalable
Semantic Web So what are semantics? • Make data understandable for computers • Make queries possible – Cross site
Semantic Media. Wiki
Semantic Media. Wiki • • • Automatically-generated lists Visual display of information Improved data structure Searching information Inter-language consistency External reuse “Collaborative Database”
Semantic Media. Wiki Semantic search Ask function {{#ask: }} {{ #ask: }}
Semantic Media. Wiki Semantic search Criteria: • Which pages to select [[Category: Actor]] [[born in: : Boston]] [[height: : 180 cm]] [[Category: Actor]] [[height: : >6 ft]] [[height: : <7 ft]] [[born in: : Boston]] OR [[born in: : New York]] [[Category: Cities]] [[located in. member of: : European Union]]
Semantic Media. Wiki Semantic search Criteria: • Which information should be displayed? ? population ? area#km²
Semantic Media. Wiki Semantic search Example: {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | ? area#km² = Size in km² }}
Semantic Media. Wiki Semantic Properties Media. Wiki link: [[Germany]] [[capital of: : Germany]] Media. Wiki text: 3, 396, 990 [[population: : 3, 396, 990]]
Semantic Media. Wiki Result Formats {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | format=ul }}
Semantic Media. Wiki Result Formats {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | ? area#km² = Size in km² | ? coordinates | format=map }}
Maps • Media. Wiki extension • Hooks into – Validator • Functionality – Visual display of coordinate data – Geocoding
Maps • Key features – – – Multiple mapping services Multiple geocoding services Modular build Error feedback Very configurable API for mapping functionality
Maps Coordinates • • Floats: 55. 7557860, 37. 6176330 DMS: 55° 45′ 06″N 37° 37′ 04″E DD: 55. 7557860°, 37. 6176330° DM: 55° 45. 34716', 37° 37. 05798'
Maps Geocoding {{ #geocode: Moscow, Russia}} 55. 7557860, 37. 6176330
Maps Geocoding services • Google • Yahoo • Geo. Names {{#geocode: Moscow, Russia|geonames}}
Maps Smart geocoding • Display_map • Display_point(s) – Centre parameter ! Display_address(es) has been deprecated since 0. 4

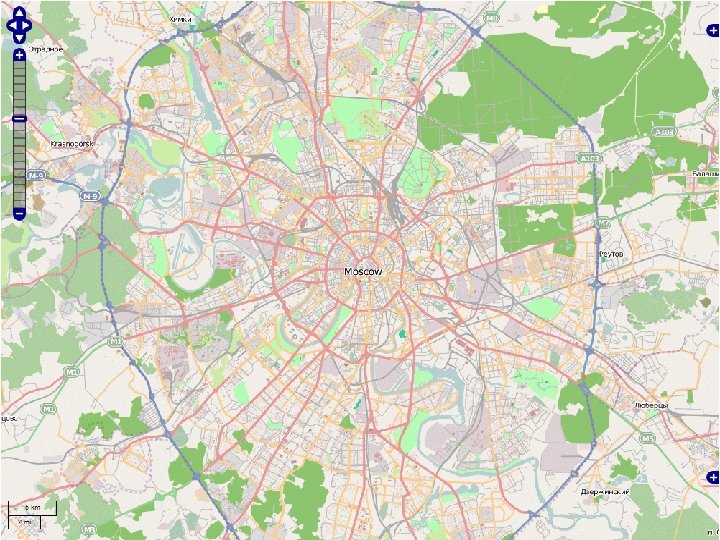

Maps Displaying a map {{#display_map: Moscow}} Or {{#display_map: 55° 45′ 06″N 37° 37′ 04″E}} Or. . .
Maps Displaying points {{#display_point: Moscow}} Or {{#display_point: 55. 7557860, 37. 6176330}} Or. . .

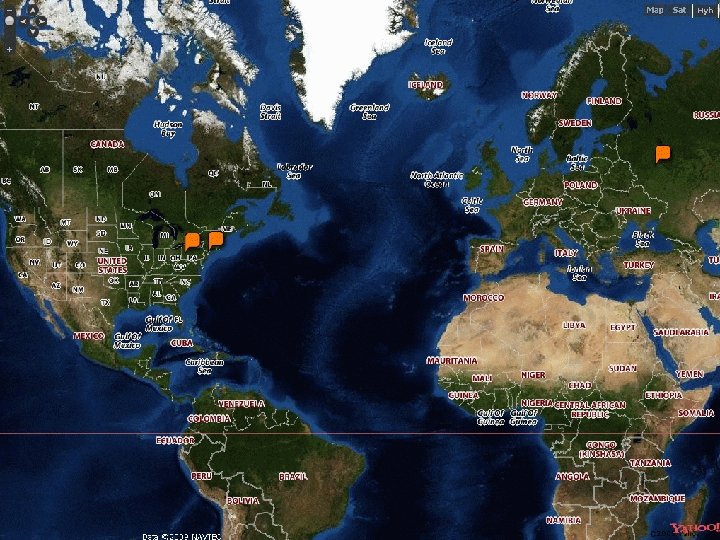

Maps Displaying points {{ #display_points: 55° 45′ 06″N 37° 37′ 04″E; New York; 40. 446195, -79. 948862 }}
Maps Displaying points: point specific data Address~Title~Label~Icon

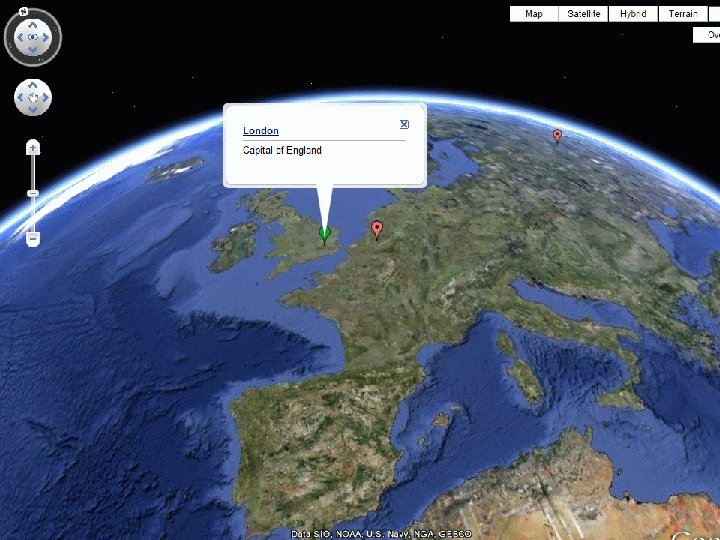

Maps Displaying points: point specific data {{ #display_points: Brussels; New York~New York city; Moscow, Russia~Moscow~A city in Russia; London~[[London]]~Capital of England~Green marker. png; Mali~~Blue marker. png }}
Maps Mapping services
Maps So how do I customize a map?
Maps Map properties {{ #display_map: New York City | property = value | property 2 = value 2 }}
Maps Map properties
Maps Map properties: default property {{#display_map: New York City}} {{#display_map: address = New York City}} {{#display_map: coordinates = 55. 7557860, 37. 6176330}}

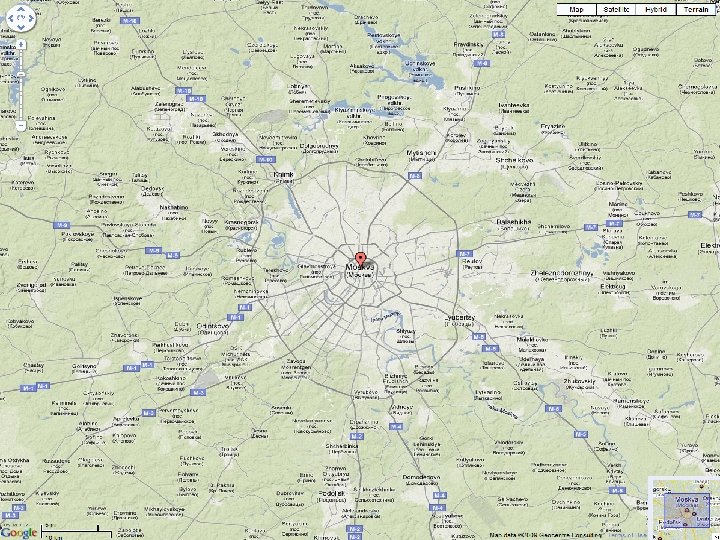

Maps Map properties: service {{ #display_point: Moscow, Russia}} {{ #display_point: Moscow, Russia | service=googlemaps }}
Maps Map properties: geoservice {{ #display_point: Moscow, Russia | geoservice=geonames }}
Maps Map properties: width and height {{ #display_point: Moscow, Russia | width = 800 | height = 420 }}
Maps Map properties: zoom and centre {{ #display_point: Moscow, Russia | zoom = 10 | centre = Brussels }}
Maps Map properties: zoom and centre {{ #display_point: Moscow, Russia; Brussels; Rome; Berlin }}
Maps Map properties: zoom and centre {{ #display_point: Moscow, Russia; Brussels; Rome; Berlin | zoom = 2 }}
Maps Map properties: title, label and icon {{ #display_point: Moscow; Brussels; Rome | icon = Green marker. png | title = A capital in Europe }}
Maps Map properties {{ #display_point: zoom=10 |width=1200 |height=1000 | 55. 7557860, 37. 6176330 | service = google | type = physical | types = terrain, hybrid, earth | controls = large, overview-map, scale, type }}
Maps Map properties {{ #display_point: zoom=10 |width=1200 |height=1000 | 55. 7557860, 37. 6176330 | service = google | type = physical Not in the list? | types = terrain, hybrid, earth | controls = large, overview-map, scale, type }}
Maps Service specific parameters Google Maps Yahoo! Maps
Maps Service specific parameters Open. Layers Open. Street. Map
Semantic Maps • Media. Wiki extension • Hooks into – Maps – Semantic Media. Wiki – Semantic Forms • Functionality – Aggregation of coordinates (Result formats) – Insertion of coordinates (Form inputs)
Semantic Maps Mapping services • Identical to the ones of Maps – – Google Maps Yahoo! Maps Open. Layers Open. Street. Map
Semantic Maps Result formats {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | ? area#km² = Size in km² | ? coordinates | format=map }}
Semantic Maps Result formats {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | ? area#km² = Size in km² | ? coordinates | format=openlayers }}
Semantic Maps Result formats: Parameters {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population | ? area#km² = Size in km² | ? coordinates | format=openlayers | width = 500 | height = 300 | zoom = 10 }}
Semantic Maps Result formats: Parameters
Semantic Maps Result formats: Example {{ #ask: [[Category: City]] [[located in: : Germany]] | ? population| ? area#km² = Size in km² | ? coordinates | format=openlayers | width=800 | height=500 | zoom=4 | center={{#geocode: Moscow, Russia}} | layers=google-physical, yahoo, google, bing, openlayers, nasa }}

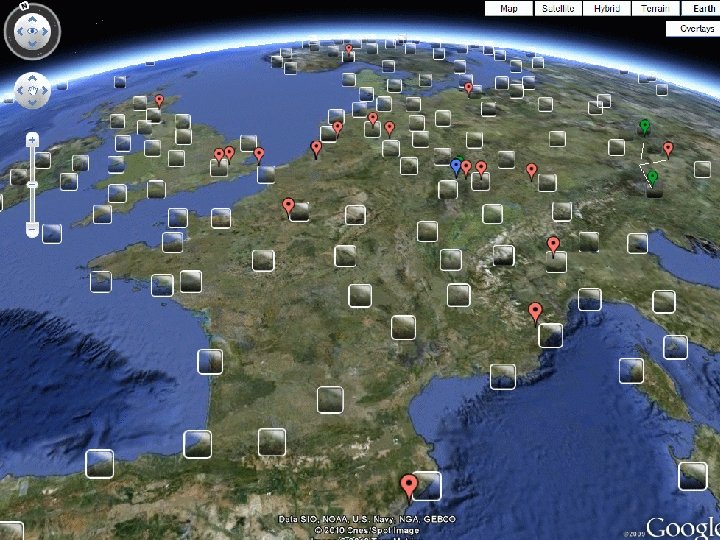

Semantic Maps Result formats: Using SCQ • Semantic Compound Queries {{ #compound_query: [[Category: People]]; ? Has coordinates | [[Category: Organizations]]; ? Has coordinates; icon=Green marker. png | [[Category: Events]]; ? Has coordinates; icon=Blue marker. png | format=map }}

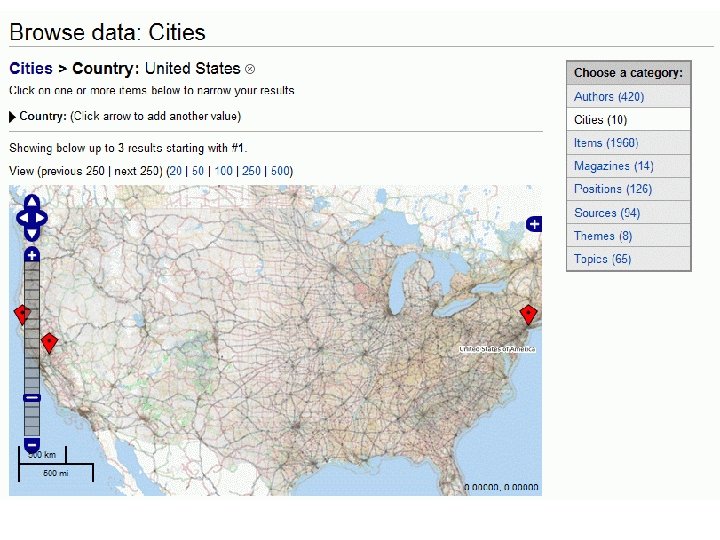

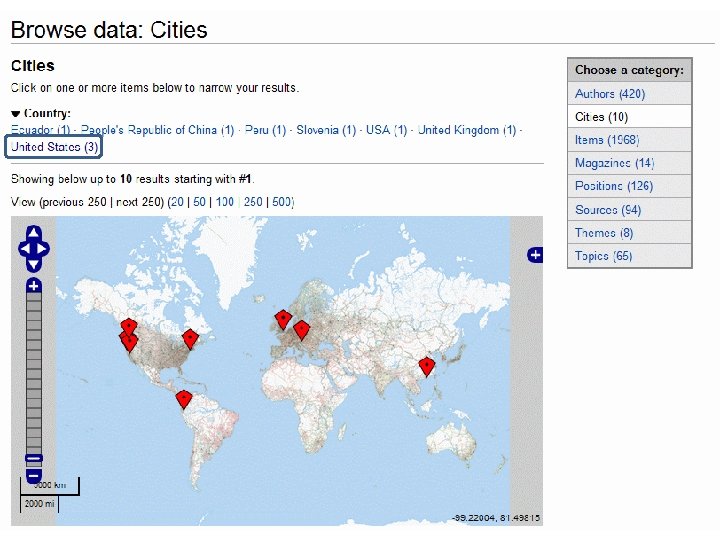

Semantic Maps Result formats: Using Semantic Drilldown

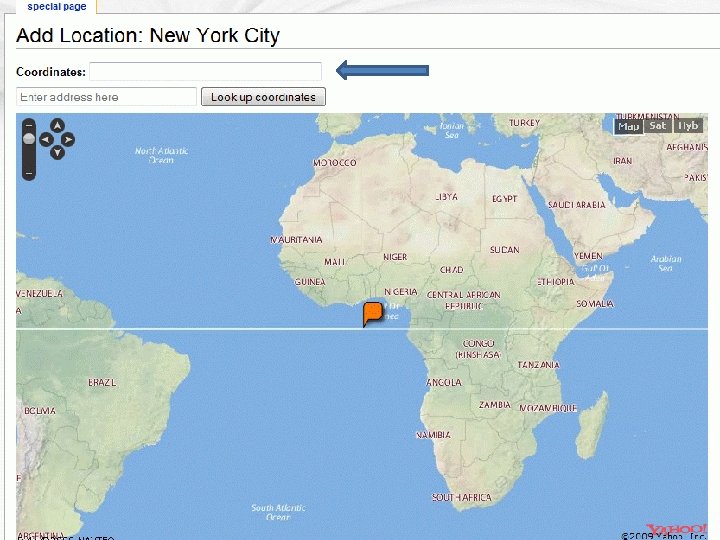

Semantic Maps Form Inputs • Semantic Forms hook • Allows – Coordinate insertion – Easy editing of coordinate data With a visual interface (= No wiki code!)
Semantic Maps Form Inputs: Syntax {{{ field |The coordinates |input type=yahoomaps }}}
Semantic Maps Form Inputs: Parameters {{{ field |The coordinates |input type=yahoomaps |width=800 |height=500 |zoom=8 |autozoom=off }}}
Semantic Maps Form Inputs : Parameters

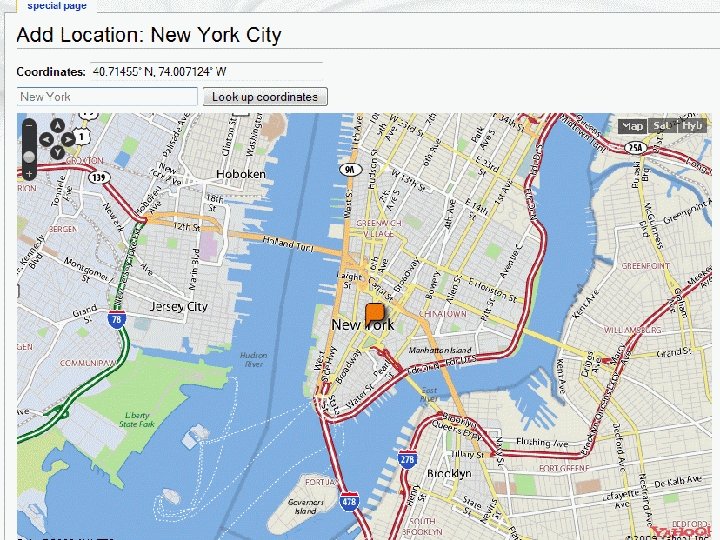

Semantic Maps Form Inputs: Example {{{ field |The coordinates |input type=yahoomap |width=800 |height=500 |autozoom=off }}}
Future Plans Awesome stuff that’s not there yet! • Images as layers • Google Maps v 3 support • • KML Display_route Bing Maps, Google Streetview . . .
Thanks to • • Google, for the funding of both extensions Yaron Koren, for mentoring me during the dev Wikimedia Foundation, for all the support Stichting Liedts-Meesen, for hosting this talk
References • • www. mediawiki. org www. semantic-mediawiki. org wiki. bn 2 vs. com www. wikiworks. com Jeroen De Dauw • jeroendedauw@gmail. com • blog. bn 2 vs. com
