R 12 Federal Financials: Recent Enhancements and Upgrade Impacts Larry Baugh Apps Ingenuity LLC April 25, 2012

Agenda • Federal CGAC Enhancements • • Treasury Account Symbols, TAS BETC • Budget Codes, FACTS Attributes, FACTS II Edit Codes • Purge Treasury Account Symbols • TAS/Fund/Bud Distributions Rollover GTAS Federal Multiple Cash Accounts and Treasury Confirmation Enhancement Managing SLA Changes in R 12 Federal Payment Processing Web ADI Capability for FV Budget Distributions Expired Fund Distribution Objective: to share a variety of information on R 12 Updated functionality applicable to Federal Financials customers.

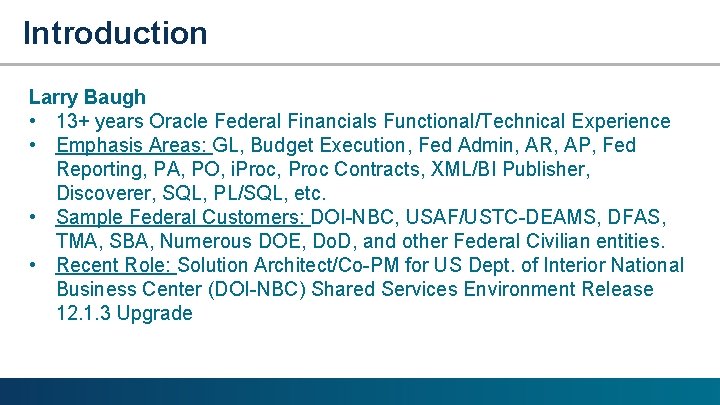

Introduction Larry Baugh • 13+ years Oracle Federal Financials Functional/Technical Experience • Emphasis Areas: GL, Budget Execution, Fed Admin, AR, AP, Fed Reporting, PA, PO, i. Proc, Proc Contracts, XML/BI Publisher, Discoverer, SQL, PL/SQL, etc. • Sample Federal Customers: DOI-NBC, USAF/USTC-DEAMS, DFAS, TMA, SBA, Numerous DOE, Do. D, and other Federal Civilian entities. • Recent Role: Solution Architect/Co-PM for US Dept. of Interior National Business Center (DOI-NBC) Shared Services Environment Release 12. 1. 3 Upgrade

CGAC Enhancements • • • The Common Government-wide Accounting Classification Structure (CGAC) is a new standard structure of financial data elements to be utilized within the US Federal Financial System environment. Oracle provided numerous enhancements to better support this CGAC integration. Patch 9000001 should be installed to deploy this functionality. DO NOT just apply patch 9307787. MOS Note: 1277072. 1 Federal CGAC Enhancements

CGAC Enhancements Treasury Account Symbols Treasury Account Codes form is retired.

CGAC Enhancements Treasury Account Symbols

CGAC Enhancements Treasury Account Symbols

CGAC Enhancements 3 -digit Agency Identifier values supported

CGAC Enhancements Fund Attributes (aka Fund Parameters)

CGAC Enhancements

CGAC Enhancements Business Event Type Codes (BETC)

CGAC Enhancements Budget Codes Budget Distributions

CGAC Enhancements Purge Treasury Symbols

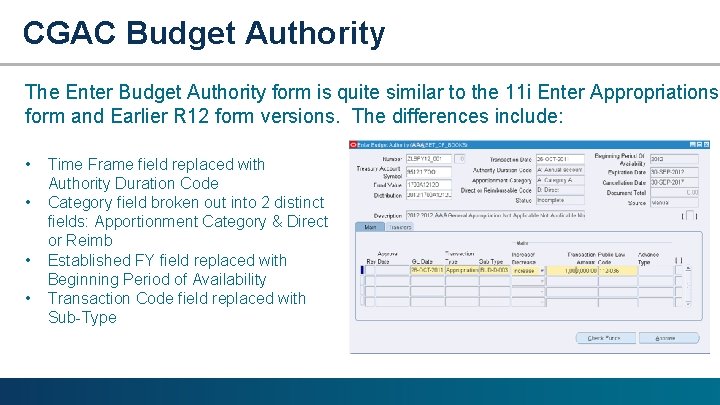

CGAC Budget Authority The Enter Budget Authority form is quite similar to the 11 i Enter Appropriations form and Earlier R 12 form versions. The differences include: • • Time Frame field replaced with Authority Duration Code Category field broken out into 2 distinct fields: Apportionment Category & Direct or Reimb Established FY field replaced with Beginning Period of Availability Transaction Code field replaced with Sub-Type

CGAC Funds Distributions The R 12 CGAC Enter Funds Distributions form. Differences include: • • • Category field broken out into 2 distinct fields: Apportionment Category & Direct or Reimb From Distribution Description field added Transaction Code field replaced with Sub-Type

CGAC Budget Authority When Checking Funds for Budget Distributions, R 12 provides the capability to view specific Budgetary Control Results Data.

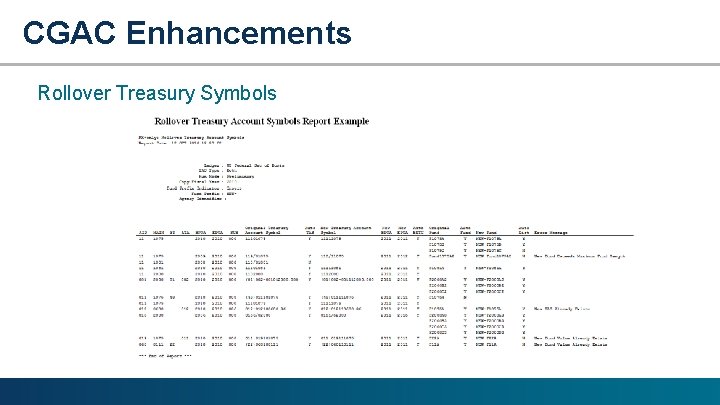

CGAC Enhancements Rollover Treasury Symbols

GTAS Enhancements New Federal Financial enhancements are imminent to provide agency capability for interfacing to the Government wide Treasury Account Symbol Adjusted Trial Balance System (GTAS) starting Dec. 2012. References/Screenshots to Oracle Federal Development GTAS info is taken from the 17 -Apr-12 Oracle Federal Development Spring Briefing. http: //www. fms. treas. gov/gtas/index. html

GTAS Enhancements

CGAC vs GTAS Enhancements CGAC GTAS

CGAC vs GTAS Enhancements CGAC GTAS

CGAC vs GTAS Enhancements CGAC GTAS

CGAC vs GTAS Enhancements CGAC GTAS

Key Federal-Related SLA Process Changes 11 i R 12 Dr 470001 179. 94 Cr 461051 179. 94 Dr 461051 197. 94 Cr 480101 Dr 461051 Cr 480101 18. 00 197. 94 Instead of “washing” the transaction back and forth through 46 X 051, the Commitment balance will be liquidated any price/quantity change will impact Allotment Authority balances just for the delta amount. The detail accounting entries for Auto. Created Purchase Orders created in R 12 is improved.

Key Federal-Related SLA Process Changes Dr Cr $100 PO Manual Creation, Current Year BFY, Unexpired Dr 461051 100 Cr 480101 100 $105 PO Auto. Creation from $100 Req, Current Year BFY, Unexpired Dr 461051 5 Dr 470001 100 Cr 480101 105 Upward Revision of $5, to $100 Manually Created PO, Current Year BFY, Unexpired Cr 480101 100 Dr 461051 105 Dr 461051 100 Cr 480101 105 Upward Revision of $5, to $100 Manually Created PO, Prior Year BFY, Expired Cr 480101 100 Dr 465051 105 Dr 465051 100 Cr 480101 100 Cr 488101 5 Downward Revision of $5, to $100 Manually Created PO, Prior Year BFY, Expired Cr 480101 100 Dr 465051 95 Dr 487101 5 Dr 465051 100 Cr 480101 100 Upward/Downward Inflation Overstated PYA accounts (e. g. 4881), often due to various document modifications, but not true Up/Down adjustments The capability that SLA provides for transaction-driven Upward/Downward Adjustment entries is nice. However, there is currently not a seeded solution for mitigating/correcting PYA “Inflation”, other than through Unreserve/Rereserve PYA suppression on the same distribution_id.

FV Accounting Entry Journal Descriptions As desired, the end-state GL journal entries from Budget Distribution events (as well as others), can contain enhanced journal line description data which provides a quick glimpse of source transaction detail attributes.

Viewing FV SLA Accounting Entries Budget Distribution and Treasury Confirmation accounting entries can now be viewed from the subsidiary module, in addition to GL, via the SLA: User Main Menu available from Federal Financial application responsibilities.

SLA: Multiple Cash Accounts Federal Multiple Cash Accounts and Treasury Confirmation Enhancement MOS Doc ID 1314160. 1 Oracle’s SLA solution for using different cash accounts is tied to different bank account CCIDs setup. There are other methods for this if desired w/SLA, but these CCIDs must now be setup.

SLA: AR Transaction Category Mapping The seeded FV SLA AR design is dependent on the AR Transaction Category Mapping.

Managing FV SLA Changes in R 12 • Moving forward to uptake new enhancements is usually always a good thing, but due to the sensitivity and complexity of the R 12 Federal SLA functionality, we must be a bit more careful with patching at this point in R 12 than we might have been w/11 i recently. • Oracle makes mention of this issue in the patch 9000001 readme: "If customer has customized the following AADs, they might need to revisit the below AADs to make sure they have uptaken their Customized JLT per the new changes. " …however if you ask me, it should be in bold

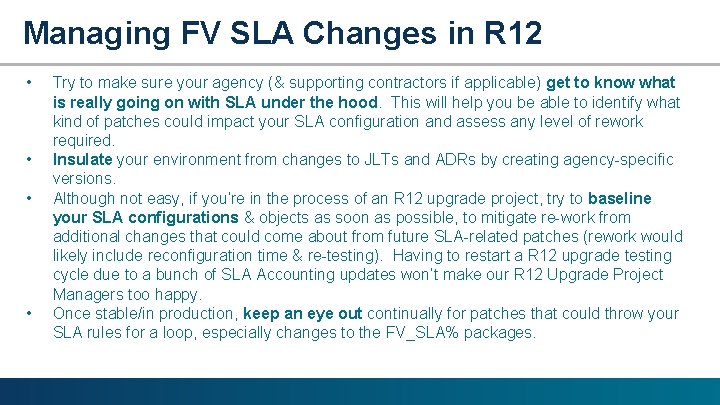

Managing FV SLA Changes in R 12 • • Try to make sure your agency (& supporting contractors if applicable) get to know what is really going on with SLA under the hood. This will help you be able to identify what kind of patches could impact your SLA configuration and assess any level of rework required. Insulate your environment from changes to JLTs and ADRs by creating agency-specific versions. Although not easy, if you’re in the process of an R 12 upgrade project, try to baseline your SLA configurations & objects as soon as possible, to mitigate re-work from additional changes that could come about from future SLA-related patches (rework would likely include reconfiguration time & re-testing). Having to restart a R 12 upgrade testing cycle due to a bunch of SLA Accounting updates won’t make our R 12 Upgrade Project Managers too happy. Once stable/in production, keep an eye out continually for patches that could throw your SLA rules for a loop, especially changes to the FV_SLA% packages.

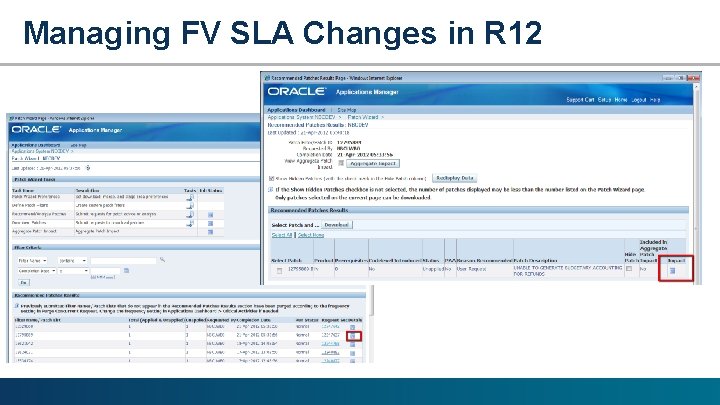

Managing FV SLA Changes in R 12

Managing FV SLA Changes in R 12

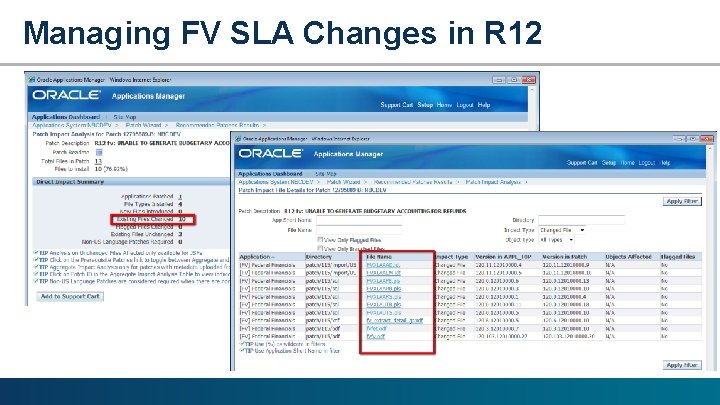

Managing FV SLA Changes in R 12

R 12 Federal Payment Processing With the new architecture of the core EBS Payment Processing solution in R 12, Federal Payment Processing design has gone under wholesale change. Key changes include: • The introduction of the IBY Oracle Payments Manager GUI • IBY Utilization of new XML and BI Publisher technology for payment file creation • Introduction of new Payment Validation processes and edits • Utilization of R 12 Payment Reason Codes Any custom payment formats developed or tweaked in 11 i will need to be recreated using the R 12 Oracle IBY/BI Publisher approach.

R 12 Federal Payment Processing The new R 12 Payments GUI is significantly different for creating Payment Process Requests (PPRs), i. e. the next generation of 11 i Payment Batches

R 12 Federal Payment Processing The Payment Formatting structure of a PPR is driven by the Payment Process Profile tagged to the PPR Instruction.

R 12 Federal Payment Processing Design Payment Process Profile definitions are accessible via the Payment Administrator functionality.

R 12 Federal Payment Processing Design Many standard US Treasury Federal Payment Formats are provided as seeded Payment Process Profile definitions in R 12. Agency-specific Payment Process Profiles may need to be created to meet other requirements, e. g. ITS, Clearing, Do. D Disbursing system integration, etc.

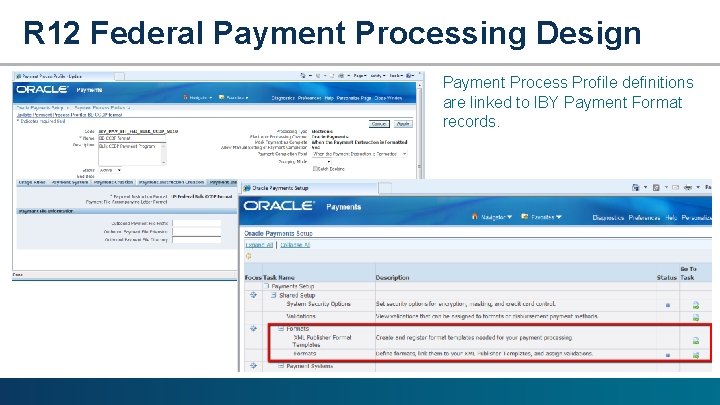

R 12 Federal Payment Processing Design Payment Process Profile definitions are linked to IBY Payment Format records.

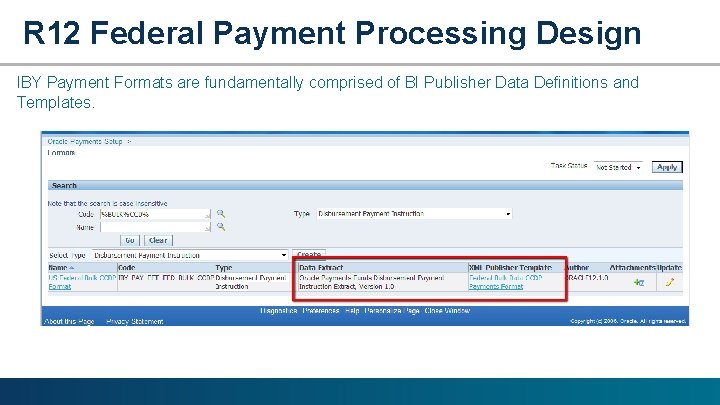

R 12 Federal Payment Processing Design IBY Payment Formats are fundamentally comprised of BI Publisher Data Definitions and Templates.

R 12 Federal Payment Processing Design This process flow does a great job of illustrating the new R 12 IBY Payment Output flow. The Fund Disbursement XML extract is used as the baseline for all outbound payment formats, presented differently as required by the applicable e. Text BI Publisher Templates. Format Customization in Oracle Payments for Oracle Applications Release 12 [ID 787467. 1]

R 12 Federal Payment Processing Design Each R 12 BI Publisher Payment format includes a mapping to the Funds Disbursement Extract as the Data Definition used, along with the e. Text BI Publisher template.

R 12 Federal Payment Processing Design The e. Text BI Publisher Templates are structured similar to a Interface File Specification layout and provides the capability for applying additional functions to the XML data. A key reference on e. Text BI Publisher Templates is: Oracle XML Publisher Report Designer’s Guide, Chapter 4: Creating an e. Text Template

R 12 Federal Payment Processing Design For agencies creating payment files for systems beyond the FV seeded list, there are multiple methods and components to address such requirements. • If all the data required for outbound file creation is provided within the seeded Funds Disbursement XML Extract, then the requirement can likely be met through 1) creating a custom BI Pub Payment Format Template, registering the 2) Payment Format and 3) Payment Profile. • If additional data is required beyond what is provided in the seeded Funds Disbursement XML Extract, then the IBY_FD_EXTRACT_EXT_PUB package can be used to extend the extract creation to include additional XML data elements as required. • Key MOS Note: Format Customization in Oracle Payments for Oracle Applications Release 12 [ID 787467. 1]

R 12 Federal Payment Validations R 12 Payments provides new functionality of Payment Validation processes. For Federal, a FV Payment validation process is delivered for seeded formats. Custom validations can also be added. These seeded FV validation functions are in the iby_payment_format_val_pvt package. In 11 i, a number of these validations existed in the Payment Format Code, but some have changed. Example: the TAS_VALIDATION function disallows the use of dashes in FV Treasury Symbols any further.

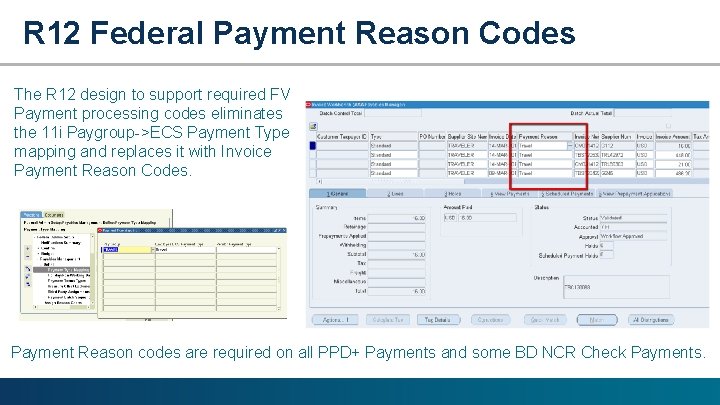

R 12 Federal Payment Reason Codes The R 12 design to support required FV Payment processing codes eliminates the 11 i Paygroup->ECS Payment Type mapping and replaces it with Invoice Payment Reason Codes. Payment Reason codes are required on all PPD+ Payments and some BD NCR Check Payments.

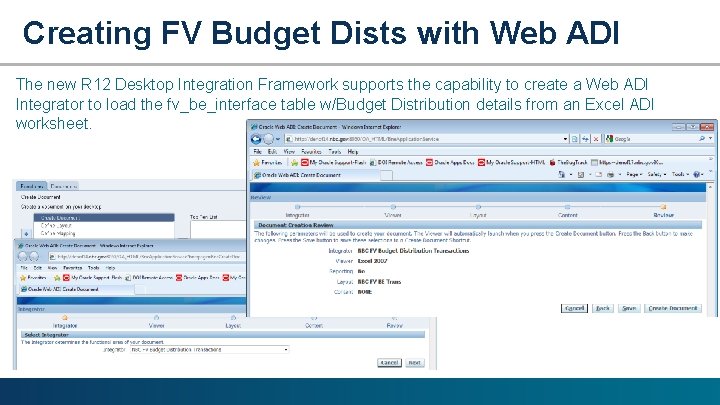

Creating FV Budget Dists with Web ADI The new R 12 Desktop Integration Framework supports the capability to create a Web ADI Integrator to load the fv_be_interface table w/Budget Distribution details from an Excel ADI worksheet.

Creating FV Budget Dists with Web ADI

Creating FV Budget Dists with Web ADI Use the Desktop Integration Manager responsibility to access the Wizard for creating new integrators or maintaining.

Creating FV Budget Dists with Web ADI Standard Interface or custom tables, as well as PL/SQL APIs, can be populated via the R 12 Desktop Integration capability. The Desktop Integration Wizard provides for configuring the integrator characteristics of the target fields/parameters. Fields can be enabled/disabled, defaulted, and validated through the Wizard configuration.

Expired Fund Budget Distributions For Federal Customers who need to move money around in expired funds, this can now be done through the Fed Admin Budget Distribution Functionality instead of having to create manual journal entries. However, per 1356822. 1, the FV BE Interface still does not support Expired Year distributions.

Budgetary Control Result Details Use the Check Funds function to view the detail Budgetary Control Results for Budget Distributions, Requisitions, Purchase Orders, Releases and AP Invoices. Note: not yet available for i. Procurement.

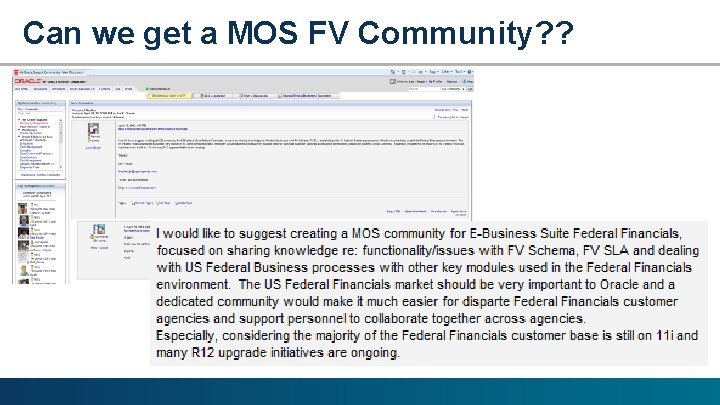

Can we get a MOS FV Community? ?

Additional Resources Federal CGAC Related Enhancements [ID 1277072. 1]

Thanks for attending Larry Baugh Larry. Baugh@Apps. Ingenuity. com 303. 351. 1130 Blog - http: //www. Oracle. Fed. Apps. com Twitter - @Oracle. Fed. Apps Be sure to check the blog for the latest version of this presentation and other info! Add’l session: R 12 Federal Financials Subledger Accounting Teardown Tuesday, 24 -April, 10: 45 AM, South Seas A
