Protocols NUS SOC CS 5248 2019 Roger Zimmermann

Protocols NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

Background NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

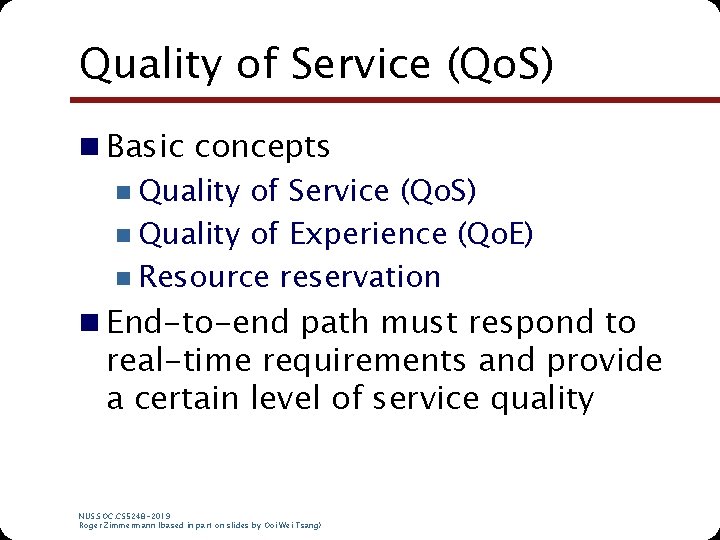

Quality of Service (Qo. S) n Basic concepts n Quality of Service (Qo. S) n Quality of Experience (Qo. E) n Resource reservation n End-to-end path must respond to real-time requirements and provide a certain level of service quality NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

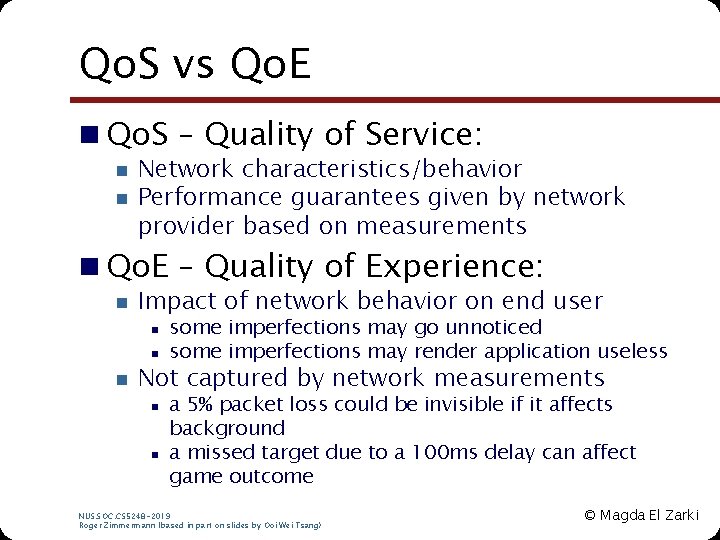

Qo. S vs Qo. E n Qo. S – Quality of Service: n n Network characteristics/behavior Performance guarantees given by network provider based on measurements n Qo. E – Quality of Experience: n Impact of network behavior on end user n n n some imperfections may go unnoticed some imperfections may render application useless Not captured by network measurements n n a 5% packet loss could be invisible if it affects background a missed target due to a 100 ms delay can affect game outcome NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) © Magda El Zarki

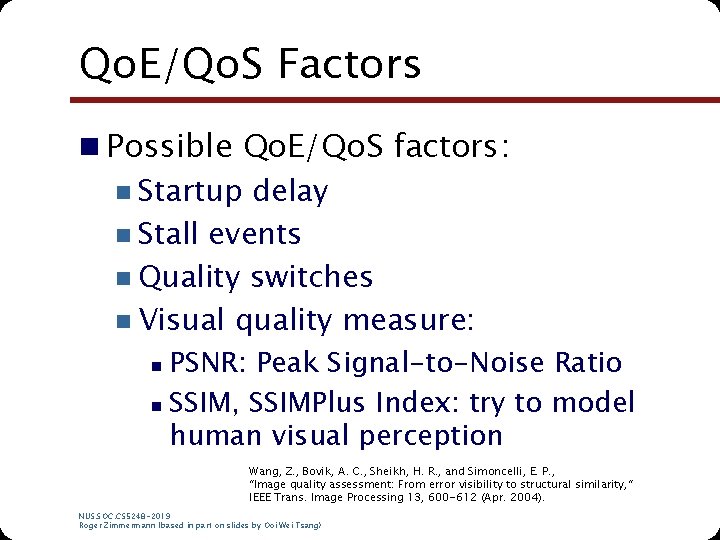

Qo. E/Qo. S Factors n Possible Qo. E/Qo. S factors: n Startup delay n Stall events n Quality switches n Visual quality measure: n PSNR: Peak Signal-to-Noise Ratio n SSIM, SSIMPlus Index: try to model human visual perception Wang, Z. , Bovik, A. C. , Sheikh, H. R. , and Simoncelli, E. P. , “Image quality assessment: From error visibility to structural similarity, “ IEEE Trans. Image Processing 13, 600− 612 (Apr. 2004). NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

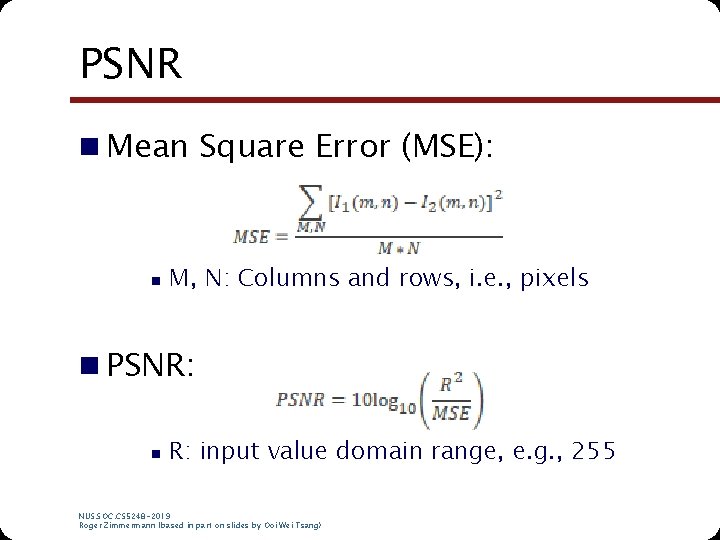

PSNR n Mean Square Error (MSE): n M, N: Columns and rows, i. e. , pixels n PSNR: n R: input value domain range, e. g. , 255 NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

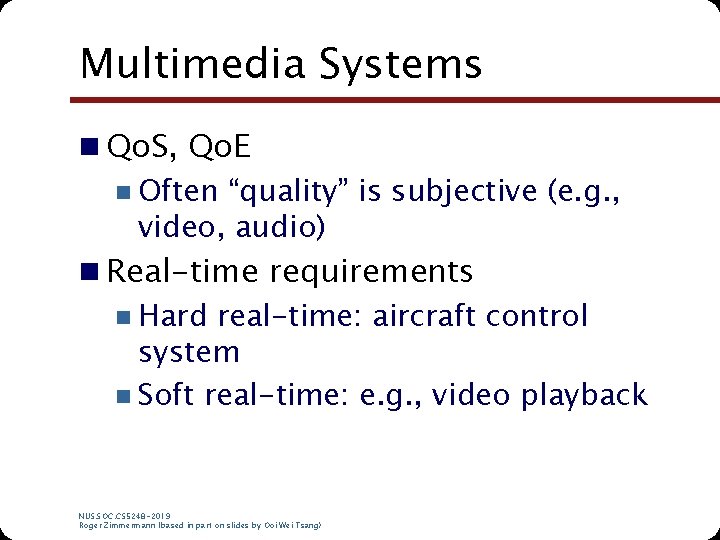

Multimedia Systems n Qo. S, Qo. E n Often “quality” is subjective (e. g. , video, audio) n Real-time requirements n Hard real-time: aircraft control system n Soft real-time: e. g. , video playback NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

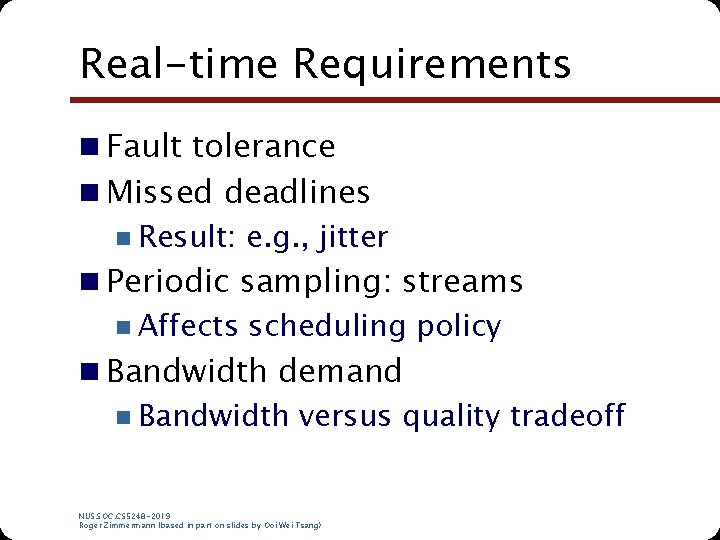

Real-time Requirements n Fault tolerance n Missed deadlines n Result: e. g. , jitter n Periodic sampling: streams n Affects scheduling policy n Bandwidth demand n Bandwidth versus quality tradeoff NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

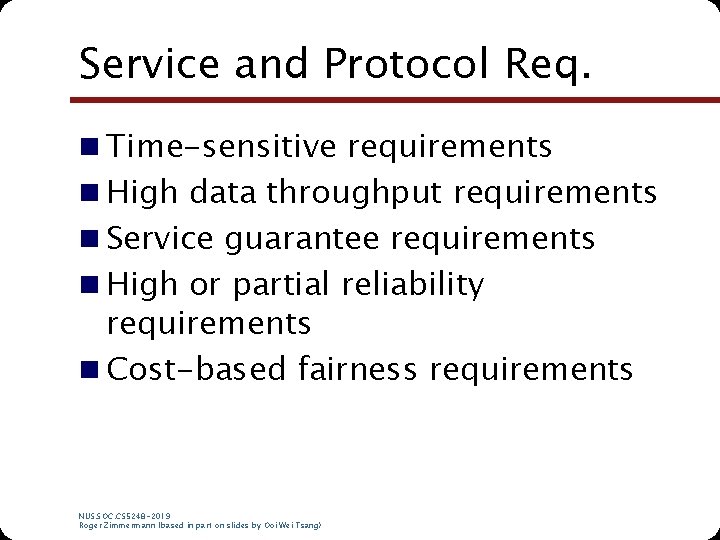

Service and Protocol Req. n Time-sensitive requirements n High data throughput requirements n Service guarantee requirements n High or partial reliability requirements n Cost-based fairness requirements NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

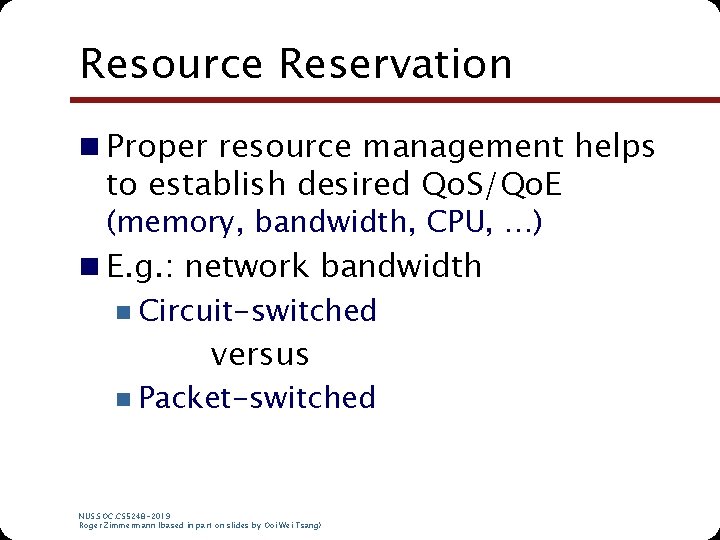

Resource Reservation n Proper resource management helps to establish desired Qo. S/Qo. E (memory, bandwidth, CPU, …) n E. g. : network bandwidth n Circuit-switched versus n Packet-switched NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

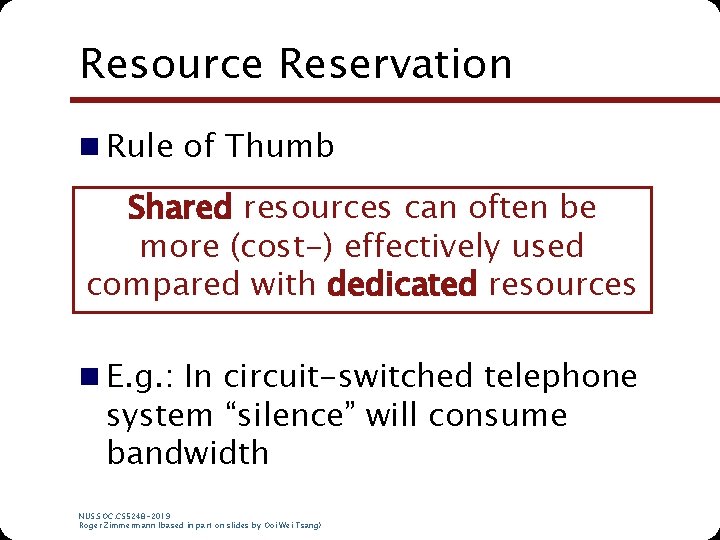

Resource Reservation n Rule of Thumb Shared resources can often be more (cost-) effectively used compared with dedicated resources n E. g. : In circuit-switched telephone system “silence” will consume bandwidth NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

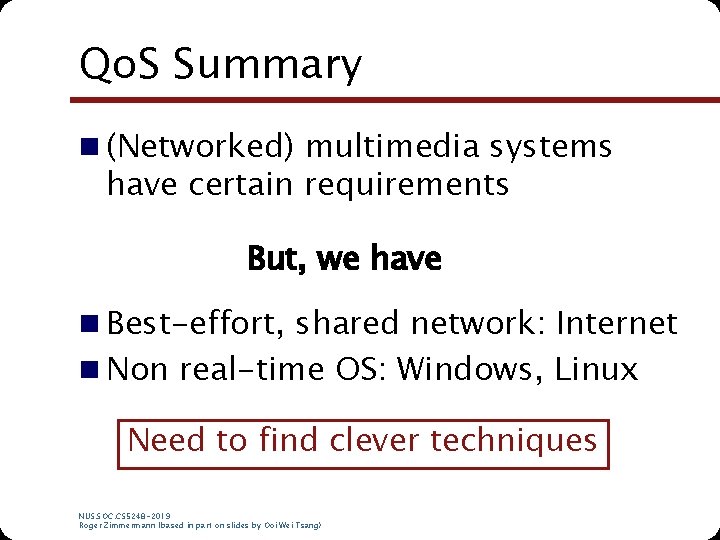

Qo. S Summary n (Networked) multimedia systems have certain requirements But, we have n Best-effort, shared network: Internet n Non real-time OS: Windows, Linux Need to find clever techniques NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

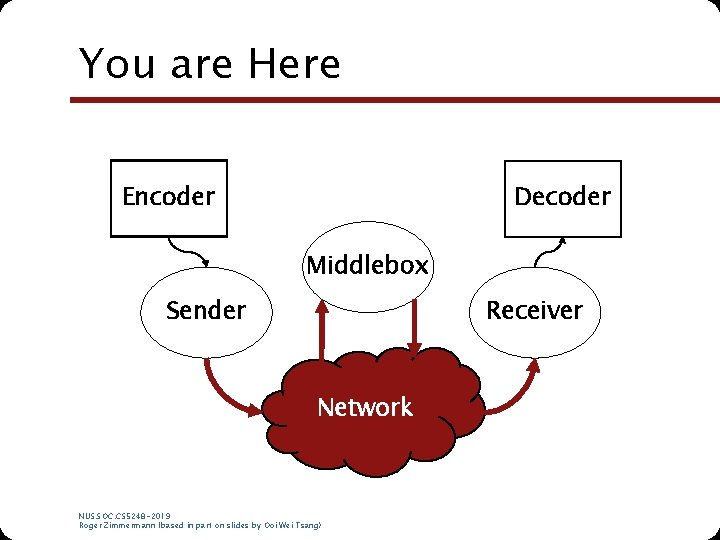

You are Here Encoder Decoder Middlebox Receiver Sender Network NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

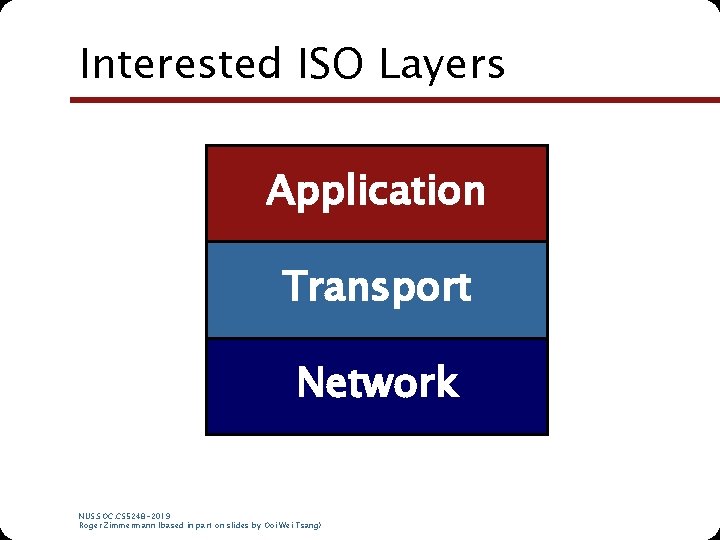

Interested ISO Layers Application Transport Network NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

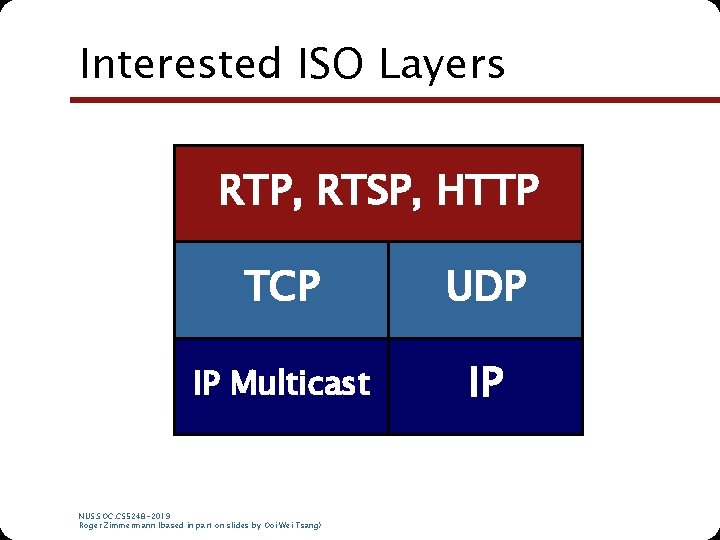

Interested ISO Layers RTP, RTSP, HTTP TCP UDP IP Multicast Network NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) IP

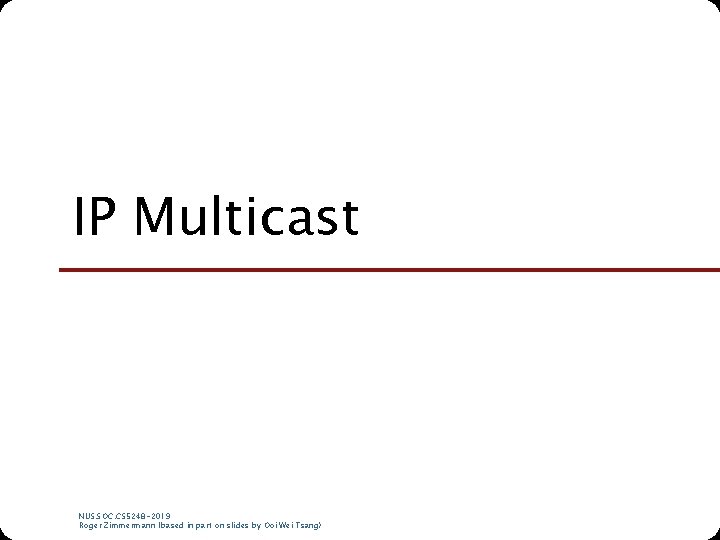

IP Multicast NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

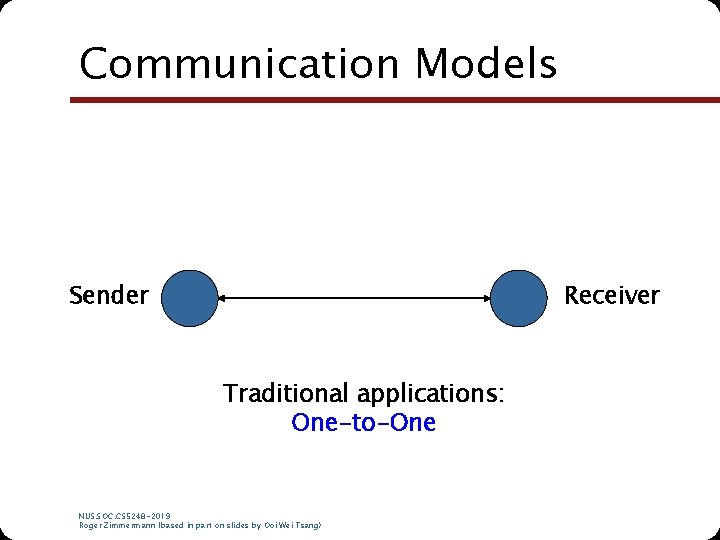

Communication Models Sender Receiver Traditional applications: One-to-One NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

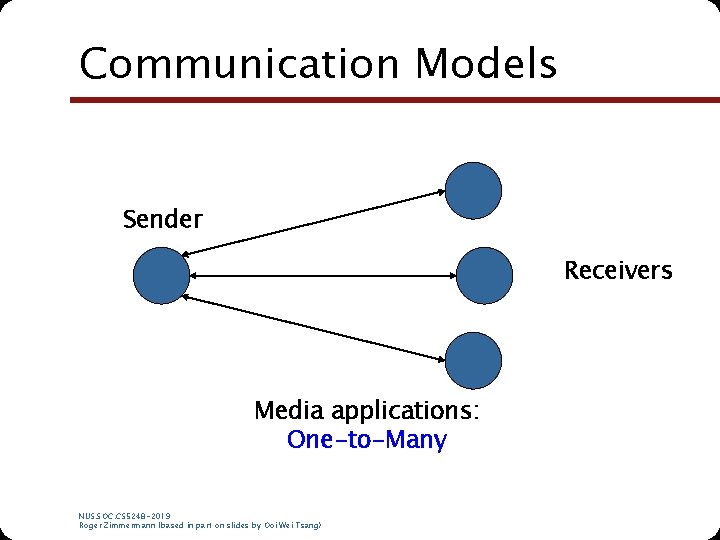

Communication Models Sender Receivers Media applications: One-to-Many NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

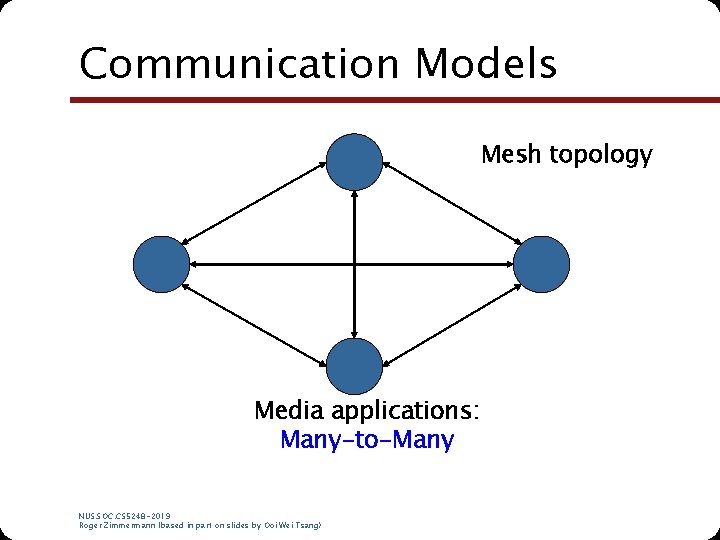

Communication Models Mesh topology Media applications: Many-to-Many NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

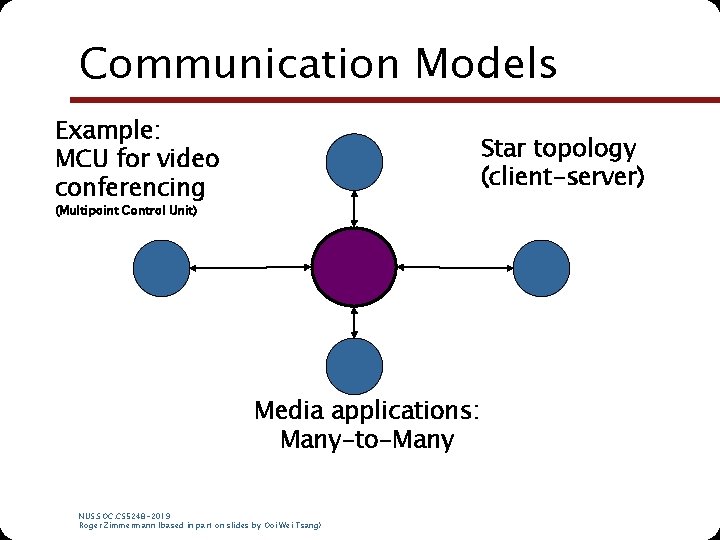

Communication Models Example: MCU for video conferencing Star topology (client-server) (Multipoint Control Unit) Media applications: Many-to-Many NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

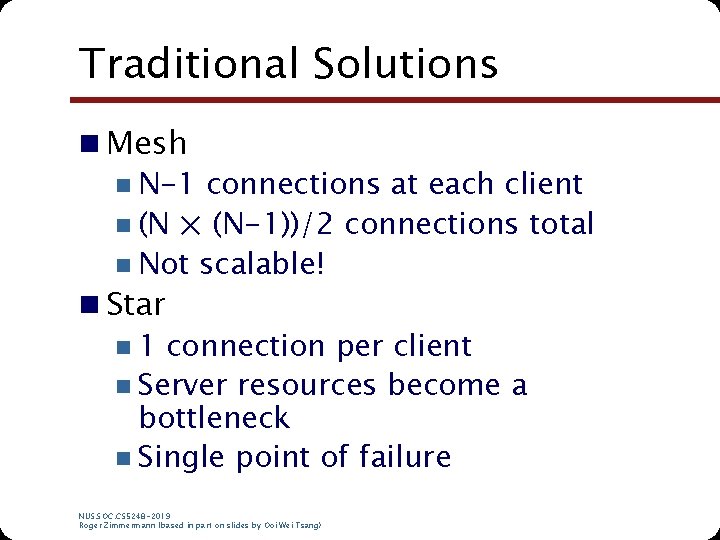

Traditional Solutions n Mesh n N-1 connections at each client n (N × (N-1))/2 connections total n Not scalable! n Star n 1 connection per client n Server resources become a bottleneck n Single point of failure NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

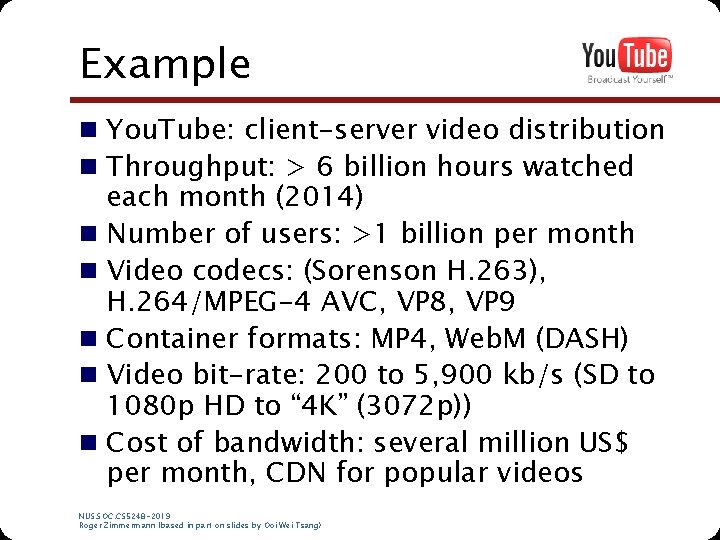

Example n You. Tube: client-server video distribution n Throughput: > 6 billion hours watched each month (2014) n Number of users: >1 billion per month n Video codecs: (Sorenson H. 263), H. 264/MPEG-4 AVC, VP 8, VP 9 n Container formats: MP 4, Web. M (DASH) n Video bit-rate: 200 to 5, 900 kb/s (SD to 1080 p HD to “ 4 K” (3072 p)) n Cost of bandwidth: several million US$ per month, CDN for popular videos NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

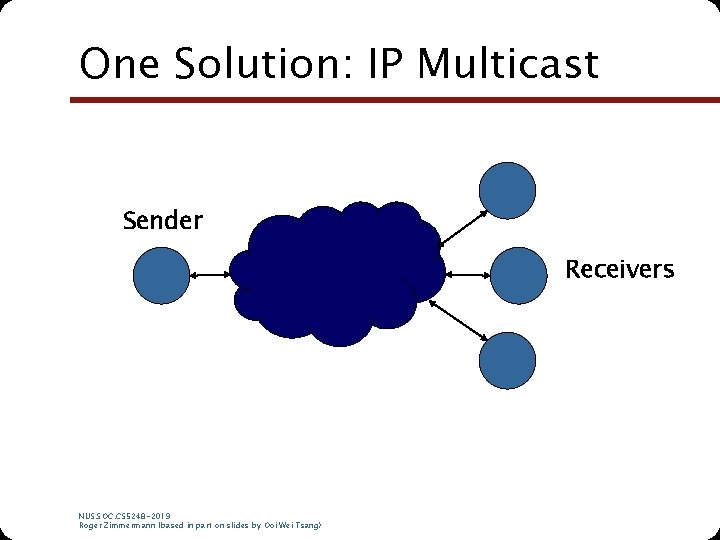

One Solution: IP Multicast Sender Receivers NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

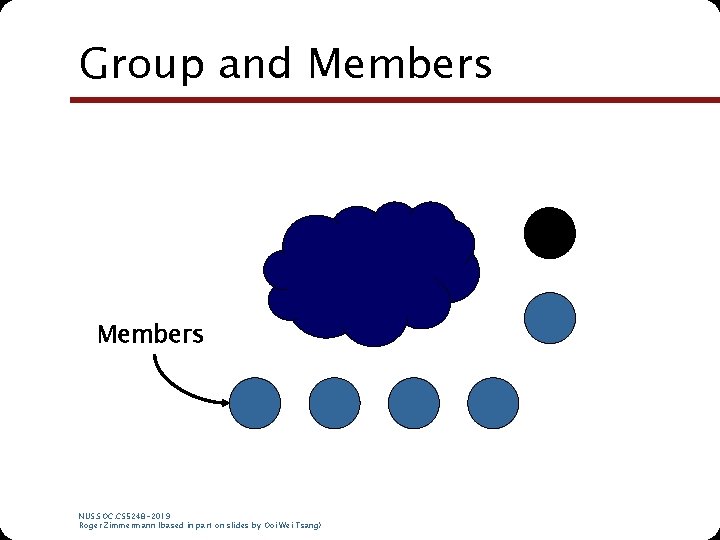

Group and Members NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

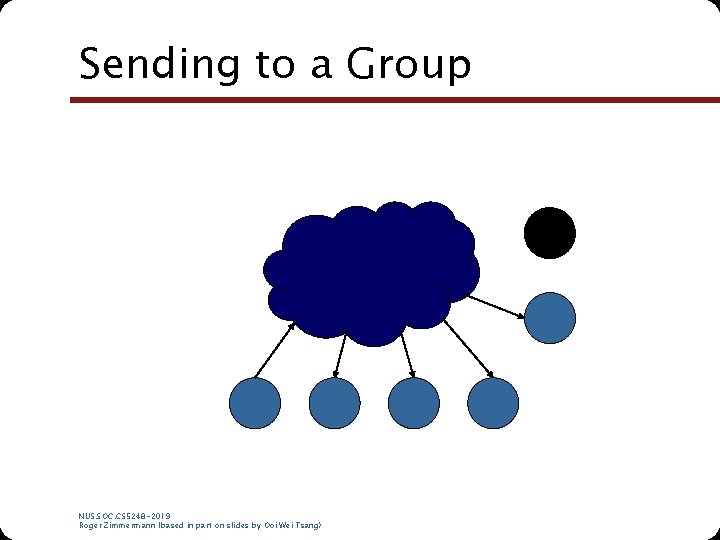

Sending to a Group NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

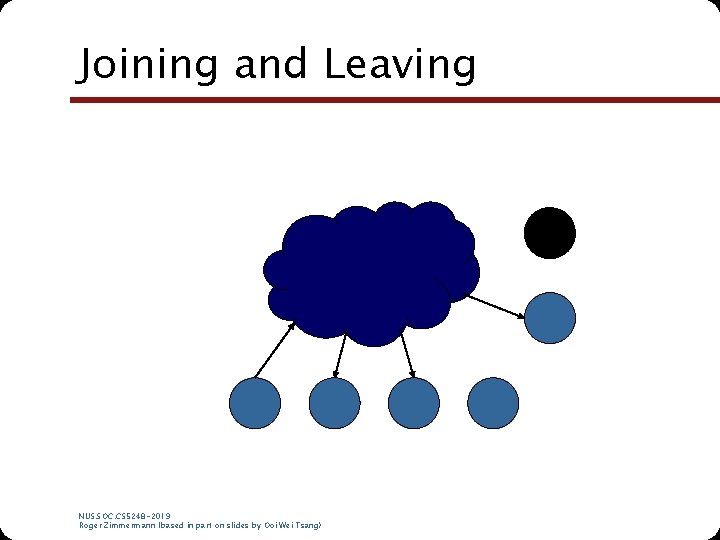

Joining and Leaving NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

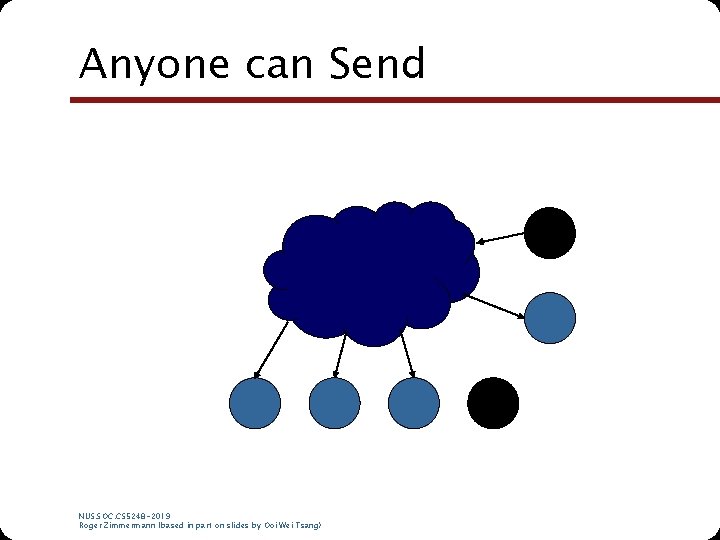

Anyone can Send NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

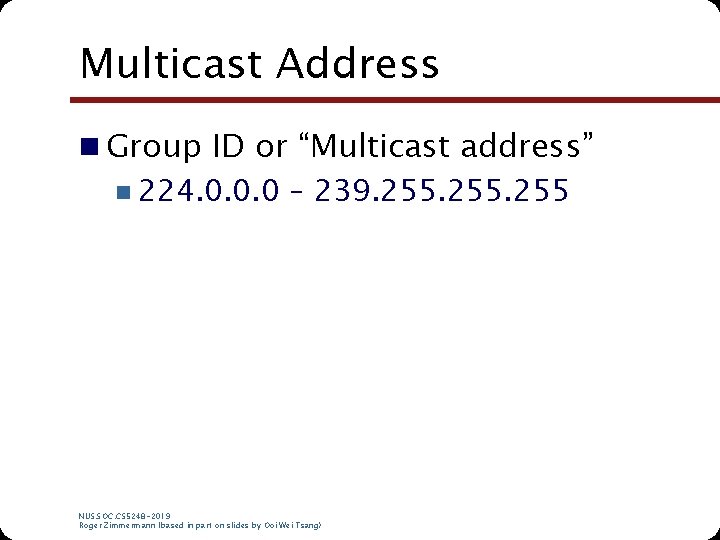

Multicast Address n Group ID or “Multicast address” n 224. 0. 0. 0 – 239. 255 NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

Unicast S A B C Router A Router C NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) B

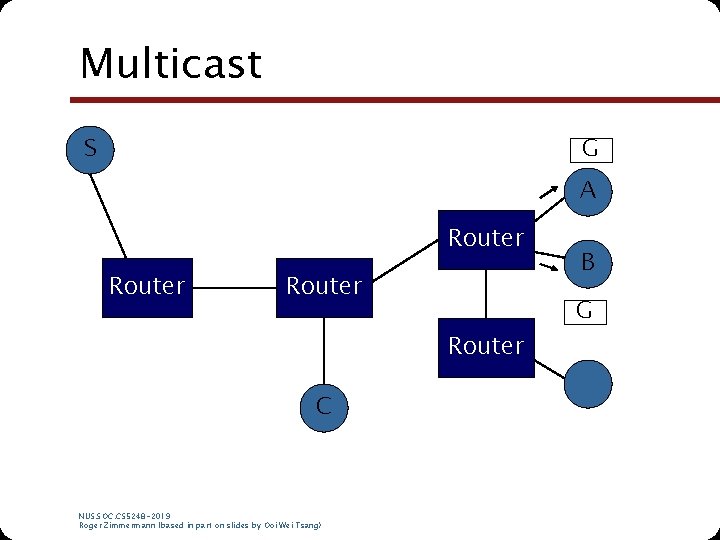

Multicast S G A Router C NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) B

Multicast S G Router A Router G C NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) Router B

Multicast S G A Router C NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) B G

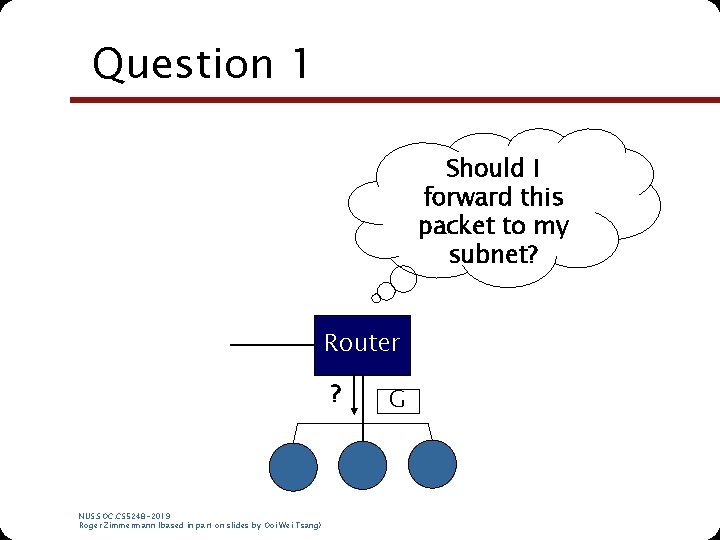

Question 1 Should I forward this packet to my subnet? Router ? NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) G

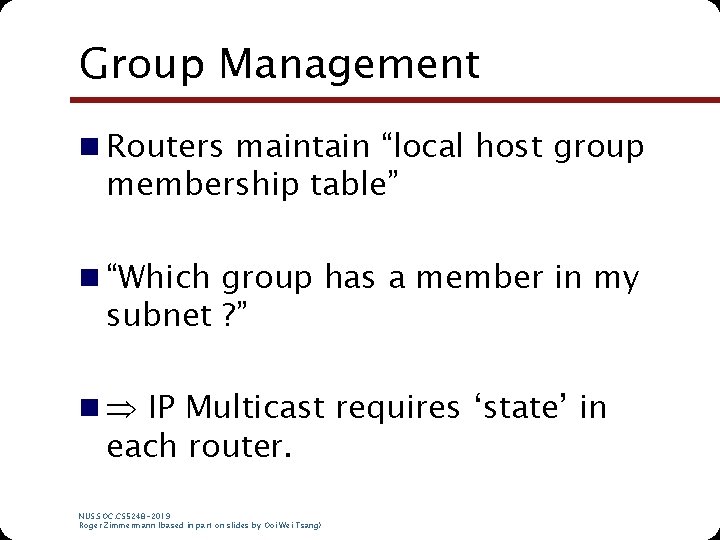

Group Management n Routers maintain “local host group membership table” n “Which group has a member in my subnet ? ” n IP Multicast requires ‘state’ in each router. NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

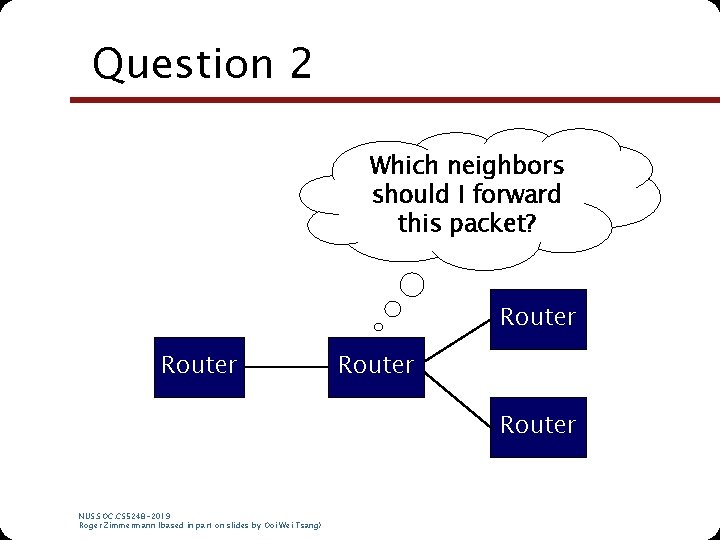

Question 2 Which neighbors should I forward this packet? Router NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

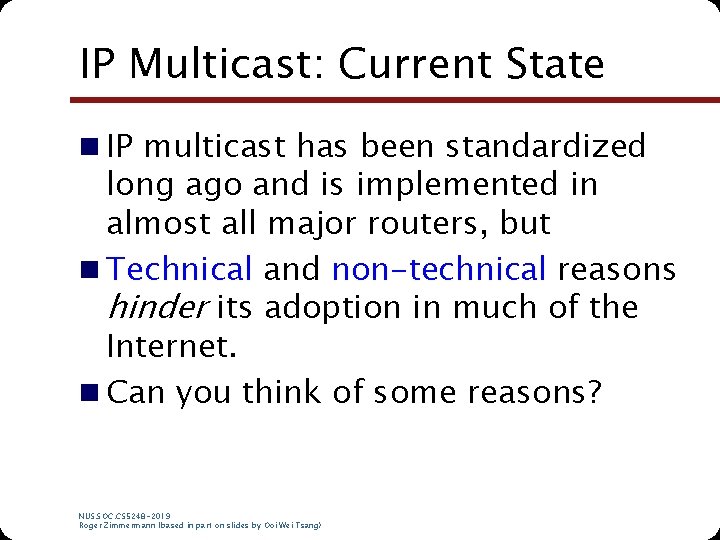

IP Multicast: Current State n IP multicast has been standardized long ago and is implemented in almost all major routers, but n Technical and non-technical reasons hinder its adoption in much of the Internet. n Can you think of some reasons? NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

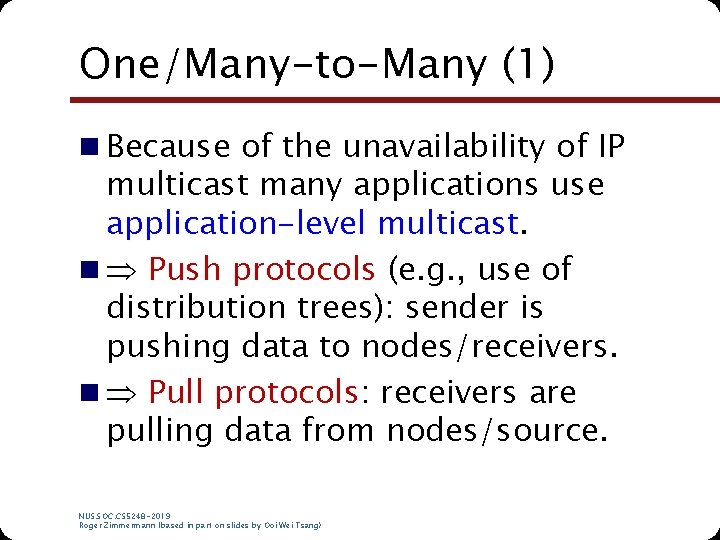

One/Many-to-Many (1) n Because of the unavailability of IP multicast many applications use application-level multicast. n Push protocols (e. g. , use of distribution trees): sender is pushing data to nodes/receivers. n Pull protocols: receivers are pulling data from nodes/source. NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

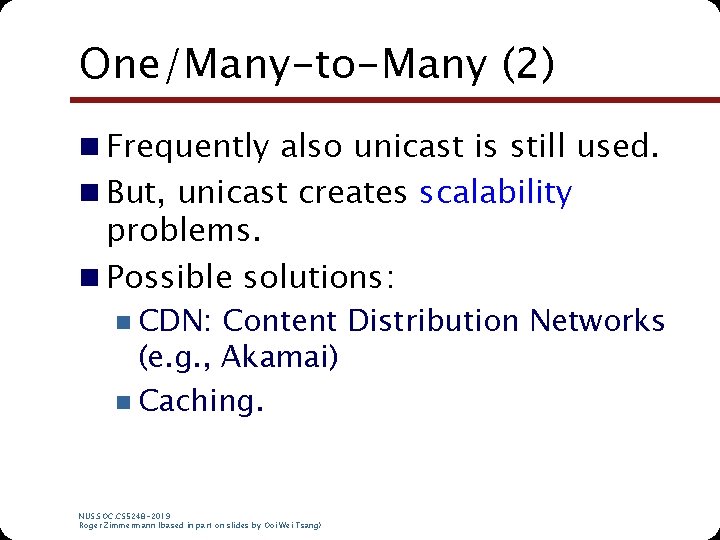

One/Many-to-Many (2) n Frequently also unicast is still used. n But, unicast creates scalability problems. n Possible solutions: n CDN: Content Distribution Networks (e. g. , Akamai) n Caching. NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

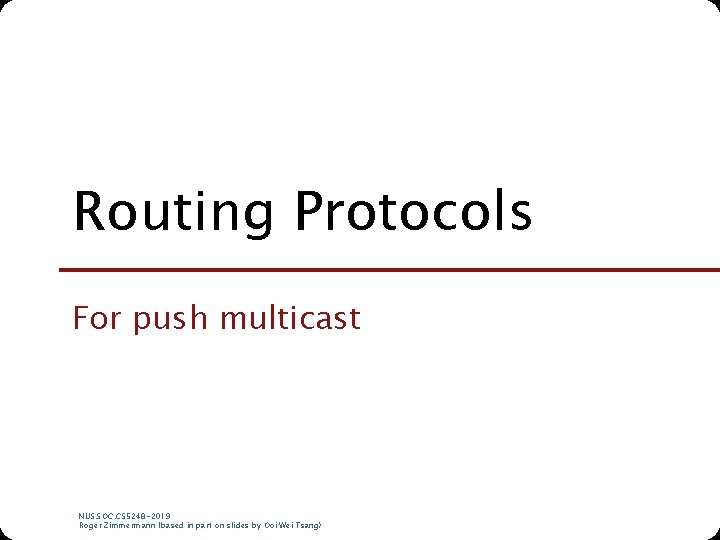

Routing Protocols For push multicast NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

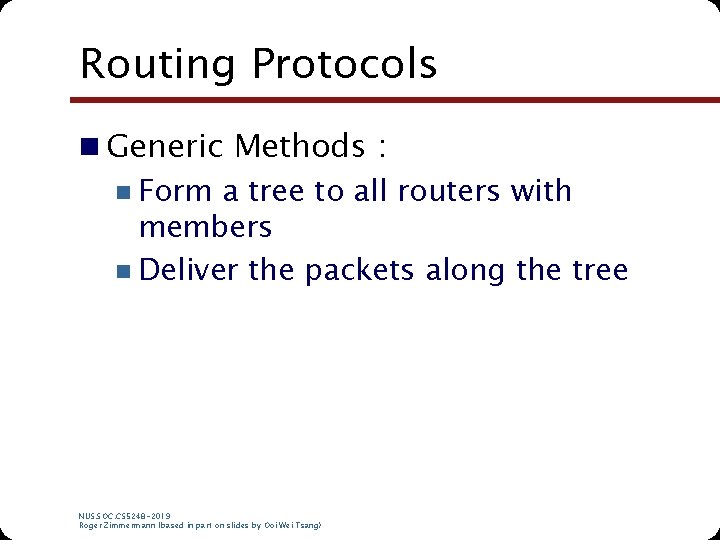

Routing Protocols n Generic Methods : n Form a tree to all routers with members n Deliver the packets along the tree NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

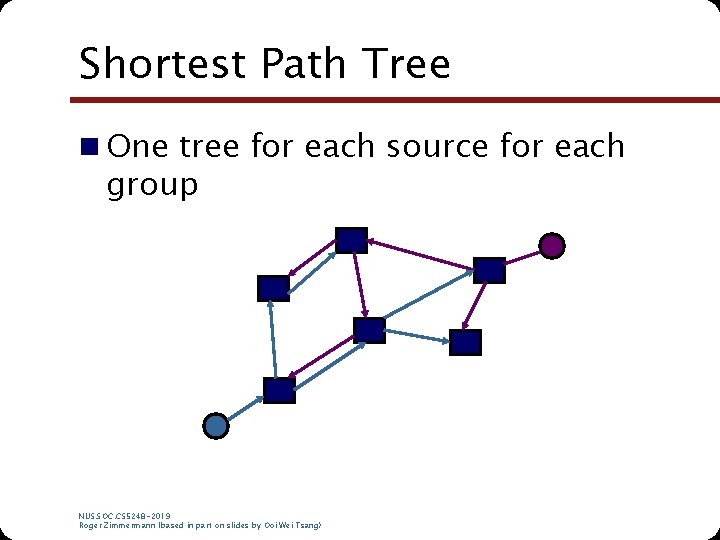

Shortest Path Tree n One tree for each source for each group NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

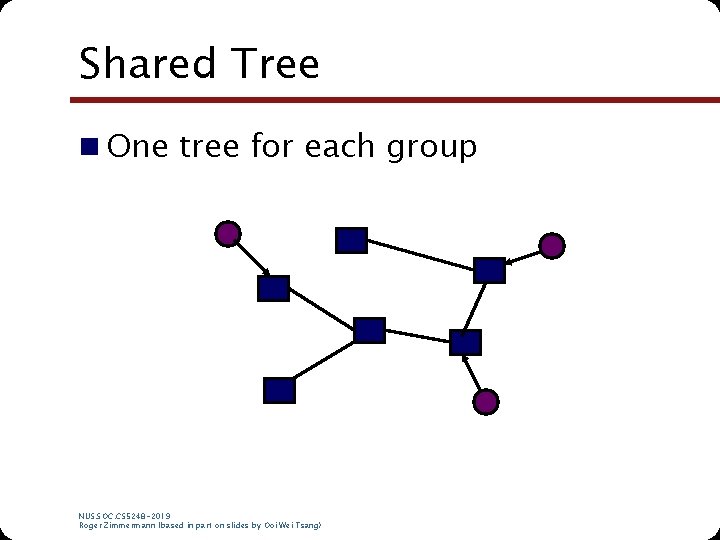

Shared Tree n One tree for each group NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

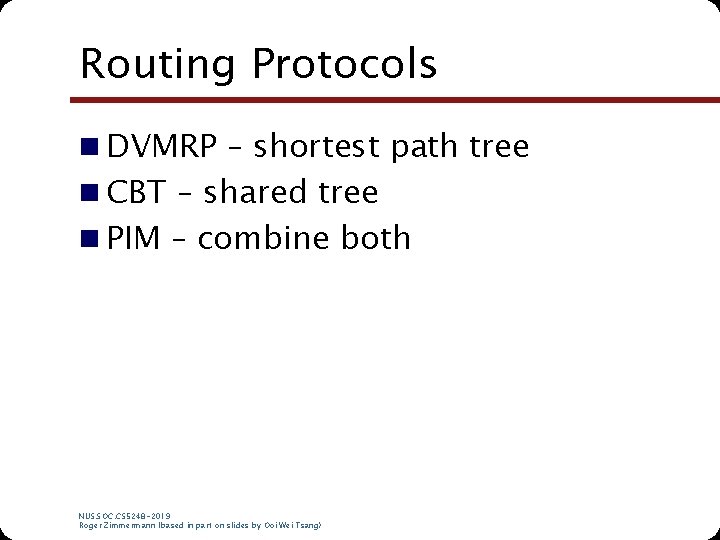

Routing Protocols n DVMRP – shortest path tree n CBT – shared tree n PIM – combine both NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

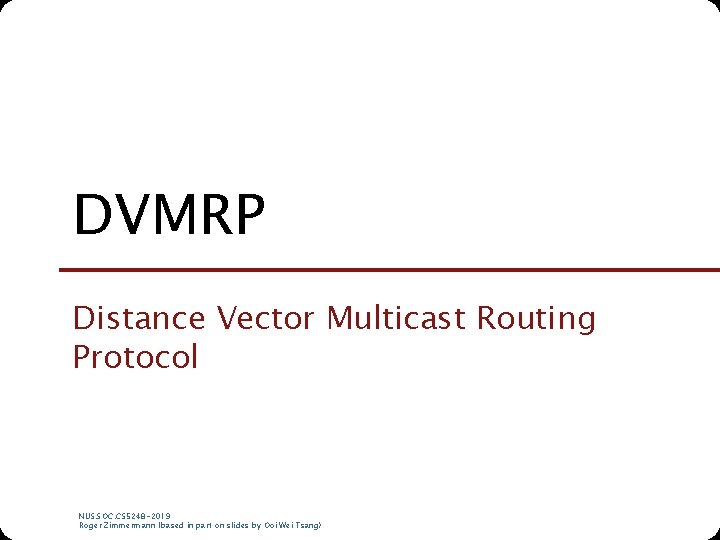

DVMRP Distance Vector Multicast Routing Protocol NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

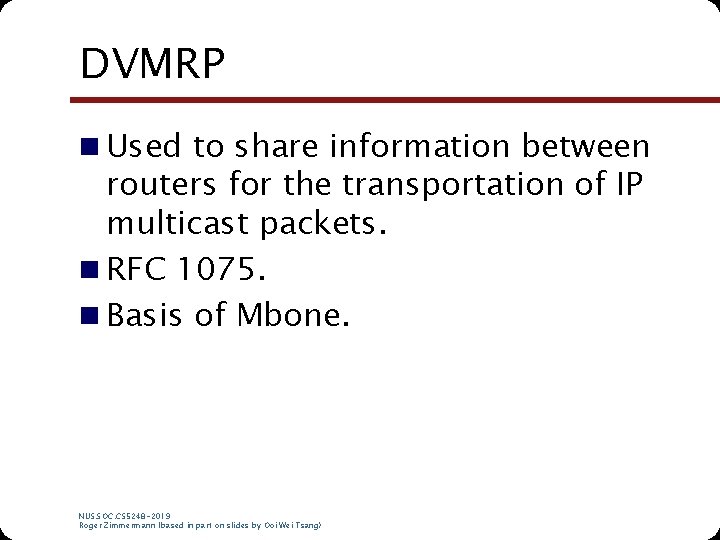

DVMRP n Used to share information between routers for the transportation of IP multicast packets. n RFC 1075. n Basis of Mbone. NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

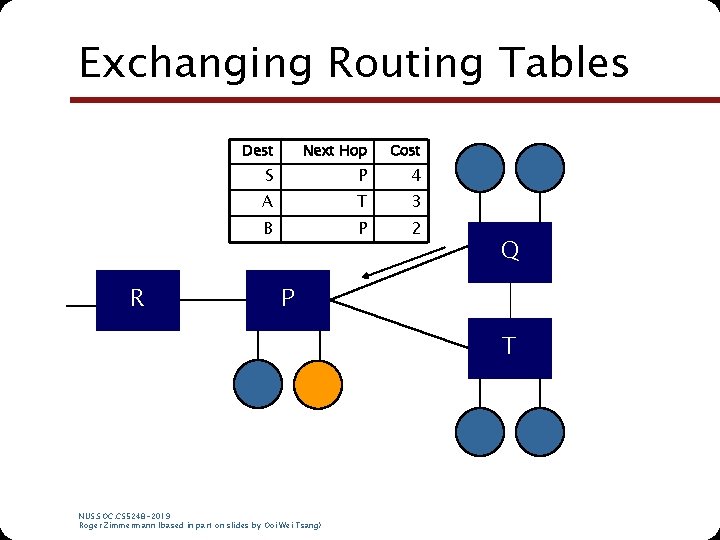

Exchanging Routing Tables R Dest Next Hop Cost S P 4 A T 3 B P 2 Q P T NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

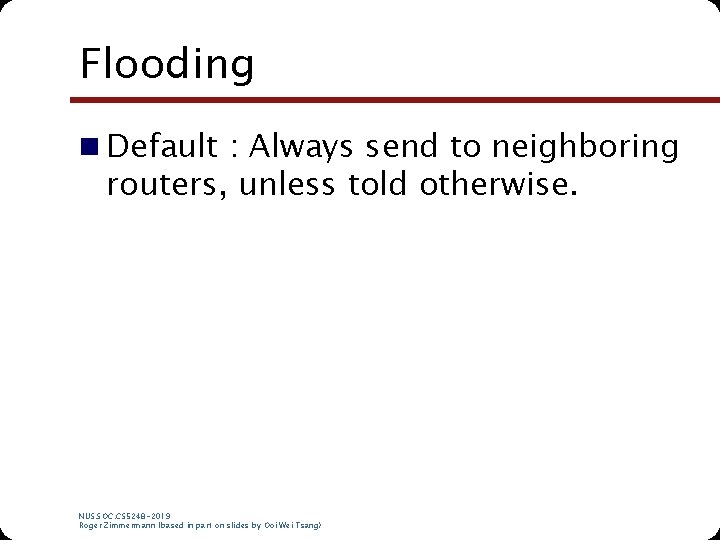

Flooding n Default : Always send to neighboring routers, unless told otherwise. NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

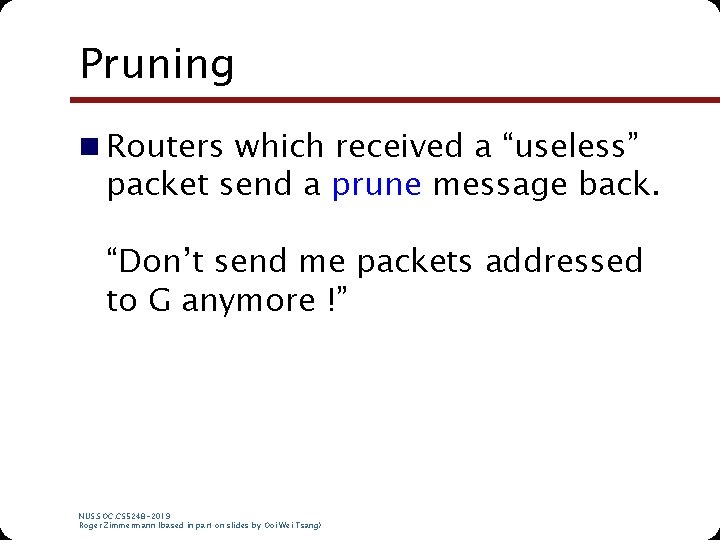

Pruning n Routers which received a “useless” packet send a prune message back. “Don’t send me packets addressed to G anymore !” NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

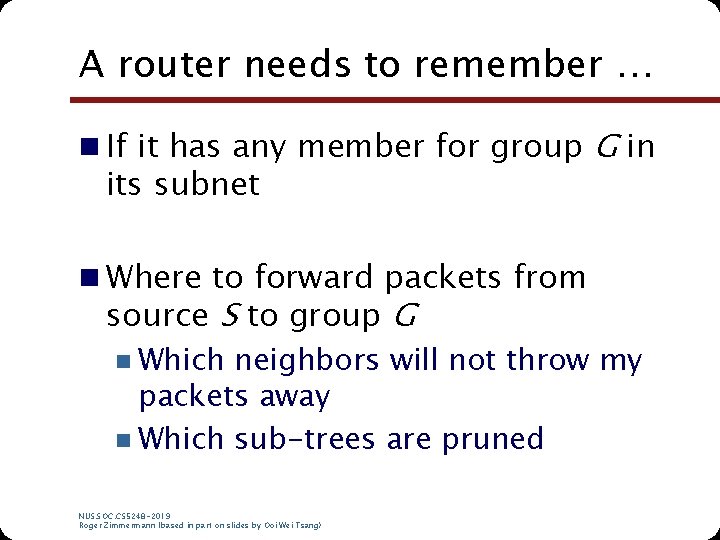

A router needs to remember … n If it has any member for group G in its subnet n Where to forward packets from source S to group G n Which neighbors will not throw my packets away n Which sub-trees are pruned NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

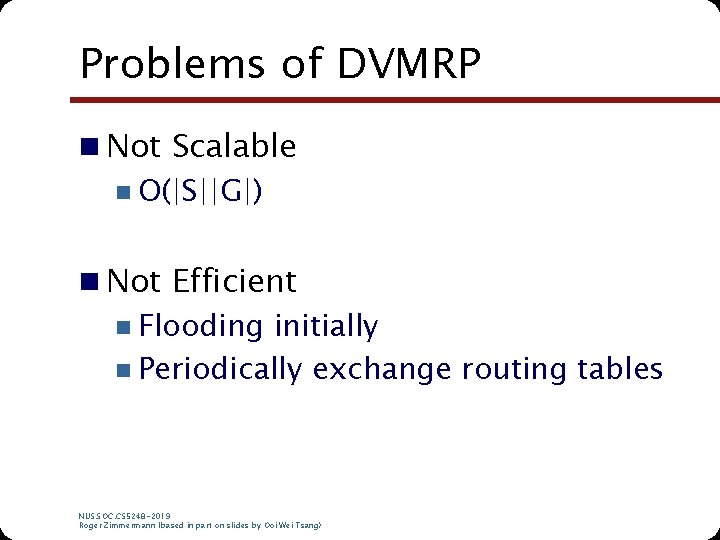

Problems of DVMRP n Not Scalable n O(|S||G|) n Not Efficient n Flooding initially n Periodically exchange routing tables NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

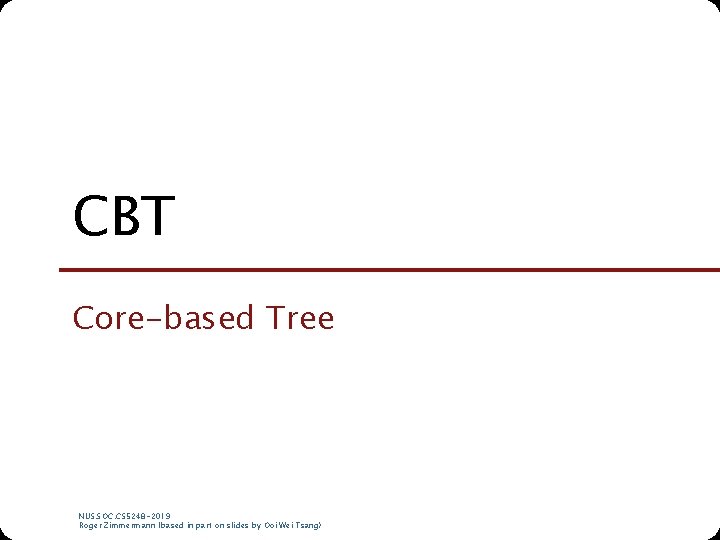

CBT Core-based Tree NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

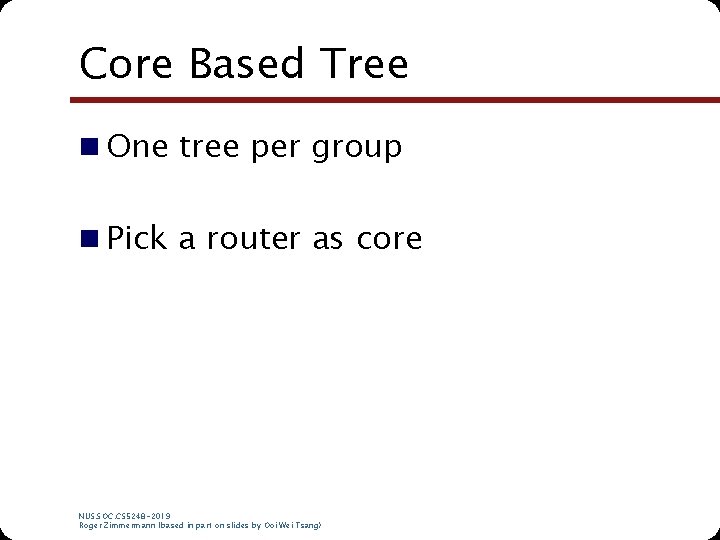

Core Based Tree n One tree per group n Pick a router as core NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

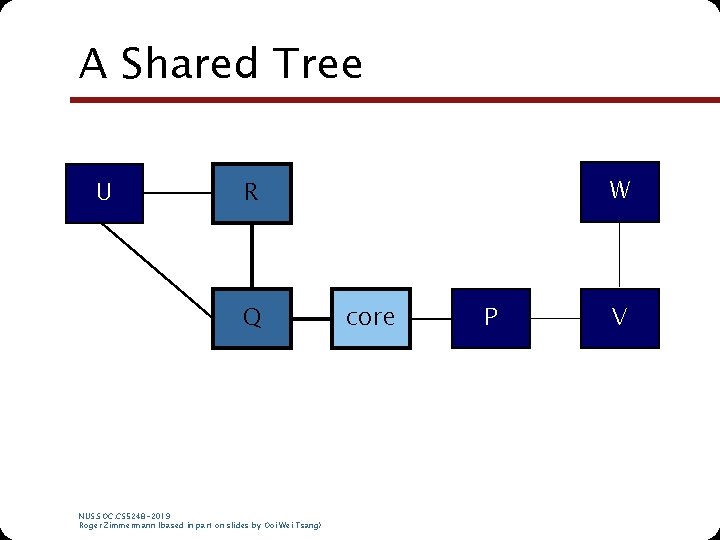

A Shared Tree U W R Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

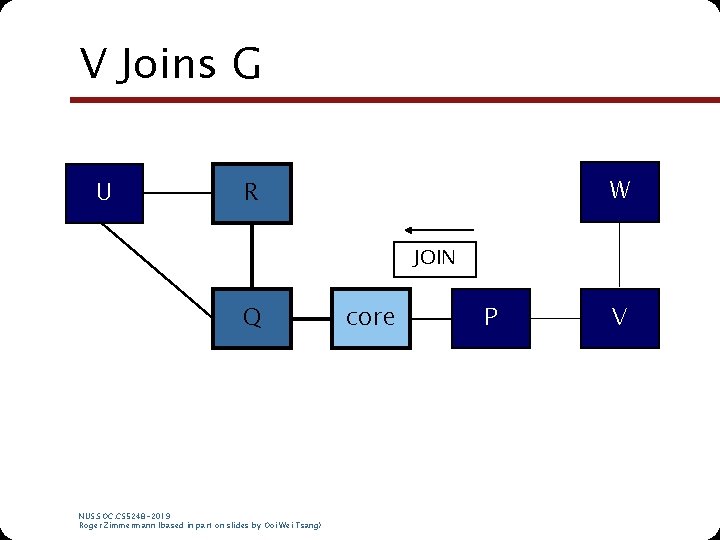

V Joins G U W R JOIN Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

V Joins G U W R JOIN Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

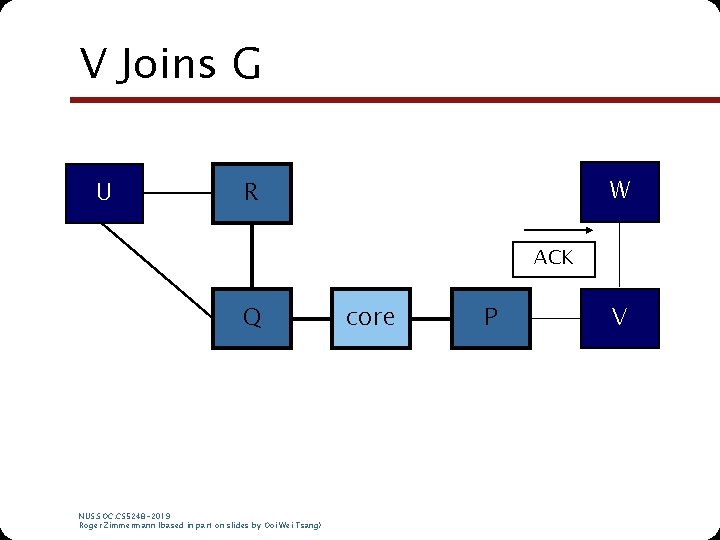

V Joins G U W R ACK Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

V Joins G U W R ACK Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

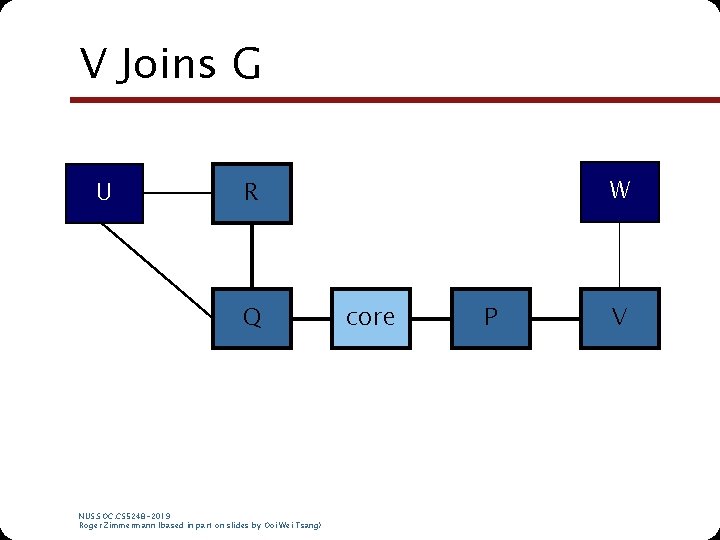

V Joins G U W R Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

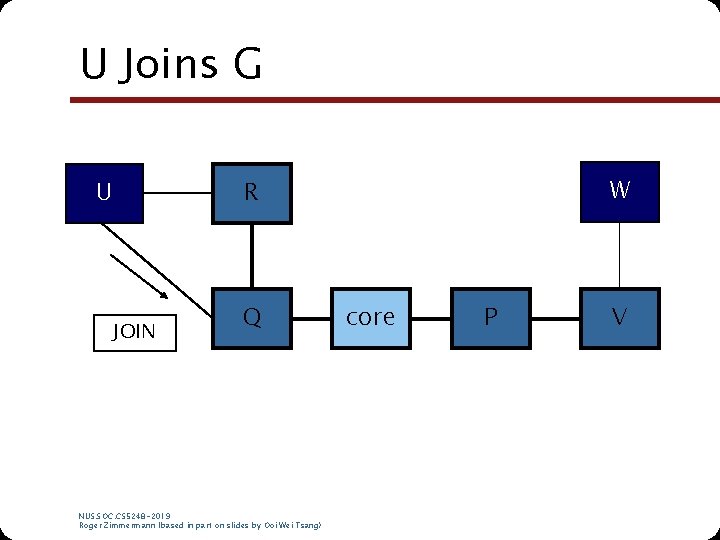

U Joins G U W R JOIN Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

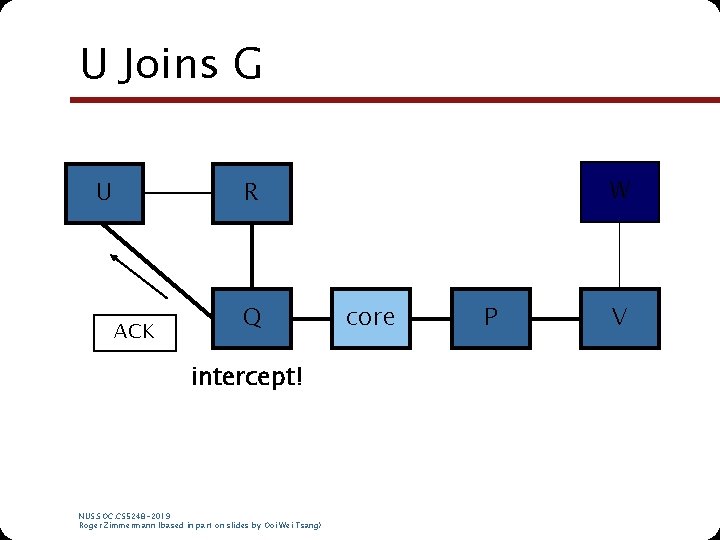

U Joins G U W R ACK Q intercept! NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

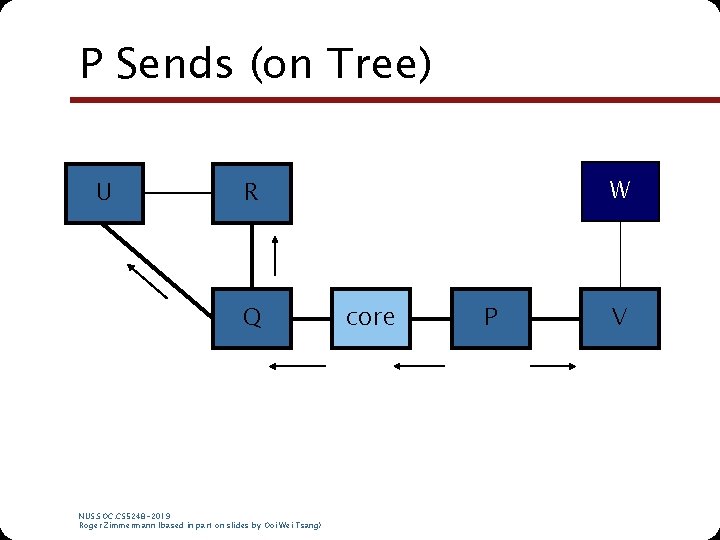

P Sends (on Tree) U W R Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

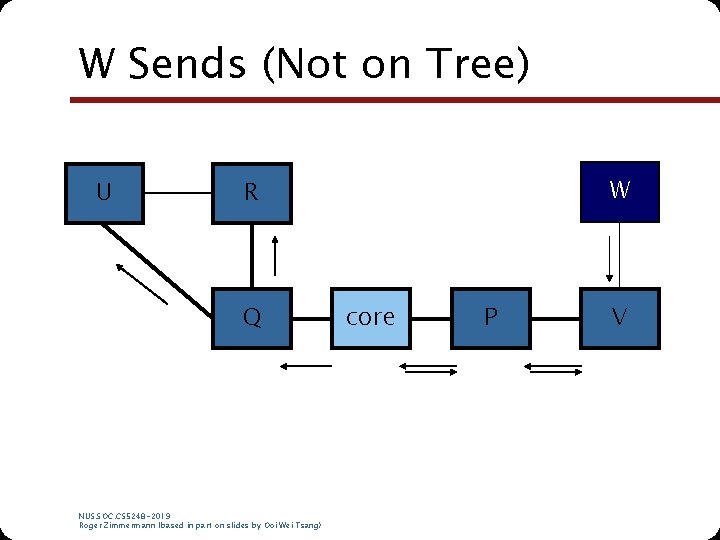

W Sends (Not on Tree) U W R Q NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) core P V

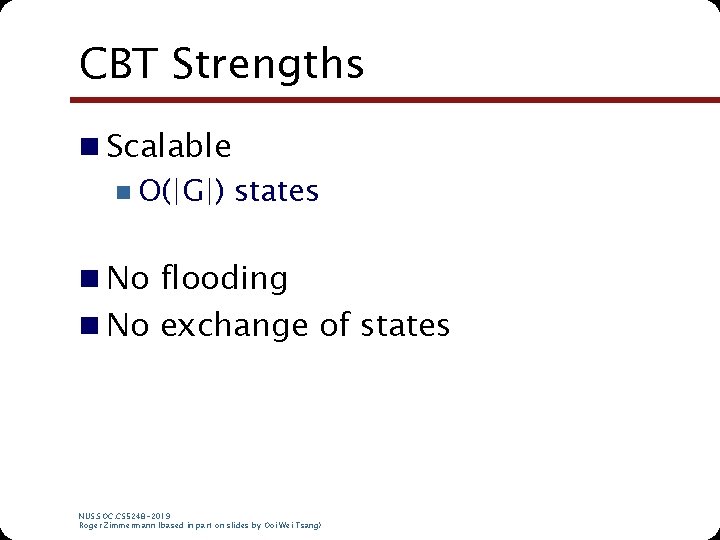

CBT Strengths n Scalable n O(|G|) states n No flooding n No exchange of states NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

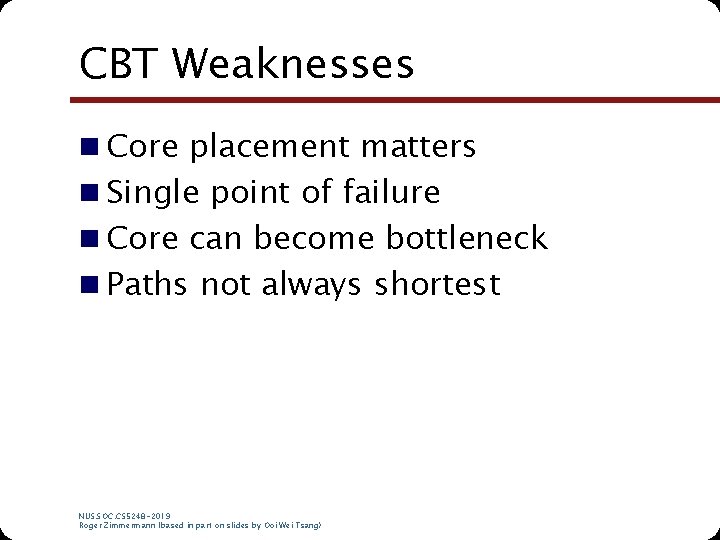

CBT Weaknesses n Core placement matters n Single point of failure n Core can become bottleneck n Paths not always shortest NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

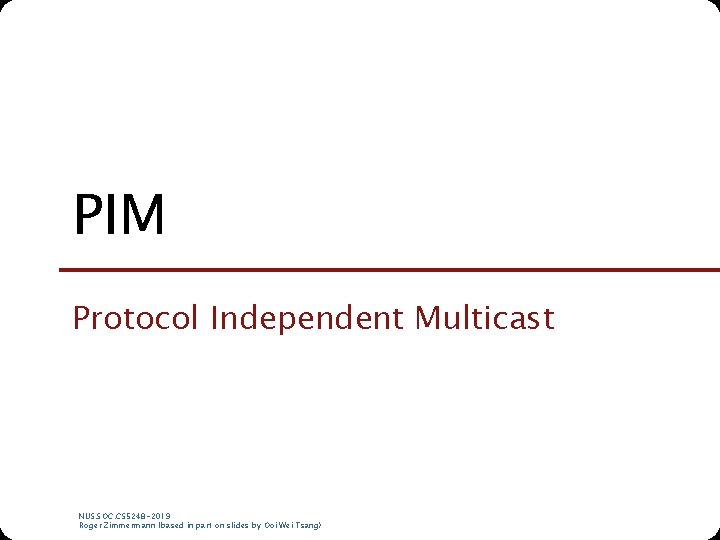

PIM Protocol Independent Multicast NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

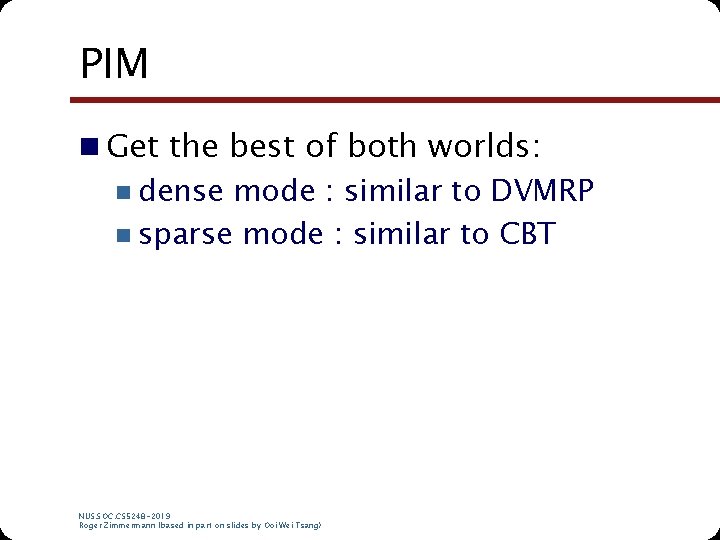

PIM n Get the best of both worlds: n dense mode : similar to DVMRP n sparse mode : similar to CBT NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

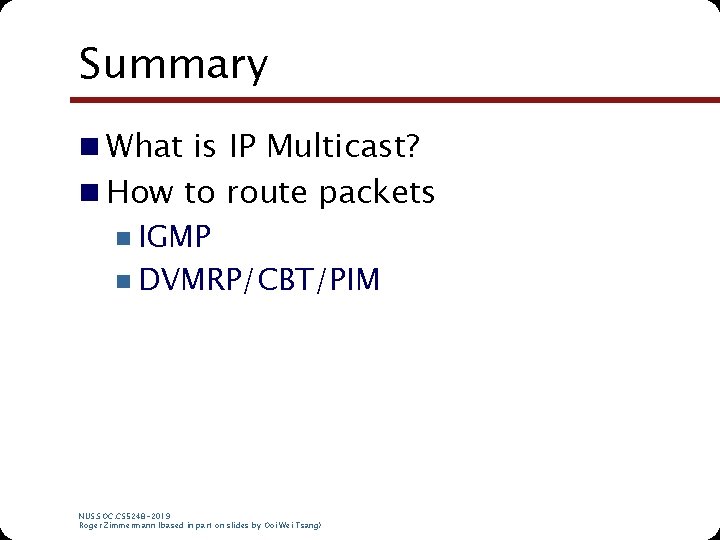

Summary n What is IP Multicast? n How to route packets n IGMP n DVMRP/CBT/PIM NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

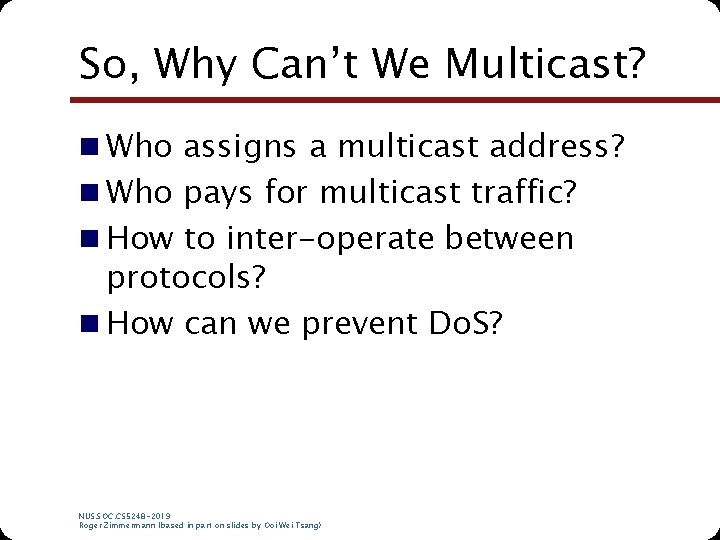

So, Why Can’t We Multicast? n Who assigns a multicast address? n Who pays for multicast traffic? n How to inter-operate between protocols? n How can we prevent Do. S? NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

Transport Layer NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

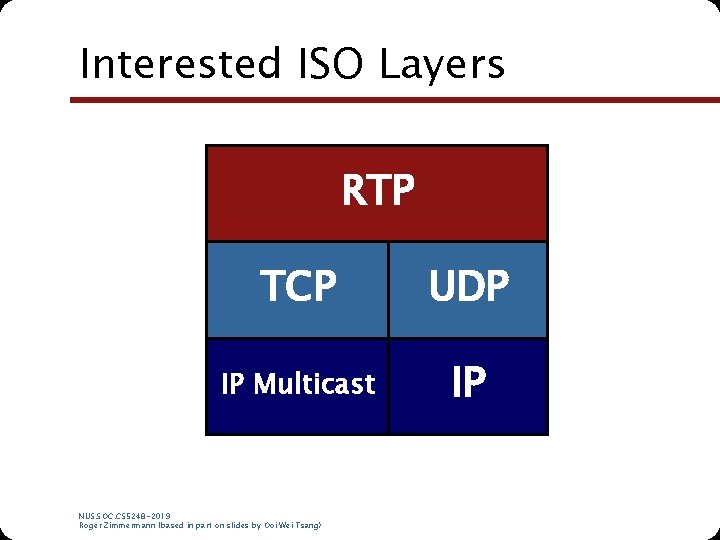

Interested ISO Layers RTP TCP UDP IP Multicast Network. IP NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

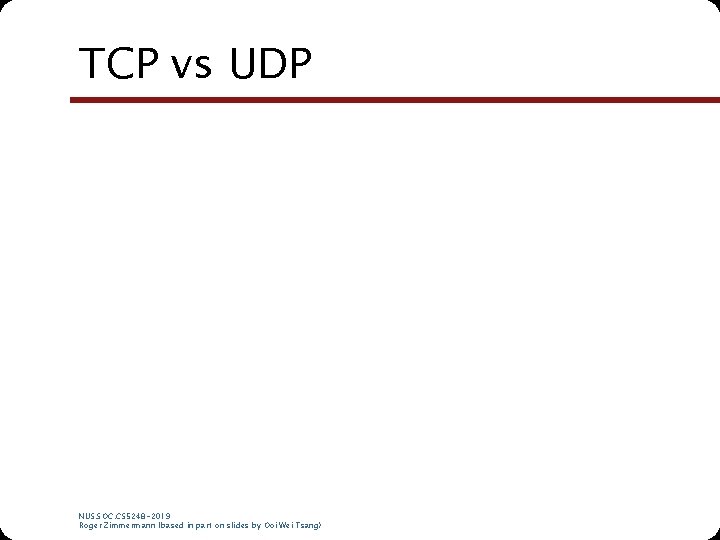

TCP vs UDP NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

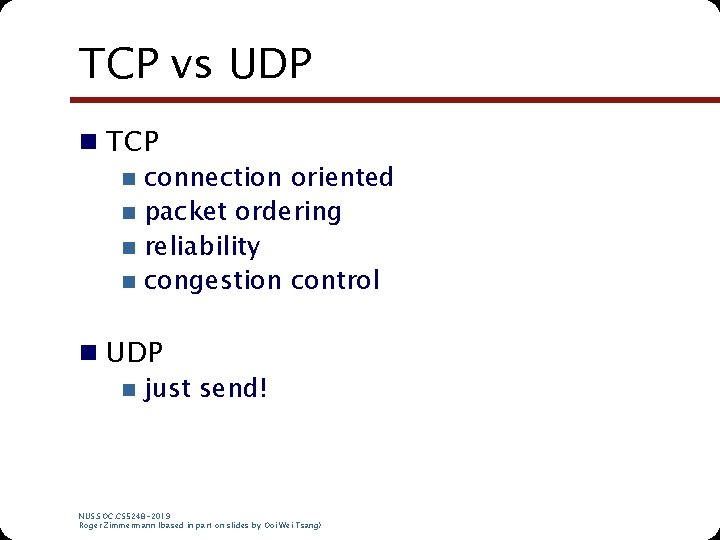

TCP vs UDP n TCP n connection oriented n packet ordering n reliability n congestion control n UDP n just send! NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

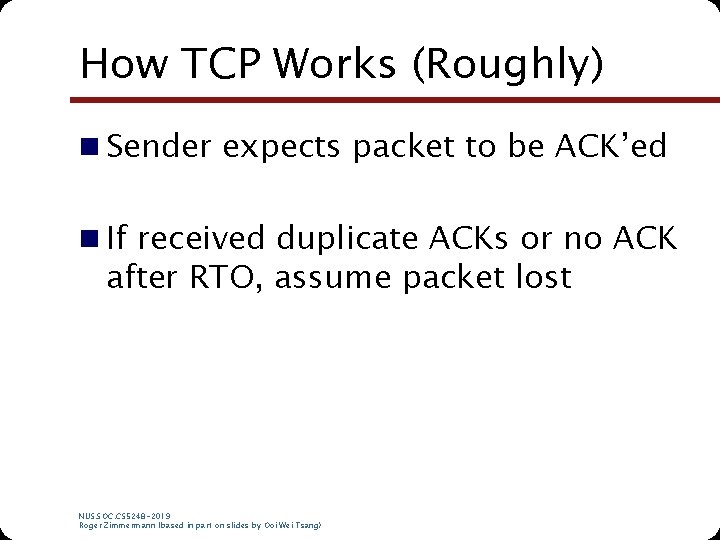

How TCP Works (Roughly) n Sender expects packet to be ACK’ed n If received duplicate ACKs or no ACK after RTO, assume packet lost NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

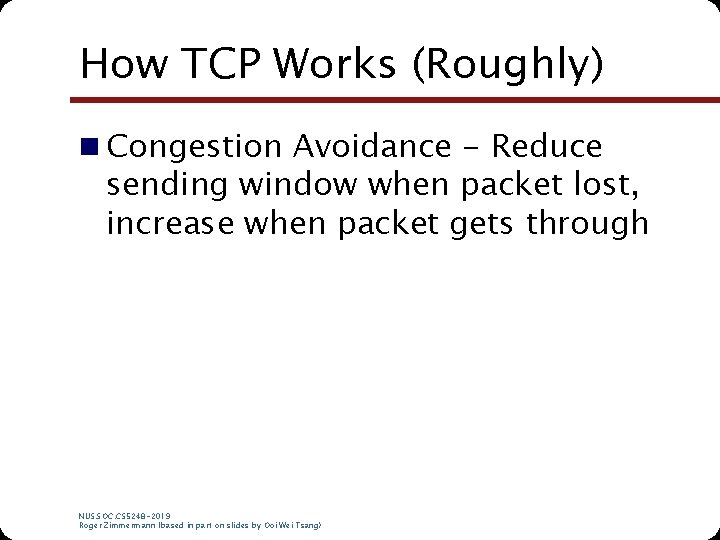

How TCP Works (Roughly) n Congestion Avoidance - Reduce sending window when packet lost, increase when packet gets through NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

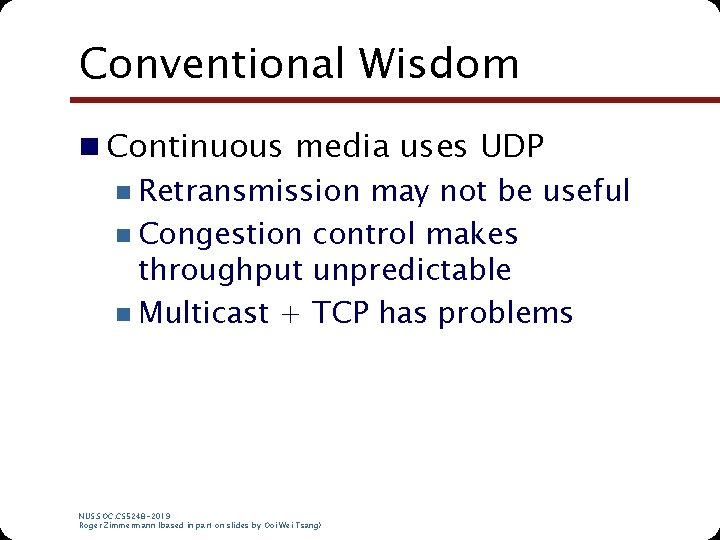

Conventional Wisdom n Continuous media uses UDP n Retransmission may not be useful n Congestion control makes throughput unpredictable n Multicast + TCP has problems NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

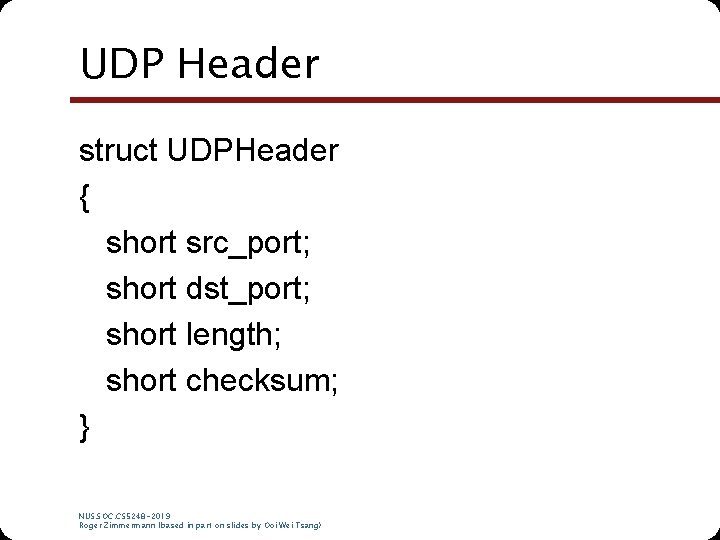

UDP Header struct UDPHeader { short src_port; short dst_port; short length; short checksum; } NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

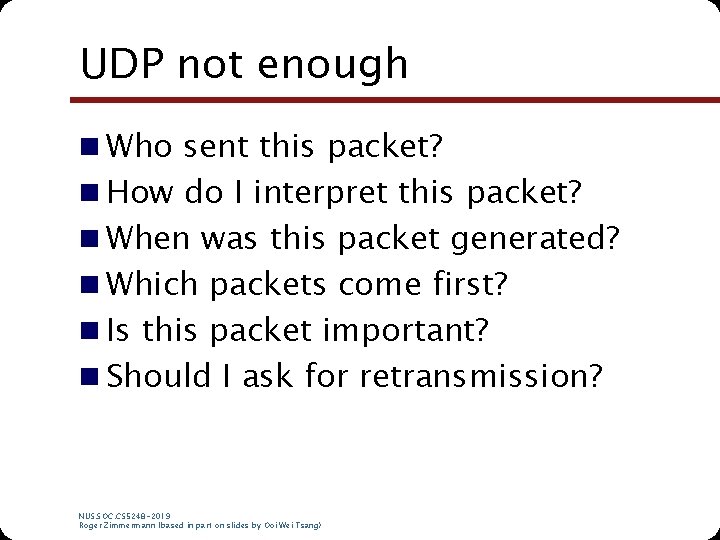

UDP not enough n Who sent this packet? n How do I interpret this packet? n When was this packet generated? n Which packets come first? n Is this packet important? n Should I ask for retransmission? NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

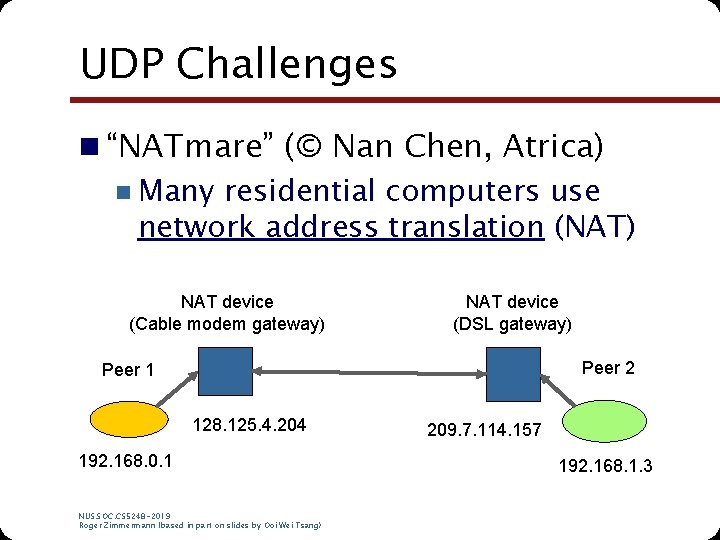

UDP Challenges n “NATmare” (© Nan Chen, Atrica) n Many residential computers use network address translation (NAT) NAT device (Cable modem gateway) NAT device (DSL gateway) Peer 2 Peer 1 128. 125. 4. 204 192. 168. 0. 1 NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang) 209. 7. 114. 157 192. 168. 1. 3

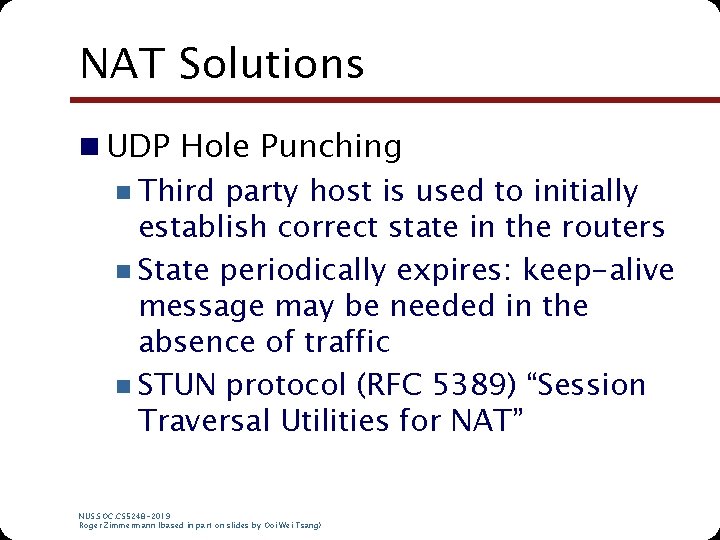

NAT Solutions n UDP Hole Punching n Third party host is used to initially establish correct state in the routers n State periodically expires: keep-alive message may be needed in the absence of traffic n STUN protocol (RFC 5389) “Session Traversal Utilities for NAT” NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

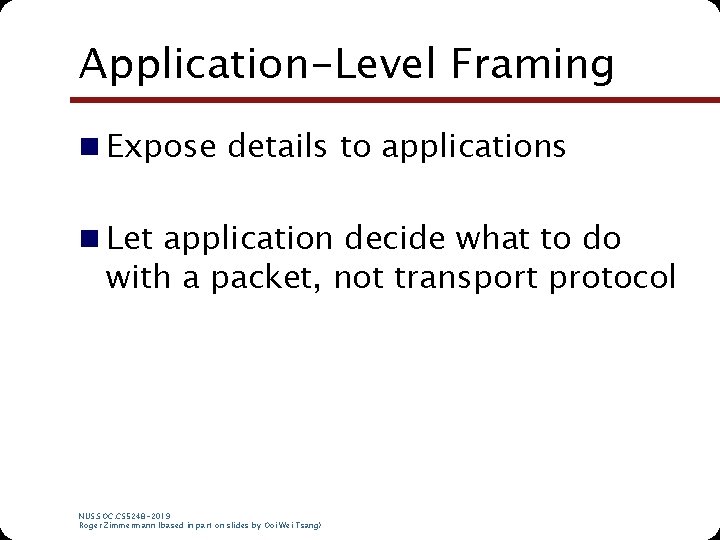

Application-Level Framing n Expose details to applications n Let application decide what to do with a packet, not transport protocol NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

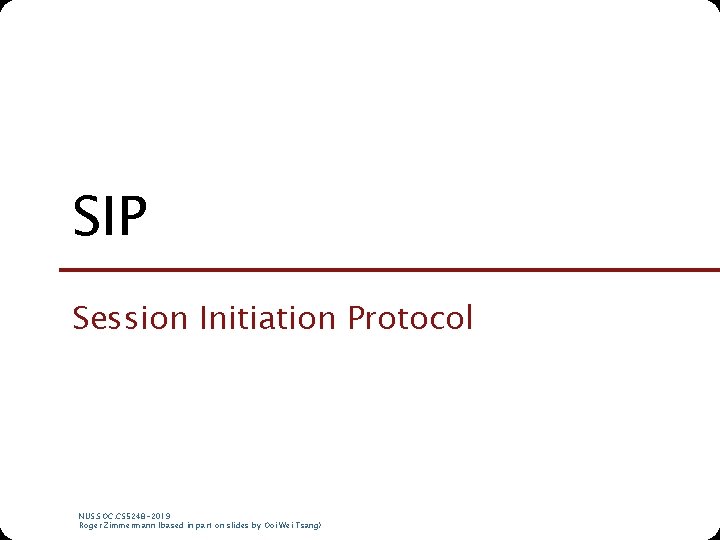

SIP Session Initiation Protocol NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)

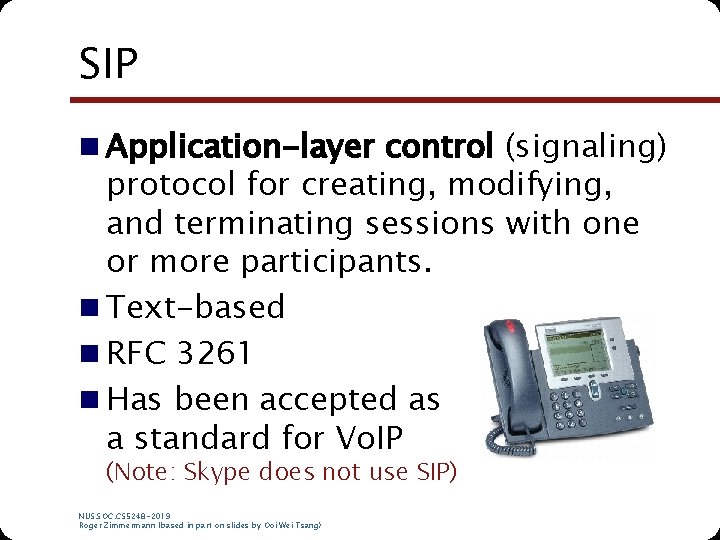

SIP n Application-layer control (signaling) protocol for creating, modifying, and terminating sessions with one or more participants. n Text-based n RFC 3261 n Has been accepted as a standard for Vo. IP (Note: Skype does not use SIP) NUS. SOC. CS 5248 -2019 Roger Zimmermann (based in part on slides by Ooi Wei Tsang)
